Racket Introduction CSC 270 Pepper major portions credited

Racket Introduction CSC 270 Pepper major portions credited to http: //learnxinyminutes. com/docs/racket/

What is Dr. Racket? • Racket – Full spectrum programming language with roots in functional programming which is a type of the declarative paradigm • Lisp / Scheme • Formerly called PLT Scheme • Objects, types, laziness, macros, new syntax builder • Dr. Racket – Integrated Development Environment

Declarative vs Imperative Declarative • What not how • Language can figure out how when you tell it what • No side effects – • No mutatable variables • Express data flow Imperative • Commands manipulate state of system and variables. • Many side effects • Mutable variables • Control flow

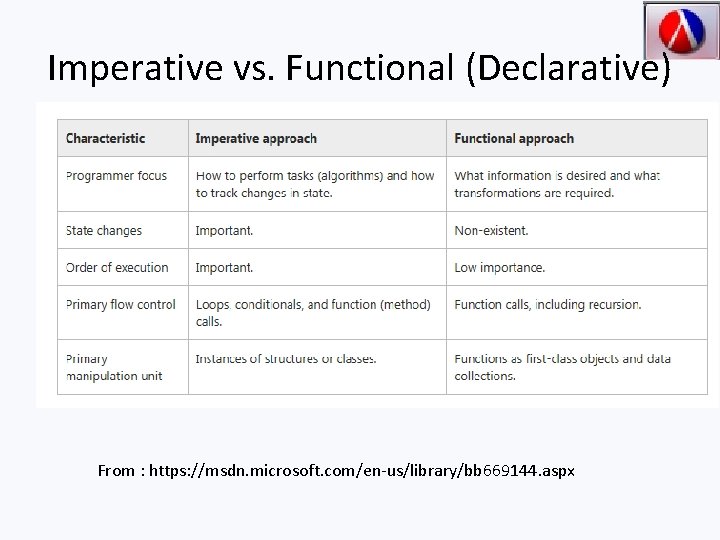

Imperative vs. Functional (Declarative) From : https: //msdn. microsoft. com/en-us/library/bb 669144. aspx

Contrast: Imperative Types • Pure Imperative – SQL Data Manip Lang (DML : insert, update, delete) • Procedural – Exactly how algorithms – First do this and next do that –C • Object Oriented – Manipulate objects through predefined methods – Classes – Send messages between objects – C++, Java

Another Functional Language: Excel • Formulas express data flow • Command sequence is not a consideration when coding Excel formulas • Cells hold one target value – changing inputs will change the value, but you never do anything with its value over time.

Declarative types • Logic: Relationships defined in terms of inference rules – Prolog • Functional: Relationships defined in terms of functions – Haskell, – Subset of Racket – Subset of F# – Excel • Domain specific – Regular Expressions – SQL Select

Some Functional Advantages • Readability and Maintainability – One task and no reliance on an external state • Refactoring – Because the insides of the function do not effect anything outside itself, as long as the output is the same, refactoring is fine • Testing – Tested in isolation

Racket Strengths • Language syntax builder • Continuations (capture future value of a computation and pass it around) • Dynamic typing • Manages its own memory • Function creation on the fly (lambda) • Function closure – Can pass it like an object – Remembers variable values of creation time scope

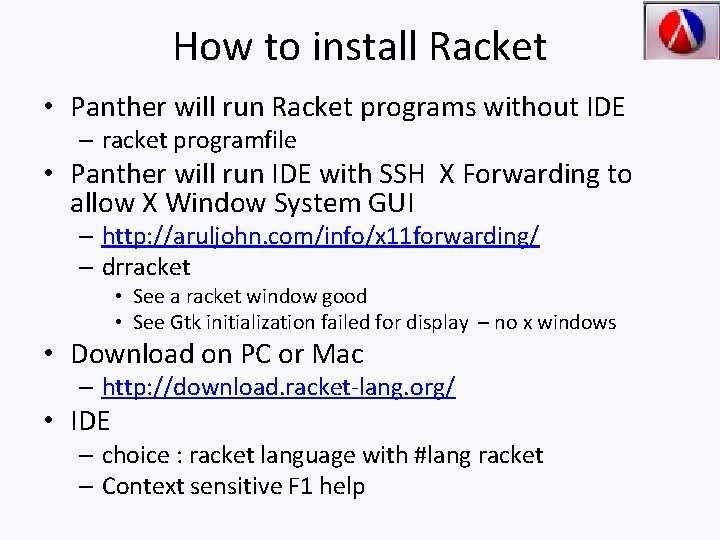

How to install Racket • Panther will run Racket programs without IDE – racket programfile • Panther will run IDE with SSH X Forwarding to allow X Window System GUI – http: //aruljohn. com/info/x 11 forwarding/ – drracket • See a racket window good • See Gtk initialization failed for display – no x windows • Download on PC or Mac – http: //download. racket-lang. org/ • IDE – choice : racket language with #lang racket – Context sensitive F 1 help

Hello Racket • Program #lang racket "Hello Racket" • Save as hello. rkt – IDE: File / save definition • Running the program – IDE : run button – Panther without xterm: racket hello. rkt

Hello Racket with a defined variable #lang racket (define hellovar "Hello Racket again") Hellovar • Notice that a variable is defined inside parentheses • All commands inside parentheses

Hello Racket With a Function #lang racket (define (sayhi ) "Hello from the function") (sayhi) • Notice how the function call is in () • Notice the function definition syntax used here: (define (function name ) (stuff function does)) – Balanced parentheses

Comments • Block comments: #| … |# • Single comments: ; #lang racket ; define a function called sayhi (define (sayhi ) "Hello from the function") ; and now call it (sayhi)

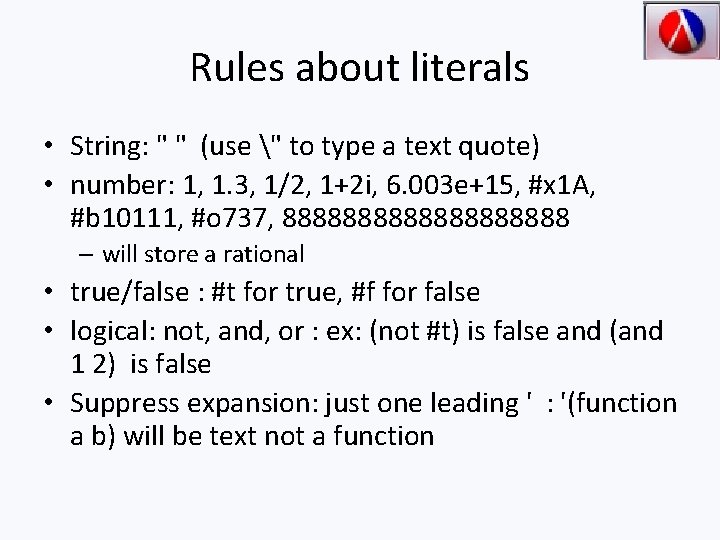

Rules about literals • String: " " (use " to type a text quote) • number: 1, 1. 3, 1/2, 1+2 i, 6. 003 e+15, #x 1 A, #b 10111, #o 737, 8888888888 – will store a rational • true/false : #t for true, #f for false • logical: not, and, or : ex: (not #t) is false and (and 1 2) is false • Suppress expansion: just one leading ' : '(function a b) will be text not a function

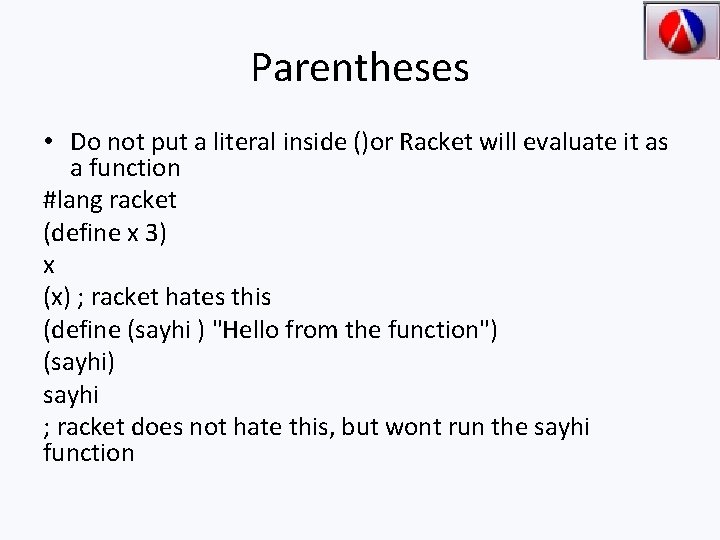

Parentheses • Do not put a literal inside ()or Racket will evaluate it as a function #lang racket (define x 3) x (x) ; racket hates this (define (sayhi ) "Hello from the function") (sayhi) sayhi ; racket does not hate this, but wont run the sayhi function

Variable use ; Define for the program (define x "outside") ; Define locally (let ([x "inside"]) x) ; displays "inside" x ; displays "outside" ; Define function argument (define (myfunc num) (+ num 3)) ; (myfunc 4) ; displays 7 ; Change a variable (let's avoid it) (set! x 8) x; displays 8

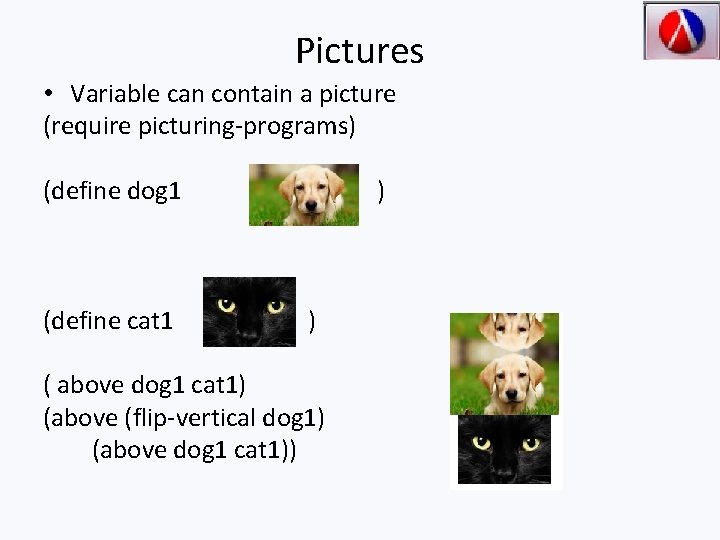

Pictures • Variable can contain a picture (require picturing-programs) (define dog 1 (define cat 1 ) ) ( above dog 1 cat 1) (above (flip-vertical dog 1) (above dog 1 cat 1))

Variables Rules Summary • definition: (define varname value) – example: (define x 3) • use: just use the name; example: x • define locally inside a let expression: (let ([varname value]) expression ) – use let * if you want to use the first set of variables to define another set • use a variable: just the name - do not put a variable inside () or Racket will evaluate it as a function • change a variable – let's avoid it: (set! varname value) example: (set! n (add 1 n))

Arithmetic: All arithmetic is a function syntax: ( operator operand#1 operand#2) operators: +, -, /, *, expt, quotient, remainder, special operators: exact->inexact (from rational to real), gcd, lcm (+ 1 2) (/ 5 2) ; not integer division! (expt 2 3) ; 2 to the 3 rd power (remainder 11 3) ; • •

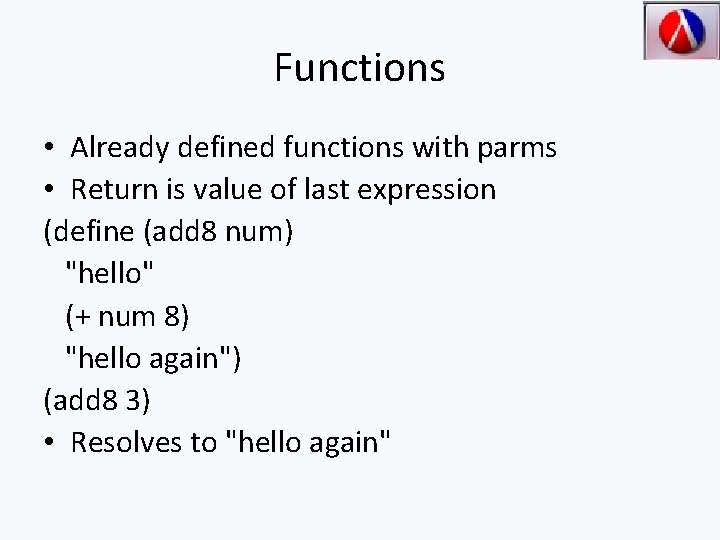

Functions • Already defined functions with parms • Return is value of last expression (define (add 8 num) "hello" (+ num 8) "hello again") (add 8 3) • Resolves to "hello again"

Simulate Excel • Define 2 cells, one for income and one for deductions • Define another cell that represents your gross income (income – deduction) • Define another cell that represents your taxes at 30%

Booleans • #t is true; #f is false • = or eq? are functions – Use = for numbers only (= 3 3. 0) will be #t (eq? 3 3. 0) will be #f (eq? "abc") will be #t (not (eq? "abc" "def")) will be #t <, > , <=, >=,

Decision - Cond (cond [ (= 1 x) (add 1 x) ] [ (= 2 x) (+ x 4) ] [ else (+ x 6 ) ] ) • 2 when x = 1; • 6 when x = 2 • 13 when x = 7

Random (random 6) ; gives 0 to 5 (+ (random 6 ) 1 ) gives a dice value Create a throw dice function that rolls 2 dice and returns the total. What are your inputs? What is your output? What is your function name? No need to display the individual dice

Dice Roll (define (roll ) ( + (+ (random 6 ) 1) )) (roll)

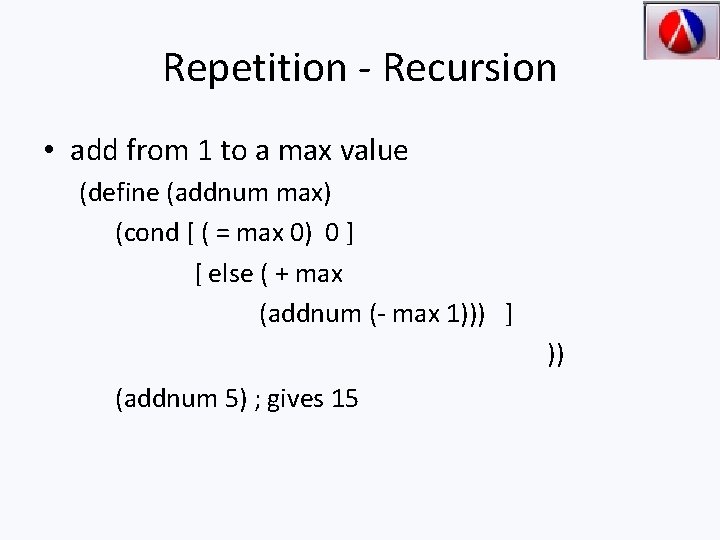

Repetition - Recursion • add from 1 to a max value (define (addnum max) (cond [ ( = max 0) 0 ] [ else ( + max (addnum (- max 1))) ] )) (addnum 5) ; gives 15

Recursion Thought Process • 1) What is true about the problem? (truth statements will end up in your code) • 2) What are the base cases? (small simple truths - adding up 0 numbers yields 0) • 3) What are you taking in and what is being returned ? ( give a max and get a total) • 4) Make some samples: – Addnum(0) should give 0 – Addnum(1) should give 1 – Addnum(2) should give 3 – Addnum(3) should give 6 – Addnum(4) should give 10

Test Cases before coding (require test-engine/racket-tests) ; ; addnum function adds from 1 to a max argument ; ; input max number ; ; output total of 1 to argument (define (addnum 0) 0) (require test-engine/racket-tests) (check-expect (addnum 0 ) 0) (check-expect (addnum 1 ) 1) (check-expect (addnum 3 ) 6) (check-expect (addnum 4 ) 10) (check-expect (addnum 10 ) 55) (check-expect (addnum -1 ) 0) (test)

Coding the recursion • Define the function without a body giving names to input arguments (define (addnum ) ) • Fill in the body with a cond (cond [ ( ) ] [ else ]) • Put the base case into the first condition (cond [ ( num <= 0 ) 0 ] [ else ])

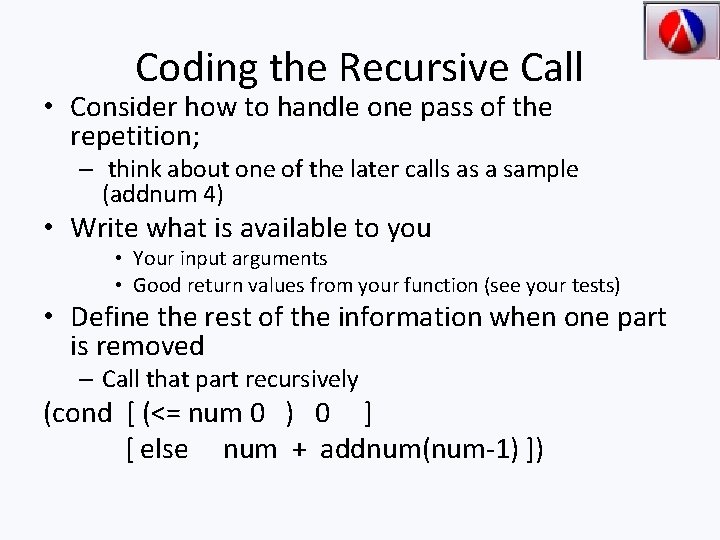

Coding the Recursive Call • Consider how to handle one pass of the repetition; – think about one of the later calls as a sample (addnum 4) • Write what is available to you • Your input arguments • Good return values from your function (see your tests) • Define the rest of the information when one part is removed – Call that part recursively (cond [ (<= num 0 ) 0 ] [ else num + addnum(num-1) ])

Summary • • Define Functional Programming Declarative vs Imperative paradigms How to enter literals Create and use variables Create and use functions Decisions Recursive functions Parentheses, Parentheses
