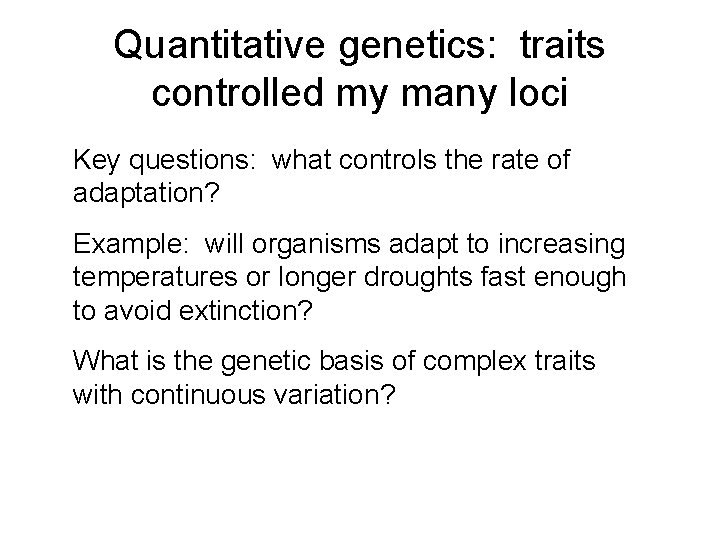

Quantitative genetics: traits controlled my many loci Key questions: what controls the rate of

Quantitative genetics: traits controlled my many loci Key questions: what controls the rate of adaptation? Example: will organisms adapt to increasing temperatures or longer droughts fast enough to avoid extinction? What is the genetic basis of complex traits with continuous variation?

Quantitative genetics vs. population genetics

Quantitative genetics vs. population genetics

Population genetics

Population genetics

Quantitative genetics

Quantitative genetics

Breeder’s equation: R = h 2 S

Breeder’s equation: R = h 2 S

Polygenic Inheritance Leads to a Quantitative Trait TRAIT A B C D Z 1

Polygenic Inheritance Leads to a Quantitative Trait TRAIT A B C D Z 1 # of individuals LOCUS Z E F

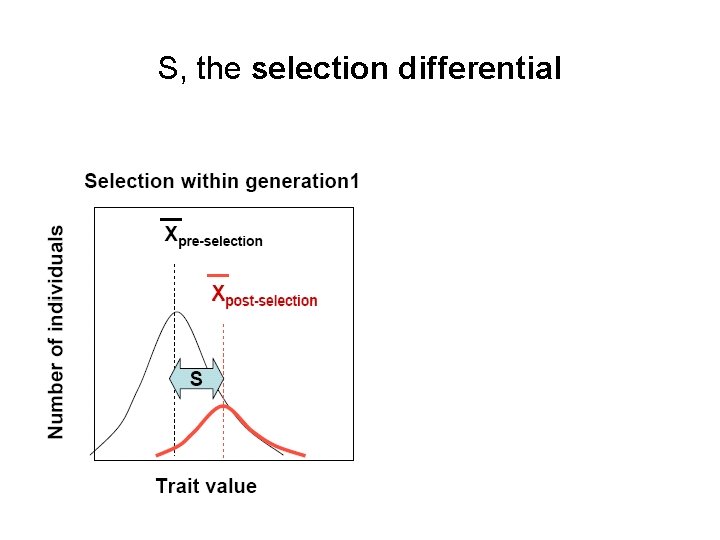

S, the selection differential

S, the selection differential

R, the selection response,

R, the selection response,

Problems in predicting the evolution of quantitative traits - Dominance Epistasis Environmental effects

Problems in predicting the evolution of quantitative traits - Dominance Epistasis Environmental effects

Environment alters gene expression - epigenetics yellow: no difference; red or green = difference

Environment alters gene expression - epigenetics yellow: no difference; red or green = difference age 3 age 50

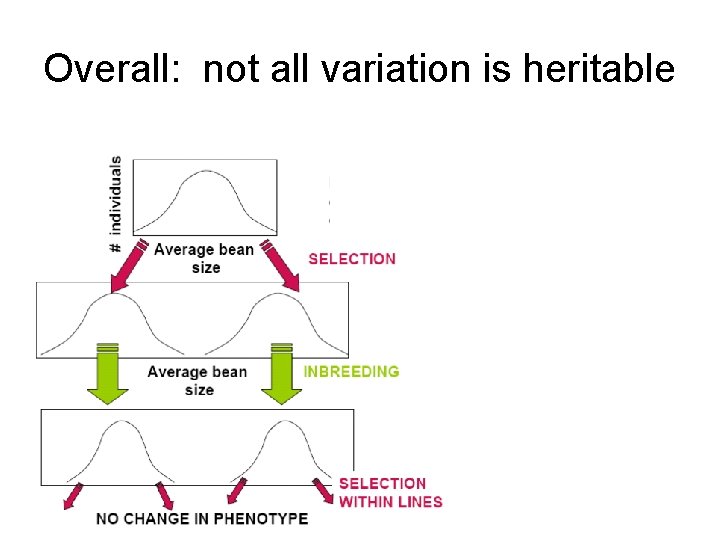

Overall: not all variation is heritable

Overall: not all variation is heritable

Major questions in quantitative genetics • How much phenotypic variation is due to genes,

Major questions in quantitative genetics • How much phenotypic variation is due to genes, and how much to the environment? • How much of the genetic variation is due to genes of large effect, and how much to genes of small effect?

Measuring heritability Variance: _ Vp= Σi (Xi – X)2 ------- (N – 1)

Measuring heritability Variance: _ Vp= Σi (Xi – X)2 ------- (N – 1)

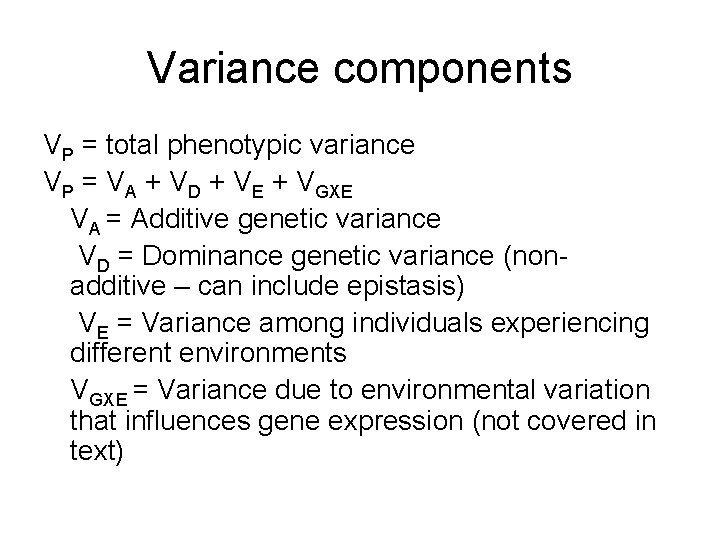

Variance components VP = total phenotypic variance VP = VA + VD + VE

Variance components VP = total phenotypic variance VP = VA + VD + VE + VGXE VA = Additive genetic variance VD = Dominance genetic variance (non- additive – can include epistasis) VE = Variance among individuals experiencing different environments VGXE = Variance due to environmental variation that influences gene expression (not covered in text)

Heritability = h 2 = VA / VP The proportion of phenotypic variance due

Heritability = h 2 = VA / VP The proportion of phenotypic variance due to additive genetic variance among individuals h 2 = VA / (VA + VD + VE + VGXE) Heritability can be low due to:

Additive vs. dominance variance Additive: heterozygote is intermediate Dominance: heterozygote is closer to one

Additive vs. dominance variance Additive: heterozygote is intermediate Dominance: heterozygote is closer to one homozygote (Difference from line is due to dominance)

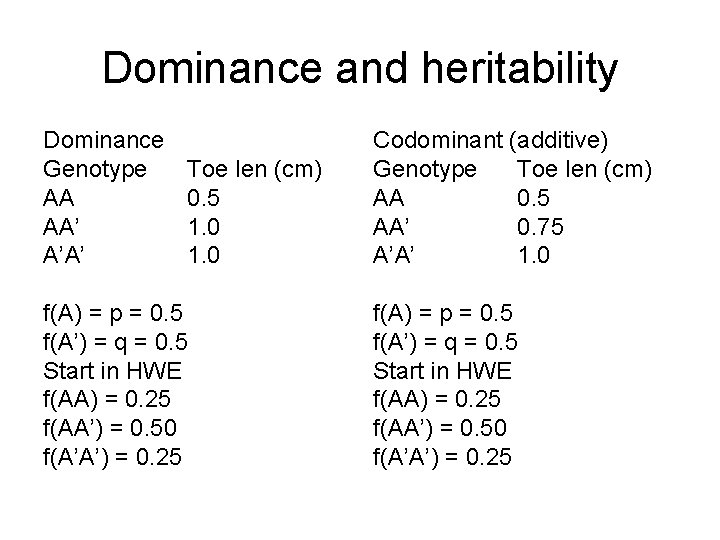

Dominance and heritability Dominance Genotype AA AA’ A’A’ Toe len (cm) 0. 5 1.

Dominance and heritability Dominance Genotype AA AA’ A’A’ Toe len (cm) 0. 5 1. 0 f(A) = p = 0. 5 f(A’) = q = 0. 5 Start in HWE f(AA) = 0. 25 f(AA’) = 0. 50 f(A’A’) = 0. 25 Codominant (additive) Genotype Toe len (cm) AA 0. 5 AA’ 0. 75 A’A’ 1. 0 f(A) = p = 0. 5 f(A’) = q = 0. 5 Start in HWE f(AA) = 0. 25 f(AA’) = 0. 50 f(A’A’) = 0. 25

Dominance and heritability II Dominance Codominant (additive) Starting Genotype frequencies Genotype Mean = 0.

Dominance and heritability II Dominance Codominant (additive) Starting Genotype frequencies Genotype Mean = 0. 875 cm Phenotype (toe len – cm) Genotype Starting Phenotype frequencies Mean = 0. 75 cm Phenotype (toe len – cm)

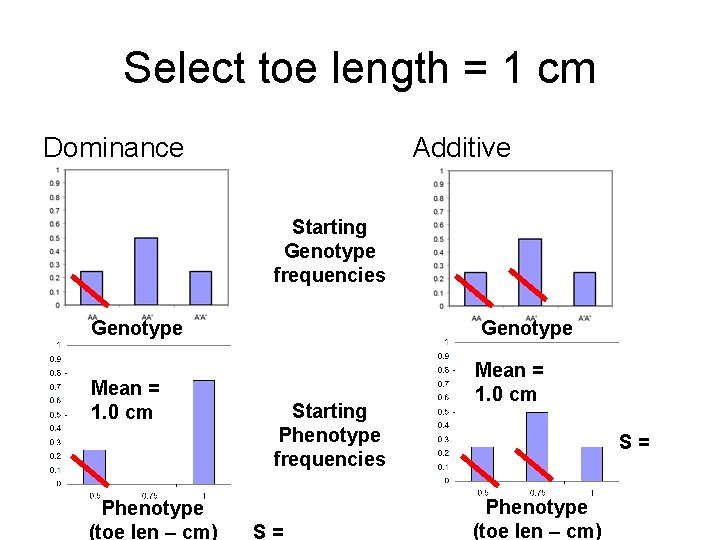

Select toe length = 1 cm Dominance Additive Starting Genotype frequencies Genotype Mean =

Select toe length = 1 cm Dominance Additive Starting Genotype frequencies Genotype Mean = 1. 0 cm Phenotype (toe len – cm) Genotype Starting Phenotype frequencies S = Mean = 1. 0 cm S = Phenotype (toe len – cm)

Effects of dominance: genotypes after random mating Dominance Codominant (additive) Genotype freq after selection,

Effects of dominance: genotypes after random mating Dominance Codominant (additive) Genotype freq after selection, before mating Genotype freq after mating Genotype

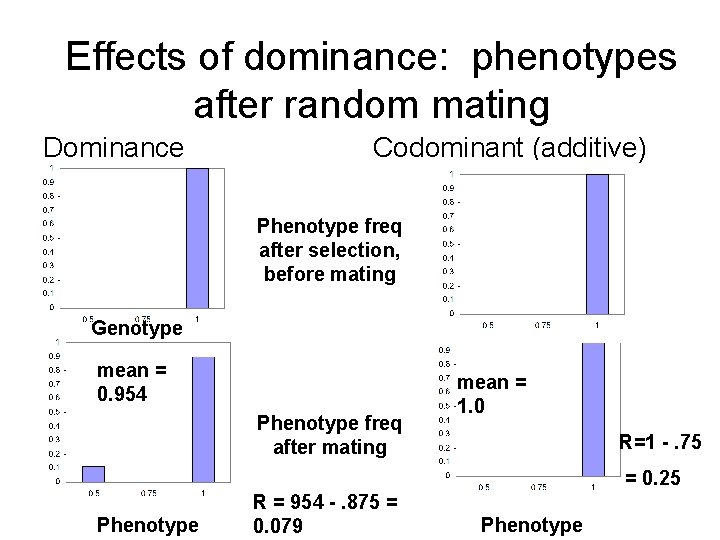

Effects of dominance: phenotypes after random mating Dominance Codominant (additive) Phenotype freq after selection,

Effects of dominance: phenotypes after random mating Dominance Codominant (additive) Phenotype freq after selection, before mating Genotype mean = 0. 954 Phenotype freq after mating mean = 1. 0 R=1 -. 75 = 0. 25 Phenotype R = 954 -. 875 = 0. 079 Phenotype

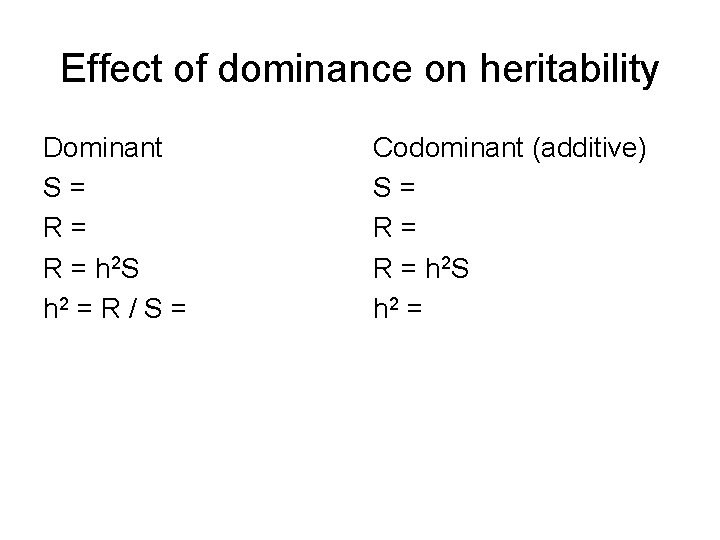

Effect of dominance on heritability Dominant S = R = h 2 S h

Effect of dominance on heritability Dominant S = R = h 2 S h 2 = R / S = Codominant (additive) S = R = h 2 S h 2 =

Second problem predicting outcome of selection: epistasis Example: hair color in mammals MC 1

Second problem predicting outcome of selection: epistasis Example: hair color in mammals MC 1 agouti Agouti is antagonist for MC 1 R. If agouti binds, no dark pigment MC 1 -receptor produced

Second problem predicting outcome of selection: epistasis Epistasis MC 1 agouti MC 1 -receptor

Second problem predicting outcome of selection: epistasis Epistasis MC 1 agouti MC 1 -receptor Normal receptor Mutant: never Mutant: always dark pigment (yellow labs)

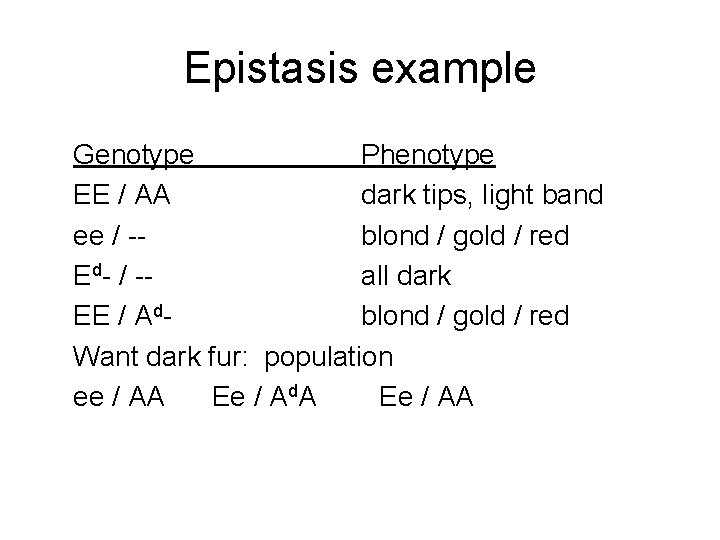

Epistasis example Genotype Phenotype EE / AA dark tips, light band ee / -blond

Epistasis example Genotype Phenotype EE / AA dark tips, light band ee / -blond / gold / red d E - / -all dark EE / Adblond / gold / red Want dark fur: population ee / AA Ee / Ad. A Ee / AA

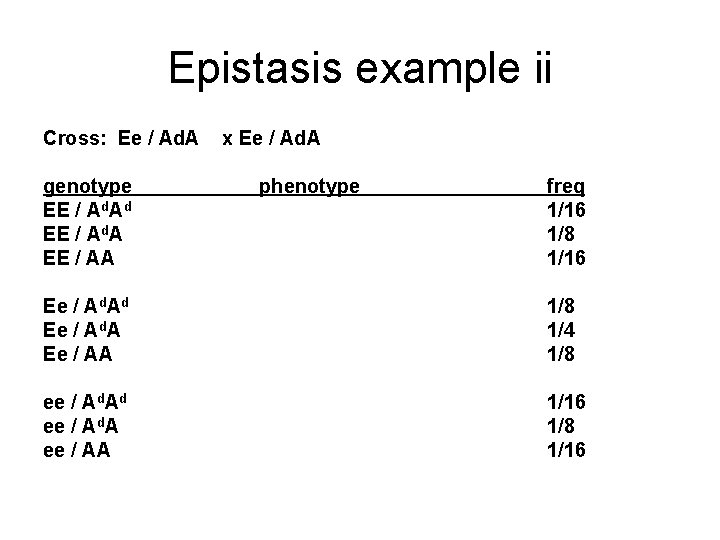

Epistasis example ii Cross: Ee / Ad. A x Ee / Ad. A genotype

Epistasis example ii Cross: Ee / Ad. A x Ee / Ad. A genotype phenotype EE / Ad. Ad EE / Ad. A EE / AA Ee / Ad. Ad Ee / Ad. A Ee / AA ee / Ad. Ad ee / Ad. A ee / AA freq 1/16 1/8 1/4 1/8 1/16

Measuring h 2: Parent-offspring regression

Measuring h 2: Parent-offspring regression

Estimating h 2 Analysis of related individuals Measuring the response of a population, in

Estimating h 2 Analysis of related individuals Measuring the response of a population, in the next generation, to selection

Heritability is estimated as the slope of the least-squares regression line

Heritability is estimated as the slope of the least-squares regression line

h 2 data: Darwin’s finches

h 2 data: Darwin’s finches

h 2 example: Darwin’s finches mean before selection: 9. 4 mean after selection: 10.

h 2 example: Darwin’s finches mean before selection: 9. 4 mean after selection: 10. 1 S = 10. 1 - 9. 4 = 0. 7

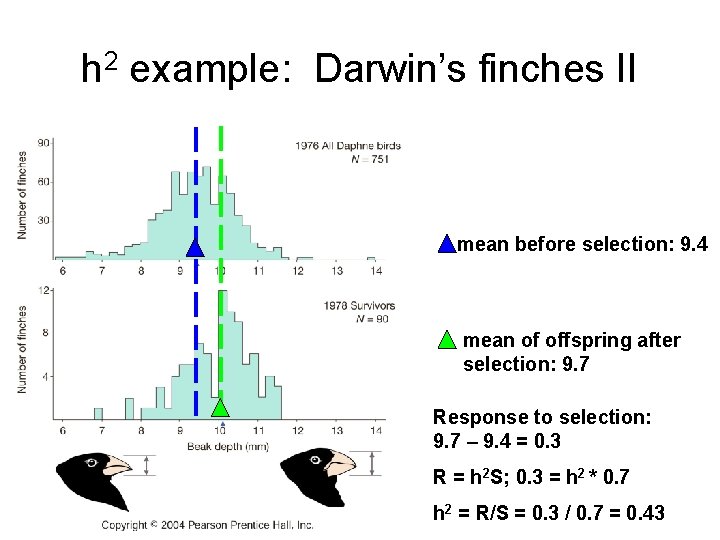

h 2 example: Darwin’s finches II mean before selection: 9. 4 mean of offspring

h 2 example: Darwin’s finches II mean before selection: 9. 4 mean of offspring after selection: 9. 7 Response to selection: 9. 7 – 9. 4 = 0. 3 R = h 2 S; 0. 3 = h 2 * 0. 7 h 2 = R/S = 0. 3 / 0. 7 = 0. 43

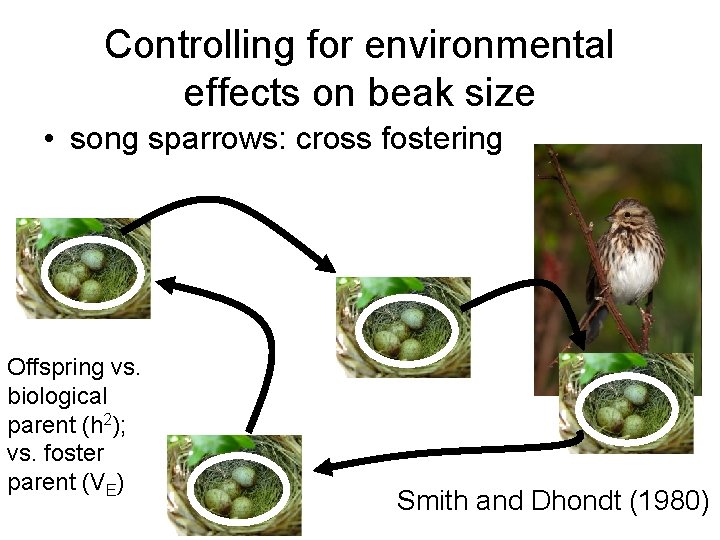

Controlling for environmental effects on beak size • song sparrows: cross fostering Offspring vs.

Controlling for environmental effects on beak size • song sparrows: cross fostering Offspring vs. biological parent (h 2); vs. foster parent (VE) Smith and Dhondt (1980)

Cross fostering in song sparrows

Cross fostering in song sparrows

Testing for environmental effects How can we determine the effect of the environment on

Testing for environmental effects How can we determine the effect of the environment on the phenotype?

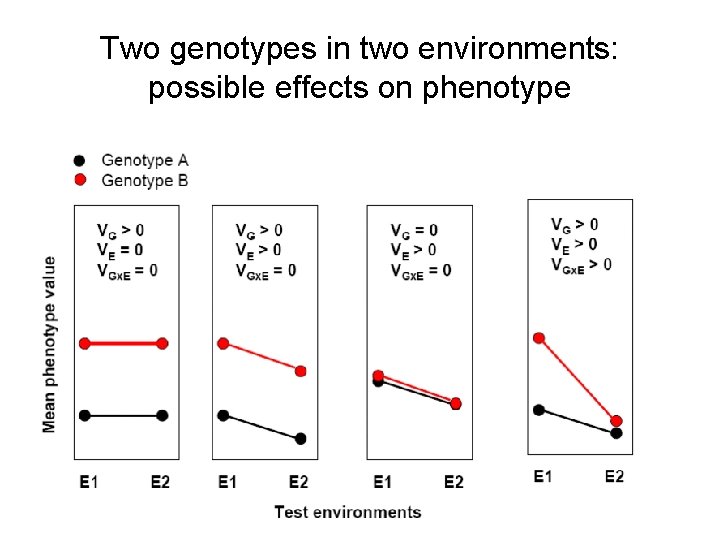

Two genotypes in two environments: possible effects on phenotype

Two genotypes in two environments: possible effects on phenotype

Example of environmental effects: locusts

Example of environmental effects: locusts

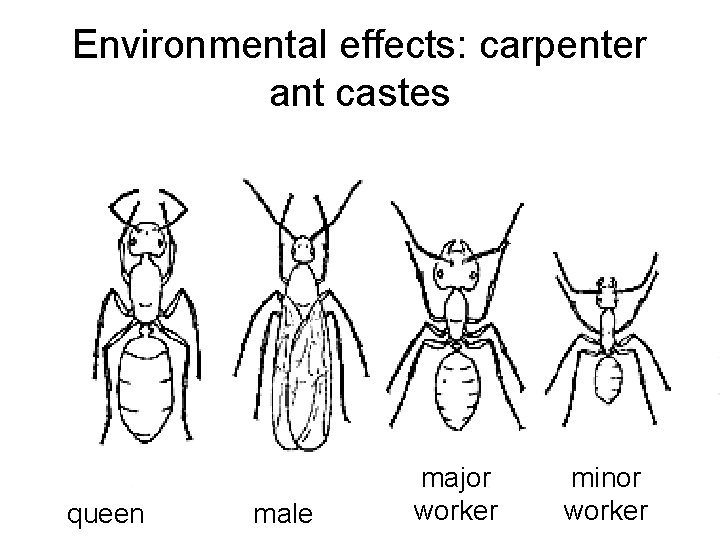

Environmental effects: carpenter ant castes queen male major worker minor worker

Environmental effects: carpenter ant castes queen male major worker minor worker

Effect of Gx. E: predicting outcome of selection 7 yarrow (Achillea millefolium) genotypes 2

Effect of Gx. E: predicting outcome of selection 7 yarrow (Achillea millefolium) genotypes 2 gardens Clausen, Keck, and Heisey (1948)

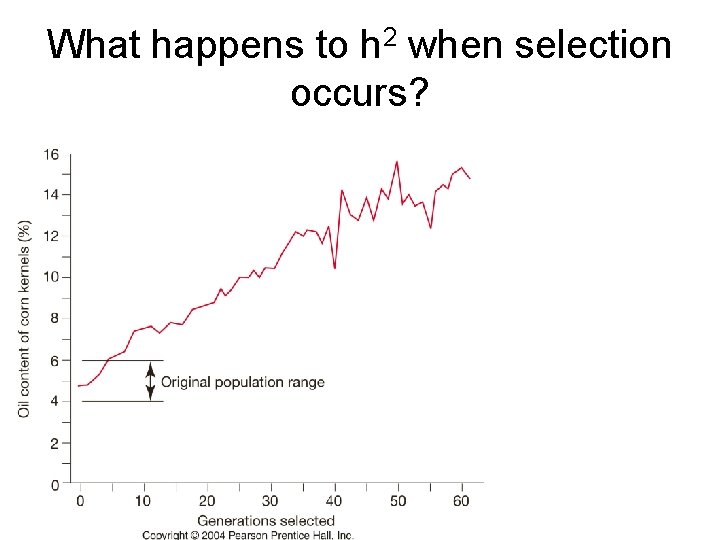

What happens to h 2 when selection occurs?

What happens to h 2 when selection occurs?

Modes of selection Gen. 2 Gen. 1 Gen. 0 freq. trait, z

Modes of selection Gen. 2 Gen. 1 Gen. 0 freq. trait, z

Mode of selection: directional freq. trait, z

Mode of selection: directional freq. trait, z

Mode of selection: stabilizing freq. trait, z

Mode of selection: stabilizing freq. trait, z

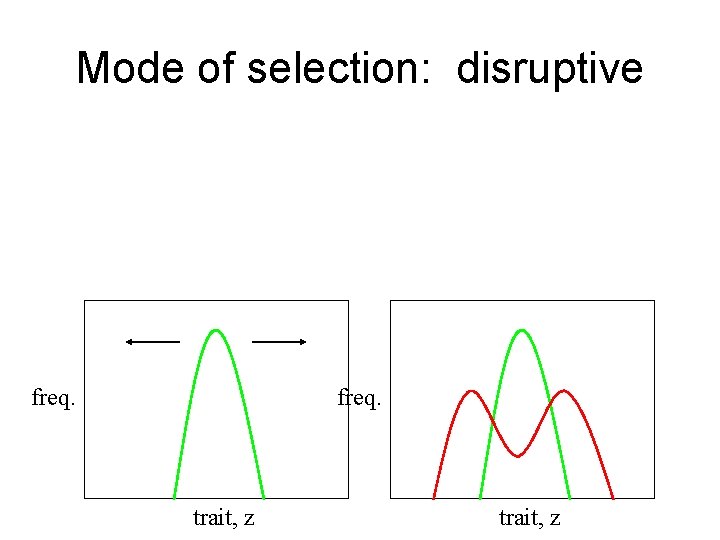

Mode of selection: disruptive freq. trait, z

Mode of selection: disruptive freq. trait, z

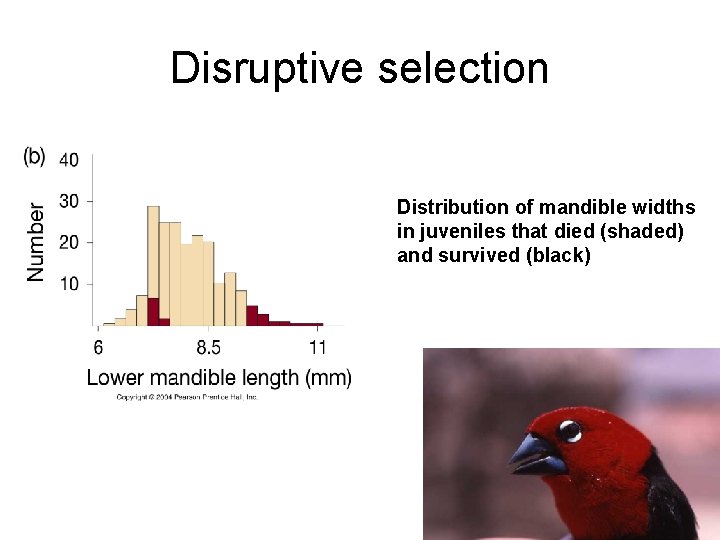

Disruptive selection Distribution of mandible widths in juveniles that died (shaded) and survived (black)

Disruptive selection Distribution of mandible widths in juveniles that died (shaded) and survived (black)

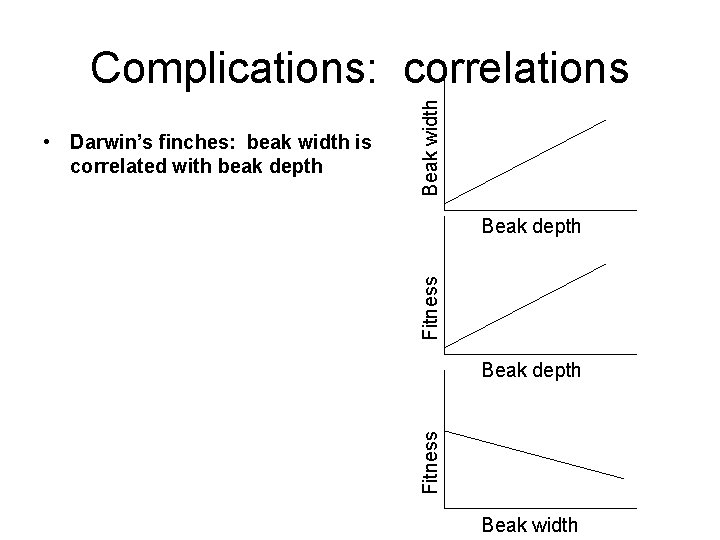

Fitness Beak depth Fitness • Darwin’s finches: beak width is correlated with beak depth

Fitness Beak depth Fitness • Darwin’s finches: beak width is correlated with beak depth Beak width Complications: correlations Beak width

Detecting loci affecting quantitative traits (QTL)

Detecting loci affecting quantitative traits (QTL)

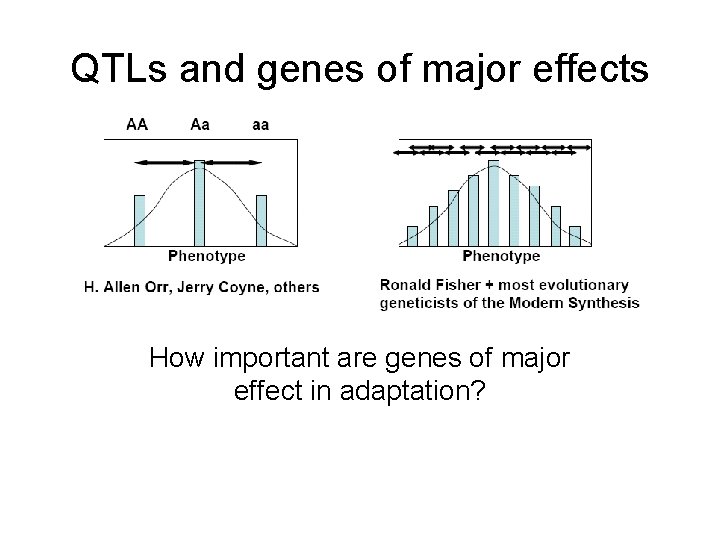

QTLs and genes of major effects How important are genes of major effect in

QTLs and genes of major effects How important are genes of major effect in adaptation?

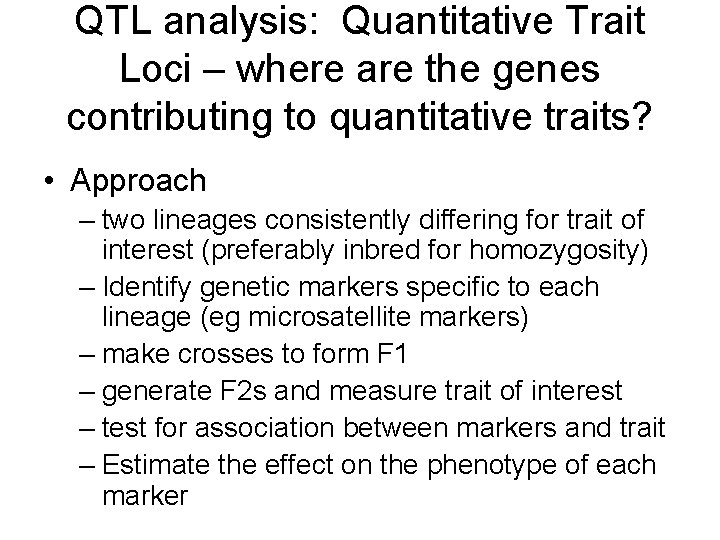

QTL analysis: Quantitative Trait Loci – where are the genes contributing to quantitative traits?

QTL analysis: Quantitative Trait Loci – where are the genes contributing to quantitative traits? • Approach – two lineages consistently differing for trait of interest (preferably inbred for homozygosity) – Identify genetic markers specific to each lineage (eg microsatellite markers) – make crosses to form F 1 – generate F 2 s and measure trait of interest – test for association between markers and trait – Estimate the effect on the phenotype of each marker

Example: Mimulus cardinalis and Mimulus lewisii Mimulus cardinalis Mimulus lewisii

Example: Mimulus cardinalis and Mimulus lewisii Mimulus cardinalis Mimulus lewisii

Locate lineage-specific markers Mimulus lewisii Mimulus cardinalis Microsatellite length 250 (M. l. ) or

Locate lineage-specific markers Mimulus lewisii Mimulus cardinalis Microsatellite length 250 (M. l. ) or 254 (M. c. ) M. lewisii specific Legend M. cardinalis specific non-specific Cross lines

QTL Mapping: crosses F 1 F 2 recombinants intermediate phenotype scrambled phenotypes

QTL Mapping: crosses F 1 F 2 recombinants intermediate phenotype scrambled phenotypes

QTL analysis: trait associations Homozygotes at marker 2 are closer to one parent Heterozygotes

QTL analysis: trait associations Homozygotes at marker 2 are closer to one parent Heterozygotes at marker 2 are intermediate in trait values

Trait analysis For each marker, ask whether changing genotype affects phenotype

Trait analysis For each marker, ask whether changing genotype affects phenotype

QTL probabilities Estimate the probability of location of QTL based on association of markers

QTL probabilities Estimate the probability of location of QTL based on association of markers and recombination probabilities (eg CD 34 B rarely associated with p. H, CD 34 A nearly always, TG 63 rarely) Markers

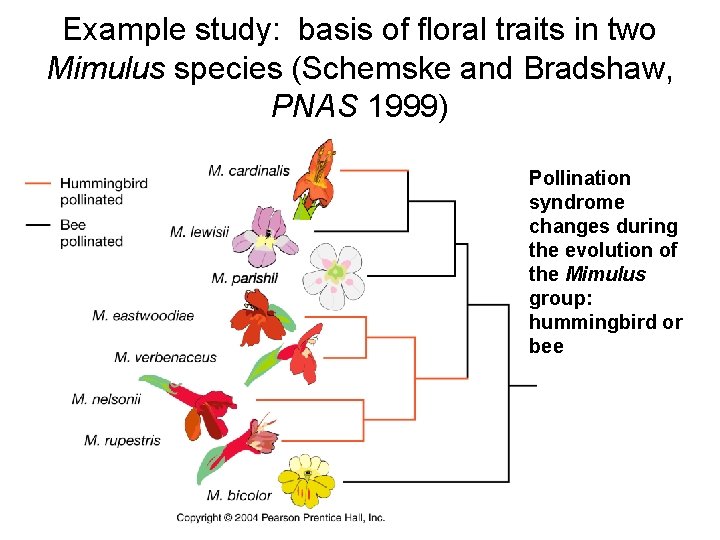

Example study: basis of floral traits in two Mimulus species (Schemske and Bradshaw, PNAS

Example study: basis of floral traits in two Mimulus species (Schemske and Bradshaw, PNAS 1999) Pollination syndrome changes during the evolution of the Mimulus group: hummingbird or bee

F 2 plants showed variation for most floral traits F 1 M. lewisii F

F 2 plants showed variation for most floral traits F 1 M. lewisii F 2 plants M. cardinalis Most traits had multiple QTL but one explaining > 25% of variation Few genes of large effect important in this case

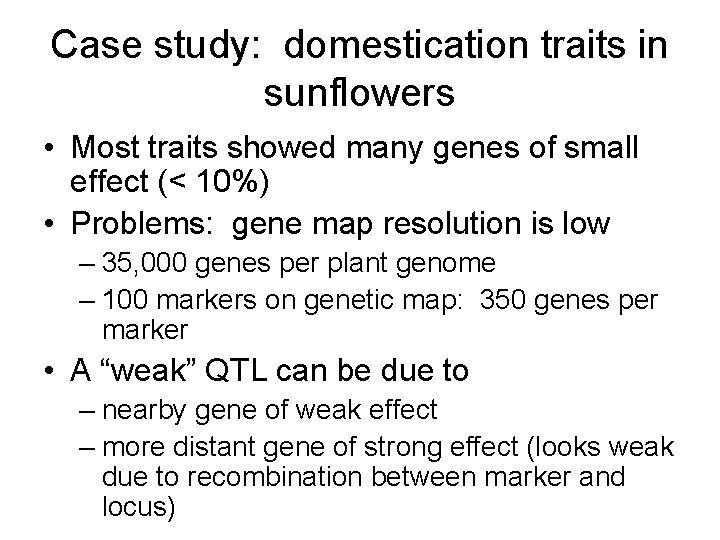

Case study: domestication traits in sunflowers • Most traits showed many genes of small

Case study: domestication traits in sunflowers • Most traits showed many genes of small effect (< 10%) • Problems: gene map resolution is low – 35, 000 genes per plant genome – 100 markers on genetic map: 350 genes per marker • A “weak” QTL can be due to – nearby gene of weak effect – more distant gene of strong effect (looks weak due to recombination between marker and locus)

Recap: quantitative genetics • Are traits heritable? – Usually find heritability – However, environmental

Recap: quantitative genetics • Are traits heritable? – Usually find heritability – However, environmental effects can be large • Are genes controlling quantitative traits of large effect or small effect? – Some important genes for adaptation of large effect. – Overall pattern still unclear

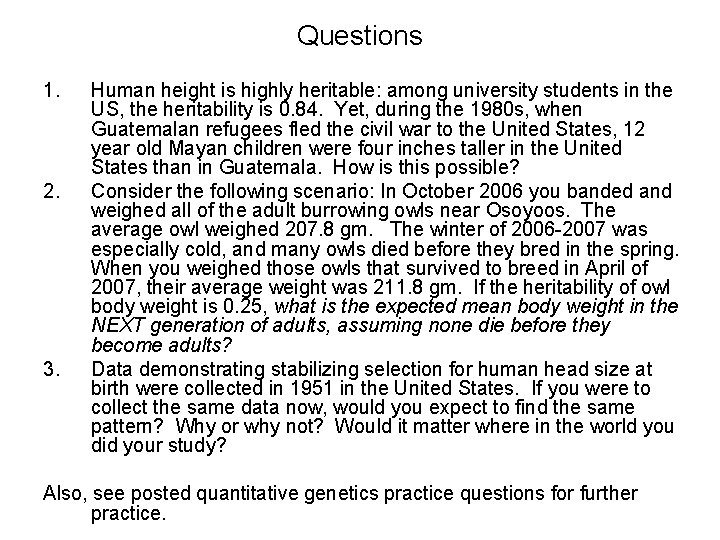

Questions 1. 2. 3. Human height is highly heritable: among university students in the

Questions 1. 2. 3. Human height is highly heritable: among university students in the US, the heritability is 0. 84. Yet, during the 1980 s, when Guatemalan refugees fled the civil war to the United States, 12 year old Mayan children were four inches taller in the United States than in Guatemala. How is this possible? Consider the following scenario: In October 2006 you banded and weighed all of the adult burrowing owls near Osoyoos. The average owl weighed 207. 8 gm. The winter of 2006 -2007 was especially cold, and many owls died before they bred in the spring. When you weighed those owls that survived to breed in April of 2007, their average weight was 211. 8 gm. If the heritability of owl body weight is 0. 25, what is the expected mean body weight in the NEXT generation of adults, assuming none die before they become adults? Data demonstrating stabilizing selection for human head size at birth were collected in 1951 in the United States. If you were to collect the same data now, would you expect to find the same pattern? Why or why not? Would it matter where in the world you did your study? Also, see posted quantitative genetics practice questions for further practice.
