Session 2 Agenda • Components in Vo. IP Network • Po. E and 3650 Po. E Support • Enabling and Configuring CME in 2811 and 2911 • Connecting phone with Manual and Auto Registration Cisco Networking Academy © 2014 Cisco Systems, Inc. All rights reserved.

• Power (Adapter or Po. E) • Access Layer Switch (Po. E and Voice VLAN) • Phone (either HW or SW) • Call Mangers • TFTP Cisco Networking Academy © 2014 Cisco Systems, Inc. All rights reserved.

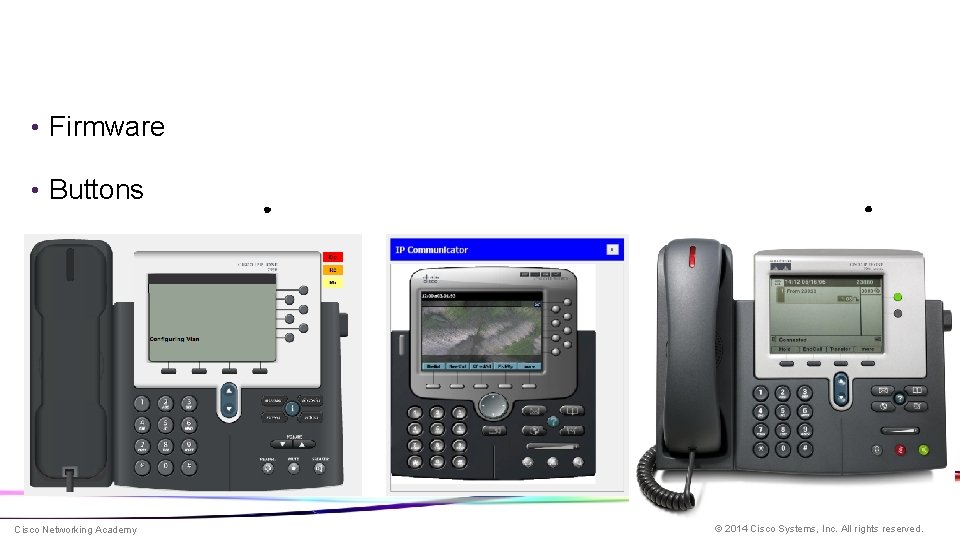

Phone Model • Firmware • Buttons • Codecs Cisco Networking Academy © 2014 Cisco Systems, Inc. All rights reserved.

Power PSE Power Sourcing Device PD Powered Device POE Power Adapter Cisco Networking Academy © 2014 Cisco Systems, Inc. All rights reserved.

Cisco Networking Academy © 2014 Cisco Systems, Inc. All rights reserved.

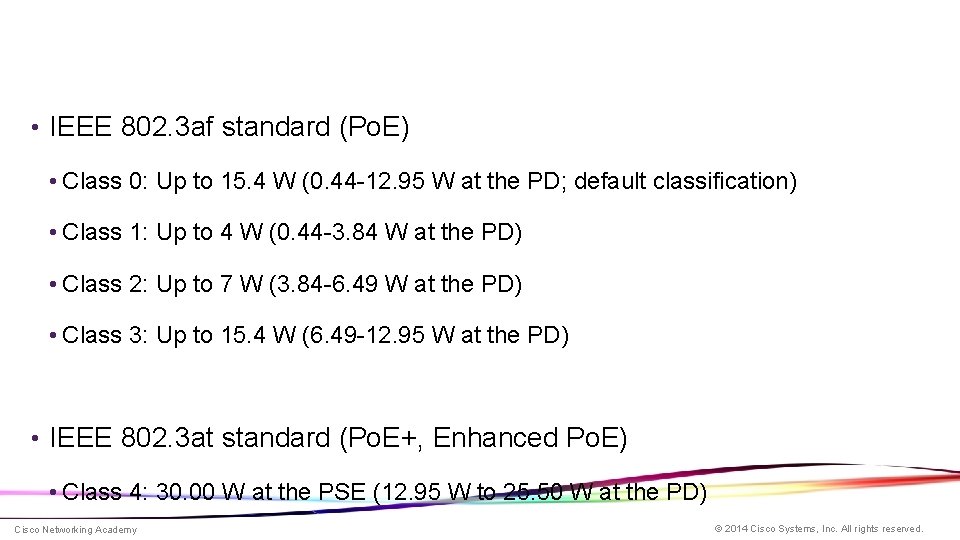

Po. E • IEEE 802. 3 af standard (Po. E) • Class 0: Up to 15. 4 W (0. 44 -12. 95 W at the PD; default classification) • Class 1: Up to 4 W (0. 44 -3. 84 W at the PD) • Class 2: Up to 7 W (3. 84 -6. 49 W at the PD) • Class 3: Up to 15. 4 W (6. 49 -12. 95 W at the PD) • IEEE 802. 3 at standard (Po. E+, Enhanced Po. E) • Class 4: 30. 00 W at the PSE (12. 95 W to 25. 50 W at the PD) Cisco Networking Academy © 2014 Cisco Systems, Inc. All rights reserved.

15. 4 W x 24 = 369. 6 W Cisco Networking Academy © 2014 Cisco Systems, Inc. All rights reserved.

PD Removed when Adapter is connected Cisco Networking Academy © 2014 Cisco Systems, Inc. All rights reserved.

Building the first Vo. IP Network • Enable Telephony-service • Create Phone Number • Enable DHCP Server 2811 CME 3560 Po. E • Voice VLAN • Enable DHCP Client 7960 HW Phone Cisco Networking Academy PC IP Communicator • Nothing © 2014 Cisco Systems, Inc. All rights reserved.

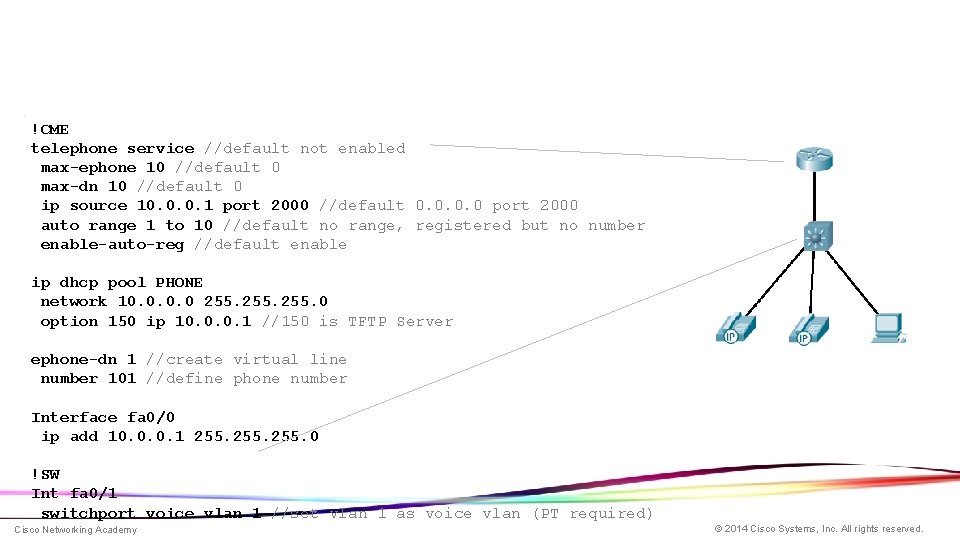

CME Configuration !CME telephone service //default not enabled max-ephone 10 //default 0 max-dn 10 //default 0 ip source 10. 0. 0. 1 port 2000 //default 0. 0 port 2000 auto range 1 to 10 //default no range, registered but no number enable-auto-reg //default enable ip dhcp pool PHONE network 10. 0 255. 0 option 150 ip 10. 0. 0. 1 //150 is TFTP Server ephone-dn 1 //create virtual line number 101 //define phone number Interface fa 0/0 ip add 10. 0. 0. 1 255. 0 !SW Int fa 0/1 switchport voice vlan 1 //set vlan 1 as voice vlan (PT required) Cisco Networking Academy © 2014 Cisco Systems, Inc. All rights reserved.

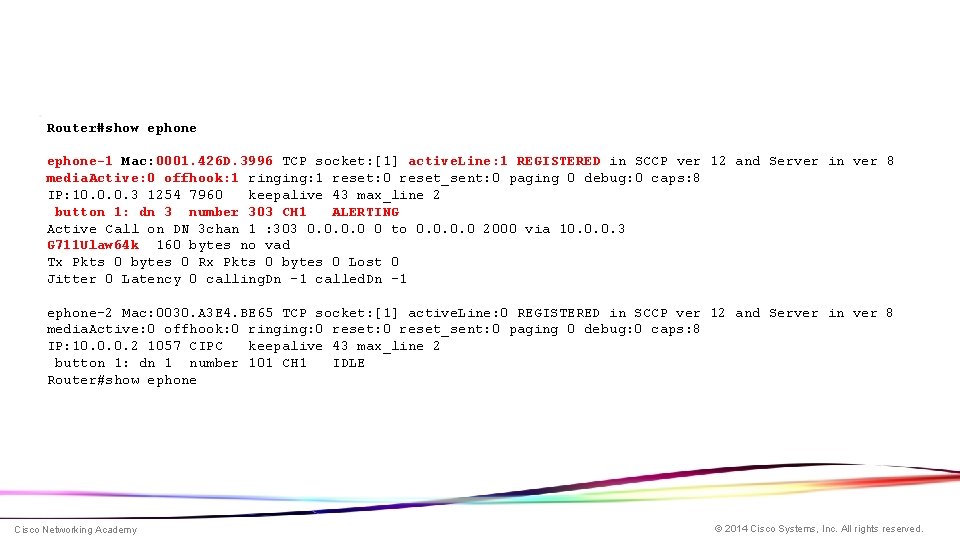

Calling from ephone 1 to ephone 2 (haven’t picked up) Router#show ephone-1 Mac: 0001. 426 D. 3996 TCP socket: [1] active. Line: 1 REGISTERED in SCCP ver 12 and Server in ver 8 media. Active: 0 offhook: 1 ringing: 1 reset: 0 reset_sent: 0 paging 0 debug: 0 caps: 8 IP: 10. 0. 0. 3 1254 7960 keepalive 43 max_line 2 button 1: dn 3 number 303 CH 1 ALERTING Active Call on DN 3 chan 1 : 303 0. 0 0 to 0. 0 2000 via 10. 0. 0. 3 G 711 Ulaw 64 k 160 bytes no vad Tx Pkts 0 bytes 0 Rx Pkts 0 bytes 0 Lost 0 Jitter 0 Latency 0 calling. Dn -1 called. Dn -1 ephone-2 Mac: 0030. A 3 E 4. BE 65 TCP socket: [1] active. Line: 0 REGISTERED in SCCP ver 12 and Server in ver 8 media. Active: 0 offhook: 0 ringing: 0 reset_sent: 0 paging 0 debug: 0 caps: 8 IP: 10. 0. 0. 2 1057 CIPC keepalive 43 max_line 2 button 1: dn 1 number 101 CH 1 IDLE Router#show ephone Cisco Networking Academy © 2014 Cisco Systems, Inc. All rights reserved.

Calling from ephone 1 to ephone 2 (answered) Router#show ephone-1 Mac: 0001. 426 D. 3996 TCP socket: [1] active. Line: 1 REGISTERED in SCCP ver 12 and Server in ver 8 media. Active: 1 offhook: 1 ringing: 1 reset: 0 reset_sent: 0 paging 0 debug: 0 caps: 8 IP: 10. 0. 0. 3 1254 7960 keepalive 43 max_line 2 button 1: dn 3 number 303 CH 1 CONNECTED Active Call on DN 3 chan 1 : 303 10. 0. 0. 3 1254 to 10. 0. 0. 1 2000 via 10. 0. 0. 3 G 729 20 bytes no vad Tx Pkts 0 bytes 0 Rx Pkts 0 bytes 0 Lost 0 Jitter 0 Latency 0 calling. Dn -1 called. Dn -1 (media path call. ID 17 src. Call. ID 18) ephone-2 Mac: 0030. A 3 E 4. BE 65 TCP socket: [1] active. Line: 1 REGISTERED in SCCP ver 12 and Server in ver 8 media. Active: 1 offhook: 1 ringing: 1 reset: 0 reset_sent: 0 paging 0 debug: 0 caps: 8 IP: 10. 0. 0. 2 1057 CIPC keepalive 43 max_line 2 button 1: dn 1 number 101 CH 1 CONNECTED Active Call on DN 1 chan 1 : 101 10. 0. 0. 2 1057 to 10. 0. 0. 1 2000 via 10. 0. 0. 2 G 729 20 bytes no vad Tx Pkts 0 bytes 0 Rx Pkts 0 bytes 0 Lost 0 Jitter 0 Latency 0 calling. Dn -1 called. Dn -1 (media path call. ID 17 src. Call. ID 18) Cisco Networking Academy © 2014 Cisco Systems, Inc. All rights reserved.

Auto first, manual later Router#show running-config ephone 1 device-security-mode none mac-address 0001. 426 D. 3996 //phone mac address type 7960 //phone model, HW Cisco 7960 button 1: 3 //phone number and dn ! ephone 2 device-security-mode none mac-address 0030. A 3 E 4. BE 65 //PC Mac address type CIPC //phone model, SW IP Communicator button 1: 1 Cisco Networking Academy © 2014 Cisco Systems, Inc. All rights reserved.

Summary • Phone, Switch, Router to build Vo. IP 2811 CME Network • Power and power adapter 3560 Po. E • Po. E and Class • 2811 Telephony-Service • ephone (phone) • ephone-dn (line) 7960 HW Phone PC IP Communicator • Button • Voice vlan 1 (PT required) Cisco Networking Academy © 2014 Cisco Systems, Inc. All rights reserved.
