Plan Tracer Plan Tracer is a simple to
- Slides: 9

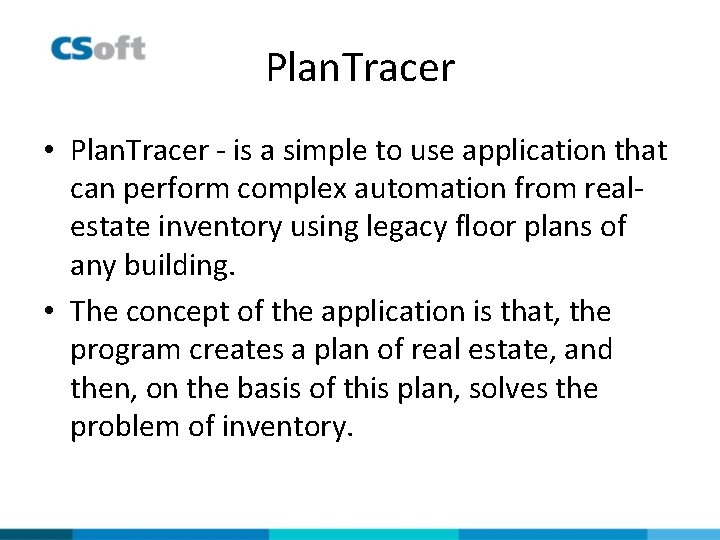

Plan. Tracer • Plan. Tracer - is a simple to use application that can perform complex automation from realestate inventory using legacy floor plans of any building. • The concept of the application is that, the program creates a plan of real estate, and then, on the basis of this plan, solves the problem of inventory.
2 D Parametric Architectural Plan • Develop a floor plan using Wall, Column, Door, Window and different utilities • Room – Flat – Floor identification • Apartments and Rooms Calculation
Raster Floor Plan (i. e scan floor plan) - 2 D Parametric Architectural Plan • Develop a floor plan using Raster Floor Plan
Super Tools for Architecture Engineer Property Complex – Field Survey Mains – Linear Objects Verification – Check Plan Prepare for Printing – Prepare a Plan for Printing • More Tools – Tables, Box Plan Wizard and so on • •
Image Tools • Plugin Scanner to Scan Using Plan. Tracer • Image Quality Enhancement • Draw Pixel, Delete Raster & Resize
External Data Exchange • • Export, Import – IFC Export, Import – XML Export – EMF Export – File & Explode Objects
More Freedom to Customize • Options – Plan Options • Templates Library – Make Custom Object Library With Ease
Question & Answer Thank You Very Much
