What is Net. CDF? • A conceptual data model for scientific data. • A set of APIs in C, F 77, F 90, Java, etc. to create and manipulate data files. • Some portable binary formats. • Useful for storing arrays of data and accompanying metadata.

History of Net. CDF net. CDF developed at Unidata 1988 1991 1996 net. CDF 2. 0 released net. CDF 4. 0 beta released net. CDF 3. 0 released 2004 2005 net. CDF 3. 6. 0 released

Getting net. CDF • Download latest release from the net. CDF web page: http: //www. unidata. ucar. edu/content/software/netcdf • Builds and installs on most platforms with no configuration necessary. • For a list platforms net. CDF versions have built on, and the output of building and testing net. CDF, see the web site.

Net. CDF Portability • Net. CDF is tested on a wide variety of platforms, including Linux, AIX, Sun. OS, Mac. OS, IRIX, OSF 1, Cygwin, and Windows. • We test with native compilers when we can get them. • 64 -bit builds are supported with some configuration effort.

What Comes with Net. CDF • Net. CDF comes with 4 language APIs: C, C++, Fortran 77, and Fortran 90. • Tools ncgen and ncdump. • Tests. • Documentation.

Net. CDF Java API • The net. CDF Java API is entirely separate from the C API. • You don’t need to install the C API for the Java API to work. • Java API contains many exciting features, such as remote access and more advanced coordinate systems.

Tools to work with Net. CDF Data • The net. CDF core library provides basic data access. • ncgen and ncdump provide some helpful command line functionality. • Many additional tools are available, see: http: //www. unidata. ucar. edu/packages/netcdf/software. html

CDL – Common Data Language • Grammar defined for displaying information about net. CDF files. • Can be used to create files without programming. • Can be used to create reading program in Fortran or C. • Used by ncgen/ncdump utilities.

Example of CDL netcdf foo { // example net. CDF specification in CDL dimensions: lat = 10, lon = 5, time = unlimited; variables: int lat(lat), lon(lon), time(time); float z(time, lat, lon), t(time, lat, lon); double p(time, lat, lon); int rh(time, lat, lon); lat: units = "degrees_north"; lon: units = "degrees_east"; data: lat = 0, 10, 20, 30, 40, 50, 60, 70, 80, 90; lon = -140, -118, -96, -84, -52; }

Software Architecture of Net. CDF-3 V 2 C tests V 2 C API V 3 C tests ncgen F 77 tests ncdump C++ API F 90 API F 77 API V 3 C API • Fortran, C++ and V 2 APIs are all built on the C API. • Other language APIs (perl, python, Mat. Lab, etc. ) use the C API.

Net. CDF Documentation • Unidata distributes a Net. CDF Users Guide which describes the data model in detail. • A language-specific guide is provided for C, C++, Fortran 77, and Fortran 90 users. • All documentation can be found at: http: //my. unidata. ucar. edu/content/software/netcdf/docs

Net. CDF Jargon • “Variable” – a multi-dimensional array of data, of any of 6 types (char, byte, short, int, float, or double). • “Dimension” – information about an axis: it’s name and length. • “Attribute” – a 1 D array of metadata.

More Net. CDF Jargon • “Coordinate Variable” – a 1 D variable with the same name as a dimension, which stores values for each dimension value. • “Unlimited Dimension” – a dimension which has no maximum size. Data can always be extended along the unlimited dimension.

The Net. CDF Classic Data Model • The net. CDF Classic Data Model contains dimensions, variables, and attributes. • At most one dimension may be unlimited. • The Classic Data Model is embodied by net. CDF versions 1 through 3. 6. 0 • Net. CDF is moving towards a new, richer data model: the Common Data Model.

Net. CDF Example • Suppose a user wants to store temperature and pressure values on a 2 D latitude/longitude grid. • In addition to the data, the user wants to store information about the lat/lon grid. • The user may have additional data to store, for example the units of the data values.

Net. CDF Model Example Dimensions Variables latitude temperature longitude pressure Attributes Units: C Units: mb Coordinate Variables latitude longitude

Important Net. CDF Functions • nc_create and nc_open to create and open files. • nc_enddef, nc_close. • nc_def_dim, nc_def_var, nc_put_att_*, to define dimensions, variables, and attributes. • nc_inq, nc_inq_var, nc_inq_dim, nc_get_att_* to learn about dims, vars, and atts. • nc_put_vara_*, nc_get_vara_* to write and read data.

C Functions to Define Metadata /* Create the file. */ if ((retval = nc_create(FILE_NAME, NC_CLOBBER, &ncid))) return retval; /* Define the dimensions. */ if ((retval = nc_def_dim(ncid, LAT_NAME, LAT_LEN, &lat_dimid))) return retval; if ((retval = nc_def_dim(ncid, LON_NAME, LON_LEN, &lon_dimid))) return retval; /* Define the variables. */ dimids[0] = lat_dimid; dimids[1] = lon_dimid; if ((retval = nc_def_var(ncid, PRES_NAME, NC_FLOAT, NDIMS, dimids, &pres_varid))) return retval if ((retval = nc_def_var(ncid, TEMP_NAME, NC_FLOAT, NDIMS, dimids, &temp_varid))) return retval; /* End define mode. */ if ((retval = nc_enddef(ncid))) return retval;

C Functions to Write Data /* Write the data. */ if ((retval = nc_put_var_float(ncid, pres_varid, pres_out))) return retval; if ((retval = nc_put_var_float(ncid, temp_varid, temp_out))) return retval; /* Close the file. */ if ((retval = nc_close(ncid))) return retval;

C Example – Getting Data • • • /* Open the file. */ if ((retval = nc_open(FILE_NAME, 0, &ncid))) return retval; • • • /* Read the data. */ if ((retval = nc_get_var_float(ncid, 0, pres_in))) return retval; if ((retval = nc_get_var_float(ncid, 1, temp_in))) return retval; • • • /* Do something useful with the data… */ /* Close the file. */ if ((retval = nc_close(ncid))) return retval;

Data Reading and Writing Functions • • There are 5 ways to read/write data of each type. var 1 – reads/writes a single value. var – reads/writes entire variable at once. vara – reads/writes an array subset. vars – reads/writes an array by slices. varm – reads/writes a mapped array. Ex. : nc_put_vars_short writes shorts by slices.

Attributes • Attributes are 1 -D arrays of any of the 6 net. CDF types. • Read/write them with functions like: nc_get_att_float and nc_put_att_int. • Attributes may be attached to a variable, or may be global to the file.

Net. CDF File Formats • Starting with 3. 6. 0, net. CDF supports two binary data formats. • Net. CDF Classic Format is the format that has been in use for net. CDF files from the beginning. • Net. CDF 64 -bit Offset Format was introduced in 3. 6. 0 and allows much larger files. • Use classic format unless you need the large files.

Net. CDF-3 Summary • Net. CDF is a software library and some binary data formats, useful for scientific data, developed at Unidata. • Net. CDF organizes data into variables, with dimensions and attributes. • Net. CDF has proven to be reliable, simple to use, and very popular.

Why Add to Net. CDF-3? • Increasingly complex data sets call for greater organization. • Size limits, unthinkably huge in 1988, are routinely reached in 2005. • Parallel I/O is required for advanced Earth science applications. • Interoperability with HDF 5.

Net. CDF-4 • Net. CDF-4 aims to provide the net. CDF API as a front end for HDF 5. • Funded by NASA, executed at Unidata and NCSA. • Includes reliable net. CDF-3 code, and is fully backward compatible.

Net. CDF-4 Organizations • Unidata/UCAR • NCSA – The National Center for Supercomputing Applications University of Illinois at Urbana-Champaign • NASA – Net. CDF-4 was funded by NASA award number AIST-02 -0071.

New Features of Net. CDF-4 • Multiple unlimited dimensions. • Groups to organize data. • New types, including compound types and variable length arrays. • Parallel I/O.

The Common Data Model • Net. CDF-4, scheduled for beta-release this Summer, will conform to the Common Data Model. • Developed by John Caron at Unidata, with the cooperation of HDF, Open. DAP, net. CDF, and other software teams, CDM unites different models into a common framework. • CDM is a superset of the Net. CDF Classic Data Model

The Net. CDF-4 Data Model • Net. CDF-4 implements the Common Data Model. • Adds groups, each group can contain variables, attributes and dimensions, and groups. • Dimensions are scoped so that variables in different groups can share dimensions. • Compound types allow users to define new types, comprised of other atomic or user-defined types. • New integer and string types.

Software Architecture of Net. CDF-4 V 2 C tests F 77 tests V 2 C API V 3 C tests ncgen ncdump C++ API F 77 API V 4 C API V 3 C API F 90 API HDF 5

Net. CDF-4 Release Status • Latest alpha release includes all net. CDF-4 features – depends on latest HDF 5 development snapshot. • Beta release – due out in August, replaces artificial net. CDF-4 constructs, and depends on a yet-to-be-released version of HDF 5. • Promotion from beta to full release will happen sometime in 2006.

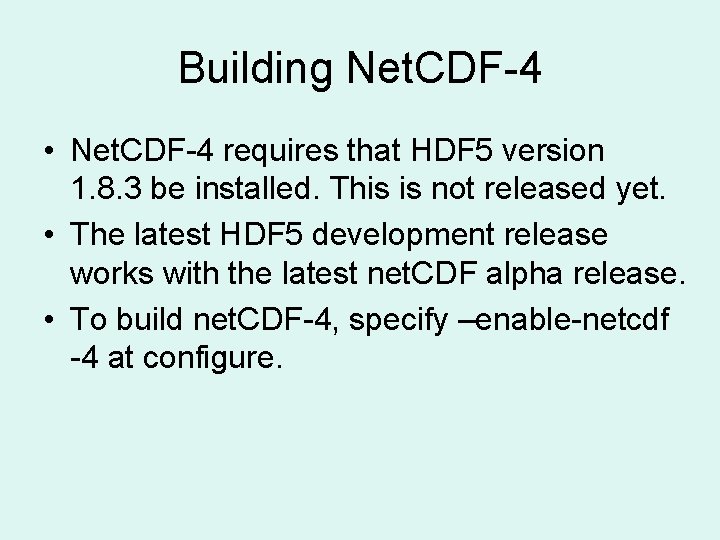

Building Net. CDF-4 • Net. CDF-4 requires that HDF 5 version 1. 8. 3 be installed. This is not released yet. • The latest HDF 5 development release works with the latest net. CDF alpha release. • To build net. CDF-4, specify –enable-netcdf -4 at configure.

When to Use Net. CDF-4 Format • The new net. CDF-4 features (groups, new types, parallel I/O) are only available for net. CDF-4 format files. • When you need HDF 5 files. • When portability is less important, until net. CDF-4 becomes widespread.

Versions and Formats net. CDF developed by Glenn Davis 1988 1991 net. CDF 4. 0 beta released net. CDF 3. 0 released 1996 net. CDF 2. 0 released 2004 2005 net. CDF 3. 6. 0 released Net. CDF-4 Format 64 -Bit Offset Format Classic Format

Net. CDF-4 Feature Review • • Multiple unlimited dimensions. How to use groups. Using compound types. Other new types. Variable length arrays. Parallel I/O. HDF 5 Interoperability.

Multiple Unlimited Dimensions • Unlimited dimensions are automatically expanded as new data are written. • Net. CDF-4 allows multiple unlimited dimensions.

Working with Groups • Define a group, then use it as a container for the classic data model. • Groups can be used to organize sets of data.

An Example of Groups Model_Run_1 lat rh units lon temp units Model_Run_2 history lat rh units lon temp units Model_Run_1 a lat rh units lon temp units history

New Functions to Use Groups • Open/create returns ncid of root group. • Create a new group with nc_def_grp(int parent_ncid, char *name, int *new_ncid); • Learn about groups with nc_inq_grps(int ncid, int *numgrps, int *ncids);

C Example Using Groups if (nc_create(FILE_NAME, NC_NETCDF 4, &ncid)) ERR; if (nc_def_grp(ncid, DYNASTY, &tudor_id)) ERR; if (nc_def_dim(tudor_id, DIM 1_NAME, NC_UNLIMITED, &dimid)) ERR; if (nc_def_grp(tudor_id, HENRY_VII, &henry_vii_id)) ERR; if (nc_def_var(henry_vii_id, VAR 1_NAME, NC_INT, 1, &dimid, &varid)) ERR; if (nc_put_vara_int(henry_vii_id, varid, start, count, data_out)) ERR; if (nc_close(ncid)) ERR;

Create Complex Types • Like C structs, compound types can be assembled into a user defined type. • Compound types can be nested – that is, they can contain other compound types. • New functions are needed to create new types. • V 2 API functions are used to read/write complex types.

C Example of Compound Types /* Create a file with a compound type. Write a little data. */ if (nc_create(FILE_NAME, NC_NETCDF 4, &ncid)) ERR; if (nc_def_compound(ncid, sizeof(struct s 1), SVC_REC, &typeid)) ERR; if (nc_insert_compound(ncid, typeid, BATTLES_WITH_KLINGONS, HOFFSET(struct s 1, i 1), NC_INT)) ERR; if (nc_insert_compound(ncid, typeid, DATES_WITH_ALIENS, HOFFSET(struct s 1, i 2), NC_INT)) ERR; if (nc_def_dim(ncid, STARDATE, DIM_LEN, &dimid)) ERR; if (nc_def_var(ncid, SERVICE_RECORD, typeid, 1, dimids, &varid)) ERR; if (nc_put_var(ncid, varid, data)) ERR; if (nc_close(ncid)) ERR;

New Ints, Opaque, String Types • Opaque types are bit-blobs of fixed size. • String types allow multi-dimensional arrays of strings. • New integer types: UBYTE, USHORT, UINT 64, INT 64.

Variable Length Arrays • Variable length arrays allow the efficient storage of arrays of variable size. • For example: an array of soundings of different number of elements.

Parallel I/O with Net. CDF-4 • Must use configure option –enable-parallel when building net. CDF. • Depends on HDF 5 parallel features, which require MPI. • Must create or open file with nc_create_par or nc_open_par. • All metadata operations are collective. • Adding a new record is collective. • Variable reads/writes are independent by default, but can be changed to do collective operations.

HDF 5 Interoperability • Net. CDF-4 can interoperate with HDF 5 with a SUBSET of HDF 5 features. • Will not work with HDF 5 files that have looping groups, references, and types not found in net. CDF-4. • HDF 5 file must use new dimension scale API to store shared dimension info. • If a HDF 5 follows the Common Data Model, Net. CDF-4 can interoperate on the same files.

Future Plans for Net. CDF • Net. CDF 4. 0 release in 2006. • Beta for next major version of net. CDF in Summer, 2006. • Full compatibility with Common Data Model. • Remote access, including remote subsetting of data. • XML-based representation of net. CDF metadata. • Full Fortran 90 support, but limited F 77 support.
