ML-YACC David Walker COS 320

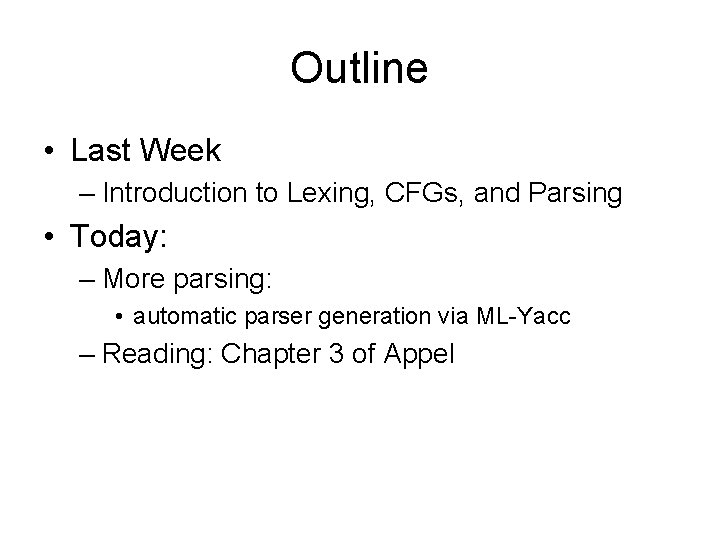

Outline • Last Week – Introduction to Lexing, CFGs, and Parsing • Today: – More parsing: • automatic parser generation via ML-Yacc – Reading: Chapter 3 of Appel

The Front End stream of characters stream of tokens Lexer abstract syntax Parser Type Checker • Lexical Analysis: Create sequence of tokens from characters • Syntax Analysis: Create abstract syntax tree from sequence of tokens • Type Checking: Check program for wellformedness constraints

Parser Implementation • Implementation Options: 1. Write a Parser from scratch – not as boring as writing a lexer, but not exactly a weekend in the Bahamas 2. Use a Parser Generator – Very general & robust. sometimes not quite as efficient as hand-written parsers. Nevertheless, good for lazy compiler writers. Parser Specification

Parser Implementation • Implementation Options: 1. Write a Parser from scratch – not as boring as writing a lexer, but not exactly a weekend in the Bahamas 2. Use a Parser Generator – Very general & robust. sometimes not quite as efficient as hand-written parsers. Nevertheless, good for lazy compiler writers. Parser Specification Parser parser generator

Parser Implementation • Implementation Options: 1. Write a Parser from scratch – not as boring as writing a lexer, but not exactly a weekend in the Bahamas 2. Use a Parser Generator – Very general & robust. sometimes not quite as efficient as hand-written parsers. Nevertheless, good for lazy compiler writers. stream of tokens Parser Specification Parser parser generator abstract syntax

ML-Yacc specification • three parts: User Declarations: declare values available in the rule actions %% ML-Yacc Definitions: declare terminals and non-terminals; special declarations to resolve conflicts %% Rules: parser specified by CFG rules and associated semantic action that generate abstract syntax

ML-Yacc declarations (preliminaries) • specify type of positions %pos int * int • specify terminal and nonterminal symbols %term IF | THEN | ELSE | PLUS | MINUS. . . %nonterm prog | exp | op • specify end-of-parse token %eop EOF • specify start symbol (by default, non terminal in LHS of first rule) %start prog

Simple ML-Yacc Example grammar symbols %% %term NUM | PLUS | MUL | LPAR | RPAR %nonterm exp | fact | base grammar rules %pos int %start exp %eop EOF semantic actions (currently do nothing) %% exp : fact | fact PLUS exp () () fact : base | base MUL factor () () base : NUM | LPAR exp RPAR () ()

attribute-grammars • ML-Yacc uses an attribute-grammar scheme – each nonterminal may have an associated semantic value associated with it – when the parser reduces the parsing stack using rule (X : : = s), a semantic action that uses the semantic values from s will be executed – when parsing is completed successfully, the parser returns the value associated with the start symbol

attribute-grammars • semantic actions typically build the abstract syntax for the internal language • to use semantic values during parsing, we must declare symbol types: – %terminal NUM of int | PLUS | MUL |. . . – %nonterminal exp of int | fact of int | base of int • type of semantic action must match type declared for LHS nonterminal in rule

ML-Yacc with Semantic Actions grammar symbols with type declarations grammar rules with semantic actions %% %term NUM of int | PLUS | MUL | LPAR | RPAR %nonterm exp of int | fact of int | base of int %pos int %start exp %eop EOF computing integer result via semantic actions %% exp : fact | fact PLUS exp (fact) (fact + exp) fact : base | base MUL base (base) (base 1 * base 2) base : NUM | LPAR exp RPAR (NUM) (exp)

ML-Yacc with Semantic Actions datatype exp = Int of int | Add of exp * exp | Mul of exp * exp %%. . . %% exp : fact | fact PLUS exp (fact) (Add (fact, exp)) fact : base | base MUL exp (base) (Mul (base, exp)) base : NUM | LPAR exp RPAR (Int NUM) (exp) computing abstract syntax via semantic actions

A simpler grammar datatype exp = Int of int | Add of exp * exp | Mul of exp * exp %%. . . %% exp : NUM | exp PLUS exp | exp MUL exp | LPAR exp RPAR why don’t we just use this simpler grammar? (Int NUM) (Add (exp 1, exp 2)) (Mul (exp 1, exp 2)) (exp)

A simpler grammar datatype exp = Int of int | Add of exp * exp | Mul of exp * exp %%. . . %% exp : NUM | exp PLUS exp | exp MUL exp | LPAR exp RPAR this grammar is ambiguous! (Int NUM) (Add (exp 1, exp 2)) (Mul (exp 1, exp 2)) (exp) E E NUM + NUM * NUM + E E * NUM E E E NUM E + NUM * E E NUM

a simpler grammar datatype exp = Int of int | Add of exp * exp | Mul of exp * exp But it is so clean that it would be nice to use. Moreover, we know which parse tree we want. We just need a mechanism to specify it! %%. . . %% exp : NUM | exp PLUS exp | exp MUL exp | LPAR exp RPAR (Int NUM) (Add (exp 1, exp 2)) (Mul (exp 1, exp 2)) (exp) E E NUM + NUM * NUM + E E * NUM E E E NUM E + NUM * E E NUM

Recall how LR parsing works: desired parse tree: exp : : = NUM | exp PLUS exp | exp MUL exp | LPAR exp RPAR E E yet to read Input from lexer: NUM + NUM * NUM State of parse so far: NUM + E E * NUM E+E We have a shift-reduce conflict. What should we do to get the right parse? elements of desired parsed so far

Recall how LR parsing works: desired parse tree: exp : : = NUM | exp PLUS exp | exp MUL exp | LPAR exp RPAR E E yet to read Input from lexer: NUM + NUM * NUM State of parse so far: NUM + E E * NUM E+E* We have a shift-reduce conflict. What should we do to get the right parse? SHIFT elements of desired parsed so far

Recall how LR parsing works: desired parse tree: exp : : = NUM | exp PLUS exp | exp MUL exp | LPAR exp RPAR E E yet to read Input from lexer: NUM + NUM * NUM State of parse so far: NUM + E E * NUM E + E * NUM elements of desired parsed so far SHIFT

Recall how LR parsing works: desired parse tree: exp : : = NUM | exp PLUS exp | exp MUL exp | LPAR exp RPAR E E yet to read Input from lexer: NUM + NUM * NUM State of parse so far: NUM + E E * NUM E+E*E elements of desired parsed so far REDUCE

Recall how LR parsing works: desired parse tree: exp : : = NUM | exp PLUS exp | exp MUL exp | LPAR exp RPAR E E yet to read Input from lexer: NUM + NUM * NUM State of parse so far: NUM + E E * NUM E+E elements of desired parsed so far REDUCE

Recall how LR parsing works: desired parse tree: exp : : = NUM | exp PLUS exp | exp MUL exp | LPAR exp RPAR E E yet to read Input from lexer: NUM + NUM * NUM State of parse so far: NUM + E E * NUM E elements of desired parsed so far REDUCE

The alternative parse exp : : = NUM | exp PLUS exp | exp MUL exp | LPAR exp RPAR E + yet to read NUM E NUM Input from lexer: NUM + NUM * NUM State of parse so far: E+E We have a shift-reduce conflict. Suppose we REDUCE next elements parsed so far

The alternative parse exp : : = NUM | exp PLUS exp | exp MUL exp | LPAR exp RPAR E E + yet to read NUM E NUM Input from lexer: NUM + NUM * NUM State of parse so far: REDUCE E elements parsed so far

The alternative parse exp : : = NUM | exp PLUS exp | exp MUL exp | LPAR exp RPAR E E + yet to read NUM * E NUM Input from lexer: NUM + NUM * NUM State of parse so far: E*E Now: SHIFT REDUCE E elements parsed so far NUM

The alternative parse E exp : : = NUM | exp PLUS exp | exp MUL exp | LPAR exp RPAR E E + yet to read NUM * E NUM Input from lexer: NUM + NUM * NUM State of parse so far: REDUCE E E elements parsed so far NUM

Summary desired parse tree: exp : : = NUM | exp PLUS exp | exp MUL exp | LPAR exp RPAR E E yet to read Input from lexer: NUM + NUM * NUM State of parse so far: NUM + E E * NUM E+E We have a shift-reduce conflict. We have E + E on stack, we see *. We want to shift. We ALWAYS want to shift since * has higher precedence than +. elements of desired parsed so far

Example 2 exp : : = NUM | exp PLUS exp | exp MUL exp | exp MINUS exp | LPAR exp RPAR E yet to read NUM E NUM Input from lexer: NUM - NUM State of parse so far: E-E We have a shift-reduce conflict. We have E - E on stack, we see -. What do we do? elements parsed so far

Example 2 exp : : = NUM | exp PLUS exp | exp MUL exp | exp MINUS exp | LPAR exp RPAR E E yet to read NUM E NUM Input from lexer: NUM - NUM State of parse so far: E We have a shift-reduce conflict. We have E - E on stack, we see -. What do we do? REDUCE elements parsed so far

Example 2 exp : : = NUM | exp PLUS exp | exp MUL exp | exp MINUS exp | LPAR exp RPAR E E yet to read NUM E NUM Input from lexer: NUM - NUM State of parse so far: E-E SHIFT REDUCE E elements parsed so far NUM

Example 2 E exp : : = NUM | exp PLUS exp | exp MUL exp | exp MINUS exp | LPAR exp RPAR E E yet to read NUM E NUM Input from lexer: NUM - NUM State of parse so far: REDUCE E E elements parsed so far NUM

Example 2: Summary E exp : : = NUM | exp PLUS exp | exp MUL exp | exp MINUS exp | LPAR exp RPAR E E NUM yet to read E NUM Input from lexer: NUM - NUM State of parse so far: E elements parsed so far We have a shift-reduce conflict. We have E - E on stack, we see -. What do we do? REDUCE. We ALWAYS want to reduce since – is left-associative. E NUM

precedence and associativity • three solutions to dealing with operator precedence and associativity: 1) let Yacc complain. • its default choice is to shift when it encounters a shift-reduce error • programmer intentions unclear; harder to debug other parts of your grammar; generally inelegant 2) rewrite the grammar to eliminate ambiguity • can be complicated and less clear 3) use Yacc precedence directives • %left, %right %nonassoc

precedence and associativity • given directives, ML-Yacc assigns precedence to each terminal and rule – precedence of terminal based on order in which associativity is specified – precedence of rule is the precedence of the right-most terminal • eg: precedence of (E : : = E + E) ==> prec(+) • a shift-reduced conflict is resolved as follows – prec(terminal) > prec(rule) ==> shift – prec(terminal) < prec(rule) ==> reduce – prec(terminal) = prec(rule) ==> • assoc(terminal) = left ==> reduce • assoc(terminal) = right ==> shift • assoc(terminal) = nonassoc ==> report as error yet to read input: terminal T next: . . T E RHS of rule on stack: . . . . E % E

precedence and associativity datatype exp = Int of int | Add of exp * exp | Sub of exp * exp | Mul of exp * exp | Div of exp *exp %% %left PLUS MINUS %left MUL DIV %% exp : NUM | exp PLUS exp | exp MINUS exp | exp MUL exp | exp DIV exp | LPAR exp RPAR (Int NUM) (Add (exp 1, exp 2)) (Sub (exp 1, exp 2)) (Mul (exp 1, exp 2)) (Div (exp 1, exp 2)) (exp)

precedence and associativity precedence directives: %left PLUS MINUS %left MUL DIV yet to read input: terminal T next: . . MUL E RHS of rule on stack: . . . E PLUS E prec(MUL) > prec(PLUS)

precedence and associativity precedence directives: %left PLUS MINUS %left MUL DIV yet to read input: terminal T next: . . MUL E RHS of rule on stack: . . . E PLUS E SHIFT prec(MUL) > prec(PLUS)

precedence and associativity precedence directives: %left PLUS MINUS %left MUL DIV yet to read input: terminal T next: . . SUB E RHS of rule on stack: . . . E PLUS E prec(PLUS) = prec(SUB)

precedence and associativity precedence directives: %left PLUS MINUS %left MUL DIV yet to read input: terminal T next: . . SUB E RHS of rule on stack: . . . E PLUS E REDUCE prec(PLUS) = prec(SUB)

one more example datatype exp = Int of int | Add of exp * exp | Sub of exp * exp | Mul of exp * exp | Div of exp *exp | Uminus of exp . . MUL E %% . . . MINUS E %left PLUS MINUS %left MUL DIV what happens? %% exp : NUM | MINUS exp | exp PLUS exp | exp MINUS exp | exp MUL exp | exp DIV exp | LPAR exp RPAR (Int NUM) (Uminus exp) (Add (exp 1, exp 2)) (Sub (exp 1, exp 2)) (Mul (exp 1, exp 2)) (Div (exp 1, exp 2)) (exp) yet to read

one more example datatype exp = Int of int | Add of exp * exp | Sub of exp * exp | Mul of exp * exp | Div of exp *exp | Uminus of exp . . MUL E %% . . . MINUS E %left PLUS MINUS %left MUL DIV what happens? %% prec(*) > prec(-) ==> we SHIFT exp : NUM | MINUS exp | exp PLUS exp | exp MINUS exp | exp MUL exp | exp DIV exp | LPAR exp RPAR (Int NUM) (Uminus exp) (Add (exp 1, exp 2)) (Sub (exp 1, exp 2)) (Mul (exp 1, exp 2)) (Div (exp 1, exp 2)) (exp) yet to read

the fix datatype exp = Int of int | Add of exp * exp | Sub of exp * exp | Mul of exp * exp | Div of exp *exp | Uminus of exp %% %left PLUS MINUS %left MUL DIV %left UMINUS %% exp : NUM (Int NUM) | MINUS exp %prec UMINUS (Uminus exp) | exp PLUS exp (Add (exp 1, exp 2)) | exp MINUS exp (Sub (exp 1, exp 2)) | exp MUL exp (Mul (exp 1, exp 2)) | exp DIV exp (Div (exp 1, exp 2)) | LPAR exp RPAR (exp) yet to read. . . . . MUL E. . . MINUS E

the fix datatype exp = Int of int | Add of exp * exp | Sub of exp * exp | Mul of exp * exp | Div of exp *exp | Uminus of exp %% %left PLUS MINUS %left MUL DIV %left UMINUS %% exp : NUM (Int NUM) | MINUS exp %prec UMINUS (Uminus exp) | exp PLUS exp (Add (exp 1, exp 2)) | exp MINUS exp (Sub (exp 1, exp 2)) | exp MUL exp (Mul (exp 1, exp 2)) | exp DIV exp (Div (exp 1, exp 2)) | LPAR exp RPAR (exp) yet to read. . . . . MUL E. . . E MINUS E changing precedence of rule alters decision: prec(-) > prec(*) ==> we REDUCE

the dangling else problem • Grammar: S : : = if E then S else S S : : = if E then S S : : =. . . • Consider: if a then if b then S else S – parse 1: if a then (if b then S else S) – parse 2: if a then (if b then S) else S • Parser reports shift-reduce error – in default behavior: shift (what we want)

the dangling else problem • Grammar: S : : = if E then S else S S : : = if E then S S : : =. . . • Alternative solution is to rewrite grammar: S : : = M S : : = U M : : = if E then M else M M : : =. . . U : : = if E then S U : : = if E then M else U

default behavior of ML-Yacc • Shift-Reduce error – shift • Reduce-Reduce error – reduce by first rule – generally considered unacceptable • for assignment 3, your job is to write a grammar for Fun such that there are no conflicts – you may use precedence directives tastefully

Note: To enter ML-Yacc hell, use a parser to catch type errors • when doing assignment 3, your job is to catch parse errors • there are lots of programming errors that will slip by the parser: – eg: 3 + true – catching these sorts of errors is the job of the type checker – just as catching program structure errors was the job of the parser, not the lexer – attempting to do type checking in the parser is impossible (in general) • why? Hint: what does “context-free grammar” imply?
