METEOSAT SECOND GENERATION (MSG) FIRE DETECTION Author: Jochen Kerkmann kerkmann@eumetsat. de Contributors: P. Menzel (NOAA) Version 1. 0, 30 November 2004 Slide: 1

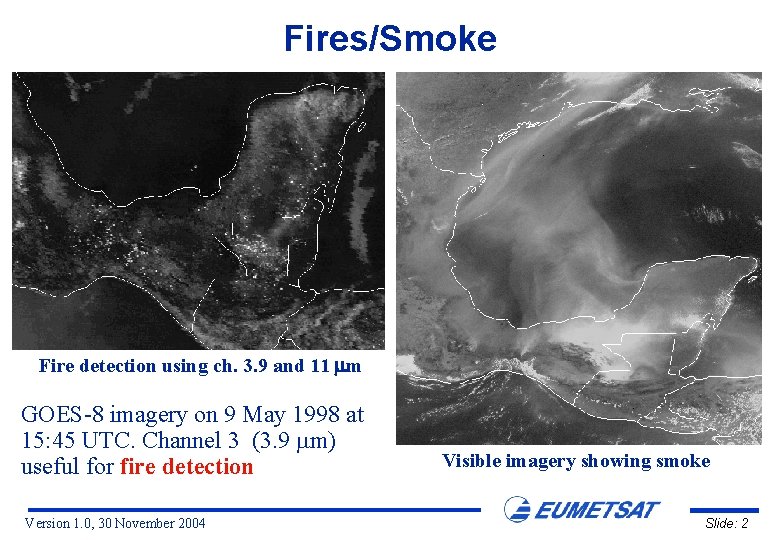

Fires/Smoke Fire detection using ch. 3. 9 and 11 m GOES-8 imagery on 9 May 1998 at 15: 45 UTC. Channel 3 (3. 9 m) useful for fire detection Version 1. 0, 30 November 2004 Visible imagery showing smoke Slide: 2

Fires over Angola 25 June 2003 Version 1. 0, 30 November 2004 Slide: 3

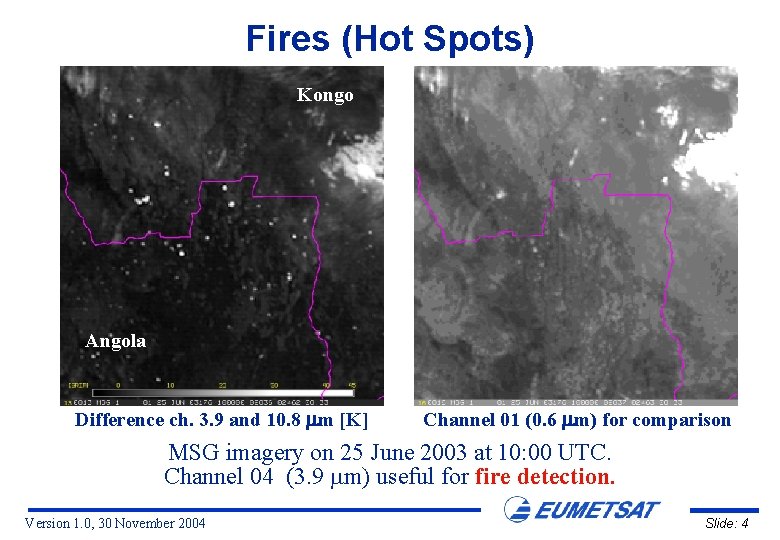

Fires (Hot Spots) Kongo Angola Difference ch. 3. 9 and 10. 8 m [K] Channel 01 (0. 6 m) for comparison MSG imagery on 25 June 2003 at 10: 00 UTC. Channel 04 (3. 9 m) useful for fire detection. Version 1. 0, 30 November 2004 Slide: 4

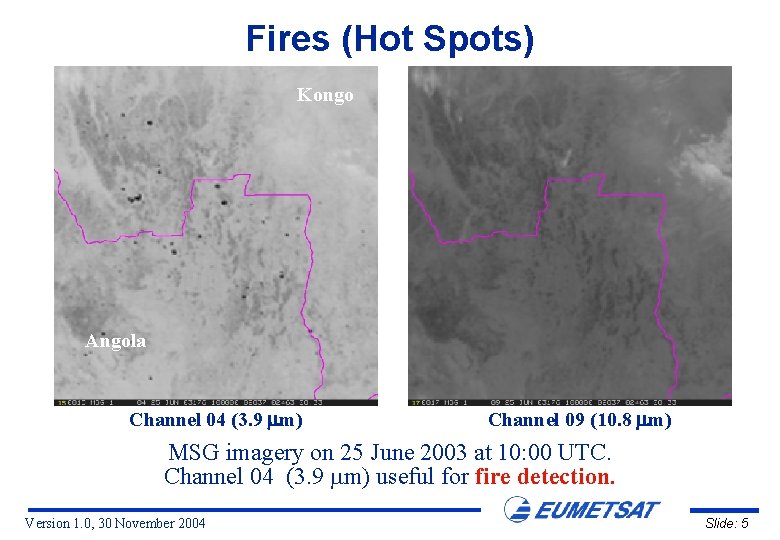

Fires (Hot Spots) Kongo Angola Channel 04 (3. 9 m) Channel 09 (10. 8 m) MSG imagery on 25 June 2003 at 10: 00 UTC. Channel 04 (3. 9 m) useful for fire detection. Version 1. 0, 30 November 2004 Slide: 5

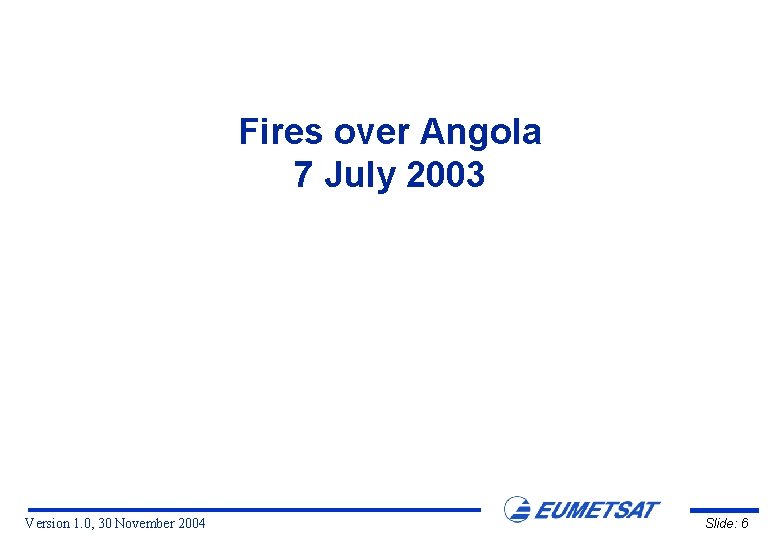

Fires over Angola 7 July 2003 Version 1. 0, 30 November 2004 Slide: 6

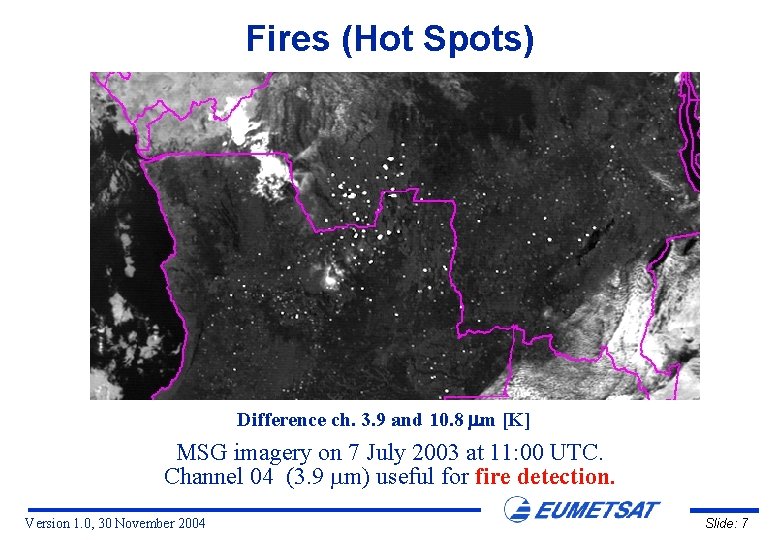

Fires (Hot Spots) Kongo Angola Difference ch. 3. 9 and 10. 8 m [K] MSG imagery on 7 July 2003 at 11: 00 UTC. Channel 04 (3. 9 m) useful for fire detection. Version 1. 0, 30 November 2004 Slide: 7

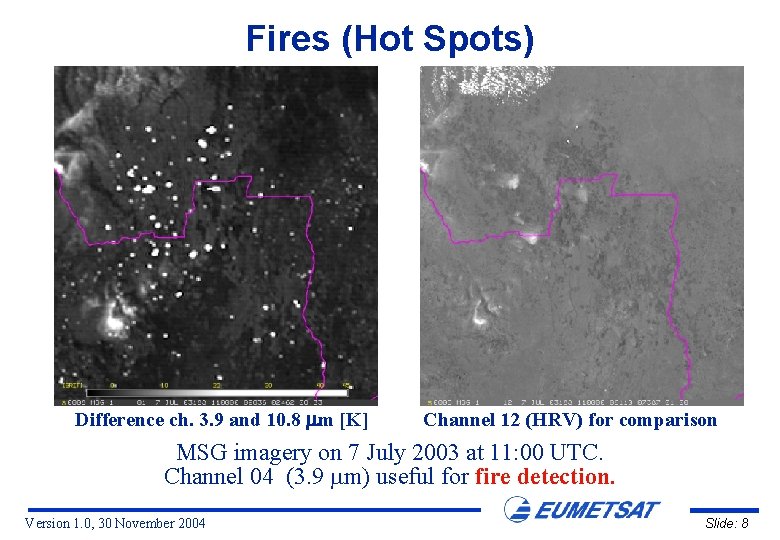

Fires (Hot Spots) Kongo Angola Difference ch. 3. 9 and 10. 8 m [K] Channel 12 (HRV) for comparison MSG imagery on 7 July 2003 at 11: 00 UTC. Channel 04 (3. 9 m) useful for fire detection. Version 1. 0, 30 November 2004 Slide: 8

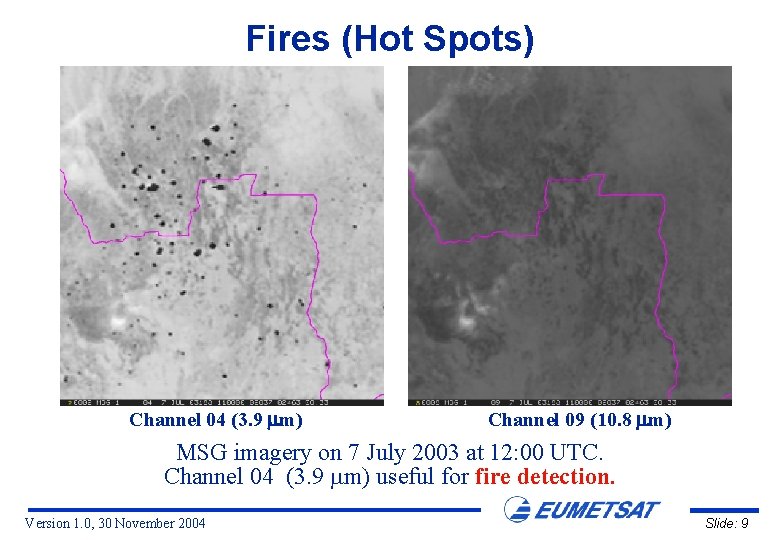

Fires (Hot Spots) Kongo Angola Channel 04 (3. 9 m) Channel 09 (10. 8 m) MSG imagery on 7 July 2003 at 12: 00 UTC. Channel 04 (3. 9 m) useful for fire detection. Version 1. 0, 30 November 2004 Slide: 9

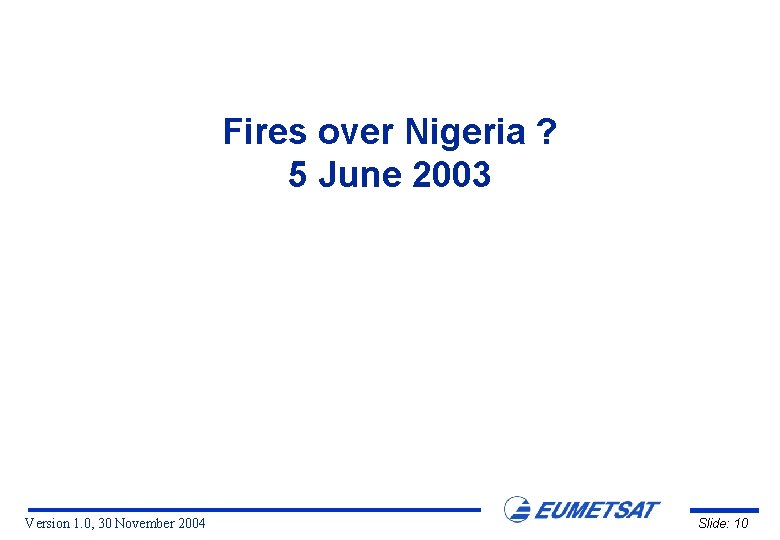

Fires over Nigeria ? 5 June 2003 Version 1. 0, 30 November 2004 Slide: 10

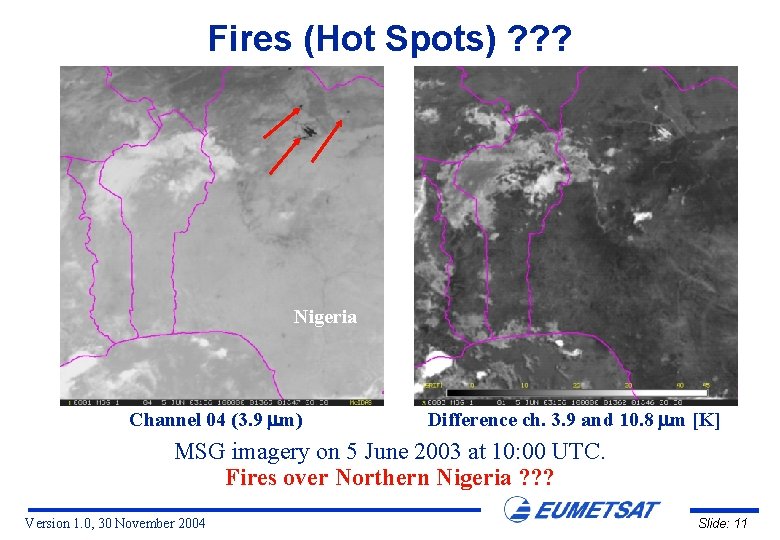

Fires (Hot Spots) ? ? ? Nigeria Channel 04 (3. 9 m) Difference ch. 3. 9 and 10. 8 m [K] MSG imagery on 5 June 2003 at 10: 00 UTC. Fires over Northern Nigeria ? ? ? Version 1. 0, 30 November 2004 Slide: 11

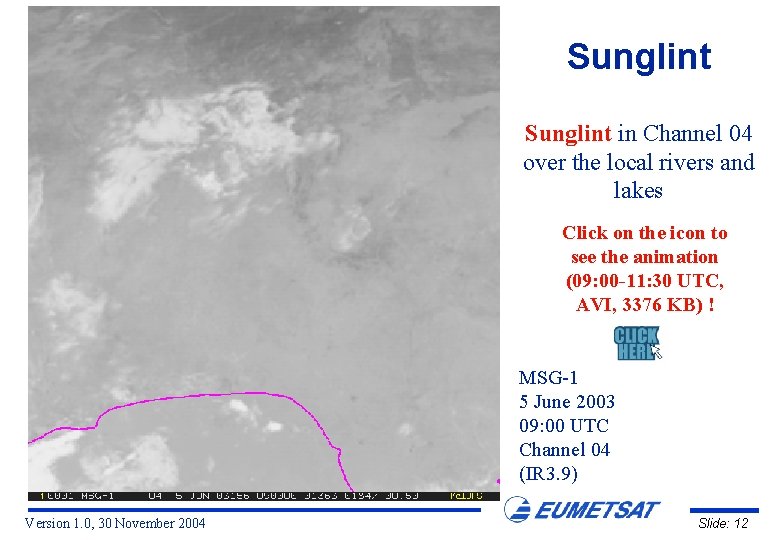

Sunglint in Channel 04 over the local rivers and lakes Click on the icon to see the animation (09: 00 -11: 30 UTC, AVI, 3376 KB) ! MSG-1 5 June 2003 09: 00 UTC Channel 04 (IR 3. 9) Version 1. 0, 30 November 2004 Slide: 12

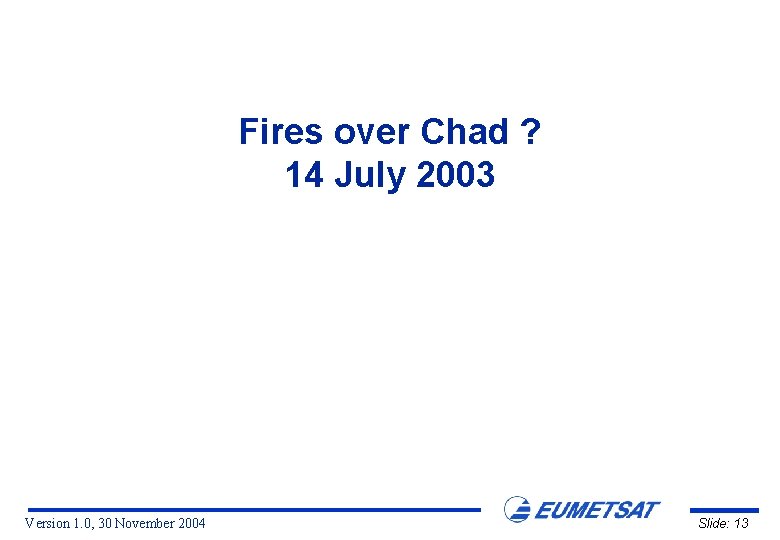

Fires over Chad ? 14 July 2003 Version 1. 0, 30 November 2004 Slide: 13

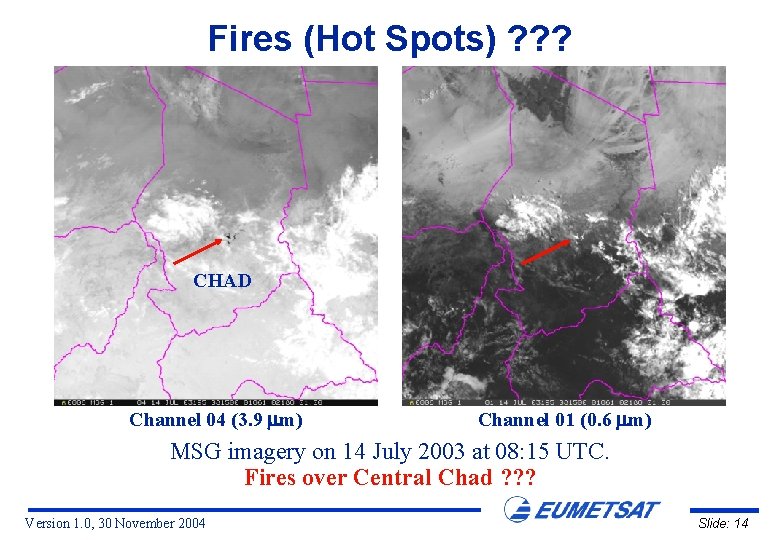

Fires (Hot Spots) ? ? ? CHAD Channel 04 (3. 9 m) Channel 01 (0. 6 m) MSG imagery on 14 July 2003 at 08: 15 UTC. Fires over Central Chad ? ? ? Version 1. 0, 30 November 2004 Slide: 14

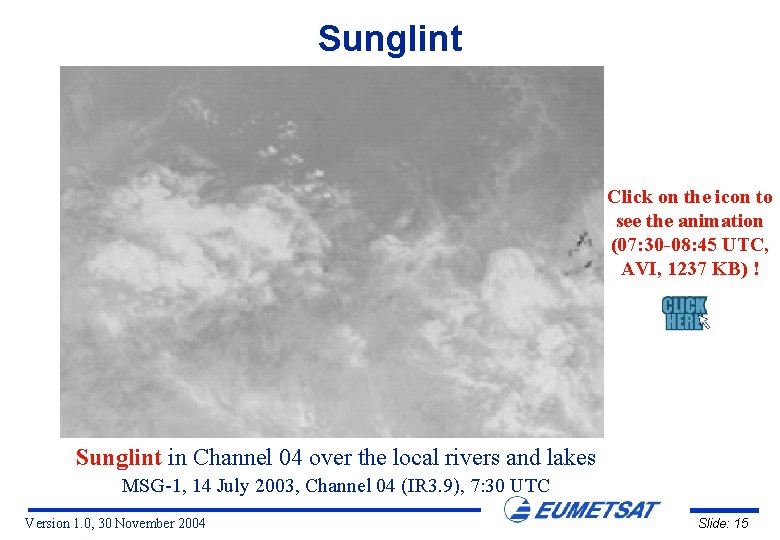

Sunglint Click on the icon to see the animation (07: 30 -08: 45 UTC, AVI, 1237 KB) ! Sunglint in Channel 04 over the local rivers and lakes MSG-1, 14 July 2003, Channel 04 (IR 3. 9), 7: 30 UTC Version 1. 0, 30 November 2004 Slide: 15

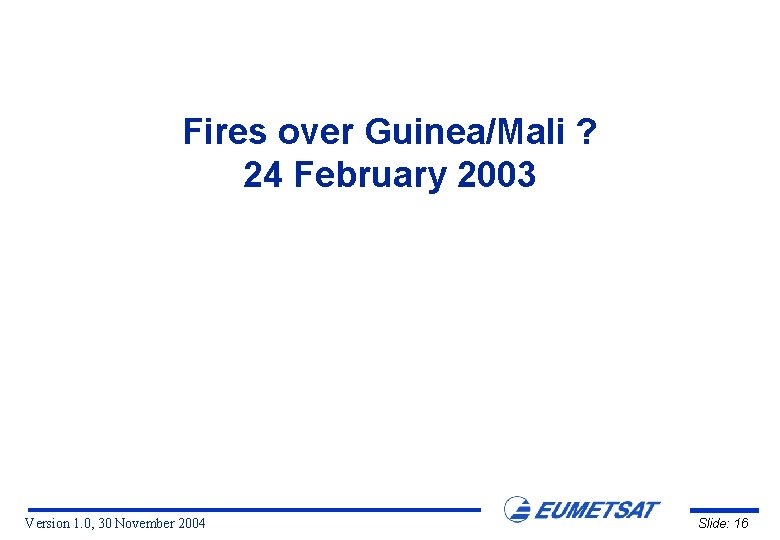

Fires over Guinea/Mali ? 24 February 2003 Version 1. 0, 30 November 2004 Slide: 16

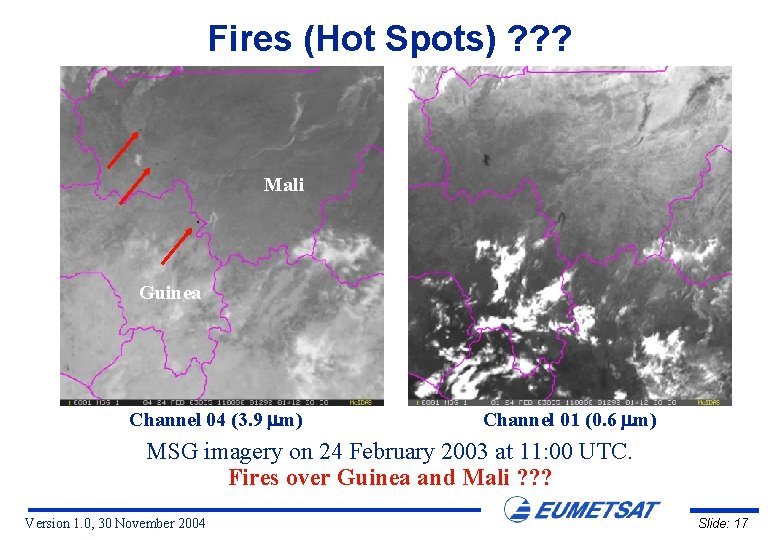

Fires (Hot Spots) ? ? ? Mali Guinea Channel 04 (3. 9 m) Channel 01 (0. 6 m) MSG imagery on 24 February 2003 at 11: 00 UTC. Fires over Guinea and Mali ? ? ? Version 1. 0, 30 November 2004 Slide: 17

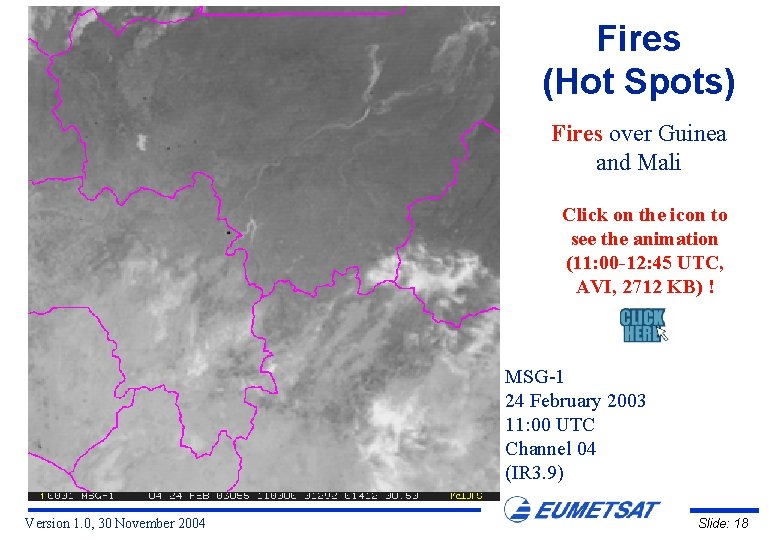

Fires (Hot Spots) Fires over Guinea and Mali Click on the icon to see the animation (11: 00 -12: 45 UTC, AVI, 2712 KB) ! MSG-1 24 February 2003 11: 00 UTC Channel 04 (IR 3. 9) Version 1. 0, 30 November 2004 Slide: 18

Fires over Kenya/Somalia/Kongo 24 February 2003 Version 1. 0, 30 November 2004 Slide: 19

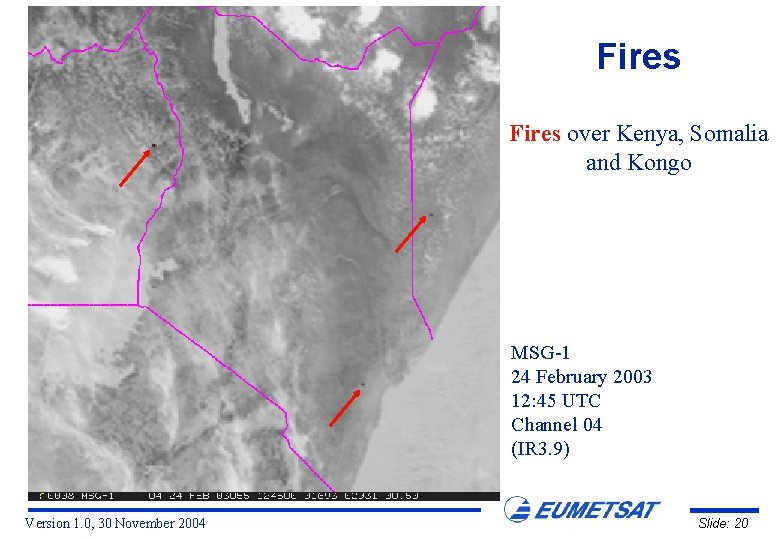

Fires over Kenya, Somalia and Kongo MSG-1 24 February 2003 12: 45 UTC Channel 04 (IR 3. 9) Version 1. 0, 30 November 2004 Slide: 20

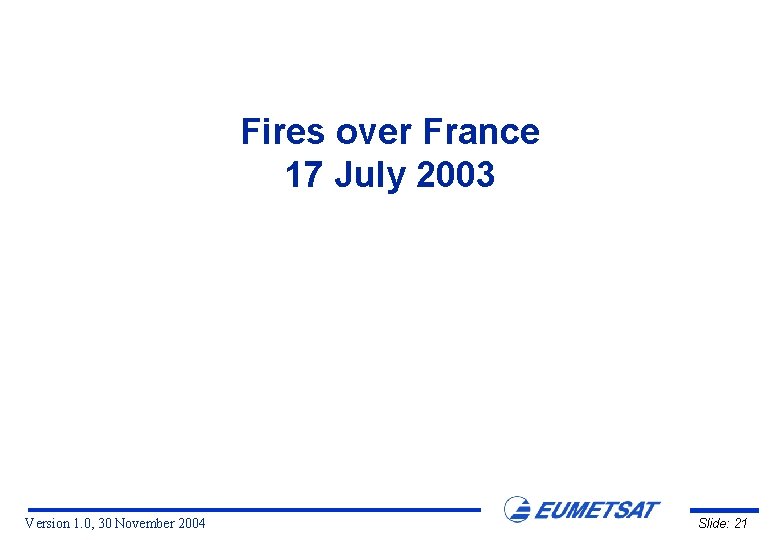

Fires over France 17 July 2003 Version 1. 0, 30 November 2004 Slide: 21

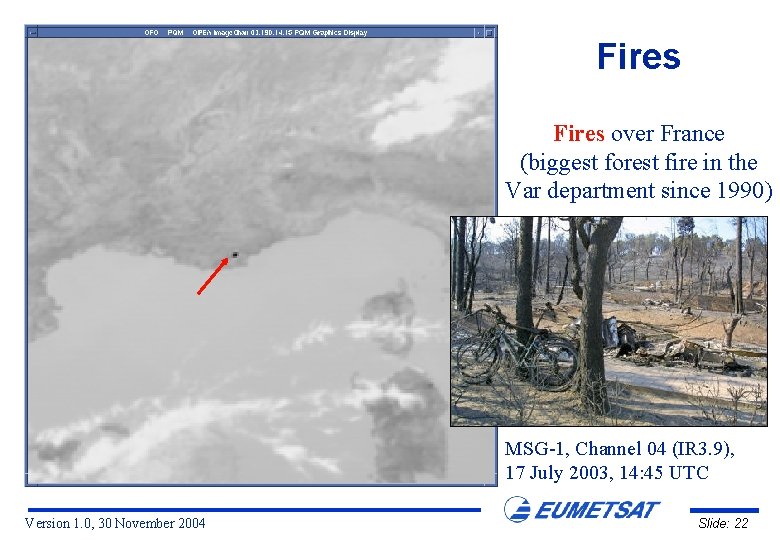

Fires over France (biggest forest fire in the Var department since 1990) MSG-1, Channel 04 (IR 3. 9), 17 July 2003, 14: 45 UTC Version 1. 0, 30 November 2004 Slide: 22

Fires over Angola/Kongo 16 July 2003 Version 1. 0, 30 November 2004 Slide: 23

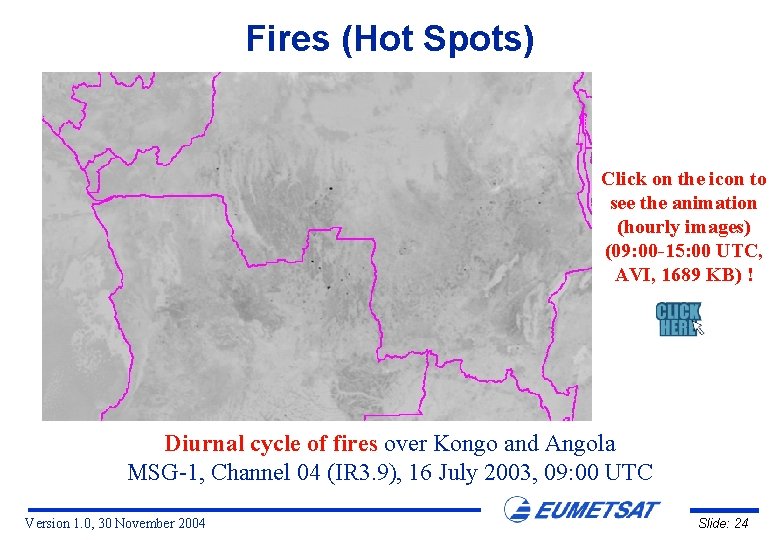

Fires (Hot Spots) Click on the icon to see the animation (hourly images) (09: 00 -15: 00 UTC, AVI, 1689 KB) ! Diurnal cycle of fires over Kongo and Angola MSG-1, Channel 04 (IR 3. 9), 16 July 2003, 09: 00 UTC Version 1. 0, 30 November 2004 Slide: 24

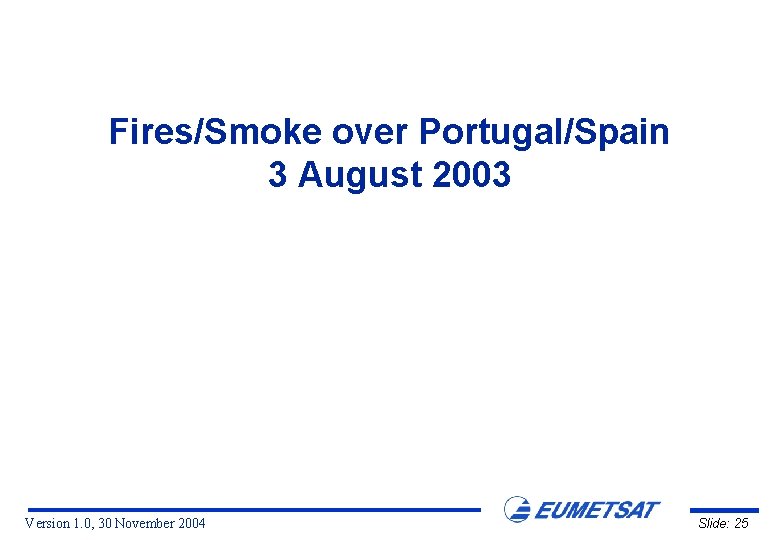

Fires/Smoke over Portugal/Spain 3 August 2003 Version 1. 0, 30 November 2004 Slide: 25

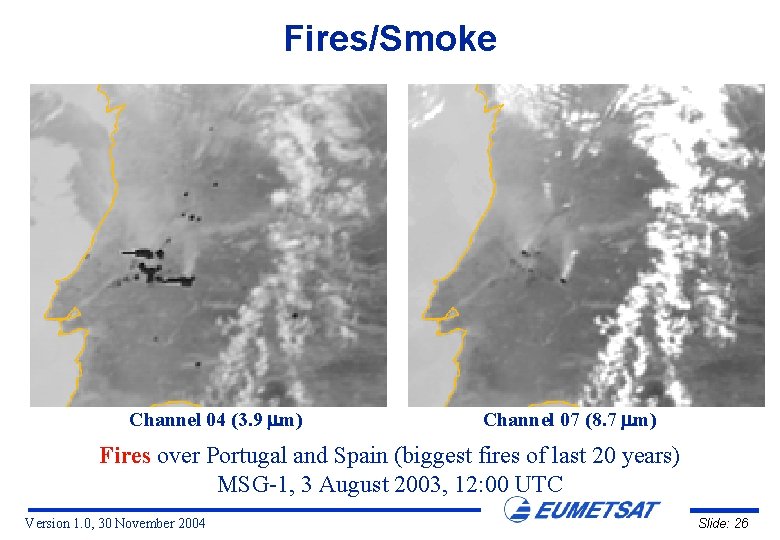

Fires/Smoke Channel 04 (3. 9 m) Channel 07 (8. 7 m) Fires over Portugal and Spain (biggest fires of last 20 years) MSG-1, 3 August 2003, 12: 00 UTC Version 1. 0, 30 November 2004 Slide: 26

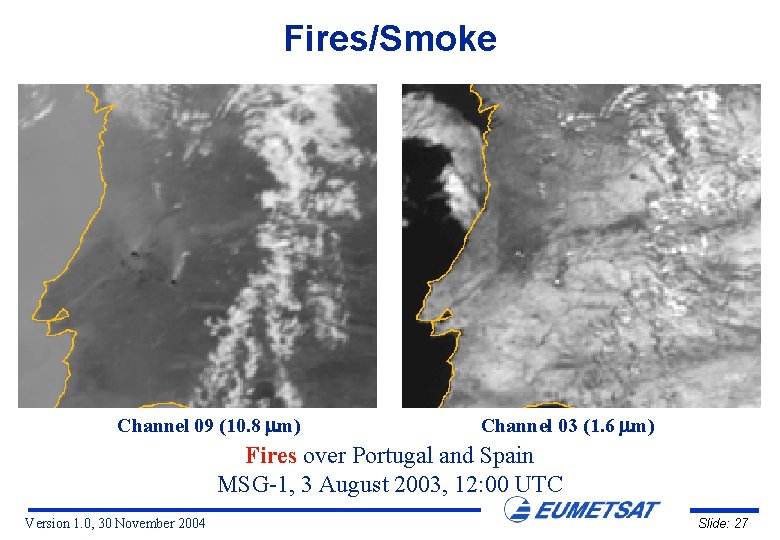

Fires/Smoke Channel 09 (10. 8 m) Channel 03 (1. 6 m) Fires over Portugal and Spain MSG-1, 3 August 2003, 12: 00 UTC Version 1. 0, 30 November 2004 Slide: 27

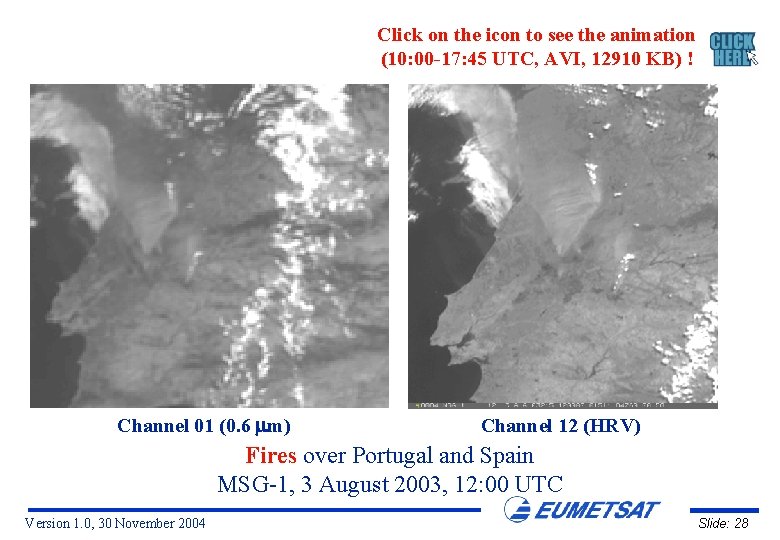

Click on the icon to see the animation (10: 00 -17: 45 UTC, AVI, 12910 KB) ! Channel 01 (0. 6 m) Channel 12 (HRV) Fires over Portugal and Spain MSG-1, 3 August 2003, 12: 00 UTC Version 1. 0, 30 November 2004 Slide: 28

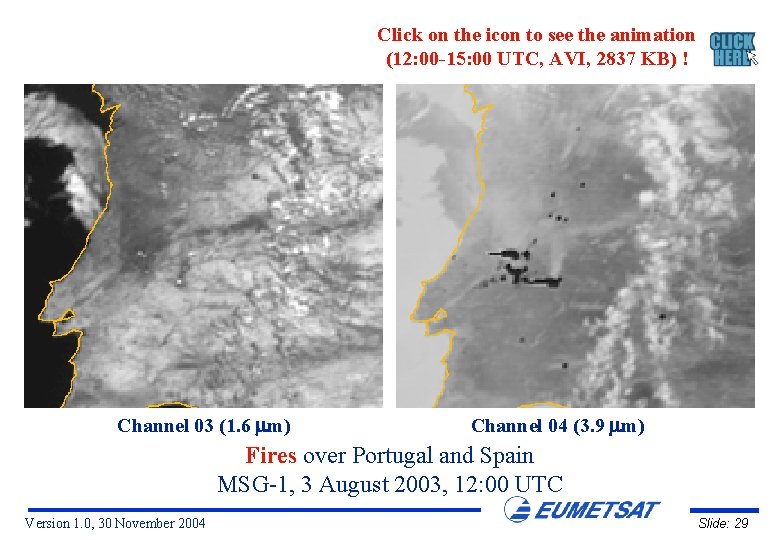

Click on the icon to see the animation (12: 00 -15: 00 UTC, AVI, 2837 KB) ! Channel 03 (1. 6 m) Channel 04 (3. 9 m) Fires over Portugal and Spain MSG-1, 3 August 2003, 12: 00 UTC Version 1. 0, 30 November 2004 Slide: 29

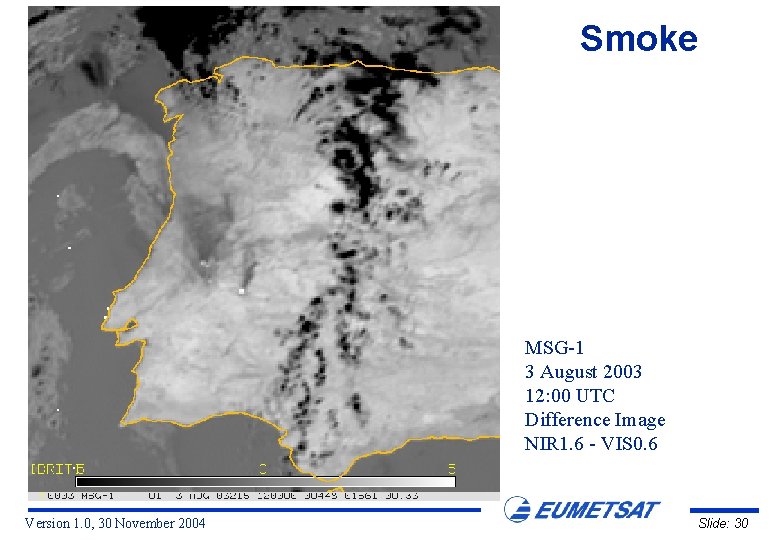

Smoke MSG-1 3 August 2003 12: 00 UTC Difference Image NIR 1. 6 - VIS 0. 6 Version 1. 0, 30 November 2004 Slide: 30

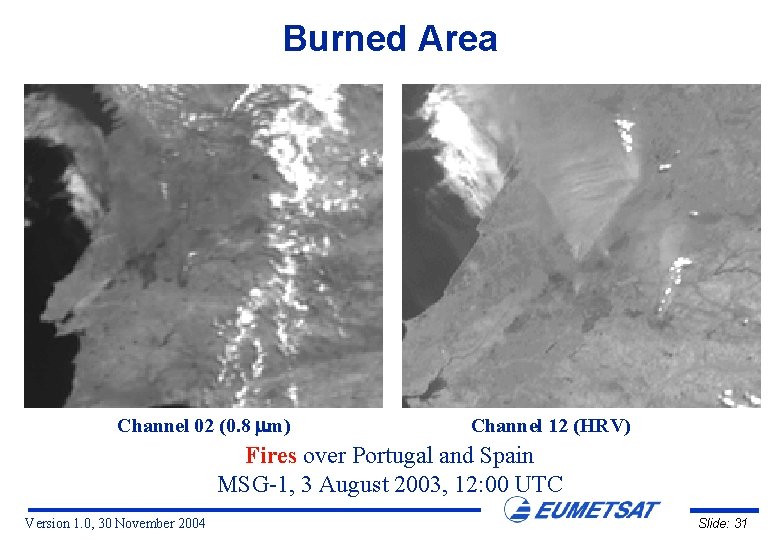

Burned Area Channel 02 (0. 8 m) Channel 12 (HRV) Fires over Portugal and Spain MSG-1, 3 August 2003, 12: 00 UTC Version 1. 0, 30 November 2004 Slide: 31

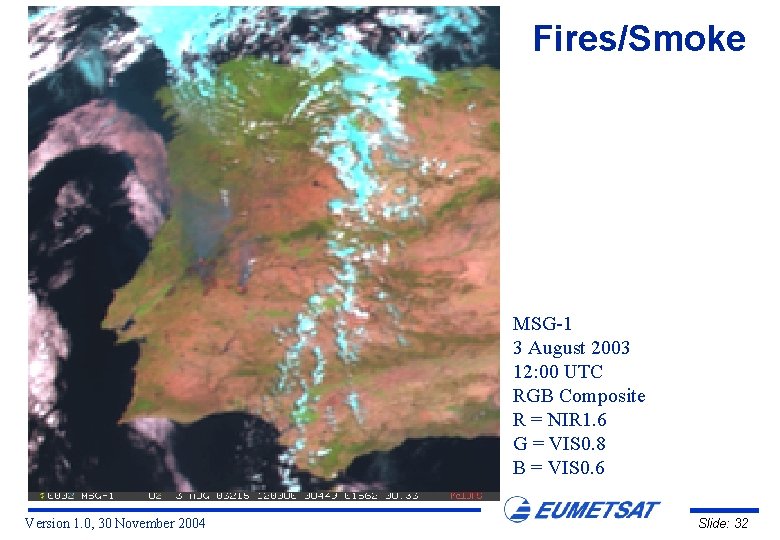

Fires/Smoke MSG-1 3 August 2003 12: 00 UTC RGB Composite R = NIR 1. 6 G = VIS 0. 8 B = VIS 0. 6 Version 1. 0, 30 November 2004 Slide: 32

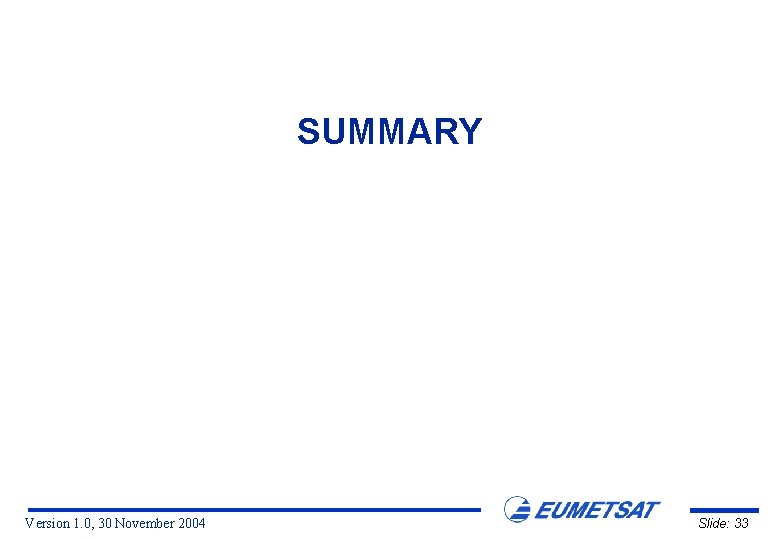

SUMMARY Version 1. 0, 30 November 2004 Slide: 33

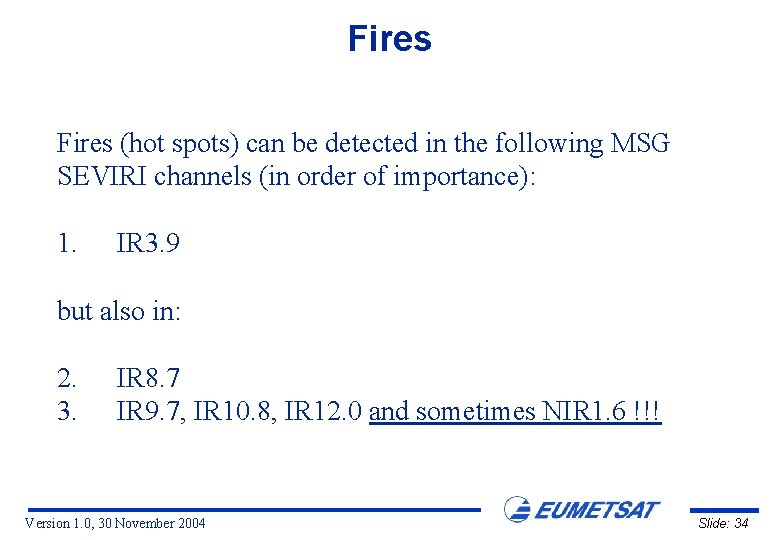

Fires (hot spots) can be detected in the following MSG SEVIRI channels (in order of importance): 1. IR 3. 9 but also in: 2. 3. IR 8. 7 IR 9. 7, IR 10. 8, IR 12. 0 and sometimes NIR 1. 6 !!! Version 1. 0, 30 November 2004 Slide: 34

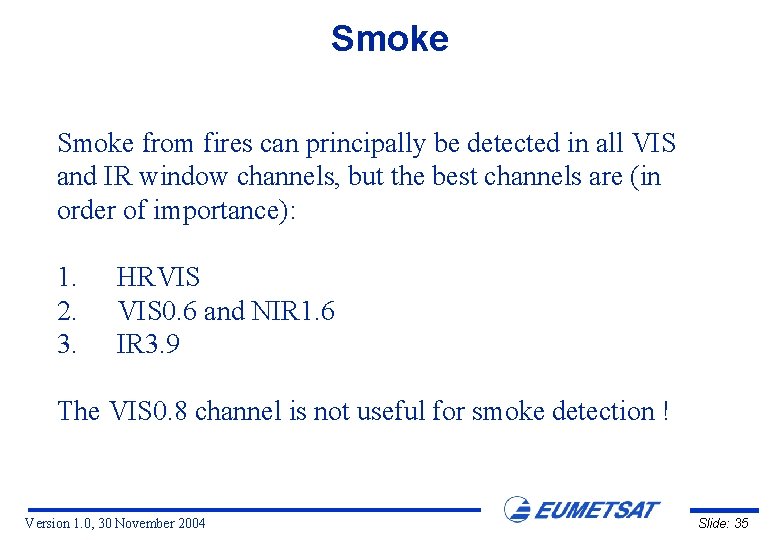

Smoke from fires can principally be detected in all VIS and IR window channels, but the best channels are (in order of importance): 1. 2. 3. HRVIS 0. 6 and NIR 1. 6 IR 3. 9 The VIS 0. 8 channel is not useful for smoke detection ! Version 1. 0, 30 November 2004 Slide: 35

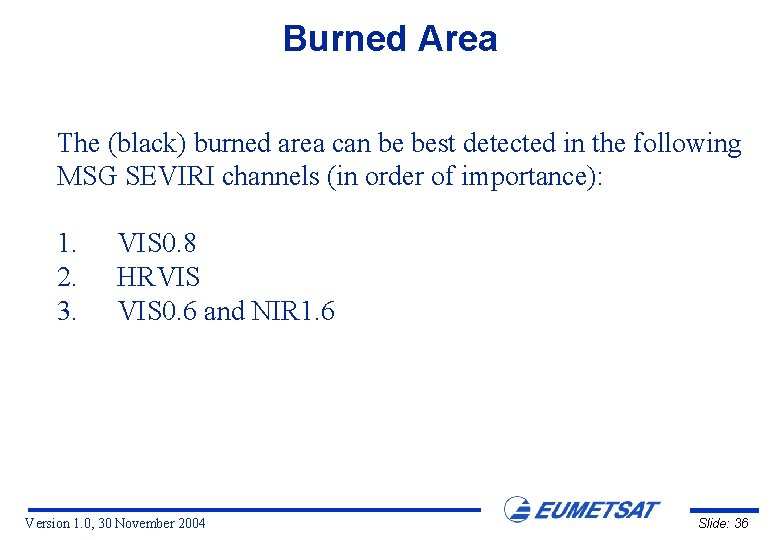

Burned Area The (black) burned area can be best detected in the following MSG SEVIRI channels (in order of importance): 1. 2. 3. VIS 0. 8 HRVIS 0. 6 and NIR 1. 6 Version 1. 0, 30 November 2004 Slide: 36
