LokiFreia Project Integration Update Clara Lopez Loki FREIA
- Slides: 31
Loki/Freia Project Integration Update Clara Lopez – Loki & FREIA Integration Engineer www. europeanspallationsource. se Workshop, May 2016
Integration ESS- ISIS • Facilitate the communication and flow of information between working teams at ISIS and ESS • Reduce technical risks during the design process, construction and installation • Follow interfaces and requirements • Support the teams with the ESS tools • Support the design process • Support the installation at ESS 2
Interaction ISIS ESS Project Sponsor (Sean Langridge) Ken Anderson Project Manager (Kevin Jones) Instrument Chief engineer (Gabor Lazlo) Lead Beamline Engineer Loki (David Turner) Integration engineer Loki (Clara Lopez) Richard Heenan Loki (Science advisor) Lead scientist Loki ESS (Andrew Jackson) Lead Engineer Freia (Jim Nightingale) Integration engineer Freia (Clara Lopez) Friea Lead Scientist (Rob Dalglish) ESS Science Advisor (Hanna Wacklin) 3
Instrument halls 3 ll a H E 01 155 m 175 m E 02 D 03 D 01 51. 5 m 135 m Hall 2 28 m Hall 1 4
Catia models ESS- 0017891 ESS Target building layout 5
Catia models ESS-0016705 ESS Target building k models (structural) 6
Catia Models ESS-0030008 Target Building Infrastructure - Pipes Gallery Hall 2 Positions for connections according to drawing ESS-037841 and gallery dimensions according to CF drawing D 03_PLAN_1. 100 7
Buildings 8
Buildings 110 Level (1 floor above ground level, demountable) 9
Position for connections in Gallery ESS- 0037841 10

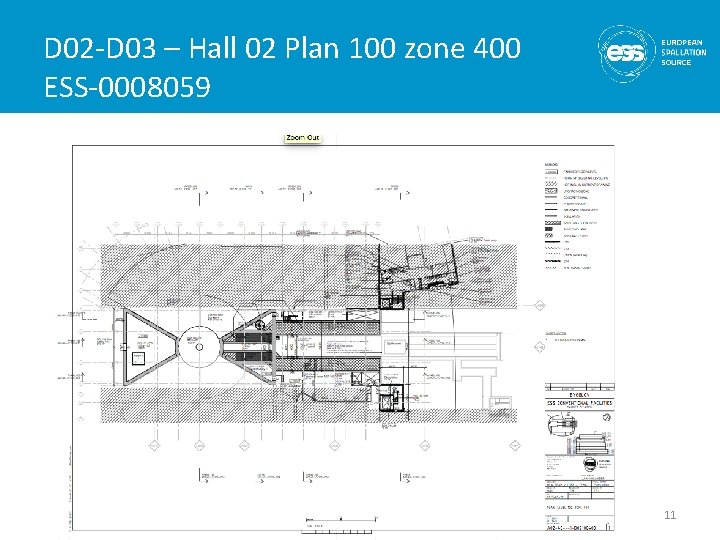

D 02 -D 03 – Hall 02 Plan 100 zone 400 ESS-0008059 11

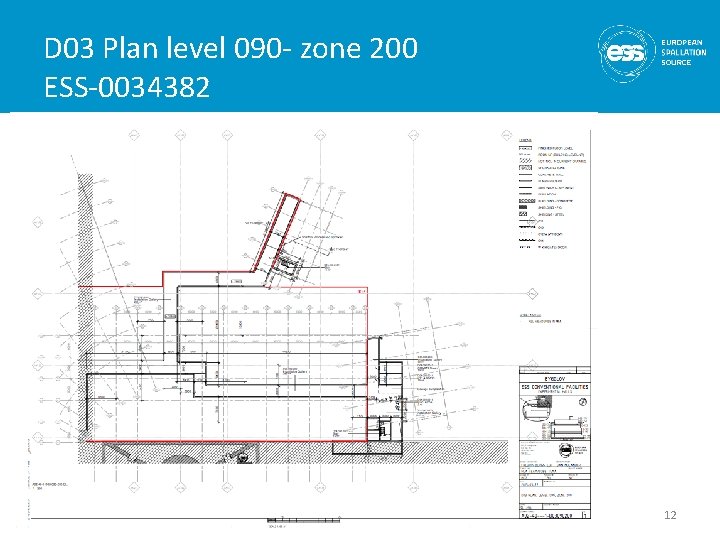

D 03 Plan level 090 - zone 200 ESS-0034382 12

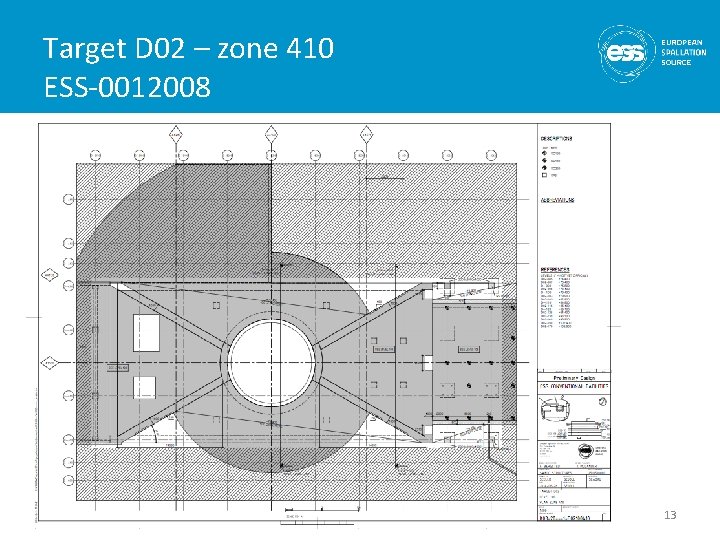

Target D 02 – zone 410 ESS-0012008 13
Plan D 03 - level 100 – zone 400 ESS-0034954 14

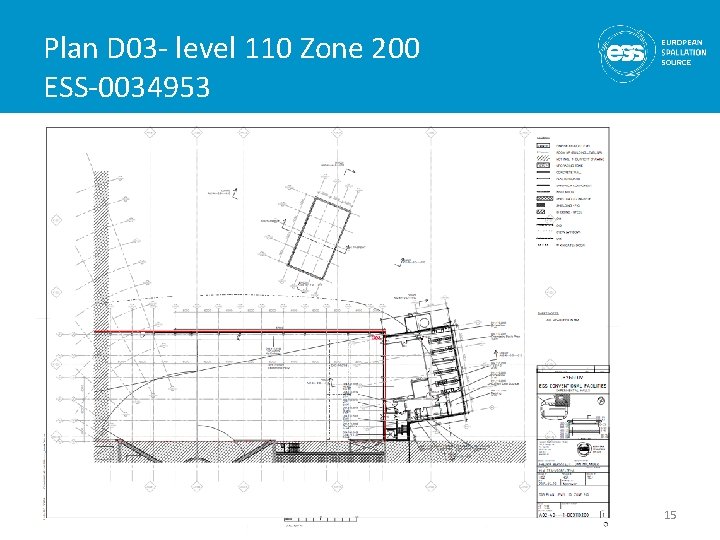

Plan D 03 - level 110 Zone 200 ESS-0034953 15
Oulets in building D 02 -D 03 and hall 2 Link: Technical Document ESS-0044799 16
Beamport Allocation • Hall 2 – North sector: Port allocation ESS-0047786 17
Material choice in vicinity of Spin Echo ESS procedure for material choice in vicinity of Neutron Spin-Echo (NSE) Instruments ESS- 0036612 Define sensitive zones Material choice within 4 m of the sensitive zone Material choice within 6 m of the sensitive zone Determine whether magnetic fields are produced within 20 m of the sensitive zone • Determine magnitude / fluctuation of magnetic fields produced • Special consideration for placement of cranes • Final choice of material or equipment • • 18
Moderator Geometry • Moderator: ICD Moderator - NSS ESS-0032315 Drawing • Neutron instrument coordinate system ESS-0033059 TCS: Target coordinate system MFSC: Moderator focus coordinate system ISCS: Instrument focus coordinate system TCS MFCS ISCS 19
Extraction details • Lo. KI in port 7 – Bending horizontally Require verification for both instruments according to actual design of the monolith insert and details from the light shutter 20
ESS references documents for extraction ESS-0044607 Port Integration design ESS-0058226 Neutron extraction ESS-0058290 PPT Neutron Extraction (light shutter) DRAFT-beam-extraction- ESS-0054363. 3 22
Interfaces – Hall 2 Lo. KI /Freia Crane Coverage Hutch/stairs Bunker Service Gallery Sample area Buildings – Floors Access – Labs Services to Bunker Infrastructure 23
Hall 2: Loki & Freia Sample area preparation Sample Access From labs Services Main access Labs Hall 2 Building joint 24
Constrains Proximity to walls Lifting & loading paths Racks positioning 25

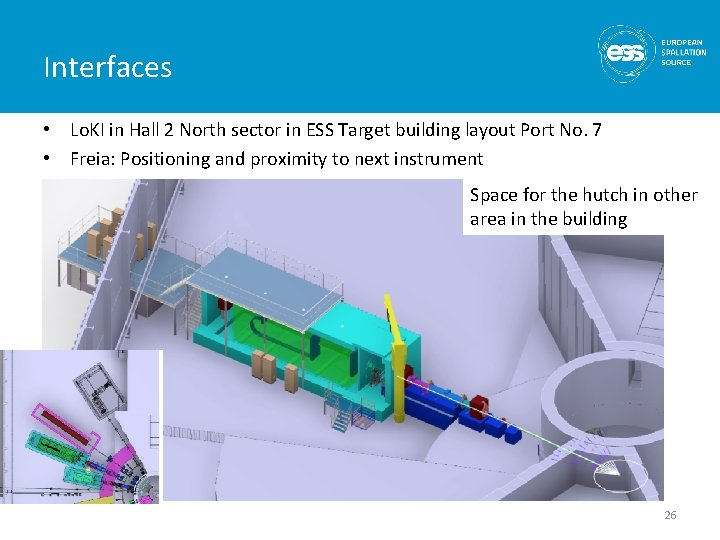

Interfaces • Lo. KI in Hall 2 North sector in ESS Target building layout Port No. 7 • Freia: Positioning and proximity to next instrument Space for the hutch in other area in the building 26

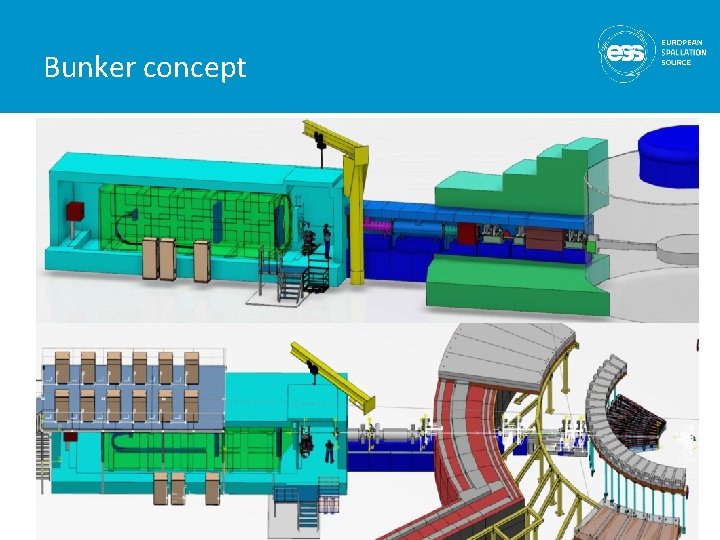

Bunker concept 27
SHUTTER? Bunker interfaces: crane - shutters 28
An image of Loki showing the components located inside the common bunker (only half the thickness of the bunker roof is shown)
ESS reference standards: On-going • Fire Protection of PE Radiation Shielding in the Experimental Halls ESS – 0010747 • NSS doors and gates ESS-0041457 30
Interfaces status • • • • Survey and Alignment group Instrument Control systems ICS Cooling and HVAC Group Vacuum group Motion Control and automation MCA Standards Group Shielding and Optics group PIMS Project Information Management Systems Logistics ESS Integration group Electrical engineering group Detectors Group Choppers Group Sample environment group - SAD 31
Questions ? Thanks for your attention!!! 32
