Update on FREIA test station GERSEMI 25 November
Update on FREIA test station GERSEMI 25 November 2020 Kévin Pepitone 25 Nov 2020 Gersemi - Pepitone
Outline • Gersemi: dimensions and first operation • High current assembly: power converters, energy extraction, polarity switch • Acquisition systems • Insert • Test of the MCBC • Future tests 25 Nov 2020 Gersemi - Pepitone 2
Gersemi 25 Nov 2020 Gersemi - Pepitone 3
General view Data acquisition and PLC Location of the energy extraction units Power converters 2 x 2 k. A Magnetic insert fully equipped 25 Nov 2020 Gersemi - Pepitone 4
Gersemi – 3 operation modes: vacuum, liquid, pressurized bath Test of SC cavities & magnets (<350 k. J) • 3. 2 m x ø 1. 1 m total volume • 2. 65 m x ø 1. 1 m below lambda plate The design, incl. the joint, is based on experience from the cluster D 25 Nov 2020 Gersemi - Pepitone 5
Gersemi – Operation Cryostat tested with the liquid insert for LHC-crab cavities in Q 4 2020 Cooldown in 1 day 1. 8 K 25 Nov 2020 Gersemi - Pepitone 6
Status Good results with the liquid insert We reached 1. 8 K Possible interference between HL-LHC magnets, LHC crab cavities and cryomodules • operational all linked to same sub-atmospheric pumping system, difficult to operation more than one at 2 K, but 4 K might be possible • magnet test could magnetize environment, while cavity test requires almost zero field levels magnetic field compensation coils for cavity instead of mu-metal shield Software improvement needed to fully automatize the operation 25 Nov 2020 Gersemi - Pepitone 7
High current assembly: • • • Power converters Energy extraction Polarity reversing switch Magnet Local. Protection. System: • • 25 Nov 2020 Matrix PLC Gersemi - Pepitone 8
Power converters and energy extraction 2 x EEX IGBT 2 x COMBO 2 k. A 25 Nov 2020 Gersemi - Pepitone 9
Power converter - Lab. View PLEP SINE CYCLE 25 Nov 2020 Gersemi - Pepitone 10
Power converter - EPICS PLEP SINE CYCLE Konrad Gajewski 25 Nov 2020 Gersemi - Pepitone 11
Energy Extraction 25 Nov 2020 Gersemi - Pepitone 12

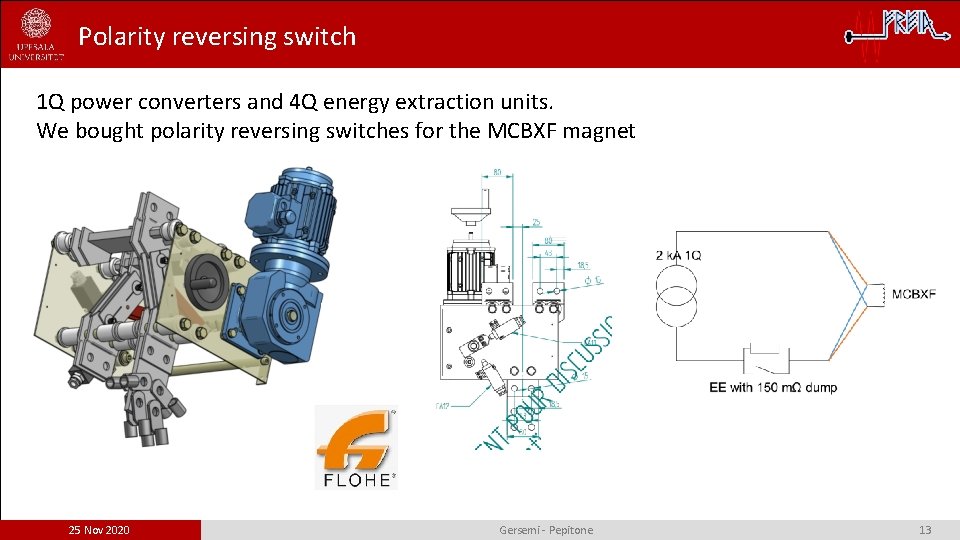

Polarity reversing switch 1 Q power converters and 4 Q energy extraction units. We bought polarity reversing switches for the MCBXF magnet 25 Nov 2020 Gersemi - Pepitone 13
Mag. LPS 20 Pot. Aim cards 7 channels interlocks 32 Digital inputs 11 Ethernet inputs 11 Digital outputs Konrad Gajewski 25 Nov 2020 Gersemi - Pepitone 14
Status Power converters and energy extraction units installed and connected (electric, water, interlock) Software (PLC, Lab. View and EPICS) ok Matrix ok Polarity reversing switches should be delivered next week. Installed and electrically connected next week (high current and PLC) The high current assembly should be fully tested in the coming days Commissioning with Gert and Samer using Zoom 25 Nov 2020 Gersemi - Pepitone 15
Acquisition system 25 Nov 2020 Gersemi - Pepitone 16
DAQ and DMM Patch panels Acquisition systems: DAQ (16 bits) HF MF LF Maximum number of channels to be recorded 48 48 72 Maximum differential input voltage 1 k. Vdc Acquisition frequency 5 - 200 k. Hz 1 - 5 k. Hz 1 k. Hz Bandwidth of the system 600 Hz Thresholds / delays per signal 0– 1 V/0– 1 s 25 Nov 2020 Gersemi - Pepitone 17
Status It works Understanding of the Pot. Aim cards still ongoing with the help of Jérôme 25 Nov 2020 Gersemi - Pepitone 18
Insert 25 Nov 2020 Gersemi - Pepitone 19
Insert(s) Liquid insert Magnetic insert Operation: • Lambda plate to separate 2 K pressurized helium from 4 K helium • Heat exchanger with sub-atmospheric 2 K helium to cool the pressurized 2 K helium 25 Nov 2020 Gersemi - Pepitone 20
Sensors Cable thermalized Heaters, temperature sensors Many Vtaps for the beginning Heaters, level prob and temperature sensors on the lambda plate Heaters, temperature sensors on the magnet 25 Nov 2020 Gersemi - Pepitone 21
Current leads 4 current leads Connections above and below the lambda plate 25 Nov 2020 Gersemi - Pepitone 22
Foam and level prob Level probes with and without protection Where is MCBC 2 m 3 of foam to save a lot of helium and be more efficient/faster 25 Nov 2020 Gersemi - Pepitone 23
Status Very optimistic considering the operation with the liquid insert First commissioning with lambda plate: • First cooling down soon and tests with assistance from ACS France planned https: //www. acsfrance. com/ • Helicoflex for the lambda plate 25 Nov 2020 Gersemi - Pepitone 24
Tests of MCBC 25 Nov 2020 Gersemi - Pepitone 25
MCBC Full assembly Interconnexion magnet-lambda plate Splices 25 Nov 2020 Gersemi - Pepitone 26
Test doc 25 Nov 2020 Gersemi - Pepitone 27
Carpenter 25 Nov 2020 Gersemi - Pepitone 28
Conclusions and planning 25 Nov 2020 Gersemi - Pepitone 29
Conclusions and planning • We have now, at the University, everything to succeed. We are close to celebrate the first operation with the lambda plate of the cryostat and the first powering of a superconducting magnet • We will be ready beginning of 2021 to receive a MCBXF (4 Q) • Time will help to be more/very comfortable with the operation of Gersemi but also with the installation/deinstallation and powering of superconducting magnets • We have an obligation of acceptance testing ESS cryomodules and we must be very efficient to juggle between Gersemi (HL-LHC magnets) and Hnoss (ESS cryomodules) 25 Nov 2020 Gersemi - Pepitone 30
Thank you for your attention Uppsala: • Vacuum: Lars, Ake, and Anders • Cryogenics: Lars, Rocio, Esat, Anders • Control system and operation: Konrad • RF: Han, Tor, Dragos • Electronics: Tord • Mechanics: Johan, Stefan • Management and organization: Roger 25 Nov 2020 CERN • SM 18 team • HL-LHC WP 3 team Special thanks to those who are still answering my calls: • Vincent, Jérôme, Maryline, Olivier • EE: Gert, Szymon • PC: Samer, Edwin • Acquisition: Hubert, Stian • Carpenter: Franco, Ioannis, Michal • FGC: Quentin, Joao Gersemi - Pepitone 31
