Red CLARA Update Eriko Porto CLARA Network Engineering

Red. CLARA Update Eriko Porto CLARA Network Engineering Group eporto@rnp. br

Agenda • Red. CLARA Connections • Global Routing Policy • Network Services

CLARA – Cooperación Latino Americana de Redes Avanzadas

LA-NRENs connected RAGIE RAICES RENIA CUDI clara-mx RENATA REACCIUN Red. Cy. T clara-pa clara-br CEDIA RNP RAAP clara-cl clara-ar RAU REUNA RETINA

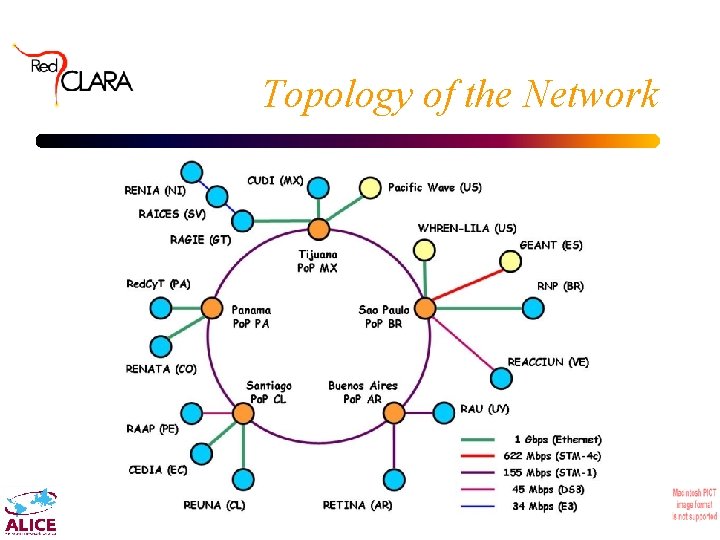

Topology of the Network

RNP • Rede Nacional de Ensino e Pesquisa • 1 Gbps connection • Hired Bandwidth – 155 Mbps

CUDI CENIC Tijuana UTEP Cd. Juárez • Corporación Universitaria para el CLARA Desarrollo de Internet Guadalajara • 1 Gbps connection • Hired Bandwidth – 45 Mbps Monter rey México Cancún

Red. Cy. T • Red científica y Tecnológica • 1 Gbps connection • Hired Bandwidth – 10 Mbps

REUNA • Red Universitaria Nacional • 1 Gbps connection • Hired Bandwidth – 90 Mbps

RETINA • Red Tele. Informática Académica • STM-1 connection • Hired Bandwidth – 90 Mbps (ATM)

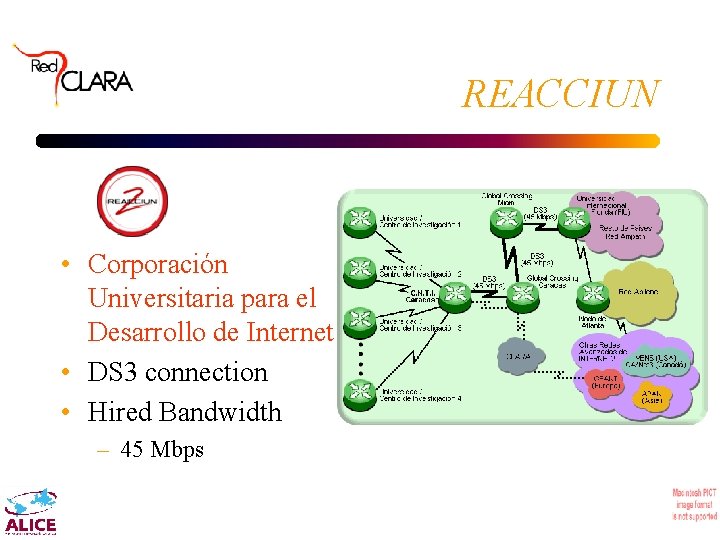

REACCIUN • Corporación Universitaria para el Desarrollo de Internet • DS 3 connection • Hired Bandwidth – 45 Mbps

RAU • Red Académica Uruguaya • STM-1 connection • Hired Bandwidth • 10 Mbps (ATM)

RAAP • Red Académica Peruana • DS 3 connection • Hired Bandwidth – 10 Mbps

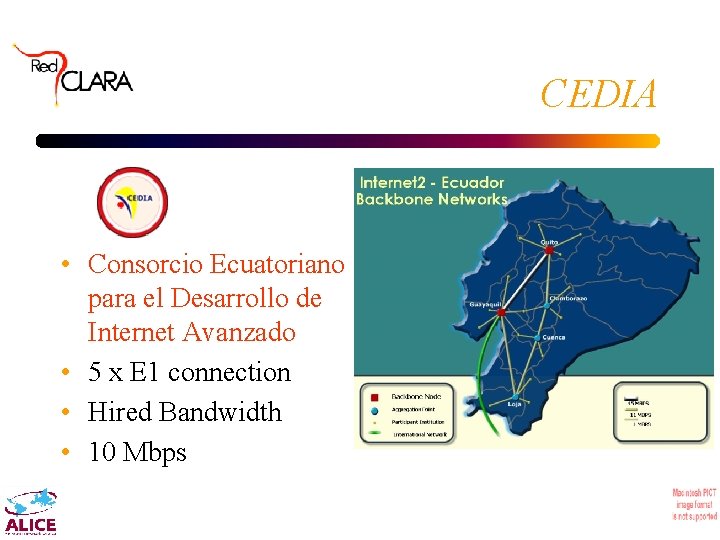

CEDIA • Consorcio Ecuatoriano para el Desarrollo de Internet Avanzado • 5 x E 1 connection • Hired Bandwidth • 10 Mbps

RENATA • Red Nacional Académica de Tecnología Avanzada • 5 x E 1 connection • Hired Bandwidth – 10 Mbps

Central America Connections NREN Guatemala CE NREN Costa Rica CE RAGIE NREN El Salvador CE RAICES NREN Nicaragua CE RENIA CR 2 Net Red. CLARA Costa Rica PE-CR TELECOM El Salvador PE-SV Eo. MPLS (ATo. M) MPLS domain ENITEL Nicaragua PE-NI TELGUA Guatemala PE-GT Red. CLARA Telnort PE-MX Red. CLARA Bestel CE

LA-NRENs Protocols NREN ASN BGP-IPv 4 BGP-IPv 6 Mcast-v 4 MSDP Mcast-v 6 RNP - BR 1916 Ð Ð CUDI - MX 18592 Ð Ð Ð Red. Cy. T - PA 65507 Ð Ð REUNA - CL 11340 Ð Ð Ð RETINA - AR 3597 Ð Ð Ð REACCIUN - VE 20312 Ð Ð RAAP - PE 6147 Ð Ð RAU - UY 1797 Ð Ð Ð RENIA - NI 65102 Ð Ð � RAGIE - GT 65103 Ð Ð Ð RAICES - SV 65104 Ð CEDIA - EC 27841 Ð RENATA - CO 64699 Ð Ð Ð Ð

R&E Networks Connectivity Pacific Wave 1. 0 Gbps GEANT 622 Mbps Abilene Cal. Ren NLR WHRENLILA TEP 2. 5 Gbps AARNet ESnet PNWGP NISN TWAREN AMPATH Abilene GEANT

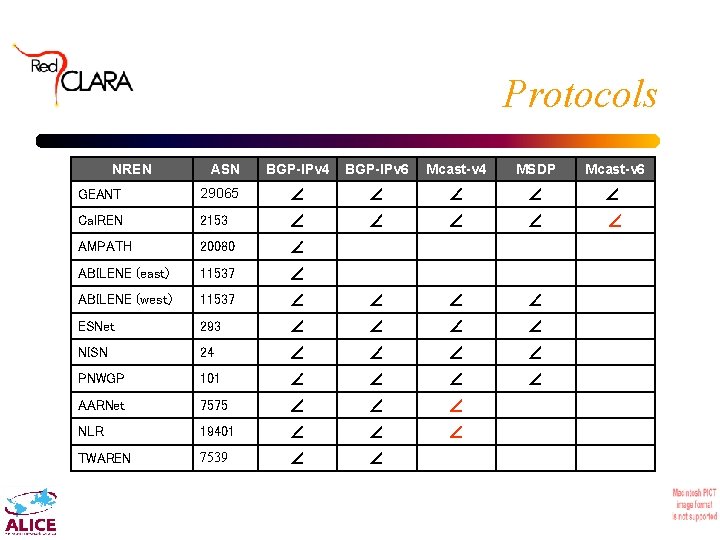

Protocols NREN ASN BGP-IPv 4 BGP-IPv 6 Mcast-v 4 MSDP Mcast-v 6 GEANT 29065 Ð Ð Ð Cal. REN 2153 Ð Ð Ð AMPATH 20080 Ð ABILENE (east) 11537 Ð ABILENE (west) 11537 Ð Ð ESNet 293 Ð Ð NISN 24 Ð Ð PNWGP 101 Ð Ð AARNet 7575 Ð Ð Ð NLR 19401 Ð Ð Ð TWAREN 7539 Ð Ð

Agenda • Red. CLARA Connections • Global Routing Policy • Network Services

Red. CLARA Routing • Red. CLARA is peering with several Regional Networks through its access links from ALICE and WHREN-LILA projects • Some of these peerings have multi-homed configuration (possibility to access the network through different connections) • The global policy adopted by Red. CLARA is geographic proximity – NRENs will preferentially use the nearest exit to exchange traffic with other networks

Red. CLARA Routing Pacific Wave 1. 0 Gbps GEANT 622 Mbps WHRENLILA TEP 2. 5 Gbps

Red. CLARA Communities • All internal and received prefixes will be marked to one or more BGP communities • There are 3 basic types of peerings: ITN (International Transit Network), Connector (regional network) and NREN • NREN receives all prefixes • ITNs and Connectors receive only NREN prefixes, unless there is a specific agreement for transit

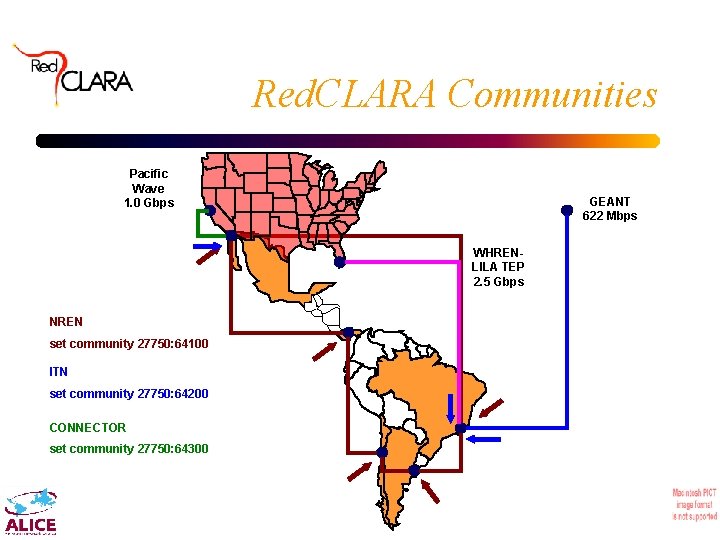

Red. CLARA Communities Pacific Wave 1. 0 Gbps GEANT 622 Mbps WHRENLILA TEP 2. 5 Gbps NREN set community 27750: 64100 ITN set community 27750: 64200 CONNECTOR set community 27750: 64300

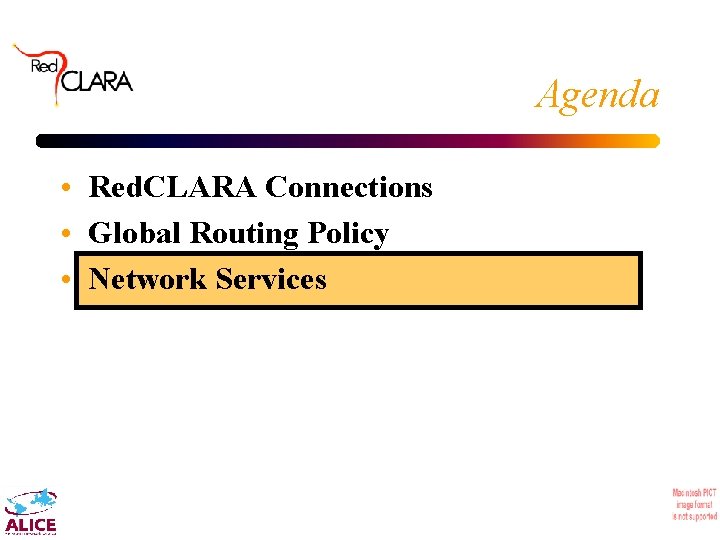

Agenda • Red. CLARA Connections • Global Routing Policy • Network Services

Services of the network • • Multicast IPv 6 Multicast Bandwidth Availability

Traffic Engineering • Use of MPLS Traffic Engineering in the backbone • Applications sensitive to delay could “indicate” to the network their requirement for a different path • Manually defined tunnels should prevail over the normal IGP routing decision process

Traffic Engineering • Round-Trip Times of the links Tijuana RTT 70 ms Panama RTT 160 ms RTT ? ? ms RTT 55 ms Santiago Sao Paulo RTT 25 ms RTT 20 ms Buenos Aires

Traffic Engineering • Use of MPLS-TE Tijuana traffic Panama Santiago Sao Paulo Buenos Aires

Traffic Engineering • Use of MPLS-TE Tijuana Panama Santiago MPLS-TE tunnels Sao Paulo Buenos Aires

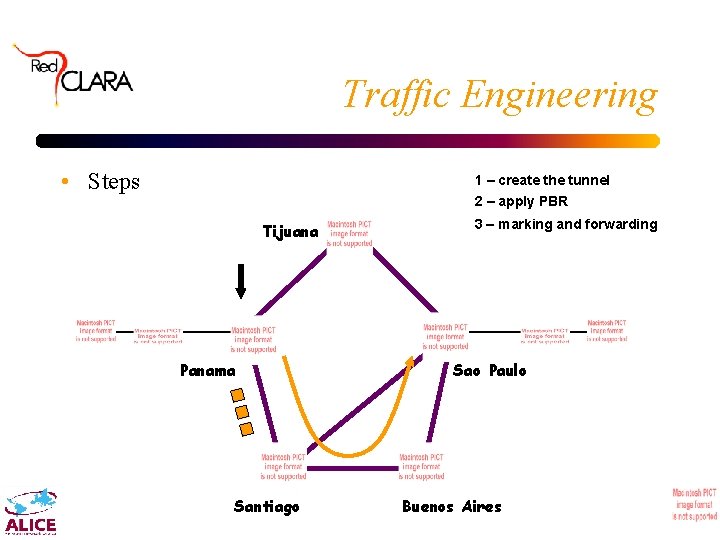

Traffic Engineering • Steps 1 – create the tunnel 2 – apply PBR Tijuana Panama Santiago 3 – marking and forwarding Sao Paulo Buenos Aires

Traffic Engineering and Qo. S • It is possible also to give preference to the marked traffic • Red. CLARA is investigating the proper tools to classify the traffic entering the network • MPLS-TE has embedded tools for delivering Qo. S to the applications

Red. CLARA • CLARA – Cooperación Latino. Americana de Redes Avanzadas

Thank you! Eriko Porto eporto@rnp. br
