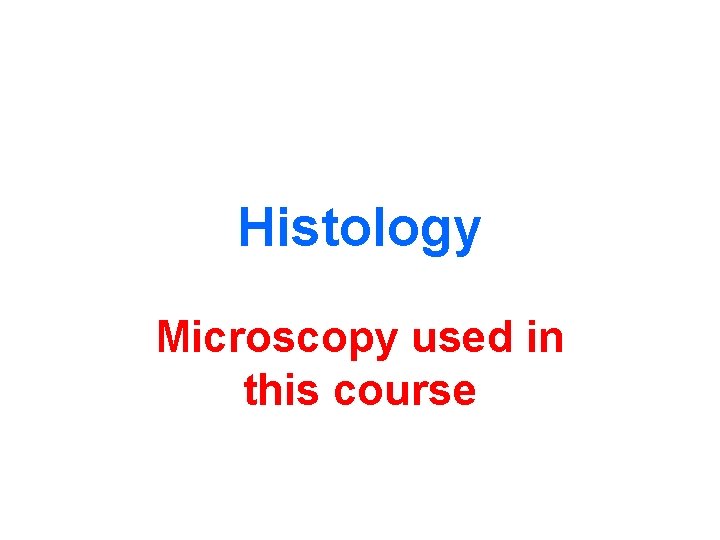

Histology Microscopy used in this course Light Microscopy

Histology Microscopy used in this course

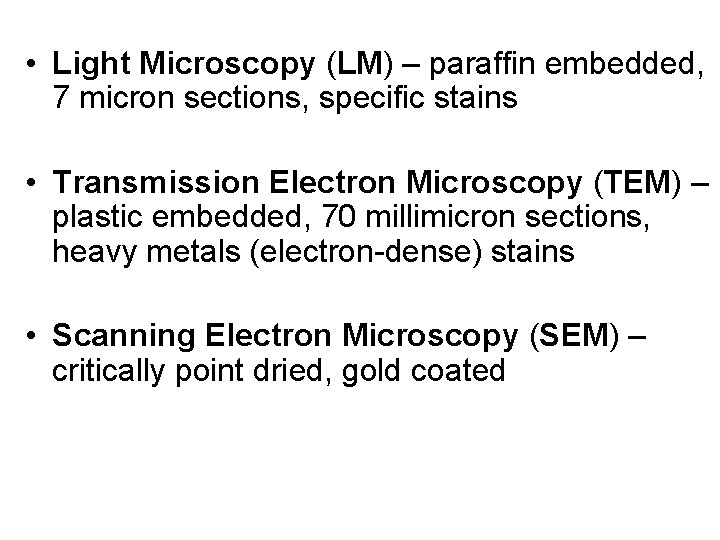

• Light Microscopy (LM) – paraffin embedded, 7 micron sections, specific stains • Transmission Electron Microscopy (TEM) – plastic embedded, 70 millimicron sections, heavy metals (electron-dense) stains • Scanning Electron Microscopy (SEM) – critically point dried, gold coated

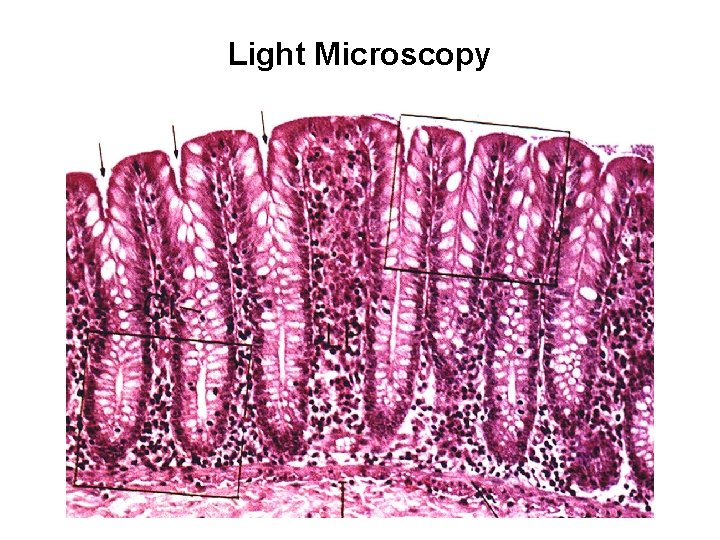

Light Microscopy

TEM

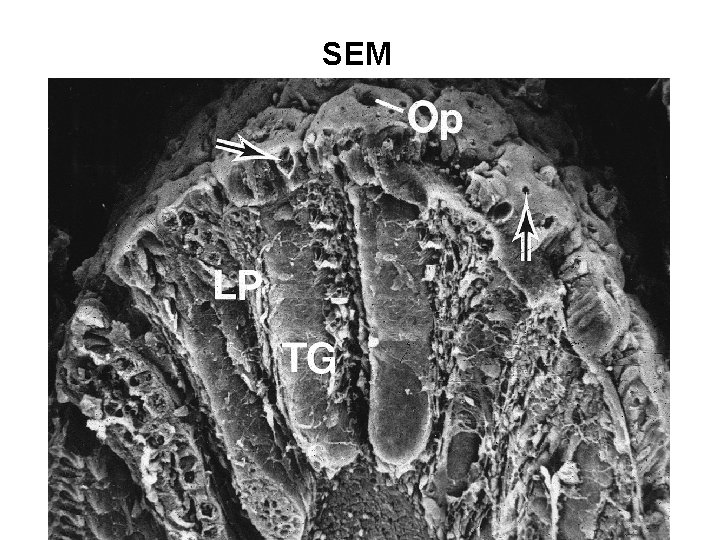

SEM

Epithelium Simple Epithelium

Simple Squamous Mesothelium

Simple Squamous (Mesothelium) by TEM

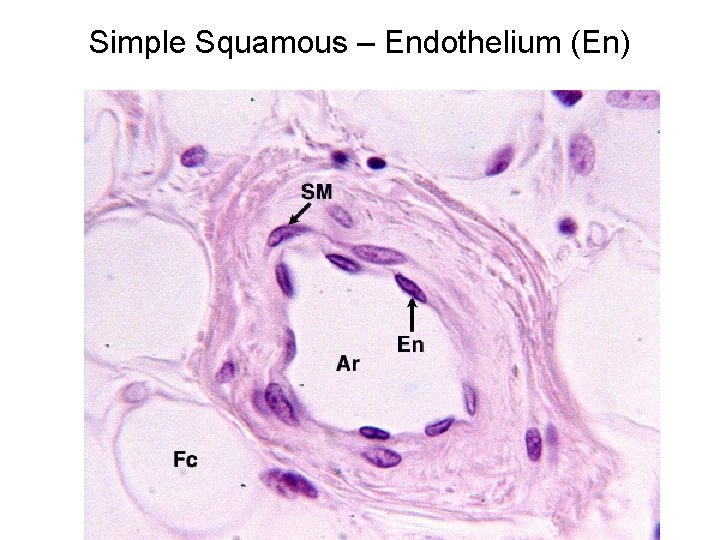

Simple Squamous – Endothelium (En)

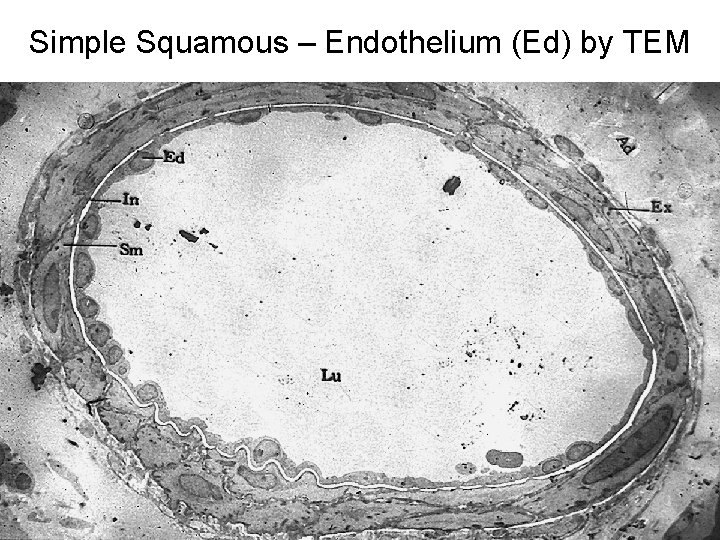

Simple Squamous – Endothelium (Ed) by TEM

Capillary (endothelial cell) by TEM

Simple Cuboidal Epithelium (longitudinal section)

Simple Cuboidal (cross section)

Simple Cuboidal by TEM

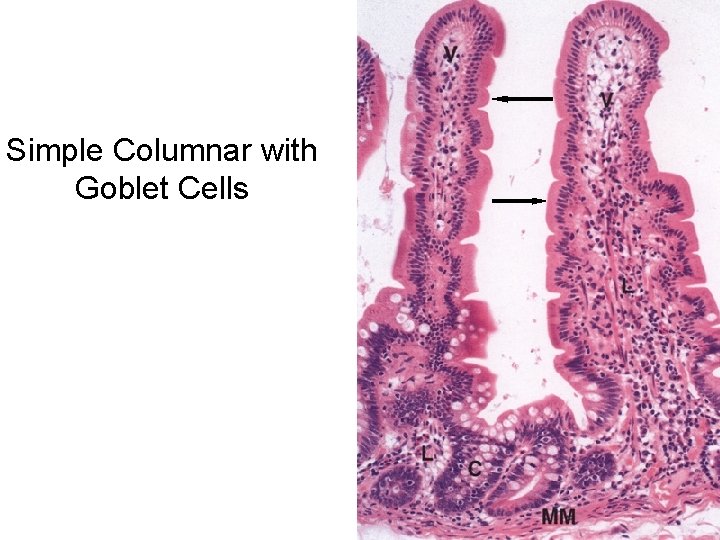

Simple Columnar with Goblet Cells

Simple Columnar (cross section) with Goblet Cells (arrow)

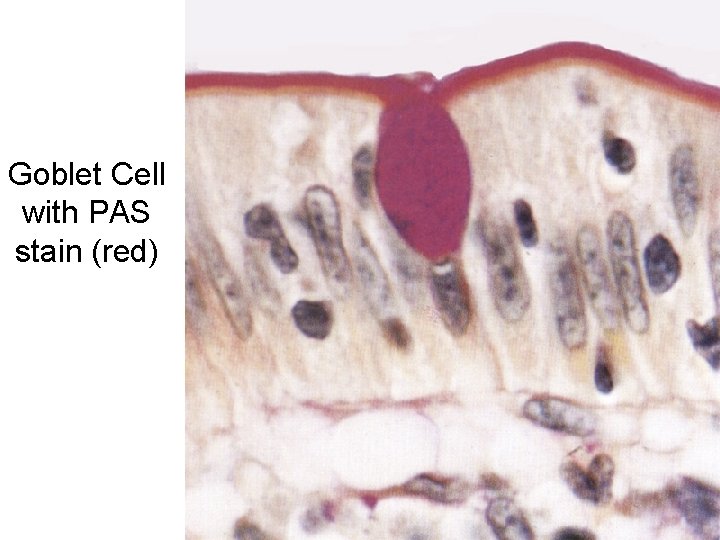

Goblet Cell with PAS stain (red)

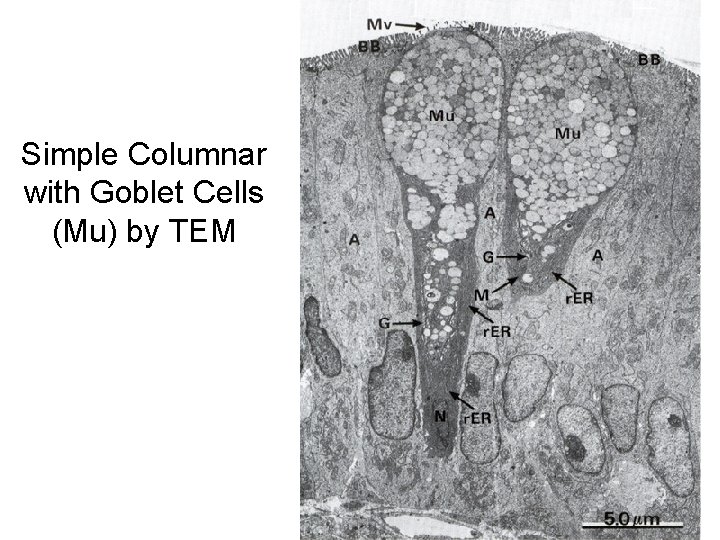

Simple Columnar with Goblet Cells (Mu) by TEM

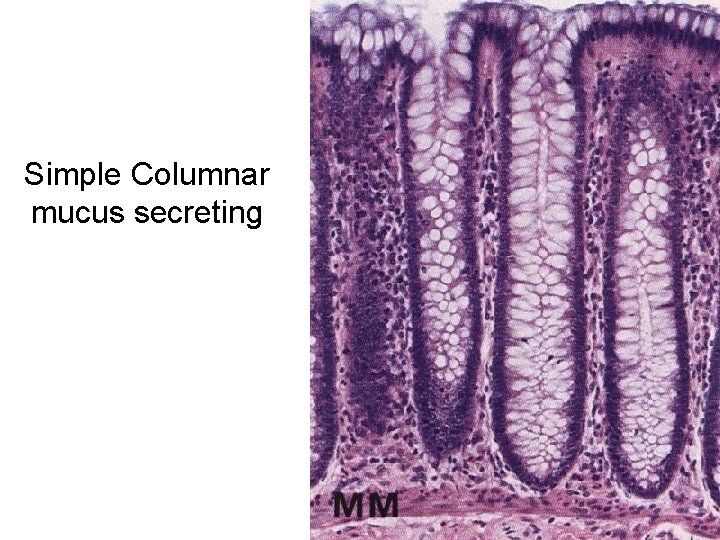

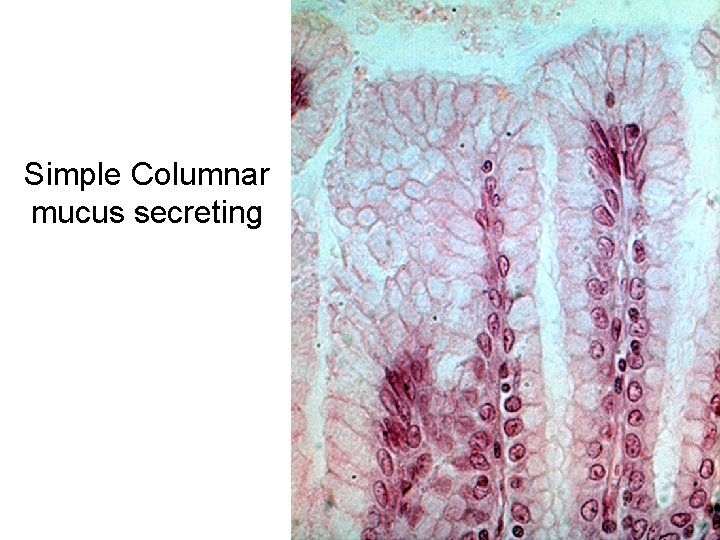

Simple Columnar mucus secreting

Simple Columnar mucus secreting

Epithelium Stratified Epithelium

Pseudostratified Ciliated Epithelium with Goblet Cells

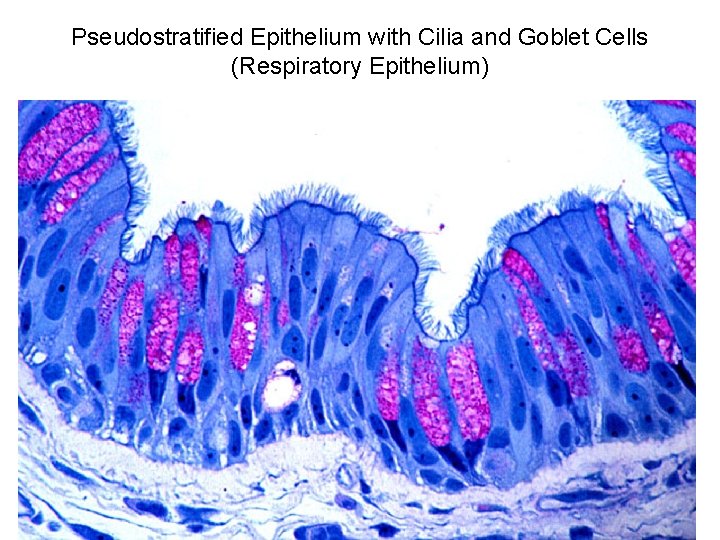

Pseudostratified Epithelium with Cilia and Goblet Cells (Respiratory Epithelium)

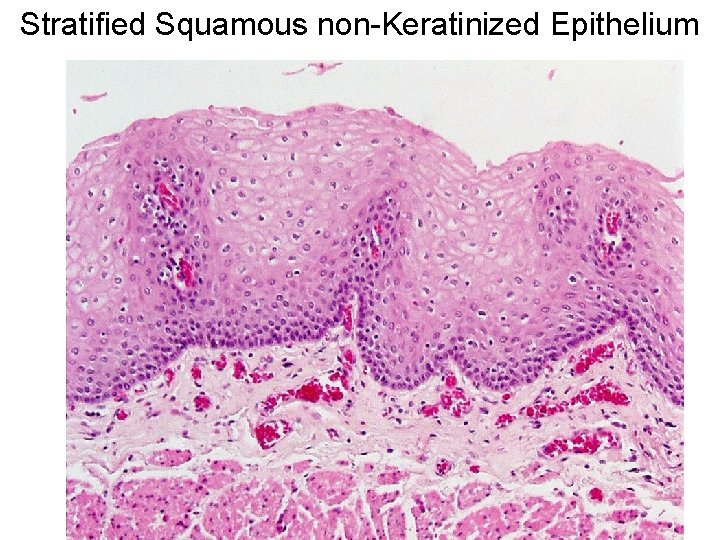

Stratified Squamous non-Keratinized Epithelium

Transitional Epithelium

Transitional Epithelium with rounded binucleated surface cells

Stratified Squamous Keratinized (thin)

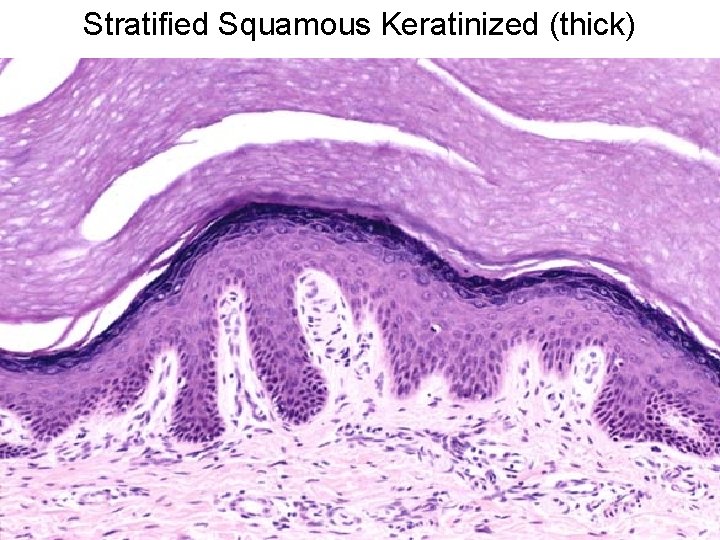

Stratified Squamous Keratinized (thick)

Epithelial Cell Junctions

Junctional Complexes

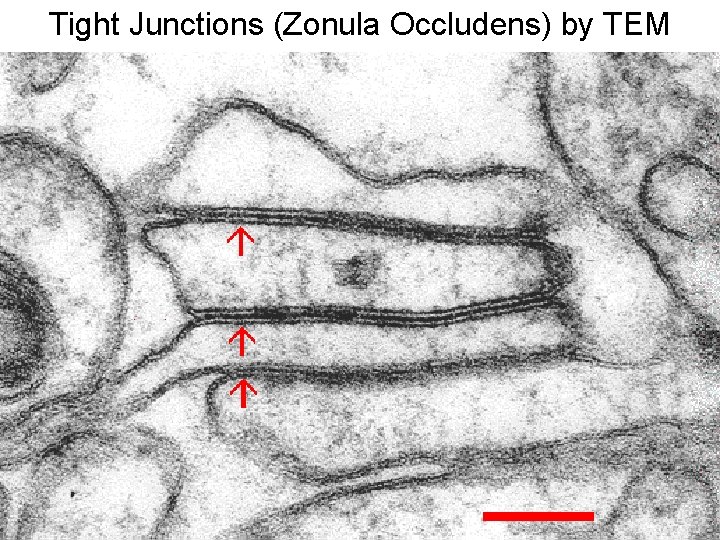

Tight Junctions (Zonula Occludens) by TEM

Tight Junctions (Zonula Occludens) by Freeze Fracture

Tight Junction diagram

Gap Junction (Nexus) by TEM

Gap Junction 2 n. M gap between membranes Open pores for ions, molecules, etc Connexin molecules

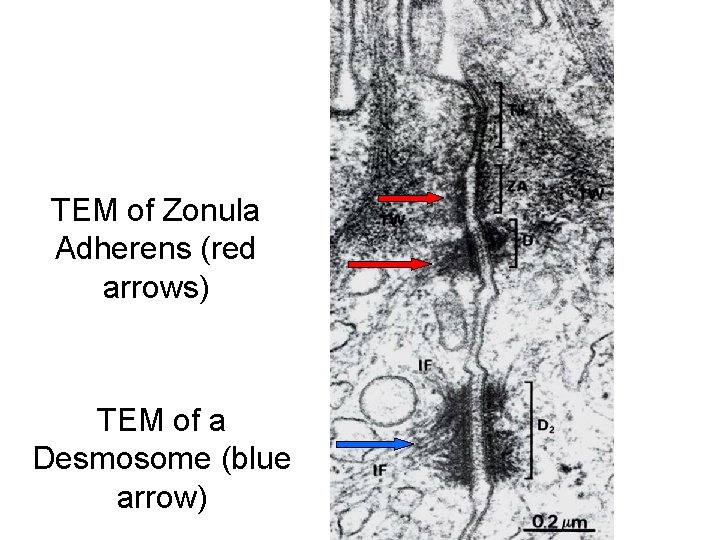

TEM of Zonula Adherens (red arrows) TEM of a Desmosome (blue arrow)

TEM (colorized) of Adherens Junctions

TEM of a Desmosome with tonofibrils

Desmosome Structure

TEM of a Hemi-Desmosome

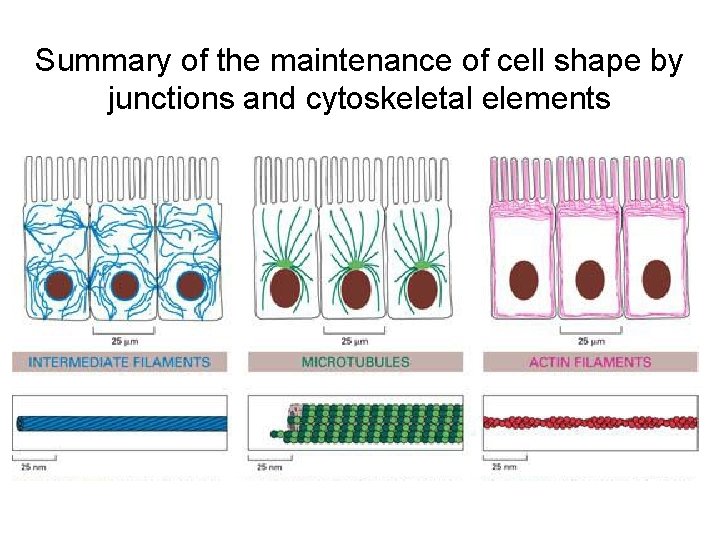

Summary of the maintenance of cell shape by junctions and cytoskeletal elements

Glandular Epithelium

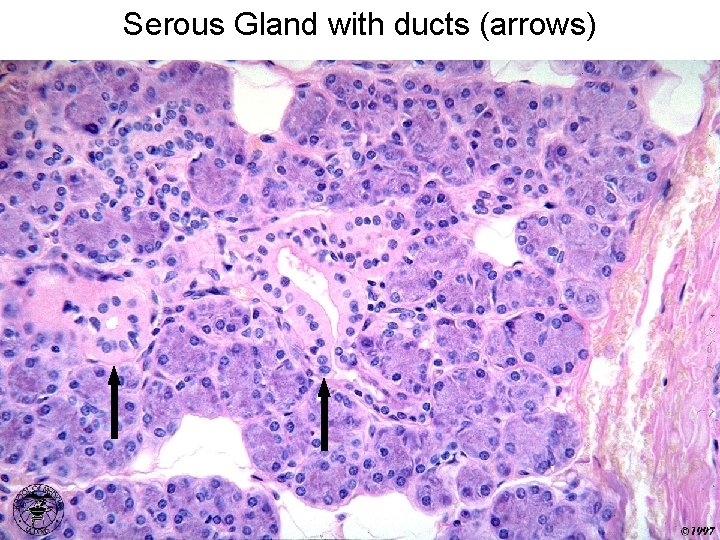

Serous Gland with ducts (arrows)

Serous secretory unit (high magnification)

Mucous Gland with duct (arrow)

Mixed Gland with Serous Demilunes (SD)
