Fundamental Data Storage Concepts CIT 170 Week 1

Fundamental Data Storage Concepts CIT 170 – Week 1 Adjunct Instructor – Charles W (Bill) Marshall While Blackboard will be the official site for assignments and to turn in assignments Supplemental information is available at https: //www. cwmclass. com

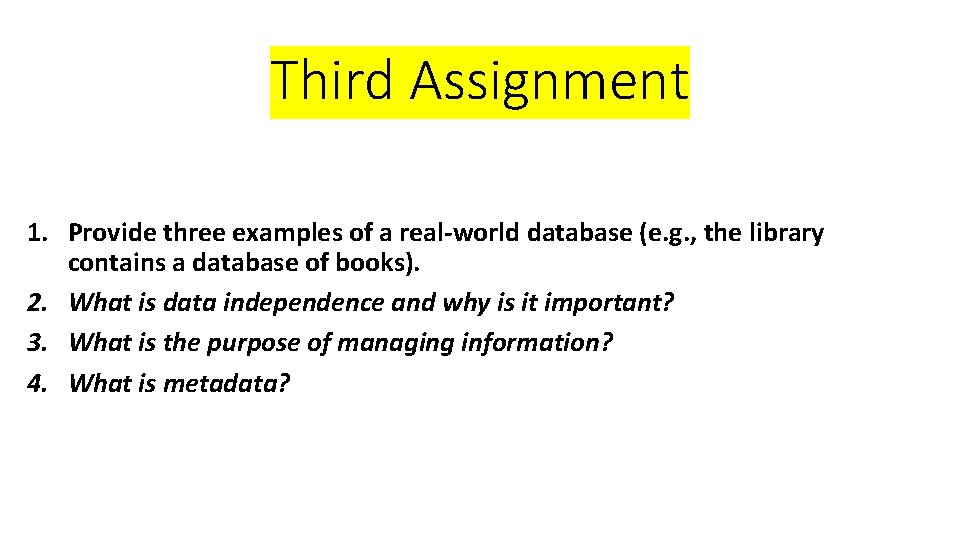

Third Assignment 1. Provide three examples of a real-world database (e. g. , the library contains a database of books). 2. What is data independence and why is it important? 3. What is the purpose of managing information? 4. What is metadata?

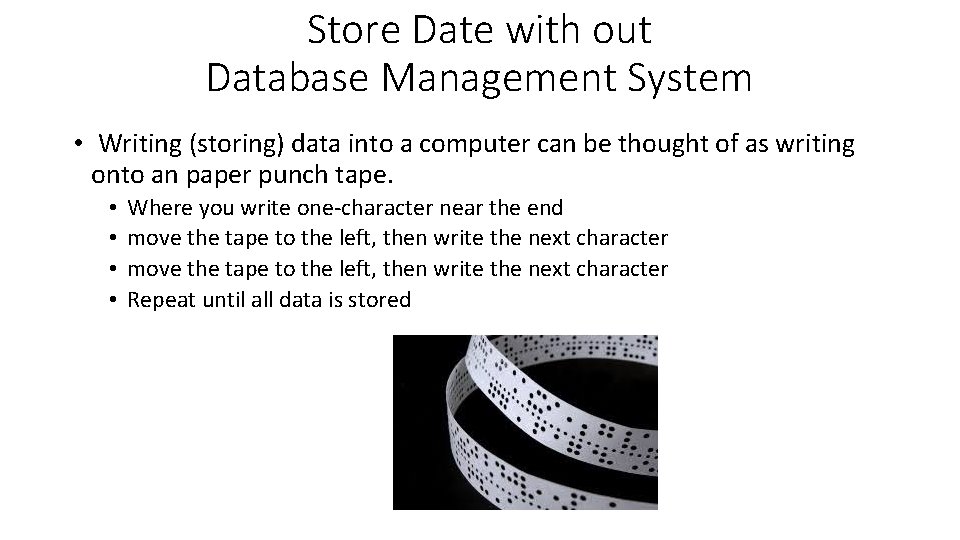

Store Date with out Database Management System • Writing (storing) data into a computer can be thought of as writing onto an paper punch tape. • • Where you write one-character near the end move the tape to the left, then write the next character Repeat until all data is stored

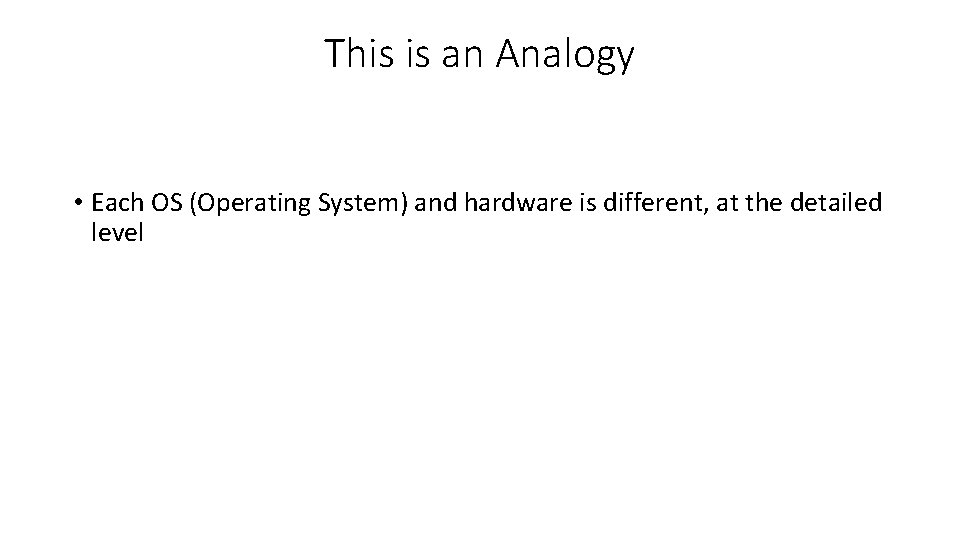

This is an Analogy • Each OS (Operating System) and hardware is different, at the detailed level

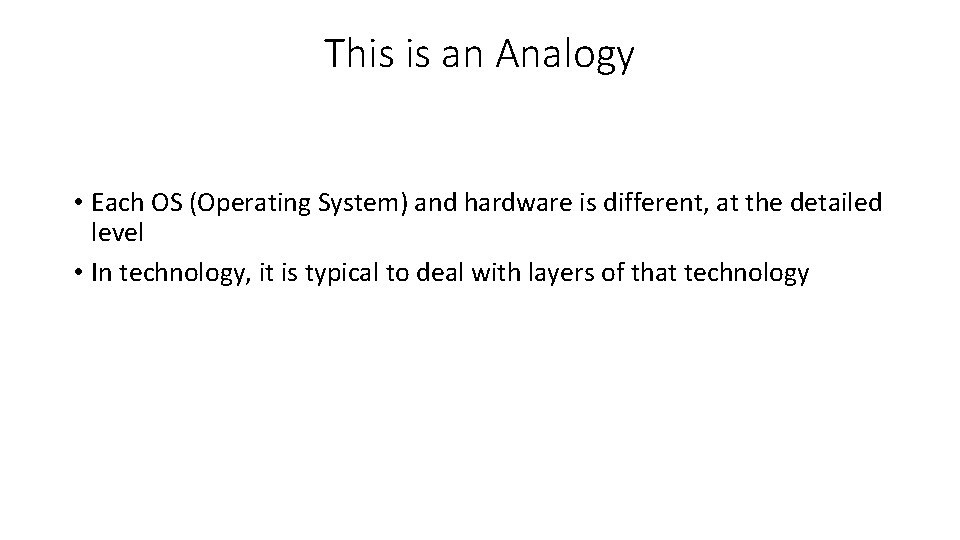

This is an Analogy • Each OS (Operating System) and hardware is different, at the detailed level • In technology, it is typical to deal with layers of that technology

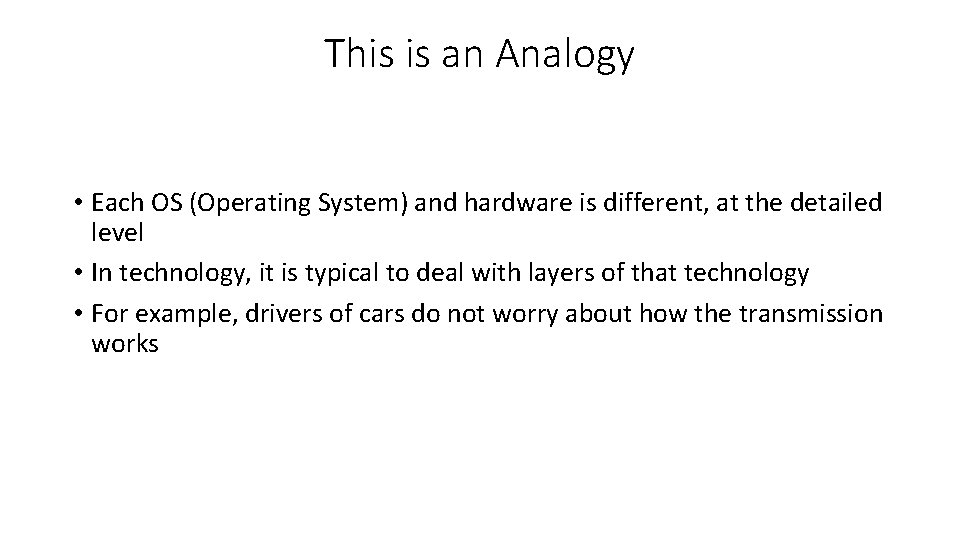

This is an Analogy • Each OS (Operating System) and hardware is different, at the detailed level • In technology, it is typical to deal with layers of that technology • For example, drivers of cars do not worry about how the transmission works

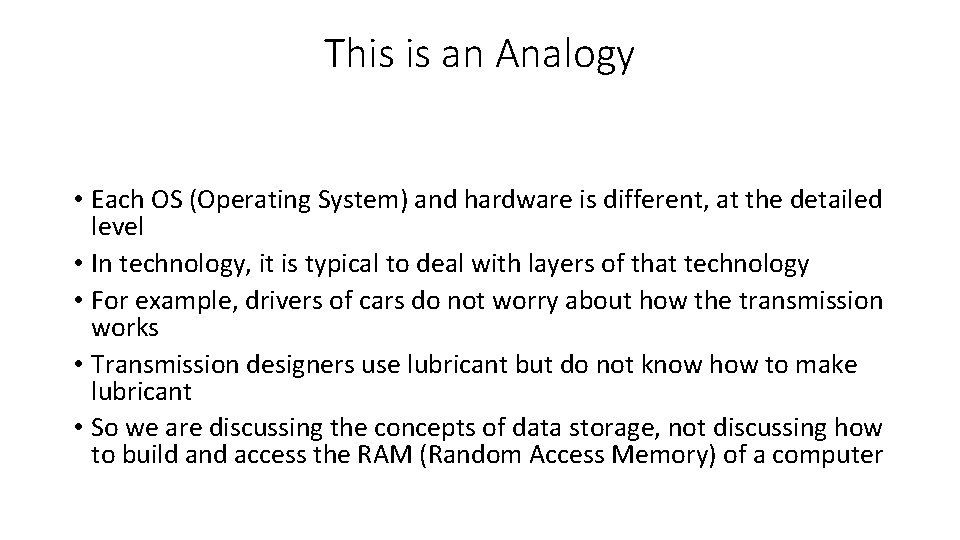

This is an Analogy • Each OS (Operating System) and hardware is different, at the detailed level • In technology, it is typical to deal with layers of that technology • For example, drivers of cars do not worry about how the transmission works • Transmission designers use lubricant but do not know how to make lubricant

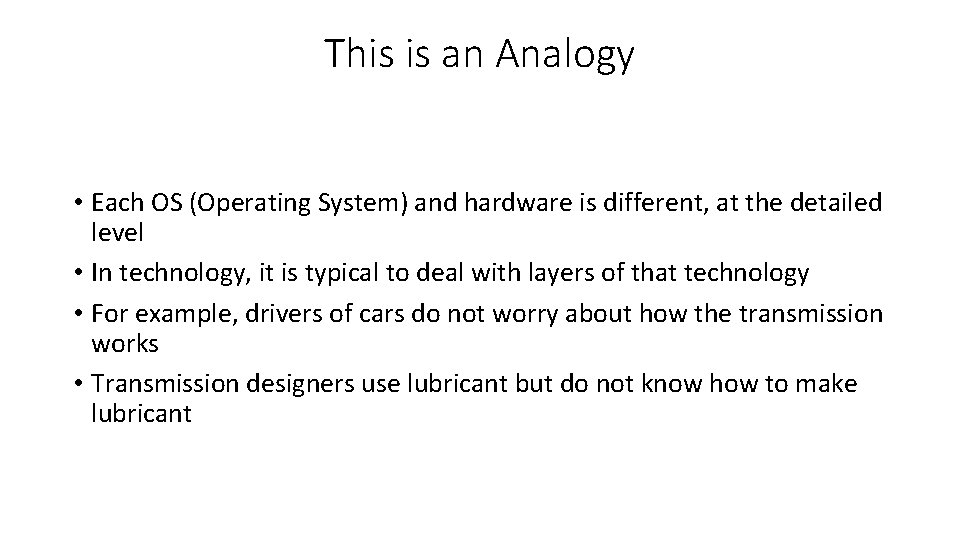

This is an Analogy • Each OS (Operating System) and hardware is different, at the detailed level • In technology, it is typical to deal with layers of that technology • For example, drivers of cars do not worry about how the transmission works • Transmission designers use lubricant but do not know how to make lubricant • So we are discussing the concepts of data storage, not discussing how to build and access the RAM (Random Access Memory) of a computer

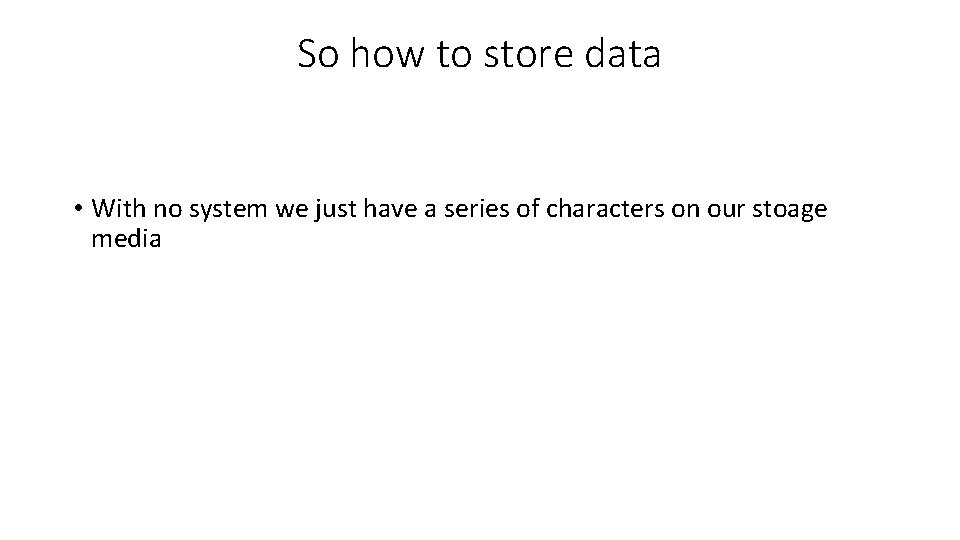

So how to store data • With no system we just have a series of characters on our stoage media

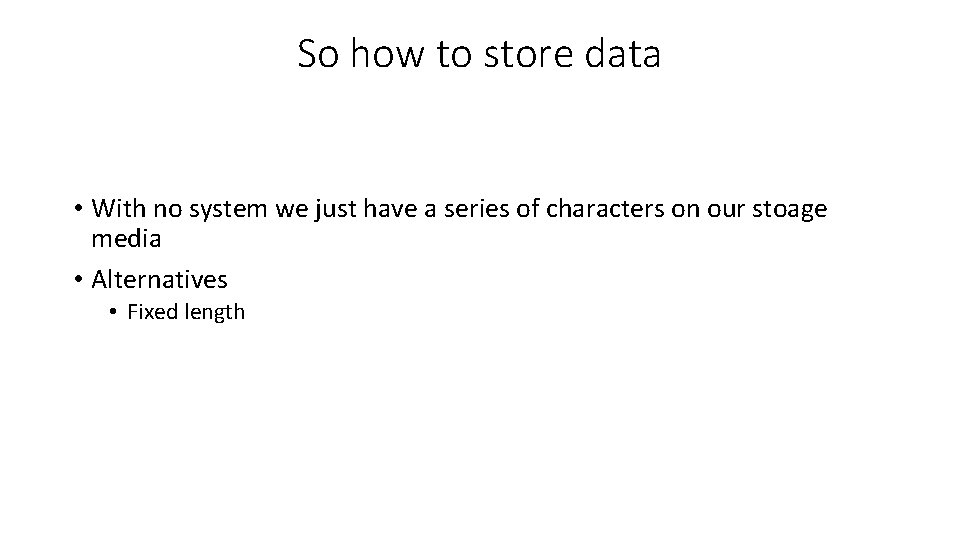

So how to store data • With no system we just have a series of characters on our stoage media • Alternatives • Fixed length

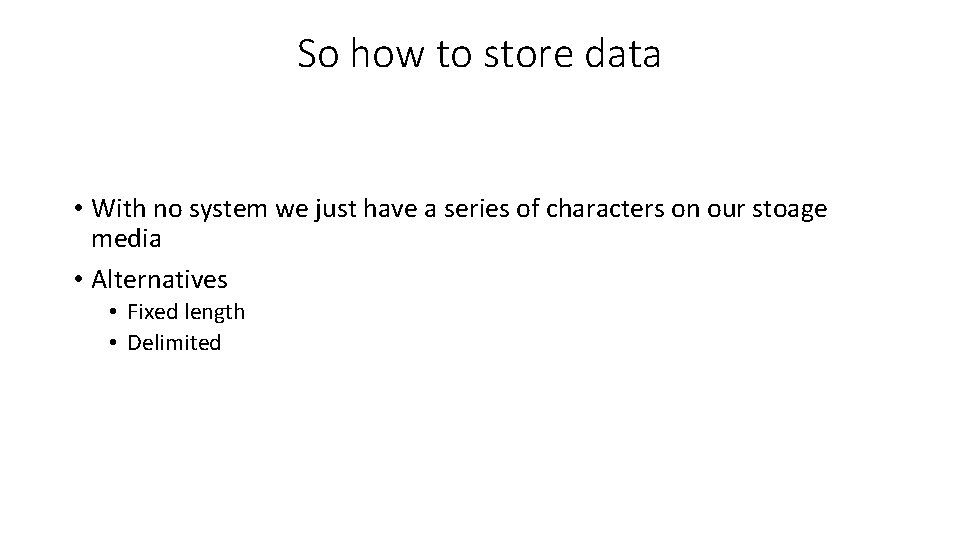

So how to store data • With no system we just have a series of characters on our stoage media • Alternatives • Fixed length • Delimited

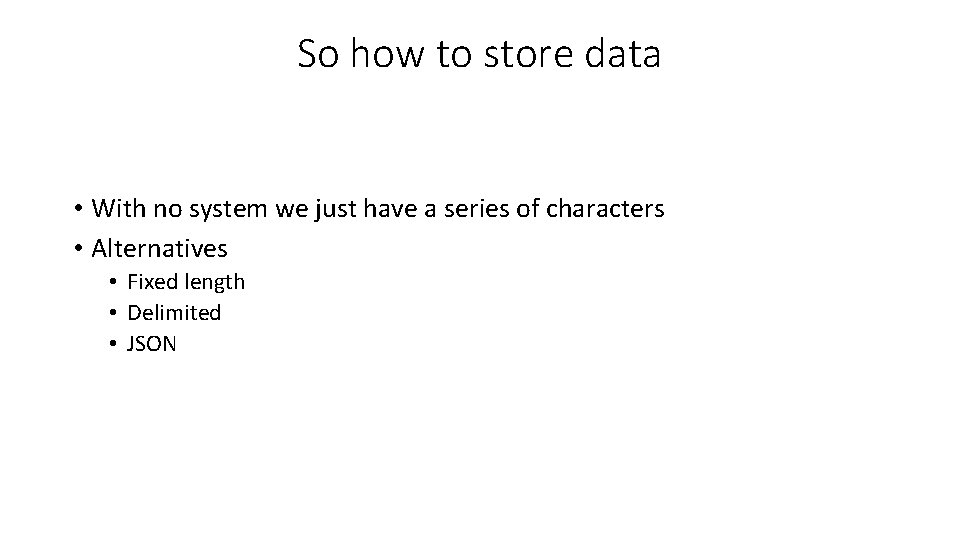

So how to store data • With no system we just have a series of characters • Alternatives • Fixed length • Delimited • JSON

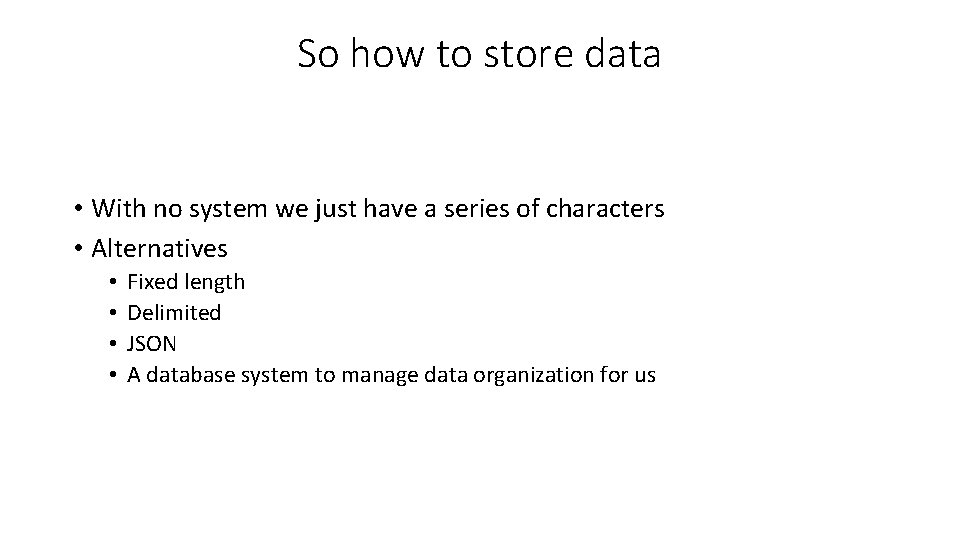

So how to store data • With no system we just have a series of characters • Alternatives • • Fixed length Delimited JSON A database system to manage data organization for us

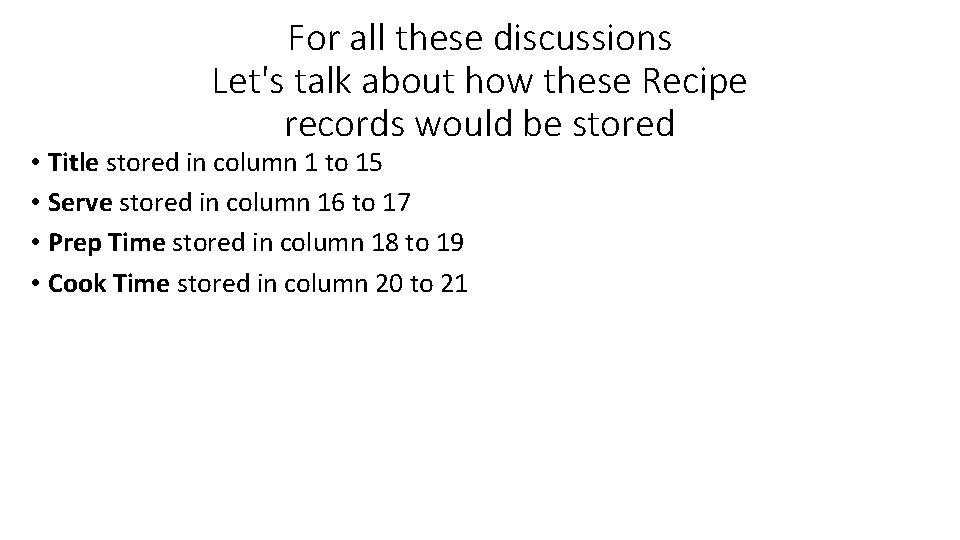

For all these discussions Let's talk about how these Recipe records would be stored • Title stored in column 1 to 15 • Serve stored in column 16 to 17 • Prep Time stored in column 18 to 19 • Cook Time stored in column 20 to 21

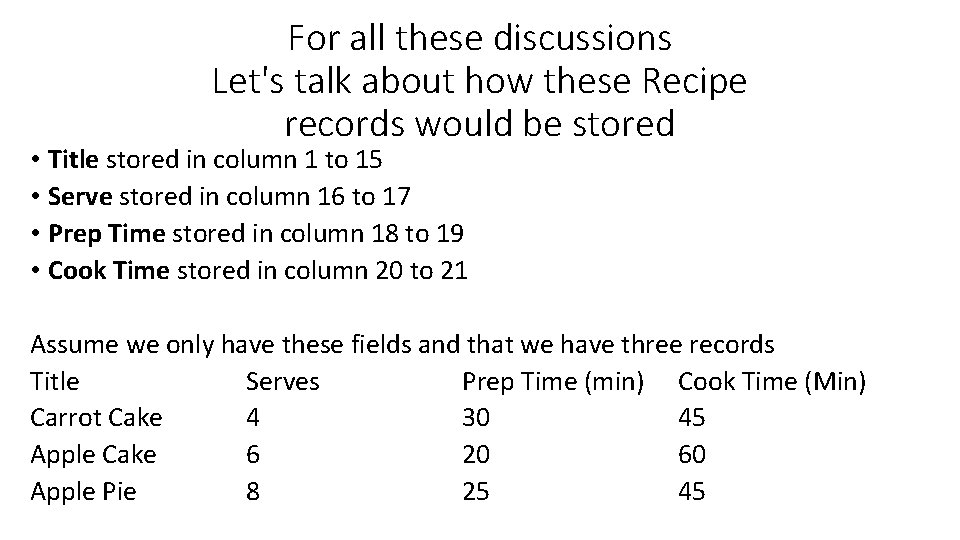

For all these discussions Let's talk about how these Recipe records would be stored • Title stored in column 1 to 15 • Serve stored in column 16 to 17 • Prep Time stored in column 18 to 19 • Cook Time stored in column 20 to 21 Assume we only have these fields and that we have three records Title Serves Prep Time (min) Cook Time (Min) Carrot Cake 4 30 45 Apple Cake 6 20 60 Apple Pie 8 25 45

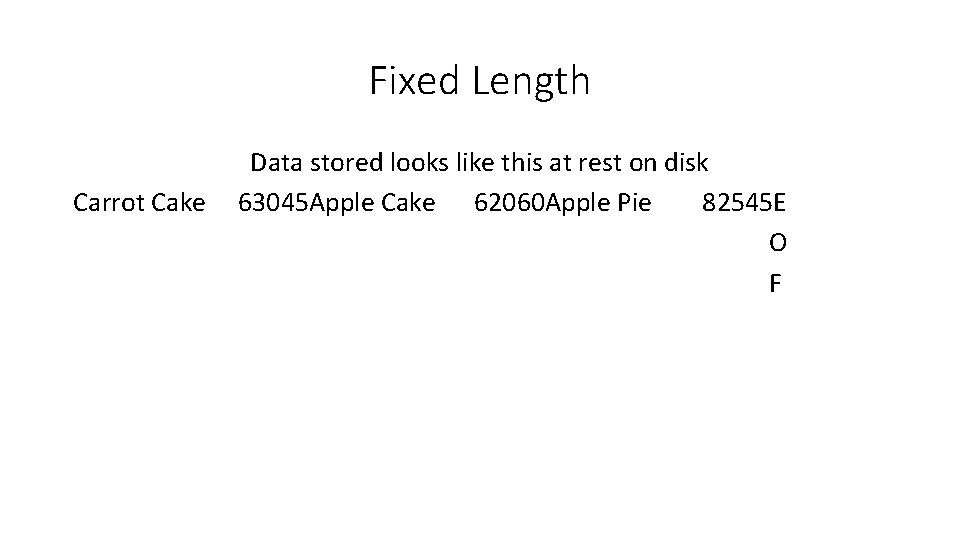

Fixed Length Carrot Cake Data stored looks like this at rest on disk 63045 Apple Cake 62060 Apple Pie 82545 E O F

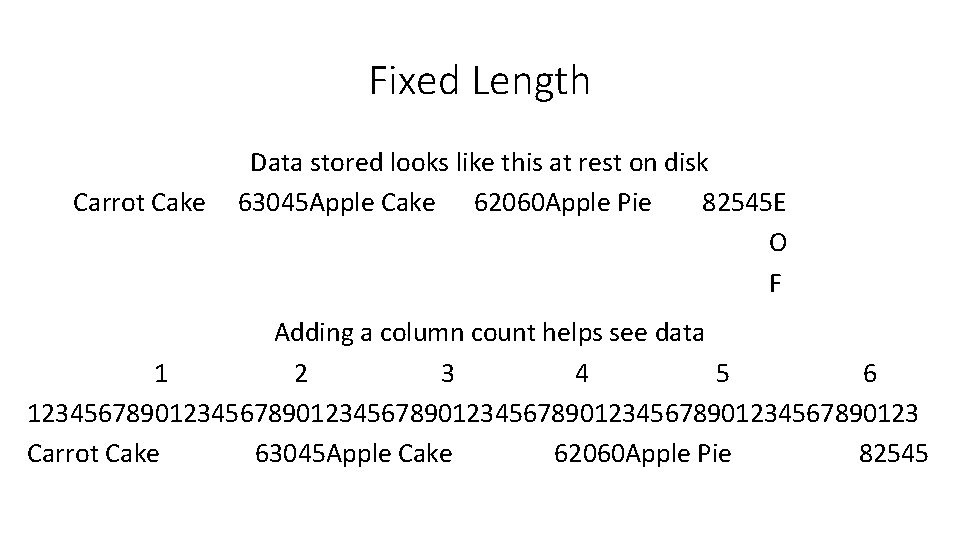

Fixed Length Carrot Cake Data stored looks like this at rest on disk 63045 Apple Cake 62060 Apple Pie 82545 E O F Adding a column count helps see data 1 2 3 4 5 6 123456789012345678901234567890123 Carrot Cake 63045 Apple Cake 62060 Apple Pie 82545

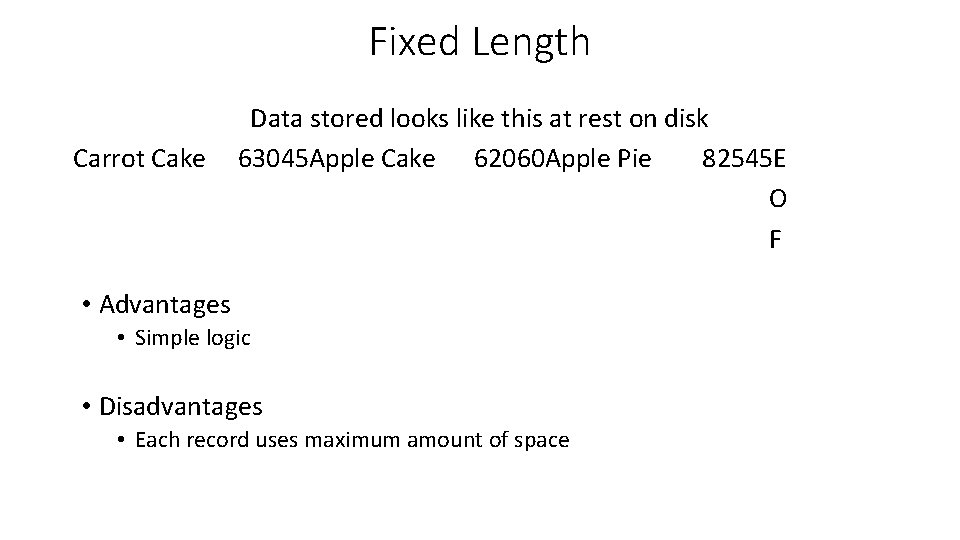

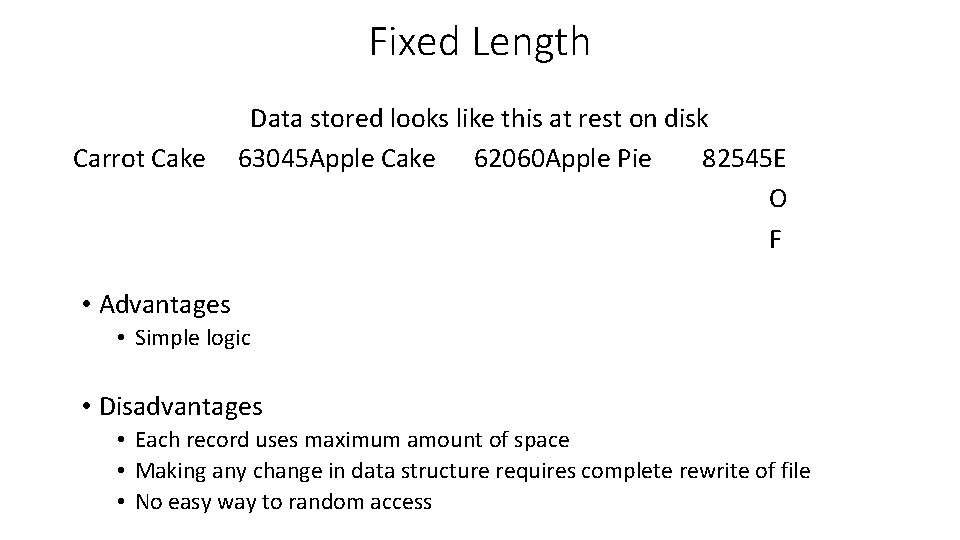

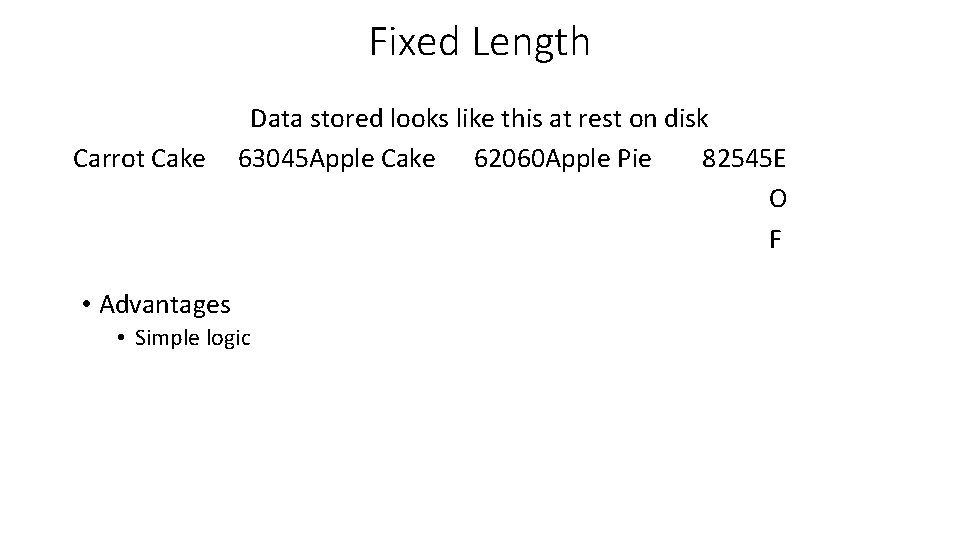

Fixed Length Carrot Cake Data stored looks like this at rest on disk 63045 Apple Cake 62060 Apple Pie 82545 E O F • Advantages • Simple logic

Fixed Length Carrot Cake Data stored looks like this at rest on disk 63045 Apple Cake 62060 Apple Pie 82545 E O F • Advantages • Simple logic • Disadvantages • Each record uses maximum amount of space

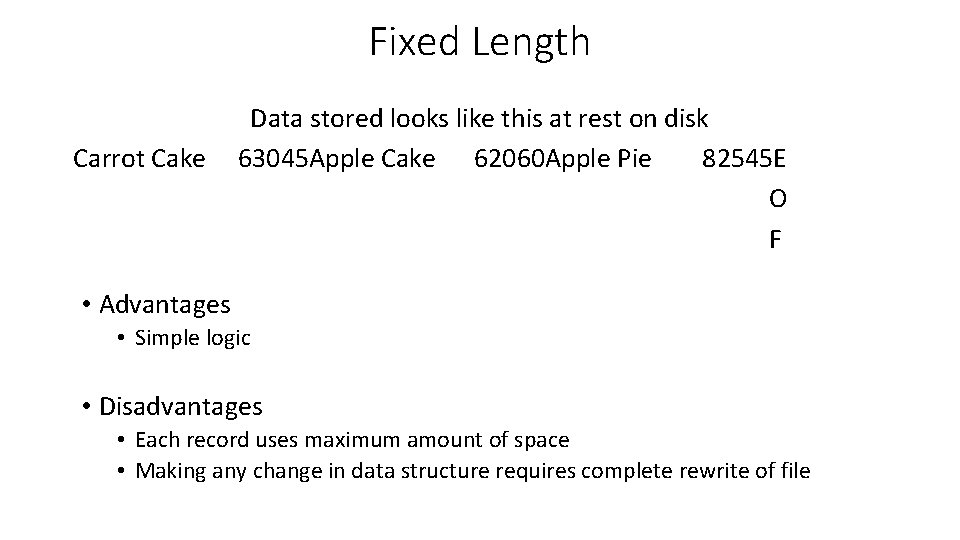

Fixed Length Carrot Cake Data stored looks like this at rest on disk 63045 Apple Cake 62060 Apple Pie 82545 E O F • Advantages • Simple logic • Disadvantages • Each record uses maximum amount of space • Making any change in data structure requires complete rewrite of file

Fixed Length Carrot Cake Data stored looks like this at rest on disk 63045 Apple Cake 62060 Apple Pie 82545 E O F • Advantages • Simple logic • Disadvantages • Each record uses maximum amount of space • Making any change in data structure requires complete rewrite of file • No easy way to random access

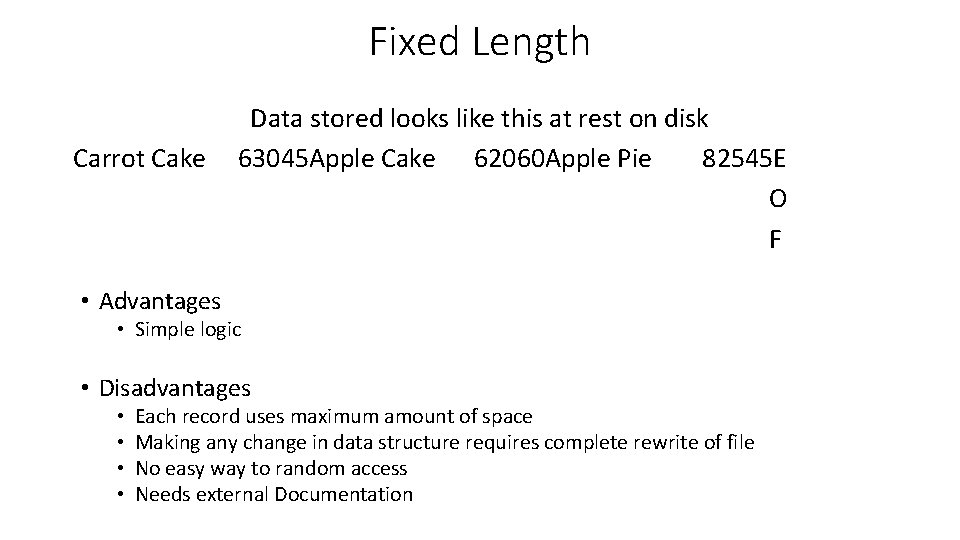

Fixed Length Carrot Cake Data stored looks like this at rest on disk 63045 Apple Cake 62060 Apple Pie 82545 E O F • Advantages • Simple logic • Disadvantages • • Each record uses maximum amount of space Making any change in data structure requires complete rewrite of file No easy way to random access Needs external Documentation

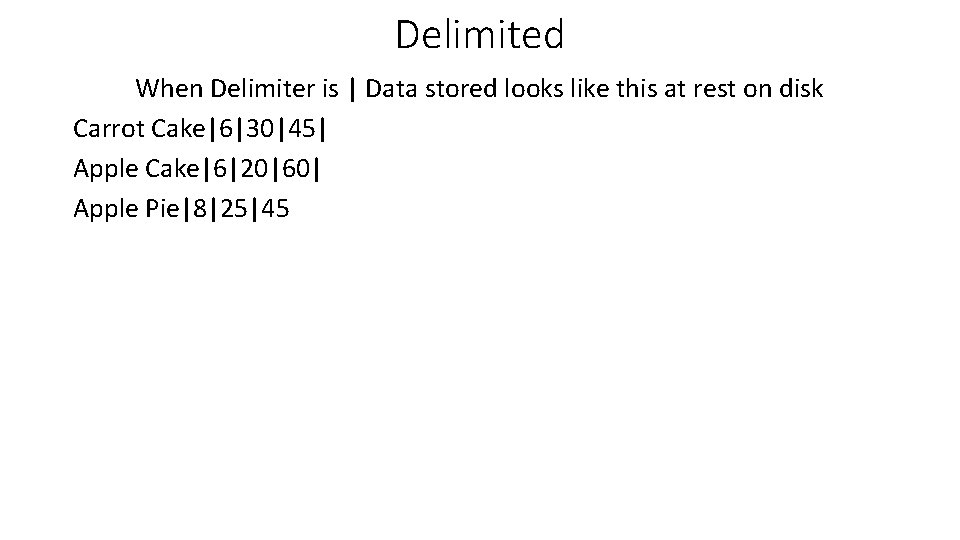

Delimited When Delimiter is | Data stored looks like this at rest on disk Carrot Cake|6|30|45| Apple Cake|6|20|60| Apple Pie|8|25|45

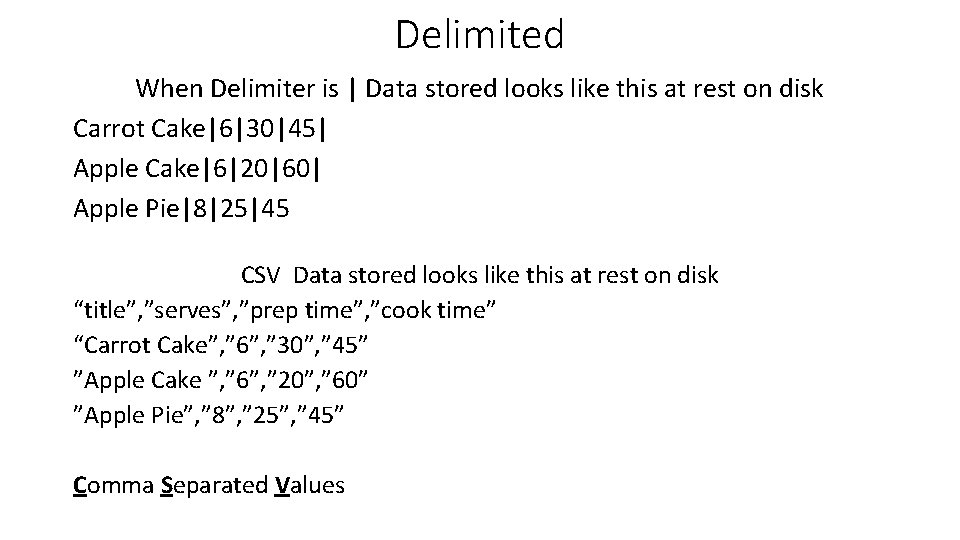

Delimited When Delimiter is | Data stored looks like this at rest on disk Carrot Cake|6|30|45| Apple Cake|6|20|60| Apple Pie|8|25|45 CSV Data stored looks like this at rest on disk “title”, ”serves”, ”prep time”, ”cook time” “Carrot Cake”, ” 6”, ” 30”, ” 45” ”Apple Cake ”, ” 6”, ” 20”, ” 60” ”Apple Pie”, ” 8”, ” 25”, ” 45” Comma Separated Values

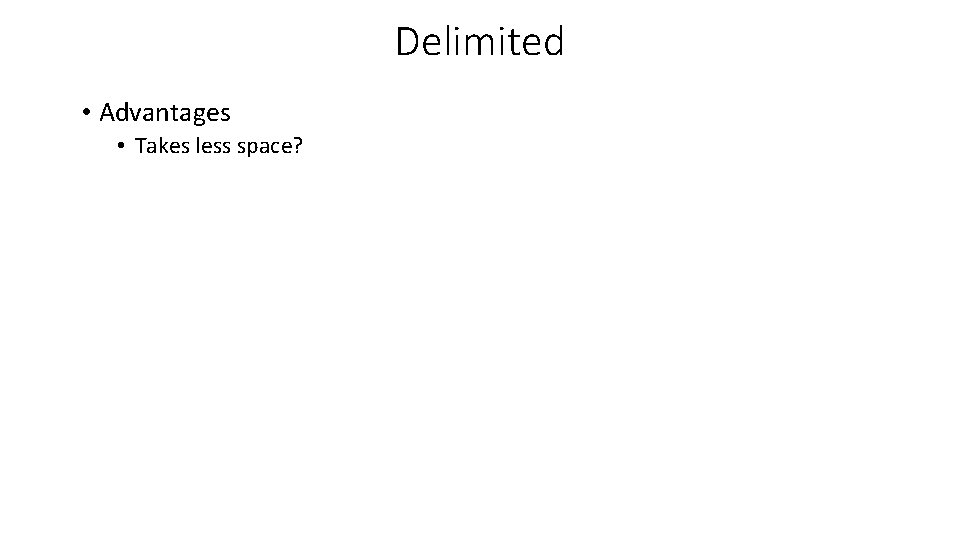

Delimited • Advantages • Takes less space?

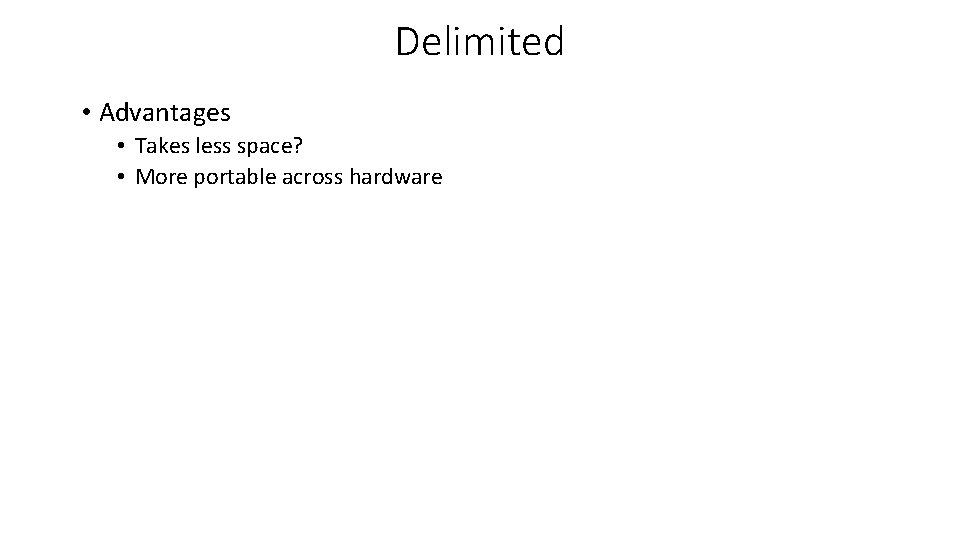

Delimited • Advantages • Takes less space? • More portable across hardware

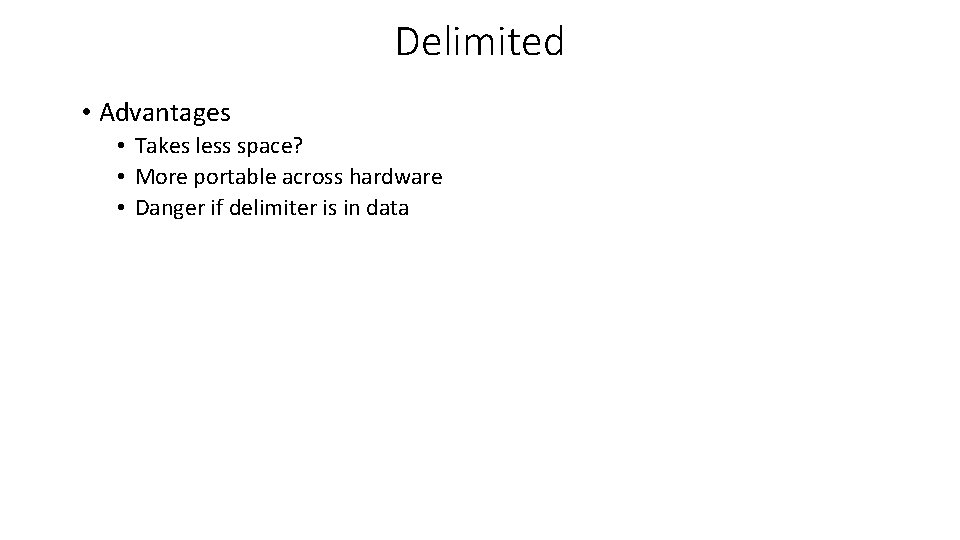

Delimited • Advantages • Takes less space? • More portable across hardware • Danger if delimiter is in data

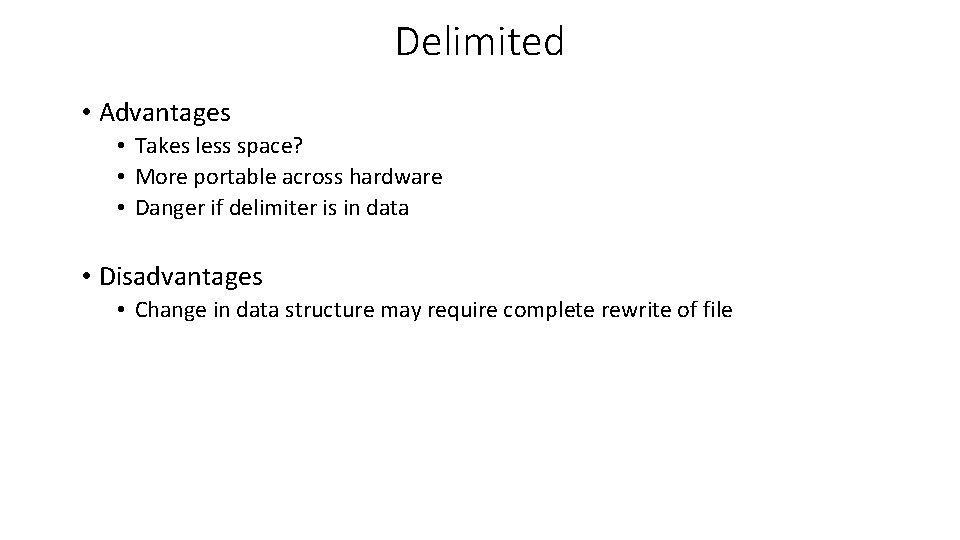

Delimited • Advantages • Takes less space? • More portable across hardware • Danger if delimiter is in data • Disadvantages • Change in data structure may require complete rewrite of file

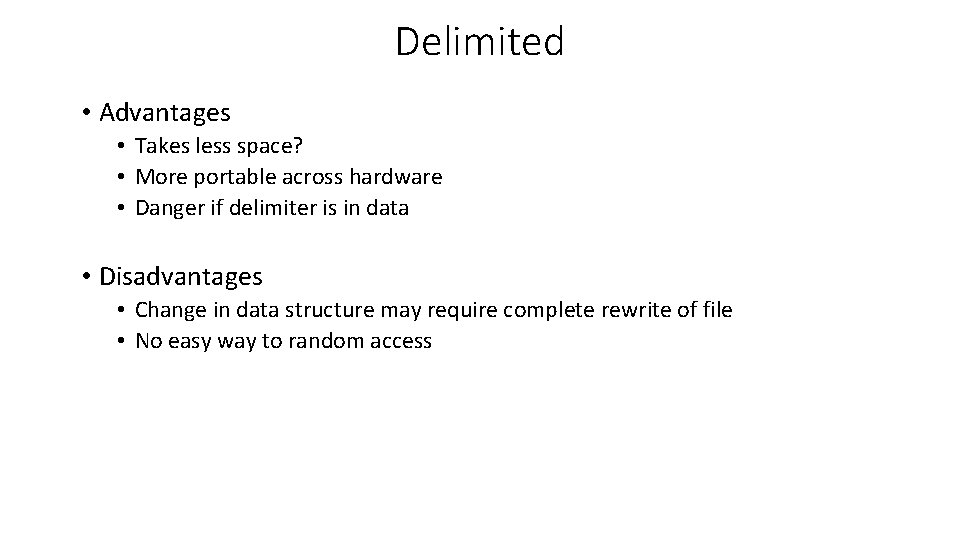

Delimited • Advantages • Takes less space? • More portable across hardware • Danger if delimiter is in data • Disadvantages • Change in data structure may require complete rewrite of file • No easy way to random access

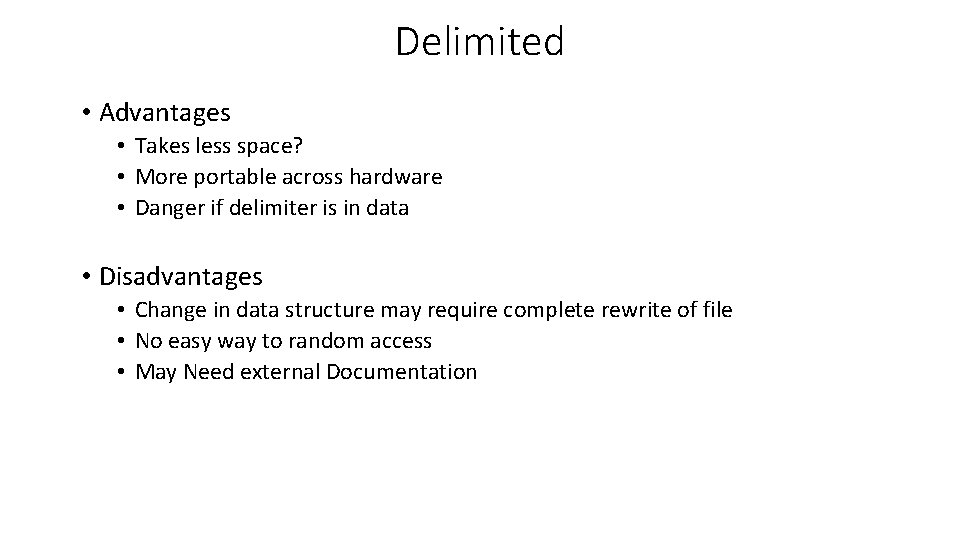

Delimited • Advantages • Takes less space? • More portable across hardware • Danger if delimiter is in data • Disadvantages • Change in data structure may require complete rewrite of file • No easy way to random access • May Need external Documentation

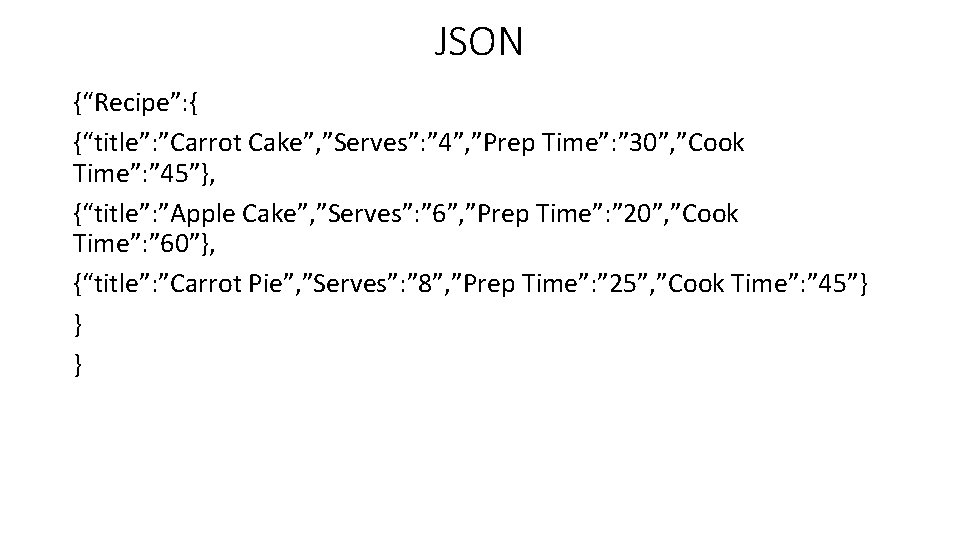

JSON {“Recipe”: { {“title”: ”Carrot Cake”, ”Serves”: ” 4”, ”Prep Time”: ” 30”, ”Cook Time”: ” 45”}, {“title”: ”Apple Cake”, ”Serves”: ” 6”, ”Prep Time”: ” 20”, ”Cook Time”: ” 60”}, {“title”: ”Carrot Pie”, ”Serves”: ” 8”, ”Prep Time”: ” 25”, ”Cook Time”: ” 45”} } }

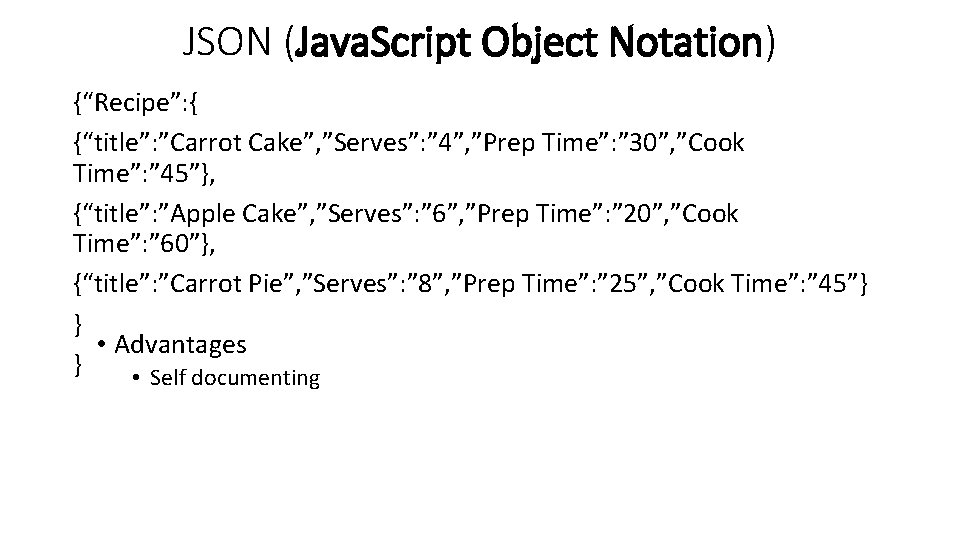

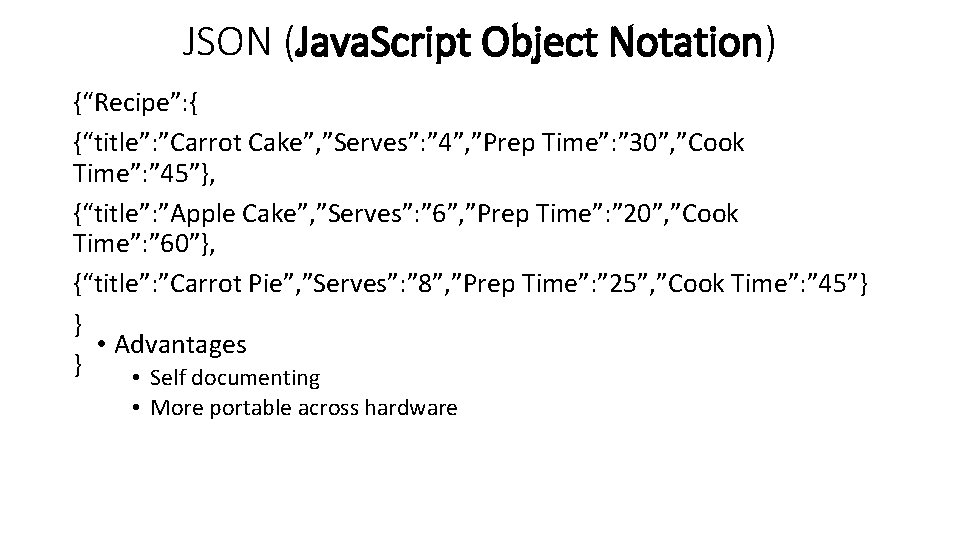

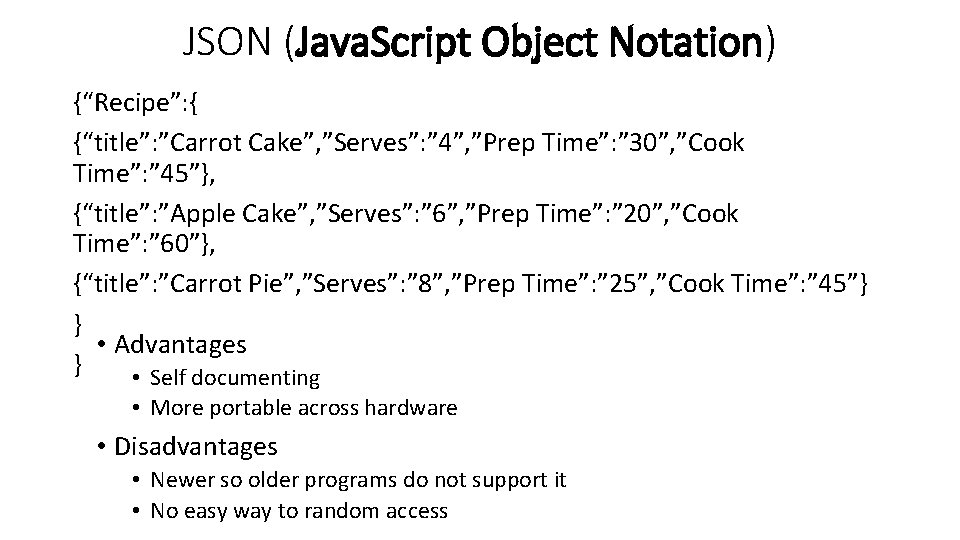

JSON (Java. Script Object Notation) {“Recipe”: { {“title”: ”Carrot Cake”, ”Serves”: ” 4”, ”Prep Time”: ” 30”, ”Cook Time”: ” 45”}, {“title”: ”Apple Cake”, ”Serves”: ” 6”, ”Prep Time”: ” 20”, ”Cook Time”: ” 60”}, {“title”: ”Carrot Pie”, ”Serves”: ” 8”, ”Prep Time”: ” 25”, ”Cook Time”: ” 45”} } • Advantages } • Self documenting

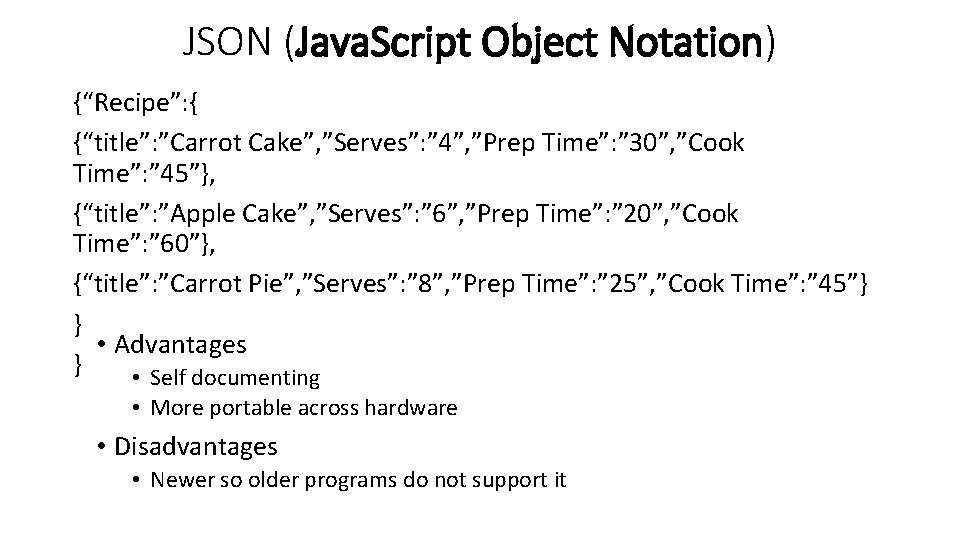

JSON (Java. Script Object Notation) {“Recipe”: { {“title”: ”Carrot Cake”, ”Serves”: ” 4”, ”Prep Time”: ” 30”, ”Cook Time”: ” 45”}, {“title”: ”Apple Cake”, ”Serves”: ” 6”, ”Prep Time”: ” 20”, ”Cook Time”: ” 60”}, {“title”: ”Carrot Pie”, ”Serves”: ” 8”, ”Prep Time”: ” 25”, ”Cook Time”: ” 45”} } • Advantages } • Self documenting • More portable across hardware

JSON (Java. Script Object Notation) {“Recipe”: { {“title”: ”Carrot Cake”, ”Serves”: ” 4”, ”Prep Time”: ” 30”, ”Cook Time”: ” 45”}, {“title”: ”Apple Cake”, ”Serves”: ” 6”, ”Prep Time”: ” 20”, ”Cook Time”: ” 60”}, {“title”: ”Carrot Pie”, ”Serves”: ” 8”, ”Prep Time”: ” 25”, ”Cook Time”: ” 45”} } • Advantages } • Self documenting • More portable across hardware • Disadvantages • Newer so older programs do not support it

JSON (Java. Script Object Notation) {“Recipe”: { {“title”: ”Carrot Cake”, ”Serves”: ” 4”, ”Prep Time”: ” 30”, ”Cook Time”: ” 45”}, {“title”: ”Apple Cake”, ”Serves”: ” 6”, ”Prep Time”: ” 20”, ”Cook Time”: ” 60”}, {“title”: ”Carrot Pie”, ”Serves”: ” 8”, ”Prep Time”: ” 25”, ”Cook Time”: ” 45”} } • Advantages } • Self documenting • More portable across hardware • Disadvantages • Newer so older programs do not support it • No easy way to random access

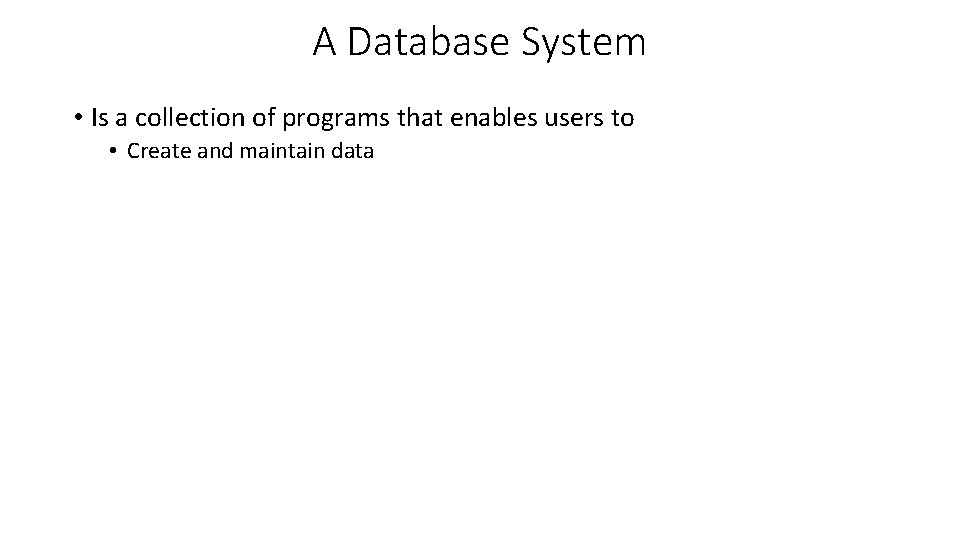

A Database System • Is a collection of programs that enables users to • Create and maintain data

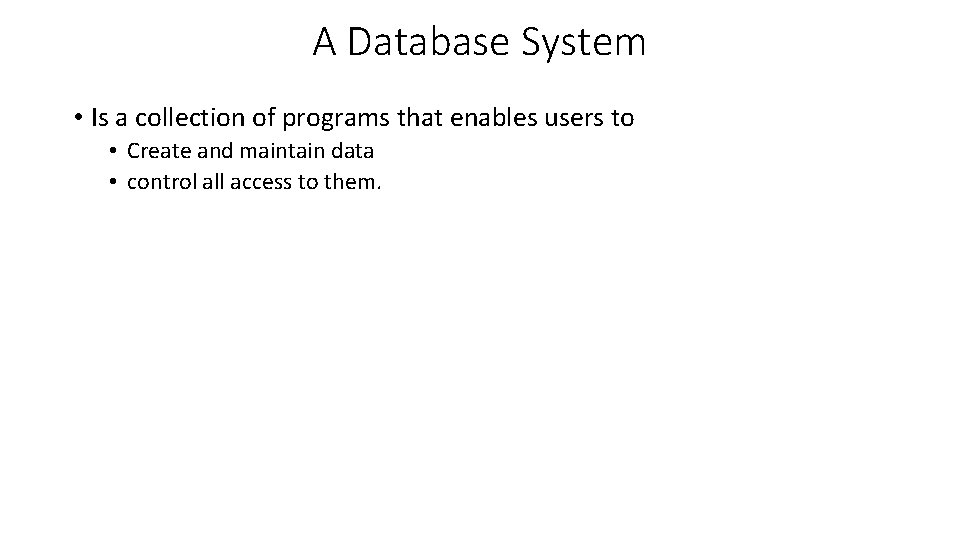

A Database System • Is a collection of programs that enables users to • Create and maintain data • control all access to them.

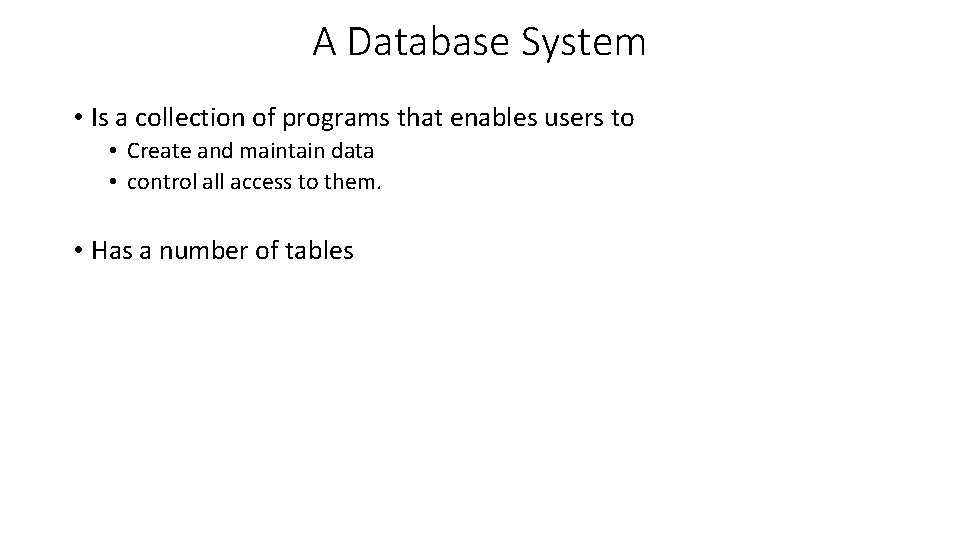

A Database System • Is a collection of programs that enables users to • Create and maintain data • control all access to them. • Has a number of tables

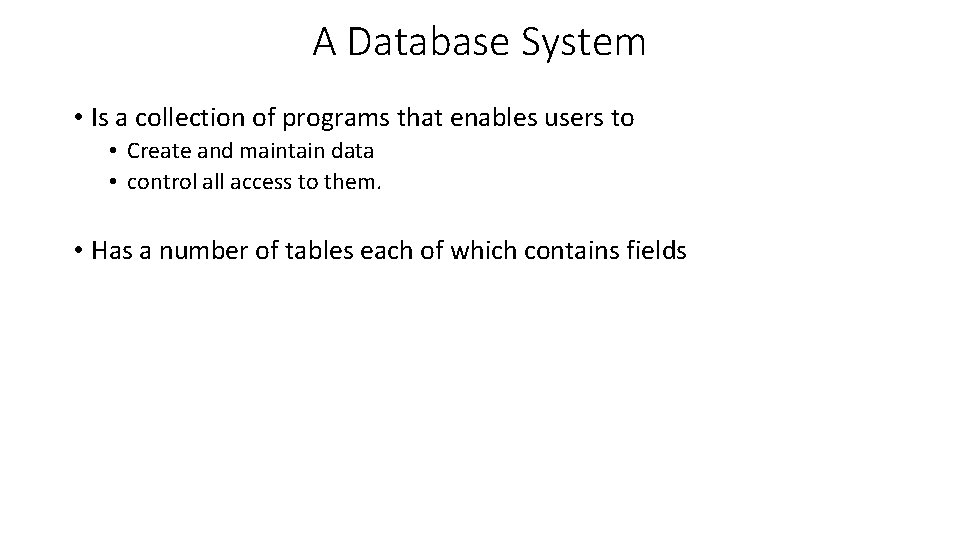

A Database System • Is a collection of programs that enables users to • Create and maintain data • control all access to them. • Has a number of tables each of which contains fields

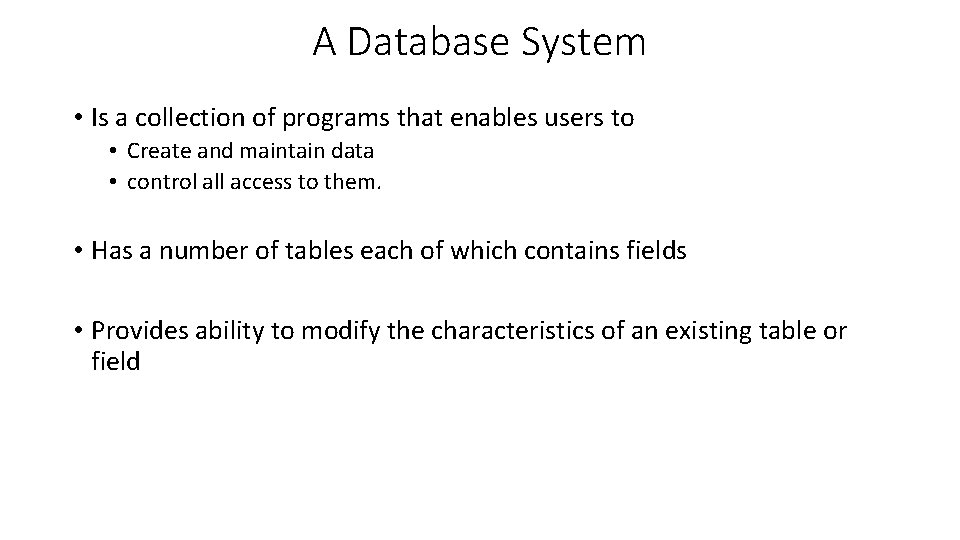

A Database System • Is a collection of programs that enables users to • Create and maintain data • control all access to them. • Has a number of tables each of which contains fields • Provides ability to modify the characteristics of an existing table or field

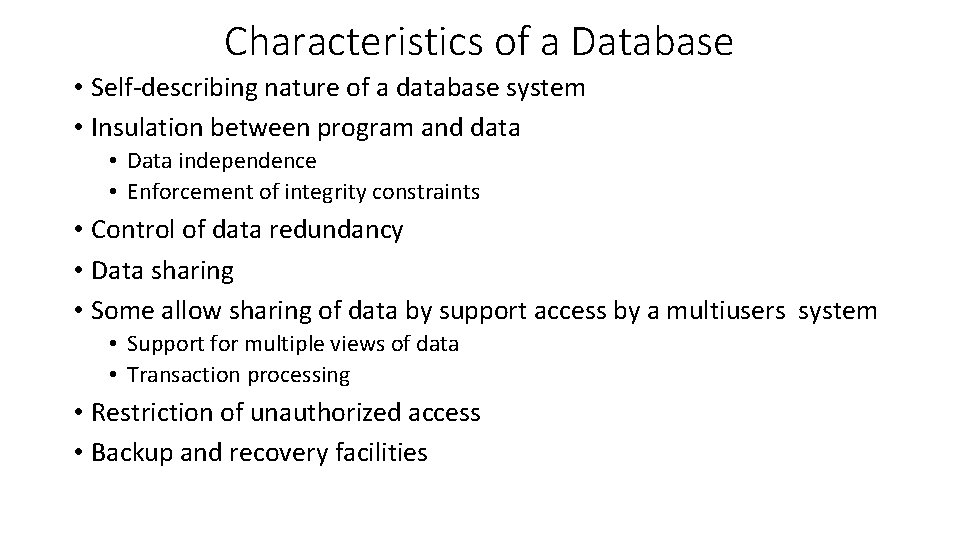

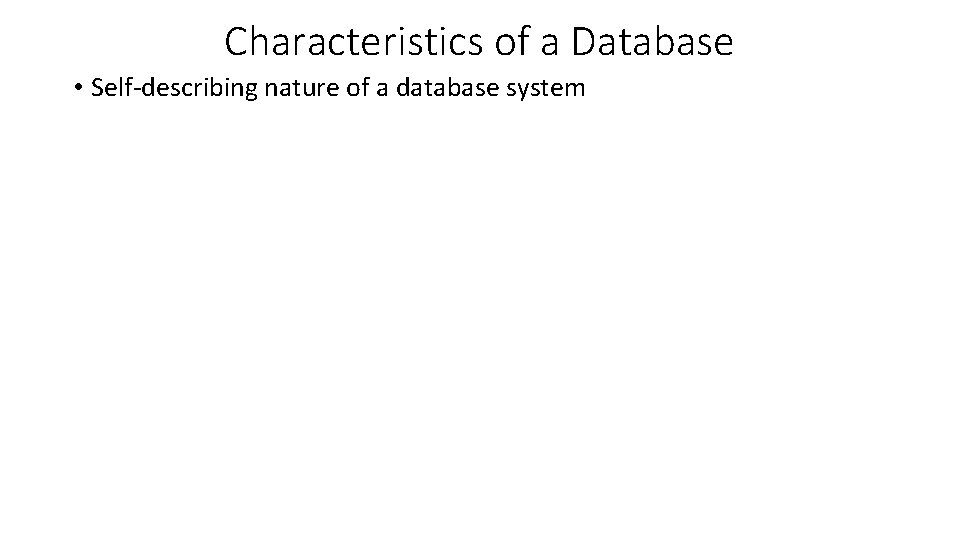

Characteristics of a Database • Self-describing nature of a database system

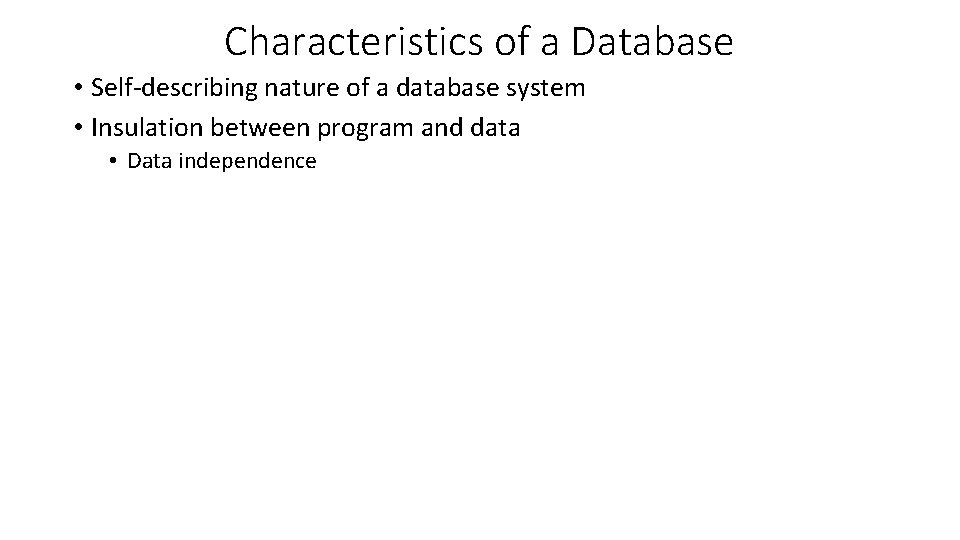

Characteristics of a Database • Self-describing nature of a database system • Insulation between program and data • Data independence

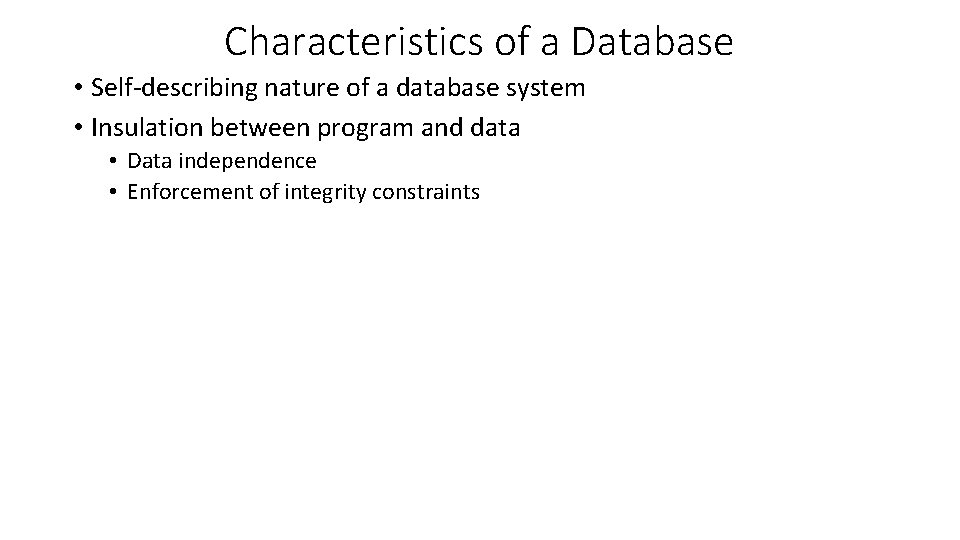

Characteristics of a Database • Self-describing nature of a database system • Insulation between program and data • Data independence • Enforcement of integrity constraints

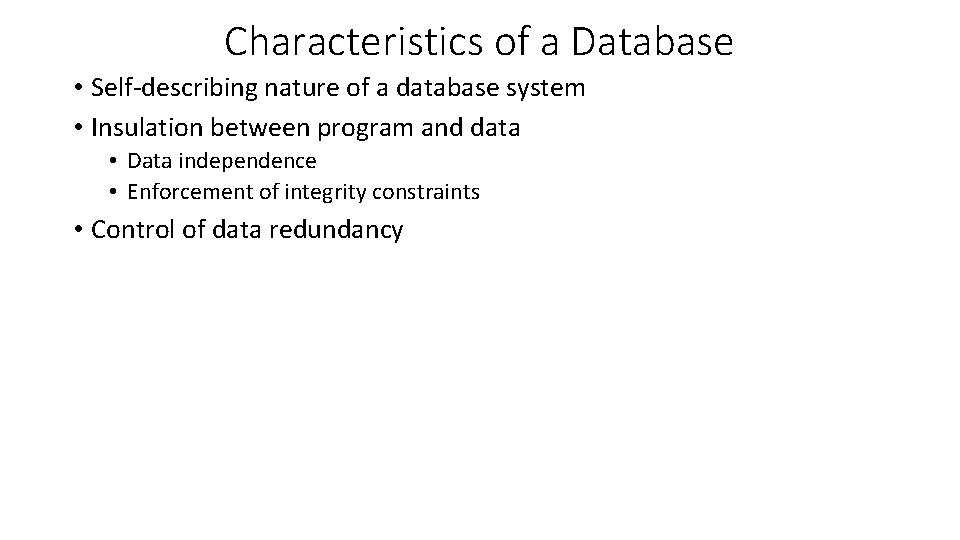

Characteristics of a Database • Self-describing nature of a database system • Insulation between program and data • Data independence • Enforcement of integrity constraints • Control of data redundancy

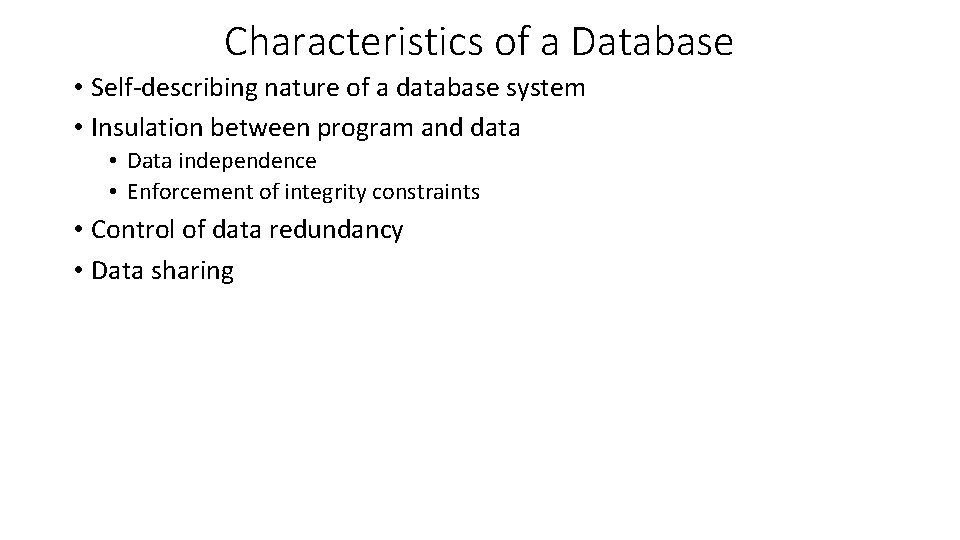

Characteristics of a Database • Self-describing nature of a database system • Insulation between program and data • Data independence • Enforcement of integrity constraints • Control of data redundancy • Data sharing

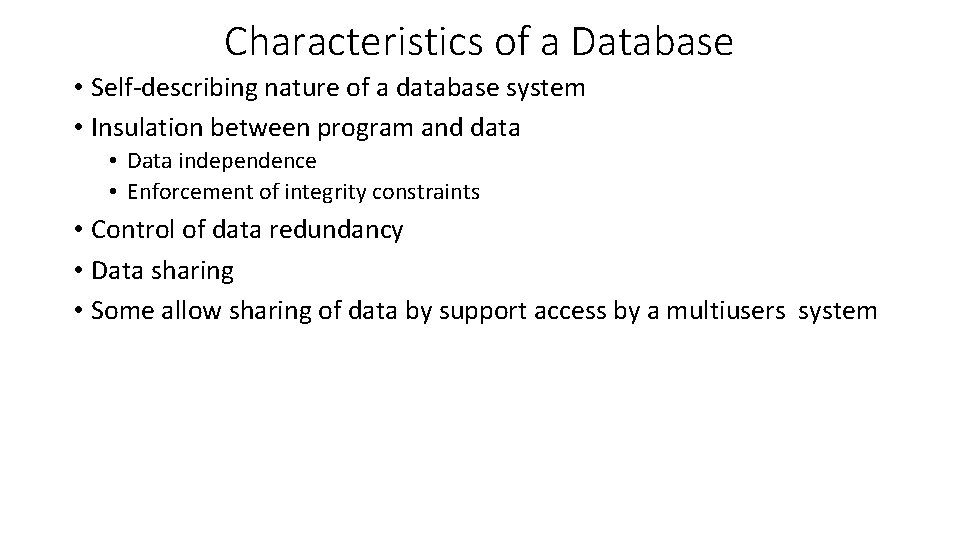

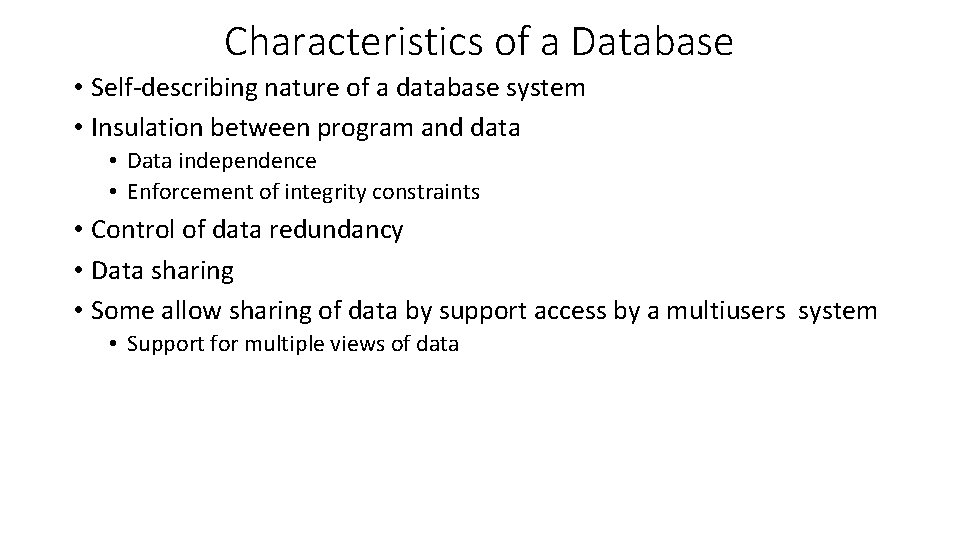

Characteristics of a Database • Self-describing nature of a database system • Insulation between program and data • Data independence • Enforcement of integrity constraints • Control of data redundancy • Data sharing • Some allow sharing of data by support access by a multiusers system

Characteristics of a Database • Self-describing nature of a database system • Insulation between program and data • Data independence • Enforcement of integrity constraints • Control of data redundancy • Data sharing • Some allow sharing of data by support access by a multiusers system • Support for multiple views of data

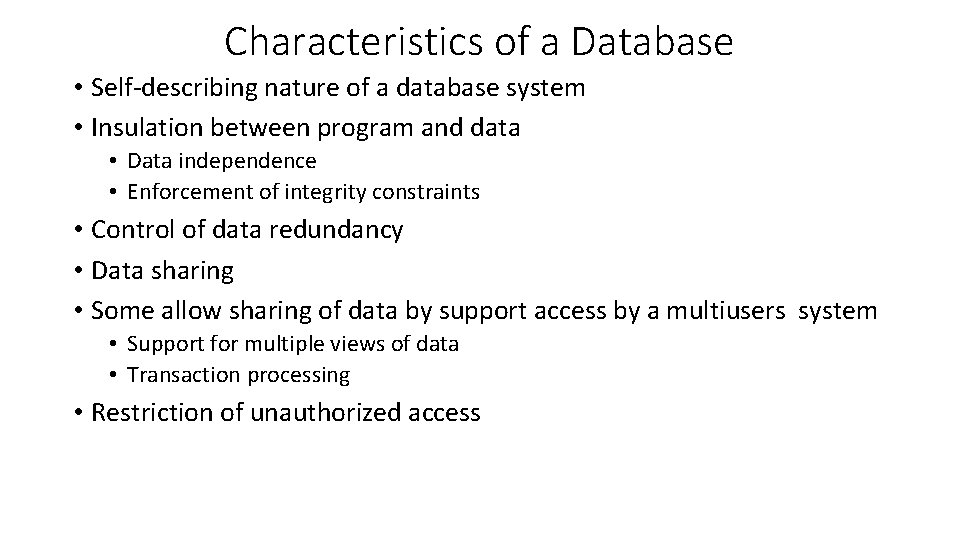

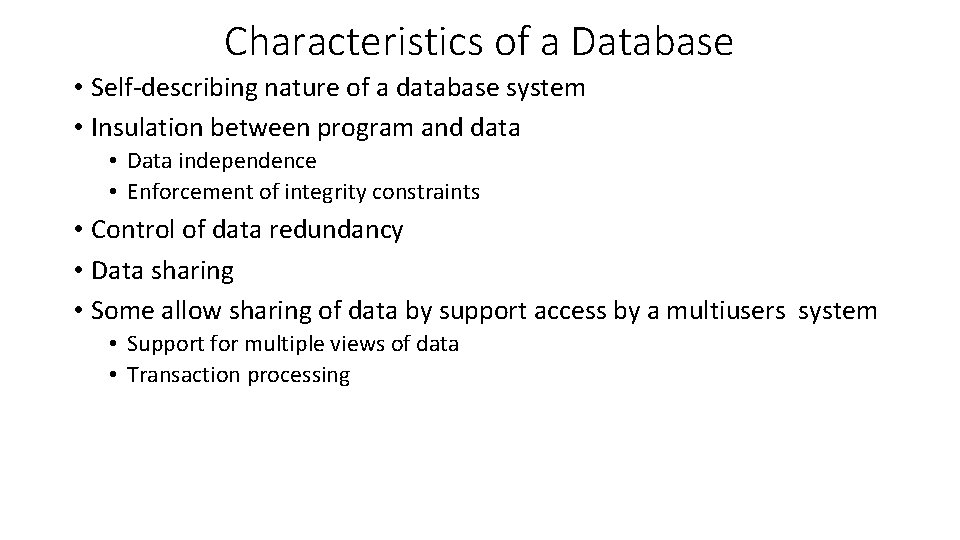

Characteristics of a Database • Self-describing nature of a database system • Insulation between program and data • Data independence • Enforcement of integrity constraints • Control of data redundancy • Data sharing • Some allow sharing of data by support access by a multiusers system • Support for multiple views of data • Transaction processing

Characteristics of a Database • Self-describing nature of a database system • Insulation between program and data • Data independence • Enforcement of integrity constraints • Control of data redundancy • Data sharing • Some allow sharing of data by support access by a multiusers system • Support for multiple views of data • Transaction processing • Restriction of unauthorized access

Characteristics of a Database • Self-describing nature of a database system • Insulation between program and data • Data independence • Enforcement of integrity constraints • Control of data redundancy • Data sharing • Some allow sharing of data by support access by a multiusers system • Support for multiple views of data • Transaction processing • Restriction of unauthorized access • Backup and recovery facilities

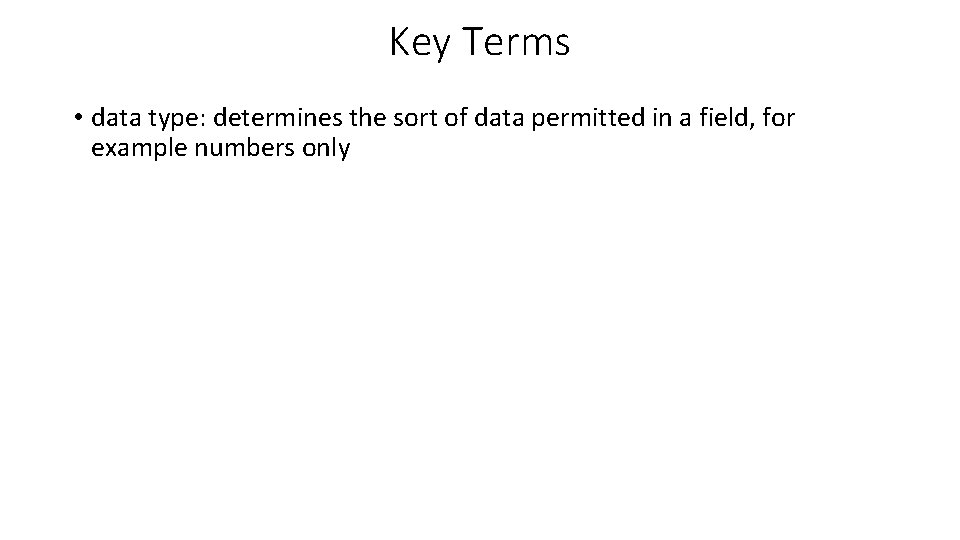

Key Terms • data type: determines the sort of data permitted in a field, for example numbers only

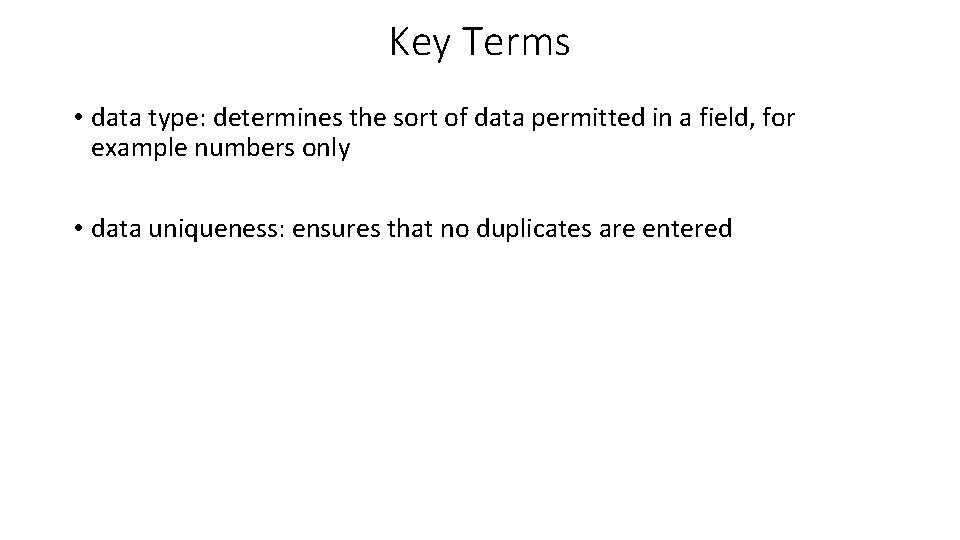

Key Terms • data type: determines the sort of data permitted in a field, for example numbers only • data uniqueness: ensures that no duplicates are entered

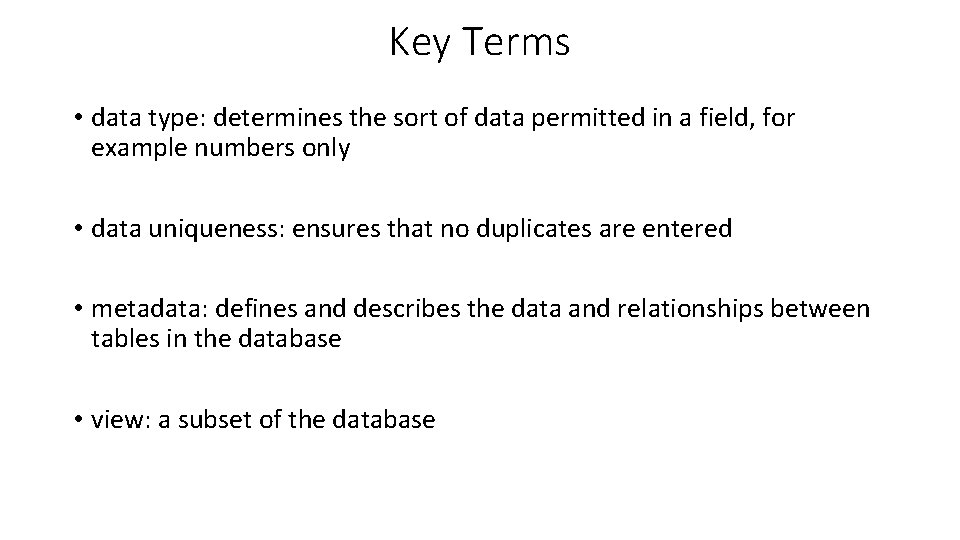

Key Terms • data type: determines the sort of data permitted in a field, for example numbers only • data uniqueness: ensures that no duplicates are entered • metadata: defines and describes the data and relationships between tables in the database

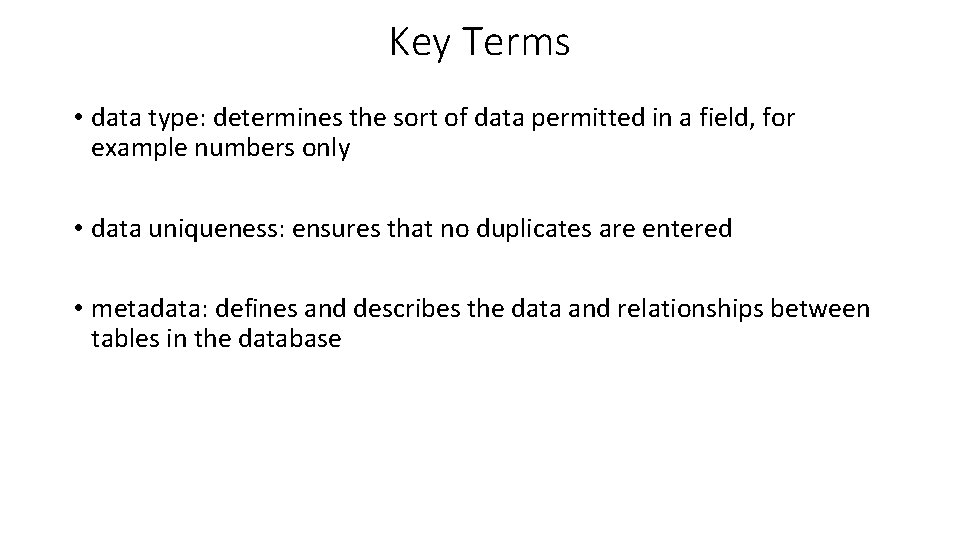

Key Terms • data type: determines the sort of data permitted in a field, for example numbers only • data uniqueness: ensures that no duplicates are entered • metadata: defines and describes the data and relationships between tables in the database • view: a subset of the database

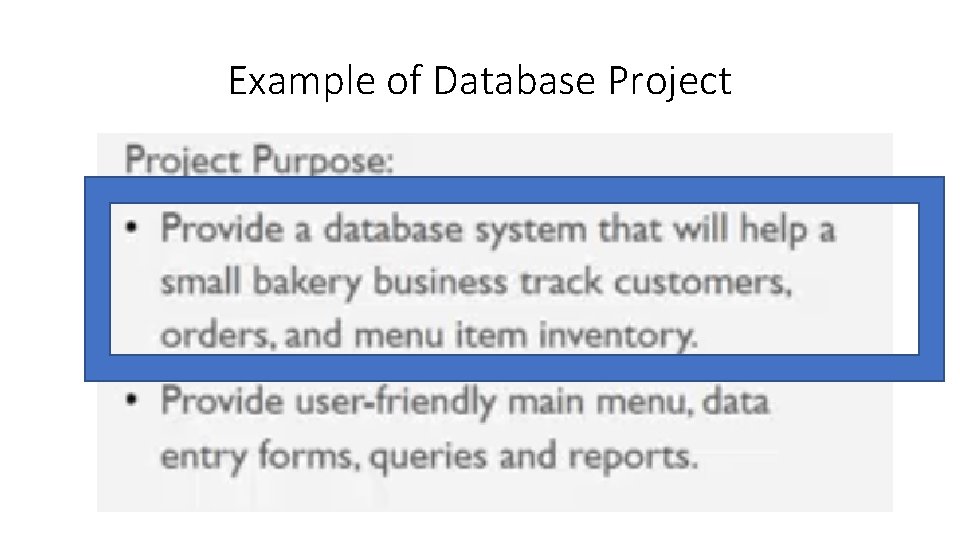

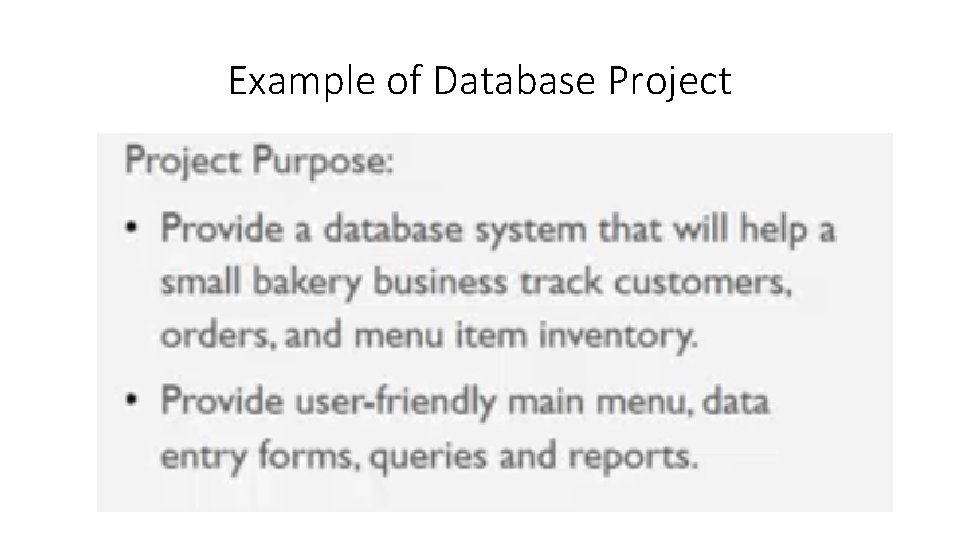

Example of Database Project

Example of Database Project
