FELK 19: Security of Wireless Networks* Mario Čagalj University of Split 2013/2014.

Wi. Fi (In)Security – 2 st part: Vulnerabilities of WPA and WPA 2 Assembled from different sources: Walker, Lehembre Buttyan, . . . Produced by Mario Čagalj

Introduction: IEEE 802. 11 i We have seen that WEP is critically flawed IEEE 802. 11 i defined to properly secure wireless LANs (2004) Specifies robust security mechanisms for WLANs Defines Transition Security Network (TSN) Called Wi. Fi-Protected Access (WPA) by Wi. Fi-Alliance Based on “new” TKIP (that uses “old” RC 4 like WEP) Backward compatibility (with old RC 4 -only hardware) IEEE 802. 1 X authentication framework More importantly defines a Robust Security Network (RSN) Called Wi. Fi-Protected Access 2 (WPA 2) by Wi. Fi-Alliance Based on AES and optionally TKIP Also uses IEEE 802. 1 X authentication framework 3

Tranzicija prema IEEE 802. 11 i IEEE 802. 11 b WEP WPA IEEE 802. 11 i (WPA 2) Tajnost podataka (enkripcija) WEP (RC 4) TKIP (RC 4) AES, (opcija TKIP) Integritet podataka WEP (RC 4) + CRC TKIP-MIC AES-MAC (opcija TKIP-MIC) Autentikacija i kontrola pristupa Shared Key Authentication IEEE 802. 1 X/EAP (+ EAP-TLS, LEAP…) TKIP: Temporal Key Integrity Protocol AES: Advanced Encryption Standard MIC: Message Integrity Code MAC: Message Authentication Code EAP: Extensible Authentication Protocol TLS: Transport Layer Security LEAP: Light EAP (Cisco) 4

Autentifikacijski model IEEE 802. 1 X u Wi. Fi Kontroliran port AP LAN (Internet) Autentifikacijski server Mobilni klijent Slobodan (otvoren) port Port-based Network Access Control Mobilni klijent zahtijeva pristup uslugama (želi se spojiti na mrežu) ● AP kontrolira pristup uslugama (kontrolirani port) ● Autentifikacijski server (AS) ● • Mobilni klijent i AS se međusobno autentificiraju • AS informira AP da može otvoriti kontrolirani port mobilnom klijentu 5

Vulnerabilities of home networks Assembled from different sources: Walker, Lehembre Buttyan, . . .

Operacijske faze IEEE 802. 11 i: kućne i ad hoc mreže Autentifikacijski server nije prisutan Autentifikacija zasnovana na dijeljenom ključu (Pre-Shared Key, PSK) Mobilni klijent (M) PSK (umjesto PMK) Pristupna točka (AP) Otkrivanje sigurnosnih funkcionalnosti IEEE 802. 1 X key management (Provjera PSK/PTK– “ 4 -way” handshake) Zaštita podataka (TKIP, CCMP/AES) 7

Key derivation and distribution PTK (Pairwise Transient Key) – unique for this M and this AP Guillaume Lehembre, hakin 9 6/2005 8

IEEE 802. 11 i: Pre-Shared Key (PSK) No explicit authentication! The IEEE 802. 1 X authentication exchange absent Usually a single pre-shared key for entire network Password-to-Key Mapping Uses PKCS #5 v 2. 0 PBKDF 2 to generate a 256 -bit PSK from an ASCII password PMK=PSK = PBKDF 2 (Password, SSIDlength, 4096, 256) Salt = SSID, so PSK different for different SSIDs 4096 is the number of hashes used in this process 9

4 -Way Handshake (over a radio channel) PTK = EAPo. L-PRF(PSK, ANonce | SNonce | AP MAC Addr | M’s MAC Addr) Guillaume Lehembre, hakin 9 6/2005 PTK 10

Vulnerabilities of 4 -way handshake (1/3) Affects both WPA and WPA 2 Password-to-Key Mapping Uses PKCS #5 v 2. 0 PBKDF 2 to generate a 256 -bit PSK from an ASCII password PMK=PSK = PBKDF 2 (Password, SSIDlength, 4096, 256) Salt = SSID, so PSK different for different SSIDs 4096 is the number of hashes used in this process Password length between 8 and 63 printable ASCII characters Vulnerability The PTK used in 4 -way handshake derived from PSK and PSK=f(PWD) 4 -way handshake protected with PTK 4 -way handshake messages transmited over a public radio channel 11

Vulnerabilities of 4 -way handshake (2/3) The strenght of PTK relies on the PSK which effectively means on the strength of the password PWD Offline brute-force and dictionary attacks possible 1. attacker captures (records) 4 -way handshake (only first 2 messages; why? ) 2. attacker performs brute-force or dictionary attacks (at home) 1. guesses or reads from the dictionary the candidate PWDtest 2. calculates PSKtest = PBKDF 2 (PWDtest, SSIDlength, 4096, 256) PTKtest = EAPo. L-PRF(PSKtest, ANonce | SNonce | AP MAC Addr | M’s MAC Addr) PTKtest gives KCKtest (used for message authentication in 4 -way hand) MICtest = MAC(KCKtest, public info) 3. if (MICtest==MICcaptured) output PWDtest as the password guess else go to 1. 12

Vulnerabilities of 4 -way handshake (3/3) How to capture the 4 -way handshake? 1. Enter the monitoring mode 2. Discover nearby networks and associated clients MAC addresses, WPA or WPA 2, SSID 3. Disassociate clients to force them to run again 4 -way handshake Use fake disassociation control packets (not protected by IEEE 802. 11 i) 4. Record the new 4 -way handshake e. g. , using Aireplay 5. Go home and launch a dictionary attack Aircrack 13

Attack complexity Depends on the entropy of passwords Weak passwords easy to crack Strong passwords E. g. , a random passphrase of 13 characters (selected from the set of 95 permitted characters) gives 9513 ≈ 285 Slow hashing algorithm (PBKDF 2 involves many iteration of HMAC-SHA 1) PSK = PBKDF 2 (Password, SSIDlength, 4096, 256) In practice PBKDF 2 forces the attacker to iterate SHA 1 16. 000 times Increases the attacer’s cost (the time to test a single pwd) E. g. , by slowing down the attacker by the factor of 3650 implies that the effort of 1 day increases to 3650 days (10 years) Unfortunatelly, people do not select 13 random characters! 14

Speeding up the dictionary attack Recall the dictionary attack 1. attacker captures (records) 4 -way handshake 2. attacker performs dictionary attacks (at home) 1. reads from the dictionary the candidate PWDtest 2. calculates This part is slow PSKtest = PBKDF 2 (PWDtest, SSIDlength, 4096, 256) PTKtest = EAPo. L-PRF(PSKtest, ANonce | SNonce | AP MAC Addr | M’s MAC Addr) PTKtest gives KCKtest (used for message authentication in 4 -way hand) MICtest = MAC(KCKtest, public info) 3. if (MICtest==MICcaptured) output PWDtest as the password guess else go to 1. 15

Speeding up the dictionary attack Pre-compute the slow part (before attacking) and re-use against many networks PSKtest = PBKDF 2 (PWDtest, SSIDlength, 4096, 256) Observe, nothing specific about the current session Where can the attacker re-use the pre-computed data? With networks sharing the same SSID How much data the attacker has to store? It depends on the concrete attack implementation and targeted success probability E. g. 100. 000 passwords of average length 10 chars (letters and numbers) -> 232 B i. e. about 4 GB 16

Securing against the dictionary attacks To secure your network against these pre-computed dictionaries make sure that Your SSID is unique (does not appear in the existing tables) Your PWD is strong enough (sufficiently long and random : -) 17

Vulnerabilities of enterprise networks Assembled from different sources: Walker, Lehembre Buttyan, . . .

Autentifikacijski model IEEE 802. 1 X u Wi. Fi Kontroliran port AP LAN (Internet) Autentifikacijski server Mobilni klijent Slobodan (otvoren) port Port-based Network Access Control Mobilni klijent zahtijeva pristup uslugama (želi se spojiti na mrežu) ● AP kontrolira pristup uslugama (kontrolirani port) ● Autentifikacijski server (AS) ● • Mobilni klijent i AS se međusobno autentificiraju • AS informira AP da može otvoriti kontrolirani port mobilnom klijentu 19

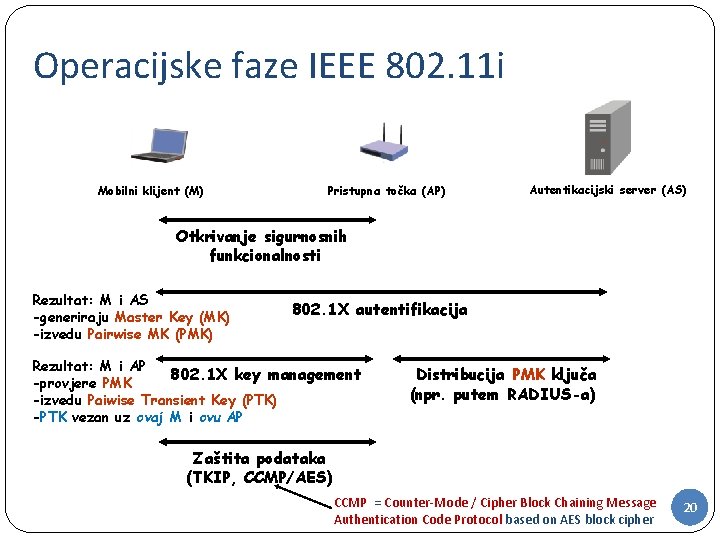

Operacijske faze IEEE 802. 11 i Mobilni klijent (M) Pristupna točka (AP) Autentikacijski server (AS) Otkrivanje sigurnosnih funkcionalnosti Rezultat: M i AS -generiraju Master Key (MK) -izvedu Pairwise MK (PMK) 802. 1 X autentifikacija Rezultat: M i AP 802. 1 X key management -provjere PMK -izvedu Paiwise Transient Key (PTK) -PTK vezan uz ovaj M i ovu AP Distribucija PMK ključa (npr. putem RADIUS-a) Zaštita podataka (TKIP, CCMP/AES) CCMP = Counter-Mode / Cipher Block Chaining Message Authentication Code Protocol based on AES block cipher 20

Example: FESB Wi. Fi (EAP-TTLS and PAP) Tunneled TLS over Extensible Authentication Protocol (EAP-TTLS) Provides protection for initial authentication messages (plaintext passwords, e. g. PAP used by FESB) <------certificate-----> <--no trust--> Mobilni klijent (M) <--trust--> Pristupna točka (AP) <--trust--> TTLS server Autentifikacijski server (AS) Establishing an authentication TLS tunnel TLS protected authentication Authentication WLAN master session key Data traffic on secured link 21

Example: FESB Wi. Fi (EAP-TTLS and PAP) Validation of the authentication server based on certificate validation Trusted issuing authority, matching certificate owner’s Common Name (CN) Many PEAP (EAP-TTLS) deployments fail to properly deploy Malicious authentication server gains access to inner authentication methods PEAP: MS-CHAPv 2 TTLS: MS-CHAPv 2, CHAP, PAP, etc. controlled by the attacker (Rogue AP) <--no trust--> Mobilni klijent (M) <--trust--> Pristupna točka (AP) <--trust--> TTLS server Establishing an authentication TLS tunnel with the rogue Auth. Srv TLS protected inner authentication Record session 22

How to set properly setup PEAP-like authentication methods PEAP: Pwned Extensible Authentication Protocol by Joshua Wright and Brad Antoniewicz, Shmoo. Con 2008 23

Wi-Fi Protected Setup (WPS) Insecurities (home nets again) A standard that attempts to allow easy establishment of a secure wireless home network The standard allows four usage modes aimed at a home network user adding a new device to the network: PIN Method (e. g. , enter the PIN on AP into the client) Push-Button-Method (a user simultaneously pushes a button on the AP and the client) Near-Field-Communication Method (bring the client close to the AP) USB Method In December 2011 researcher Stefan Viehböck reported a design and implementation flaw that makes brute-force attacks against PIN-based WPS feasible to perform on WPS-enabled Wi-Fi networks A successful attack on WPS allows unauthorized parties to gain access to the network The only effective workaround is to disable WPS Impossible on some APs 24
