Energy Force and Motion identifying energy transformations Identifying

Energy, Force, and Motion identifying energy transformations; Identifying and analyzing the transfer of heat energy by conduction, convection, and radiation interpreting a phase diagram; describing and calculating velocity and acceleration; comparing Newton’s three laws; calculating mechanical advantage; understanding the work of simple machines Waves, Electricity, and Magnetism investigating light and sound phenomena and comparing light to sound; Doppler effect; describing the causes of static electricity; constructing and analyzing series and parallel circuits; describing the relationship between voltage, current and resistance and relating electricity and magnetism and common applications

SPEED Describes how fast an object is moving.

Average Speed = distance time

Velocity The speed of an object in a certain direction.

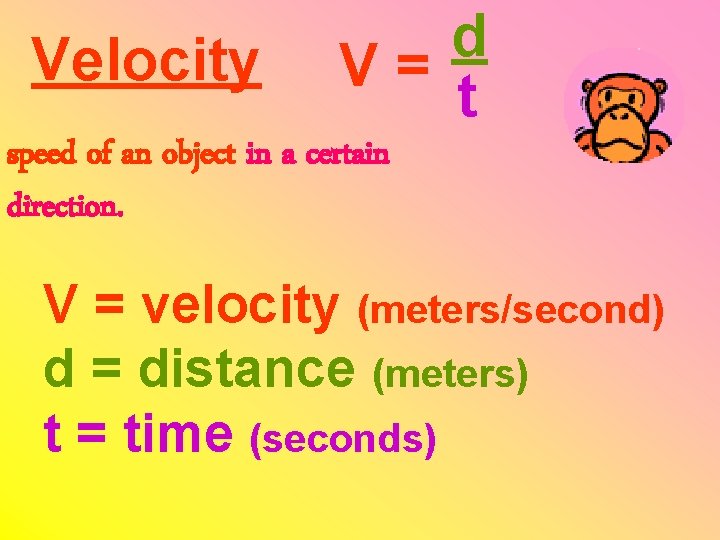

Velocity d V= t speed of an object in a certain direction. V = velocity (meters/second) d = distance (meters) t = time (seconds)

Velocity speed of an object in a certain direction. 0 3 seconds 1 2

Speed=? Velocity=? Total time= 4 seconds 12 meters 20 meters 16 meters

Numerator Denominator 5 12

Acceleration

Acceleration is how quickly velocity changes over time. X L eh ray shun 0 3 Speed 1 2 Meters/second

Acceleration how quickly velocity changes over time. (V V ) final initial A = ______ time

Acceleration the change in velocity over time. Acceleration = change in velocity time Acceleration = V 1 = beginning velocity V 2 = ending velocity (v – v ) 2 1 ____ Time

The graph below relates speed and time of four cars (1, 2, 3, and 4) traveling along a straight highway. Which two cars move with zero acceleration? 1 and 4 2 and 3 1 and 2 3 and 4

Which of the following is certain to change as a ball accelerates? mass of the ball inertia of the ball velocity of the ball force acting on the ball

What must happen to an object in order to accelerate it? A net force must be applied. Some weight must be removed. Its frictional coefficient must be reduced. It must contain momentum.

Which of these describes the object with the largest acceleration ? An object with a small change in velocity over a small change in time An object with a small change in velocity over a large change in time An object with a large change in velocity over a small change in time An object with a large change in velocity over a large change in time

Scalar a measurement that does NOT contain direction. Egg sample: Speed Vector a measurement that contains direction. Egg sample: Velocity

Forces of Nature Gravitational Magnetic

Mass and Inertia The universe consists of matter in motion

The greater the mass the harder it is to move. And. . . the harder it is to stop moving.

Lower mass objects are easier to move. . . and to stop moving.

NEWTON’s Laws 1 st Law of Motion : An object remains at a constant speed in a straight path , until a net force acts on it.

NEWTON’s 1 st Law of Motion is the law of ih ner shah An object will remain at a constant speed (unless disturbed).

the force of a moving body. the mass times velocity of an object p=m • v Momentum = mass x velocity (Kgrams) (meters/second)

Momentum = mass x velocity Higher mass higher momentum Higher velocity higher momentum p=m • v

includes velocity. So, it has direction. Momentum points in the direction of motion.

Conservation of momentum When objects collide, all of the momentum goes somewhere.

Conservation of momentum When objects collide, all of the momentum goes somewhere.

Conservation of momentum When objects collide, all of the momentum goes somewhere.

Conservation of momentum When objects collide, all of the momentum goes somewhere.

NEWTON’s nd 2 Law of Motion : An object that has a force acting on it will change its speed (accelerate).

NEWTON’s nd 2 Law of Motion : f = m • a force = mass • acceleration f = net force (newtons) m = mass (Kilograms) a = acceleration (meters/second 2)

NEWTON’s nd 2 Law of Motion : mass of the club acceleration of the club force of the club f = m • a

Net force is the total amount of Force (minus the forces that cancel each other out). Force of gravity Force of muscles Net force

When the net force is Zero. -> NO movement When the net force is NOT Zero. -> movement

Static Equilibrium Balanced forces When all forces are balanced. The net force is Zero. There is NO movement. 3 Kg ? 2 Kg

N 50 N 10 0 N 50 N

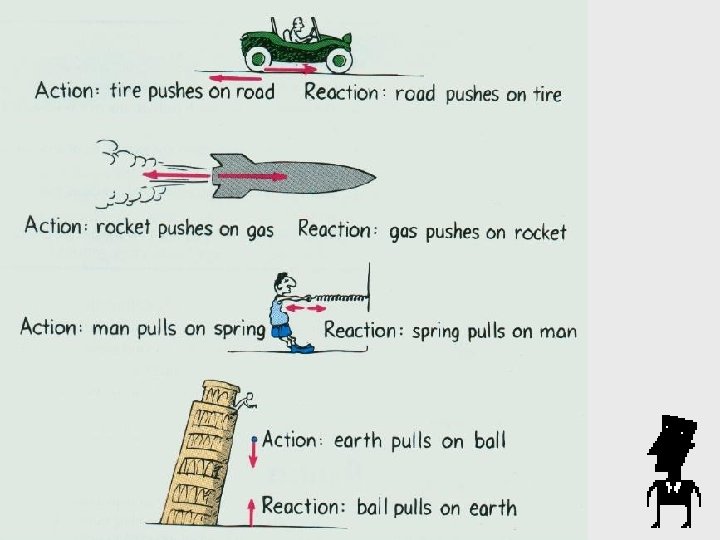

NEWTON’s 3 rd Law of Motion: For every action there is an equal and opposite reaction.

NEWTON’s 3 rd Law of Motion: For every action, there is an equal and opposite reaction.

NEWTON’s 3 rd Law of Motion: For every action, there is an equal and opposite reaction.

Gravity Inertia Friction Balanced or unbalanced? Action Reaction

UN balanced Speed (m/s) Gravity BALL Ground Time (m. Sec)

Inertia Speed (m/s) UN balanced PUTTER BALL Time (m. Sec)

Friction Speed (m/s) UN balanced SKATE Time (Sec)

A car is traveling down a hill. Which of the following will affect the amount of energy the car has? how long the car is the time of day how much the car weighs the color of the car

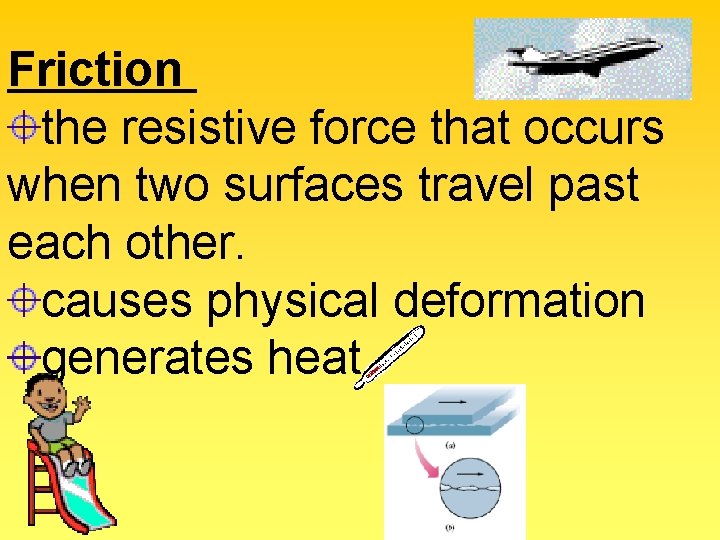

Friction the resistive force that occurs when two surfaces travel past each other. causes physical deformation generates heat

Friction the resistive force that occurs when two surfaces contact each other.

Oliver the dog doesn't want to walk in the rain. He can make his owner pull harder on the leash to get him out the door by sitting on the vinyl floor. sitting on the tile floor. sitting on the carpeted floor. sitting on the wood floor.

Pauline needs to measure the sliding friction of a brick. How should she go about doing this? attach the brick to a string and then to a spring scale and read the force needed to quickly lift the brick off the ground drag the brick by a string attached to a spring scale so that it gradually speeds up drag the brick by a string attached to a spring scale along the surface of a table at a constant speed and read the force hang the brick from a string attached to a spring scale and read the force

Sliding friction-the drag force created when the surface of one object slides across the surface of another object. Sliding Friction Lab Object Surface force (Newstons)

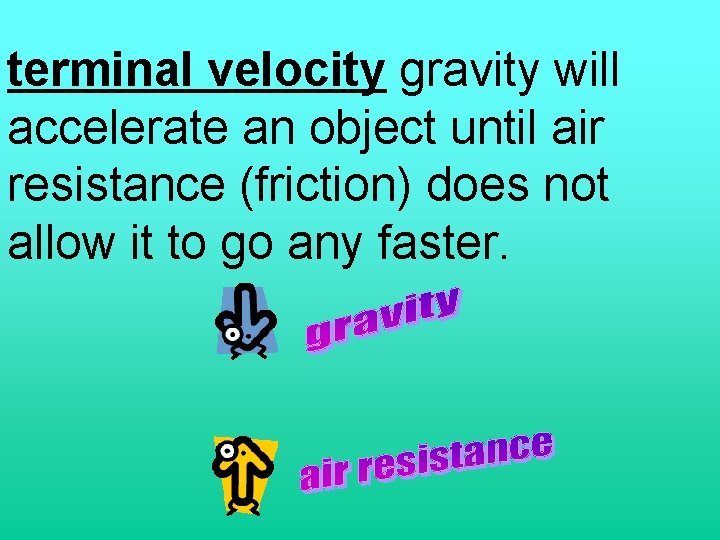

terminal velocity gravity will accelerate an object until air resistance (friction) does not allow it to go any faster.

In the absence of air resistance, which of these objects will fall at the fastest rate when dropped? the ball with a mass of 75 kg the ball with a mass of 25 kg the ball with a mass of 10 kg They all fall at the same rate.

Pressure is the amount of force exerted over a certain area. Pressure = Force Area

Pressure = Force (newtons) Area (m 2) 1 Pascal = 1 Newton/meter 2

Distance { W = f • d Force Distance {

Gravitational force

Gravitational force

Gravitational force o INCREASES with Mass o DECREASES with Distance

All objects in the universe are attracted to each other by the force of effort. friction. gravity. inertia.

Four pairs of objects have the masses shown below. If the objects in each pair are the same distance apart, the gravitational force between the objects in which pair is greatest? 1 kilogram and 2 kilograms and 1 kilogram 2 kilograms and 2 kilograms

As an astronaut travels from Earth to a space station orbiting Earth, what happens to her mass and weight? Her mass decreases, but her weight remains the same. Her mass increases as her weight decreases. Her mass remains the same, but her weight decreases. Her mass decreases and her weight also decreases.

Which hill would you slide down the fastest? hill A hill B hill C It would take the same time to slide down all of the hills.

Projectile Motion Velocity (m/s) forward downward 50 19. 6 39. 2 29. 4 9. 8 0 0 3 seconds 1 2

Projectile Motion Velocity (m/s) forward downward 46 47 48 49 50 19. 6 39. 2 29. 4 9. 8 0 0 3 seconds 1 2

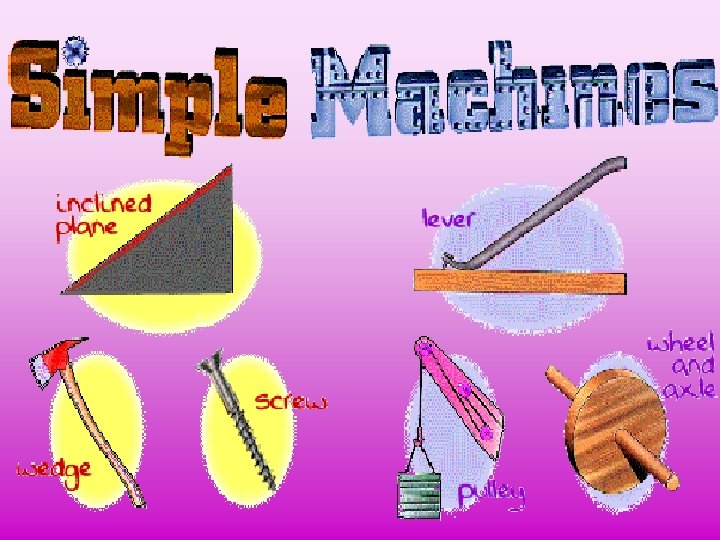

Simple Machines and work Lever Inclined plane Pulley Wedge Screw Wheel and axle

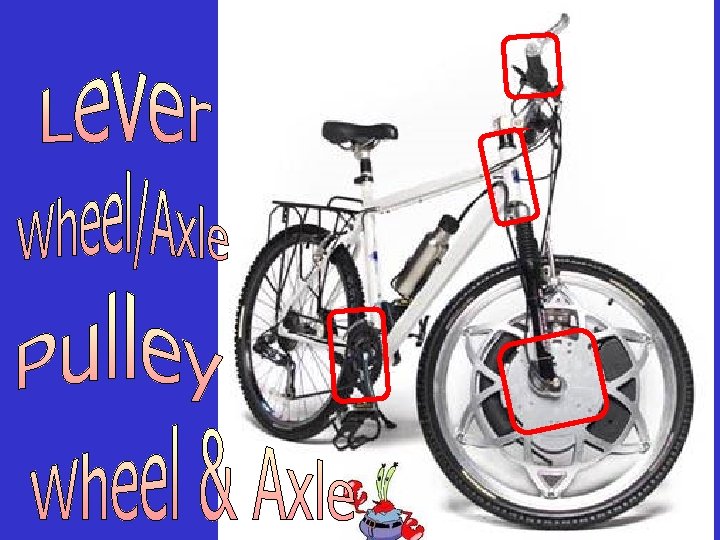

Simple Machines • Pulley • Wheel & Axle • Lever • Inclined plane • Screw • Wedge • Gear

Simple Machines Pulley Inclined plane Wheel & Axle Screw Lever Wedge Gear

Which activity involves the use of a simple machine? riding on a seesaw flying a kite listening to a radio skiing down a hill

Simple Machine A mechanism that lowers the amount of force needed to do work, by increasing the distance.

On which simple machine is a fulcrum found? pulley wheel axle lever

ALL Simple Machines work the same way

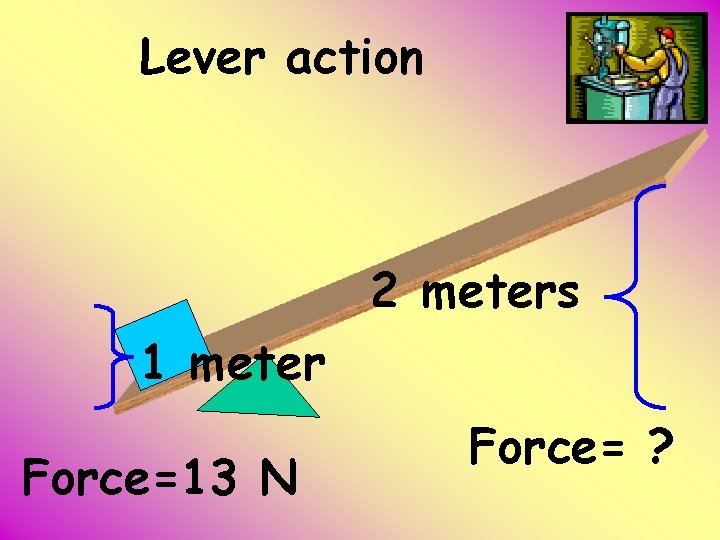

Lever action 2 meters 1 meter Force=13 N Force= ?

Mechanical Advantage= final distance starting distance 9 meters 3 meters

Mechanical Advantage= distance 8 meters 2 meters

Which of the following is often used as a lever? file nail saw crowbar

The Wedge

The bottom of this light bulb is an example of what type of simple machine? a lever a pulley a screw a wedge

What type of simple machine is used to split things apart? screw wheel and axle wedge inclined plane

What type of simple machine is used to pull a flag up to the top of a flagpole? screw wheel and axle inclined plane pulley

Pulley Lab A fixed pulley B movable pulley C double pulley (end in top) D double pulley (end in bottom)

DO THIS FIRST! Hook on Bottom dude ! Force of the weight ONLY. A. fixed pulley Get out your own sheet of paper 1. Write down the force of the weight (newtons). 2. For each pulley system write down the NEW force of the weight. • Pull the string exactly 20 cm. • Write down the distance C. double pulley (end in top) (cm) that the weight (end in bottom) moved. • Calculate the mechanical B. movable pulley D. double pulley

BIG Teeth=16 small Teeth =8 16: 8 2: 1 So, the small gear spins TWICE AS FAST as the big gear.

A 200 pound man lifts a rock weighing 800 pounds by standing on the end of a lever. How much mechanical calculating advantage did the lever provide ? mechanical M. A. = 800 Kg/200 Kg = 4 Advantage

If you wuz ‘n a Merry-go-round & yuz let go, Which wayz wud yu go?

Centripetal force The inward force on a spinning object, that stops it from going in a straight line. Perpendicular

Centripetal force

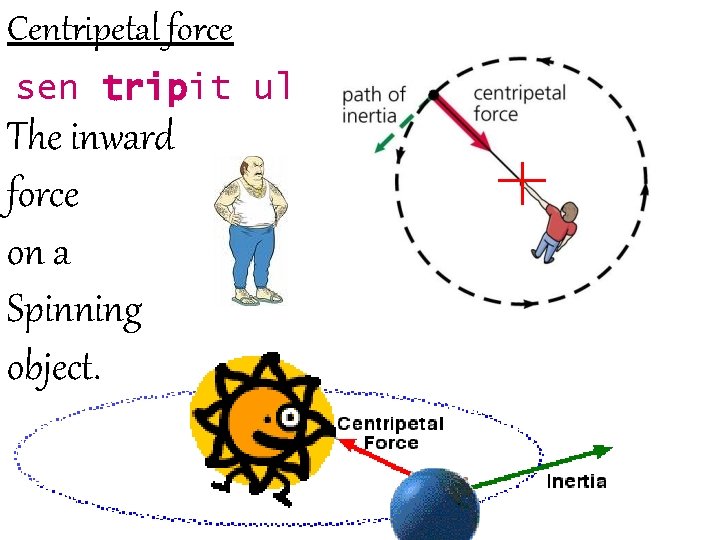

Centripetal force sen tripit ul The inward force on a Spinning object.

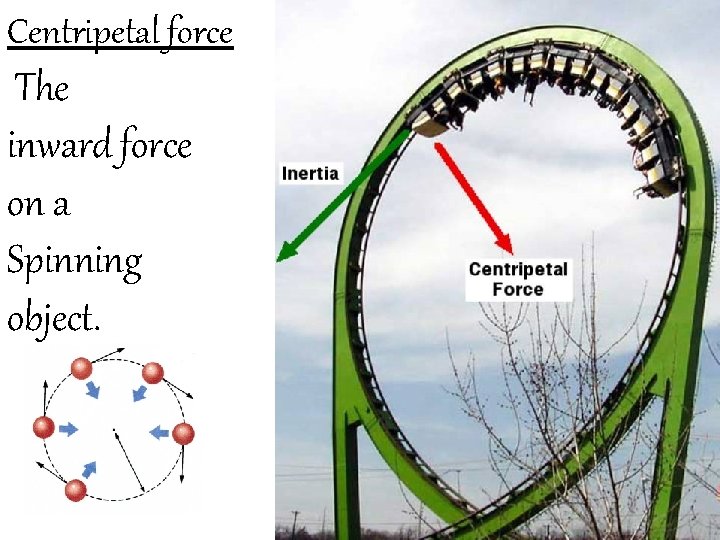

Centripetal force The inward force on a Spinning object.

Satellites stay in place as they orbit because of. . . the repeated firing of rocket boosters. the gravitational pull of Earth. a narrow path through the vacuum of space. solar panels generating energy to hold them in place
