EML 2023 Modeling Parts Lecture 1 11 Equation
- Slides: 23
EML 2023 – Modeling, Parts Lecture 1. 11 – Equation Driven Curve
Equation Driven Curve y= 2 x 2 – 3 x + 2, x = 0. . 2 EML 2023 Department of Mechanical and Aerospace Engineering 2

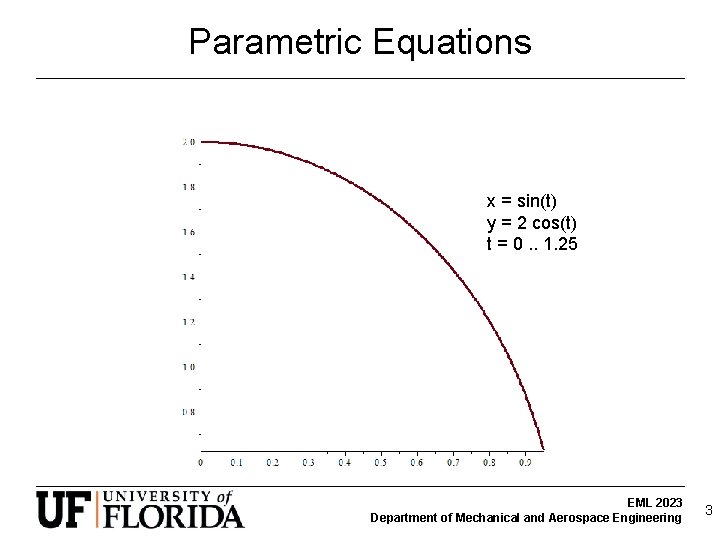

Parametric Equations x = sin(t) y = 2 cos(t) t = 0. . 1. 25 EML 2023 Department of Mechanical and Aerospace Engineering 3

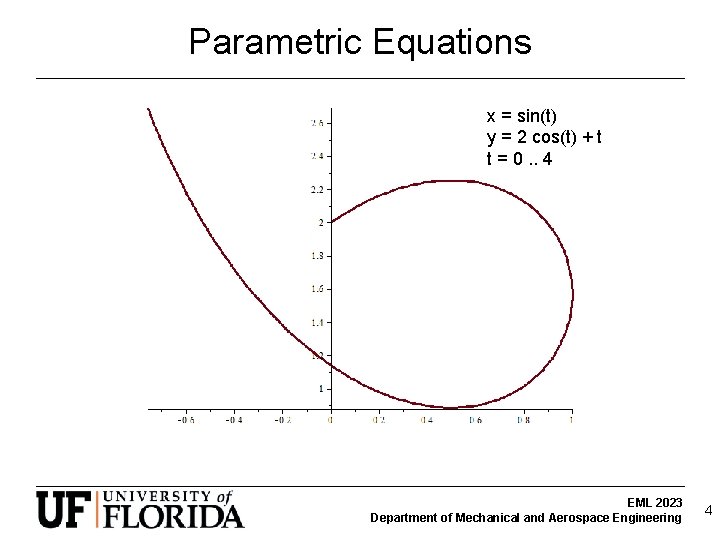

Parametric Equations x = sin(t) y = 2 cos(t) + t t = 0. . 4 EML 2023 Department of Mechanical and Aerospace Engineering 4
What is a cam? EML 2023 Department of Mechanical and Aerospace Engineering 5
cam and follower EML 2023 Department of Mechanical and Aerospace Engineering 6
disc cam with flat follower EML 2023 Department of Mechanical and Aerospace Engineering 7

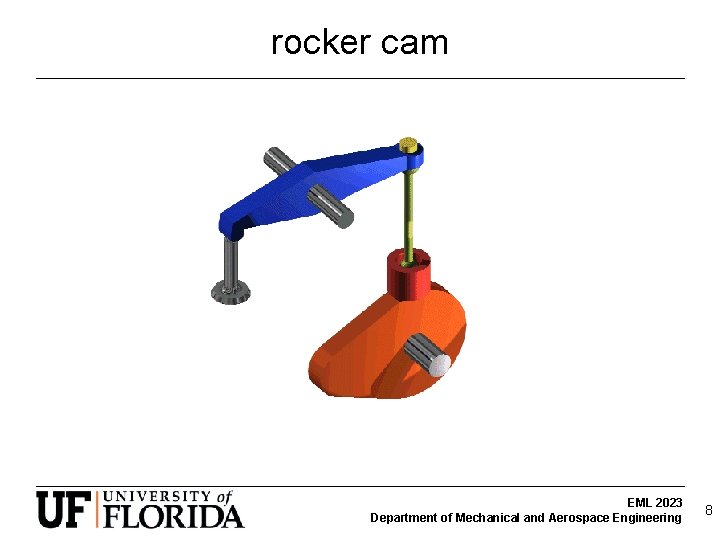

rocker cam EML 2023 Department of Mechanical and Aerospace Engineering 8
4 cycle engine EML 2023 Department of Mechanical and Aerospace Engineering 9

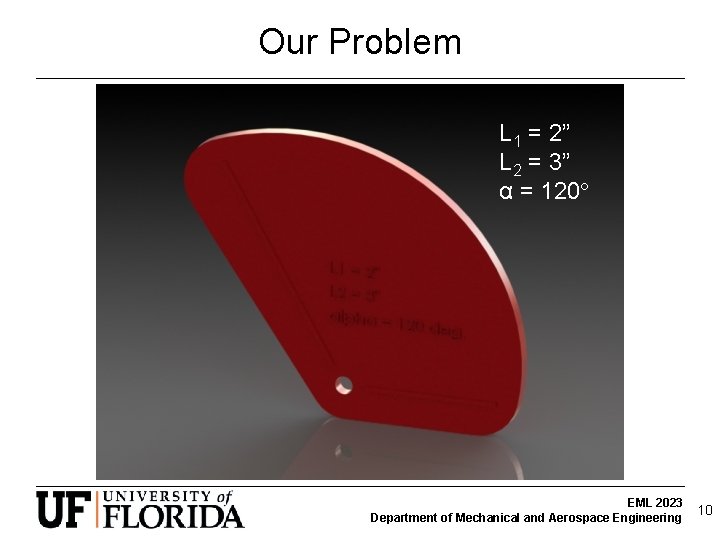

Our Problem L 1 = 2” L 2 = 3” α = 120 EML 2023 Department of Mechanical and Aerospace Engineering 10
Our problem • Design a disc cam (for use with a flat follower) such that: – follower height is L 1 when cam angle is 0° – follower height is L 2 when cam angle is – the relationship between the height, L, and the cam angle, , is linear We need to get the function of the cam profile and then draw a curve in Solid. Works that exactly models this profile. EML 2023 Department of Mechanical and Aerospace Engineering 11

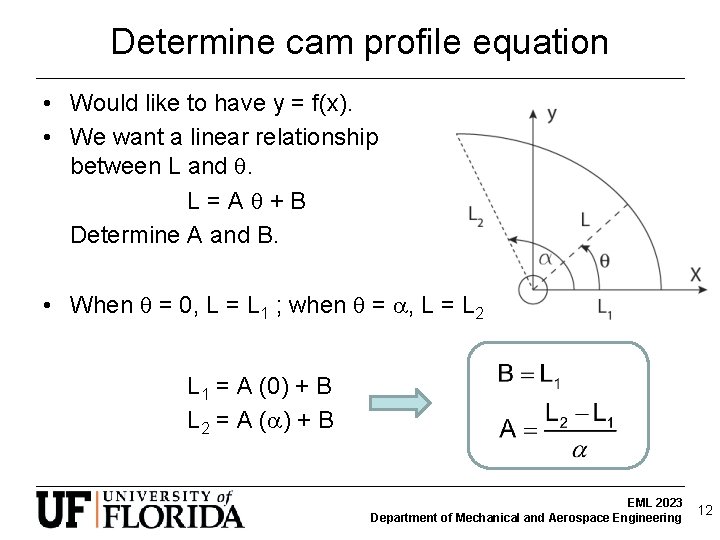

Determine cam profile equation • Would like to have y = f(x). • We want a linear relationship between L and . L=A +B Determine A and B. • When = 0, L = L 1 ; when = , L = L 2 L 1 = A (0) + B L 2 = A ( ) + B EML 2023 Department of Mechanical and Aerospace Engineering 12
Cam profile equation A • Now we’ll get the x and y coord of point A (an arbitrary point) x. A = L cos y. A = L sin substitute for L EML 2023 Department of Mechanical and Aerospace Engineering 13
Cam profile equation A • We would like to have y as a function of x. • Instead we have y and x as a function of . This is called a parametric representation of x and y. EML 2023 Department of Mechanical and Aerospace Engineering 14
Cam profile equation A • Let’s look at a numerical example: L 1 = 2” (when = 0) L 2 = 3” corresponding to = (120°) EML 2023 Department of Mechanical and Aerospace Engineering 15
Cam profile equation A • Plot the x, y coordinates as varies from 0 to EML 2023 Department of Mechanical and Aerospace Engineering 16

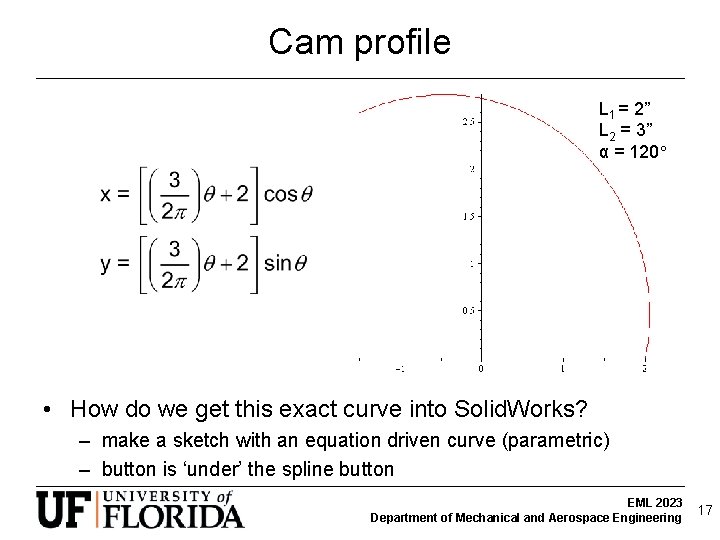

Cam profile L 1 = 2” L 2 = 3” α = 120 • How do we get this exact curve into Solid. Works? – make a sketch with an equation driven curve (parametric) – button is ‘under’ the spline button EML 2023 Department of Mechanical and Aerospace Engineering 17
Cam Profile L 1 = 2” L 2 = 3” α = 120 equation driven curve (parametric) EML 2023 Department of Mechanical and Aerospace Engineering 18

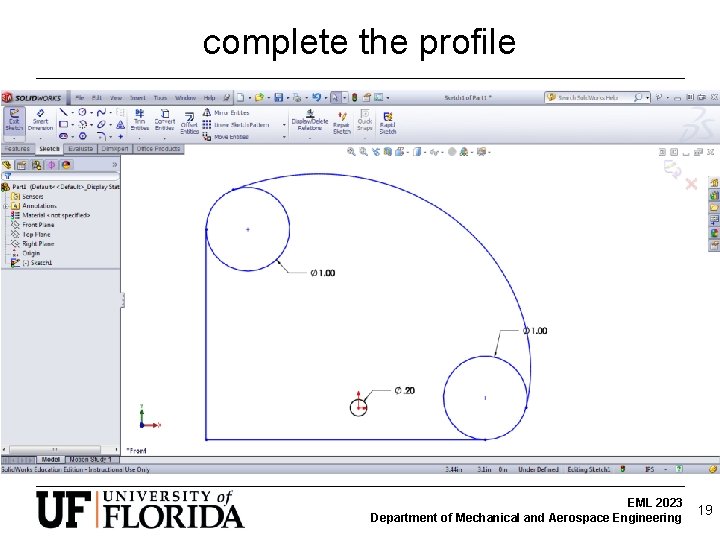

complete the profile EML 2023 Department of Mechanical and Aerospace Engineering 19
complete the profile EML 2023 Department of Mechanical and Aerospace Engineering 20
complete the profile EML 2023 Department of Mechanical and Aerospace Engineering 21
profile working region of cam EML 2023 Department of Mechanical and Aerospace Engineering 22

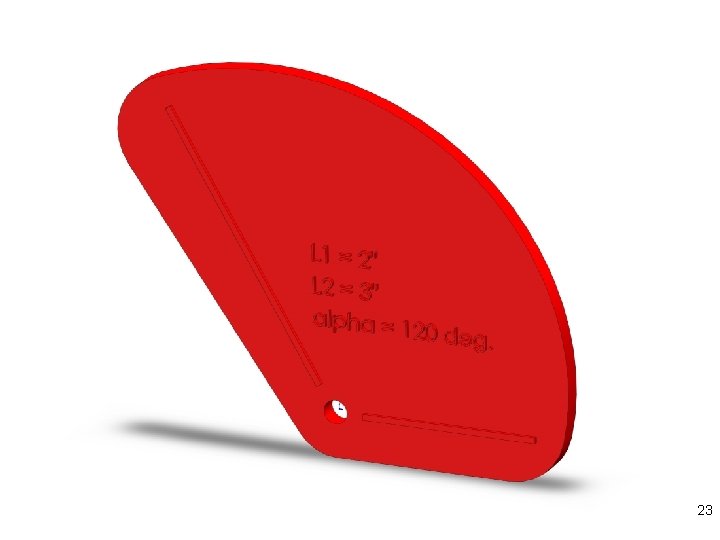

EML 2023 Department of Mechanical and Aerospace Engineering 23
