Discrete Cosine Transform DCT Eric Rust ESS 522

Discrete Cosine Transform (DCT) Eric Rust ESS 522 Spring/2007 University of Washington

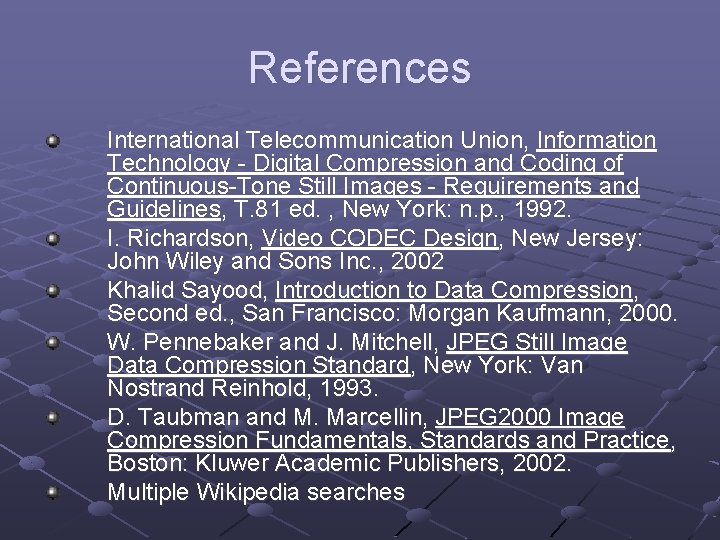

References International Telecommunication Union, Information Technology - Digital Compression and Coding of Continuous-Tone Still Images - Requirements and Guidelines, T. 81 ed. , New York: n. p. , 1992. I. Richardson, Video CODEC Design, New Jersey: John Wiley and Sons Inc. , 2002 Khalid Sayood, Introduction to Data Compression, Second ed. , San Francisco: Morgan Kaufmann, 2000. W. Pennebaker and J. Mitchell, JPEG Still Image Data Compression Standard, New York: Van Nostrand Reinhold, 1993. D. Taubman and M. Marcellin, JPEG 2000 Image Compression Fundamentals, Standards and Practice, Boston: Kluwer Academic Publishers, 2002. Multiple Wikipedia searches

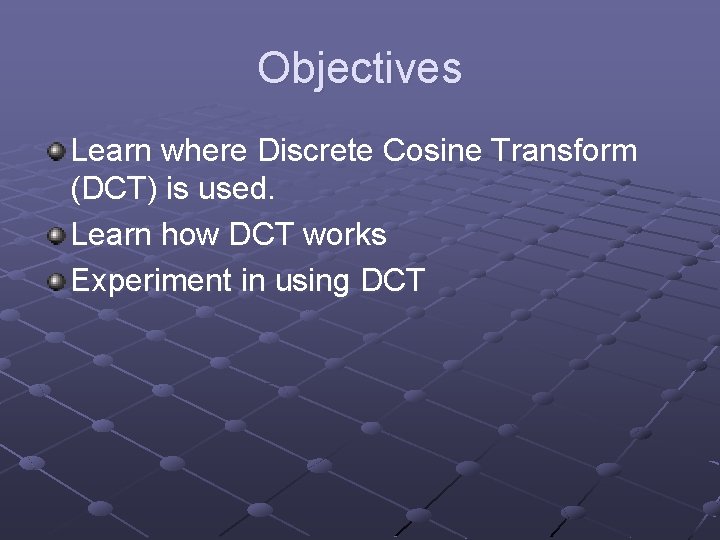

Objectives Learn where Discrete Cosine Transform (DCT) is used. Learn how DCT works Experiment in using DCT

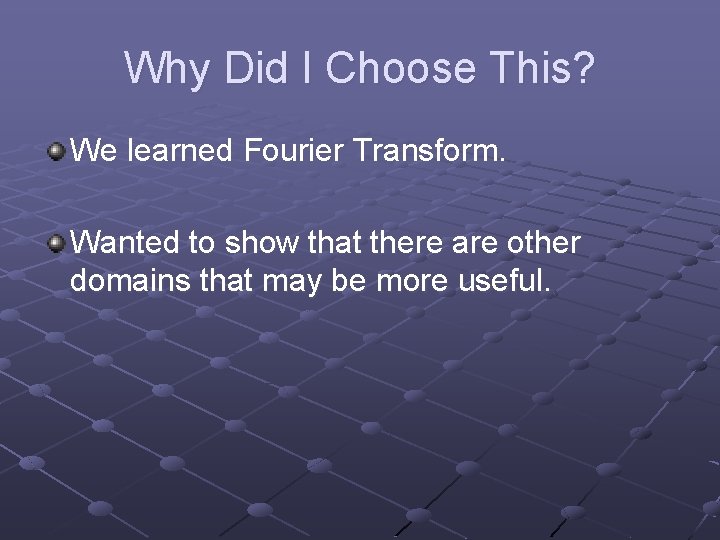

Why Did I Choose This? We learned Fourier Transform. Wanted to show that there are other domains that may be more useful.

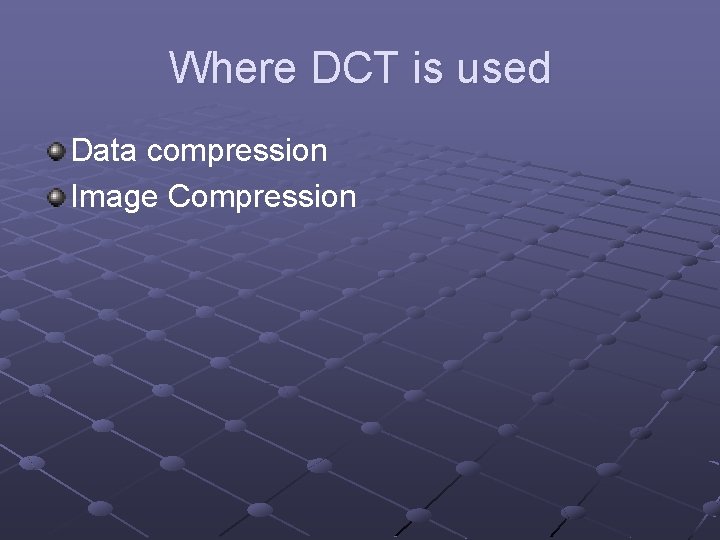

Where DCT is used Data compression Image Compression

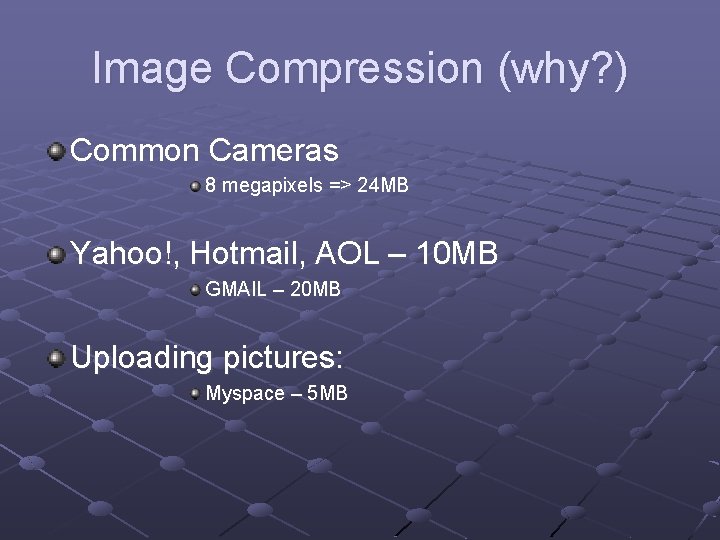

Image Compression (why? ) Common Cameras 8 megapixels => 24 MB Yahoo!, Hotmail, AOL – 10 MB GMAIL – 20 MB Uploading pictures: Myspace – 5 MB

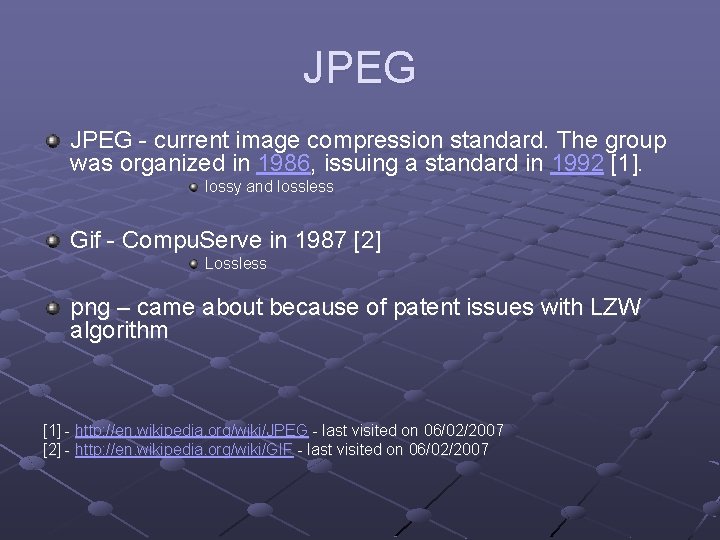

JPEG - current image compression standard. The group was organized in 1986, issuing a standard in 1992 [1]. lossy and lossless Gif - Compu. Serve in 1987 [2] Lossless png – came about because of patent issues with LZW algorithm [1] - http: //en. wikipedia. org/wiki/JPEG - last visited on 06/02/2007 [2] - http: //en. wikipedia. org/wiki/GIF - last visited on 06/02/2007

JPEG Overview Current Image JPEG Compressed File

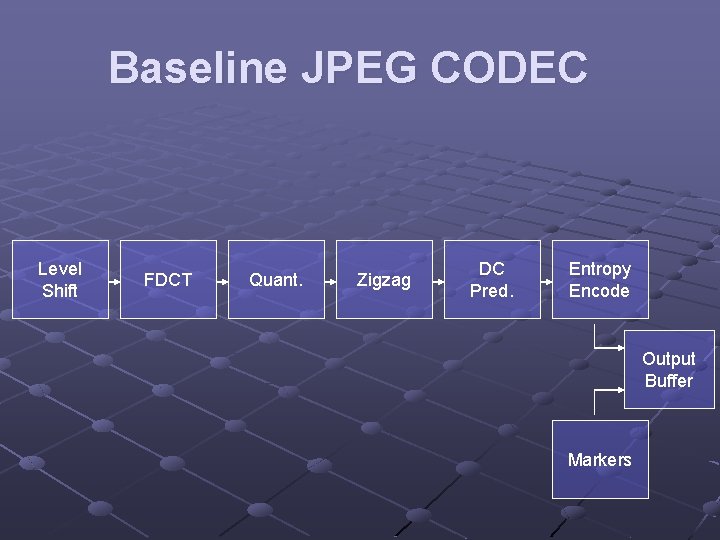

Baseline JPEG CODEC Level Shift FDCT Quant. Zigzag DC Pred. Entropy Encode Output Buffer Markers

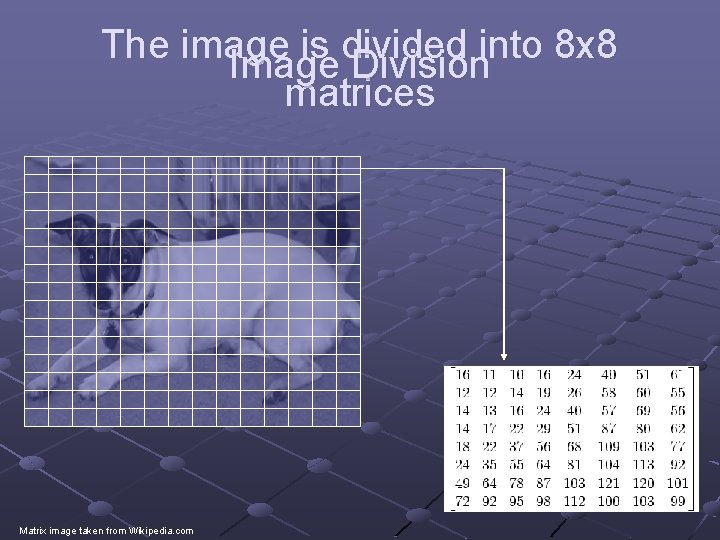

The image is divided into 8 x 8 Image Division matrices Matrix image taken from Wikipedia. com

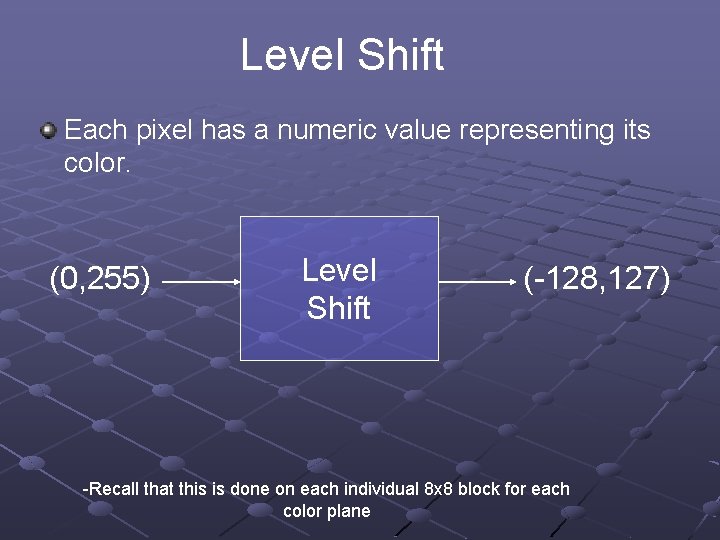

Level Shift Each pixel has a numeric value representing its color. (0, 255) Level Shift (-128, 127) -Recall that this is done on each individual 8 x 8 block for each color plane

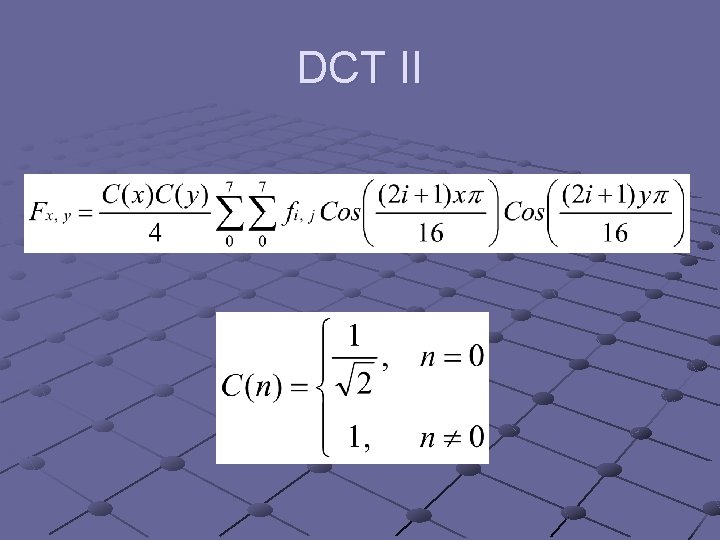

DCT II

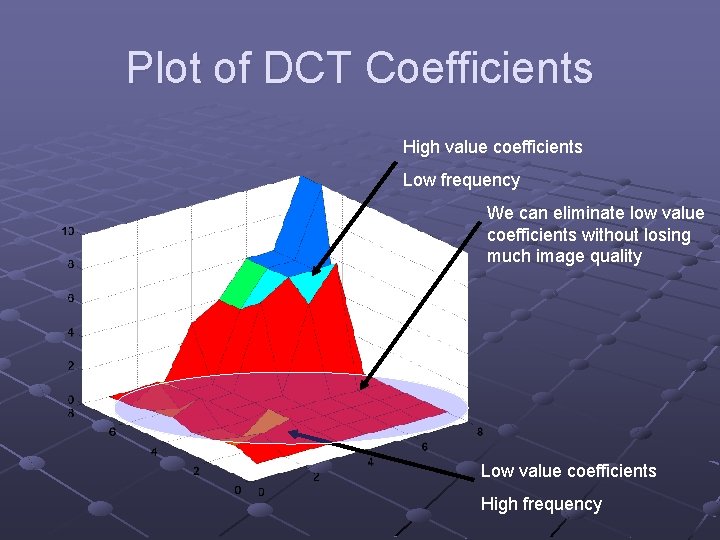

Plot of DCT Coefficients High value coefficients Low frequency We can eliminate low value coefficients without losing much image quality Low value coefficients High frequency

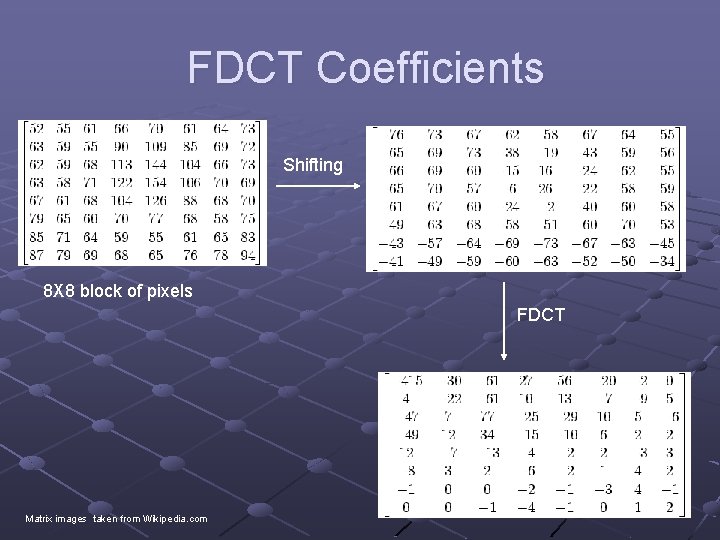

FDCT Coefficients Shifting 8 X 8 block of pixels FDCT Matrix images taken from Wikipedia. com

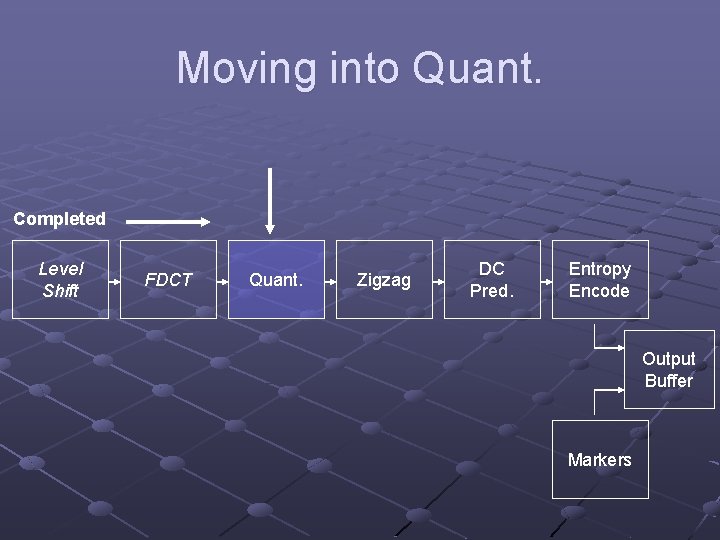

Moving into Quant. Completed Level Shift FDCT Quant. Zigzag DC Pred. Entropy Encode Output Buffer Markers

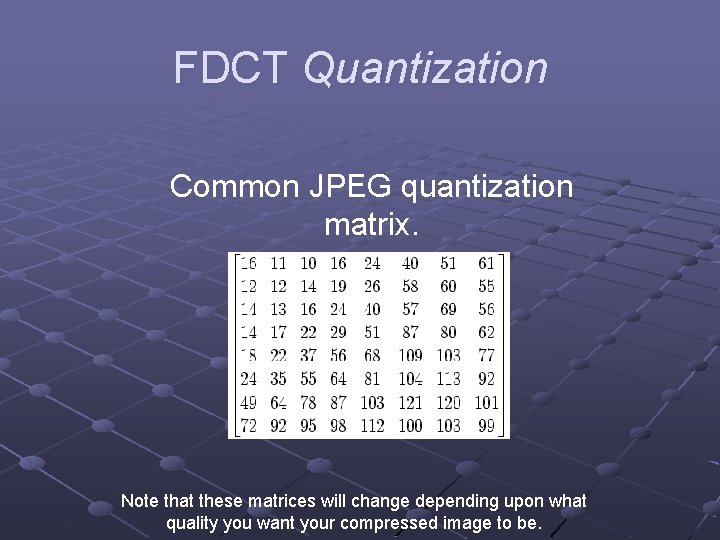

FDCT Quantization Common JPEG quantization matrix. Note that these matrices will change depending upon what quality you want your compressed image to be.

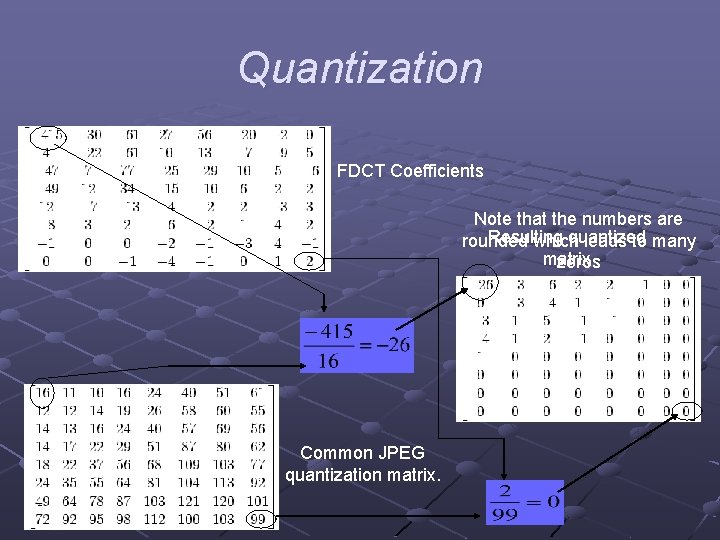

Quantization FDCT Coefficients Note that the numbers are Resulting quantized rounded which leads to many matrix zeros Common JPEG quantization matrix.

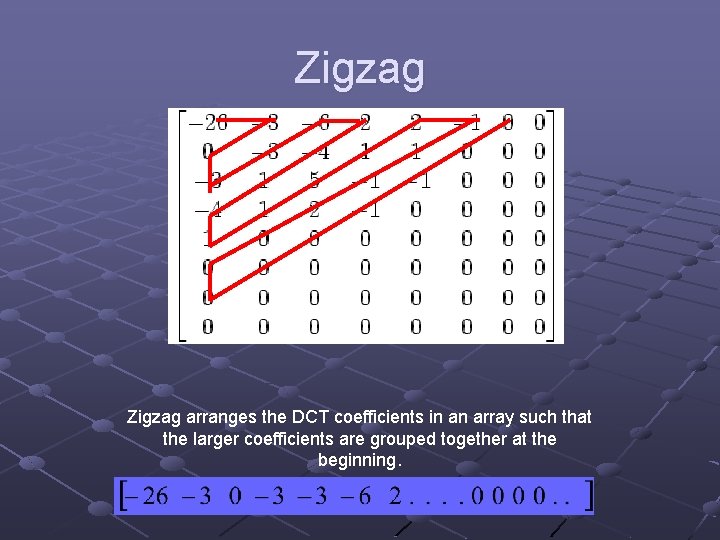

Zigzag arranges the DCT coefficients in an array such that the larger coefficients are grouped together at the beginning.

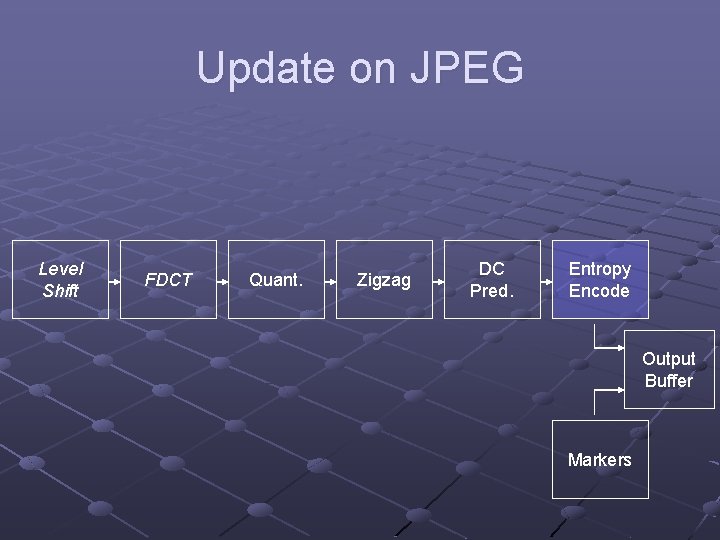

Update on JPEG Level Shift FDCT Quant. Zigzag DC Pred. Entropy Encode Output Buffer Markers

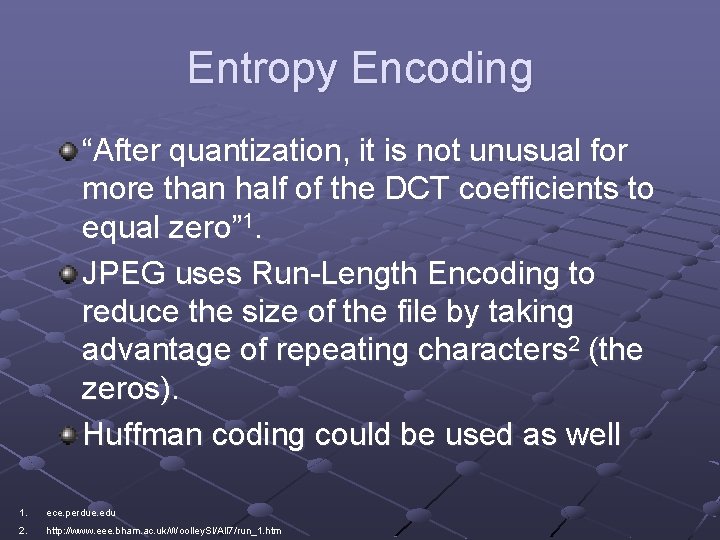

Entropy Encoding “After quantization, it is not unusual for more than half of the DCT coefficients to equal zero” 1. JPEG uses Run-Length Encoding to reduce the size of the file by taking advantage of repeating characters 2 (the zeros). Huffman coding could be used as well 1. ece. perdue. edu 2. http: //www. eee. bham. ac. uk/Woolley. SI/All 7/run_1. htm

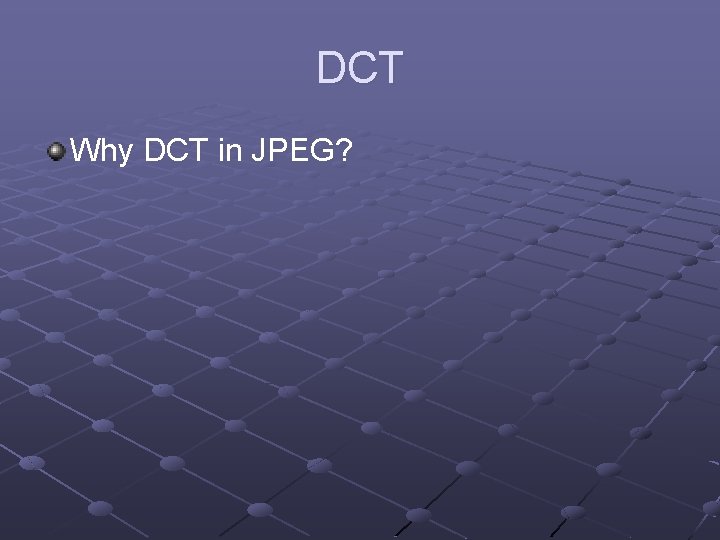

DCT Why DCT in JPEG?

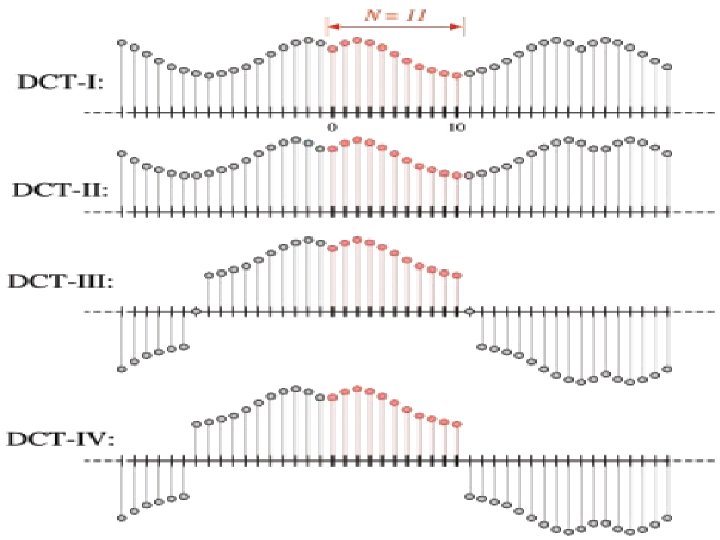

FT versus DCT DFT DCT Sines and cosines Periodic extension Cosines Periodic and even extension DCT 4 types of DCT (Martucci 1994) shows four of them The other four are:

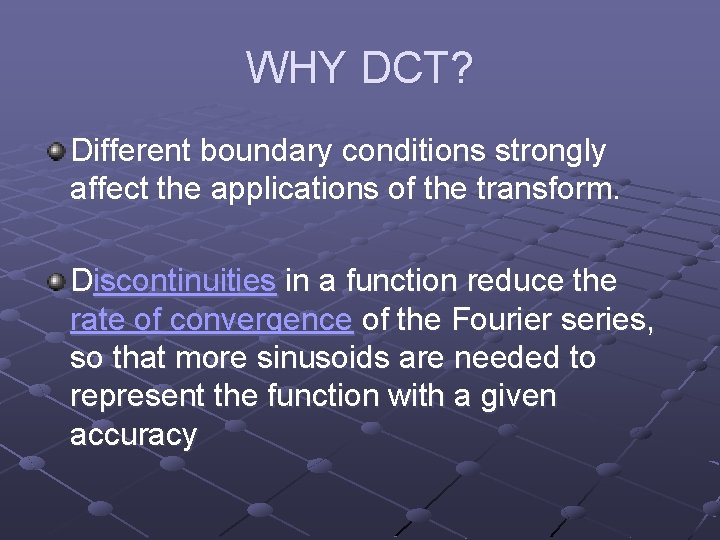

WHY DCT? Different boundary conditions strongly affect the applications of the transform. Discontinuities in a function reduce the rate of convergence of the Fourier series, so that more sinusoids are needed to represent the function with a given accuracy

WHY DCT cont. The periodicity of the DFT results in discontinuities usually occur at boundaries DCT where both boundaries are even always yields a continuous extension at the boundaries DCT II is preferred for applications, in part for reasons of computational convenience.

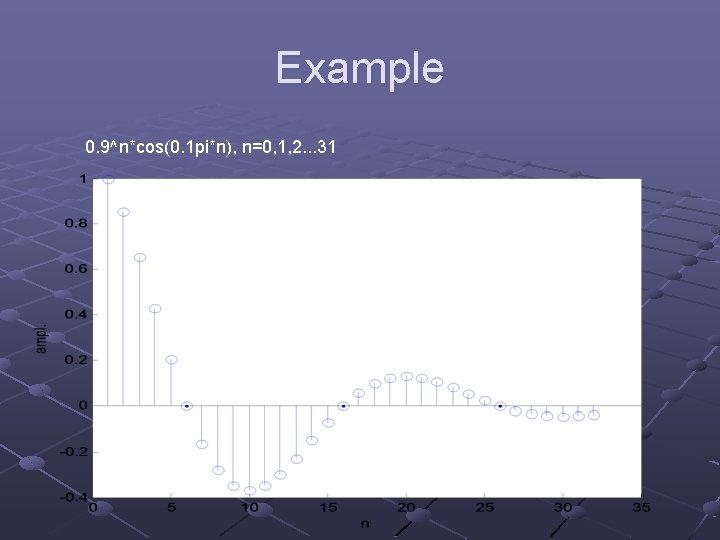

Example 0. 9^n*cos(0. 1 pi*n), n=0, 1, 2. . . 31

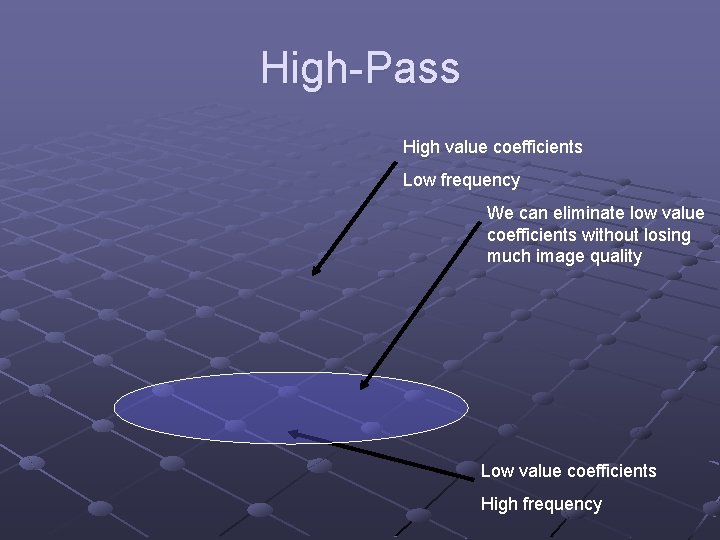

High-Pass High value coefficients Low frequency We can eliminate low value coefficients without losing much image quality Low value coefficients High frequency

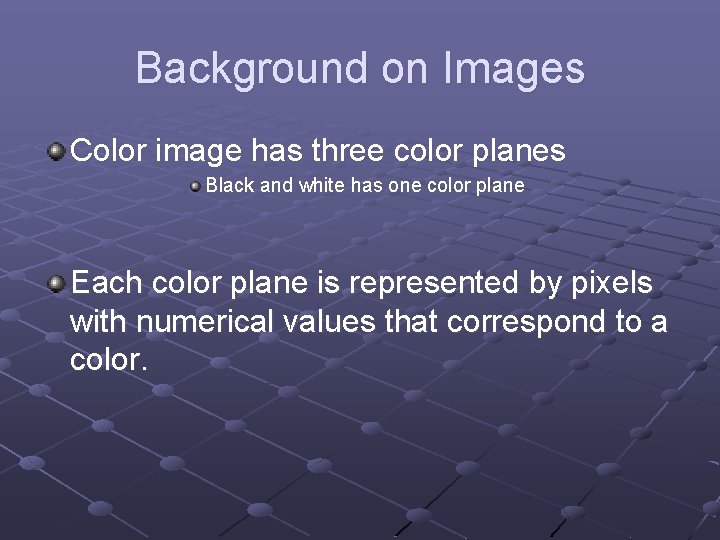

Background on Images Color image has three color planes Black and white has one color plane Each color plane is represented by pixels with numerical values that correspond to a color.

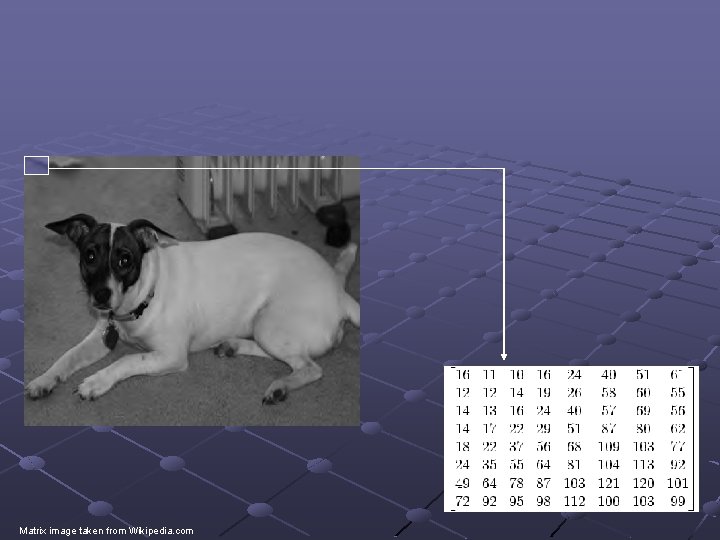

Matrix image taken from Wikipedia. com

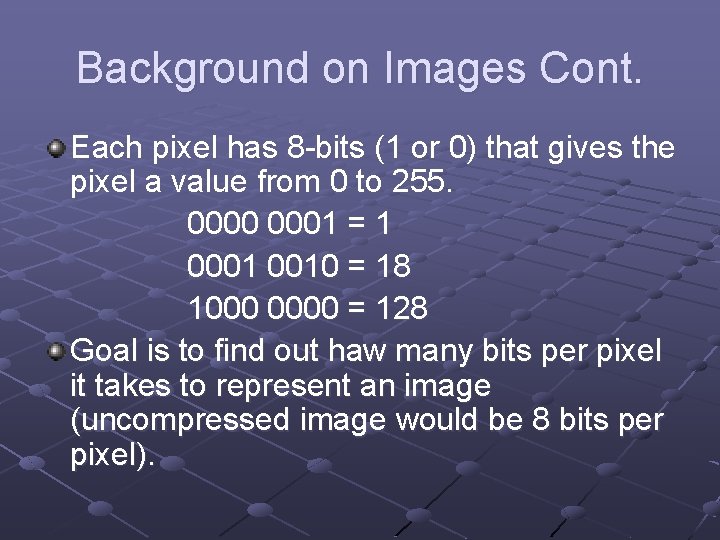

Background on Images Cont. Each pixel has 8 -bits (1 or 0) that gives the pixel a value from 0 to 255. 0000 0001 = 1 0001 0010 = 18 1000 0000 = 128 Goal is to find out haw many bits per pixel it takes to represent an image (uncompressed image would be 8 bits per pixel).

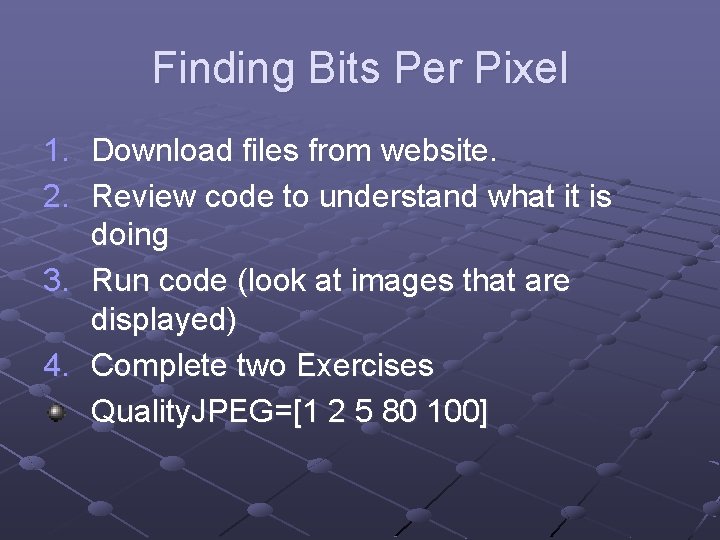

Finding Bits Per Pixel 1. Download files from website. 2. Review code to understand what it is doing 3. Run code (look at images that are displayed) 4. Complete two Exercises Quality. JPEG=[1 2 5 80 100]
