Digital Computers and Information Chapter 1 Mano and
- Slides: 38
Digital Computers and Information Chapter 1 Mano and Kime
Digital Computers and Information • • • Digital Computers Number Systems Arithmetic Operations Decimal Codes Alphanumeric Codes
Block Diagram of Computer

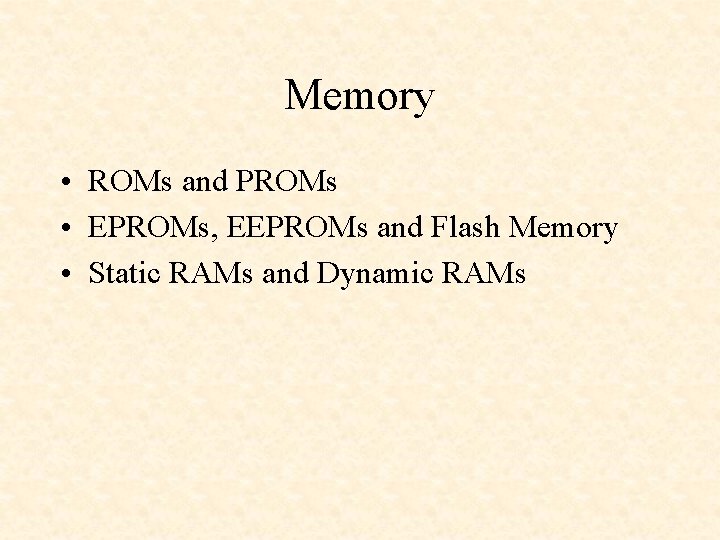

Memory • ROMs and PROMs • EPROMs, EEPROMs and Flash Memory • Static RAMs and Dynamic RAMs
ROMs and PROMs • ROM – Read-Only Memory • PROM – Programmable Read-Only Memory
EPROMs, EEPROMs and Flash Memory • EPROM – Erasable Programmable Read-Only Memory – Erase with ultraviolet light • EEPROM – Electrically-Erasable Programmable Read-Only Memory • Flash Memory – Electrically-Erasable in bulk

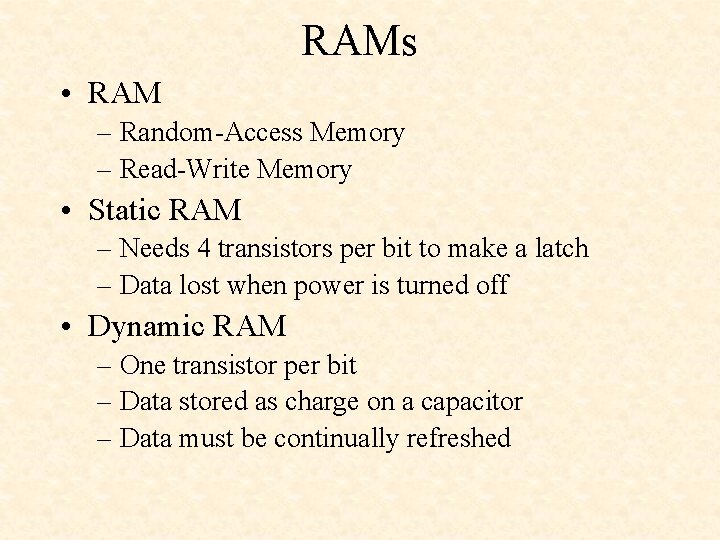

RAMs • RAM – Random-Access Memory – Read-Write Memory • Static RAM – Needs 4 transistors per bit to make a latch – Data lost when power is turned off • Dynamic RAM – One transistor per bit – Data stored as charge on a capacitor – Data must be continually refreshed
W 8 X Microcontroller Control Unit Datapath
The W 8 Z Microprocessor
Digital Computer and Information • • • Digital Computers Number Systems Arithmetic Operations Decimal Codes Alphanumeric Codes
Powers of 2
Numbers with Different Bases
Number Systems N =. . . P 3 P 2 P 1 P 0. P-1 P-2 P-3. . . =. . . + P 3 b 3 + P 2 b 2 + P 1 b 1 + P 0 b 0 + P-1 b-1 + P-2 b-2 + P-3 b-3 +. . . 375. 1710 = 3 x 102 + 7 x 101 + 5 x 100 + 1 x 10 -1 + 7 x 10 -2 = 300 + 70 + 5 + 0. 1 + 0. 07 = 375. 17
Number Systems N =. . . P 3 P 2 P 1 P 0. P-1 P-2 P-3. . . =. . . + P 3 b 3 + P 2 b 2 + P 1 b 1 + P 0 b 0 + P-1 b-1 + P-2 b-2 + P-3 b-3 +. . . Binary 1101. 112 = 1 x 23 + 1 x 22 + 0 x 21 + 1 x 20 + 1 x 2 -1 + 1 x 2 -2 = 8 + 2 + 0 + 1/2 + 1/4 = 11. 7510
Number Systems N =. . . P 3 P 2 P 1 P 0. P-1 P-2 P-3. . . =. . . + P 3 b 3 + P 2 b 2 + P 1 b 1 + P 0 b 0 + P-1 b-1 + P-2 b-2 + P-3 b-3 +. . . Hex 1 AB. 616 = 1 x 162 + A x 161 + B x 160 + 6 x 16 -1 = 1 x 256 + 10 x 16 + 11 x 1 + 6/16 = 256 + 160 + 11 + 0. 375 = 427. 37510
Number Systems N =. . . P 3 P 2 P 1 P 0. P-1 P-2 P-3. . . =. . . + P 3 b 3 + P 2 b 2 + P 1 b 1 + P 0 b 0 + P-1 b-1 + P-2 b-2 + P-3 b-3 +. . . Octal 173. 258 = 1 x 82 + 7 x 81 + 3 x 80 + 2 x 8 -1 + 5 x 8 -2 = 1 x 64 + 7 x 8 + 3 x 1 + 2/8 + 5/64 = 64 + 56 + 3 + 0. 25 + 0. 078125 = 123. 32812510
Problem 1 -4 Convert the following binary numbers to decimal: 1101001 10001011. 011 10011010
Digital Computer and Information • • • Digital Computers Number Systems Arithmetic Operations Decimal Codes Alphanumeric Codes
Recall Full Adder Truth Table Ci Ai Bi Si Ci+1 0 0 1 1 0 1 0 1 0 1 1 0 0 0 1 1 1 C A B 1 0 0 1 1 1 Final carry = 0 1 0 0 1 1 0
Binary Addition Binary Dec Hex 53 +25 78 35 +19 4 E 0 0 1 1 1 0 0 0 1 1 0 1 0 1 1 0
Recall Full Subtractor Truth Table Ci Ai Bi Di Ci+1 0 0 1 1 0 1 0 1 0 1 0 0 1 1 0 1 C A B 1 0 0 1 1 Final borrow = 1 0 1 1 0 Hex 5 -7 E
Binary Subtraction Binary Dec 181 - 111 70 Hex B 5 - 6 F 46 1 1 0 0 1 1 0 Final borrow = 0 1 1 0 0 1 0 1 1 1 1 0

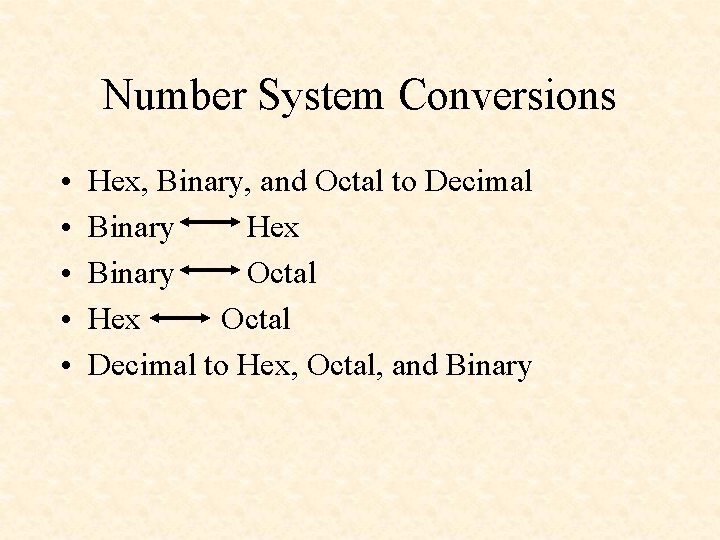

Number System Conversions • • • Hex, Binary, and Octal to Decimal Binary Hex Binary Octal Hex Octal Decimal to Hex, Octal, and Binary

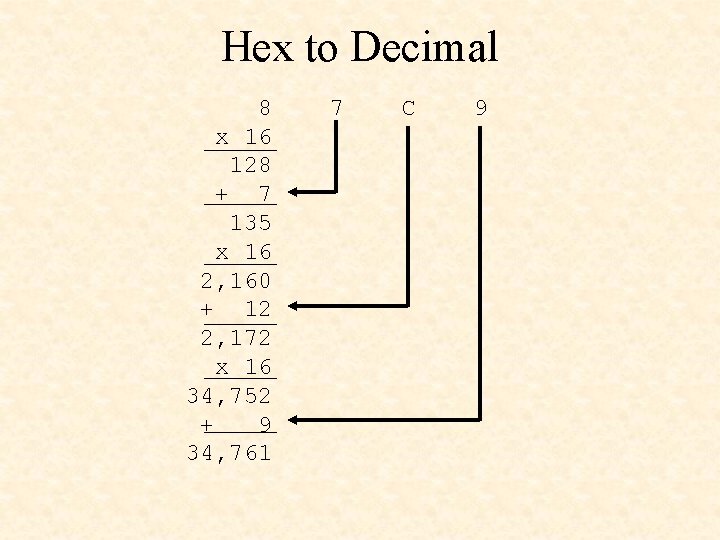

Hex to Decimal 8 x 16 128 + 7 135 x 16 2, 160 + 12 2, 172 x 16 34, 752 + 9 34, 761 7 C 9
Binary Hex 0110 1000. 1111 0101 1100 6 A 8 . F 5 C

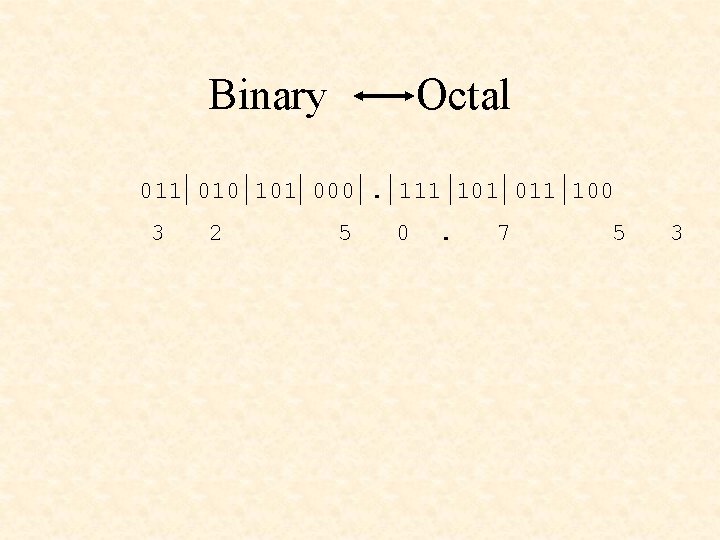

Binary Octal 011 010 101 000. 111 101 011 100 3 2 5 0 . 7 5 3
Hex Octal Go through Binary 0110 1000. 1111 0101 1100 6 A 8 . F 5 C 011 010 101 000. 111 101 011 100 3 2 5 0 . 7 5 3
Convert Decimal to any Base Integer Part: Divide by the base, keep track of the remainder, and read up. 16 34, 761 16 2, 172 16 135 16 8 0 rem 9 rem 12 = C rem 7 rem 8 34, 76110 = 87 C 916 Read up

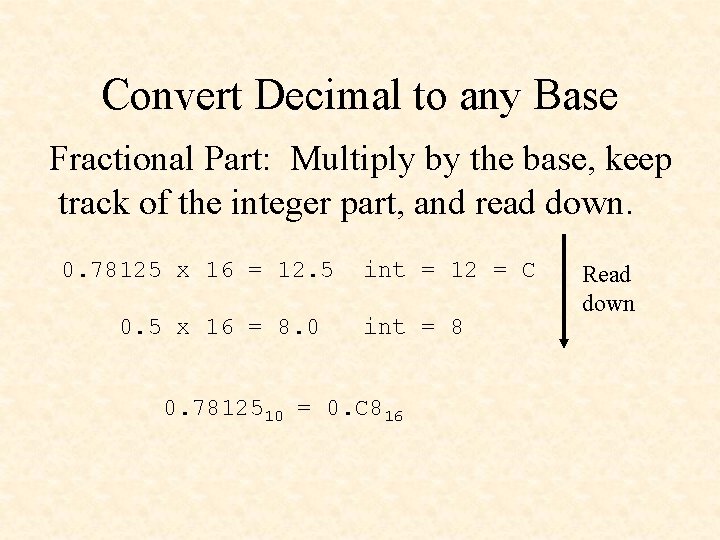

Convert Decimal to any Base Fractional Part: Multiply by the base, keep track of the integer part, and read down. 0. 78125 x 16 = 12. 5 0. 5 x 16 = 8. 0 int = 12 = C int = 8 0. 7812510 = 0. C 816 Read down

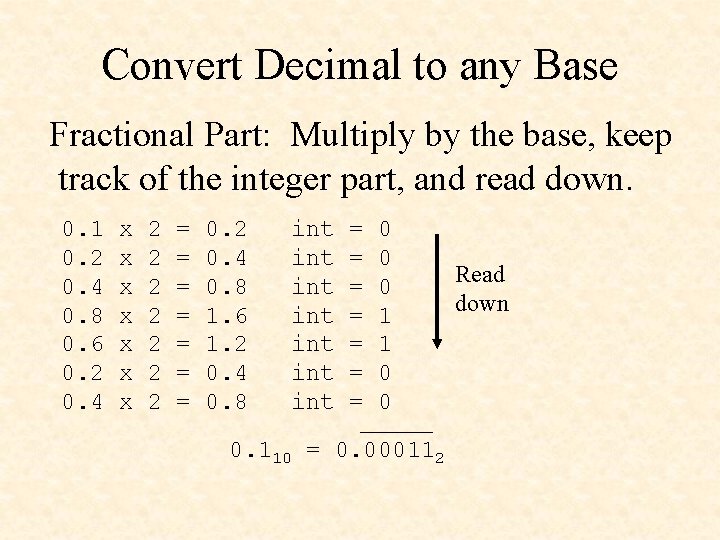

Convert Decimal to any Base Fractional Part: Multiply by the base, keep track of the integer part, and read down. 0. 1 0. 2 0. 4 0. 8 0. 6 0. 2 0. 4 x x x x 2 2 2 2 = = = = 0. 2 0. 4 0. 8 1. 6 1. 2 0. 4 0. 8 int int = = = = 0 0 0 1 1 0 0 0. 110 = 0. 000112 Read down

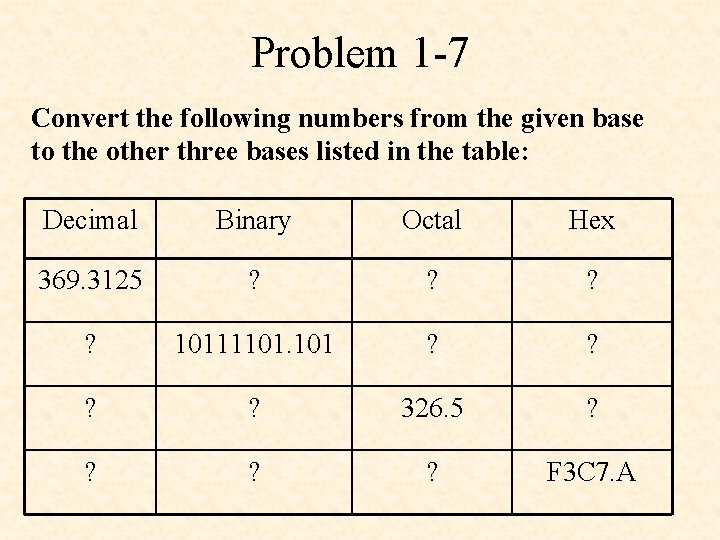

Problem 1 -7 Convert the following numbers from the given base to the other three bases listed in the table: Decimal Binary Octal Hex 369. 3125 ? ? 10111101. 101 ? ? 326. 5 ? ? F 3 C 7. A
Digital Computer and Information • • • Digital Computers Number Systems Arithmetic Operations Decimal Codes Alphanumeric Codes
Binary Coded Decimal Code decimal numbers using the binary digits, 0 - 9. That is, 0000 - 1001. Can NOT use the hex digits A - F. For example, the DECIMAL number 3582 would be coded in BCD as 0011 0101 1000 0010 While this looks like the HEX number 3582 H in BCD we interpret it as the DECIMAL number 3582.

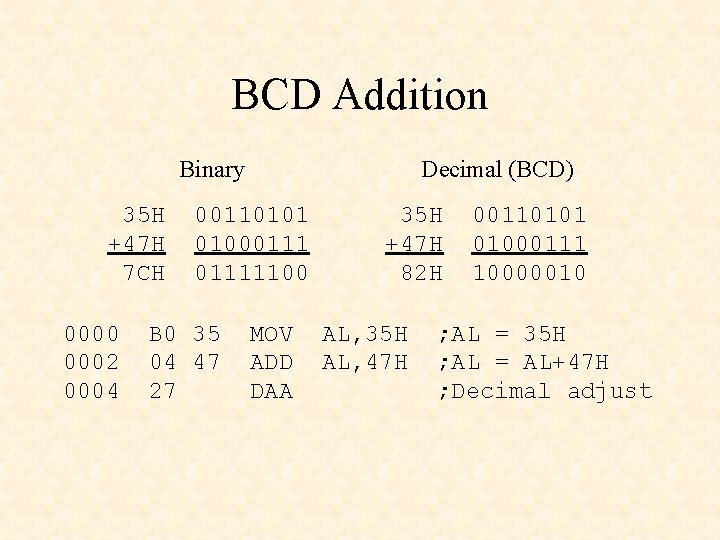

BCD Addition Binary 35 H +47 H 7 CH 0000 0002 0004 Decimal (BCD) 00110101 010001111100 B 0 35 04 47 27 MOV ADD DAA 35 H +47 H 82 H AL, 35 H AL, 47 H 00110101 01000111 10000010 ; AL = 35 H ; AL = AL+47 H ; Decimal adjust
Digital Computer and Information • • • Digital Computers Number Systems Arithmetic Operations Decimal Codes Alphanumeric Codes
American Standard Code for Information Interchange (ASCII)
American Standard Code for Information Interchange (ASCII)
First 256 Codes for Unicode (Unicode, Inc. The Unicode Standard: Worldwide Character Encoding, Version 1. 0 © 1990, 1991 by Unicode, Inc. Reprinted with permission of Addison- Wesley Publishing Company, Inc. )
