CURVE FITTING 1 Curve Fitting Often we have
- Slides: 18
CURVE FITTING 1
Curve Fitting § Often, we have data points and we want to find an equation that “fits” the data § Simplest equation is that of a straight line 1/25/2022 2
Curve Fitting The problem of determining an equation of an approximate curve which passes through as many points as possible is said to be curve fitting. The basis problem is to find an equation of the curve shows the best fit with the data. 1/25/2022 3
Curve Fitting 1/25/2022 4
Mathematical Background 1/25/2022 5
Mathematical Background ØStandard deviation: The most common measure of a spread for a sample. 1/25/2022 6
Curve Fitting < Linear Regression < Polynomial Regression < Multiple Linear Regression 1/25/2022 7
Curve Fitting § Consider these five data points: 1/25/2022 8
Linear Curve Fit Poor Fit 1/25/2022 9

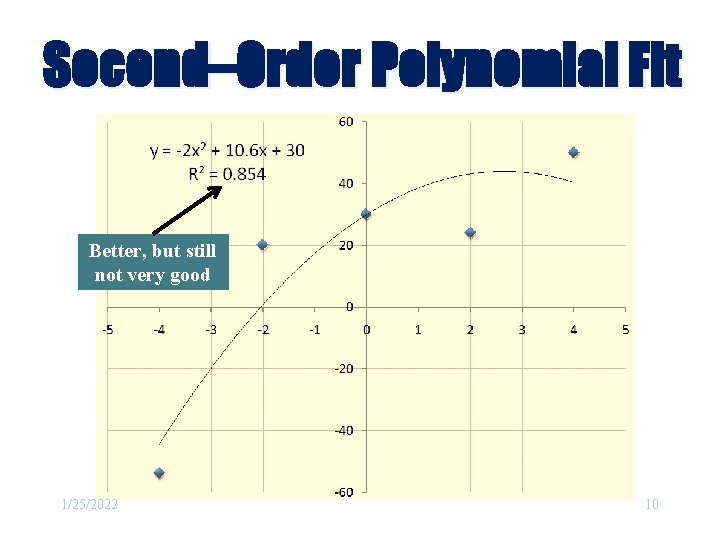

Second–Order Polynomial Fit Better, but still not very good 1/25/2022 10
Third-Order Polynomial Fit Perfect Fit! These point were calculated from the equation: 1/25/2022 11
LINEAR REGRESSION We want to find the curve that will fit the data. Candidate lines for curve fit No exact solution but many approximated 1/25/2022 solutions 12

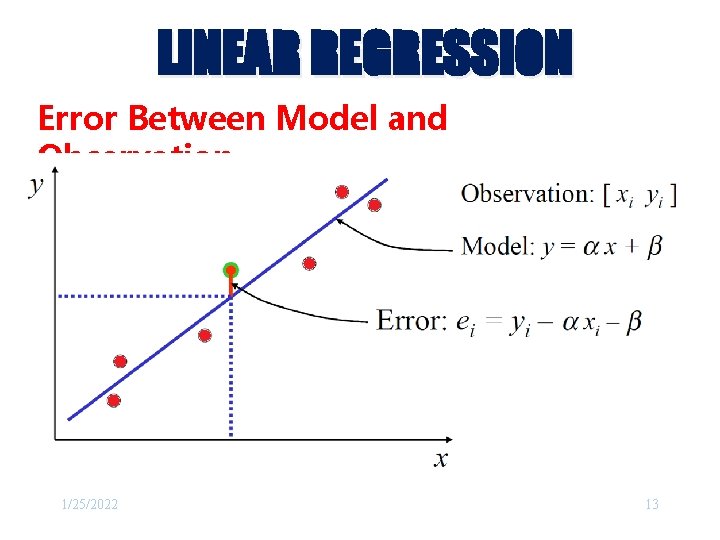

LINEAR REGRESSION Error Between Model and Observation 1/25/2022 13
LINEAR REGRESSION Criteria for a “Best” Fit Find the BEST line which minimize the sum of error for all data BEST line with error minimized? We can use the error, defined as: However, the errors cancel one another and still be wrong. 1/25/2022 14
LINEAR REGRESSION ERROR Definition To avoid ± signs cancellation, the error may be defined as: But, the error minimization is going to have problems. The solution is the minimization of the sum of squares. This will give a least square solution. 1/25/2022 15
LINEAR REGRESSION Least-Square Fit of a Straight Line Minimize sum of the square of the errors Differentiate with respect to each coefficient: 1/25/2022 16
LINEARREGRESSION Setting derivatives = 0 1/25/2022 17
LINEARREGRESSION Solve equations simultaneously 1/25/2022 18
