Chapter 16 Electrical Energy And Capacitance

Review - Electric Potential for a system of point charges General Physics

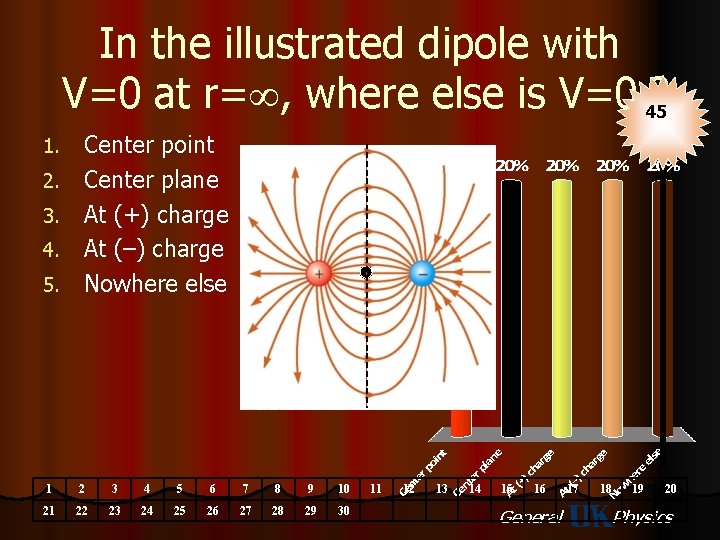

In the illustrated dipole with V=0 at r= , where else is V=0 45? 1. 2. 3. 4. 5. Center point Center plane At (+) charge At (–) charge Nowhere else 1 2 3 4 5 6 7 8 9 10 21 22 23 24 25 26 27 28 29 30 11 12 13 14 15 16 General 17 18 19 20 Physics

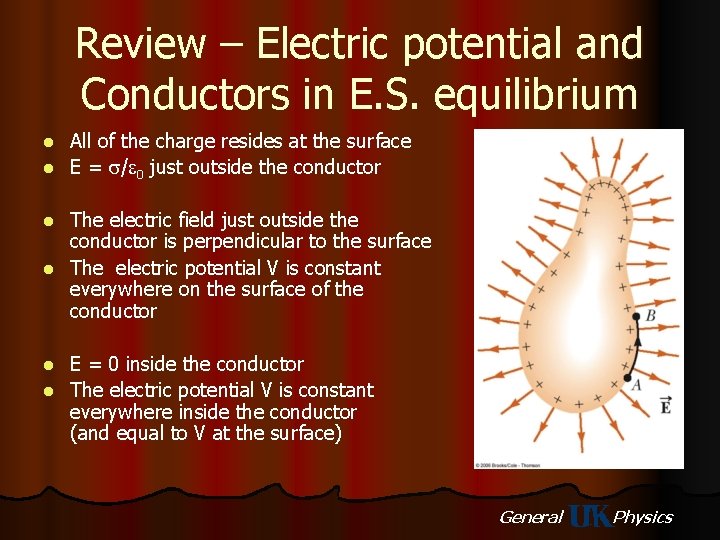

Review – Electric potential and Conductors in E. S. equilibrium All of the charge resides at the surface l E = / 0 just outside the conductor l The electric field just outside the conductor is perpendicular to the surface l The electric potential V is constant everywhere on the surface of the conductor l E = 0 inside the conductor l The electric potential V is constant everywhere inside the conductor (and equal to V at the surface) l General Physics

Review – Electric Field in a Parallel-Plate Capacitor l The electric field between the plates is uniform E= / 0 near the center l Non-uniform fringes l The field is nearly zero outside (above and below) l l For calculations, assume: E=const inside the plates E=0 outside the plates l Can calculate the potential difference V = E d General Physics

The Electron Volt l The electron volt (e. V) is defined as the energy that an electron gains when accelerated through a potential difference of 1 V Electrons in normal atoms have energies of 10’s of e. V l Excited electrons have energies of 1000’s of e. V or ke. V’s l High energy gamma rays have energies of millions of e. V or Me. V’s l l 1 e. V = 1. 6 x 10 -19 J General Physics

An electron and proton are accelerated through a potential 45 difference of 1 V, -1 V respectively, have kinetic energies KEe, KEp. Which statement is true? KEe > Kep 2. KEe = KEp 3. KEe < Kep 1. 4. Impossible to tell? 1 2 3 4 5 6 7 8 9 10 21 22 23 24 25 26 27 28 29 30 11 12 13 14 15 16 General 17 18 19 20 Physics

Capacitance Sections 6 – 10 General Physics

Capacitance A capacitor is a device used in a variety of electric circuits used to store electric charge (and therefore energy) l The capacitance, C, of a capacitor is defined as the ratio of the magnitude of the charge on either conductor (plate) to the magnitude of the potential difference between the conductors (plates) l l Units: Farad (F) 1 F=1 C/V l A Farad is very large (often will see µF or p. F) l l The capacitance of a device depends on the geometric arrangement of the conductors General Physics

Parallel-Plate Capacitor, Example l The capacitor has two parallel plates Each have area A l They are separated by a distance d l The plates carry equal and opposite charges Q, -Q l When connected to the battery, charge is pulled off one plate and transferred to the other plate l Transfer stops when Vcap = Vbattery l Active Figure: Parallel Plate Capacitors EX 16. 6 General Physics

Parallel-Plate Capacitor l For a parallel-plate capacitor whose plates are separated by air: General Physics

Applications of Capacitors – Camera Flash l The flash attachment on a camera uses a capacitor A battery is used to charge the capacitor l The energy stored in the capacitor is released when the button is pushed to take a picture l The charge is delivered very quickly, illuminating the subject when more light is needed l General Physics

Applications of Capacitors – Computers l Computers use capacitors in many ways Some keyboards use capacitors at the bases of the keys l When the key is pressed, the capacitor spacing decreases and the capacitance increases l The key is recognized by the change in capacitance l General Physics

Capacitors in Circuits l. A circuit is a collection of objects usually containing a source of electrical energy (such as a battery) connected to elements that convert electrical energy to other forms l A circuit diagram can be used to show the path of the real circuit General Physics

Capacitors in Parallel l When capacitors are first connected in the circuit, electrons are transferred from the left plates through the battery to the right plate, leaving the left plate positively charged and the right plate negatively charged l The flow of charges ceases when the voltage across the capacitors equals that of the battery l The capacitors reach their maximum charge when the flow of charge ceases General Physics

More About Capacitors in Parallel l The total charge is equal to the sum of the charges on the capacitors l Q 1 + Q 2 = Q l The potential difference across the capacitors is the same l ΔV 1 = ΔV 2 = ΔV l The capacitors can be replaced with one capacitor with a capacitance of l Ceq = C 1 + C 2 + … The equivalent capacitor must have exactly the same external effect on the circuit as the original parallel capacitors l The equivalent capacitance of a parallel combination of capacitors is greater than any of the individual capacitors l General Physics

Equivalent Capacitance – Parallel: An Example u Four parallel capacitors are replaced with their equivalent capacitance Active Figure: Capacitors Combined in Parallel EX 16. 7 General Physics

Capacitors in Series l When a battery is connected to the circuit, electrons are transferred from the left plate of C 1 to the right plate of C 2 through the battery l As this negative charge accumulates on the right plate of C 2, an equivalent amount of negative charge is removed from the left plate of C 2, leaving it with an excess positive charge l All of the right plates gain charges of –Q and all the left plates have charges of +Q General Physics

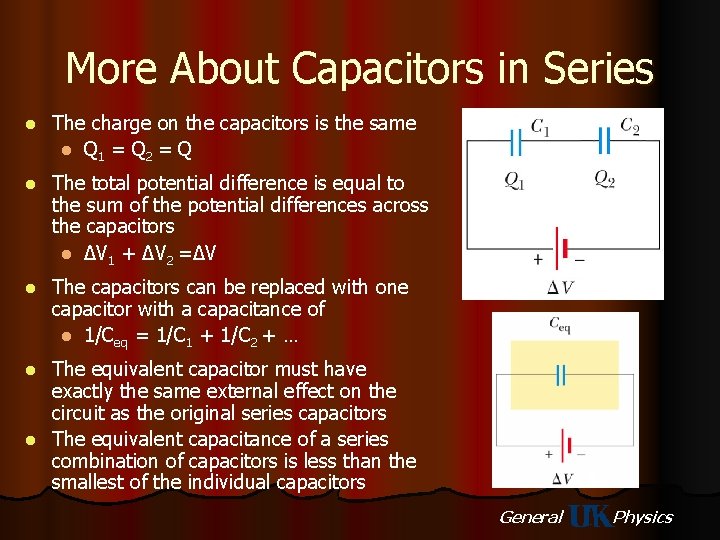

More About Capacitors in Series l The charge on the capacitors is the same l Q 1 = Q 2 = Q l The total potential difference is equal to the sum of the potential differences across the capacitors l ΔV 1 + ΔV 2 = ΔV l The capacitors can be replaced with one capacitor with a capacitance of l 1/Ceq = 1/C 1 + 1/C 2 + … The equivalent capacitor must have exactly the same external effect on the circuit as the original series capacitors l The equivalent capacitance of a series combination of capacitors is less than the smallest of the individual capacitors l General Physics

Equivalent Capacitance – Series: An Example u Four series capacitors are replaced with their equivalent capacitance Active Figure: Capacitors Combined in Series EX 16. 8 General Physics

In demo, two equal capacitors were charged in parallel and then reconnected in series. What the total voltage be? 60 1. 2. 3. 4. Stay the same Twice as large. Half as large. Zero. 1 2 3 4 5 6 7 8 9 10 21 22 23 24 25 26 27 28 29 30 11 12 13 14 15 16 General 17 18 19 20 Physics

Problem-Solving Strategy l Combine capacitors following the formulas l When two or more unequal capacitors are connected in series, they carry the same charge, but the potential differences across them are not the same l l The capacitances add as reciprocals and the equivalent capacitance is always less than the smallest individual capacitor When two or more capacitors are connected in parallel, the potential differences across them are the same, but the charges on them are not the same The charge on each capacitor is proportional to its capacitance l The capacitors add directly to give the equivalent capacitance l General Physics

More on Problem-Solving Strategy l Repeat the process until there is only one single equivalent capacitor l A complicated circuit can often be reduced to one equivalent capacitor Replace capacitors in series or parallel with their equivalent l Redraw the circuit and continue l l To find the charge on, or the potential difference across, one of the capacitors, start with your final equivalent capacitor and work back through the circuit reductions General Physics

Problem-Solving Strategy, Equation Summary l Use the following equations when working through the circuit diagrams: l Capacitance equation: C = Q / V l Capacitors in parallel: Ceq = C 1 + C 2 + … Q 1 + Q 2 = Q ΔV 1 = ΔV 2 = ΔV l Capacitors in series: 1/Ceq = 1/C 1 + 1/C 2 + … Q 1 = Q 2 = Q ΔV 1 + ΔV 2 = ΔV EX 16. 9 General Physics

Energy Stored in a Capacitor l Energy stored = ½ Q ΔV l From the definition of capacitance, this can be rewritten in different forms EX 16. 10 General Physics

Applications l Defibrillators When fibrillation occurs, the heart produces a rapid, irregular pattern of beats l A fast discharge of electrical energy through the heart can return the organ to its normal beat pattern l l In general, capacitors act as energy reservoirs that can slowly charged and then discharged quickly to provide large amounts of energy in a short pulse General Physics

Capacitors with Dielectrics l A dielectric is an insulating material that, when placed between the plates of a capacitor, increases the capacitance l l Dielectrics include rubber, plastic, or waxed paper C = κCo = κ(εo. A/d) l The capacitance is multiplied by the factor κ when the dielectric completely fills the region between the plates General Physics

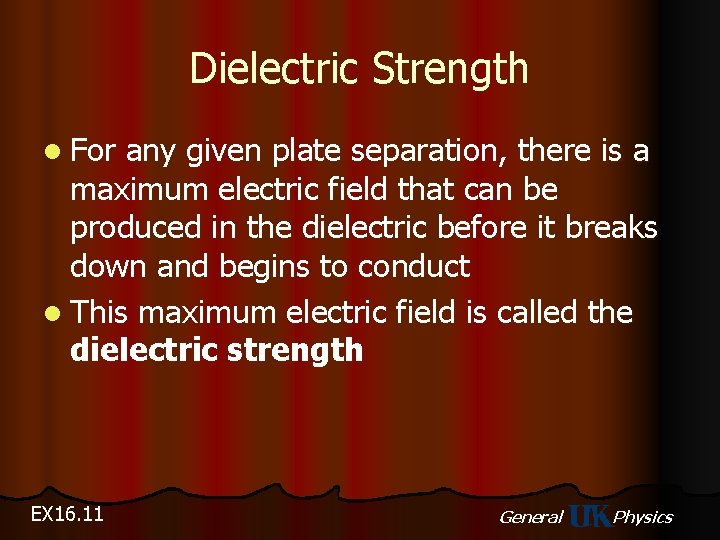

Dielectric Strength l For any given plate separation, there is a maximum electric field that can be produced in the dielectric before it breaks down and begins to conduct l This maximum electric field is called the dielectric strength EX 16. 11 General Physics

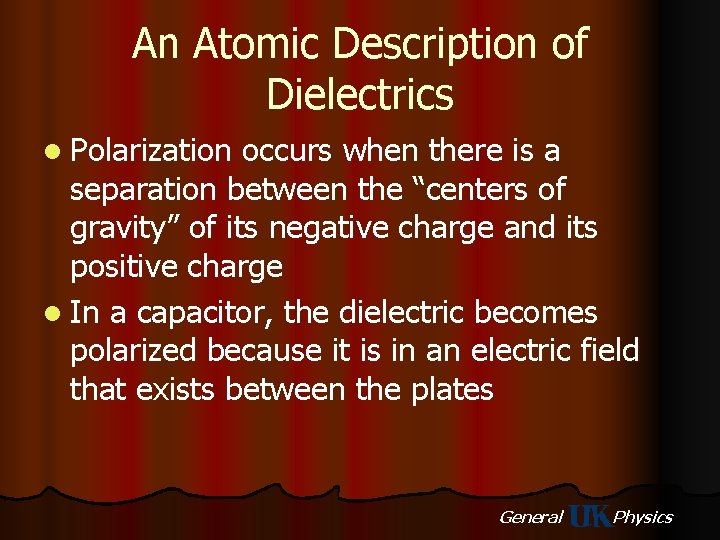

An Atomic Description of Dielectrics l Polarization occurs when there is a separation between the “centers of gravity” of its negative charge and its positive charge l In a capacitor, the dielectric becomes polarized because it is in an electric field that exists between the plates General Physics

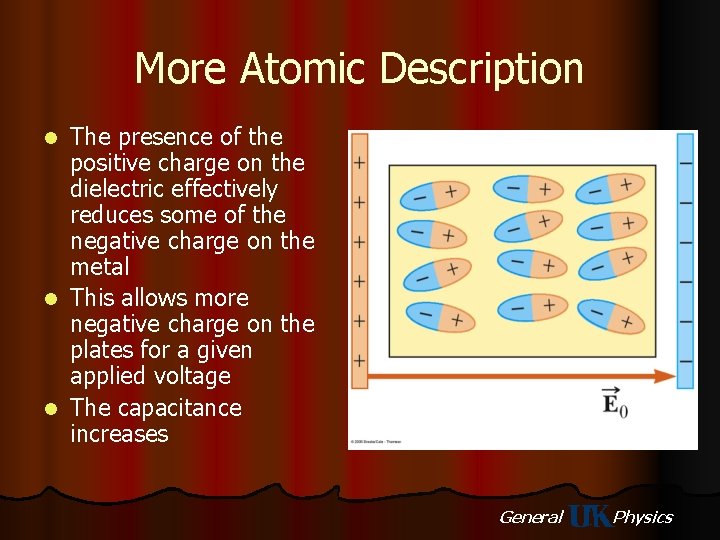

More Atomic Description The presence of the positive charge on the dielectric effectively reduces some of the negative charge on the metal l This allows more negative charge on the plates for a given applied voltage l The capacitance increases l General Physics
