C Tech 3 D Earth Science Software Reed
- Slides: 45
C Tech 3 D Earth Science Software Reed D. Copsey, President C Tech Development Corporation Ph: 800 -669 -4387 or 714 -840 -7444 URL: www. ctech. com e-mail: reed@ctech. com Thomas J. Cook Sales & Support Specialist Ph: 814 -308 -0680 e-mail: tcook@ctech. com
Why C Tech 3 D Software u u u Address Complex Technical Challenges u Regulatory Issues u Financial Issues u Political Issues Improve Communication Between u Regulatory Agencies u Consultants and other Technical Personnel u Public Defensible, Understandable Analysis u 3 D Volumetric Geostatistics u True 3 D Visualization & Animation 2

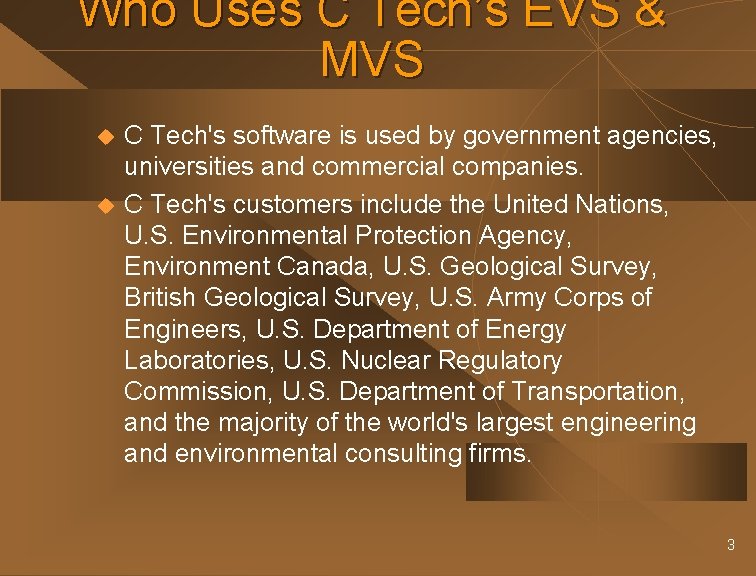

Who Uses C Tech’s EVS & MVS u u C Tech's software is used by government agencies, universities and commercial companies. C Tech's customers include the United Nations, U. S. Environmental Protection Agency, Environment Canada, U. S. Geological Survey, British Geological Survey, U. S. Army Corps of Engineers, U. S. Department of Energy Laboratories, U. S. Nuclear Regulatory Commission, U. S. Department of Transportation, and the majority of the world's largest engineering and environmental consulting firms. 3
EVS Functionality u u u u True Three-dimensional (volumetric) visualization and animation of Earth Science models and analyses Visualization of vector data (such as wind or groundwater flow) Tools and functionality for numerous Earth Science disciplines Geologic and geophysical modeling Geostatistical analysis of soil, groundwater, surface water and air data Drill. Guide™: Analytically guided site assessment and optimization. Well Decommission™: Justifiable approach for determining groundwater monitoring wells suitable for decommissioning 4
Interface to ESRI Arc. View & Arc. GIS u Included Arc. View/Arc. GIS extensions allow you build geology and parameter (chemistry) data and launch any of C Tech’s software. u All EVS/MVS versions can import and export 2 D & 3 D ESRI Shapefiles for annotation. u Extrude polygons to create 3 D volumetric representations of buildings and objects. u Map 2 D shapefiles to geologic surfaces. 5
Documentation and Tutorials u Comprehensive on-line and context sensitive help system. (Over 1, 600 pages) u On-line interactive tutorials for intermediate level self -training in ~16 hours u Proven algorithms in-use by major corporations, Do. E, Do. D, EPA, CIA, USGS and many other government agencies for critical work 6
Three. Dimensional Visualization and Animation 7
Soil & Groundwater Contamination 8
Litigation Support for Complex Contaminant Sites 9
Saltwater Aquifer Upconing in Cape Cod 10
Restoration of the Baptisteria in Florence, Italy 11
Restoration of the Baptisteria in Florence, Italy 12
Civil Engineering: Cut-Fill Optimization 13
River Sediment Modeling 14
Plume Migration in Sand Channels 15

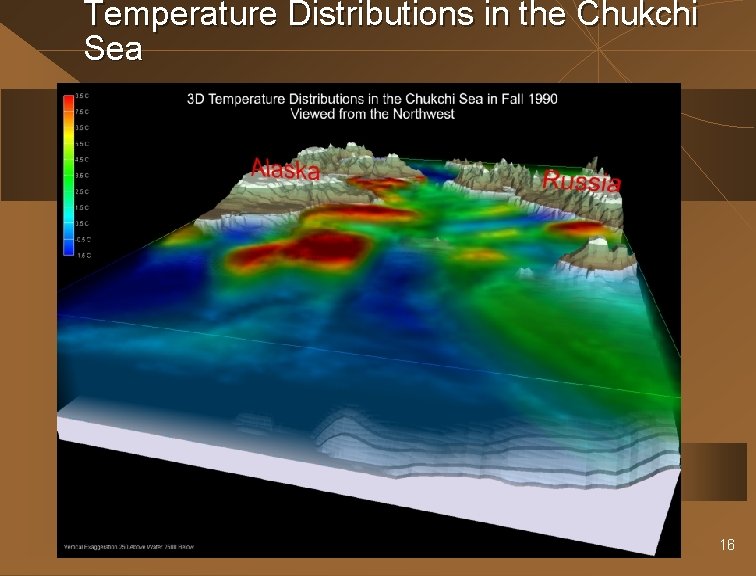

Temperature Distributions in the Chukchi Sea 16

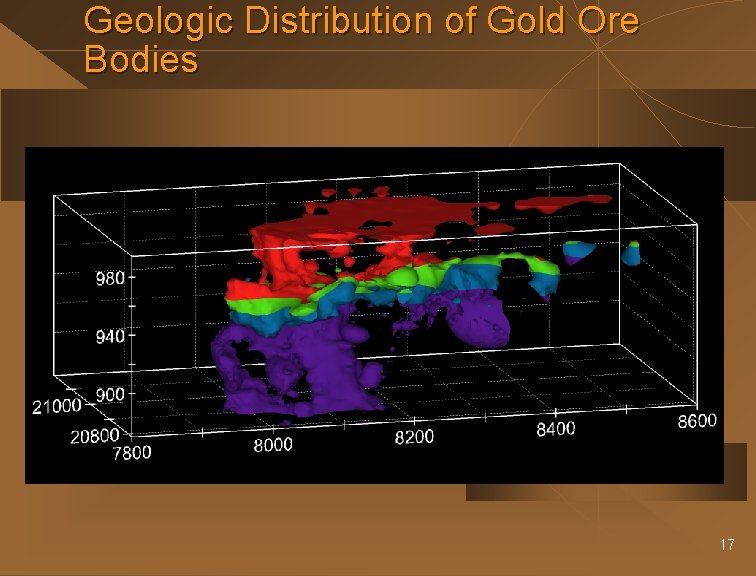

Geologic Distribution of Gold Ore Bodies 17
Meteorological Modeling Visualization and Animation 18
Visualization of Air Flow and Transport Models u Ability to display multiple parameters simultaneously u Velocity vector data u Concentrations, Humidity, Temperature, etc. u Can map data onto structures, terrain and other features Can handle finite-element, finite difference, Lagrangian and Eulerian models u 19
High-Fidelity Street-Canyon Air Flow & NO Pollution Model 20
Visualization of Electromagnetic Multi-Path Modeling using Remcom’s Wireless In. Site 21
Electromagnetic Modeling U. S. Dept of Commerce National Telecommunications and Information Administration 22
Geologic and Geophysical Modeling 23
Strategic Petroleum Reserves Salt Dome & Cavern Modeling 24
Complex Geologic Fault Modeling 25

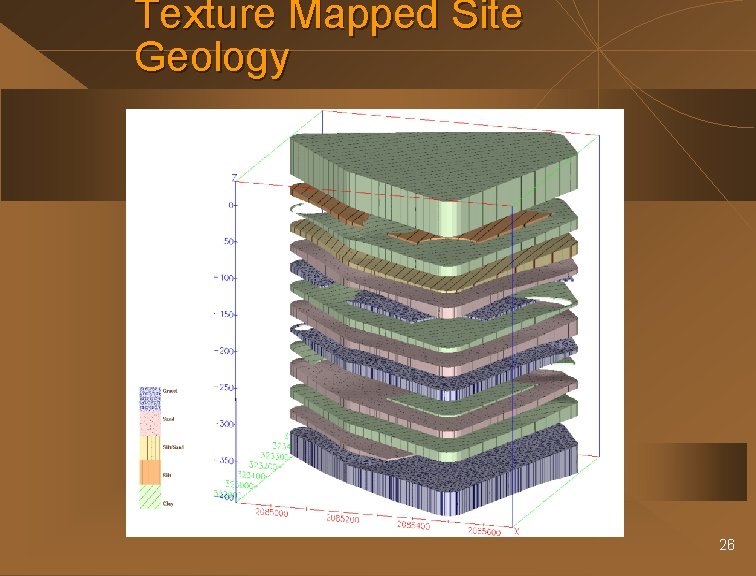

Texture Mapped Site Geology 26
Indicator Kriging for Modeling of Karst Geology 27
Environmental Modeling Geostatistical Analysis of Soil, Groundwater, Surface Water and Air Data 28
Coastal Industrial Facility 29
Chemical and Geologic Data 30
Volume Rendered Plume, Sample Data & Buildings 31
Groundwater Wells, Fence Diagram and Plume 32

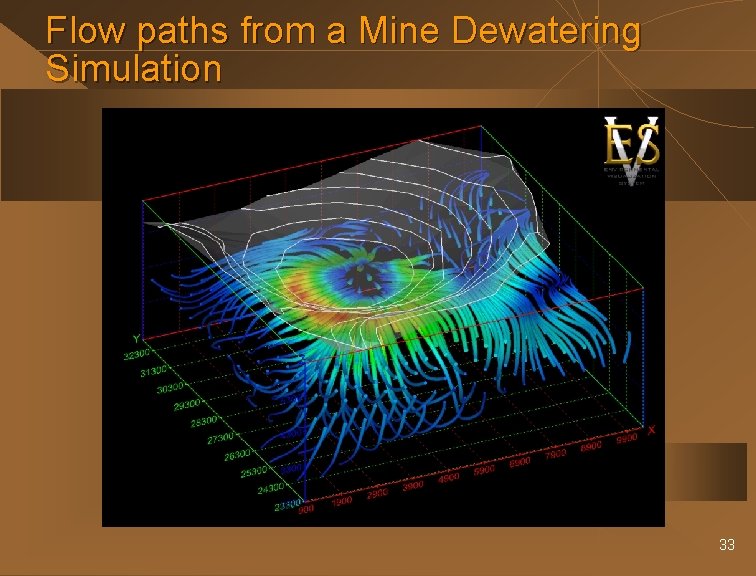

Flow paths from a Mine Dewatering Simulation 33
C Tech’s Network Paradigm: Graphical Object Oriented Programming • Libraries with over 200 modules. • Each module performs data analysis or visualization functions. • Applications are collections of modules interconnected to form networks • Users can build their own networks, use or enhance EVS supplied applications 34
EVS Input Options u u ASCII data files for: u Chemistry (parameter data) u Borehole, boring logs and surface geology data Annotation Data u Overlay Aerial Photography u Auto. CAD DXF files u Arc. View shapefiles Finite difference & finite element model output u MODFLOW, MT 3 D, CFEST, etc. u GMS (MODFLOW, MT 3 D, Femwater) u Groundwater Vistas and Visual Modflow Database & GIS Interfaces Included u MS Access Forms to export geology and chemistry files u Arc. GIS Extensions to export geology and chemistry files 35
Pre-Geology: Boring Log Data Content u u Header lines u Comment line u Elevation/Depth, Material Names & Coordinate Units u Number of Material Contacts One row for each boring u X, Y, Z of surface contact u Material ID u Boring ID 36

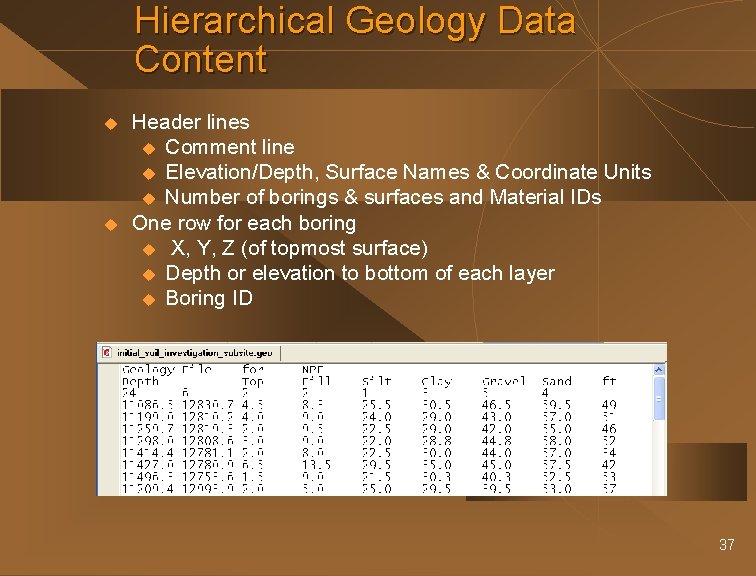

Hierarchical Geology Data Content u u Header lines u Comment line u Elevation/Depth, Surface Names & Coordinate Units u Number of borings & surfaces and Material IDs One row for each boring u X, Y, Z (of topmost surface) u Depth or elevation to bottom of each layer u Boring ID 37
Hierarchical Geology Multi-File GMF u u Any number of independent surfaces in a single file “surface” flag word to begin new surface One row for each X, Y, Z point All Z coordinates in Elevation only (not depths) 38
Soil Chemistry Data Content u u u Use for all analytical data taken at a point Header lines u Comments and analyte names u Elevation or Depth specifier u Number of samples, analytes & units for analytes One row for each sample location u X, Y, Z coordinate u One or more analyte measurements u Boring ID (not sample ID) u Ground surface elevation 39
Groundwater Chemistry Data Content u u u Use for all analytical data taken over a length (e. g. screen interval) Header lines u Comments and analyte names u Elevation or Depth specifier u Number of samples, analytes & units for analytes One row for each sample location u X, Y, Ztop, & Zbottom (for screen intervals) u One or more analyte measurements u Boring ID (not sample ID) u Ground surface elevation 40
EVS Output Options u u 3 D Rendered Bitmap Graphic Output u Virtually All Image file formats Vector Animations u 4 D Interactive Models (4 DIM) Bitmap Animations u AVI u MPEG u HAV Vector Output u Shapefiles and Auto. CAD DXF u VRML Output 41
Conclusion u u u C Tech Offers True Volumetric 3 D Modeling u Geostatistical Analysis u Complex Animation and Vector Animation High Level Integration with Key Products u Arc. View, Arc. GIS and Arc. Info Extensions u MS Access & Environmental Database Integration u CAD, Groundwater Models, EM/RF Models, etc. Worldwide Acceptance and Customer Base u US EPA, US Do. E, US Do. D, CIA, State Agencies u Consulting Firms and Universities Worldwide 42
Versions and Pricing u EVS-PRO: C Tech’s Most Popular Product u Geologic Modeling & Geostatistical Analysis u Multi-parameter Animation u Bitmap (. avi, . mpg) and Vector (4 DIM) $9, 995 for a fixed single license u $24, 000 for a 3 simultaneous-user network license MVS: C Tech’s Flagship Product u Superset of EVS-PRO u u u Adds More Advanced Geologic Modeling & Geostatistics u Faults, Folds, Tunneling, Overburden & Excavation Design u Licensed 4 DIM Files Playable on Free Player u $24, 995 for a fixed single license 43
C Tech’s Premier Customer Program C Tech’s Best Program for Larger Organizations u Unlimited Organization-Wide MVS Site License u Premium Technical Support u Included Training Classes (based on level) u Discounted Consulting Services u Annual Cost based on Number of Employees u Details at http: //www. ctech. com/index. php? page=price u Embraced By Gov’t Organizations and Consultants u Sandia National Lab. & BWXT Pantex u ERM, Conestoga Rovers & Assoc. , Haley & Aldrich u 44
This presentation can be downloaded at www. ctech. com/download/evsoverview. ppt 45
