Bo. F Rm A 10/A 11 Bayesian Network Awareness Bill Rutherford Loki Jorgenson Marius Vilcu

Awareness … ? ? ? Main engine failed to fire

Awareness Success Stories • Electrical power grid load prediction • User analysis • trend modeling - TV schedules – spike prediction • Weather prediction • Sensor correlation • trend modeling – storm prediction • Internet prediction • Weather maps • trend modeling – build out prediction

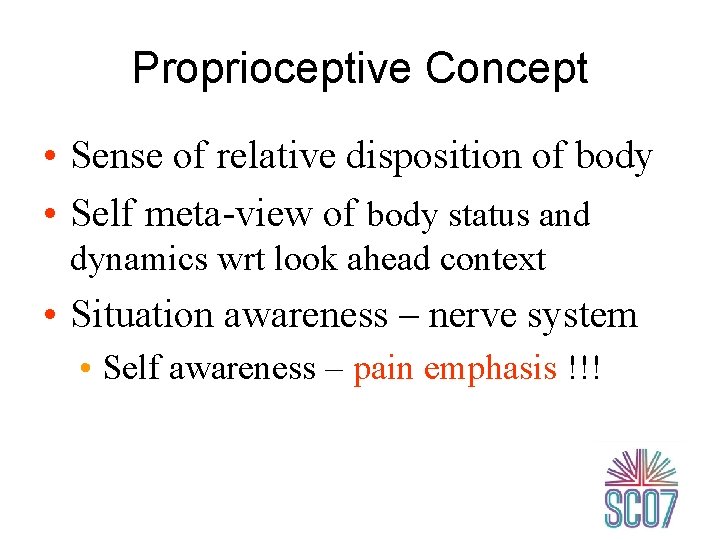

Proprioceptive Concept • Sense of relative disposition of body • Self meta-view of body status and dynamics wrt look ahead context • Situation awareness – nerve system • Self awareness – pain emphasis !!!

What is Network Awareness? • “The ability to sense the network environment and construct a state description” • Peysakhov et al. , 2004 • “The capability of network devices and applications to be aware of network characteristics” • Cheng, 2002

What is Network Awareness? • “The ability to answer questions quickly and accurately about network behavior” • Hughes & Somayaji, 2005 • “Realizing that each component of the network affects every other one: The people, packets, machines, subnets, sessions, transactions, traffic, and any movement on the network on all layers” • Bednarczyk et al. , Black Hat Consulting whitepaper

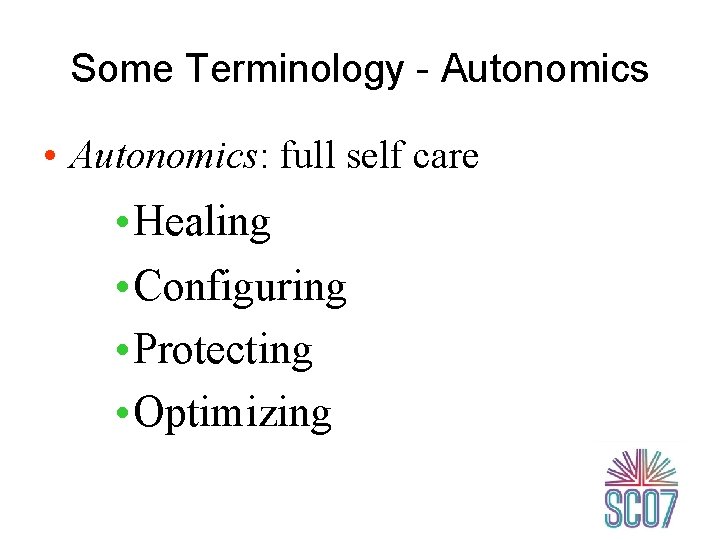

Some Terminology - Autonomics • Autonomics: full self care • Healing • Configuring • Protecting • Optimizing

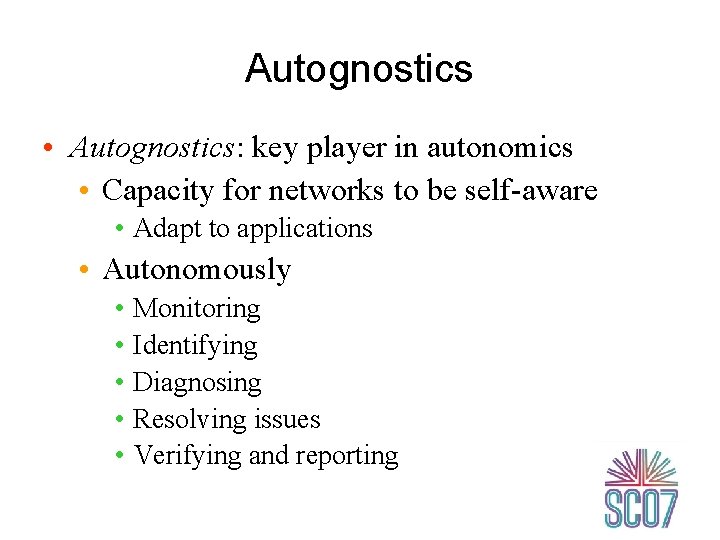

Autognostics • Autognostics: key player in autonomics • Capacity for networks to be self-aware • Adapt to applications • Autonomously • Monitoring • Identifying • Diagnosing • Resolving issues • Verifying and reporting

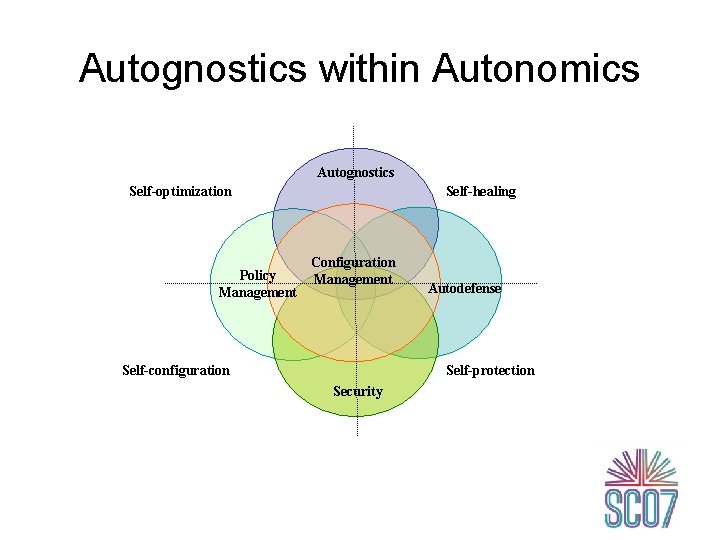

Autognostics within Autonomics Autognostics Self-optimization Policy Management Self-healing Configuration Management Self-configuration Autodefense Self-protection Security

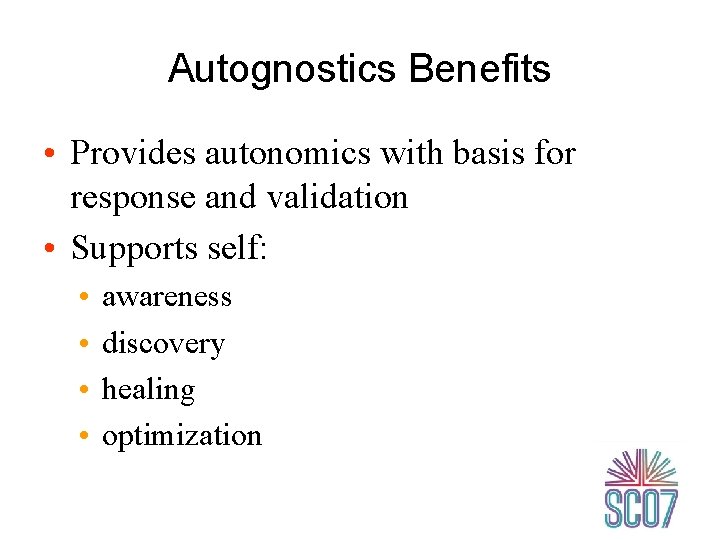

Autognostics Benefits • Provides autonomics with basis for response and validation • Supports self: • • awareness discovery healing optimization

Why Bayesian Network Awareness? • One possible implementation of several characteristics of Autonomic Networking • Combines Bayesian theory with Neural Networks (Bayesian - proven technologysuccess stories) • Calculates the probability of certain activities that may happen within a computer network

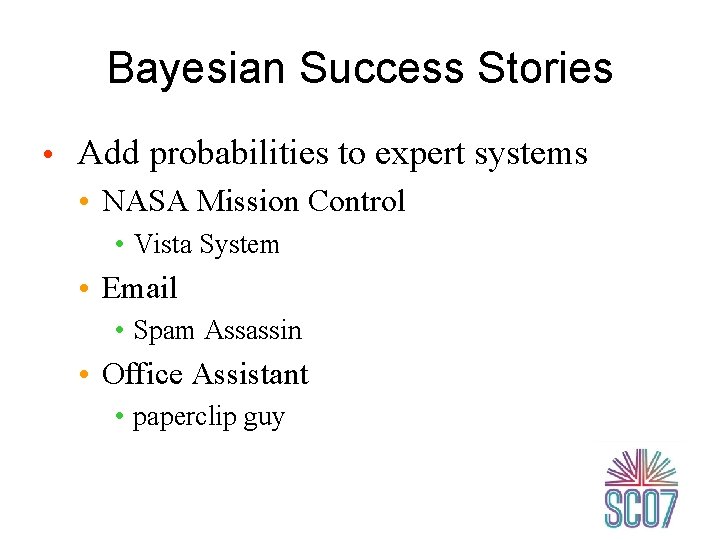

Bayesian Success Stories • Add probabilities to expert systems • NASA Mission Control • Vista System • Email • Spam Assassin • Office Assistant • paperclip guy

Belief Network • What we "believe" is happening • What our beliefs are based on • How we might find out if not true • Example of a belief network • NASA Mission Control – all ok ? • Use of belief networks • Probability of problems – abort ?

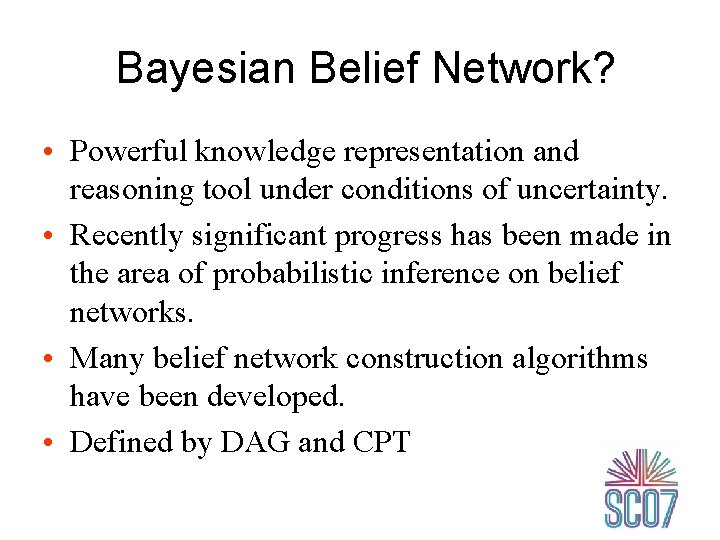

Bayesian Belief Network? • Powerful knowledge representation and reasoning tool under conditions of uncertainty. • Recently significant progress has been made in the area of probabilistic inference on belief networks. • Many belief network construction algorithms have been developed. • Defined by DAG and CPT

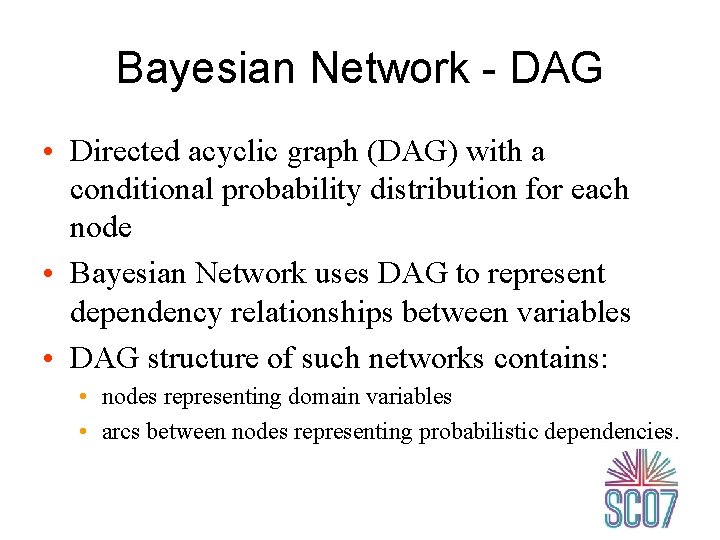

Bayesian Network - DAG • Directed acyclic graph (DAG) with a conditional probability distribution for each node • Bayesian Network uses DAG to represent dependency relationships between variables • DAG structure of such networks contains: • nodes representing domain variables • arcs between nodes representing probabilistic dependencies.

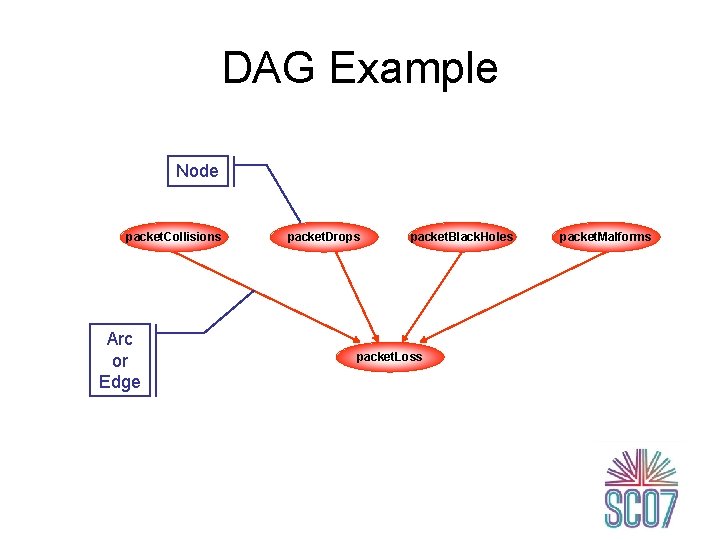

DAG Example Node packet. Collisions Arc or Edge packet. Drops packet. Black. Holes packet. Loss packet. Malforms

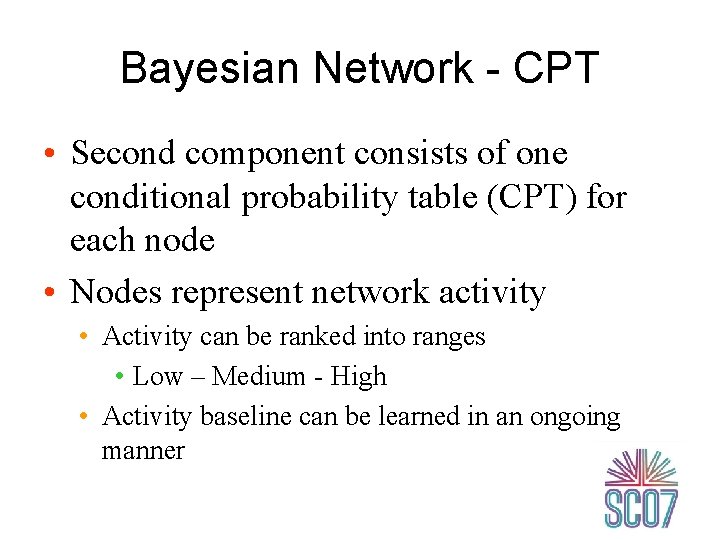

Bayesian Network - CPT • Second component consists of one conditional probability table (CPT) for each node • Nodes represent network activity • Activity can be ranked into ranges • Low – Medium - High • Activity baseline can be learned in an ongoing manner

BNA: Concept 1 • Filter out everything normal on an ongoing basis so we can see only what is really not normal (pain) with minimal false positives • Concentrate design effort on the most critical components • monitor stack distributed event reconstruction • sensor node architecture

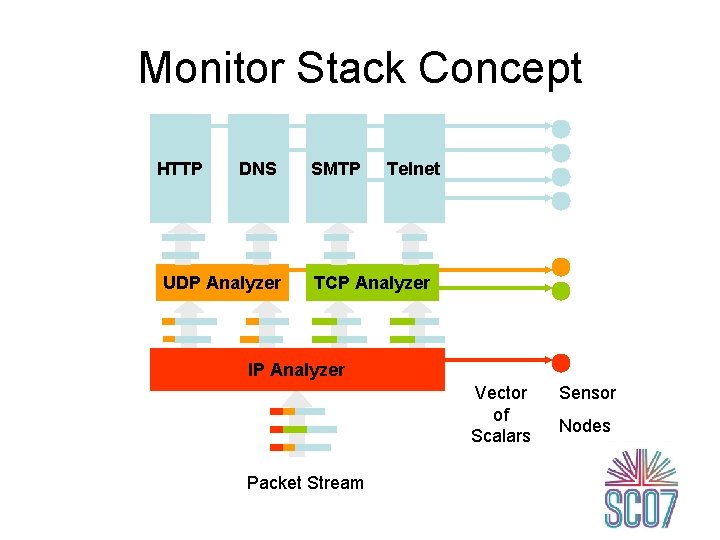

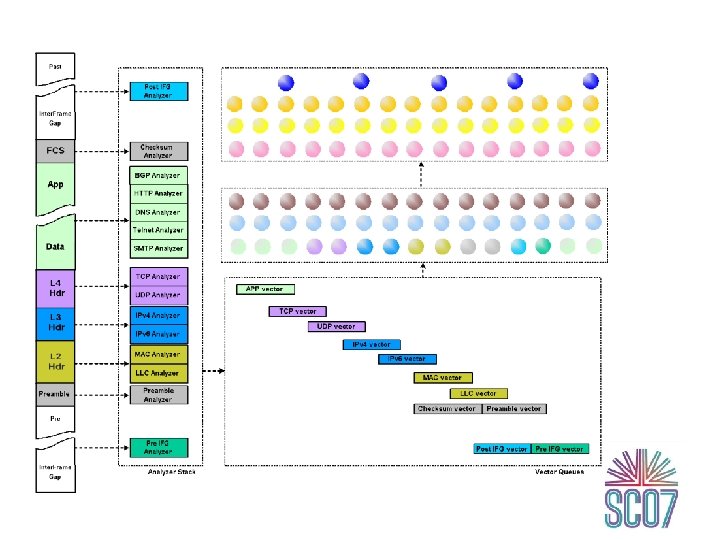

Monitor Stack Concept HTTP DNS UDP Analyzer SMTP Telnet TCP Analyzer IP Analyzer Vector of Scalars Packet Stream Sensor Nodes

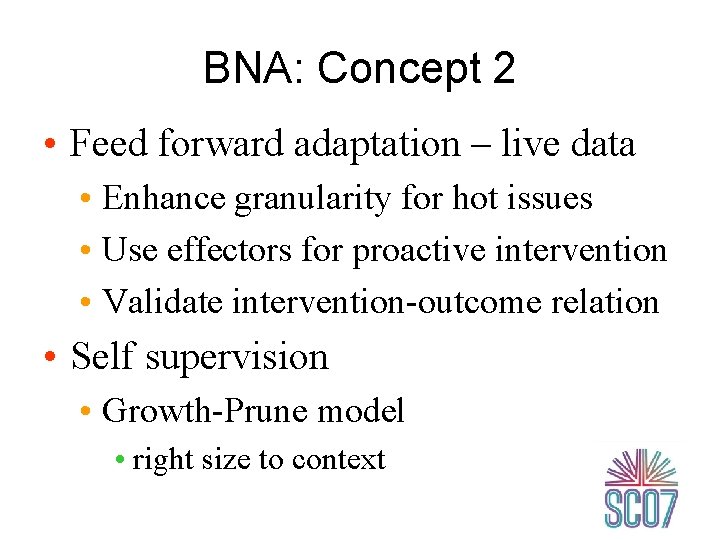

BNA: Concept 2 • Feed forward adaptation – live data • Enhance granularity for hot issues • Use effectors for proactive intervention • Validate intervention-outcome relation • Self supervision • Growth-Prune model • right size to context

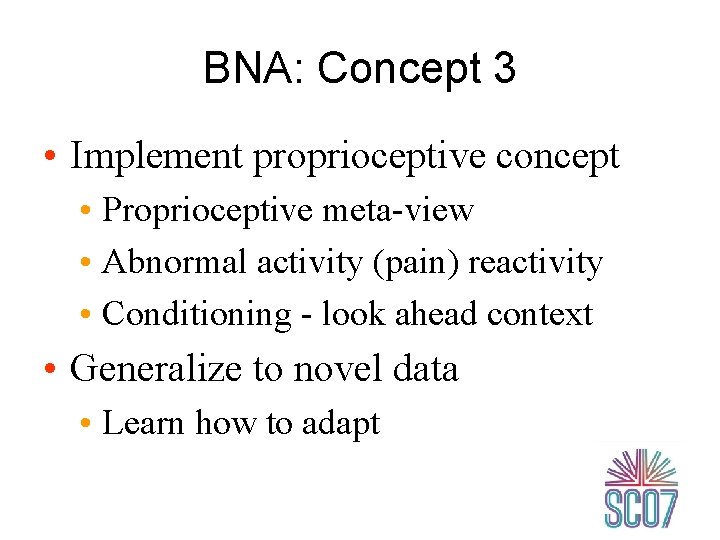

BNA: Concept 3 • Implement proprioceptive concept • Proprioceptive meta-view • Abnormal activity (pain) reactivity • Conditioning - look ahead context • Generalize to novel data • Learn how to adapt

Supercomputing Concept • Integrate BNA into compute, storage, visualization infrastructure • Learn particular eccentricities • apps … network events • distributed context • Similar to NASA

Sensor Nodes • Data input nodes of neural network • Sensor nodes receive monitor stack output • Statistics by category – metadata structure • Stream event summaries • Special protocol events • Distributed event correlations • Usually accept a vector of scalars • Each scalar has an associated weight which can be adjusted by learning

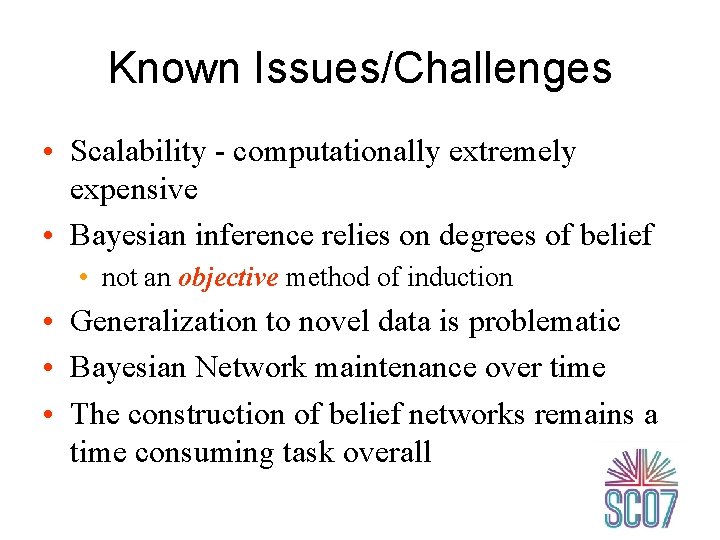

Known Issues/Challenges • Scalability - computationally extremely expensive • Bayesian inference relies on degrees of belief • not an objective method of induction • Generalization to novel data is problematic • Bayesian Network maintenance over time • The construction of belief networks remains a time consuming task overall

Perceived BNA Potential • what scalars have meaning wrt BNA • key indicators • how change network then validate • what effectors • how validate • how interface to operators • analysis/decision - output

Open Discussion

END

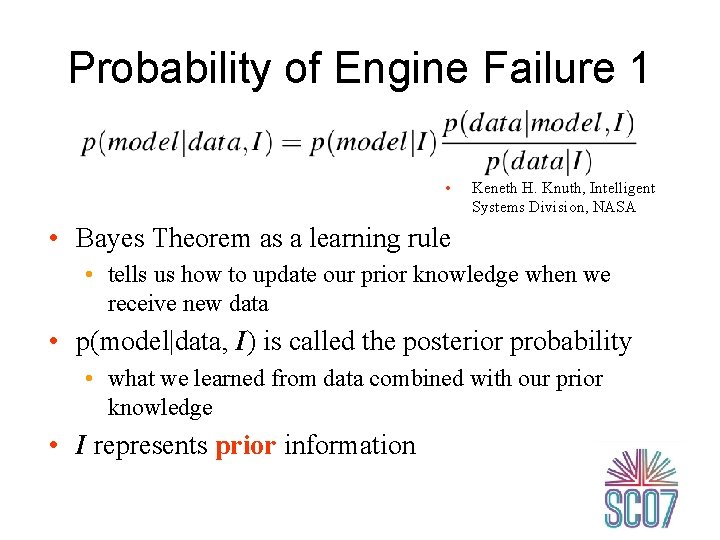

Probability of Engine Failure 1 • Keneth H. Knuth, Intelligent Systems Division, NASA • Bayes Theorem as a learning rule • tells us how to update our prior knowledge when we receive new data • p(model|data, I) is called the posterior probability • what we learned from data combined with our prior knowledge • I represents prior information

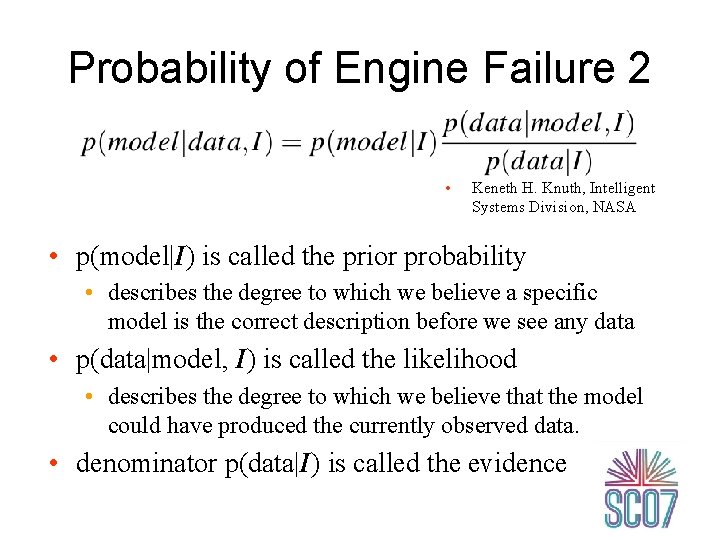

Probability of Engine Failure 2 • Keneth H. Knuth, Intelligent Systems Division, NASA • p(model|I) is called the prior probability • describes the degree to which we believe a specific model is the correct description before we see any data • p(data|model, I) is called the likelihood • describes the degree to which we believe that the model could have produced the currently observed data. • denominator p(data|I) is called the evidence

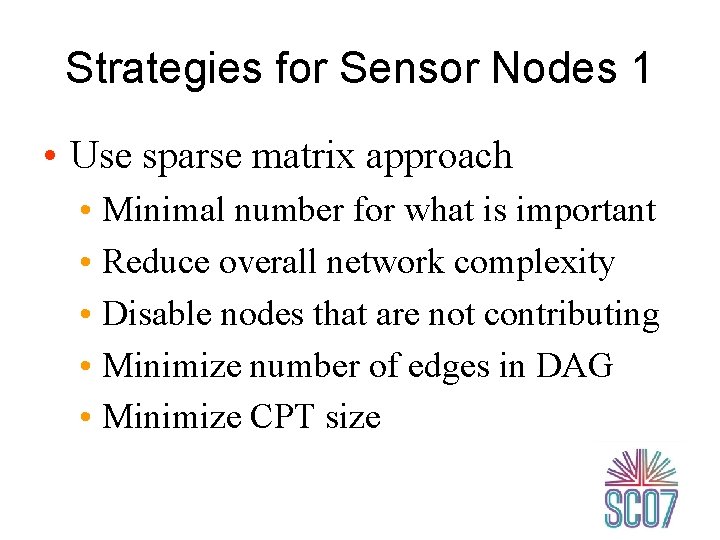

Strategies for Sensor Nodes 1 • Use sparse matrix approach • Minimal number for what is important • Reduce overall network complexity • Disable nodes that are not contributing • Minimize number of edges in DAG • Minimize CPT size

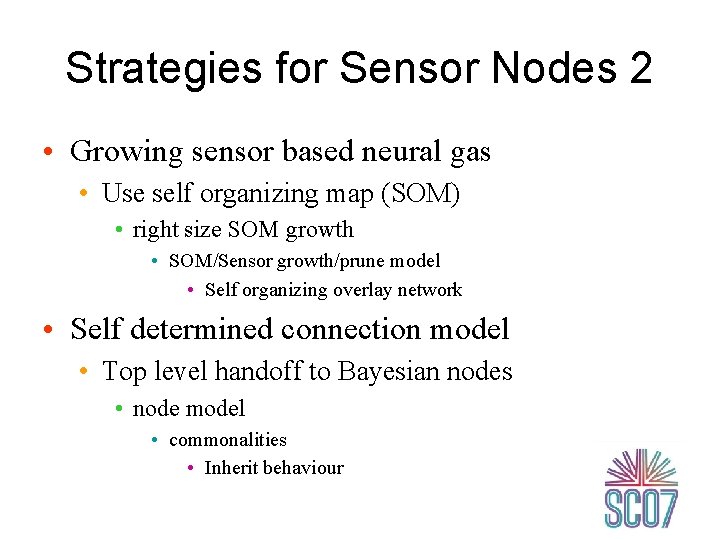

Strategies for Sensor Nodes 2 • Growing sensor based neural gas • Use self organizing map (SOM) • right size SOM growth • SOM/Sensor growth/prune model • Self organizing overlay network • Self determined connection model • Top level handoff to Bayesian nodes • node model • commonalities • Inherit behaviour

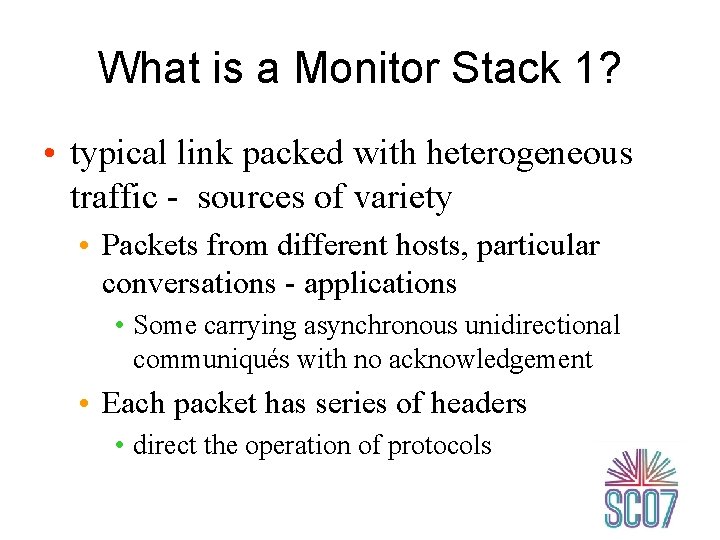

What is a Monitor Stack 1? • typical link packed with heterogeneous traffic - sources of variety • Packets from different hosts, particular conversations - applications • Some carrying asynchronous unidirectional communiqués with no acknowledgement • Each packet has series of headers • direct the operation of protocols

What is a Monitor Stack 2? • Pace and duration of connections is variable • Automated transactions such as name server and HTTP requests often take less than a second • Login sessions operated directly by humans may persist for hours • Payloads carried vary remarkably between applications. • Some hold exactingly formatted text, others encode manual edits of users at keyboards • Others send binary data in large blocks

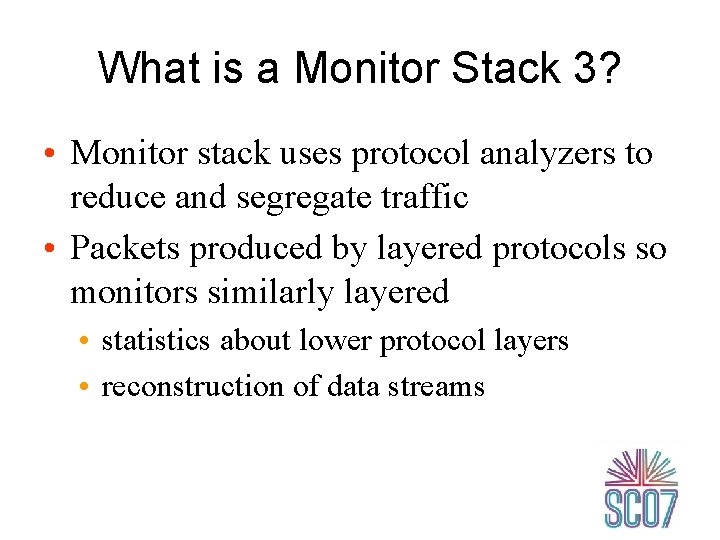

What is a Monitor Stack 3? • Monitor stack uses protocol analyzers to reduce and segregate traffic • Packets produced by layered protocols so monitors similarly layered • statistics about lower protocol layers • reconstruction of data streams

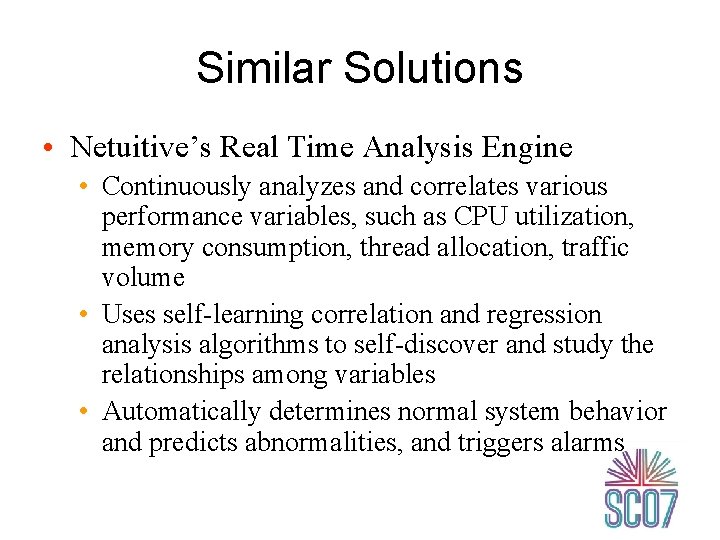

Similar Solutions • Netuitive’s Real Time Analysis Engine • Continuously analyzes and correlates various performance variables, such as CPU utilization, memory consumption, thread allocation, traffic volume • Uses self-learning correlation and regression analysis algorithms to self-discover and study the relationships among variables • Automatically determines normal system behavior and predicts abnormalities, and triggers alarms
