Basic Data Types Stacks Richard Newman Based on Sedgewick and Wayne
Stacks and Queues Stacks Dynamic Resizing Queues Generics Iterators Applications

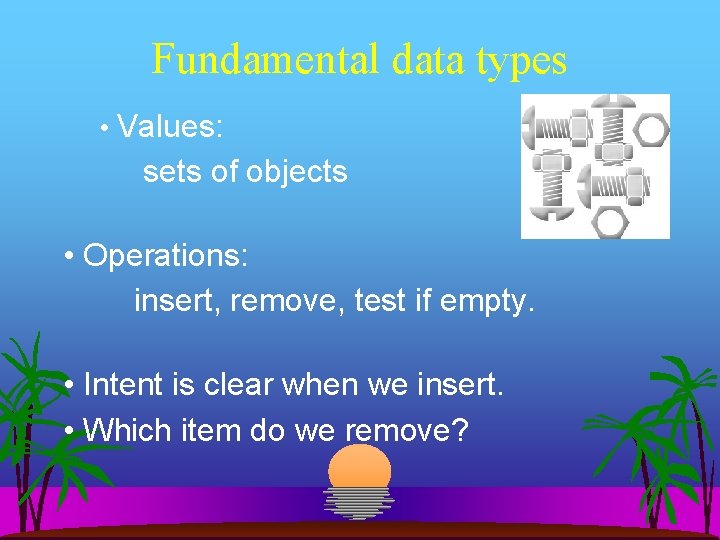

Fundamental data types • Values: sets of objects • Operations: insert, remove, test if empty. • Intent is clear when we insert. • Which item do we remove?

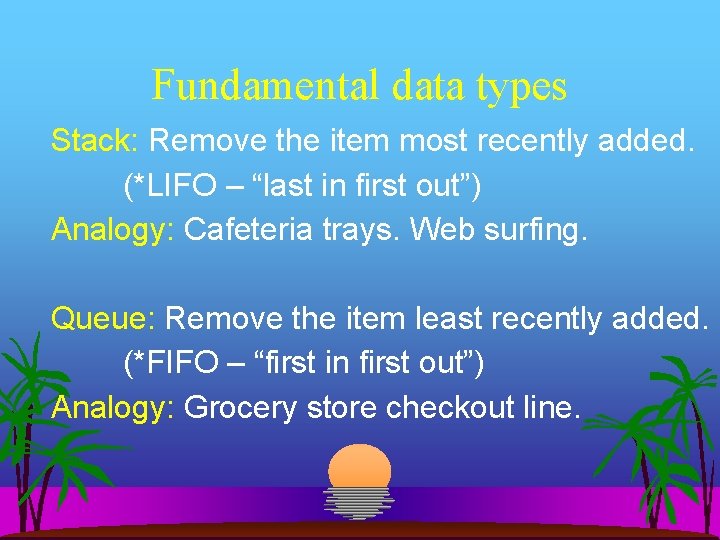

Fundamental data types Stack: Remove the item most recently added. (*LIFO – “last in first out”) Analogy: Cafeteria trays. Web surfing. Queue: Remove the item least recently added. (*FIFO – “first in first out”) Analogy: Grocery store checkout line.

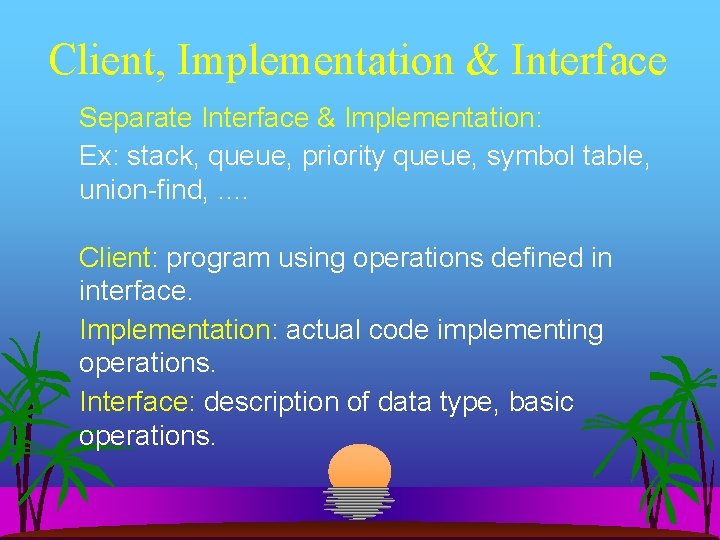

Client, Implementation & Interface Separate Interface & Implementation: Ex: stack, queue, priority queue, symbol table, union-find, . … Client: program using operations defined in interface. Implementation: actual code implementing operations. Interface: description of data type, basic operations.

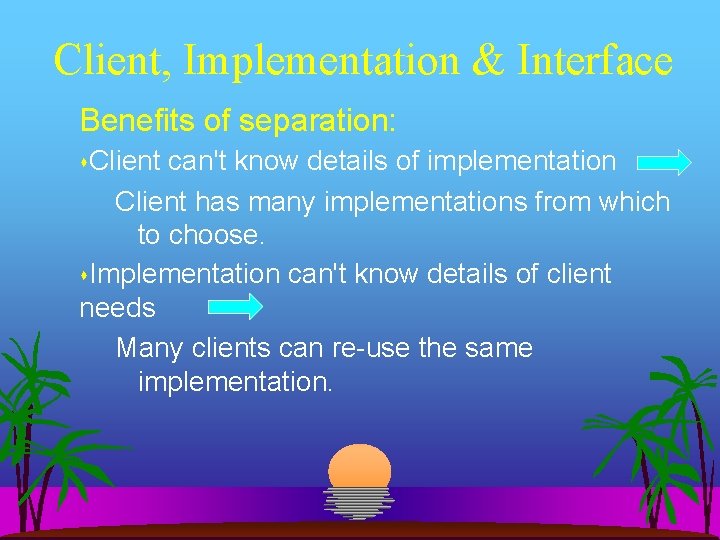

Client, Implementation & Interface Benefits of separation: Client can't know details of implementation Client has many implementations from which to choose. Implementation can't know details of client needs Many clients can re-use the same implementation.

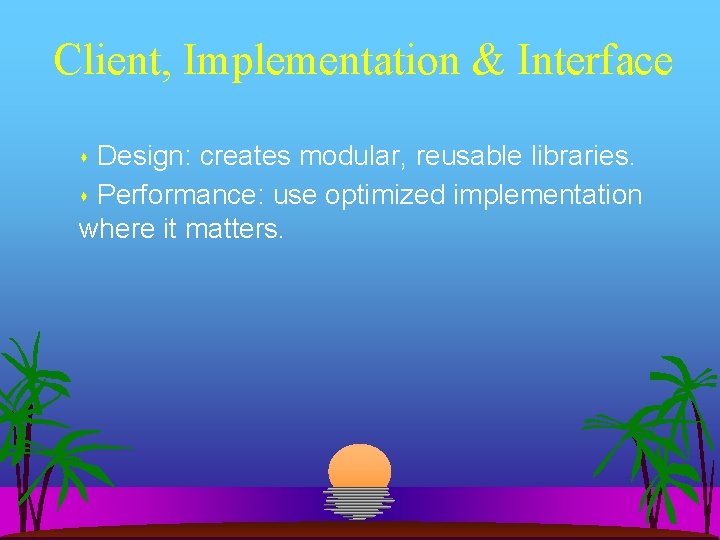

Client, Implementation & Interface Design: creates modular, reusable libraries. Performance: use optimized implementation where it matters.
Stack API Public class stack: Can be any type (stay tuned) Stack ( ) Create an empty stack Void Push (String S) Insert a new item onto stack String pop ( ) Remove and return the item most recently added Boolean is. Empty ( ) Is the stack empty? PUSH POP public static void main(String[ ] args) { Stack. Of. Strings stack = new Stack. Of. Strings(); while (!Std. In. is. Empty()) { String item = Std. In. read. String(); if (item. equals("-")) Std. Out. print(stack. pop()); else stack. push(item) { More tobe. txt To be or not to - be - - that - - - is Java Stack. Of. Strings < tobe. txt To be not that or be

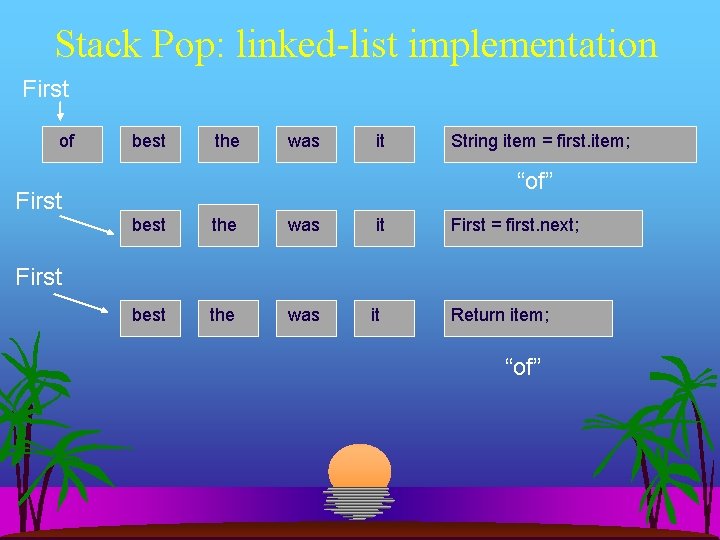

Stack Pop: linked-list implementation First of best the was it String item = first. item; “of” First best the was it First = first. next; best the was it Return item; First “of”
Stack Pop: linked-list implementation first best of it the was it Node oldfirst = first; oldfirst best first was oldfirst best first the first = new Node (); oldfirst best the was it first. item = “of”; first. next = oldfirst;

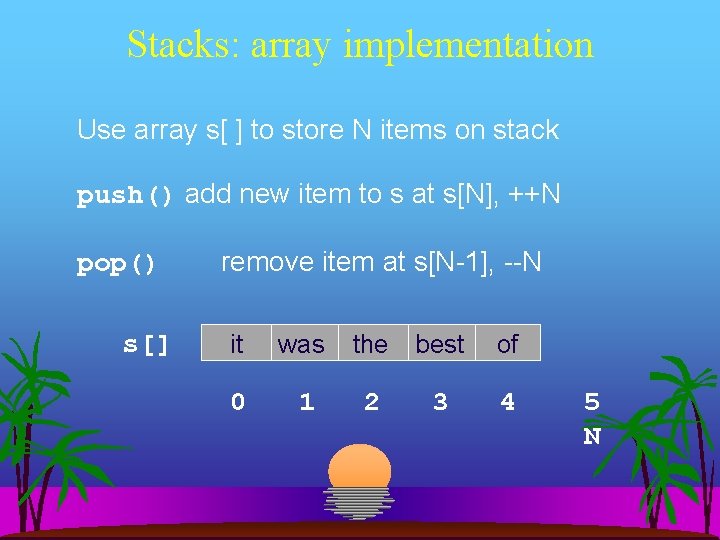

Stacks: array implementation Use array s[ ] to store N items on stack push() add new item to s at s[N], ++N pop() s[] remove item at s[N-1], --N it was the best of 0 1 2 3 4 5 N

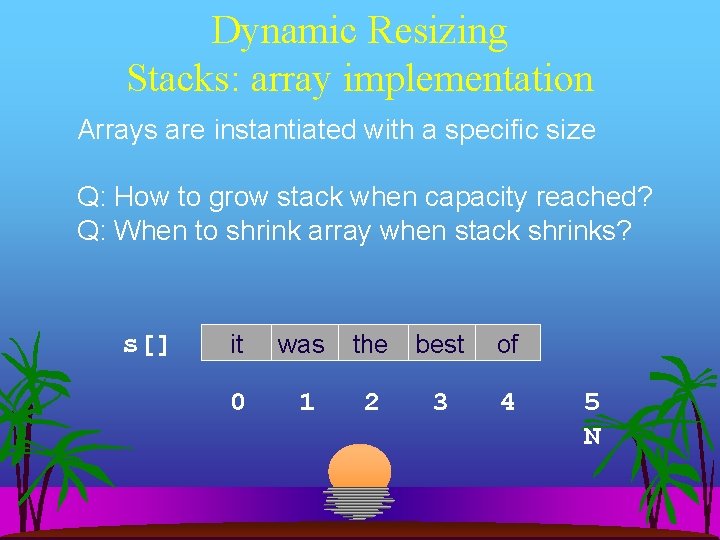

Dynamic Resizing Stacks: array implementation Arrays are instantiated with a specific size Q: How to grow stack when capacity reached? Q: When to shrink array when stack shrinks? s[] it was the best of 0 1 2 3 4 5 N

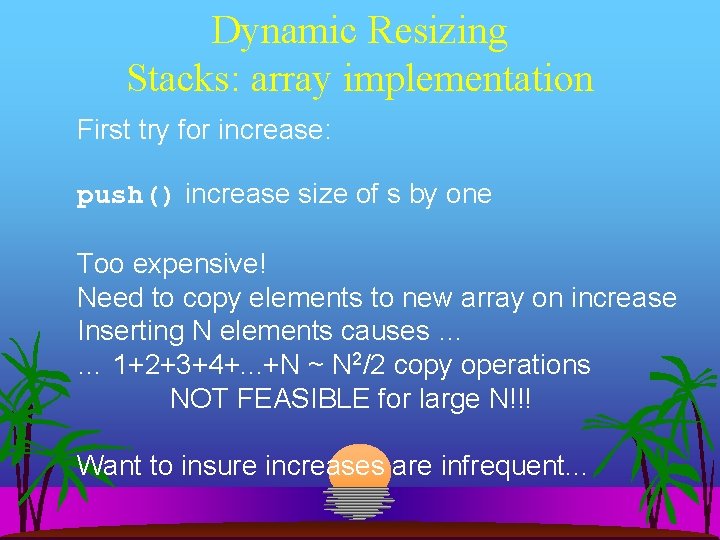

Dynamic Resizing Stacks: array implementation First try for increase: push() increase size of s by one Too expensive! Need to copy elements to new array on increase Inserting N elements causes … … 1+2+3+4+. . . +N ~ N 2/2 copy operations NOT FEASIBLE for large N!!! Want to insure increases are infrequent. . .

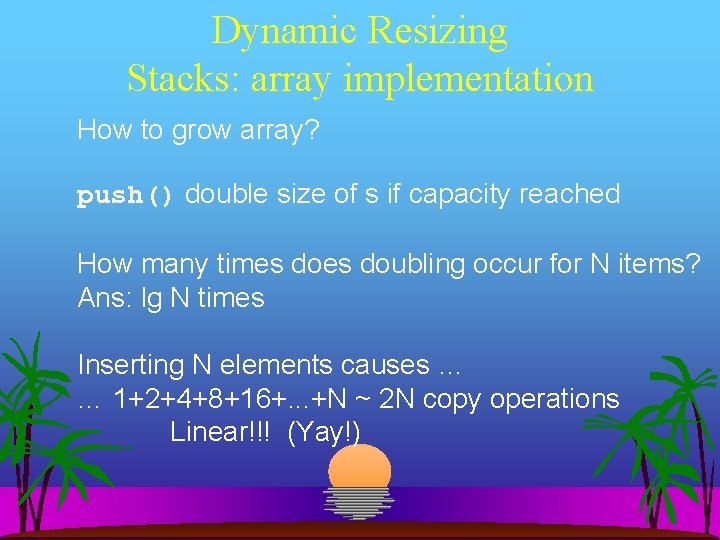

Dynamic Resizing Stacks: array implementation How to grow array? push() double size of s if capacity reached How many times doubling occur for N items? Ans: lg N times Inserting N elements causes … … 1+2+4+8+16+. . . +N ~ 2 N copy operations Linear!!! (Yay!)

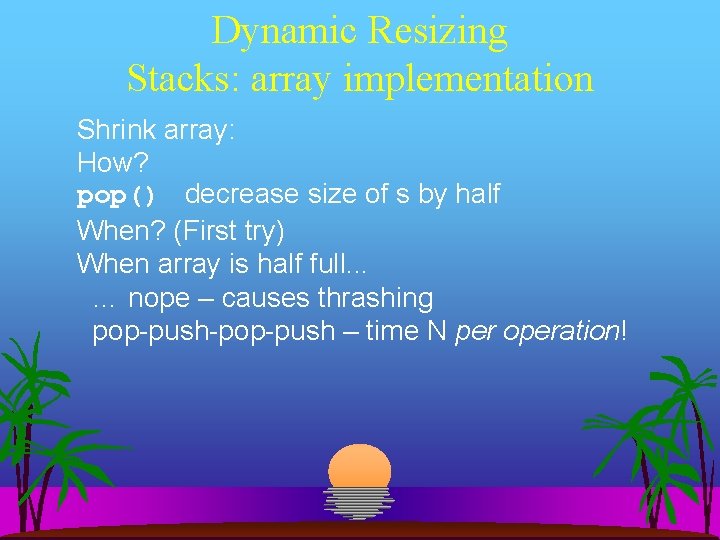

Dynamic Resizing Stacks: array implementation Shrink array: How? pop() decrease size of s by half When? (First try) When array is half full. . . … nope – causes thrashing pop-push-pop-push – time N per operation!
Dynamic Resizing Stacks: array implementation Shrink array: When? Solution: Decrease when ¼ full New array starts ½ full – Need N/2 operations to have to resize again Result: Any N operations takes O(N) copies Array is always between ¼ and 100% full

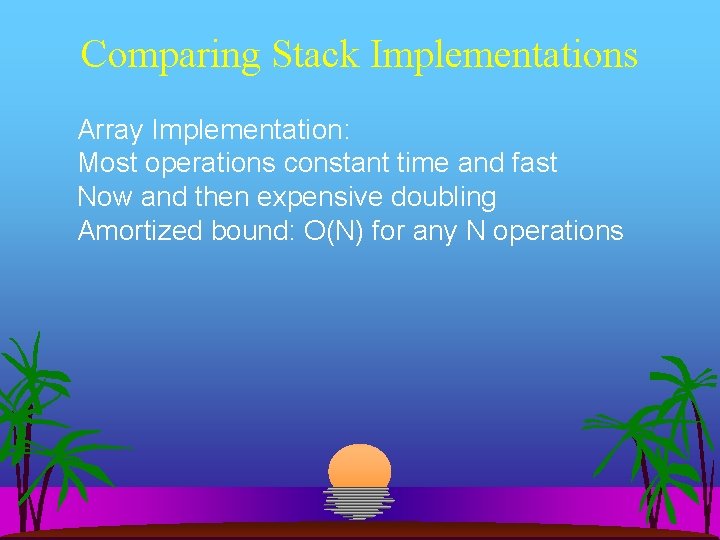

Comparing Stack Implementations Array Implementation: Most operations constant time and fast Now and then expensive doubling Amortized bound: O(N) for any N operations

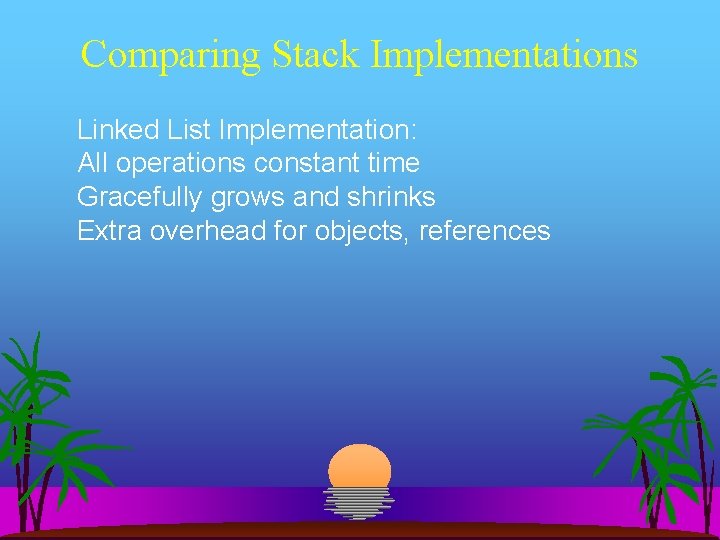

Comparing Stack Implementations Linked List Implementation: All operations constant time Gracefully grows and shrinks Extra overhead for objects, references

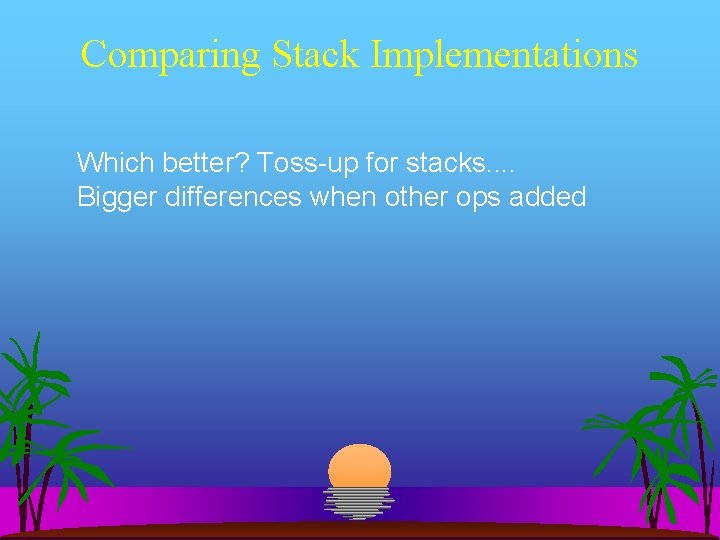

Comparing Stack Implementations Which better? Toss-up for stacks. . Bigger differences when other ops added

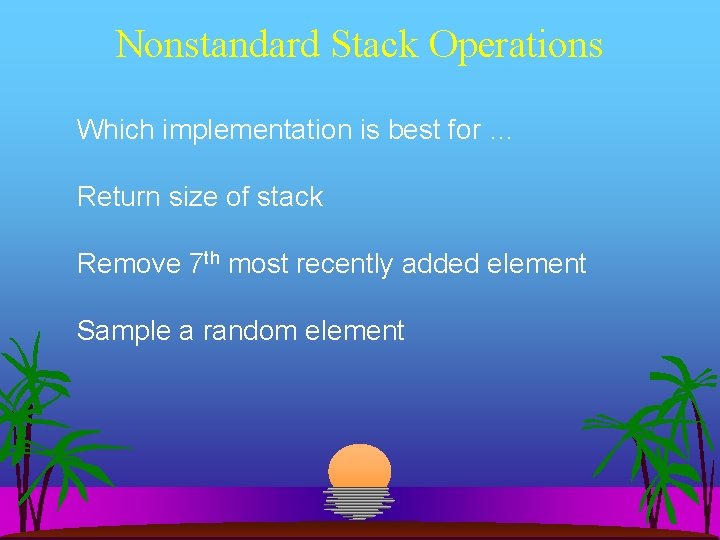

Nonstandard Stack Operations Which implementation is best for … Return size of stack Remove 7 th most recently added element Sample a random element

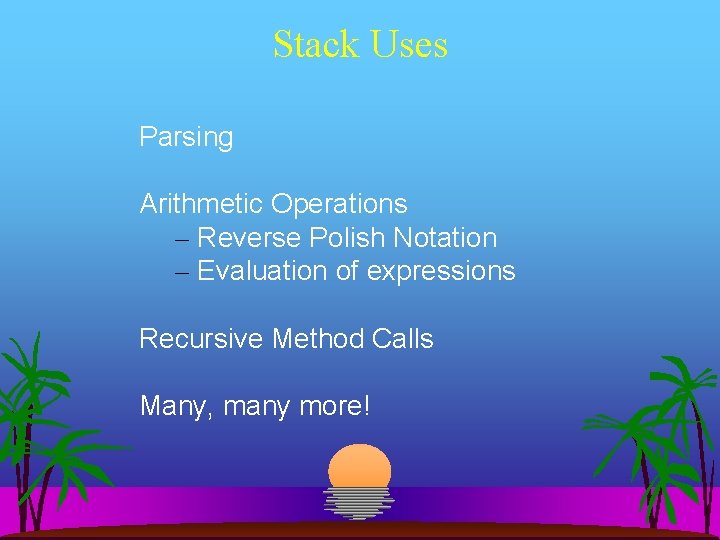

Stack Uses Parsing Arithmetic Operations – Reverse Polish Notation – Evaluation of expressions Recursive Method Calls Many, many more!

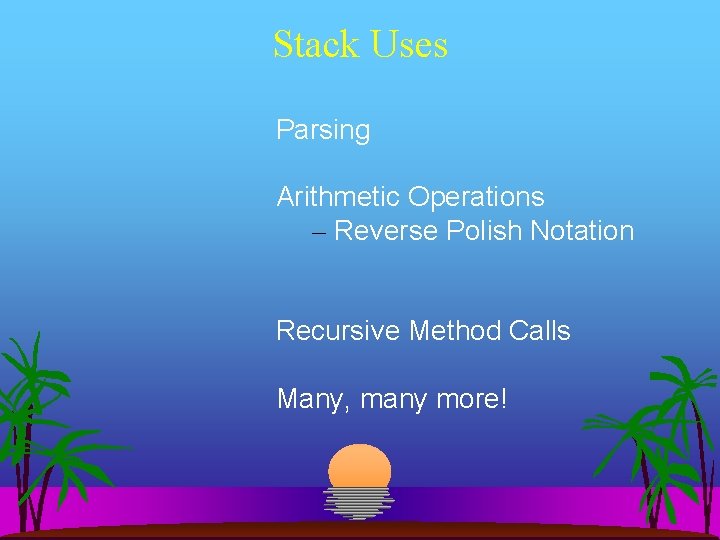

Stack Uses Parsing Arithmetic Operations – Reverse Polish Notation Recursive Method Calls Many, many more!
Next: Queues
