Auditory Somatosensory and Motor Interactions in Speech Production

Auditory, Somatosensory, and Motor Interactions in Speech Production Frank H. Guenther Department of Cognitive and Neural Systems, Boston University Division of Health Sciences and Technology, Harvard University / M. I. T. Research Laboratory of Electronics, Massachusetts Institute of Technology Collaborators Satrajit Ghosh Alfonso Nieto-Castanon Jason Tourville Oren Civier Kevin Reilly Jason Bohland Jonathan Brumberg Michelle Hampson Joseph Perkell Virgilio Villacorta Majid Zandipour Melanie Matthies Shinji Maeda CN 510 Lecture 1 Supported by NIDCD, NSF. 1

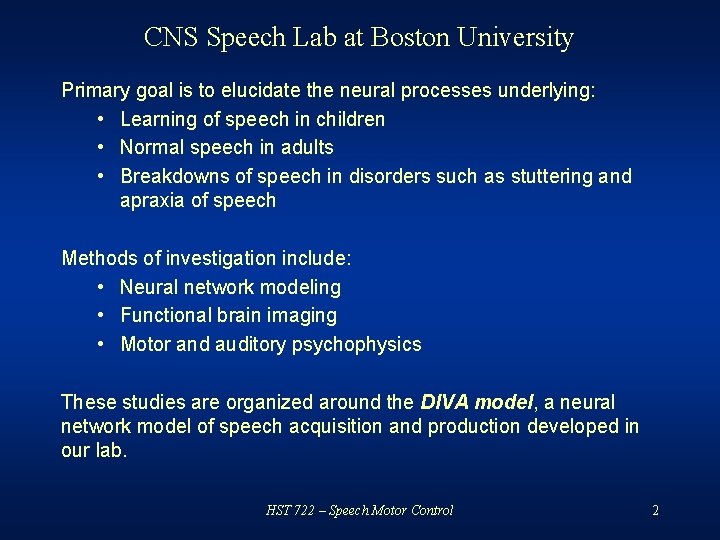

CNS Speech Lab at Boston University Primary goal is to elucidate the neural processes underlying: • Learning of speech in children • Normal speech in adults • Breakdowns of speech in disorders such as stuttering and apraxia of speech Methods of investigation include: • Neural network modeling • Functional brain imaging • Motor and auditory psychophysics These studies are organized around the DIVA model, a neural network model of speech acquisition and production developed in our lab. HST 722 – Speech Motor Control 2

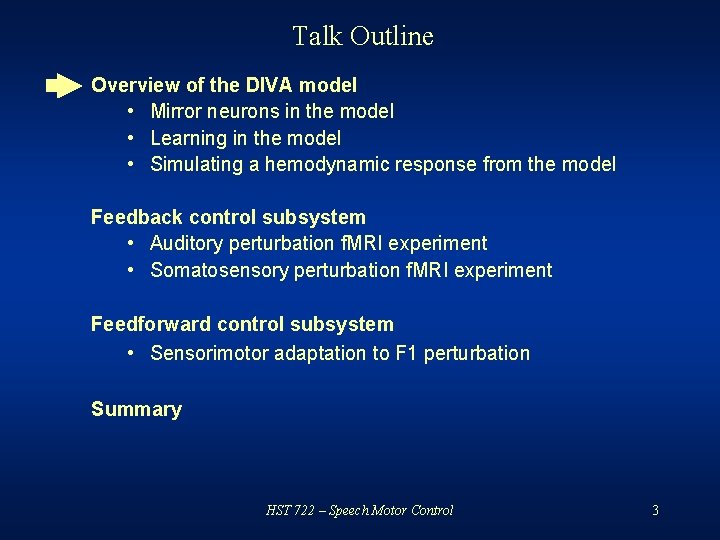

Talk Outline Overview of the DIVA model • Mirror neurons in the model • Learning in the model • Simulating a hemodynamic response from the model Feedback control subsystem • Auditory perturbation f. MRI experiment • Somatosensory perturbation f. MRI experiment Feedforward control subsystem • Sensorimotor adaptation to F 1 perturbation Summary HST 722 – Speech Motor Control 3

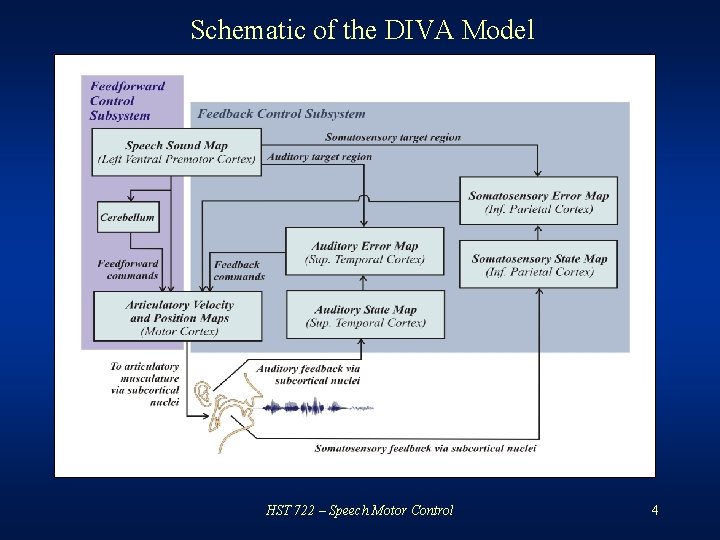

Schematic of the DIVA Model HST 722 – Speech Motor Control 4

Boxes in the schematic correspond to maps of neurons; arrows correspond to synaptic projections. The model controls movements of a “virtual vocal tract”, or articulatory synthesizer. Video shows random movements of the articulators in this synthesizer. Production of a speech sound in the model starts with activation of a speech sound map cell in left ventral premotor cortex (BA 44/6), which in turn activates feedforward and feedback control subsystems that converge on primary motor cortex. HST 722 – Speech Motor Control 5

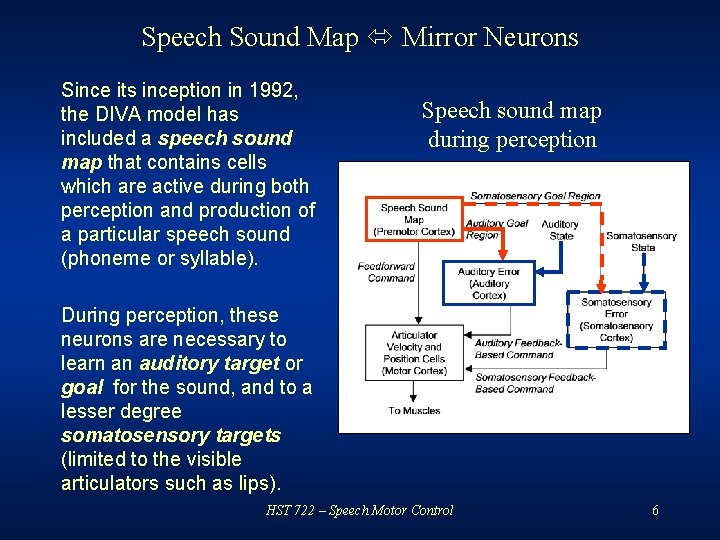

Speech Sound Map Mirror Neurons Since its inception in 1992, the DIVA model has included a speech sound map that contains cells which are active during both perception and production of a particular speech sound (phoneme or syllable). Speech sound map during perception During perception, these neurons are necessary to learn an auditory target or goal for the sound, and to a lesser degree somatosensory targets (limited to the visible articulators such as lips). HST 722 – Speech Motor Control 6

Speech Sound Map Mirror Neurons After a sound has been learned (described next), activating the speech sound map cells for the sound leads to readout of the learned feedforward commands (“gestures”) and auditory and somatosensory targets for the sound (red arrows at right). Speech sound map during production These targets are compared to incoming sensory signals to generate corrective commands if needed (blue). The overall motor command (purple) combines feedforward and feedback components. HST 722 – Speech Motor Control 7

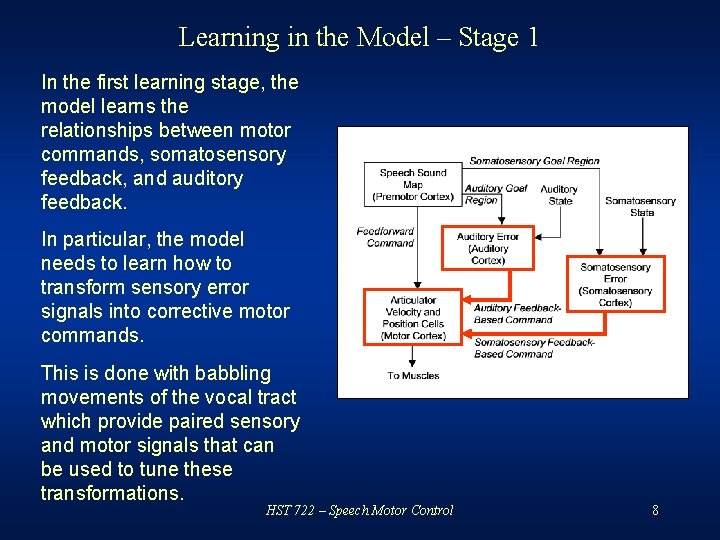

Learning in the Model – Stage 1 In the first learning stage, the model learns the relationships between motor commands, somatosensory feedback, and auditory feedback. In particular, the model needs to learn how to transform sensory error signals into corrective motor commands. This is done with babbling movements of the vocal tract which provide paired sensory and motor signals that can be used to tune these transformations. HST 722 – Speech Motor Control 8

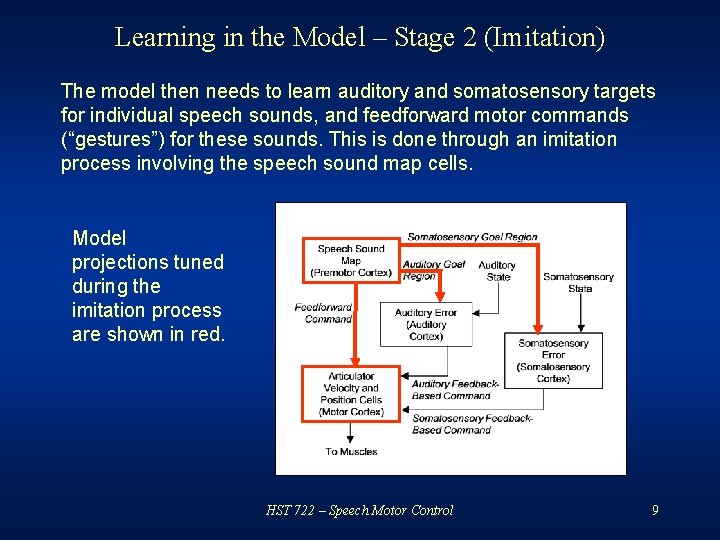

Learning in the Model – Stage 2 (Imitation) The model then needs to learn auditory and somatosensory targets for individual speech sounds, and feedforward motor commands (“gestures”) for these sounds. This is done through an imitation process involving the speech sound map cells. Model projections tuned during the imitation process are shown in red. HST 722 – Speech Motor Control 9

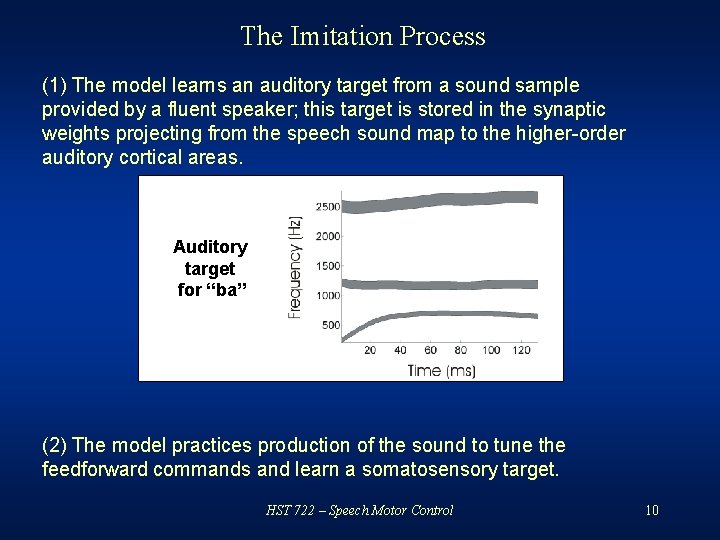

The Imitation Process (1) The model learns an auditory target from a sound sample provided by a fluent speaker; this target is stored in the synaptic weights projecting from the speech sound map to the higher-order auditory cortical areas. Auditory target for “ba” (2) The model practices production of the sound to tune the feedforward commands and learn a somatosensory target. HST 722 – Speech Motor Control 10

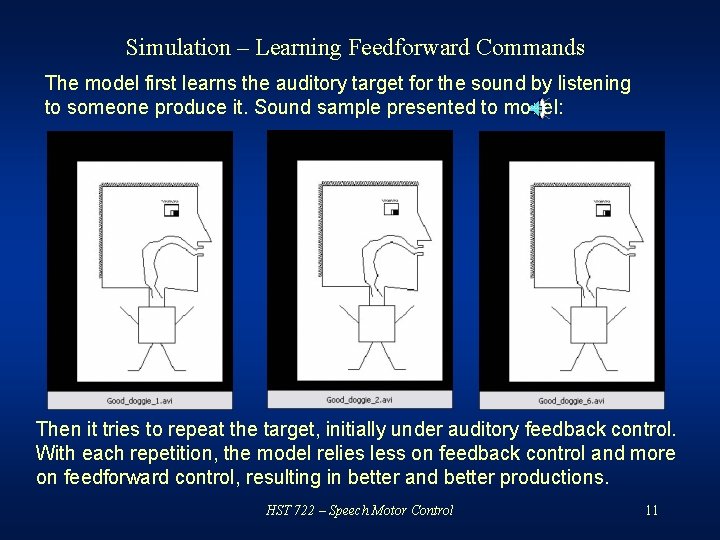

Simulation – Learning Feedforward Commands The model first learns the auditory target for the sound by listening to someone produce it. Sound sample presented to model: Then it tries to repeat the target, initially under auditory feedback control. With each repetition, the model relies less on feedback control and more on feedforward control, resulting in better and better productions. HST 722 – Speech Motor Control 11

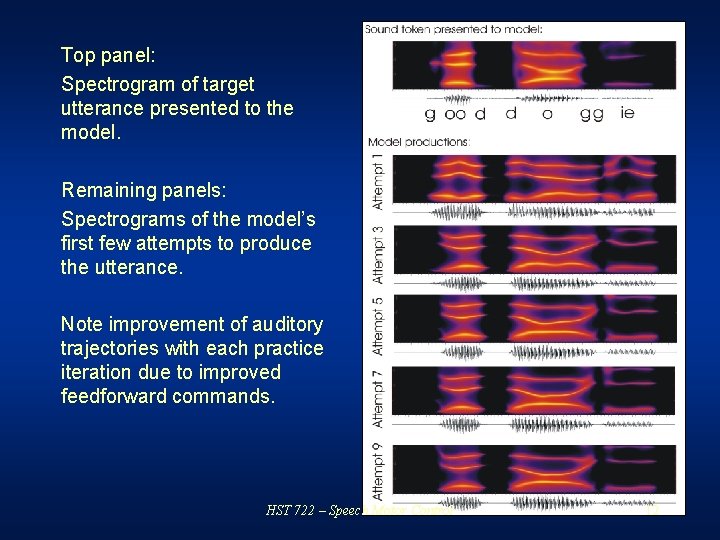

Top panel: Spectrogram of target utterance presented to the model. Remaining panels: Spectrograms of the model’s first few attempts to produce the utterance. Note improvement of auditory trajectories with each practice iteration due to improved feedforward commands. HST 722 – Speech Motor Control 12

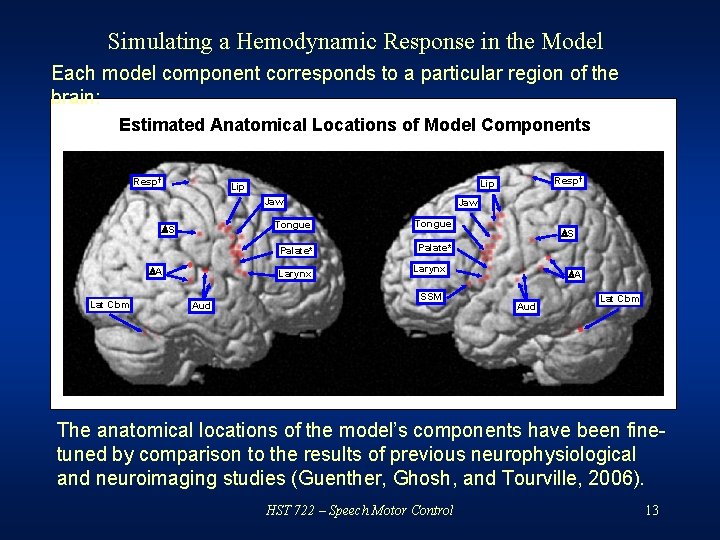

Simulating a Hemodynamic Response in the Model Each model component corresponds to a particular region of the brain: Estimated Anatomical Locations of Model Components Resp† Jaw DS DA Lat Cbm Jaw Tongue Palate* Larynx Aud Resp† Lip DS Larynx SSM DA Aud Lat Cbm The anatomical locations of the model’s components have been finetuned by comparison to the results of previous neurophysiological and neuroimaging studies (Guenther, Ghosh, and Tourville, 2006). HST 722 – Speech Motor Control 13

The model’s cell activities during simulations can be directly compared to the results of f. MRI and PET studies. HST 722 – Speech Motor Control 14

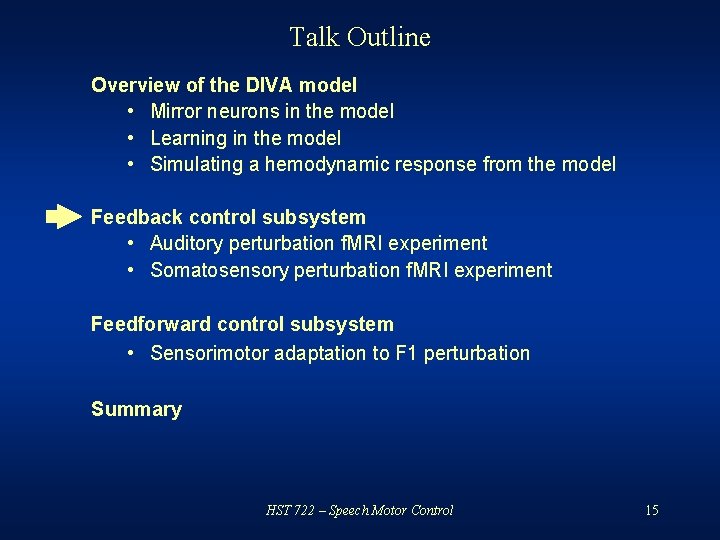

Talk Outline Overview of the DIVA model • Mirror neurons in the model • Learning in the model • Simulating a hemodynamic response from the model Feedback control subsystem • Auditory perturbation f. MRI experiment • Somatosensory perturbation f. MRI experiment Feedforward control subsystem • Sensorimotor adaptation to F 1 perturbation Summary HST 722 – Speech Motor Control 15

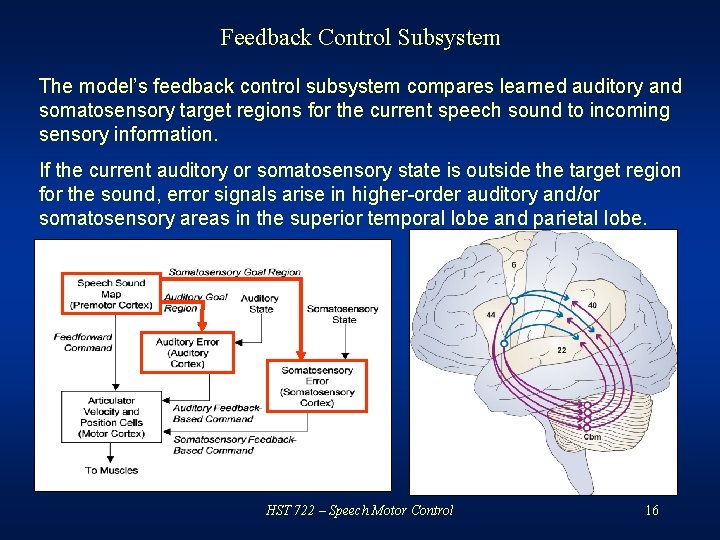

Feedback Control Subsystem The model’s feedback control subsystem compares learned auditory and somatosensory target regions for the current speech sound to incoming sensory information. If the current auditory or somatosensory state is outside the target region for the sound, error signals arise in higher-order auditory and/or somatosensory areas in the superior temporal lobe and parietal lobe. HST 722 – Speech Motor Control 16

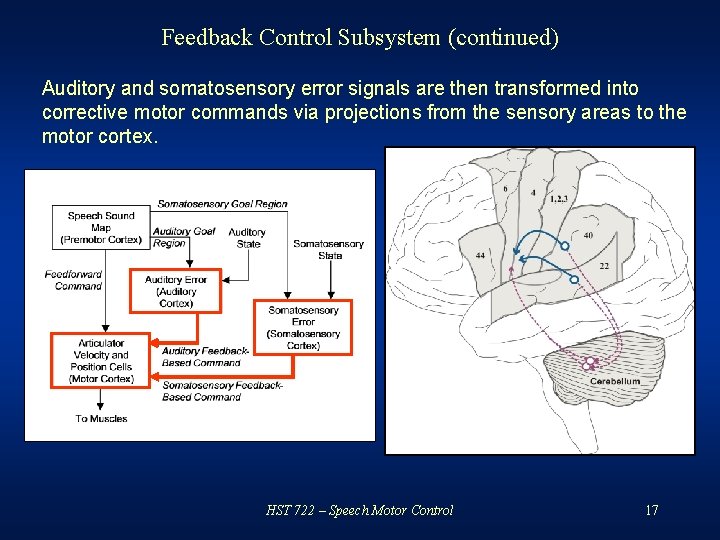

Feedback Control Subsystem (continued) Auditory and somatosensory error signals are then transformed into corrective motor commands via projections from the sensory areas to the motor cortex. HST 722 – Speech Motor Control 17

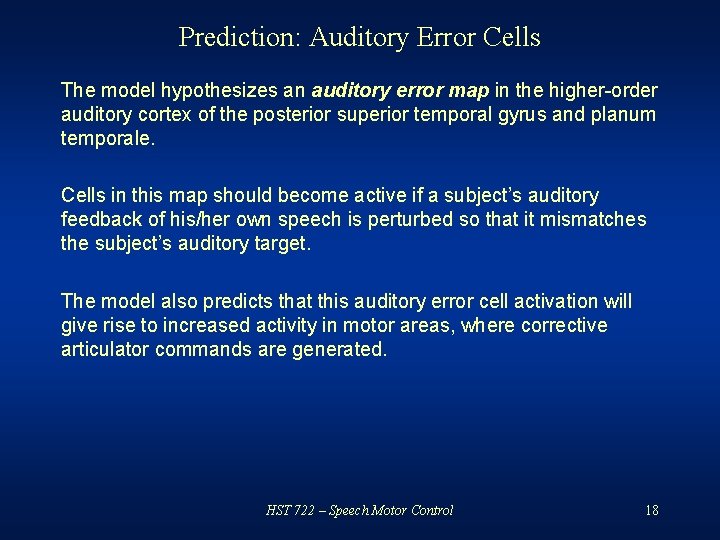

Prediction: Auditory Error Cells The model hypothesizes an auditory error map in the higher-order auditory cortex of the posterior superior temporal gyrus and planum temporale. Cells in this map should become active if a subject’s auditory feedback of his/her own speech is perturbed so that it mismatches the subject’s auditory target. The model also predicts that this auditory error cell activation will give rise to increased activity in motor areas, where corrective articulator commands are generated. HST 722 – Speech Motor Control 18

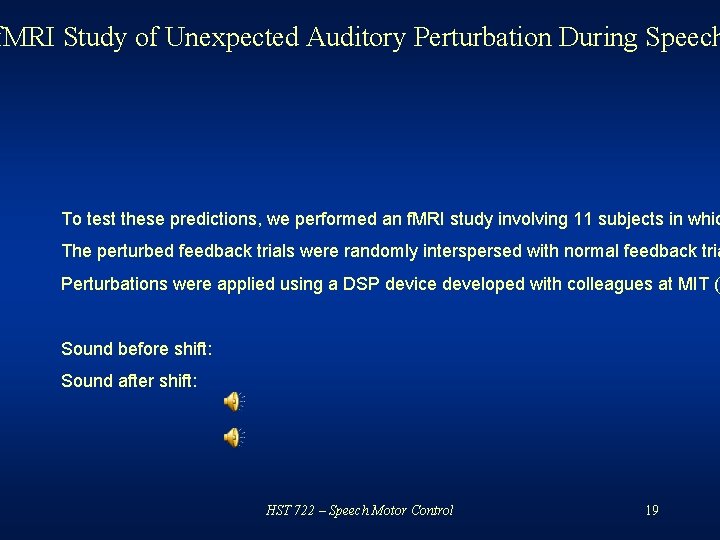

f. MRI Study of Unexpected Auditory Perturbation During Speech To test these predictions, we performed an f. MRI study involving 11 subjects in whic The perturbed feedback trials were randomly interspersed with normal feedback tria Perturbations were applied using a DSP device developed with colleagues at MIT ( Sound before shift: Sound after shift: HST 722 – Speech Motor Control 19

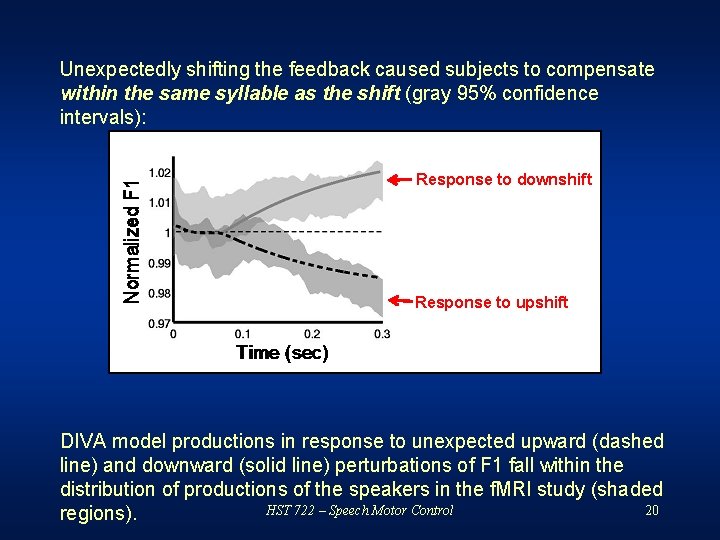

Unexpectedly shifting the feedback caused subjects to compensate within the same syllable as the shift (gray 95% confidence intervals): Response to downshift Response to upshift DIVA model productions in response to unexpected upward (dashed line) and downward (solid line) perturbations of F 1 fall within the distribution of productions of the speakers in the f. MRI study (shaded HST 722 – Speech Motor Control 20 regions).

=> Auditory feedback control is right-lateralized in the frontal cortex. HST 722 – Speech Motor Control 21

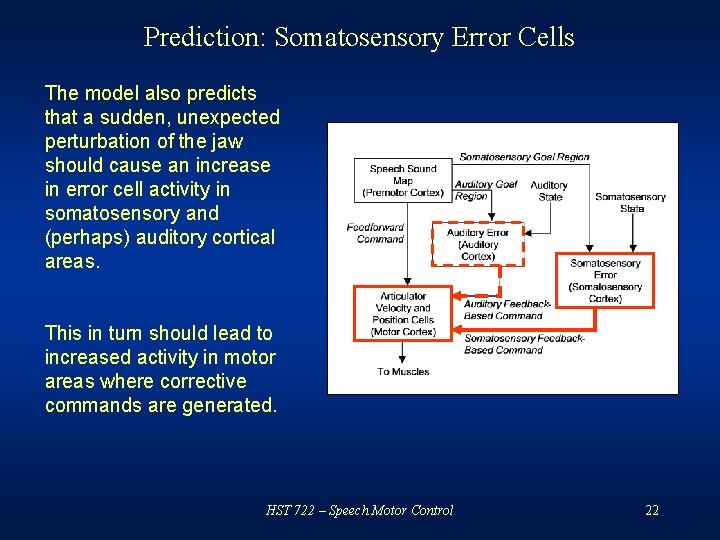

Prediction: Somatosensory Error Cells The model also predicts that a sudden, unexpected perturbation of the jaw should cause an increase in error cell activity in somatosensory and (perhaps) auditory cortical areas. This in turn should lead to increased activity in motor areas where corrective commands are generated. HST 722 – Speech Motor Control 22

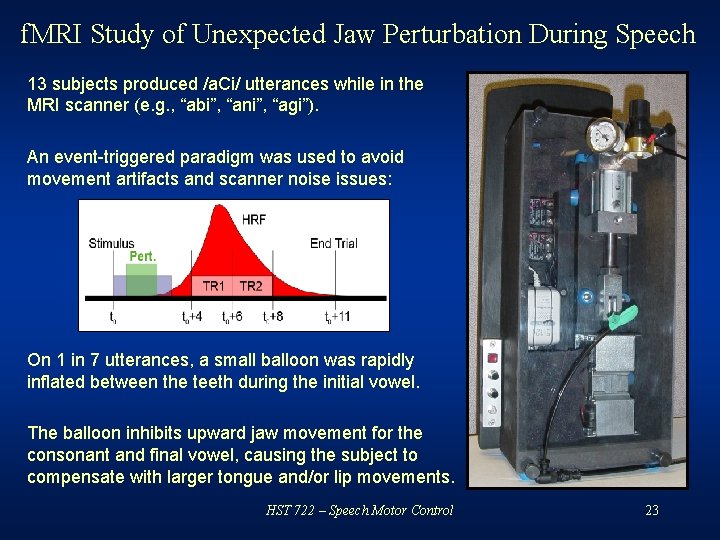

f. MRI Study of Unexpected Jaw Perturbation During Speech 13 subjects produced /a. Ci/ utterances while in the MRI scanner (e. g. , “abi”, “ani”, “agi”). An event-triggered paradigm was used to avoid movement artifacts and scanner noise issues: On 1 in 7 utterances, a small balloon was rapidly inflated between the teeth during the initial vowel. The balloon inhibits upward jaw movement for the consonant and final vowel, causing the subject to compensate with larger tongue and/or lip movements. HST 722 – Speech Motor Control 23

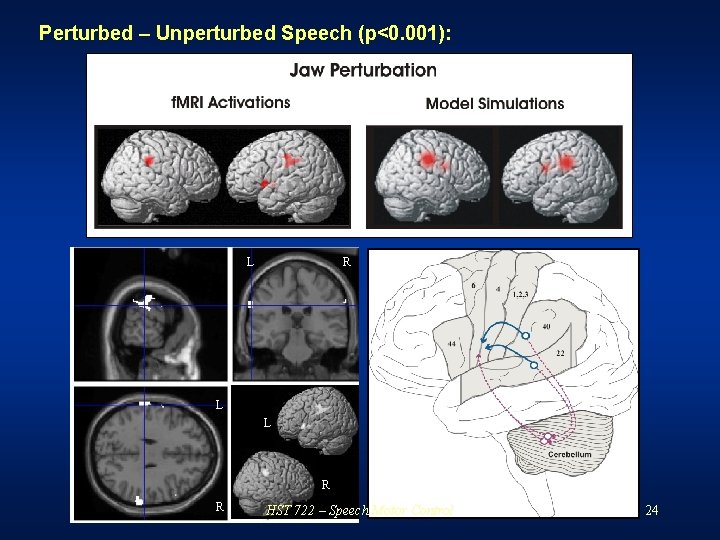

Perturbed – Unperturbed Speech (p<0. 001): L R L L R R HST 722 – Speech Motor Control 24

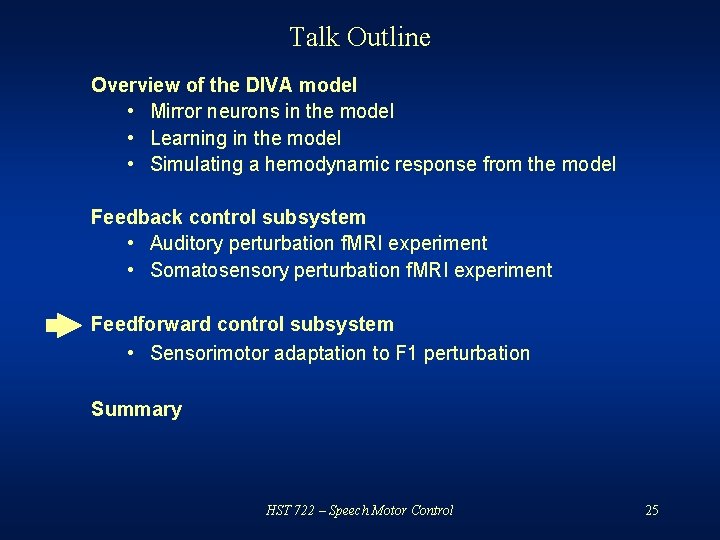

Talk Outline Overview of the DIVA model • Mirror neurons in the model • Learning in the model • Simulating a hemodynamic response from the model Feedback control subsystem • Auditory perturbation f. MRI experiment • Somatosensory perturbation f. MRI experiment Feedforward control subsystem • Sensorimotor adaptation to F 1 perturbation Summary HST 722 – Speech Motor Control 25

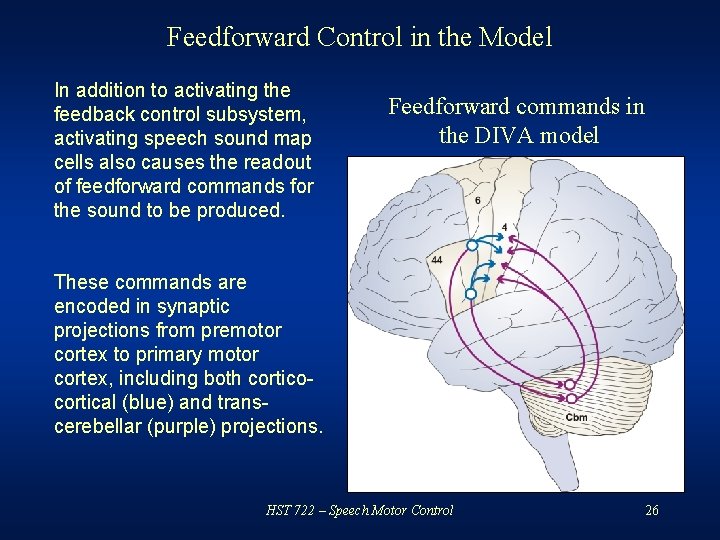

Feedforward Control in the Model In addition to activating the feedback control subsystem, activating speech sound map cells also causes the readout of feedforward commands for the sound to be produced. Feedforward commands in the DIVA model These commands are encoded in synaptic projections from premotor cortex to primary motor cortex, including both corticocortical (blue) and transcerebellar (purple) projections. HST 722 – Speech Motor Control 26

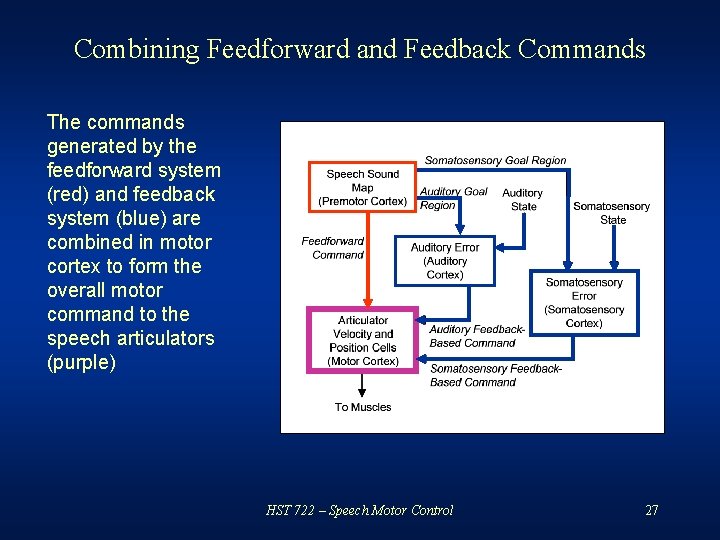

Combining Feedforward and Feedback Commands The commands generated by the feedforward system (red) and feedback system (blue) are combined in motor cortex to form the overall motor command to the speech articulators (purple) HST 722 – Speech Motor Control 27

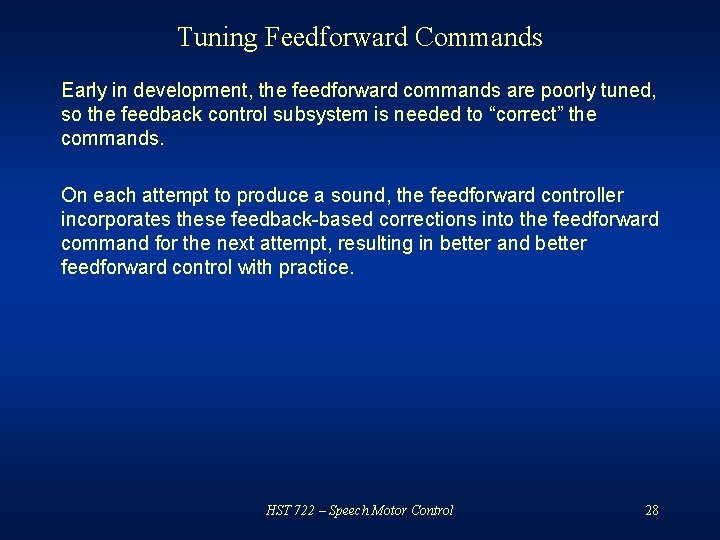

Tuning Feedforward Commands Early in development, the feedforward commands are poorly tuned, so the feedback control subsystem is needed to “correct” the commands. On each attempt to produce a sound, the feedforward controller incorporates these feedback-based corrections into the feedforward command for the next attempt, resulting in better and better feedforward control with practice. HST 722 – Speech Motor Control 28

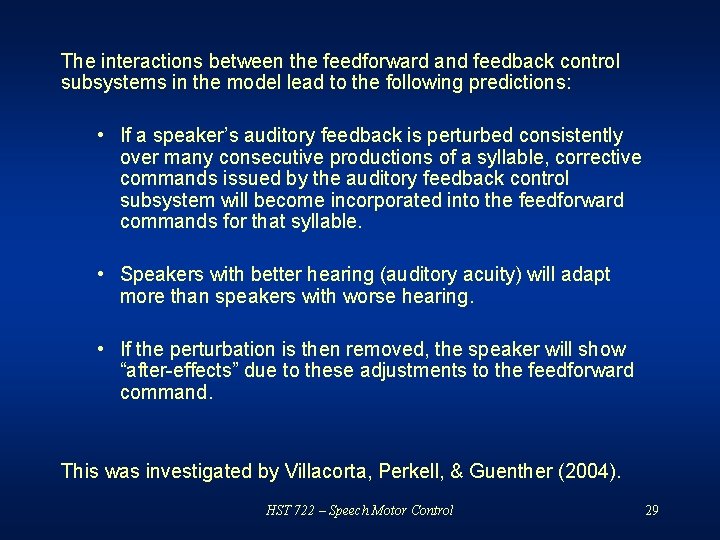

The interactions between the feedforward and feedback control subsystems in the model lead to the following predictions: • If a speaker’s auditory feedback is perturbed consistently over many consecutive productions of a syllable, corrective commands issued by the auditory feedback control subsystem will become incorporated into the feedforward commands for that syllable. • Speakers with better hearing (auditory acuity) will adapt more than speakers with worse hearing. • If the perturbation is then removed, the speaker will show “after-effects” due to these adjustments to the feedforward command. This was investigated by Villacorta, Perkell, & Guenther (2004). HST 722 – Speech Motor Control 29

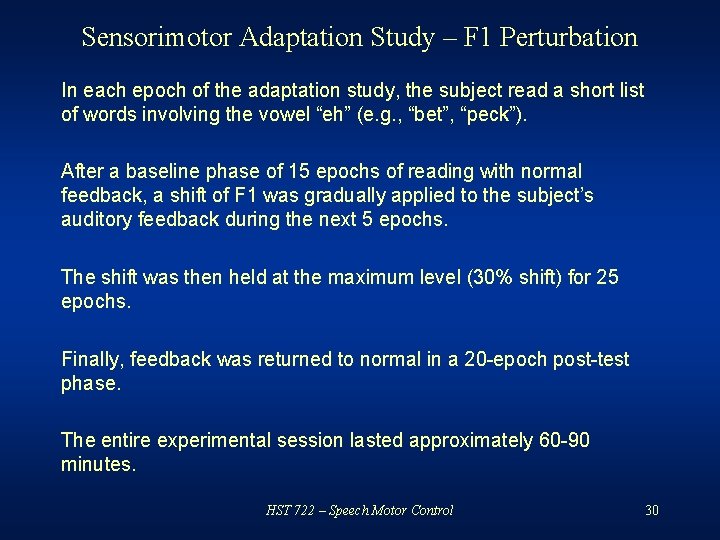

Sensorimotor Adaptation Study – F 1 Perturbation In each epoch of the adaptation study, the subject read a short list of words involving the vowel “eh” (e. g. , “bet”, “peck”). After a baseline phase of 15 epochs of reading with normal feedback, a shift of F 1 was gradually applied to the subject’s auditory feedback during the next 5 epochs. The shift was then held at the maximum level (30% shift) for 25 epochs. Finally, feedback was returned to normal in a 20 -epoch post-test phase. The entire experimental session lasted approximately 60 -90 minutes. HST 722 – Speech Motor Control 30

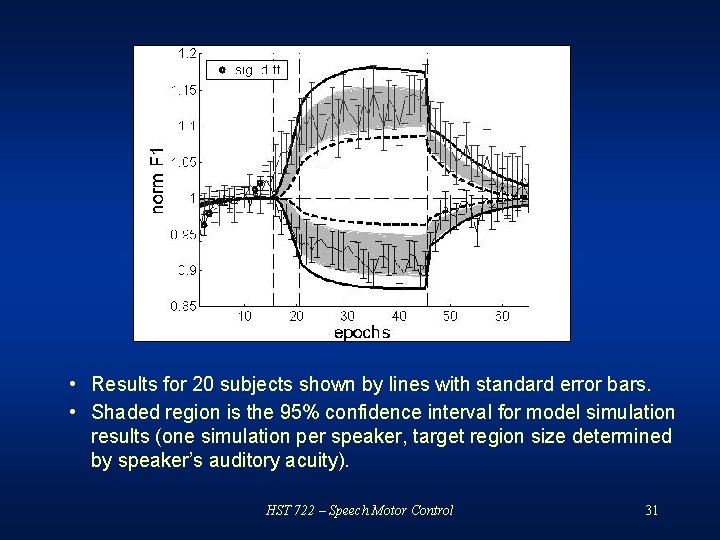

• Results for 20 subjects shown by lines with standard error bars. • Shaded region is the 95% confidence interval for model simulation results (one simulation per speaker, target region size determined by speaker’s auditory acuity). HST 722 – Speech Motor Control 31

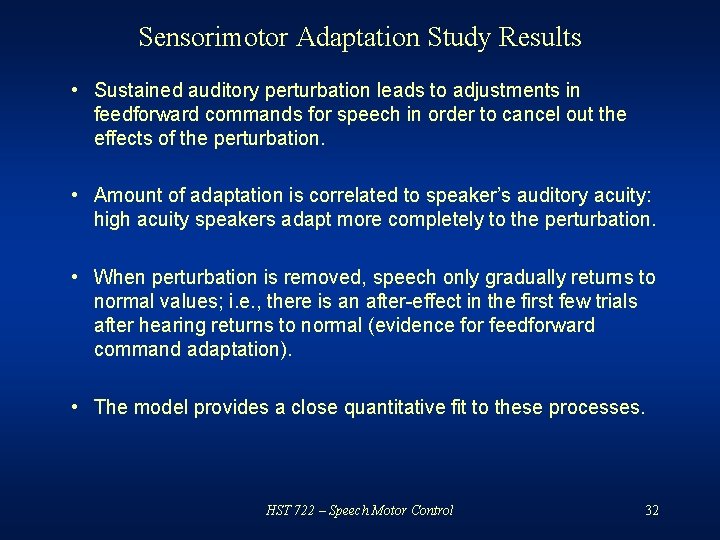

Sensorimotor Adaptation Study Results • Sustained auditory perturbation leads to adjustments in feedforward commands for speech in order to cancel out the effects of the perturbation. • Amount of adaptation is correlated to speaker’s auditory acuity: high acuity speakers adapt more completely to the perturbation. • When perturbation is removed, speech only gradually returns to normal values; i. e. , there is an after-effect in the first few trials after hearing returns to normal (evidence for feedforward command adaptation). • The model provides a close quantitative fit to these processes. HST 722 – Speech Motor Control 32

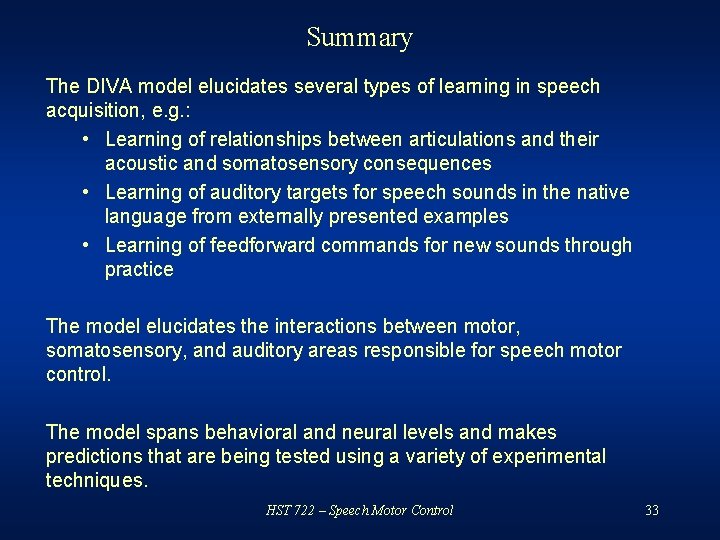

Summary The DIVA model elucidates several types of learning in speech acquisition, e. g. : • Learning of relationships between articulations and their acoustic and somatosensory consequences • Learning of auditory targets for speech sounds in the native language from externally presented examples • Learning of feedforward commands for new sounds through practice The model elucidates the interactions between motor, somatosensory, and auditory areas responsible for speech motor control. The model spans behavioral and neural levels and makes predictions that are being tested using a variety of experimental techniques. HST 722 – Speech Motor Control 33

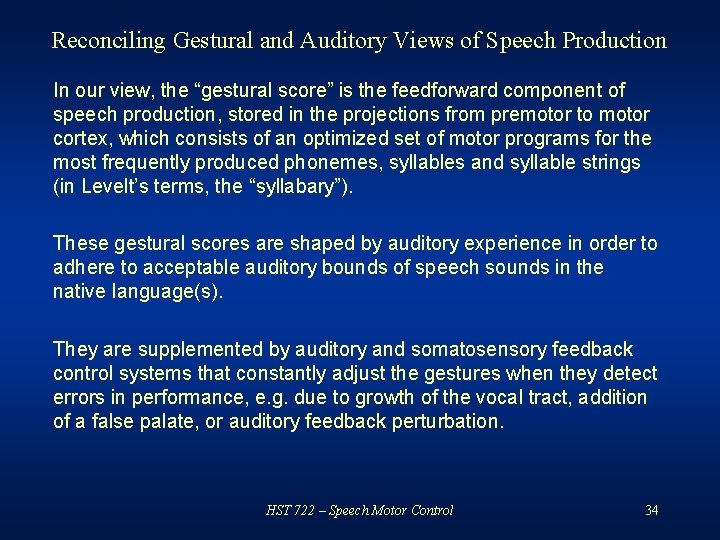

Reconciling Gestural and Auditory Views of Speech Production In our view, the “gestural score” is the feedforward component of speech production, stored in the projections from premotor to motor cortex, which consists of an optimized set of motor programs for the most frequently produced phonemes, syllables and syllable strings (in Levelt’s terms, the “syllabary”). These gestural scores are shaped by auditory experience in order to adhere to acceptable auditory bounds of speech sounds in the native language(s). They are supplemented by auditory and somatosensory feedback control systems that constantly adjust the gestures when they detect errors in performance, e. g. due to growth of the vocal tract, addition of a false palate, or auditory feedback perturbation. HST 722 – Speech Motor Control 34

Collaborators Alfonso Nieto. Castanon Satrajit Ghosh Jason Tourville Kevin Reilly Oren Civier Jonathan Brumberg Jason Bohland Michelle Hampson Joseph Perkell Majid Zandipour Virgilio Villacorta Melanie Matthies Shinji Maeda Supported by NSF and NIDCD HST 722 – Speech Motor Control 35

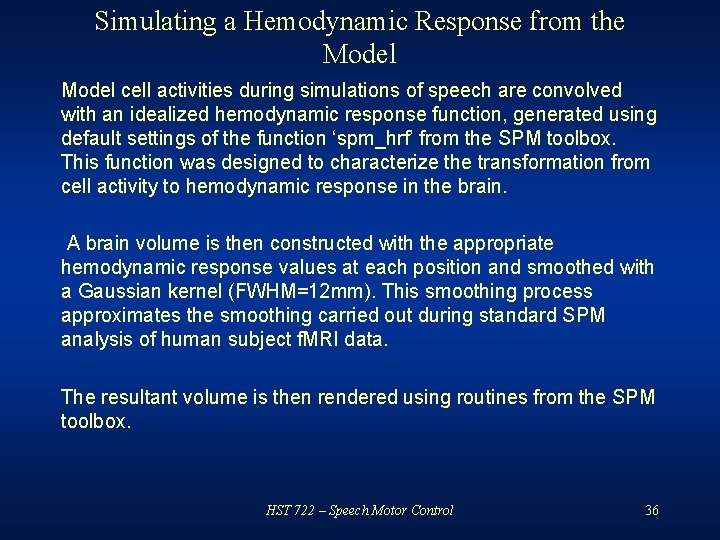

Simulating a Hemodynamic Response from the Model cell activities during simulations of speech are convolved with an idealized hemodynamic response function, generated using default settings of the function ‘spm_hrf’ from the SPM toolbox. This function was designed to characterize the transformation from cell activity to hemodynamic response in the brain. A brain volume is then constructed with the appropriate hemodynamic response values at each position and smoothed with a Gaussian kernel (FWHM=12 mm). This smoothing process approximates the smoothing carried out during standard SPM analysis of human subject f. MRI data. The resultant volume is then rendered using routines from the SPM toolbox. HST 722 – Speech Motor Control 36

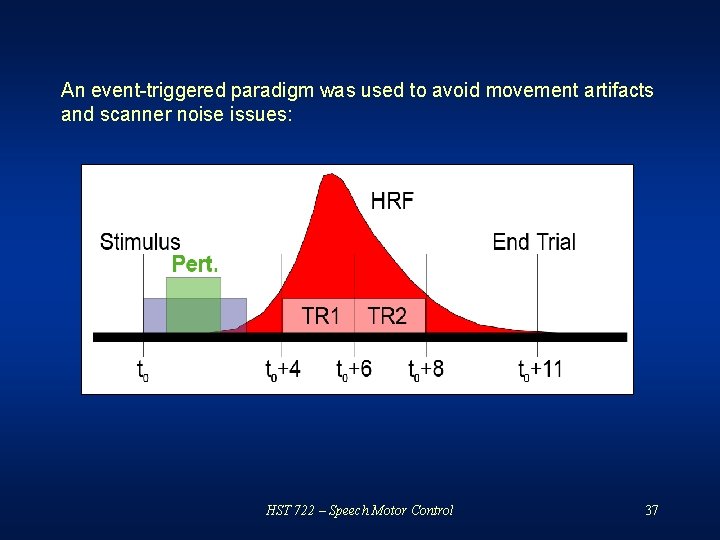

An event-triggered paradigm was used to avoid movement artifacts and scanner noise issues: HST 722 – Speech Motor Control 37

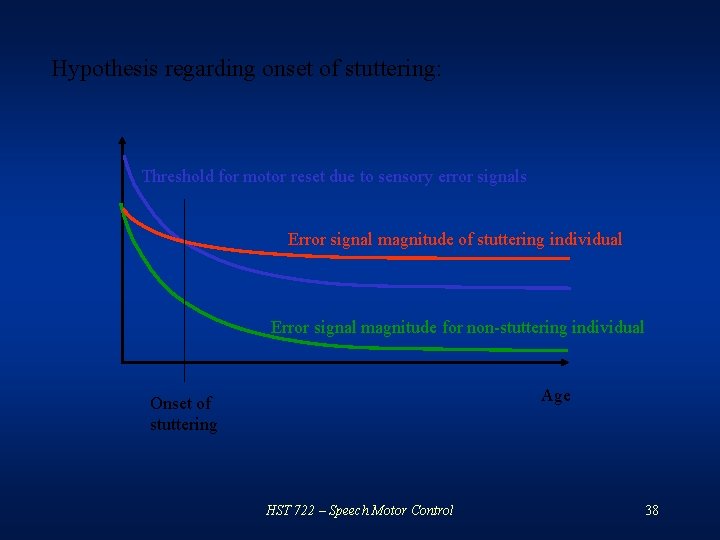

Hypothesis regarding onset of stuttering: Threshold for motor reset due to sensory error signals Error signal magnitude of stuttering individual Error signal magnitude for non-stuttering individual Age Onset of stuttering HST 722 – Speech Motor Control 38

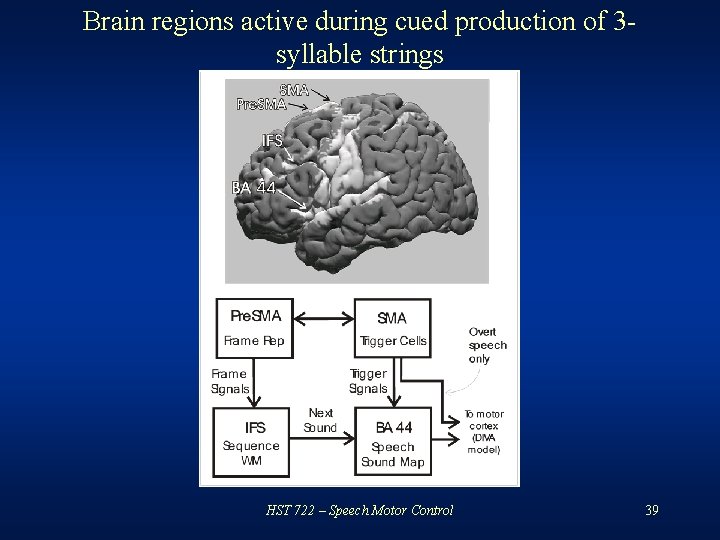

Brain regions active during cued production of 3 syllable strings HST 722 – Speech Motor Control 39

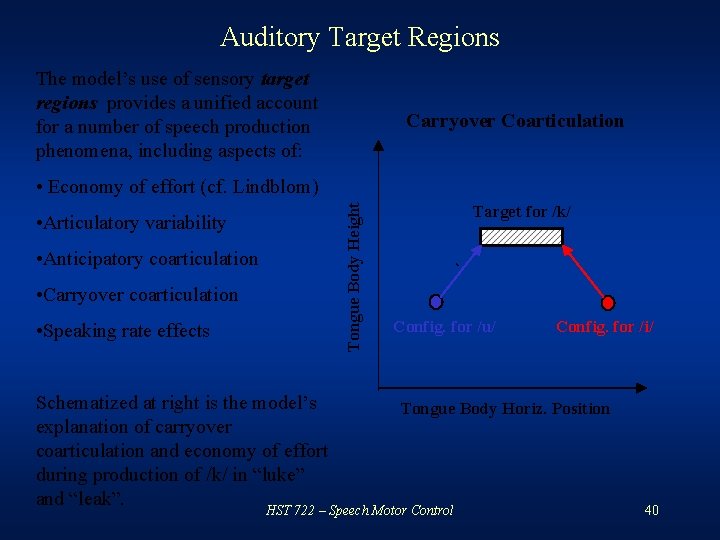

Auditory Target Regions The model’s use of sensory target regions provides a unified account for a number of speech production phenomena, including aspects of: Carryover Coarticulation • Articulatory variability • Anticipatory coarticulation • Carryover coarticulation • Speaking rate effects Tongue Body Height • Economy of effort (cf. Lindblom) Target for /k/ Config. for /u/ Config. for /i/ Schematized at right is the model’s Tongue Body Horiz. Position explanation of carryover coarticulation and economy of effort during production of /k/ in “luke” and “leak”. HST 722 – Speech Motor Control 40

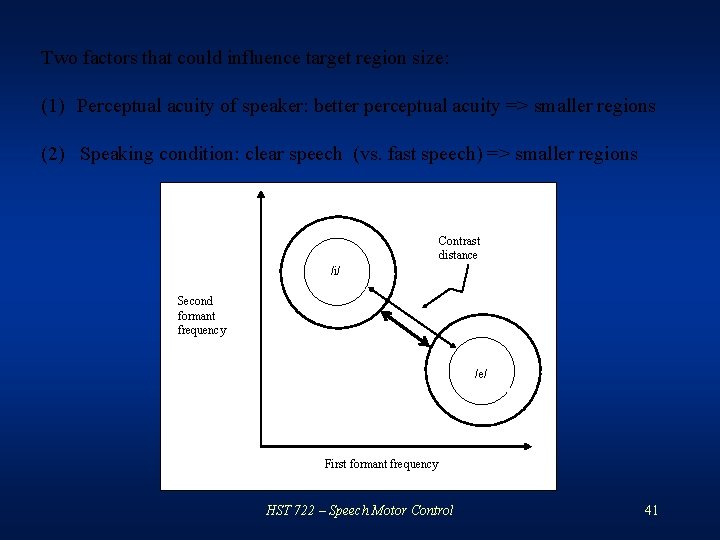

Two factors that could influence target region size: (1) Perceptual acuity of speaker: better perceptual acuity => smaller regions (2) Speaking condition: clear speech (vs. fast speech) => smaller regions Contrast distance /i/ Second formant frequency /e/ First formant frequency HST 722 – Speech Motor Control 41

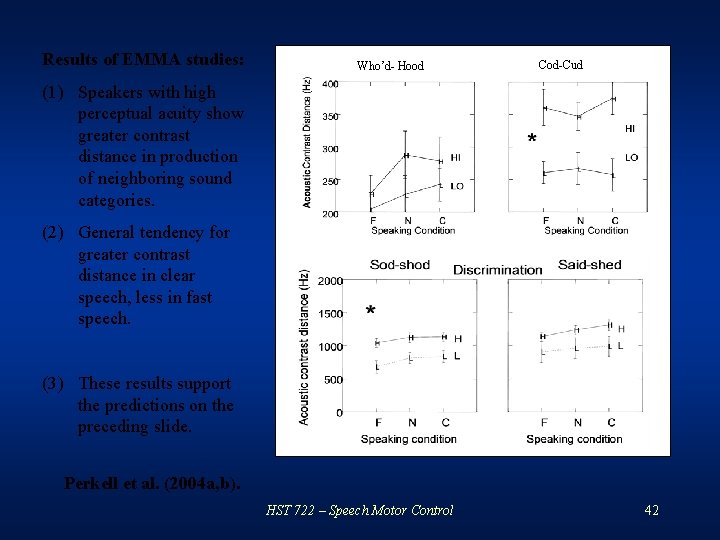

Results of EMMA studies: Who’d- Hood Cod-Cud (1) Speakers with high perceptual acuity show greater contrast distance in production of neighboring sound categories. (2) General tendency for greater contrast distance in clear speech, less in fast speech. (3) These results support the predictions on the preceding slide. Perkell et al. (2004 a, b). HST 722 – Speech Motor Control 42

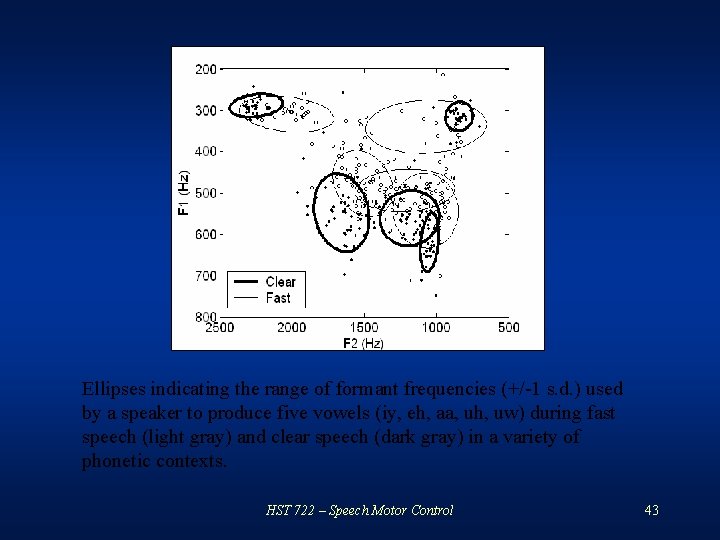

Ellipses indicating the range of formant frequencies (+/-1 s. d. ) used by a speaker to produce five vowels (iy, eh, aa, uh, uw) during fast speech (light gray) and clear speech (dark gray) in a variety of phonetic contexts. HST 722 – Speech Motor Control 43

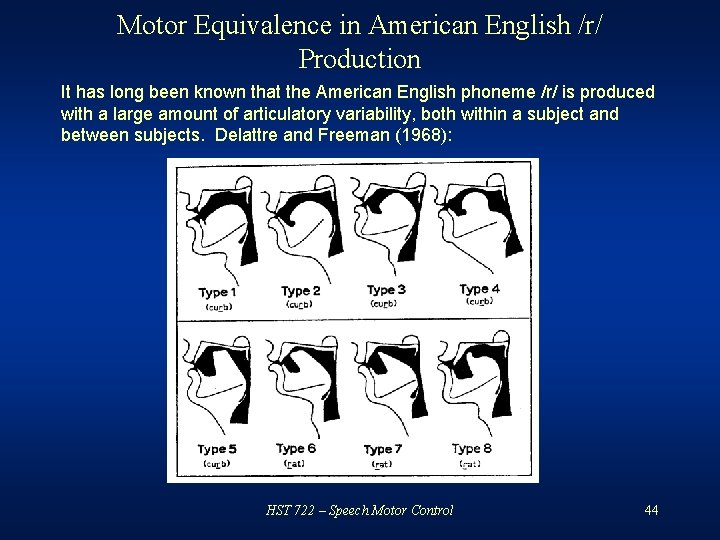

Motor Equivalence in American English /r/ Production It has long been known that the American English phoneme /r/ is produced with a large amount of articulatory variability, both within a subject and between subjects. Delattre and Freeman (1968): HST 722 – Speech Motor Control 44

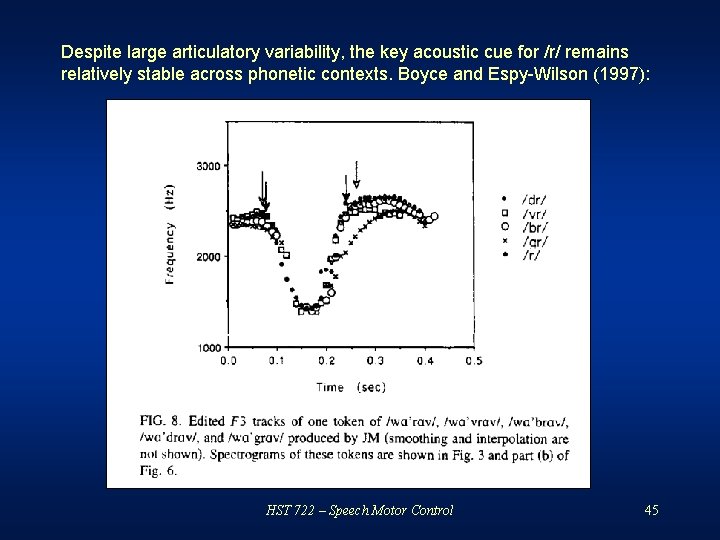

Despite large articulatory variability, the key acoustic cue for /r/ remains relatively stable across phonetic contexts. Boyce and Espy-Wilson (1997): HST 722 – Speech Motor Control 45

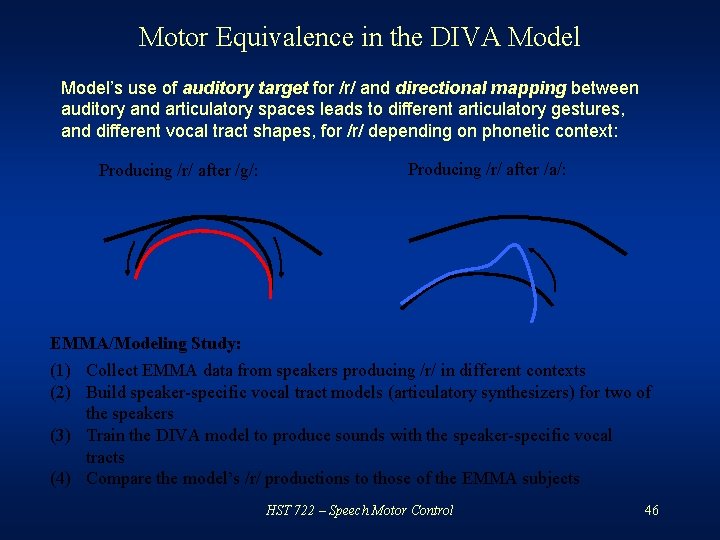

Motor Equivalence in the DIVA Model’s use of auditory target for /r/ and directional mapping between auditory and articulatory spaces leads to different articulatory gestures, and different vocal tract shapes, for /r/ depending on phonetic context: Producing /r/ after /g/: Producing /r/ after /a/: EMMA/Modeling Study: (1) Collect EMMA data from speakers producing /r/ in different contexts (2) Build speaker-specific vocal tract models (articulatory synthesizers) for two of the speakers (3) Train the DIVA model to produce sounds with the speaker-specific vocal tracts (4) Compare the model’s /r/ productions to those of the EMMA subjects HST 722 – Speech Motor Control 46

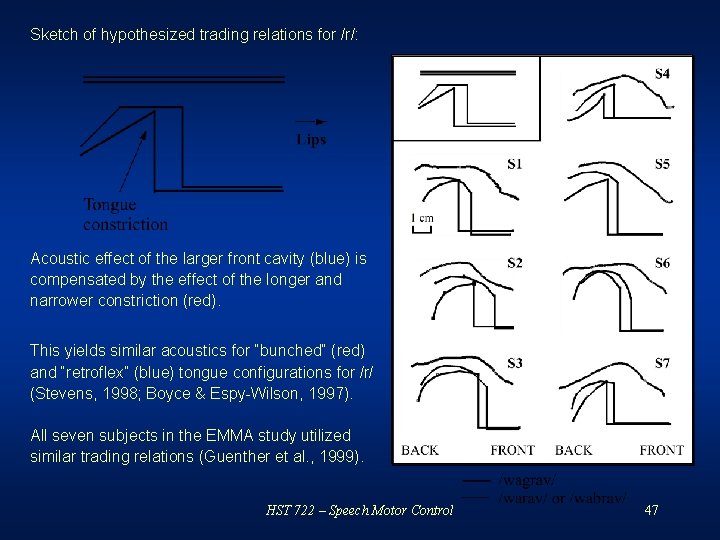

Sketch of hypothesized trading relations for /r/: Acoustic effect of the larger front cavity (blue) is compensated by the effect of the longer and narrower constriction (red). This yields similar acoustics for “bunched” (red) and “retroflex” (blue) tongue configurations for /r/ (Stevens, 1998; Boyce & Espy-Wilson, 1997). All seven subjects in the EMMA study utilized similar trading relations (Guenther et al. , 1999). HST 722 – Speech Motor Control 47

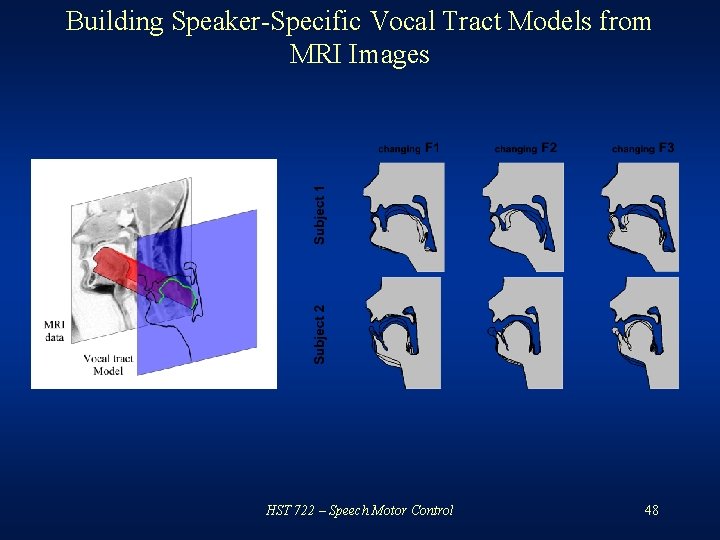

Building Speaker-Specific Vocal Tract Models from MRI Images HST 722 – Speech Motor Control 48

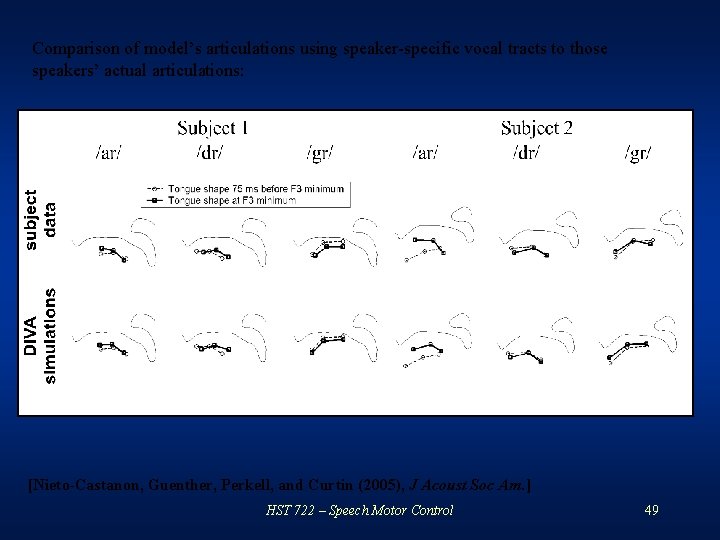

Comparison of model’s articulations using speaker-specific vocal tracts to those speakers’ actual articulations: [Nieto-Castanon, Guenther, Perkell, and Curtin (2005), J Acoust Soc Am. ] HST 722 – Speech Motor Control 49

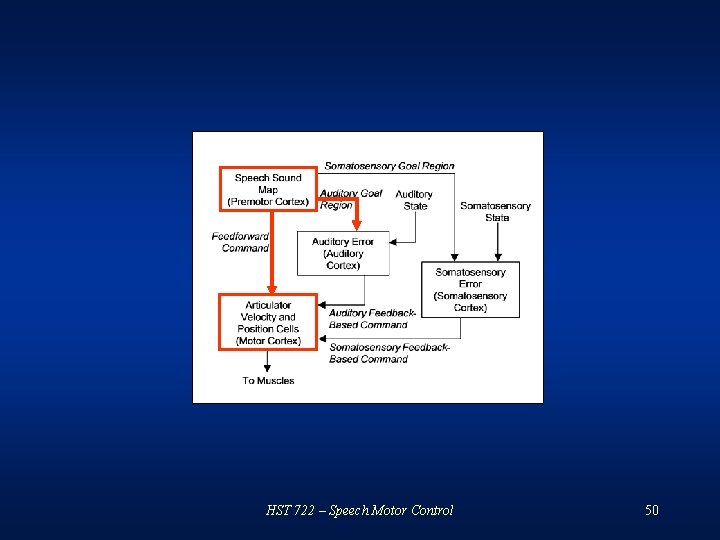

HST 722 – Speech Motor Control 50
