ASSEMBLY LANGUAGE Introduction of Assembly Language Introduction Assembly
![ASSEMBLY LANGUAGE Introduction of Assembly Language ASSEMBLY LANGUAGE Introduction of Assembly Language](https://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-1.jpg)
ASSEMBLY LANGUAGE Introduction of Assembly Language
![Introduction Assembly Introduction Assembly](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-2.jpg)
Introduction Assembly
![Content q Course Description q Basic Concepts of Assembly Language v. Welcome to Assembly Content q Course Description q Basic Concepts of Assembly Language v. Welcome to Assembly](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-3.jpg)
Content q Course Description q Basic Concepts of Assembly Language v. Welcome to Assembly Language v. Virtual Machine Concept v. Data Representation v. Boolean Operations

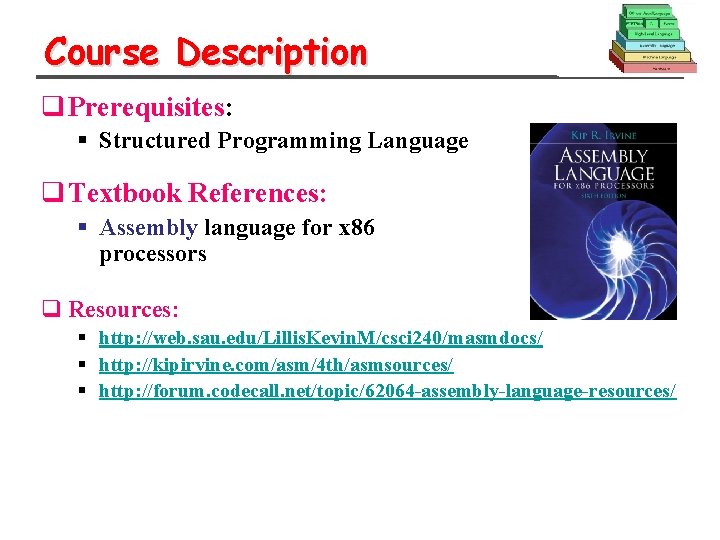

![Course Description q Prerequisites: § Structured Programming Language q Textbook References: § Assembly language Course Description q Prerequisites: § Structured Programming Language q Textbook References: § Assembly language](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-4.jpg)
Course Description q Prerequisites: § Structured Programming Language q Textbook References: § Assembly language for x 86 processors q Resources: § http: //web. sau. edu/Lillis. Kevin. M/csci 240/masmdocs/ § http: //kipirvine. com/asm/4 th/asmsources/ § http: //forum. codecall. net/topic/62064 -assembly-language-resources/
![Course Description q Grading : • Final Exam • Year work • Oral • Course Description q Grading : • Final Exam • Year work • Oral •](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-5.jpg)
Course Description q Grading : • Final Exam • Year work • Oral • Laboratory and Practice • Sum 65 10 10 15 100 q Timing: • Lecture • Practice • Exam 3 2 3
![Content q Course Description q Basic Concepts of Assembly Language v. Welcome to Assembly Content q Course Description q Basic Concepts of Assembly Language v. Welcome to Assembly](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-6.jpg)
Content q Course Description q Basic Concepts of Assembly Language v. Welcome to Assembly Language v. Virtual Machine Concept v. Data Representation v. Boolean Operations
![Basic Concepts q Welcome to Assembly Language § Some Good Questions to Ask q Basic Concepts q Welcome to Assembly Language § Some Good Questions to Ask q](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-7.jpg)
Basic Concepts q Welcome to Assembly Language § Some Good Questions to Ask q Virtual Machine Concept q Data Representation q Boolean Operations
![Welcome to Assembly Language q Some Good Questions to Ask § What is Assembly Welcome to Assembly Language q Some Good Questions to Ask § What is Assembly](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-8.jpg)
Welcome to Assembly Language q Some Good Questions to Ask § What is Assembly Language? § Why Learn Assembly Language? § What is Machine Language? § How is Assembly related to Machine Language? § What is an Assembler? Assembler § How is Assembly related to High-Level Language? § Is Assembly Language portable?
![What is Assembly Language? § A low-level processor-specific programming language design to match the What is Assembly Language? § A low-level processor-specific programming language design to match the](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-9.jpg)
What is Assembly Language? § A low-level processor-specific programming language design to match the processor’s machine instruction set. § Each assembly language instruction matches exactly one machine language instruction. § We will focus Instructions. on Intel based Assembly § It covers many different versions of CPUs that followed, from Intel; the 80188, 80186, 80286, 80386, 80486, Pentium Pro, and so on. § It describes the basics of 32 -bit assembly language programming.
![What is Assembly Language? § A Hierarchy of Languages What is Assembly Language? § A Hierarchy of Languages](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-10.jpg)
What is Assembly Language? § A Hierarchy of Languages
![Why Learn Assembly Language? § To learn how high-level language code gets translated into Why Learn Assembly Language? § To learn how high-level language code gets translated into](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-11.jpg)
Why Learn Assembly Language? § To learn how high-level language code gets translated into machine language. § To learn the computer’s hardware by direct access to memory, video controller, sound card, keyboard… § To speed up applications by direct access to hardware.
![What is Machine Language ML? § Machine languages are lowest-level programming language and are What is Machine Language ML? § Machine languages are lowest-level programming language and are](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-12.jpg)
What is Machine Language ML? § Machine languages are lowest-level programming language and are the only languages understood by computers without translation. § While easily understood by computers, machine languages are almost impossible for humans because they consist entirely of binary digits. § Every CPU has its own specific machine language.
![What is Machine Language ML? § Each ML instruction contains an op code (operation What is Machine Language ML? § Each ML instruction contains an op code (operation](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-13.jpg)
What is Machine Language ML? § Each ML instruction contains an op code (operation code) and zero or more operands. § Examples: Opcode Operand Meaning ---------------------40 05 0005 increment the AX register add 0005 to AX The accumulator. General-purpose register.
![How is Assembly related to Machine Language? § Machine language Ø Native to a How is Assembly related to Machine Language? § Machine language Ø Native to a](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-14.jpg)
How is Assembly related to Machine Language? § Machine language Ø Native to a processor: executed directly by hardware Ø Instructions consist of binary code: 1 s and 0 s § Assembly language Ø Slightly higher-level language Ø Readability of instructions is better than machine language Ø One-to-one correspondence with machine language instructions § Assemblers translate assembly to machine code § Compilers translate high-level programs to machine code Ø Either directly, or Ø Indirectly via an assembler
![What is an Assembler? § An assembler is a type of computer program that What is an Assembler? § An assembler is a type of computer program that](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-15.jpg)
What is an Assembler? § An assembler is a type of computer program that interprets software programs written in assembly language into machine language, code and instructions that can be executed by a computer. § For Example, MASM (Macro Assembler from Microsoft)
![How is Assembly related to High. Level Language? How is Assembly related to High. Level Language?](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-16.jpg)
How is Assembly related to High. Level Language?
![Basic Concepts q Welcome to Assembly Language § Some Good Questions to Ask § Basic Concepts q Welcome to Assembly Language § Some Good Questions to Ask §](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-17.jpg)
Basic Concepts q Welcome to Assembly Language § Some Good Questions to Ask § Assembly Language Applications q Virtual Machine Concept q Data Representation q Boolean Operations
![Virtual Machine Concept § A virtual machine (VM) is a software program or operating Virtual Machine Concept § A virtual machine (VM) is a software program or operating](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-18.jpg)
Virtual Machine Concept § A virtual machine (VM) is a software program or operating system that • exhibits the behavior of a separate computer. • is capable of performing tasks such as running applications and programs in a separate computer. § VM (virtual machine) is a layer of abstraction that gives a program one simplified interface for interacting with a variety of physical computers and their operating systems.
![Translating languages English: Display the sum of A times B plus C. C++: cout Translating languages English: Display the sum of A times B plus C. C++: cout](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-19.jpg)
Translating languages English: Display the sum of A times B plus C. C++: cout << (A * B + C); Gener al gi st Data er Re Assembly Language: mov eax, A mul B add eax, C call Write. Intel Machine Language: A 1 F 7 03 E 8 0000 25 00000004 05 00000008 00500000
![Virtual machines Abstractions for computers Virtual machines Abstractions for computers](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-20.jpg)
Virtual machines Abstractions for computers
![High-level language q. Level 5 • Application-oriented languages • Programs are compiled into assembly High-level language q. Level 5 • Application-oriented languages • Programs are compiled into assembly](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-21.jpg)
High-level language q. Level 5 • Application-oriented languages • Programs are compiled into assembly language (Level 4) cout << (A * B + C);
![Assembly language q. Level 4 • Instruction mnemonics that have a one-to-one correspondence to Assembly language q. Level 4 • Instruction mnemonics that have a one-to-one correspondence to](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-22.jpg)
Assembly language q. Level 4 • Instruction mnemonics that have a one-to-one correspondence to machine language • Calls functions written at the operating system level (Level 3) • Programs are translated into machine language (Level 2) mov eax, A mul B add eax, C call Write. Int
![Operating system q. Level 3 • Provides services • Programs translated and run at Operating system q. Level 3 • Provides services • Programs translated and run at](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-23.jpg)
Operating system q. Level 3 • Provides services • Programs translated and run at the instruction set architecture level (Level 2)
![Instruction set architecture q. Level 2 • Also known as conventional machine language • Instruction set architecture q. Level 2 • Also known as conventional machine language •](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-24.jpg)
Instruction set architecture q. Level 2 • Also known as conventional machine language • Executed by Level 1 program (microarchitecture, Level 1) A 1 F 7 03 E 8 0000 25 00000004 05 00000008 00500000
![Micro-architecture q. Level 1 • Interprets conventional machine instructions (Level 2) • Executed by Micro-architecture q. Level 1 • Interprets conventional machine instructions (Level 2) • Executed by](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-25.jpg)
Micro-architecture q. Level 1 • Interprets conventional machine instructions (Level 2) • Executed by digital hardware (Level 0)

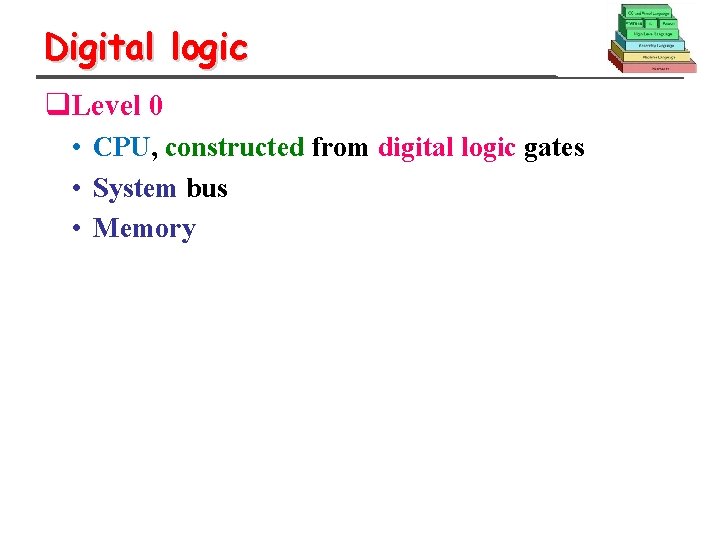

![Digital logic q. Level 0 • CPU, constructed from digital logic gates • System Digital logic q. Level 0 • CPU, constructed from digital logic gates • System](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-26.jpg)
Digital logic q. Level 0 • CPU, constructed from digital logic gates • System bus • Memory

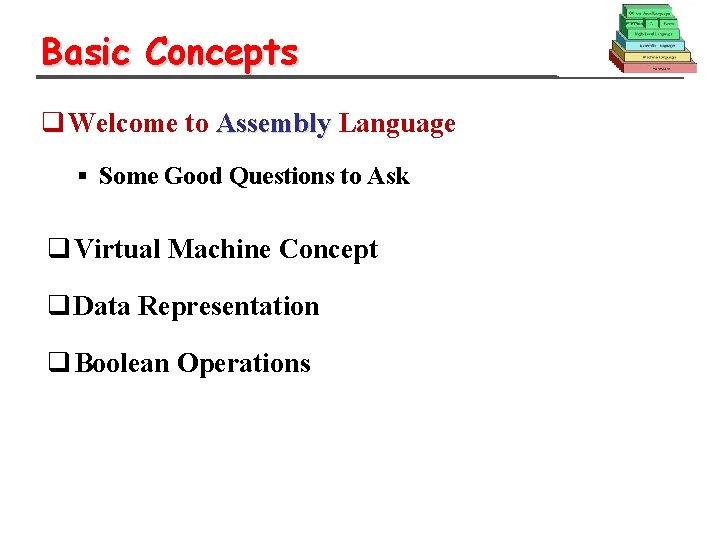

![Basic Concepts q Welcome to Assembly Language § Some Good Questions to Ask § Basic Concepts q Welcome to Assembly Language § Some Good Questions to Ask §](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-27.jpg)
Basic Concepts q Welcome to Assembly Language § Some Good Questions to Ask § Assembly Language Applications q Virtual Machine Concept q Data Representation q Boolean Operations
![Data representation • Computer is a construction of digital circuits with two states: on Data representation • Computer is a construction of digital circuits with two states: on](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-28.jpg)
Data representation • Computer is a construction of digital circuits with two states: on and off • You need to have the ability to translate between different representations to examine the content. • Common number systems: binary, octal, decimal and hexadecimal
![Binary representations • Electronic Implementation – Easy to store with bi-stable elements – Reliably Binary representations • Electronic Implementation – Easy to store with bi-stable elements – Reliably](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-29.jpg)
Binary representations • Electronic Implementation – Easy to store with bi-stable elements – Reliably transmitted on noisy and inaccurate wires 0 3. 3 V 2. 8 V 0. 5 V 0. 0 V 1 0
![Binary numbers • Digits are 1 and 0 (a binary digit is called a Binary numbers • Digits are 1 and 0 (a binary digit is called a](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-30.jpg)
Binary numbers • Digits are 1 and 0 (a binary digit is called a bit) 1 = true 0 = false • MSB –most significant bit • LSB –least significant bit • Bit numbering: • A bit string could have different interpretations
![Unsigned binary integers • Each digit (bit) is either 1 or 0 • Each Unsigned binary integers • Each digit (bit) is either 1 or 0 • Each](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-31.jpg)
Unsigned binary integers • Each digit (bit) is either 1 or 0 • Each bit represents a power of 2: Every binary number is a sum of powers of 2
![Translating binary to decimal • Weighted positional notation shows how to calculate the decimal Translating binary to decimal • Weighted positional notation shows how to calculate the decimal](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-32.jpg)
Translating binary to decimal • Weighted positional notation shows how to calculate the decimal value (Dec) of each binary bit: dec = (Dn-1 2 n-1) + (Dn-2 2 n-2) +. . . + (D 1 21) + (D 0 20) D = binary digit binary 00001001 = decimal 9: (1 23) + (1 20) = 9
![Translating unsigned decimal to binary • Repeatedly divide the decimal integer by 2. Each Translating unsigned decimal to binary • Repeatedly divide the decimal integer by 2. Each](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-33.jpg)
Translating unsigned decimal to binary • Repeatedly divide the decimal integer by 2. Each remainder is a binary digit in the translated value: 37 = 100101
![Binary addition • Starting with the LSB, add each pair of digits, include the Binary addition • Starting with the LSB, add each pair of digits, include the](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-34.jpg)
Binary addition • Starting with the LSB, add each pair of digits, include the carry if present.
![Integer storage sizes Standard sizes: Practice: What is the largest unsigned integer that may Integer storage sizes Standard sizes: Practice: What is the largest unsigned integer that may](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-35.jpg)
Integer storage sizes Standard sizes: Practice: What is the largest unsigned integer that may be stored in 20 bits?
![Large measurements • Kilobyte (KB), bytes • Megabyte (MB), bytes • Gigabyte (GB), bytes Large measurements • Kilobyte (KB), bytes • Megabyte (MB), bytes • Gigabyte (GB), bytes](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-36.jpg)
Large measurements • Kilobyte (KB), bytes • Megabyte (MB), bytes • Gigabyte (GB), bytes • Terabyte (TB), bytes • Petabyte, bytes • Exabyte, bytes • Zettabyte, bytes • Yottabyte, bytes

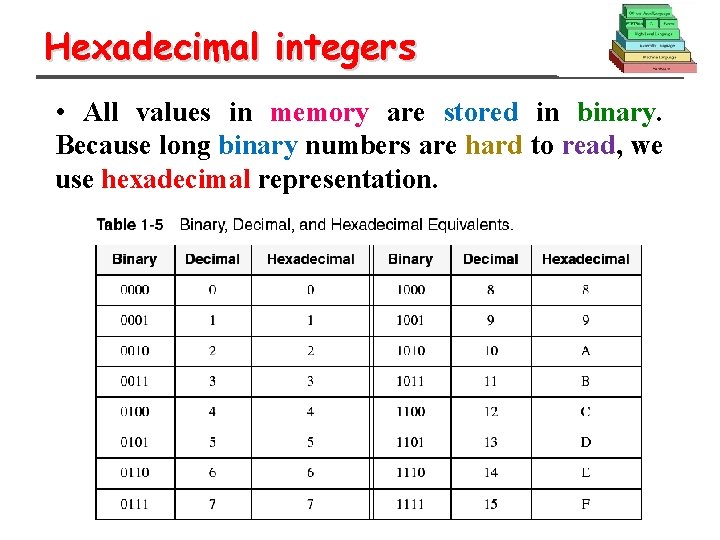

![Hexadecimal integers • All values in memory are stored in binary. Because long binary Hexadecimal integers • All values in memory are stored in binary. Because long binary](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-37.jpg)
Hexadecimal integers • All values in memory are stored in binary. Because long binary numbers are hard to read, we use hexadecimal representation.
![Translating binary to hexadecimal • Each hexadecimal digit corresponds to 4 binary bits. • Translating binary to hexadecimal • Each hexadecimal digit corresponds to 4 binary bits. •](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-38.jpg)
Translating binary to hexadecimal • Each hexadecimal digit corresponds to 4 binary bits. • Example: Translate the binary integer 000101101010011110010100 to hexadecimal:
![Converting hexadecimal to decimal • Multiply each digit by its corresponding power of 16: Converting hexadecimal to decimal • Multiply each digit by its corresponding power of 16:](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-39.jpg)
Converting hexadecimal to decimal • Multiply each digit by its corresponding power of 16: dec = (D 3 163) + (D 2 162) + (D 1 161) + (D 0 160) Examples: • Hex 1234 = (1 163) + (2 162) + (3 161) + (4 160) = decimal 4, 660. • Hex 3 BA 4 = (3 163) + (11 * 162) + (10 161) + (4 160) = decimal 15, 268.
![Converting decimal to hexadecimal 422 = 1 A 6 hexadecimal Converting decimal to hexadecimal 422 = 1 A 6 hexadecimal](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-40.jpg)
Converting decimal to hexadecimal 422 = 1 A 6 hexadecimal
![Hexadecimal addition • Divide the sum of two digits by the number base (16). Hexadecimal addition • Divide the sum of two digits by the number base (16).](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-41.jpg)
Hexadecimal addition • Divide the sum of two digits by the number base (16). The quotient becomes the carry value, and the remainder is the sum digit. 36 42 78 28 45 6 D 1 28 58 80 1 6 A 4 B B 5 Important skill: Programmers frequently add and subtract the addresses of variables and instructions.
![Hexadecimal subtraction • When a borrow is required from the digit to the left, Hexadecimal subtraction • When a borrow is required from the digit to the left,](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-42.jpg)
Hexadecimal subtraction • When a borrow is required from the digit to the left, add 10 h to the current digit's value: -1 C 6 A 2 24 75 47 2 E Practice: The address of var 1 is 00400020. The address of the next variable after var 1 is 0040006 A. How many bytes are used by var 1?
![Signed integers • The highest bit indicates the sign. 1 = negative, 0 = Signed integers • The highest bit indicates the sign. 1 = negative, 0 =](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-43.jpg)
Signed integers • The highest bit indicates the sign. 1 = negative, 0 = positive If the highest digit of a hexadecimal integer is > 7, the value is negative. Examples: 8 A, C 5, A 2, 9 D
![Two's complement notation For Binary Steps: – Complement (reverse) each bit – Add 1 Two's complement notation For Binary Steps: – Complement (reverse) each bit – Add 1](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-44.jpg)
Two's complement notation For Binary Steps: – Complement (reverse) each bit – Add 1 Note that 00000001 + 1111 = 0000
![Hexadecimal Two’s Complement Steps: – Complement (reverse) each digit (to reverse the bits of Hexadecimal Two’s Complement Steps: – Complement (reverse) each digit (to reverse the bits of](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-45.jpg)
Hexadecimal Two’s Complement Steps: – Complement (reverse) each digit (to reverse the bits of a hexadecimal digit is to subtract the digit from 15. ) – Add 1

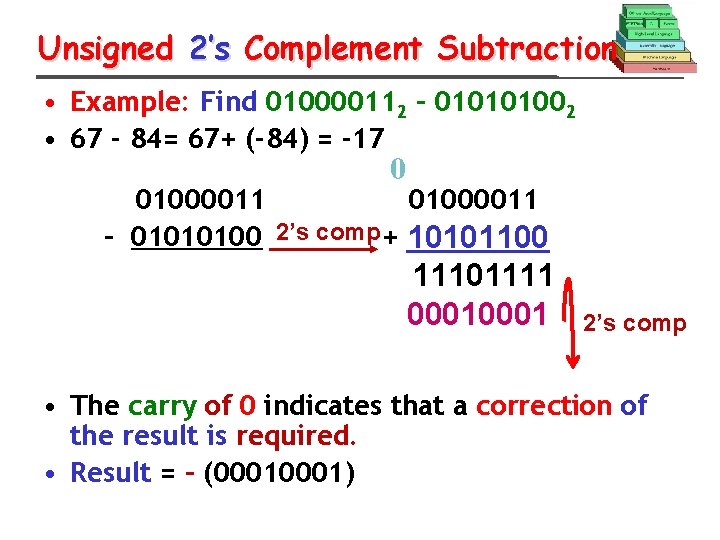

![Unsigned 2’s Complement Subtraction • Example: Find 0101 01002 – 0100 00112 • 84 Unsigned 2’s Complement Subtraction • Example: Find 0101 01002 – 0100 00112 • 84](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-46.jpg)
Unsigned 2’s Complement Subtraction • Example: Find 0101 01002 – 0100 00112 • 84 -67 = 84 +(-67) = 17 1 0100 0101 0100 – 0100 0011 +1011 1101 2’s comp 0001 • The carry of 1 indicates that no correction of the result is required.
![Unsigned 2’s Complement Subtraction • Example: Find 010000112 – 010101002 • 67 - 84= Unsigned 2’s Complement Subtraction • Example: Find 010000112 – 010101002 • 67 - 84=](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-47.jpg)
Unsigned 2’s Complement Subtraction • Example: Find 010000112 – 010101002 • 67 - 84= 67+ (-84) = -17 0 01000011 – 01010100 2’s comp + 10101100 11101111 0001 2’s comp • The carry of 0 indicates that a correction of the result is required. • Result = – (0001)

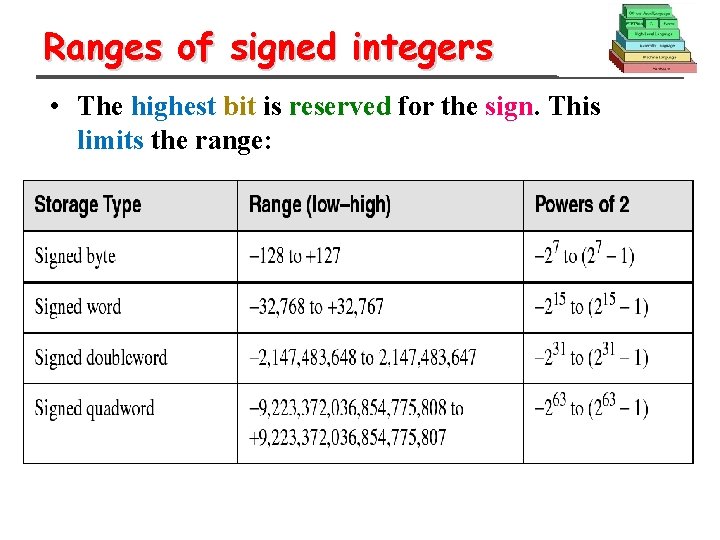

![Ranges of signed integers • The highest bit is reserved for the sign. This Ranges of signed integers • The highest bit is reserved for the sign. This](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-48.jpg)
Ranges of signed integers • The highest bit is reserved for the sign. This limits the range:
![Basic Concepts q Welcome to Assembly Language § Some Good Questions to Ask § Basic Concepts q Welcome to Assembly Language § Some Good Questions to Ask §](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-49.jpg)
Basic Concepts q Welcome to Assembly Language § Some Good Questions to Ask § Assembly Language Applications q Virtual Machine Concept q Data Representation q Boolean Operations
![Boolean algebra • Boolean expressions created from: – NOT, AND, OR Boolean algebra • Boolean expressions created from: – NOT, AND, OR](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-50.jpg)
Boolean algebra • Boolean expressions created from: – NOT, AND, OR
![NOT • Inverts (reverses) a Boolean value • Truth table for Boolean NOT operator: NOT • Inverts (reverses) a Boolean value • Truth table for Boolean NOT operator:](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-51.jpg)
NOT • Inverts (reverses) a Boolean value • Truth table for Boolean NOT operator: Digital gate diagram for NOT:
![AND • Truth if both are true • Truth table for Boolean AND operator: AND • Truth if both are true • Truth table for Boolean AND operator:](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-52.jpg)
AND • Truth if both are true • Truth table for Boolean AND operator: Digital gate diagram for AND:
![OR • True if either is true • Truth table for Boolean OR operator: OR • True if either is true • Truth table for Boolean OR operator:](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-53.jpg)
OR • True if either is true • Truth table for Boolean OR operator: Digital gate diagram for OR:
![Implementation of gates Implementation of gates](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-54.jpg)
Implementation of gates
![Operator Precedence • Examples showing the order of operations: Operator Precedence • Examples showing the order of operations:](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-55.jpg)
Operator Precedence • Examples showing the order of operations:
![Truth Tables (1 of 2) • A Boolean function has one or more Boolean Truth Tables (1 of 2) • A Boolean function has one or more Boolean](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-56.jpg)
Truth Tables (1 of 2) • A Boolean function has one or more Boolean inputs, and returns a single Boolean output. • A truth table shows all the inputs and outputs of a Boolean function Example: X Y
![Truth Tables (2 of 2) • Example: X Y Truth Tables (2 of 2) • Example: X Y](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-57.jpg)
Truth Tables (2 of 2) • Example: X Y
![Summary q Assembly language helps you learn how software is constructed at the lowest Summary q Assembly language helps you learn how software is constructed at the lowest](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-58.jpg)
Summary q Assembly language helps you learn how software is constructed at the lowest levels q Assembly language has a one-to-one relationship with machine language q Each layer in a computer's architecture is an abstraction of a machine § layers can be hardware or software q Boolean expressions are essential to the design of computer hardware and software

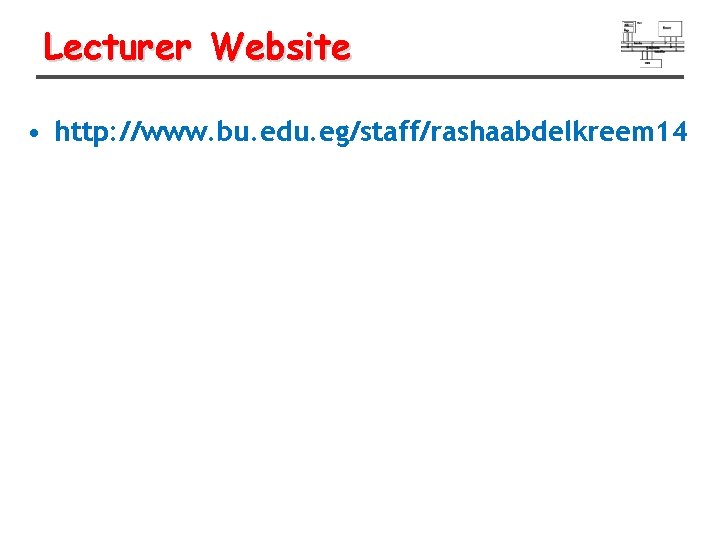

![Lecturer Website • http: //www. bu. edu. eg/staff/rashaabdelkreem 14 Lecturer Website • http: //www. bu. edu. eg/staff/rashaabdelkreem 14](http://slidetodoc.com/presentation_image_h/15f548dcfe0299de069ed75f73354a05/image-59.jpg)
Lecturer Website • http: //www. bu. edu. eg/staff/rashaabdelkreem 14
