MICROPROCESSOR AND ASSEMBLY LANGUAGE LECTURE4 INTRODUCTION TO ASSEMBLY

MICROPROCESSOR AND ASSEMBLY LANGUAGE LECTURE-4 -INTRODUCTION TO ASSEMBLY LANGUAGE PROGRAMMING WITH DEBUG UTILITY MUHAMMAD HAFEEZ DEPARTMENT OF COMPUTER SCIENCE GC UNIVERSITY LAHORE

TODAY’S AGENDA l l Introduction to Assembly Language Programming Debug Utility

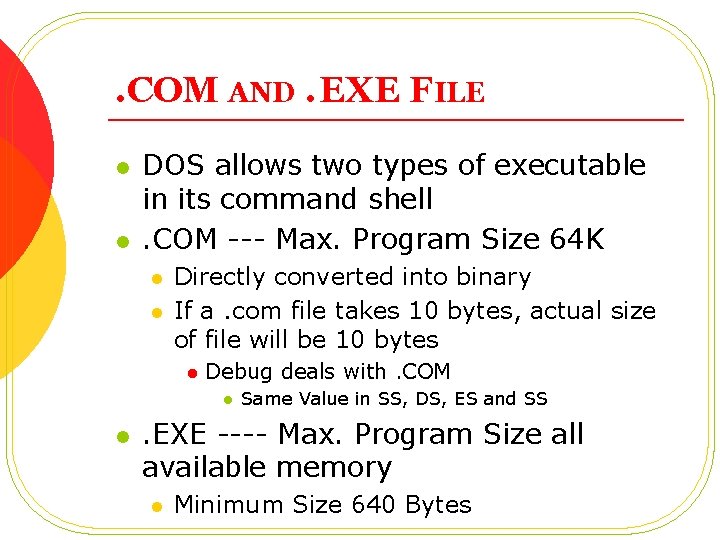

. COM AND. EXE FILE l l DOS allows two types of executable in its command shell. COM --- Max. Program Size 64 K l l Directly converted into binary If a. com file takes 10 bytes, actual size of file will be 10 bytes l Debug deals with. COM l l Same Value in SS, DS, ES and SS . EXE ---- Max. Program Size all available memory l Minimum Size 640 Bytes

. COM AND. EXE FILE

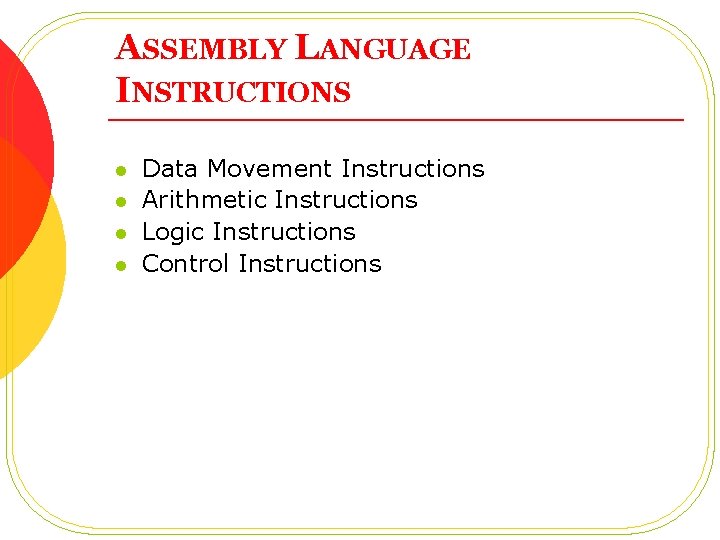

ASSEMBLY LANGUAGE INSTRUCTIONS l l Data Movement Instructions Arithmetic Instructions Logic Instructions Control Instructions

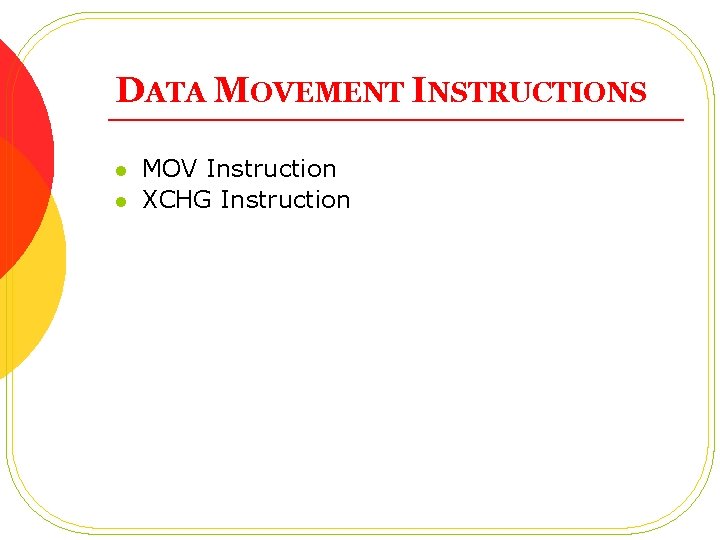

DATA MOVEMENT INSTRUCTIONS l l MOV Instruction XCHG Instruction

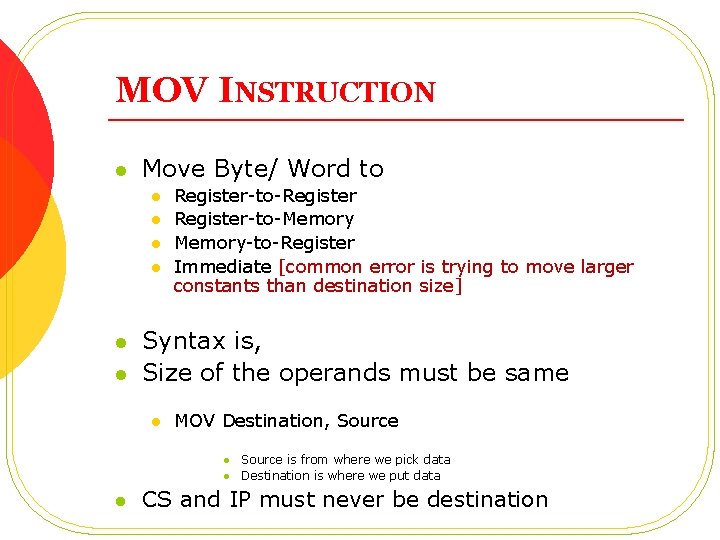

MOV INSTRUCTION l Move Byte/ Word to l l l Register-to-Register-to-Memory-to-Register Immediate [common error is trying to move larger constants than destination size] Syntax is, Size of the operands must be same l MOV Destination, Source l l l Source is from where we pick data Destination is where we put data CS and IP must never be destination

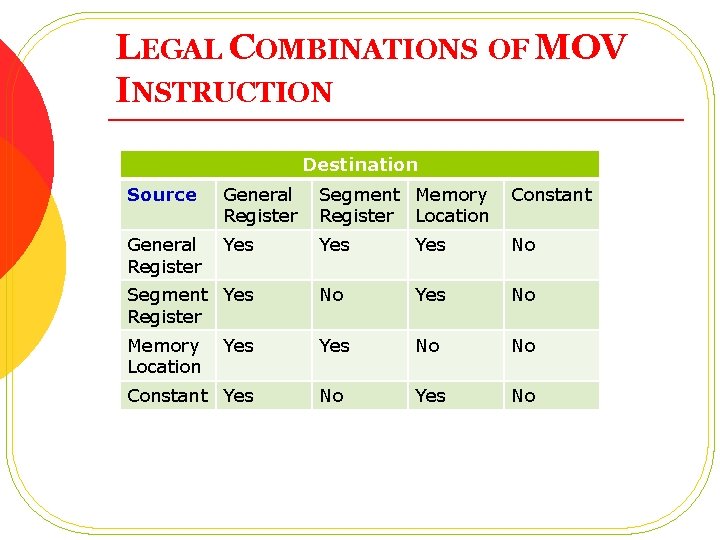

LEGAL COMBINATIONS OF MOV INSTRUCTION Destination Source General Register Segment Memory Register Location Constant General Register Yes Yes No Segment Yes Register No Yes No Memory Location Yes No No No Yes Constant Yes

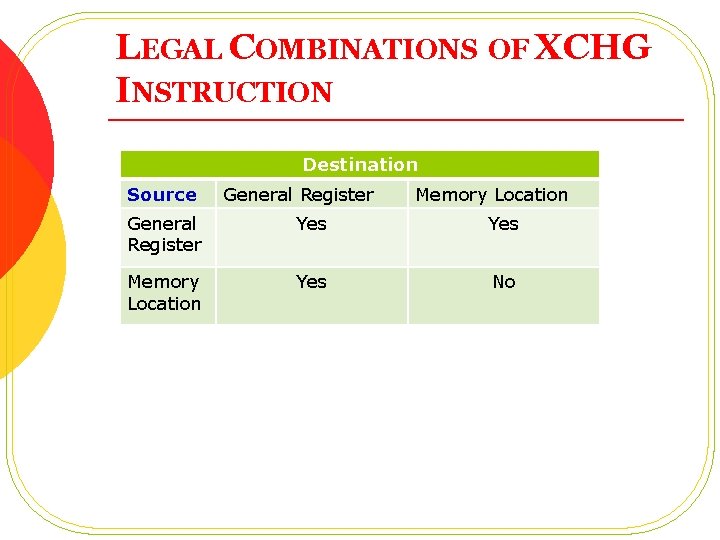

LEGAL COMBINATIONS OF XCHG INSTRUCTION Destination Source General Register Memory Location General Register Yes Memory Location Yes No

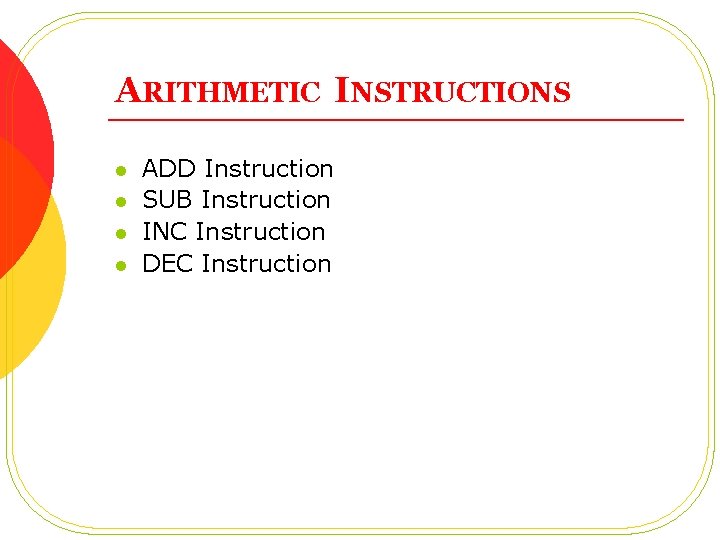

ARITHMETIC INSTRUCTIONS l l ADD Instruction SUB Instruction INC Instruction DEC Instruction

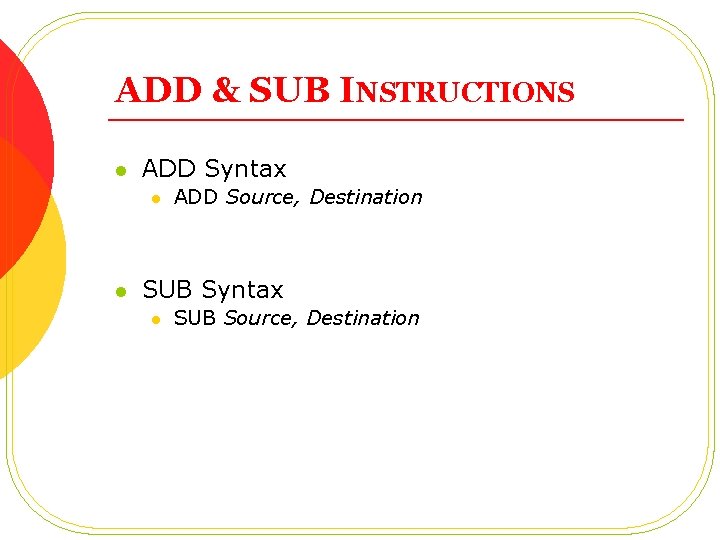

ADD & SUB INSTRUCTIONS l ADD Syntax l l ADD Source, Destination SUB Syntax l SUB Source, Destination

LEGAL COMBINATIONS OF ADD & SUB INSTRUCTIONS Destination Source General Register Memory Location General Register Yes Memory Location Yes No Constant Yes

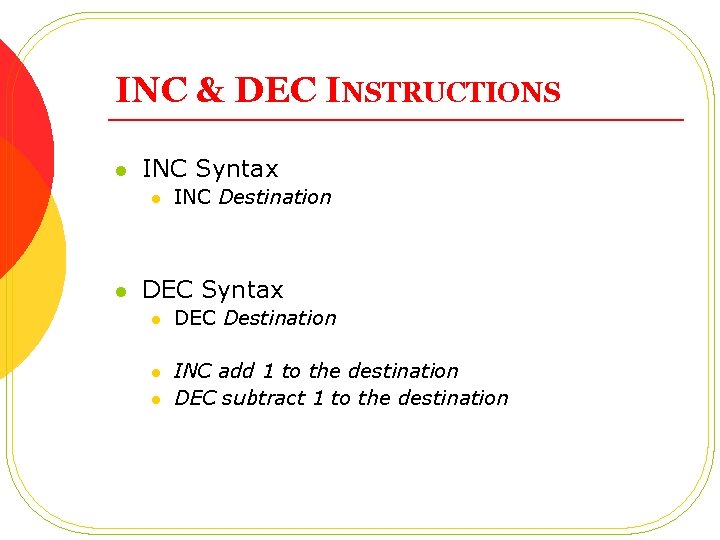

INC & DEC INSTRUCTIONS l INC Syntax l l INC Destination DEC Syntax l DEC Destination l INC add 1 to the destination DEC subtract 1 to the destination l

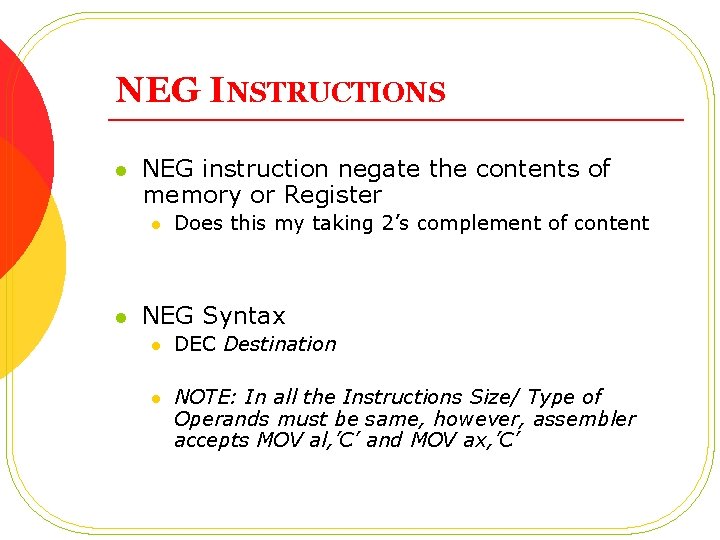

NEG INSTRUCTIONS l NEG instruction negate the contents of memory or Register l l Does this my taking 2’s complement of content NEG Syntax l DEC Destination l NOTE: In all the Instructions Size/ Type of Operands must be same, however, assembler accepts MOV al, ’C’ and MOV ax, ’C’

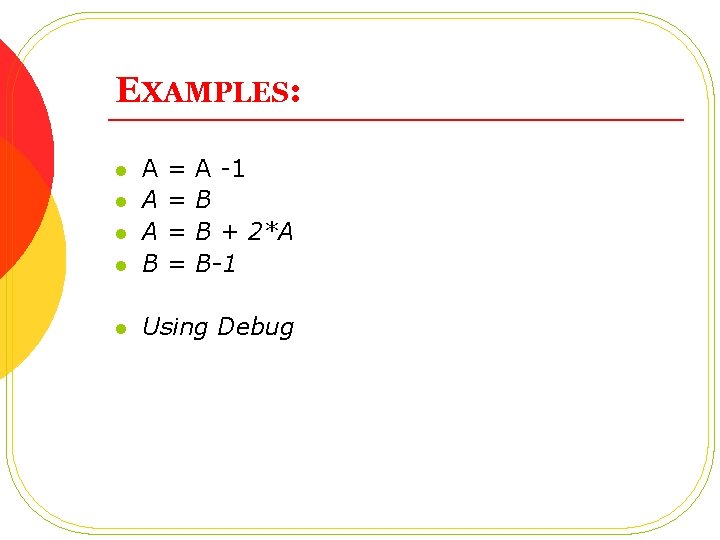

EXAMPLES: l A A A B l Using Debug l l l = = A -1 B B + 2*A B-1

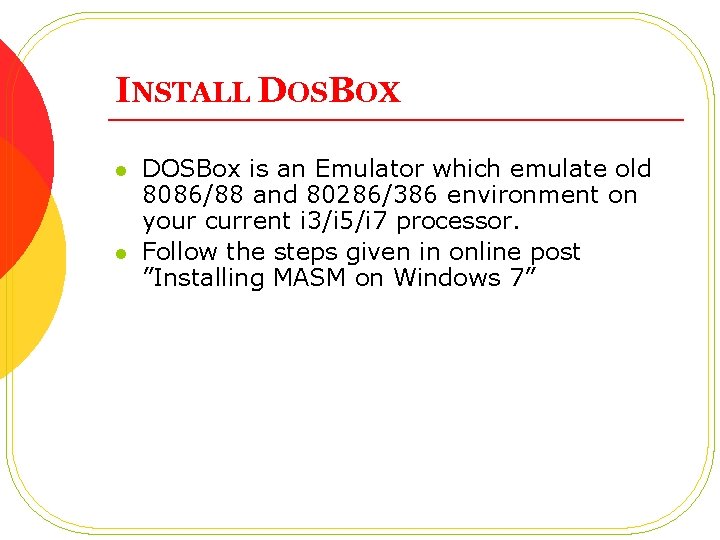

INSTALL DOSBOX l l DOSBox is an Emulator which emulate old 8086/88 and 80286/386 environment on your current i 3/i 5/i 7 processor. Follow the steps given in online post ”Installing MASM on Windows 7”

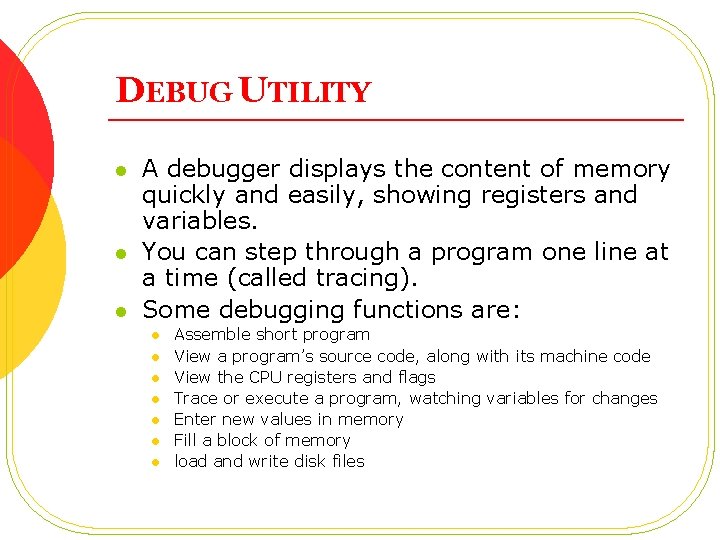

DEBUG UTILITY l l l A debugger displays the content of memory quickly and easily, showing registers and variables. You can step through a program one line at a time (called tracing). Some debugging functions are: l l l l Assemble short program View a program’s source code, along with its machine code View the CPU registers and flags Trace or execute a program, watching variables for changes Enter new values in memory Fill a block of memory load and write disk files

DEBUG UTILITY l l Debug assume all the numbers in HEX C: Masm>Debug [Press Enter] R [to see the Registers] R Register name to change the content l l A Start Address [Assemble the Code] l l l R AX A 0100 U Start Address End Address U Start Address L #of bytes l l U 0100 010 D U 0100 LD

DEBUG UTILITY l l G [Run a program till breakpoint] G=start Address End Address l l l G [press enter] G=0100 010 D R [to see the Registers] T [Trace, to run a program step by step] T = Start Address # of instruction l l l T [press Enter] T=0100 2 [Run Two instructions] T 3 [only number of instructions, assume IP=0100]

DEBUG UTILITY l Common Errors with Register Usage l l l MOV MOV MOV AH, FF 3 AX, 12345 DS, 1240 SI, DH BX, AH AL, CX [Errors]

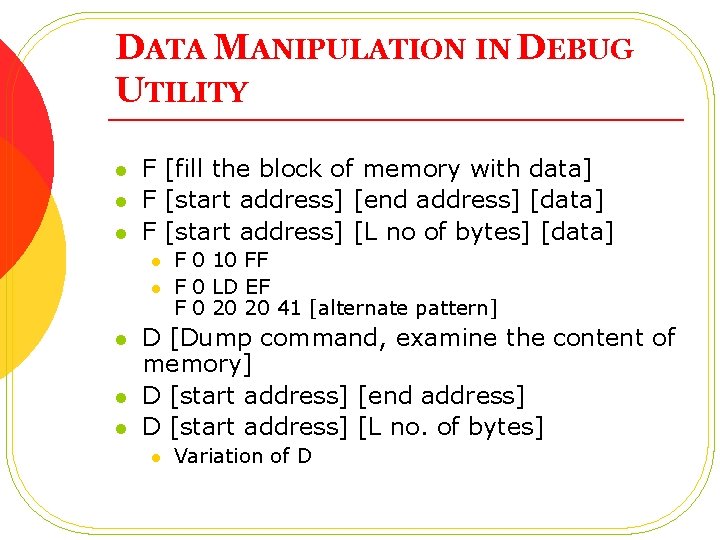

DATA MANIPULATION IN DEBUG UTILITY l l l F [fill the block of memory with data] F [start address] [end address] [data] F [start address] [L no of bytes] [data] l l l F 0 10 FF F 0 LD EF F 0 20 20 41 [alternate pattern] D [Dump command, examine the content of memory] D [start address] [end address] D [start address] [L no. of bytes] l Variation of D

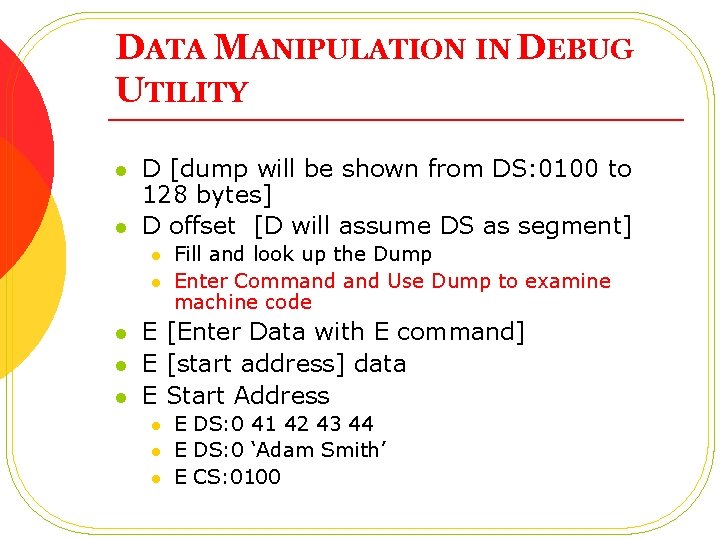

DATA MANIPULATION IN DEBUG UTILITY l l D [dump will be shown from DS: 0100 to 128 bytes] D offset [D will assume DS as segment] l l l Fill and look up the Dump Enter Command Use Dump to examine machine code E [Enter Data with E command] E [start address] data E Start Address l l l E DS: 0 41 42 43 44 E DS: 0 ‘Adam Smith’ E CS: 0100

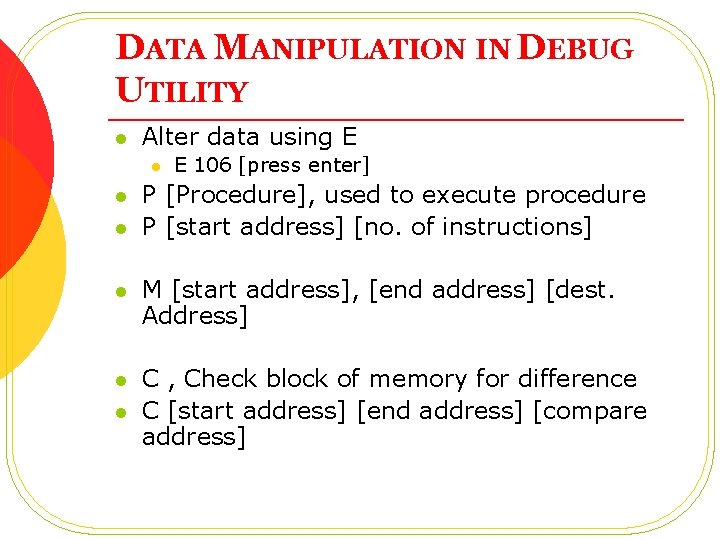

DATA MANIPULATION IN DEBUG UTILITY l Alter data using E l l l E 106 [press enter] P [Procedure], used to execute procedure P [start address] [no. of instructions] l M [start address], [end address] [dest. Address] l C , Check block of memory for difference C [start address] [end address] [compare address] l

DEBUG UTILITY l l Debug assume all the numbers in HEX C: Masm>Debug [Press Enter] R [to see the Registers] R Register name to change the content l l A Start Address [Assemble the Code] l l l R AX A 0100 U Start Address End Address U Start Address L #of bytes l l U 0100 010 D U 0100 LD

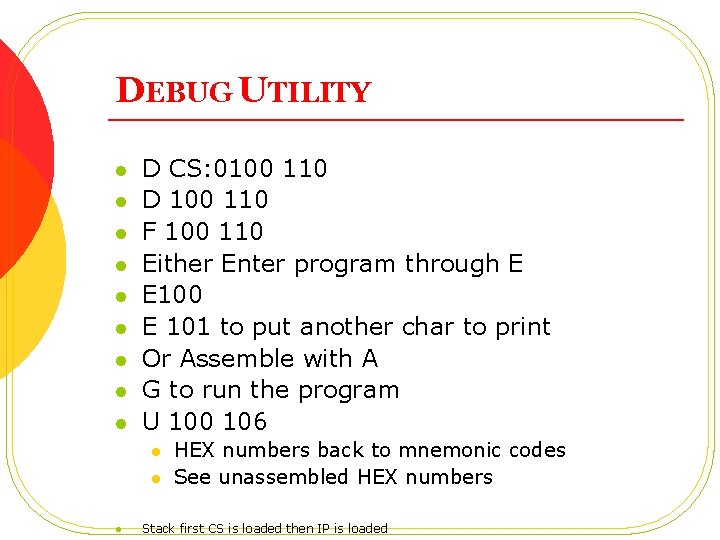

DEBUG UTILITY l l l l l D CS: 0100 110 D 100 110 F 100 110 Either Enter program through E E 100 E 101 to put another char to print Or Assemble with A G to run the program U 100 106 l l l HEX numbers back to mnemonic codes See unassembled HEX numbers Stack first CS is loaded then IP is loaded

DEBUG UTILITY l l l l l D CS: 0100 110 D 100 110 F 100 110 Either Enter program through E E 100 E 101 to put another char to print Or Assemble with A G to run the program U 100 106 l l l HEX numbers back to mnemonic codes See unassembled HEX numbers Stack first CS is loaded then IP is loaded

DEBUG UTILITY l R to manipulate Registers Rax to change AX register l Stack first CS is loaded then IP is loaded l

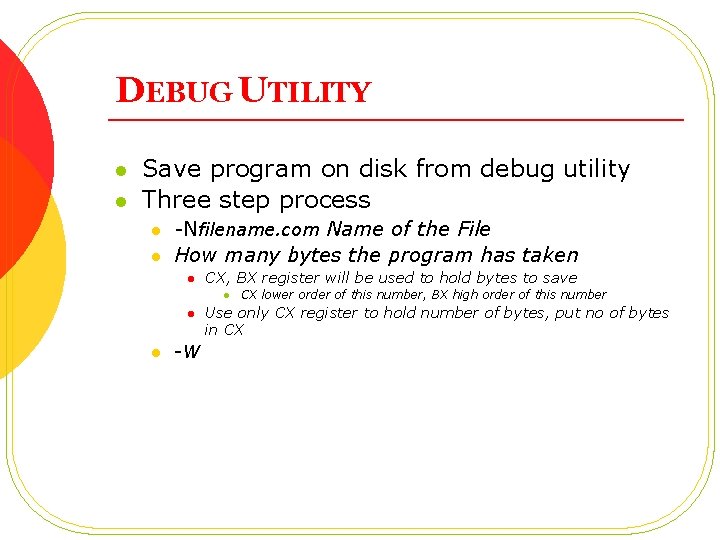

DEBUG UTILITY l l Save program on disk from debug utility Three step process l l -Nfilename. com Name of the File How many bytes the program has taken l CX, BX register will be used to hold bytes to save l l l -W CX lower order of this number, BX high order of this number Use only CX register to hold number of bytes, put no of bytes in CX

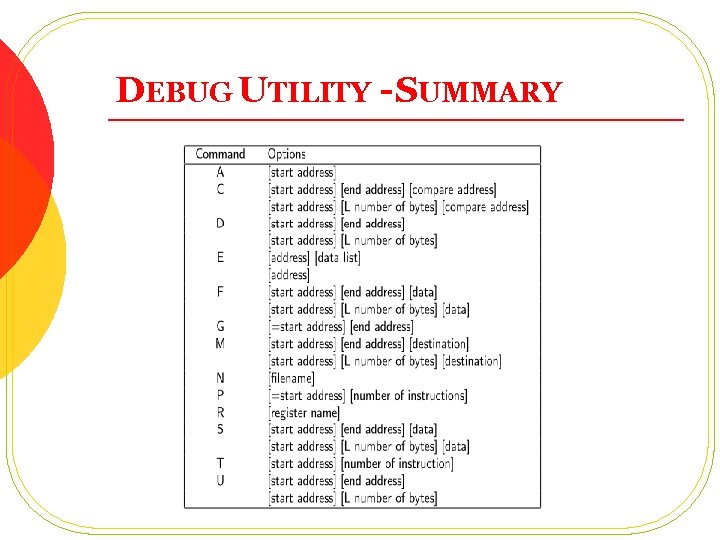

DEBUG UTILITY - SUMMARY

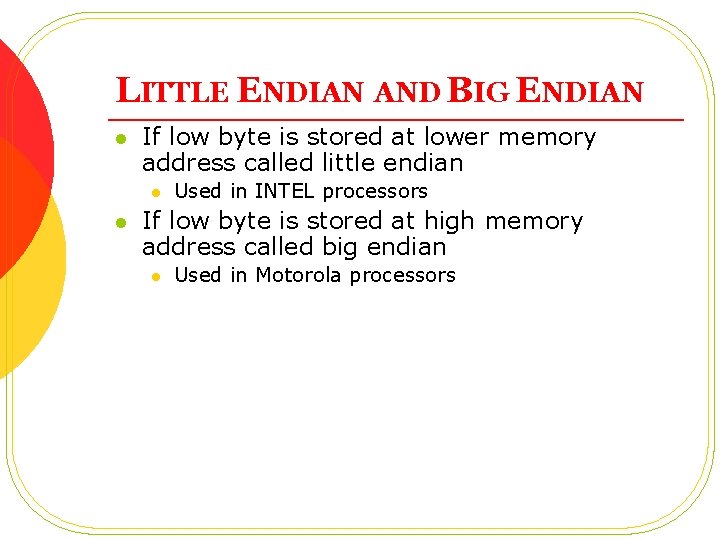

LITTLE ENDIAN AND BIG ENDIAN l If low byte is stored at lower memory address called little endian l l Used in INTEL processors If low byte is stored at high memory address called big endian l Used in Motorola processors
