ALPEX EXPORTS PVT LTD AEPL We are an

ALPEX EXPORTS PVT. LTD. (AEPL) We are an international trading house headquartered at New Delhi (India). Started in year 1997, we have evolved as a multi-location and multi-business enterprise with diverse business activities consisting of Photovoltaic Solar Panel Manufacturing International Trading Wind Energy Generation Owing to its progressive vision, strong team and hard work, today AEPL is numero uno in the markets it operates and has eleven offices in India and one each in Seoul-South Korea, Sydney-Australia and Hamburg-Germany. Today AEPL enjoys the goodwill and trust of more than 1000 loyal customers

Photovoltaic Solar Panel Manufacturing Alpex Solar is a PV Panel manufacturing unit of AEPL located in the state of Himachal Pradesh. The PV panels manufactured by AEPL are the greenest PV panels as we generate our own green energy through wind turbines. International Trading Alpex Exports Pvt. Ltd. (AEPL) is engaged in import and distribution of Specialized Yarn and Machine components for the knitting industry for last 14 years. We are sole agents and distributors of world renowned Korean giant Samsung knitting industry for sale & distributions of its products in India. Wind Energy Generation In the wind energy arena, our two windmills with 1. 5 MW of installed capacity are operational successfully in the state of Tamil Nadu in India since 2005.

ALPEX SOLAR Alpex Solar, a PV Panels manufacturing unit of AEPL, located in the state of Himachal Pradesh is a well-equipped facility with most modern assembly, testing and manufacturing lines custom built on a turnkey basis by SPIRE Corp. USA – a leading supplier of PV Assembly & manufacturing automatic lines in the world. It aspires to become a major player in the field of Green Energy. With the addition of second line recently, the manufacturing capacity as gone up to 75 MW. It is a 100% Export Oriented Unit (EOU), providing Solar Energy solutions. Alpex Solar aims to become a significant global player in the field of highly specialized High Power Photovoltaic Modules, Building Integrated Photovoltaic (BIPV), customized special solar panels and Building Integrated Roofing Systems , Solar AC/DC pumps, solar charge controller.

For a cleaner and prosperous tomorrow

PLANT AND MACHINERY The manufacturing line has been established in the state-of-art facility with turnkey technology provided from SPIRE Corp. USA. This is a leading supplier of PV assembly and manufacturing lines in the world. SPIRE has provided innovative solar technologies for over 30 years to world class PV manufacturers. Factory Village Berson, Post Manjholi, Tehsil Nalagarh, Distt. Solan, Himachal Pradesh-174101 INDIA Email: info@alpexonline. com

ALPEX SOLAR PV MODULES � Low per megawatt initial investment. � More power realization. � Greater return on investment. � Early payback period. � Reduced system operation and maintenance cost. � Lesser snow and wind load.

FEATURES OF MODULES � Most efficient product in its category. � Strong modules as we use 4. 0 mm glass instead of 3. 2 mm which is normally used. � Green modules as we use our own wind power to manufacture these modules. � Photon test lab report placed Alpex solar modules at 7 th position out of 40 competitors. � Well accepted in most difficult markets like Germany, Italy and Australia.

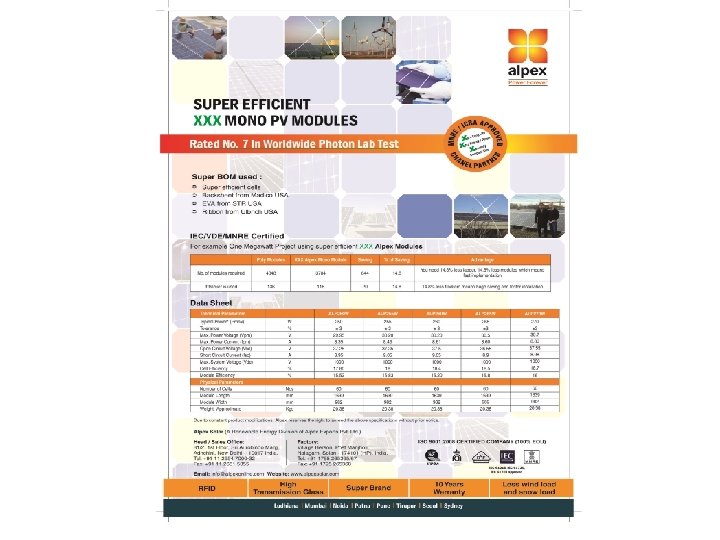

TECHNICAL DATA SHEET Model Technical Data Typical Power* (Pmax) Tolerance Max. Power Voltage (Vpm) Max. Power Current (Ipm) Open Circuit Voltage(Voc) Short Circuit Current (Isc) Max. System Voltage Cell Type Number of Cells Cell Size (mm) Module Length (mm) Module Width (mm) Weight - Approximate Operating Temperature Characteristics ALP 230 W 230 W +/- 3% 30. 44 V 7. 56 A 37. 25 V 8. 11 A 1000 V DC Mono 60 156 × 156 mm 1639 982 20. 38 Kgs -40°C to + 85°C ALP 235 W 235 W +/- 3% 30. 48 V 7. 71 A 36. 27 V 8. 23 A 1000 V DC Mono 60 156 × 156 mm 1639 982 20. 38 Kgs -40°C to + 85°C ALP 240 W 240 W +/- 3% 30. 50 V 7. 87 A 37. 38 V 8. 49 A 1000 V DC Mono 60 156 × 156 mm 1639 982 20. 38 Kgs -40°C to + 85°C ALP 245 W 245 W +/- 3% 31. 02 V 7. 90 A 37. 37 V 8. 44 A 1000 V DC Mono 60 156 × 156 mm 1639 982 20. 38 Kgs -40°C to + 85°C Specification Cell Size No. of Cells and Connection Dimensions of Modules(mm) Weight Monocrystalline 156 mm × 156 mm 60 (6× 10) 1639 × 982 × 35 20. 38 kgs ALP 250 W 250 W +/- 3% 31. 14 V 8. 03 A 37. 50 V 8. 56 A 1000 V DC Mono 60 156 × 156 mm 1639 982 20. 38 Kgs -40°C to + 85°C ALP 260 W 260 W +/- 3% 31. 87 V 8. 16 A 37. 50 V 8. 73 A 1000 V DC Mono 60 156 × 156 mm 1639 982 20. 38 Kgs -40°C to + 85°C Technical Data Sheet ALP 230 W ALP 235 W ALP 240 W ALP 245 W ALP 250 W ALP 260 W

TECHNICAL DATA SHEET Output Junction Box Tyco 1 - 1740657 -0 Tyco 1000 mm Cable Asymmetrical lengths Limits Operating Temperature -40°C to + 85°C Maximum System Voltage 600 V

Compact Design

MORE POWER OUTPUT FROM EVERY SQ. METER MODULE OF AREA MODULE Power/Sq. Meter of Module Area ALPEX XXX Module (260 Wp) 161. 55 Typical 156 mm 60 cells module (230 Wp) 135. 85 Difference 25. 70

LOWER STRUCTURE COST FOR EACH MW OF CAPACITY DUE TO LOW WEIGHT OF ALPEX PV MODULES MODULE Weight of Module (kg) Nos. / MW Total Weight (Kg. ) ALPEX XXX Module 20. 3 3846 78074 Typical 156 mm 60 cells module 23. 5 4348 102178 Difference 3. 2 502 24104

LOWER LABOUR COST OF INSTALLATION DUE TO LIGHTWEIGHT MODULES AND LESS NO. OF MODULES REQUIRED PER MW MODULE P Max (Wp) No. of Modules Weight / / Mega watt Module (Kg) Weight / Mega watt (Kg) ALPEX XXX Module 260 3846 20. 3 78074 Typical 156 mm 60 cells module 230 4348 23. 5 102174 Difference 30 502 3. 2 24100

REDUCED INVESTMENT FOR GROUND AREA DUE TO LESSER AREA REQUIRED FOR EVERY MW OF POWER MODULE Area Sq. Meter Modules / Mw Total Module Area (Sq Meter) ALPEX XXX Module (260 Wp) 1. 61 3846 6192 Typical 156 mm 60 cells module (230 Wp) 1. 69 4348 7348 -0. 08 502 1156 Difference

LOWER TRANSPORTATION COST OF MODULES UP TO THE SITE DUE TO LESS VOLUME OF EACH MODULE Volume of 100 Modules (Cubic Meter) Volume of modules / Mw (Cubic Meter) ALPEX XXX Module (260 Wp) 5. 635 217 Typical 156 mm 60 cells module (230 Wp) 8. 788 382. 0 Difference 3. 153 165

LESS NUMBER OF MOUNTING TRACKERS REQUIRED DUE TO MORE POWER OUTPUT FROM EACH MODULE No of Trackers (20 modules each) / Mw MODULE / Mw ALPEX XXX Module (260 Wp) 3846 192 Typical 156 mm 60 cells module (230 Wp) 4348 218 Difference 502 26 - These modules are mounted on trackers

SUPERIOR MATERIAL USED FOR BETTER QUALITY RAW MATERIAL COMPANY COUNTRY EVA Specialized Technology Research (STR) USA RIBBON Ulbrich Precision Flat Wire USA SOLAR CELLS Suniva lnc USA JUNCTION BOX Tyco Electronics USA BACKSHEET MEDICO USA SOLAR GLASS 4 MM ULTRACLEAR GLASS USA

PHOTON TEST LAB REPORT PLACED ALPEX SOLAR MODULES AT 7 TH POSITION OUT OF 40 COMPETITIORS SOLARMODULE : MONATSAUSWERTUNG DER PHOTON-ERTAGSMESSUNGEN MARZ 2010 Hersteller Modultyp zelltyp REC Solar Bisol Siliken Trina Solar S-Energy Solarworld Alpex Sunpeak Winergy Solar Trina Solar Mage solar REC 230 AE Poly BMU-215 -2/221 Poly SLK 60 P 6 L 230 Wp Poly TSM-PC 05 (225) Poly SM-220 PA 8 Poly Sunmodule Plus SW 225 mono ALP 235 W mono Winaico WSP-230 P 6 Poly TSM-DC 01 (180) mono 225/6 PJ Poly Herkunftsland Ertrag in k. Wh/k. W* Abstand zum Monatsbesten Installationsjahr Schweden Slowenien Spanien China Sudkorea USA Indien Taiwan China Monatsbester 1, 5% 1, 7% 2, 7% 3, 0% 3, 2% 3, 3% 3, 6% 3, 7% 3, 8% 99, 09 97, 55 97, 43 96, 44 96, 14 95, 96 95, 80 95, 56 95, 42 95, 33 *normiert auf die STC-Leistung, **wird nicht mehr hergestellt, 1) fruhere Typenbezeichnung: SW 210 poly, 2) für den Hersteller Ningbo Qixin Solar Electrical Appliance Co. Ltd. 3) wegen der noch nicht abgeschlossenen Degradation (Leistungsminderung) sind die Messdaten zu diesem Modultyp nur begrenzt aussagekräftig 2010 2009 2010 2009

ALPEX INSTALLATIONS Location - Hams Bach, Germany Capacity - 70 KW Module - Alp 235 W Location - New South Wales, Australia Capacity - 60 KW Module - Alp 230 W

ALPEX INSTALLATIONS Location – Ludhiana, India Capacity – 5 KW Location – Gurgoan, India Capacity – 6 KW WWW. alpexsolar. com

OUR PRODUCTS ALPEX MAKES HIGH QUALITY PRODUCTS : 1 - XXX MONO PV MODULES 2 - XXX DIAMOND PV MODULES 3 - MULTI PV MODULES 4 - SOLAR POWER PROJECTS 5 - CHARGE CONTROLLER 6 - SOLAR A/C D/C WATER PUMPS 7 - FRAMELESS SOLAR MODULES 8 - BIPV 9 - RESCO 10 - SOLAR MOBILE TOWER SOLUTION 11 - SOLAR HOME SYSTEM www. alpexonline. com

ALPEX CERTIFICATIONS

OUR NETWORK INDIA New Delhi 81/2, F. F. , Sri Aurobindo Marg Adchini, New Delhi- 110017 Ph: 91 11 2652213532 Fax: 91 11 26515355 Email: info@alpexonline. com Ludhiana 3, 1 st Floor, Neel Kanth Complex Satsung Road, Civil Lines Ludhiana-141001 Ph: 91 161 2407609 Fax: 91 161 2407631 Email: vipin@alpexonline. com Mumbai Plot No. 211, Sec. 28, Vashi Navi Mumbai-400703 Ph: 91 22 41555205 Fax: 91 22 41555206 Email: sikka@alpexonline. com TIRUPUR 33/2, K P N Colony, Behind Nalini Hospital, Tiruppur, Tamil Nadu 641601 Tel: 8130991800 Fax: 0421 -2208503 Email: panneer@alpexonline. c om OVERSEAS BIHAR H No-13 Ground Floor, Adarsh Colony Kidwaipuri, Patna-1 Bihar Tel: 0612 -3214404 Email: patna@alpexonline. co m JAIPUR AD-6 C, DEVI MARG BANI PARK, JAIPUR PIN NO - 302018 Tel: 0141 -4001070, 9001290121, 9818679230, 9811205675 Email: satish. mishra@alpexonline. co m UP D-173, Sector-10, Noida - 201301 (U. P. ) Tel : +91 9818679230, 9811205675 Fax : +91 11 26515355 Email: info@alpexonline. com Website: alpexonline. com, alpexsolar. com WORKS Himachal Pradesh Village Berson, Post Manjholi, Tehsil Nalagarh, Distt. Solan, Himachal Pradesh-174101 INDIA Email: imjolly@alpexonl ine. com Korea # 1020, Poonglim VIP Building 404, Gongdok Dong, Mapo Gu Seoul, South Korea Ph: 82 2 3274 0763 Fax: 82 2 3274 0764 Email: ash@alpexonline. com Germany Email: monica@alpexonline. co m Australia SUITE 333/71, Jones Street Ultimo NSW 2007 Ph: 02 95521111 Fax: 02 9552 2211 Email: gjain@alpexonline. com

THANK YOU WWW. alpexsolar. com
