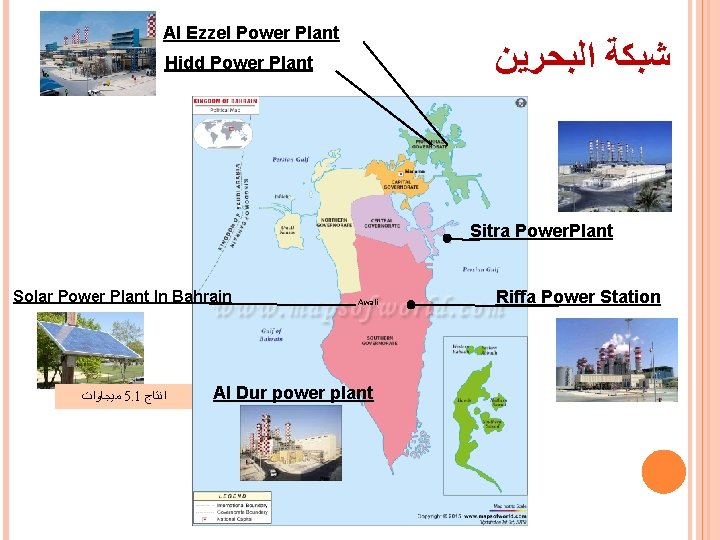

Al Ezzel Power Plant Hidd Power Plant Sitra

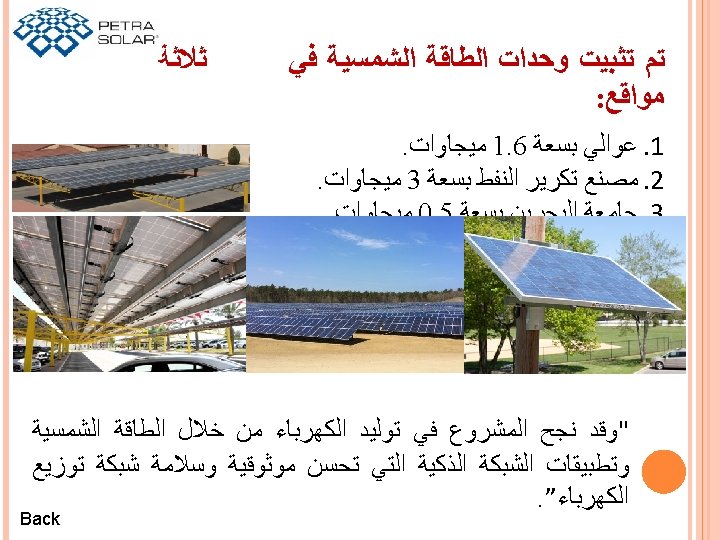

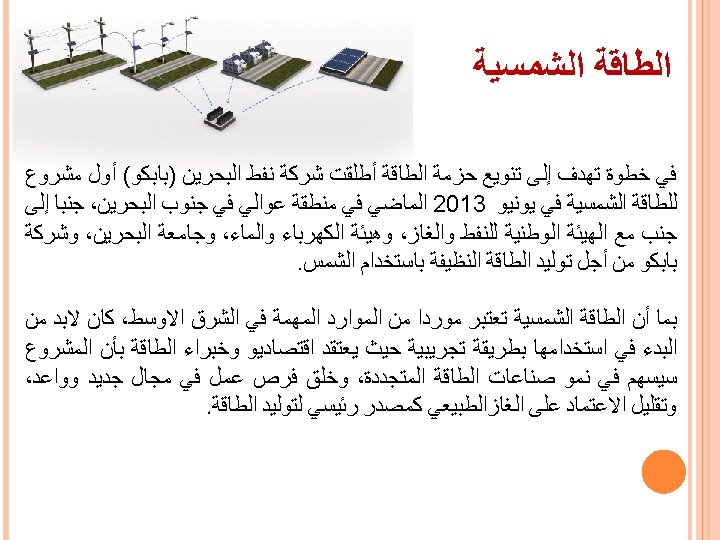

Al Ezzel Power Plant ﺷﺒﻜﺔ ﺍﻟﺒﺤﺮﻳﻦ Hidd Power Plant Sitra Power. Plant Solar Power Plant In Bahrain ﻣﻴﺠﺎﻭﺍﺕ 5. 1 ﺍﻧﺘﺎﺝ Awali Al Dur power plant Riffa Power Station

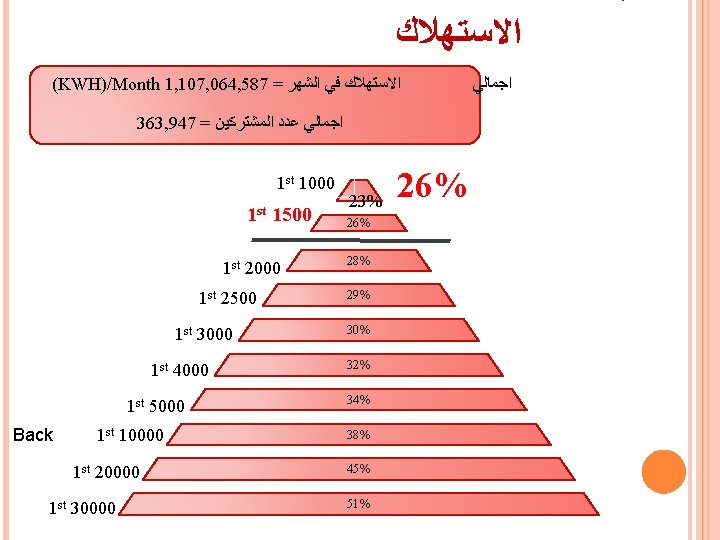

ﺍﻻﺳﺘﻬﻼﻙ ﺍﺟﻤﺎﻟﻲ ﺍﻻﺳﺘﻬﻼﻙ ﻓﻲ ﺍﻟﺸﻬﺮ = (KWH)/Month 1, 107, 064, 587 ﺍﺟﻤﺎﻟﻲ ﻋﺪﺩ ﺍﻟﻤﺸﺘﺮﻛﻴﻦ = 363, 947 26% 23% 26% 28% 29% 30% 32% 34% 38% 45% 51% 1 st 1000 1 st 1500 1 st 2000 1 st 2500 1 st 3000 1 st 4000 1 st 5000 1 st 10000 Back 1 st 20000 1 st 30000

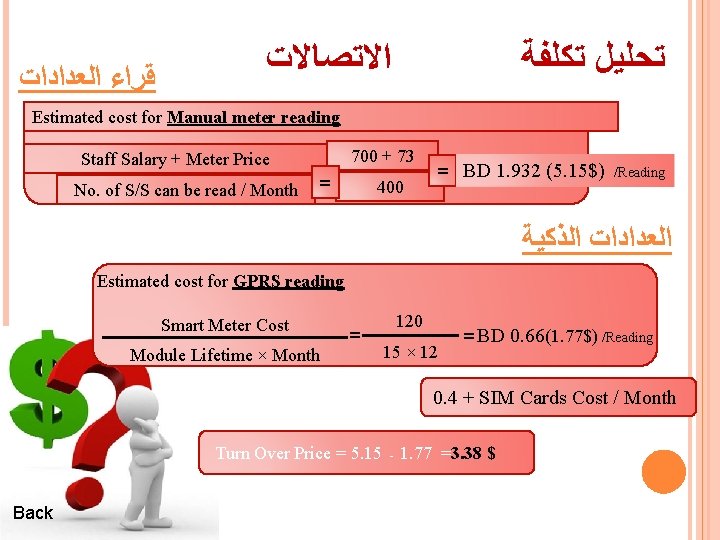

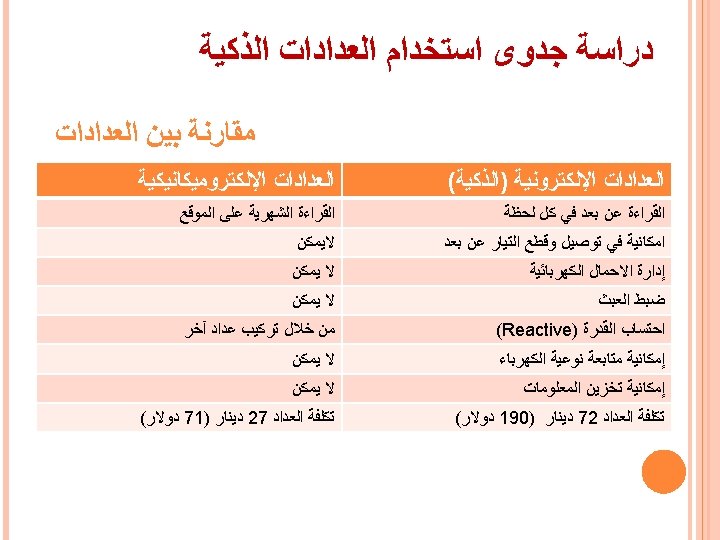

ﻗﺮﺍﺀ ﺍﻟﻌﺪﺍﺩﺍﺕ ﺍﻻﺗﺼﺎﻻﺕ ﺗﺤﻠﻴﻞ ﺗﻜﻠﻔﺔ Estimated cost for Manual meter reading 700 + 73 Staff Salary + Meter Price No. of S/S can be read / Month = 400 = BD 1. 932 (5. 15$) /Reading ﺍﻟﻌﺪﺍﺩﺍﺕ ﺍﻟﺬﻛﻴﺔ Estimated cost for GPRS reading Smart Meter Cost Module Lifetime × Month = 120 15 × 12 = BD 0. 66(1. 77$) /Reading 0. 4 + SIM Cards Cost / Month Turn Over Price = 5. 15 ₋ 1. 77 =3. 38 $ Back

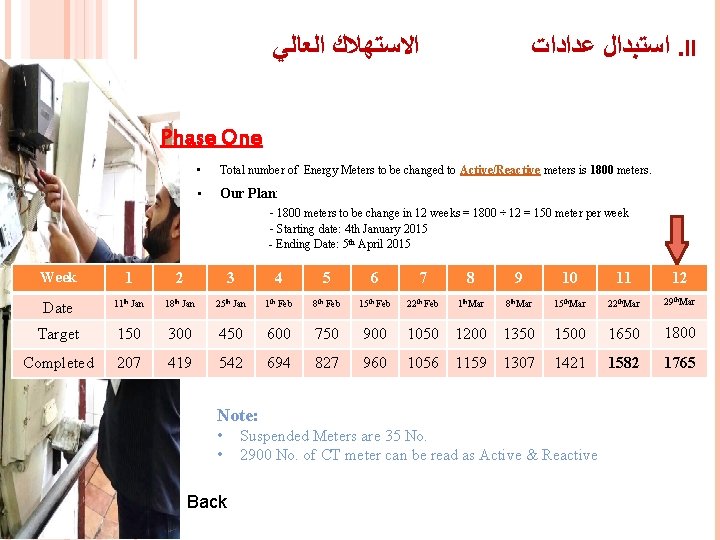

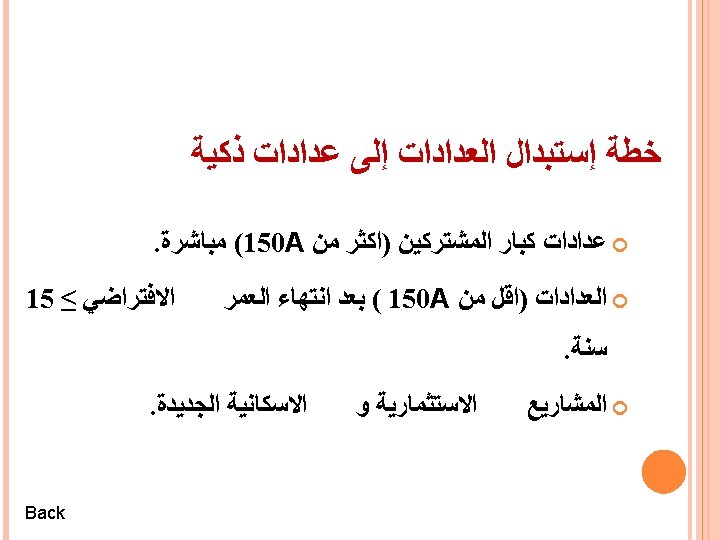

ﺍﺳﺘﺒﺪﺍﻝ ﻋﺪﺍﺩﺍﺕ. II ﺍﻻﺳﺘﻬﻼﻙ ﺍﻟﻌﺎﻟﻲ Phase One • Total number of Energy Meters to be changed to Active/Reactive meters is 1800 meters. • Our Plan: - 1800 meters to be change in 12 weeks = 1800 ÷ 12 = 150 meter per week - Starting date: 4 th January 2015 - Ending Date: 5 th April 2015 Week 1 2 3 4 5 6 7 8 9 10 11 12 Date 11 th Jan 18 th Jan 25 th Jan 1 th Feb 8 th Feb 15 th Feb 22 th Feb 1 th. Mar 8 th. Mar 15 th. Mar 22 th. Mar 29 th. Mar Target 150 300 450 600 750 900 1050 1200 1350 1500 1650 1800 Completed 207 419 542 694 827 960 1056 1159 1307 1421 1582 1765 Note: • • Back Suspended Meters are 35 No. 2900 No. of CT meter can be read as Active & Reactive

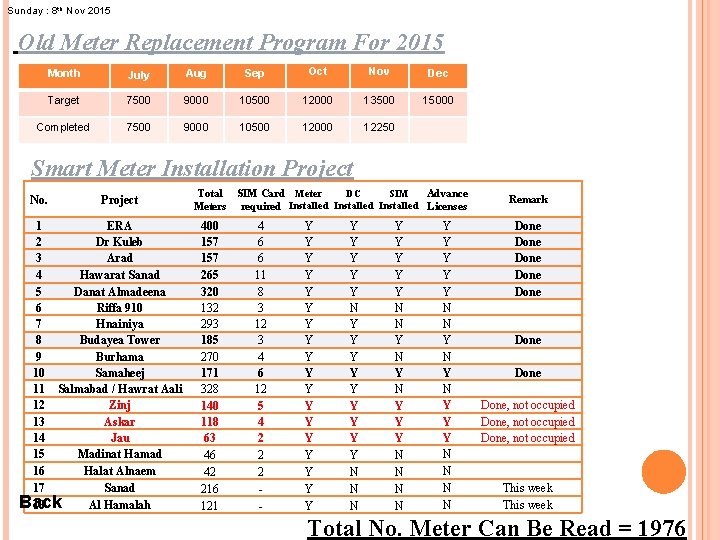

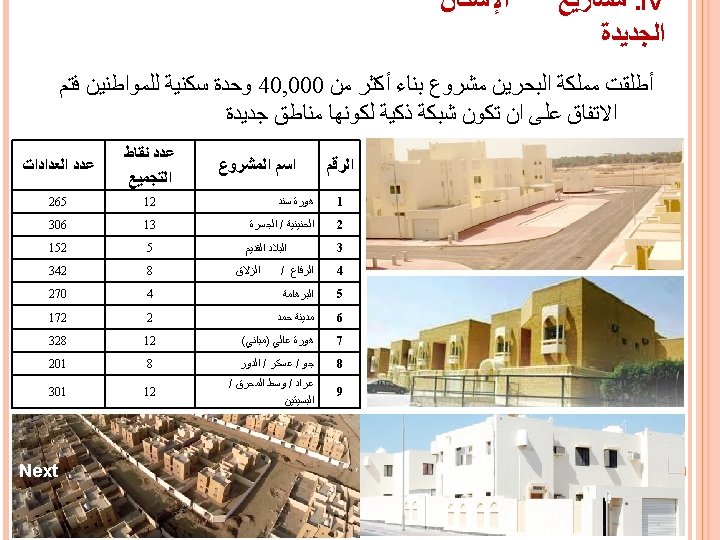

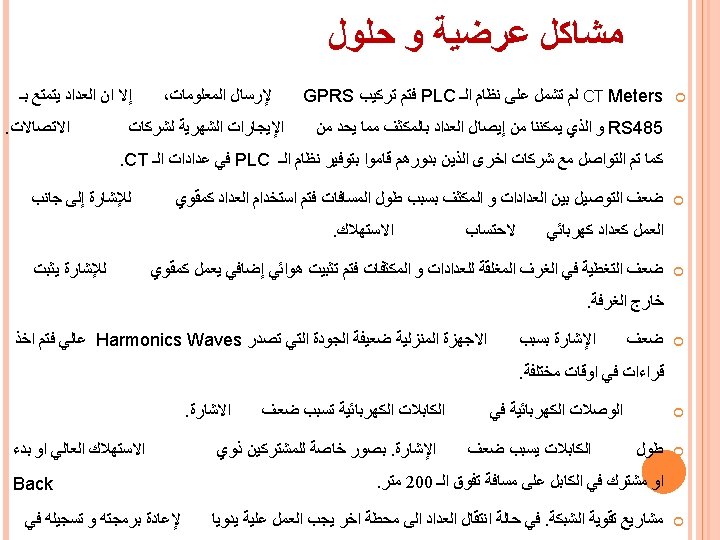

Sunday : 8 th Nov 2015 Old Meter Replacement Program For 2015 Month July Aug Sep Oct Nov Dec Target 7500 9000 10500 12000 13500 15000 Completed 7500 9000 10500 12000 12250 Smart Meter Installation Project No. Project 1 ERA 2 Dr Kuleb 3 Arad 4 Hawarat Sanad 5 Danat Almadeena 6 Riffa 910 7 Hnainiya 8 Budayea Tower 9 Burhama 10 Samaheej 11 Salmabad / Hawrat Aali 12 Zinj 13 Askar 14 Jau 15 Madinat Hamad 16 Halat Alnaem 17 Sanad Back 18 Al Hamalah Total SIM Card Meter Advance DC SIM Meters required Installed Licenses 400 157 265 320 132 293 185 270 171 328 140 118 63 46 42 216 121 4 6 6 11 8 3 12 3 4 6 12 5 4 2 2 2 - Y Y Y Y Y Y N Y Y Y Y Y N N Y N Y N Y Y Y N N N N Remark Done Done, not occupied Done, not occupied This week Total No. Meter Can Be Read = 1976

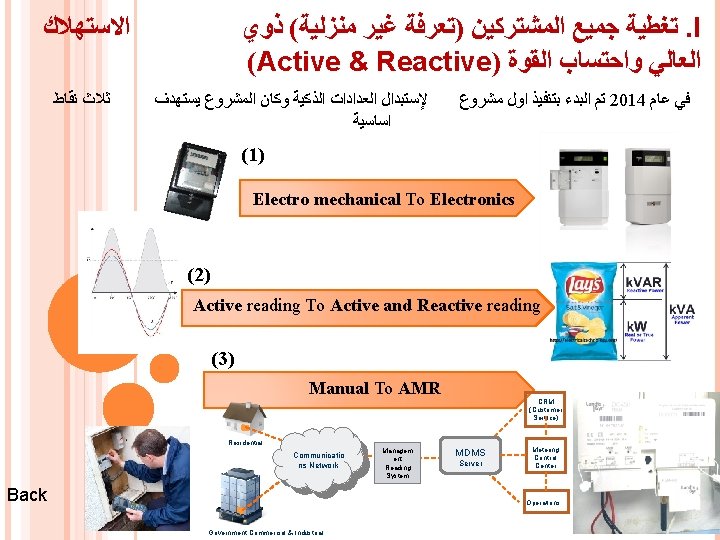

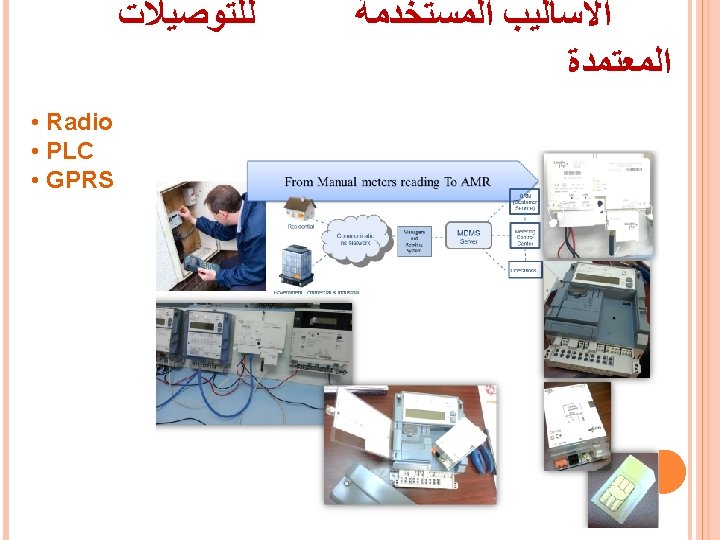

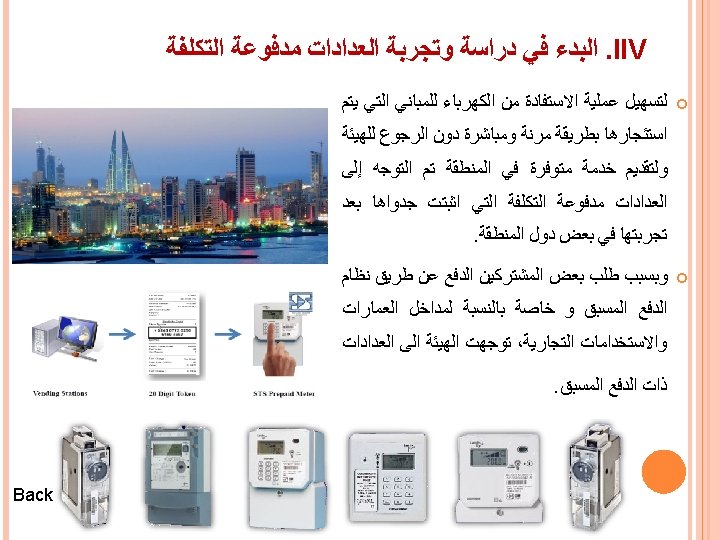

ﺗﻐﻄﻴﺔ ﺟﻤﻴﻊ ﺍﻟﻤﺸﺘﺮﻛﻴﻦ )ﺗﻌﺮﻓﺔ ﻏﻴﺮ ﻣﻨﺰﻟﻴﺔ( ﺫﻭﻱ. I (Active & Reactive) ﺍﻟﻌﺎﻟﻲ ﻭﺍﺣﺘﺴﺎﺏ ﺍﻟﻘﻮﺓ ﺍﻻﺳﺘﻬﻼﻙ ﺛﻼﺙ ﻧﻘﺎﻁ ﻹﺳﺘﺒﺪﺍﻝ ﺍﻟﻌﺪﺍﺩﺍﺕ ﺍﻟﺬﻛﻴﺔ ﻭﻛﺎﻥ ﺍﻟﻤﺸﺮﻭﻉ ﻳﺴﺘﻬﺪﻑ ﺍﺳﺎﺳﻴﺔ ﺗﻢ ﺍﻟﺒﺪﺀ ﺑﺘﻨﻔﻴﺬ ﺍﻭﻝ ﻣﺸﺮﻭﻉ 2014 ﻓﻲ ﻋﺎﻡ (1) Electro mechanical To Electronics (2) Active reading To Active and Reactive reading (3) Manual To AMR Residential Communicatio ns Network Back Managem ent Reading System CRM (Customer Service) MDMS Server Metering Control Center Operations Government Commercial & Industrial

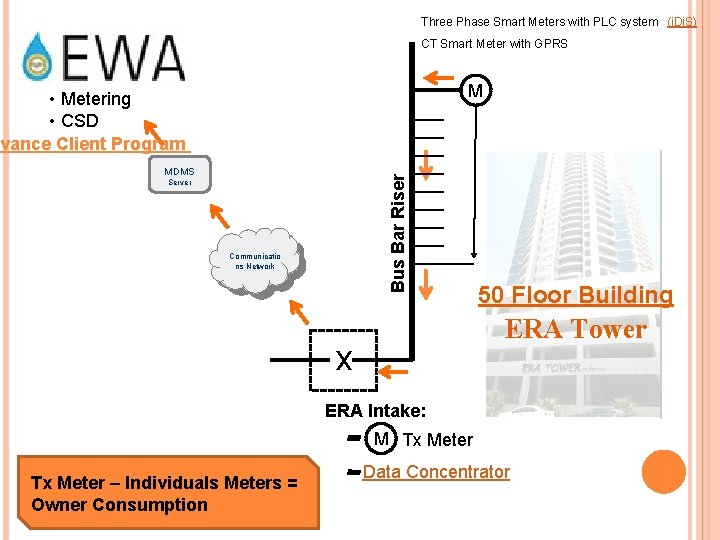

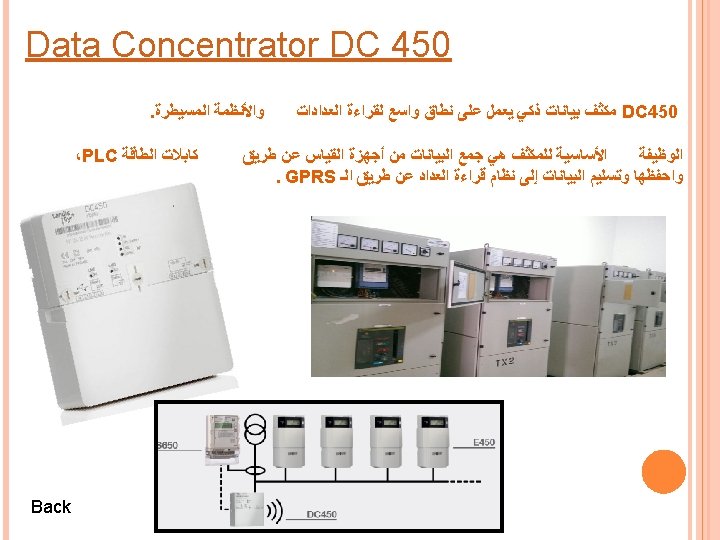

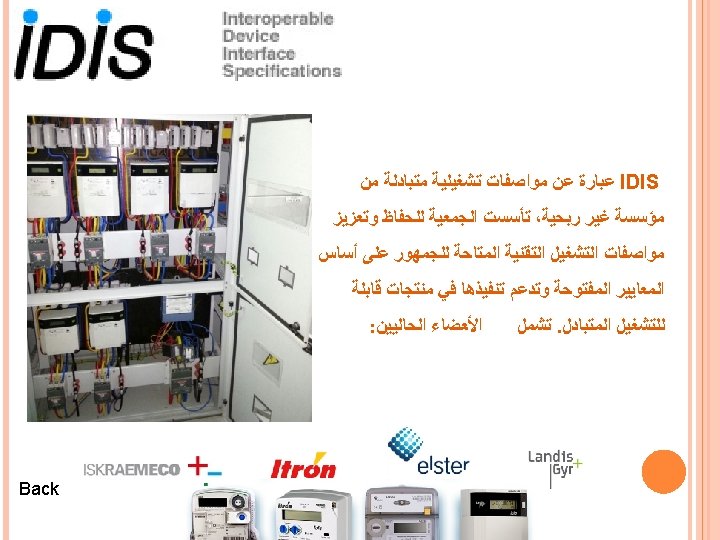

Three Phase Smart Meters with PLC system (i. Di. S) CT Smart Meter with GPRS M • Metering • CSD dvance Client Program Bus Bar Riser MDMS Server Communicatio ns Network 50 Floor Building ERA Tower x ERA Intake: M Tx Meter – Individuals Meters = Owner Consumption Data Concentrator

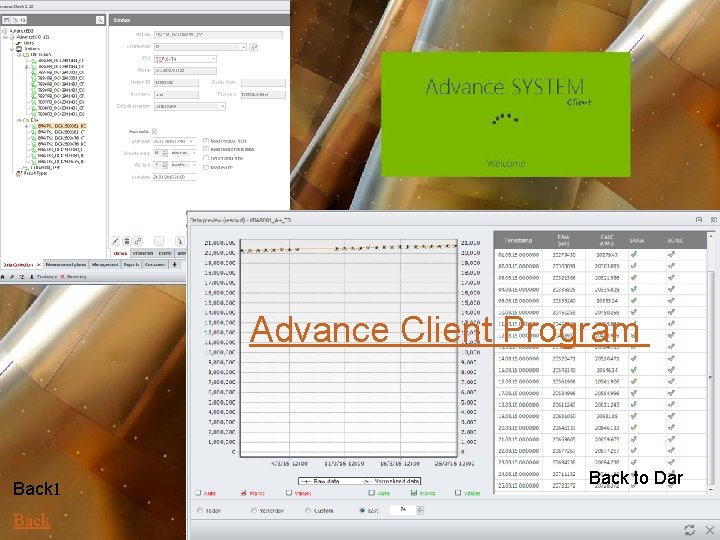

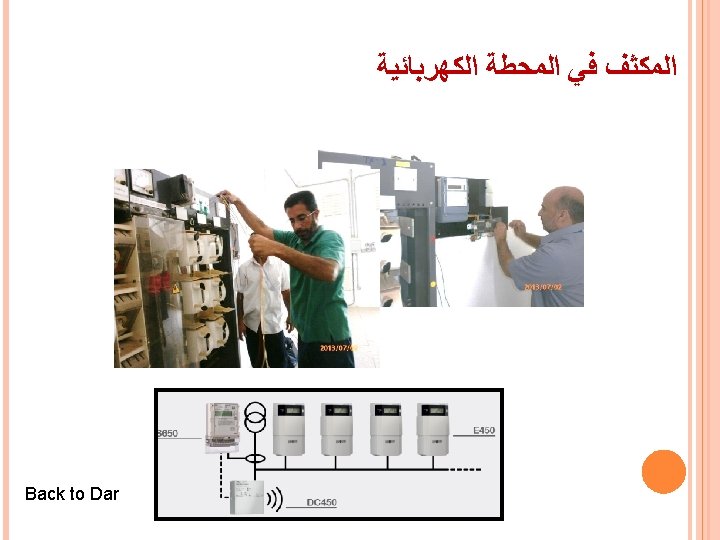

Advance Client Program Back 1 Back to Dar

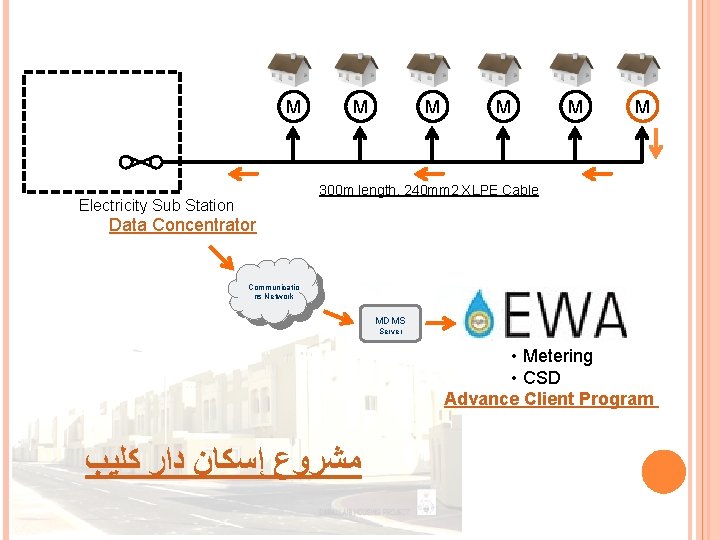

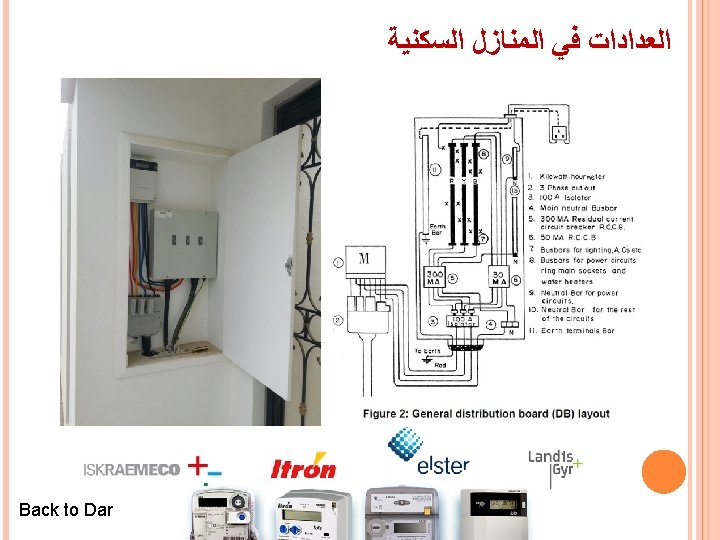

M M M 300 m length, 240 mm 2 XLPE Cable Electricity Sub Station Data Concentrator Communicatio ns Network MDMS Server • Metering • CSD Advance Client Program ﻣﺸﺮﻭﻉ ﺇﺳﻜﺎﻥ ﺩﺍﺭ ﻛﻠﻴﺐ

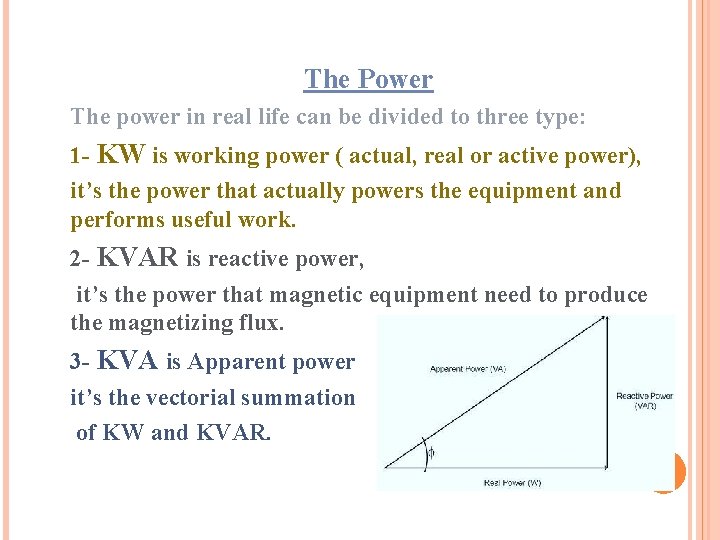

The Power The power in real life can be divided to three type: 1 - KW is working power ( actual, real or active power), it’s the power that actually powers the equipment and performs useful work. 2 - KVAR is reactive power, it’s the power that magnetic equipment need to produce the magnetizing flux. 3 - KVA is Apparent power it’s the vectorial summation of KW and KVAR.

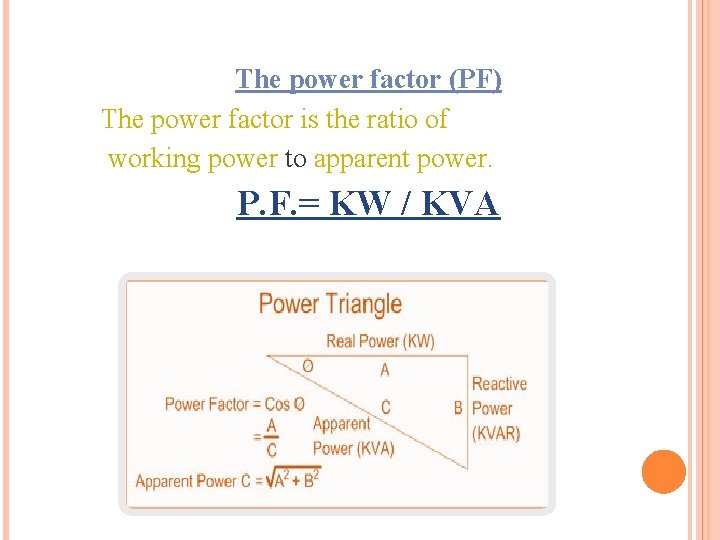

The power factor (PF) The power factor is the ratio of working power to apparent power. P. F. = KW / KVA

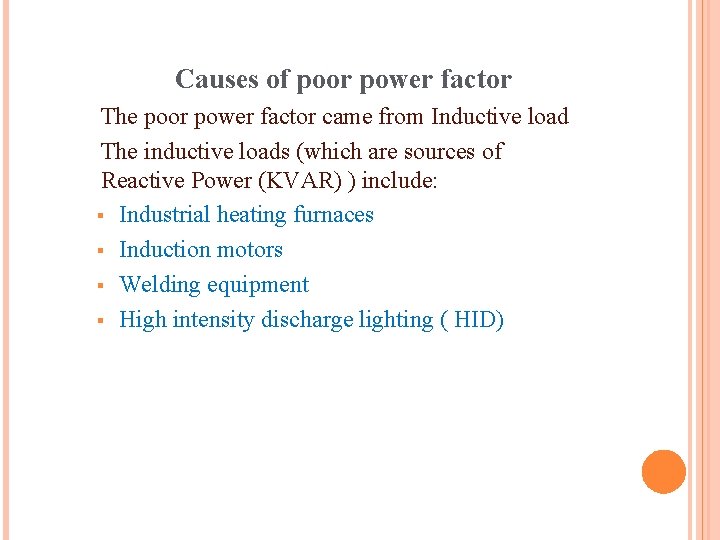

Causes of poor power factor The poor power factor came from Inductive load The inductive loads (which are sources of Reactive Power (KVAR) ) include: § Industrial heating furnaces § Induction motors § Welding equipment § High intensity discharge lighting ( HID)

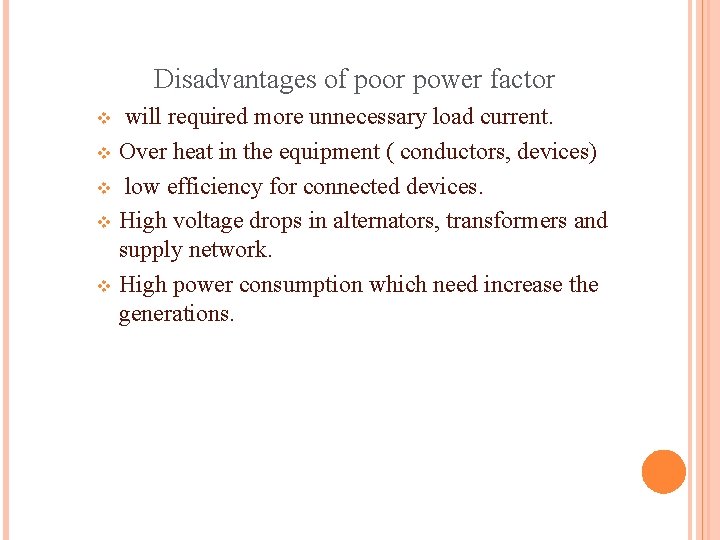

Disadvantages of poor power factor will required more unnecessary load current. v Over heat in the equipment ( conductors, devices) v low efficiency for connected devices. v High voltage drops in alternators, transformers and supply network. v High power consumption which need increase the generations. v

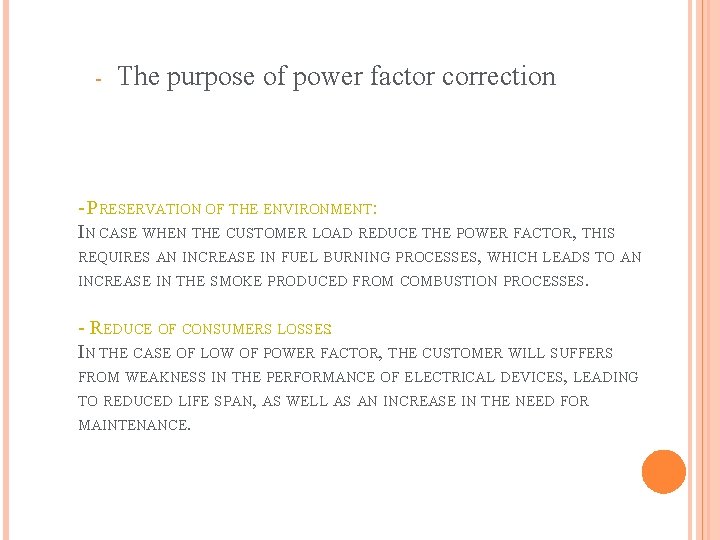

- The purpose of power factor correction - PRESERVATION OF THE ENVIRONMENT: IN CASE WHEN THE CUSTOMER LOAD REDUCE THE POWER FACTOR, THIS REQUIRES AN INCREASE IN FUEL BURNING PROCESSES, WHICH LEADS TO AN INCREASE IN THE SMOKE PRODUCED FROM COMBUSTION PROCESSES. - REDUCE OF CONSUMERS LOSSES: IN THE CASE OF LOW OF POWER FACTOR, THE CUSTOMER WILL SUFFERS FROM WEAKNESS IN THE PERFORMANCE OF ELECTRICAL DEVICES, LEADING TO REDUCED LIFE SPAN, AS WELL AS AN INCREASE IN THE NEED FOR MAINTENANCE.

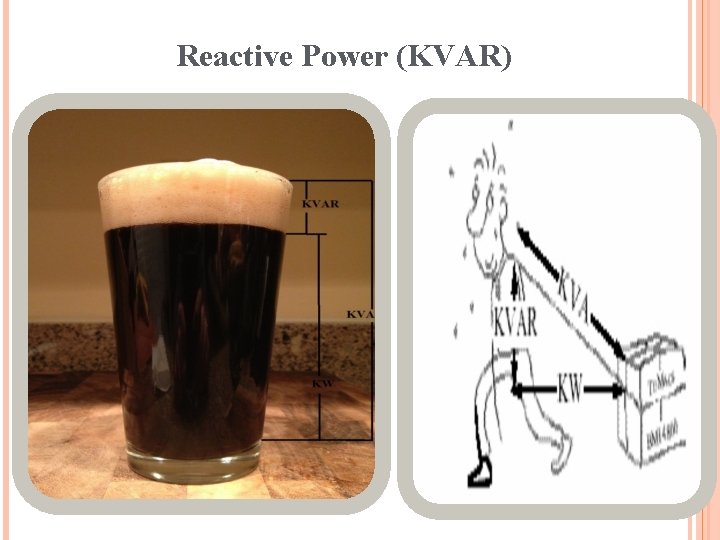

Reactive Power (KVAR)

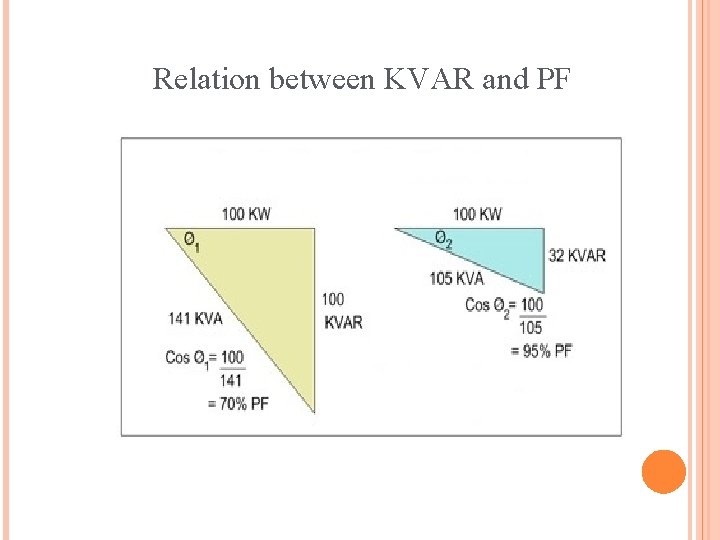

Relation between KVAR and PF

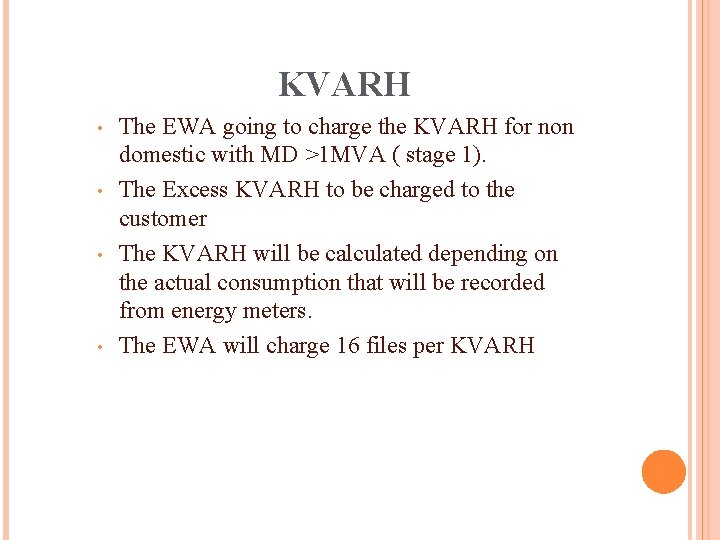

KVARH • • The EWA going to charge the KVARH for non domestic with MD >1 MVA ( stage 1). The Excess KVARH to be charged to the customer The KVARH will be calculated depending on the actual consumption that will be recorded from energy meters. The EWA will charge 16 files per KVARH

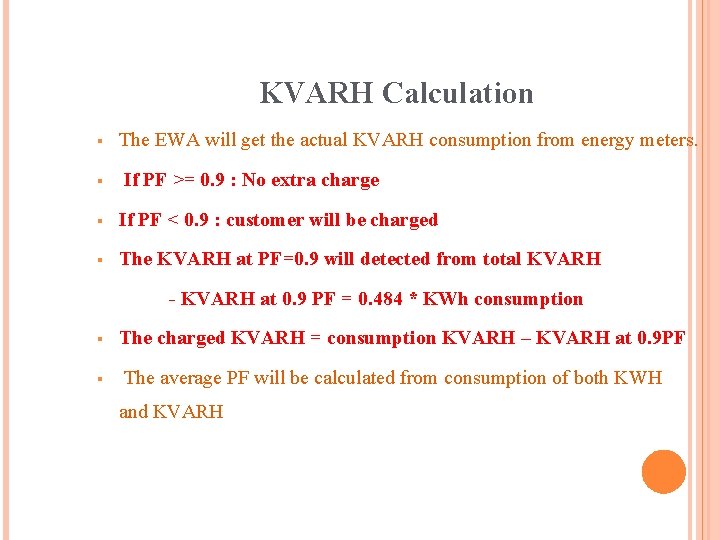

KVARH Calculation § § The EWA will get the actual KVARH consumption from energy meters. If PF >= 0. 9 : No extra charge § If PF < 0. 9 : customer will be charged § The KVARH at PF=0. 9 will detected from total KVARH - KVARH at 0. 9 PF = 0. 484 * KWh consumption § § The charged KVARH = consumption KVARH – KVARH at 0. 9 PF The average PF will be calculated from consumption of both KWH and KVARH

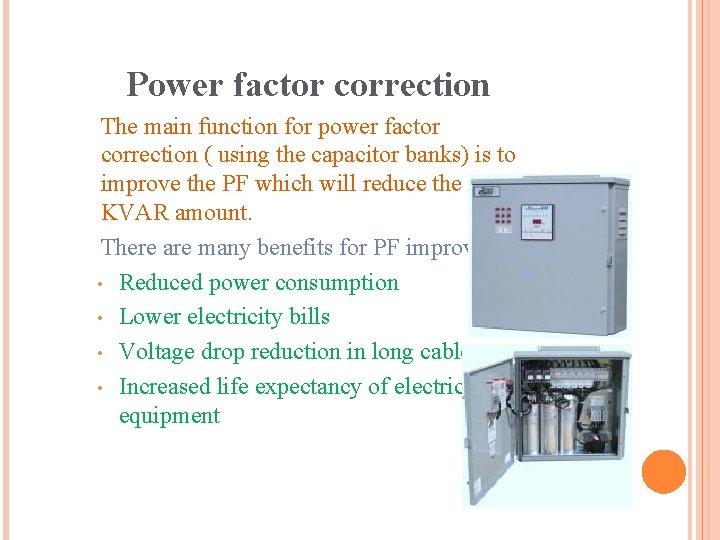

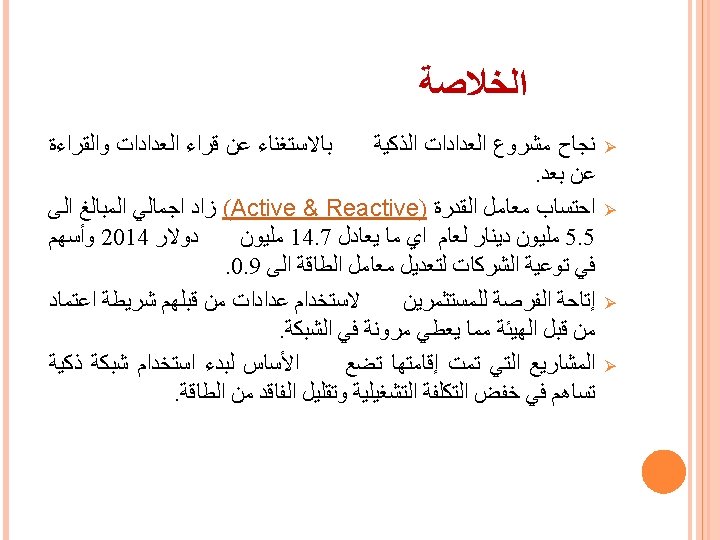

Power factor correction The main function for power factor correction ( using the capacitor banks) is to improve the PF which will reduce the KVAR amount. There are many benefits for PF improved: • Reduced power consumption • Lower electricity bills • Voltage drop reduction in long cables • Increased life expectancy of electrical equipment
