MODULAR SMPS POWER PLANT PUNCOM offers SMR48 V33
- Slides: 2
MODULAR SMPS POWER PLANT PUNCOM offers SMR-48 V/33 A , a switch mode rectifier module, designed to provide up to 33 A of output current into a 48 V nominal system for telecom, datacom, industrial and IT applications. It Converts 150 -275 V AC input power at 50 or 60 Hz into a highly regulated, filtered, low noise and isolated 48 V DC output. The unit is designed for N+1 redundant configurations. Up to eight rectifier modules can fit in a single 19” rack to provide 231 A of current in N+1 configuration. Up to fifteen rectifiers can be configured in two 19” racks for a 462 A ultimate capacity system in N+1 configuration using one control and supervisory unit (Mini. CSU). The system can also be monitored and controlled remotely through modem or internet. The rectifier has been designed with a “plug-and-play” feature i. e. when a rectifier module is plugged into a live system the relevant system parameters are automatically downloaded from the Mini. CSU, making rectifier replacement a completely hands-off operation. The unit is fully hot pluggable. SALIENT FEATURES Ø Hot Pluggable. Ø 231 A in a 19” rack in N+1 configuration and 462 A in two 19” racks in N+1 configuration. ØActive power factor correction > 0. 98. Ø Very High power density > 4. 0 W/inch 3. Ø High efficiency: better than 90% at > 50% load. Ø Plug and play capability without any adjustments. Ø Digital active current sharing. Ø Password protection against unauthorized parameters change. Ø Wide range of AC input, 150 -275 V provides protection from power disturbances and in combination with high interrupting capacity fast acting fuses translates into better reliability. Ø Battery temperature compensation Ø Compliant to IEC 61000 & CISPR 22 specs for EMI/EMC. Ø Optional RS 232, RS 485, 10 Base T ethernet and modem interfaces. Ø Fully menu driven with user friendly navigator push buttons menu.

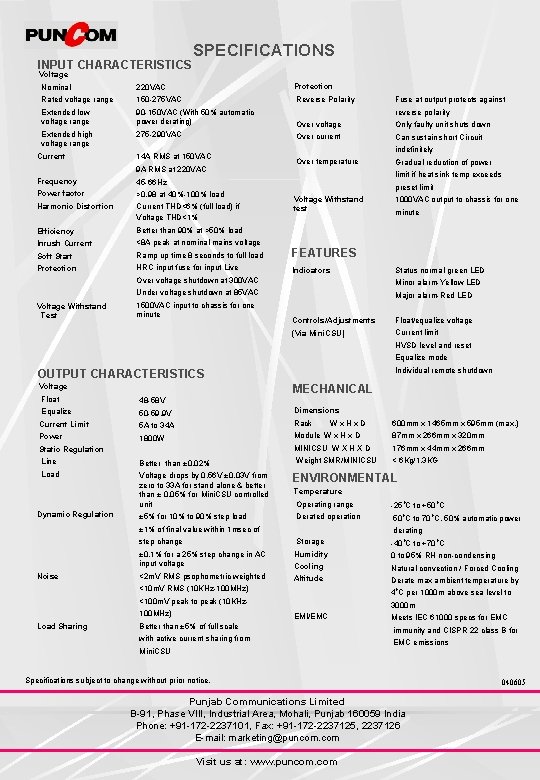

INPUT CHARACTERISTICS SPECIFICATIONS Voltage Nominal 220 VAC Protection Rated voltage range 150 -275 VAC Reverse Polarity Extended low voltage range 90 -150 VAC (With 50% automatic power derating) Over voltage Only faulty unit shuts down Extended high voltage range 275 -290 VAC Over current Can sustain short Circuit Current 14 A RMS at 150 VAC 9 A RMS at 220 VAC reverse polarity indefinitely Over temperature Gradual reduction of power limit if heat sink temp exceeds Frequency 45 -66 Hz Power factor Harmonic Distortion >0. 98 at 40%-100% load Current THD<6% (full load) if Voltage THD<1% Efficiency Better than 90% at >50% load Inrush Current <8 A peak at nominal mains voltage Soft Start Ramp up time 8 seconds to full load FEATURES Protection HRC input fuse for input Live Indicators Voltage Withstand Test Fuse at output protects against preset limit Voltage Withstand test 1000 VAC output to chassis for one minute Status normal-green LED Over voltage shutdown at 300 VAC Minor alarm-Yellow LED Under voltage shutdown at 85 VAC Major alarm-Red LED 1500 VAC input to chassis for one minute Controls/Adjustments Float/equalize voltage (Via Mini. CSU) Current limit HVSD level and reset Equalize mode Individual remote shutdown OUTPUT CHARACTERISTICS Voltage MECHANICAL Float 48 -58 V Equalize 50 -59. 9 V Dimensions Current Limit 5 A to 34 A Rack 1800 W Module W x H x D 87 mm x 266 mm x 320 mm Static Regulation MINICSU W X H X D 176 mm x 44 mm x 266 mm Line Better than ± 0. 02% Weight SMR/MINICSU < 6 Kg/1. 3 KG Load Voltage drops by 0. 56 V ± 0. 03 V from zero to 33 A for stand alone & better than ± 0. 05% for Mini. CSU controlled unit Power Dynamic Regulation Wx. Hx. D ENVIRONMENTAL Temperature Operating range -25 o. C to +50 o. C Derated operation 50 o. C to 70 o. C, 50% automatic power step change Storage -40 o. C to +70 o. C ± 0. 1% for a 25% step change in AC input voltage Humidity 0 to 95% RH non-condensing Cooling <2 m. V RMS psophometric weighted Natural convection / Forced Cooling Altitude Derate max ambient temperature by ± 5% for 10% to 90% step load ± 1% of final value within 1 msec of Noise derating <10 m. V RMS (10 KHz-100 MHz) 4 o. C per 1000 m above sea level to <100 m. V peak to peak (10 KHz 100 MHz) Load Sharing 600 mm x 1465 mm x 595 mm (max. ) 3000 m EMI/EMC Better than ± 5% of full scale with active current sharing from Mini. CSU Meets IEC 61000 specs for EMC immunity and CISPR 22 class B for EMC emissions Specifications subject to change without prior notice. Punjab Communications Limited B-91, Phase VIII, Industrial Area, Mohali, Punjab 160059 India Phone: +91 -172 -2237101, Fax: +91 -172 -2237125, 2237126 E-mail: marketing@puncom. com Visit us at: www. puncom. com 040605
