Agenda Lecture Content Combinatorial Circuits Boolean Algebras Exercise

Agenda • Lecture Content: § Combinatorial Circuits § Boolean Algebras • Exercise & Review

Combinatorial Circuits

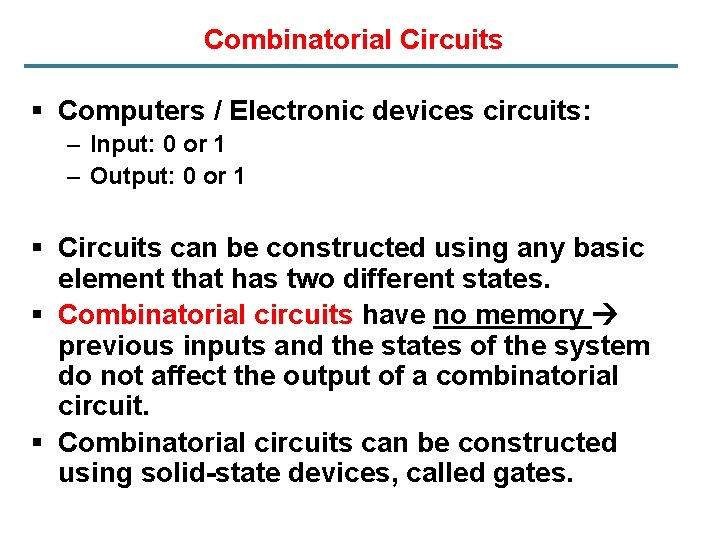

Combinatorial Circuits § Computers / Electronic devices circuits: – Input: 0 or 1 – Output: 0 or 1 § Circuits can be constructed using any basic element that has two different states. § Combinatorial circuits have no memory previous inputs and the states of the system do not affect the output of a combinatorial circuit. § Combinatorial circuits can be constructed using solid-state devices, called gates.

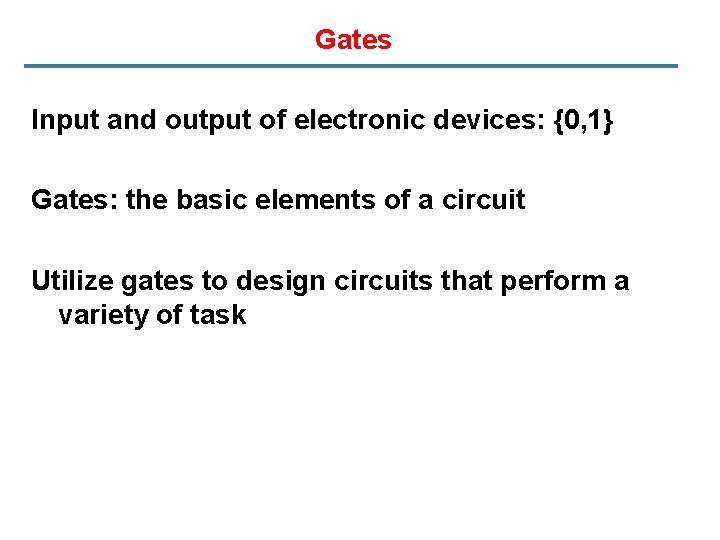

Gates Input and output of electronic devices: {0, 1} Gates: the basic elements of a circuit Utilize gates to design circuits that perform a variety of task

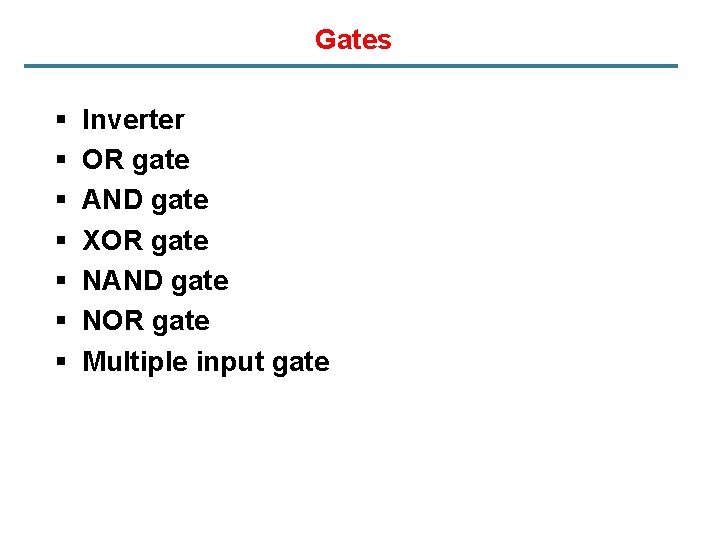

Gates § § § § Inverter OR gate AND gate XOR gate NAND gate NOR gate Multiple input gate

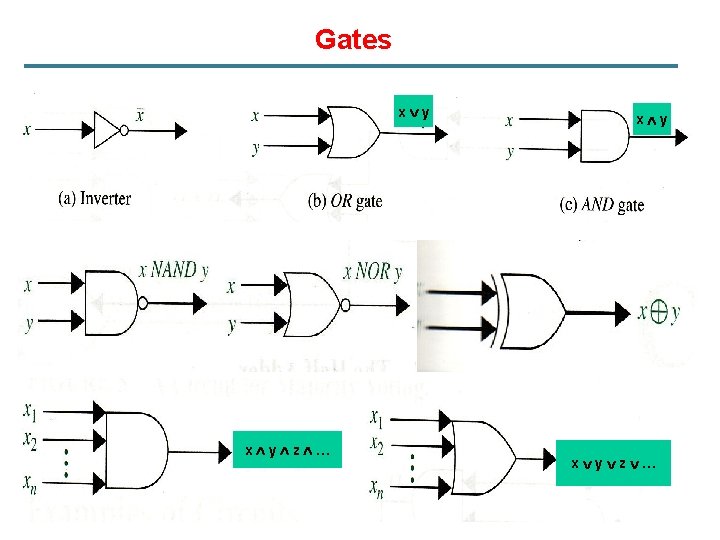

Gates x y x y z …

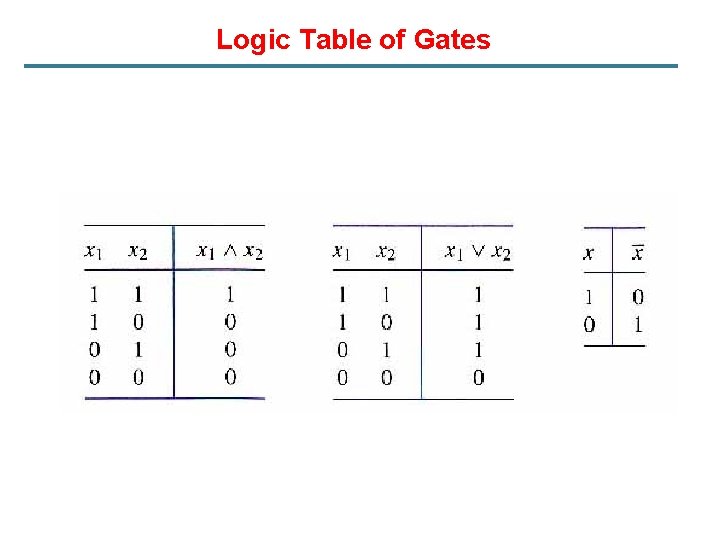

Logic Table of Gates

Combinatorial Circuits

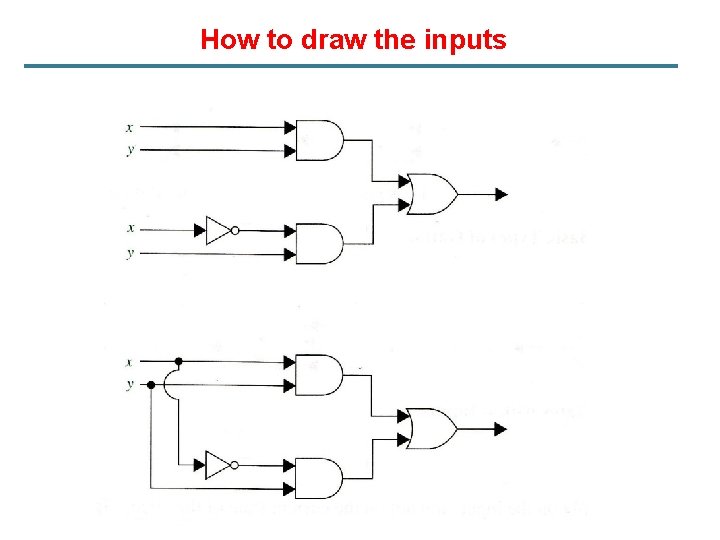

How to draw the inputs

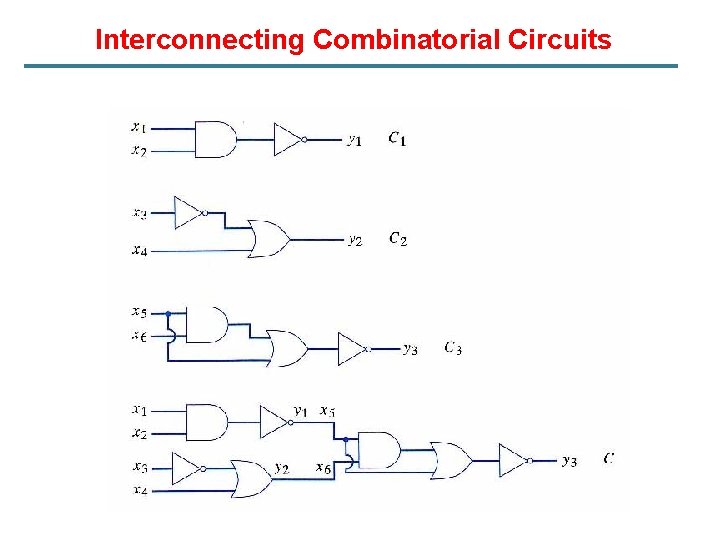

Interconnecting Combinatorial Circuits

Combinatorial Circuits and Boolean Expression § Combinatorial circuits can be represented by a Boolean expression. § y = (x 1 x 2) x 3 is a Boolean expression

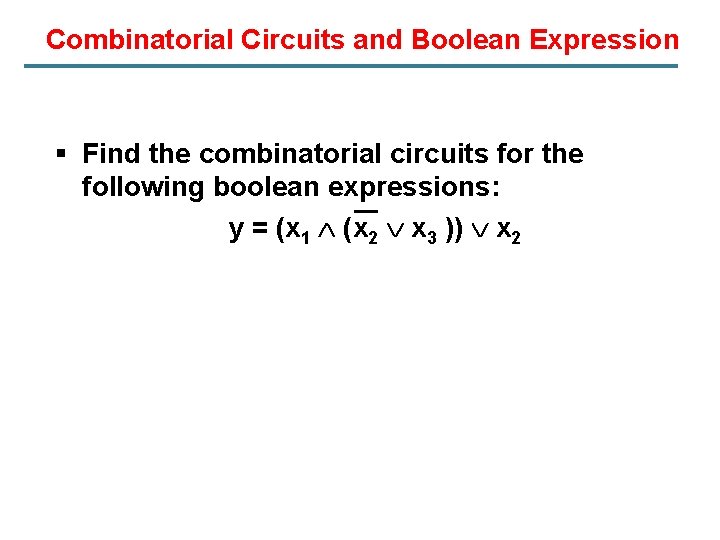

Combinatorial Circuits and Boolean Expression § Find the combinatorial circuits for the following boolean expressions: y = (x 1 (x 2 x 3 )) x 2

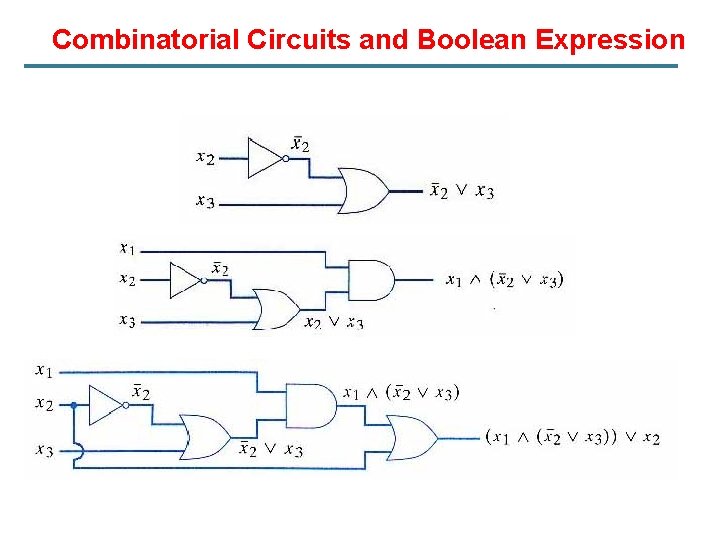

Combinatorial Circuits and Boolean Expression

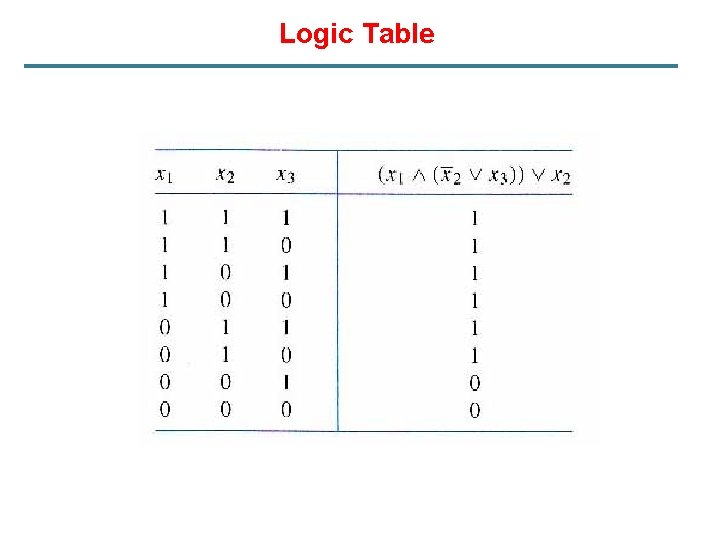

Logic Table

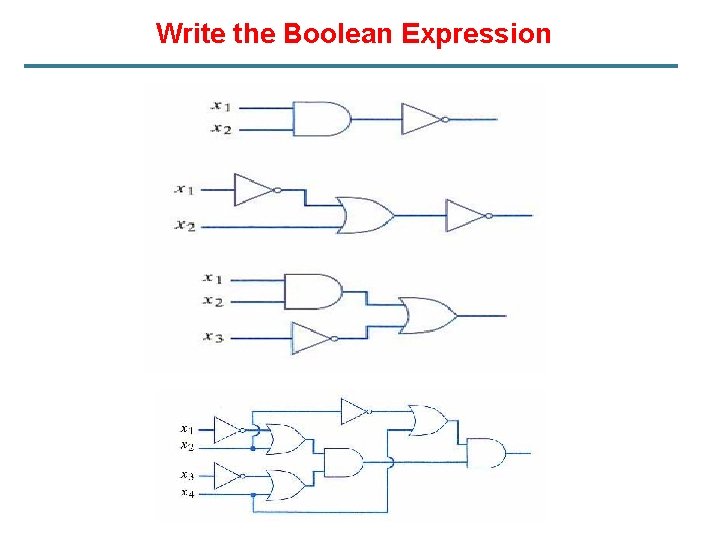

Write the Boolean Expression

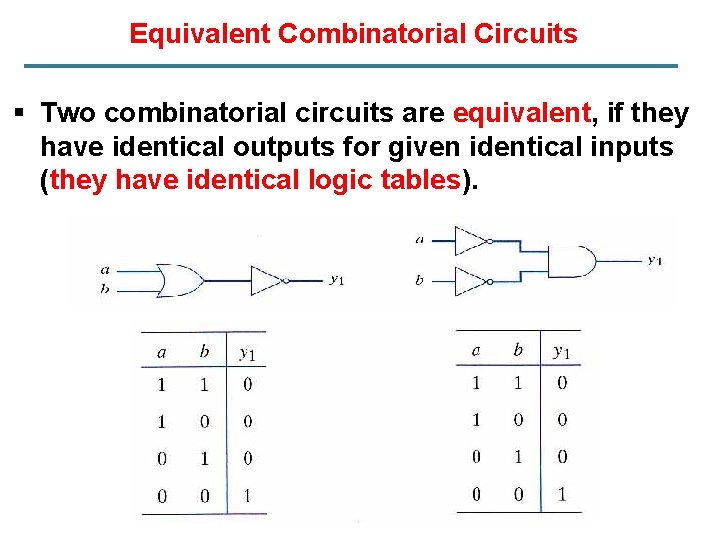

Equivalent Combinatorial Circuits § Two combinatorial circuits are equivalent, if they have identical outputs for given identical inputs (they have identical logic tables).

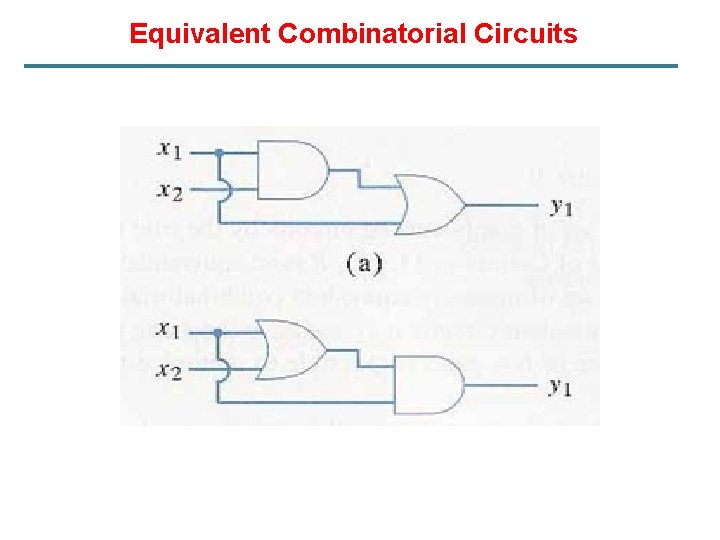

Equivalent Combinatorial Circuits
