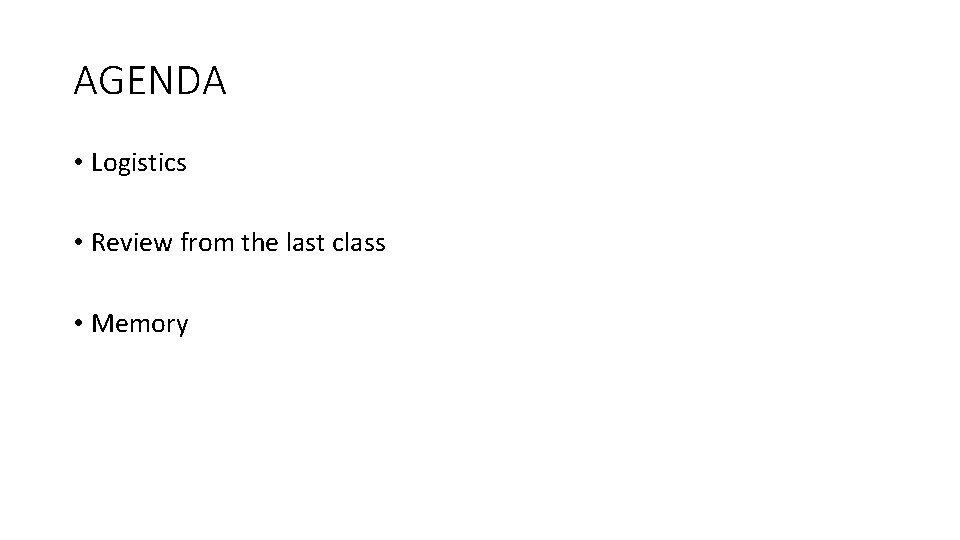

AGENDA • Logistics • Review from the last class • Memory

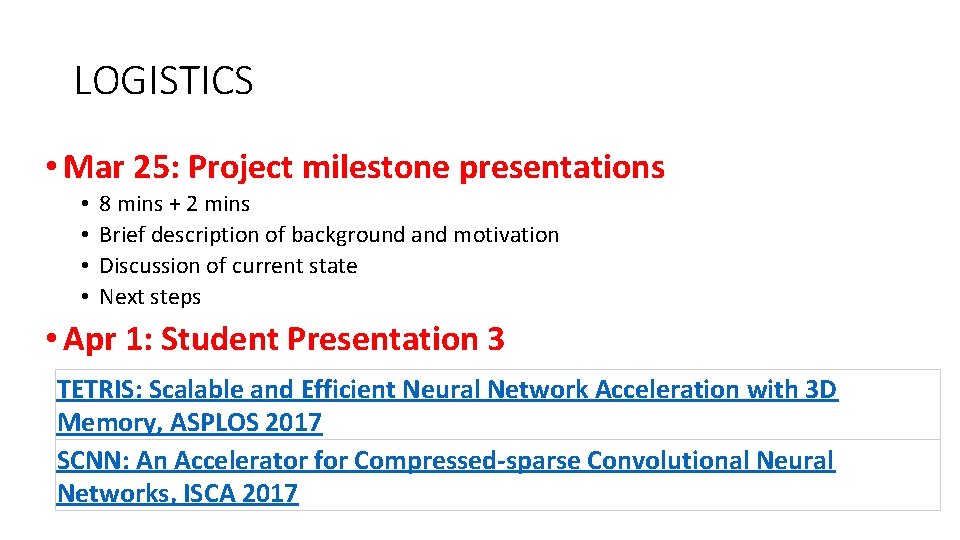

LOGISTICS • Mar 25: Project milestone presentations • • 8 mins + 2 mins Brief description of background and motivation Discussion of current state Next steps • Apr 1: Student Presentation 3 TETRIS: Scalable and Efficient Neural Network Acceleration with 3 D Memory, ASPLOS 2017 SCNN: An Accelerator for Compressed-sparse Convolutional Neural Networks, ISCA 2017

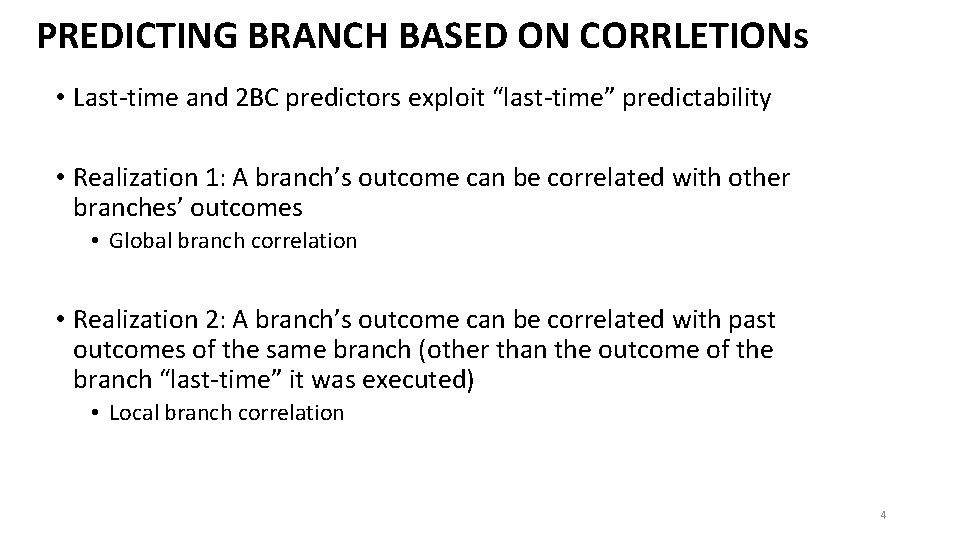

PREDICTING BRANCH BASED ON CORRLETIONs • Last-time and 2 BC predictors exploit “last-time” predictability • Realization 1: A branch’s outcome can be correlated with other branches’ outcomes • Global branch correlation • Realization 2: A branch’s outcome can be correlated with past outcomes of the same branch (other than the outcome of the branch “last-time” it was executed) • Local branch correlation 4

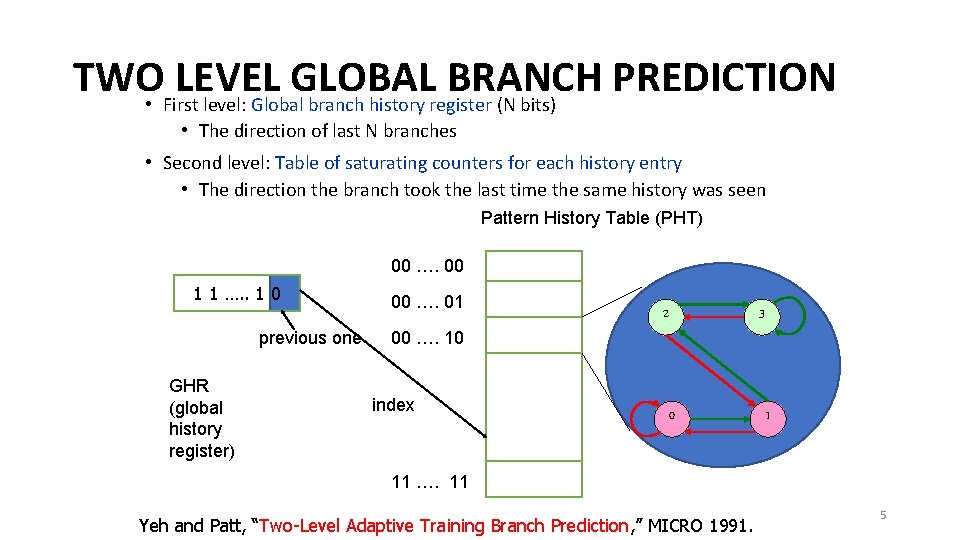

TWO • First LEVEL GLOBAL BRANCH PREDICTION level: Global branch history register (N bits) • The direction of last N branches • Second level: Table of saturating counters for each history entry • The direction the branch took the last time the same history was seen Pattern History Table (PHT) 00 …. 00 1 1 …. . 1 0 previous one GHR (global history register) 00 …. 01 00 …. 10 index 2 3 0 1 11 …. 11 Yeh and Patt, “Two-Level Adaptive Training Branch Prediction, ” MICRO 1991. 5

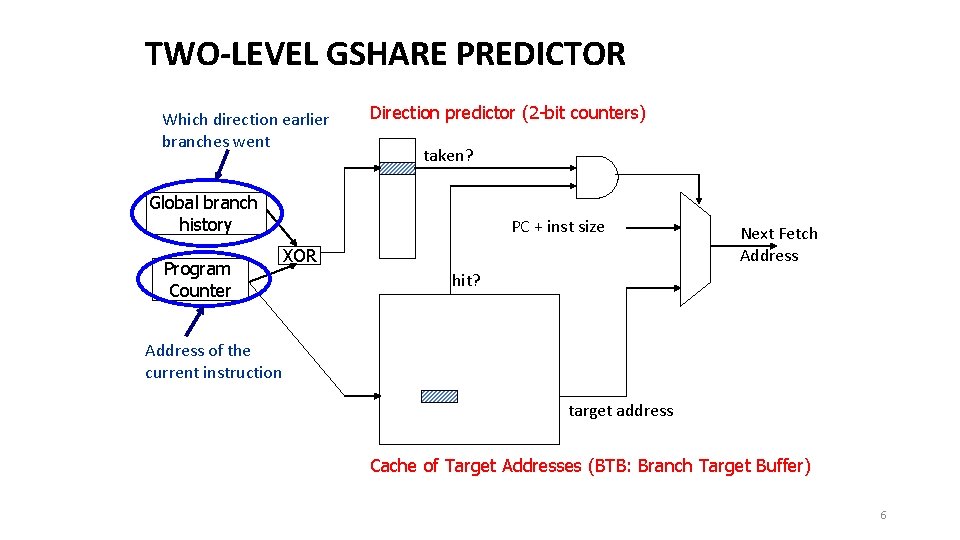

TWO-LEVEL GSHARE PREDICTOR Which direction earlier branches went Direction predictor (2 -bit counters) taken? Global branch history Program Counter PC + inst size XOR Next Fetch Address hit? Address of the current instruction target address Cache of Target Addresses (BTB: Branch Target Buffer) 6

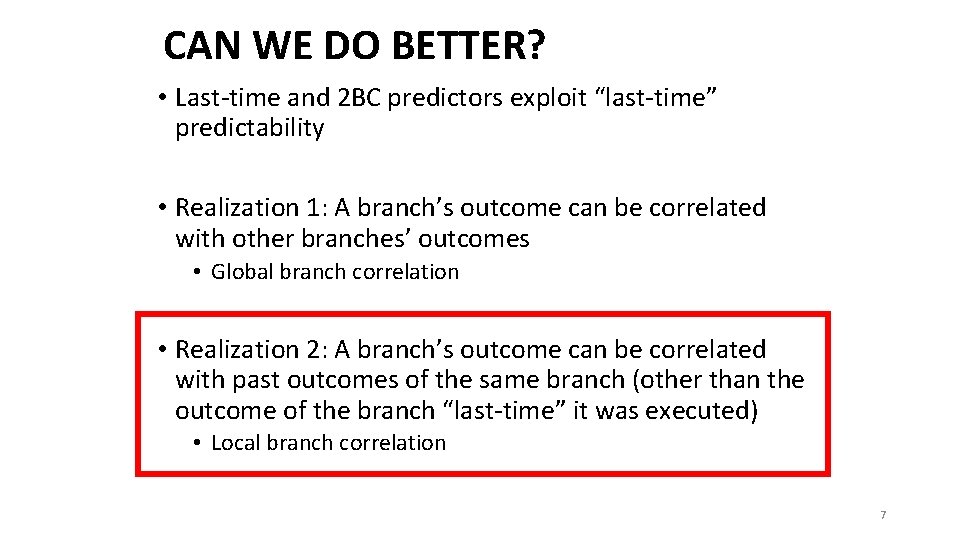

CAN WE DO BETTER? • Last-time and 2 BC predictors exploit “last-time” predictability • Realization 1: A branch’s outcome can be correlated with other branches’ outcomes • Global branch correlation • Realization 2: A branch’s outcome can be correlated with past outcomes of the same branch (other than the outcome of the branch “last-time” it was executed) • Local branch correlation 7

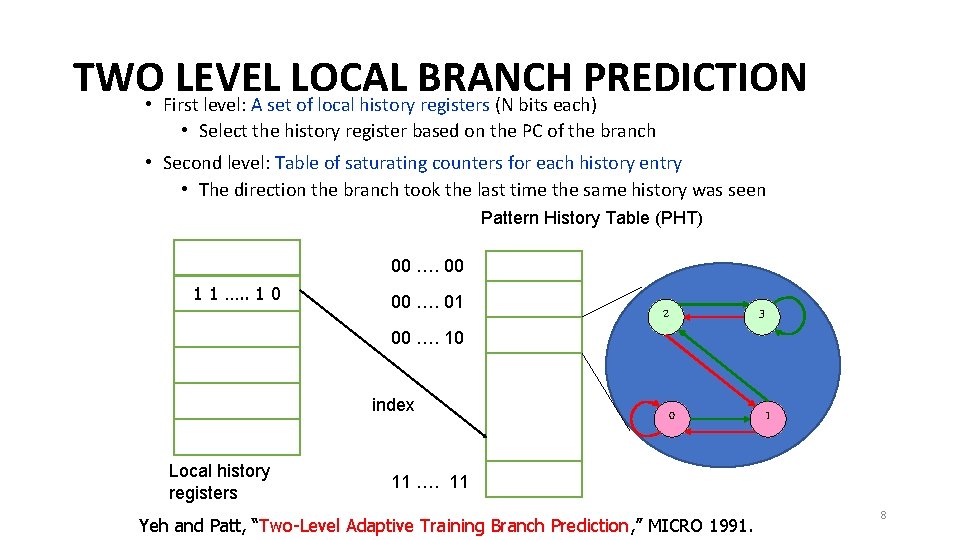

TWO • First LEVEL LOCAL BRANCH PREDICTION level: A set of local history registers (N bits each) • Select the history register based on the PC of the branch • Second level: Table of saturating counters for each history entry • The direction the branch took the last time the same history was seen Pattern History Table (PHT) 00 …. 00 1 1 …. . 1 0 00 …. 01 00 …. 10 index Local history registers 2 3 0 1 11 …. 11 Yeh and Patt, “Two-Level Adaptive Training Branch Prediction, ” MICRO 1991. 8

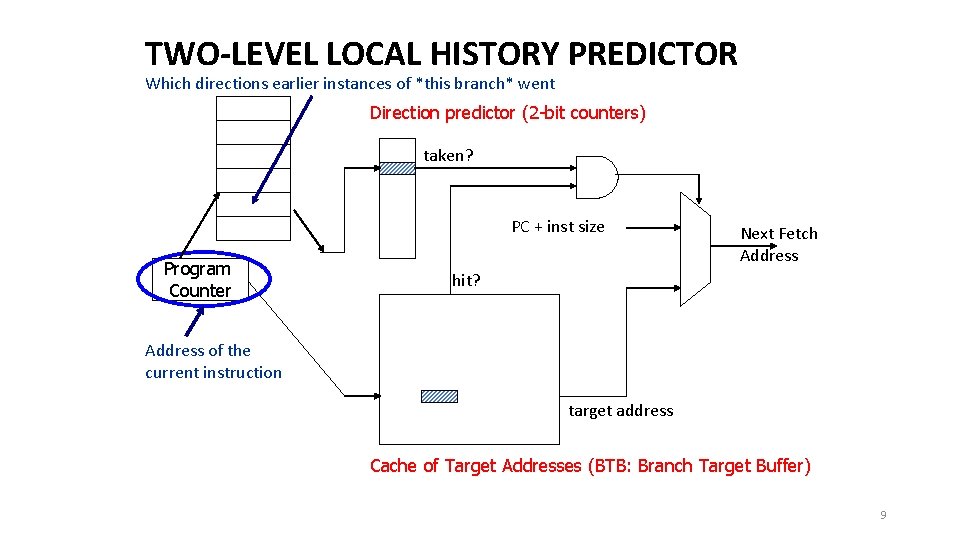

TWO-LEVEL LOCAL HISTORY PREDICTOR Which directions earlier instances of *this branch* went Direction predictor (2 -bit counters) taken? PC + inst size Program Counter Next Fetch Address hit? Address of the current instruction target address Cache of Target Addresses (BTB: Branch Target Buffer) 9

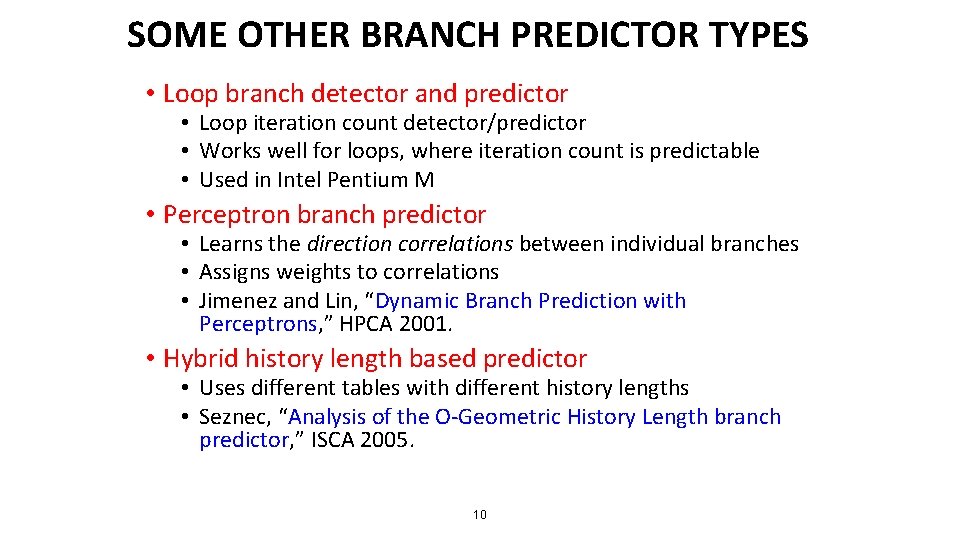

SOME OTHER BRANCH PREDICTOR TYPES • Loop branch detector and predictor • Loop iteration count detector/predictor • Works well for loops, where iteration count is predictable • Used in Intel Pentium M • Perceptron branch predictor • Learns the direction correlations between individual branches • Assigns weights to correlations • Jimenez and Lin, “Dynamic Branch Prediction with Perceptrons, ” HPCA 2001. • Hybrid history length based predictor • Uses different tables with different history lengths • Seznec, “Analysis of the O-Geometric History Length branch predictor, ” ISCA 2005. 10

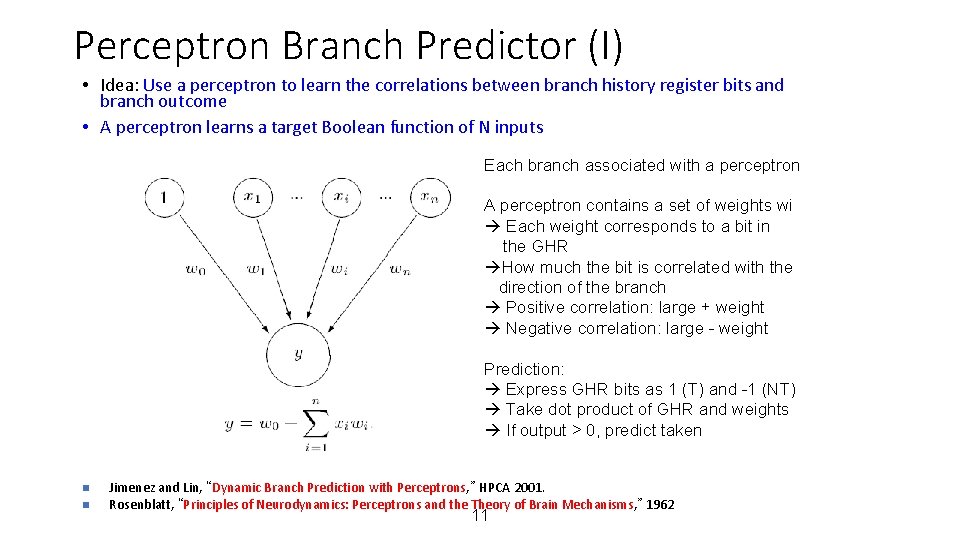

Perceptron Branch Predictor (I) • Idea: Use a perceptron to learn the correlations between branch history register bits and branch outcome • A perceptron learns a target Boolean function of N inputs Each branch associated with a perceptron A perceptron contains a set of weights wi Each weight corresponds to a bit in the GHR How much the bit is correlated with the direction of the branch Positive correlation: large + weight Negative correlation: large - weight Prediction: Express GHR bits as 1 (T) and -1 (NT) Take dot product of GHR and weights If output > 0, predict taken n n Jimenez and Lin, “Dynamic Branch Prediction with Perceptrons, ” HPCA 2001. Rosenblatt, “Principles of Neurodynamics: Perceptrons and the Theory of Brain Mechanisms, ” 1962 11

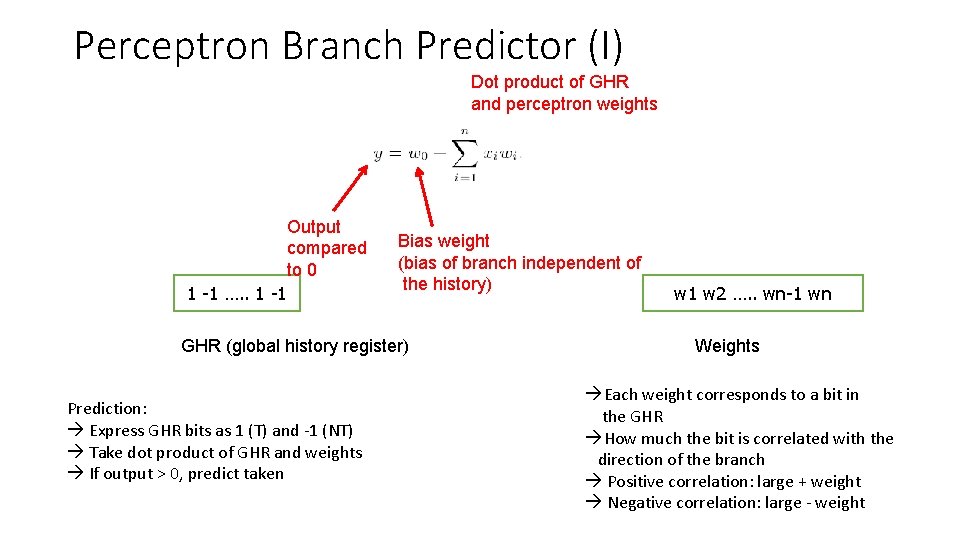

Perceptron Branch Predictor (I) Dot product of GHR and perceptron weights Output compared to 0 1 -1 …. . 1 -1 Bias weight (bias of branch independent of the history) GHR (global history register) Prediction: Express GHR bits as 1 (T) and -1 (NT) Take dot product of GHR and weights If output > 0, predict taken w 1 w 2 …. . wn-1 wn Weights Each weight corresponds to a bit in the GHR How much the bit is correlated with the direction of the branch Positive correlation: large + weight Negative correlation: large - weight

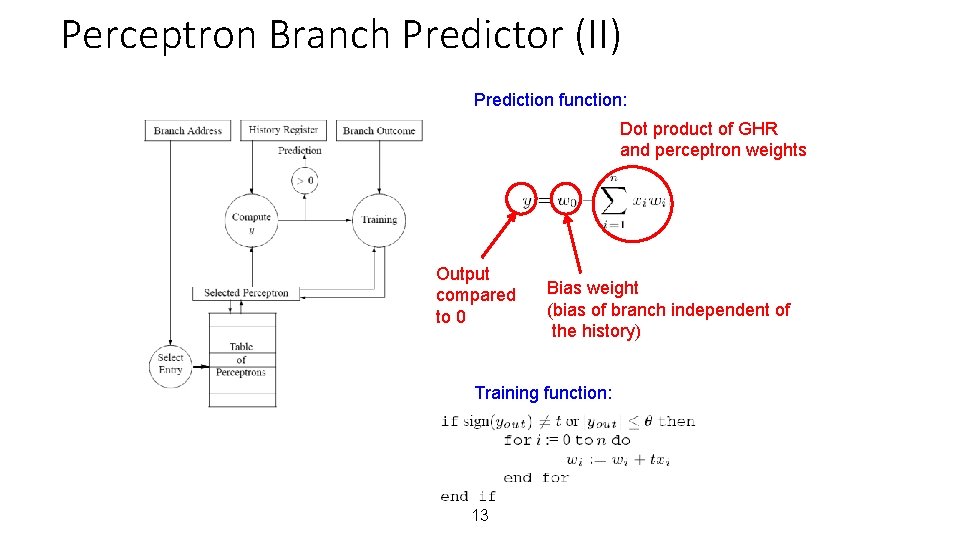

Perceptron Branch Predictor (II) Prediction function: Dot product of GHR and perceptron weights Output compared to 0 Bias weight (bias of branch independent of the history) Training function: 13

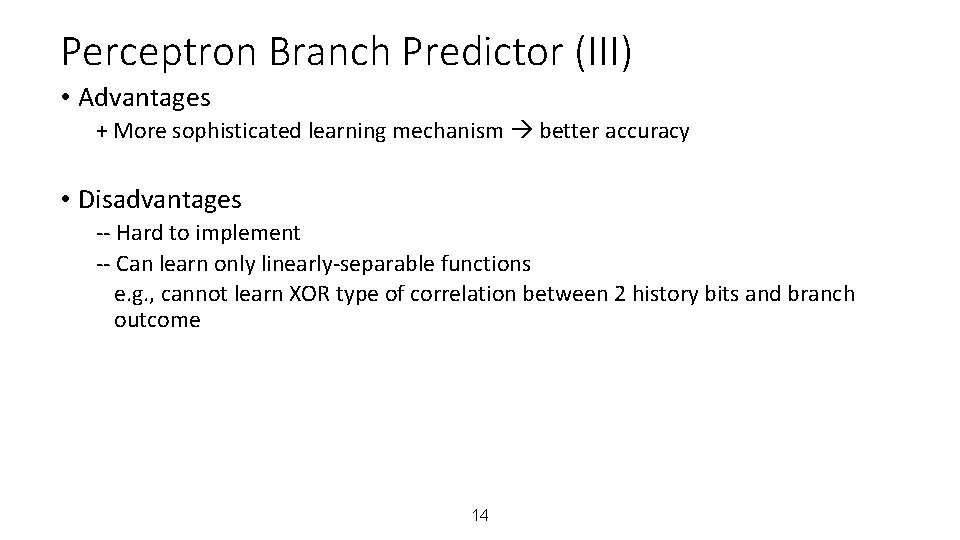

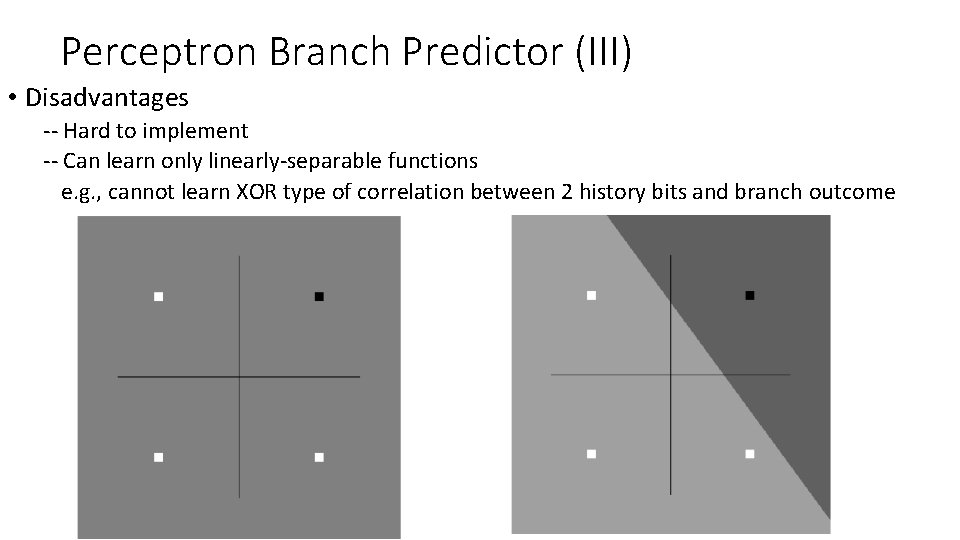

Perceptron Branch Predictor (III) • Advantages + More sophisticated learning mechanism better accuracy • Disadvantages -- Hard to implement -- Can learn only linearly-separable functions e. g. , cannot learn XOR type of correlation between 2 history bits and branch outcome 14

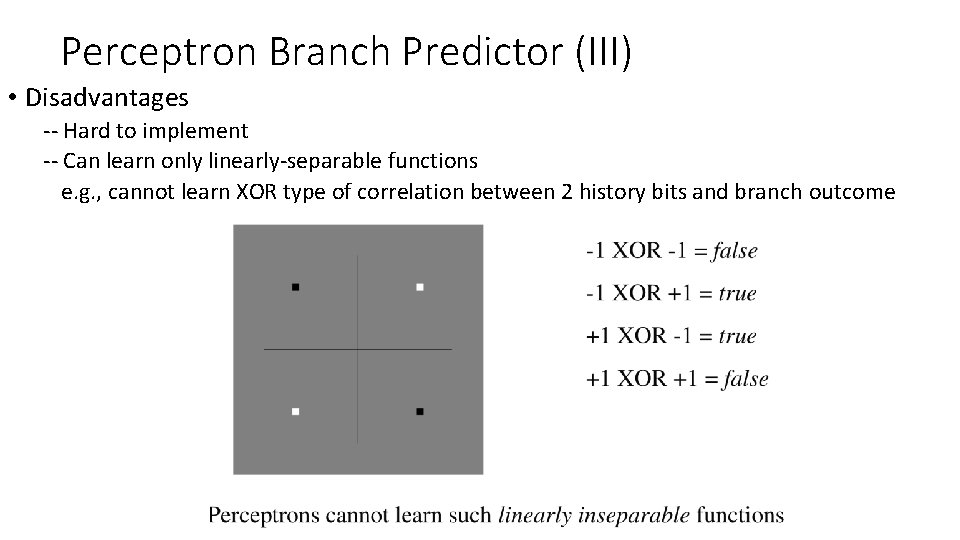

Perceptron Branch Predictor (III) • Disadvantages -- Hard to implement -- Can learn only linearly-separable functions e. g. , cannot learn XOR type of correlation between 2 history bits and branch outcome 15

Perceptron Branch Predictor (III) • Disadvantages -- Hard to implement -- Can learn only linearly-separable functions e. g. , cannot learn XOR type of correlation between 2 history bits and branch outcome 16

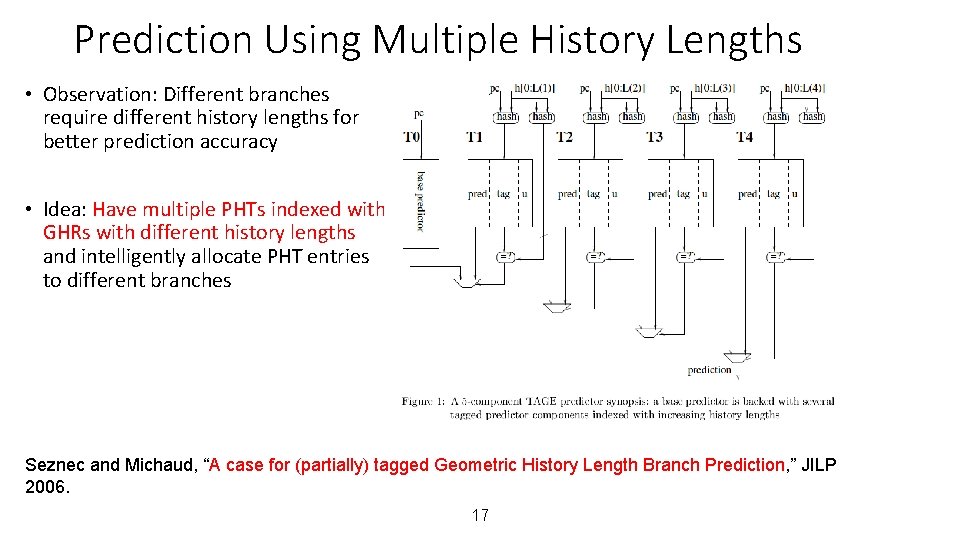

Prediction Using Multiple History Lengths • Observation: Different branches require different history lengths for better prediction accuracy • Idea: Have multiple PHTs indexed with GHRs with different history lengths and intelligently allocate PHT entries to different branches Seznec and Michaud, “A case for (partially) tagged Geometric History Length Branch Prediction, ” JILP 2006. 17

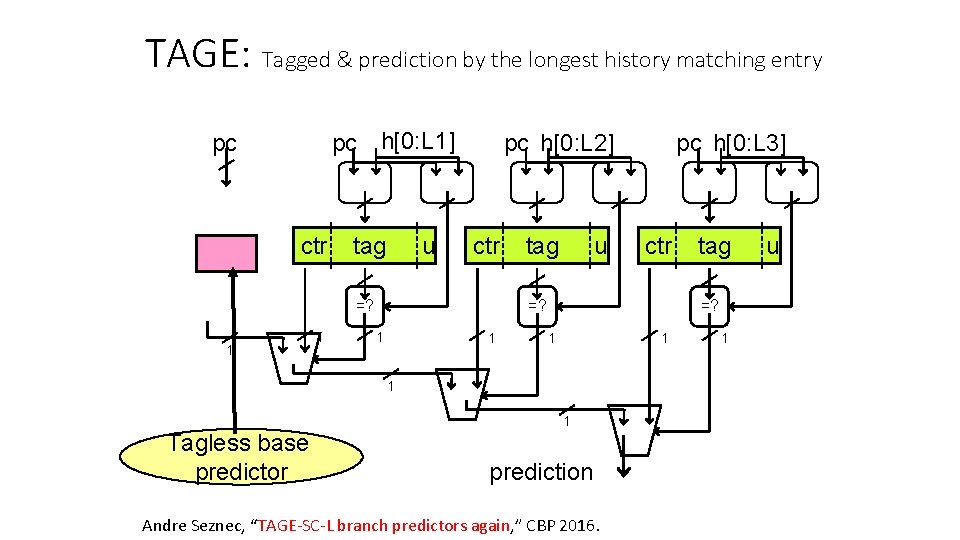

TAGE: Tagged & prediction by the longest history matching entry pc h[0: L 1] pc ctr tag u pc h[0: L 2] ctr =? 1 1 tag u ctr =? 1 1 tag =? 1 1 Tagless base predictor pc h[0: L 3] prediction Andre Seznec, “TAGE-SC-L branch predictors again, ” CBP 2016. 1 u

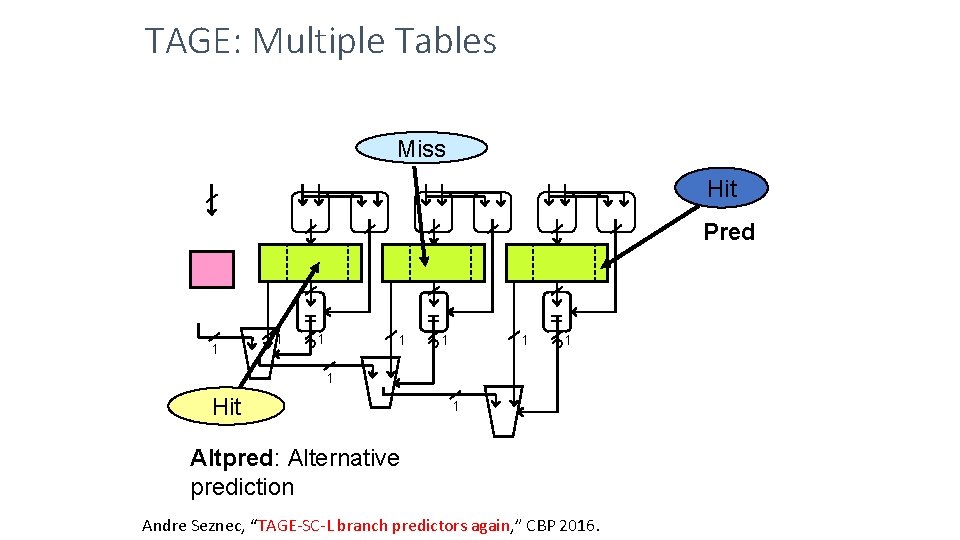

TAGE: Multiple Tables Miss Hit Pred 1 1 = 1 ? 1 = ? 1 1 Hit 1 Altpred: Alternative prediction Andre Seznec, “TAGE-SC-L branch predictors again, ” CBP 2016.

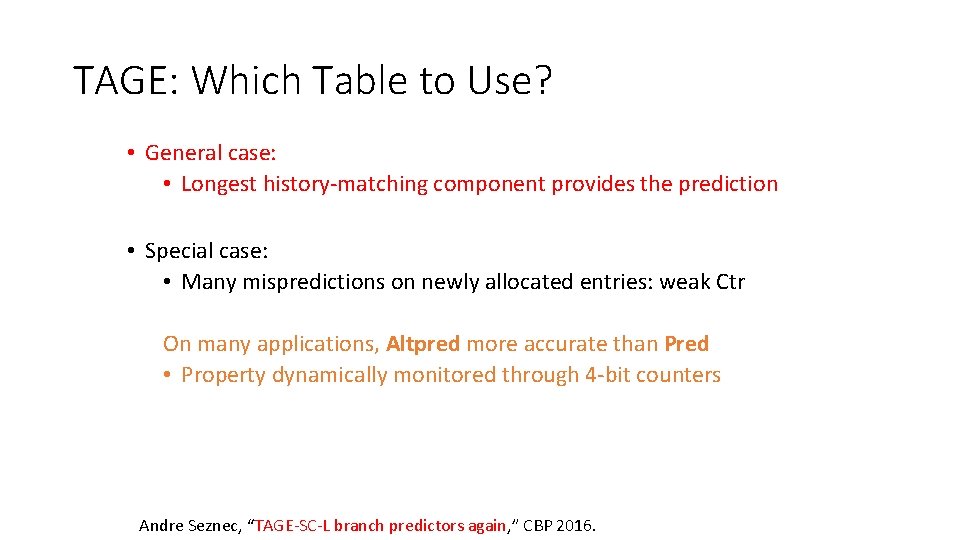

TAGE: Which Table to Use? • General case: • Longest history-matching component provides the prediction • Special case: • Many mispredictions on newly allocated entries: weak Ctr On many applications, Altpred more accurate than Pred • Property dynamically monitored through 4 -bit counters Andre Seznec, “TAGE-SC-L branch predictors again, ” CBP 2016.

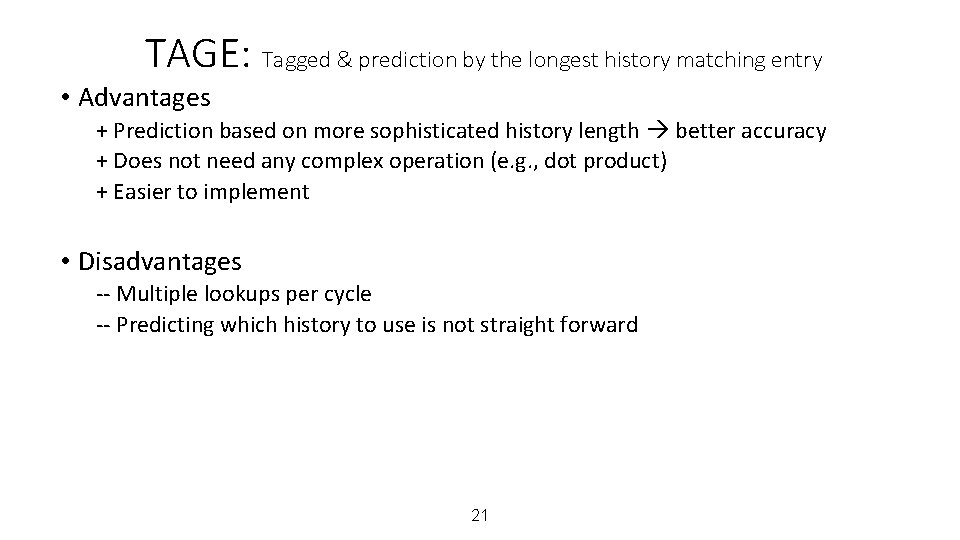

TAGE: Tagged & prediction by the longest history matching entry • Advantages + Prediction based on more sophisticated history length better accuracy + Does not need any complex operation (e. g. , dot product) + Easier to implement • Disadvantages -- Multiple lookups per cycle -- Predicting which history to use is not straight forward 21

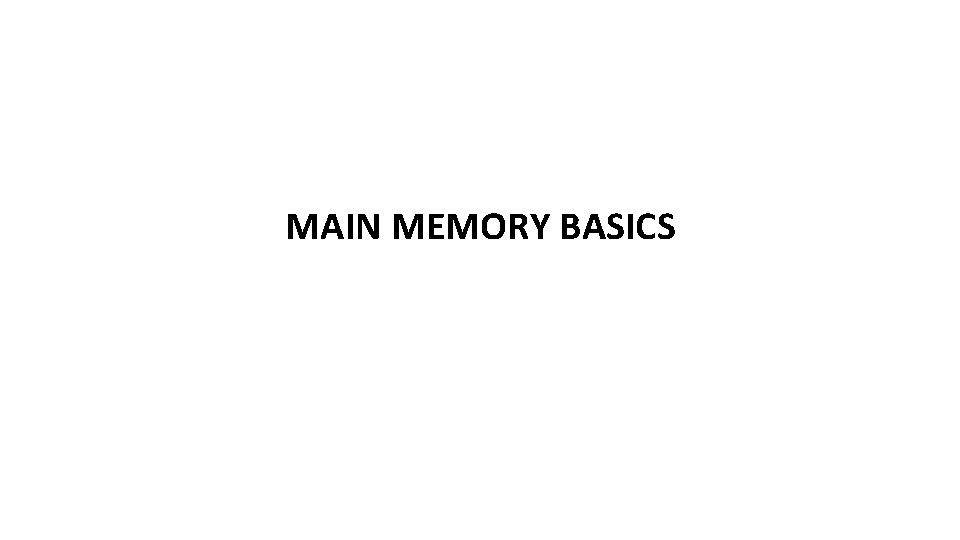

MAIN MEMORY BASICS

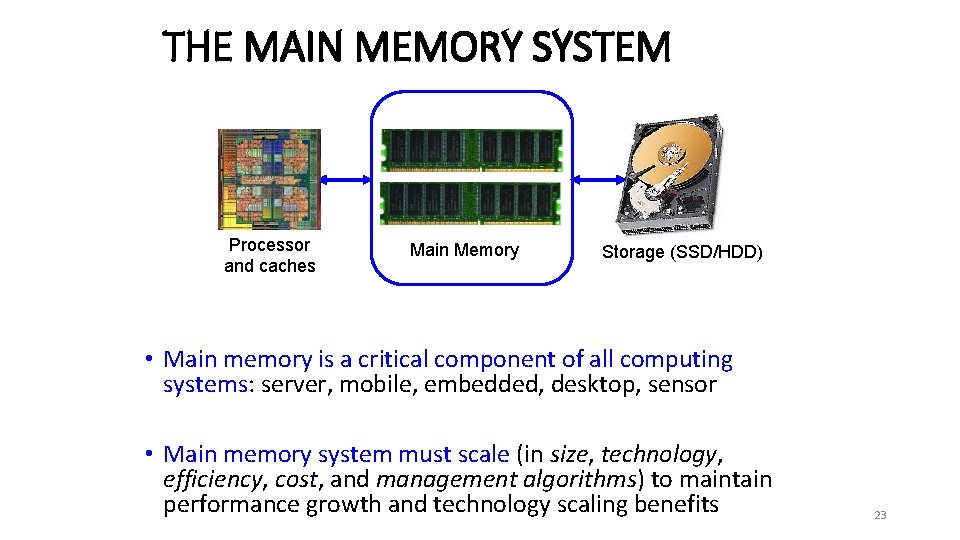

THE MAIN MEMORY SYSTEM Processor and caches Main Memory Storage (SSD/HDD) • Main memory is a critical component of all computing systems: server, mobile, embedded, desktop, sensor • Main memory system must scale (in size, technology, efficiency, cost, and management algorithms) to maintain performance growth and technology scaling benefits 23

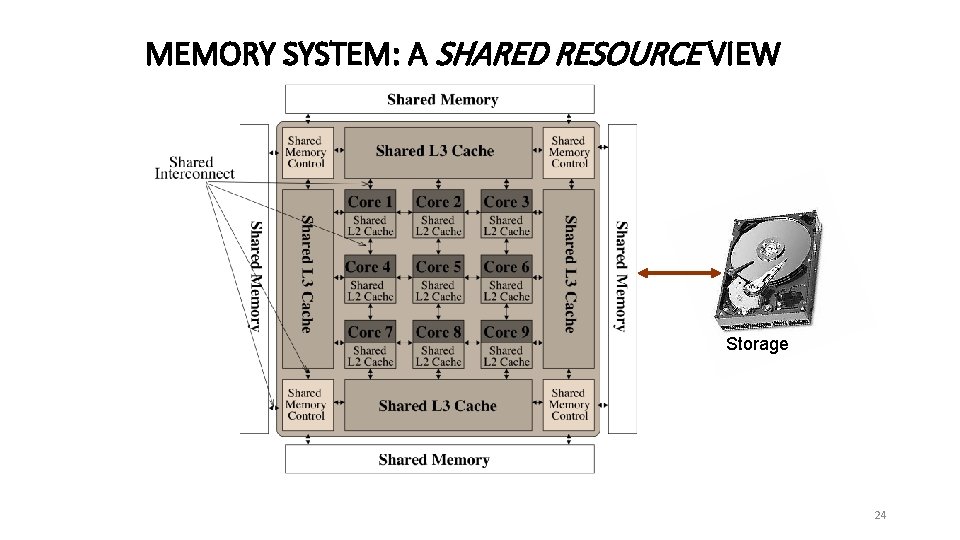

MEMORY SYSTEM: A SHARED RESOURCE VIEW Storage 24

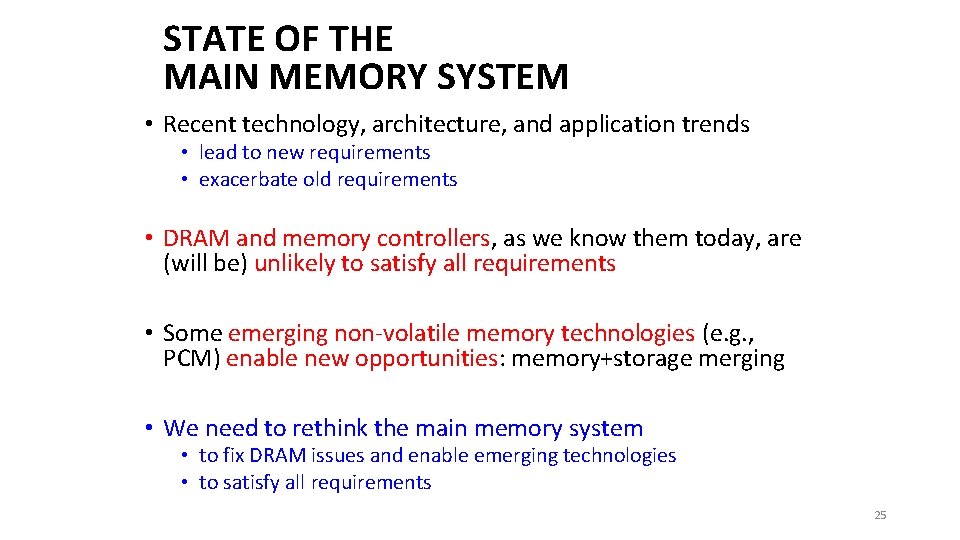

STATE OF THE MAIN MEMORY SYSTEM • Recent technology, architecture, and application trends • lead to new requirements • exacerbate old requirements • DRAM and memory controllers, as we know them today, are (will be) unlikely to satisfy all requirements • Some emerging non-volatile memory technologies (e. g. , PCM) enable new opportunities: memory+storage merging • We need to rethink the main memory system • to fix DRAM issues and enable emerging technologies • to satisfy all requirements 25

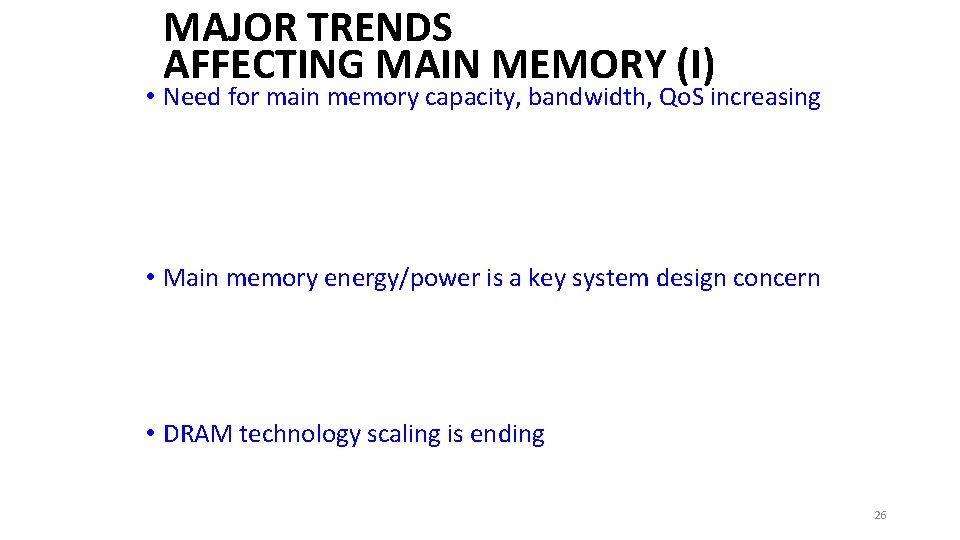

MAJOR TRENDS AFFECTING MAIN MEMORY (I) • Need for main memory capacity, bandwidth, Qo. S increasing • Main memory energy/power is a key system design concern • DRAM technology scaling is ending 26

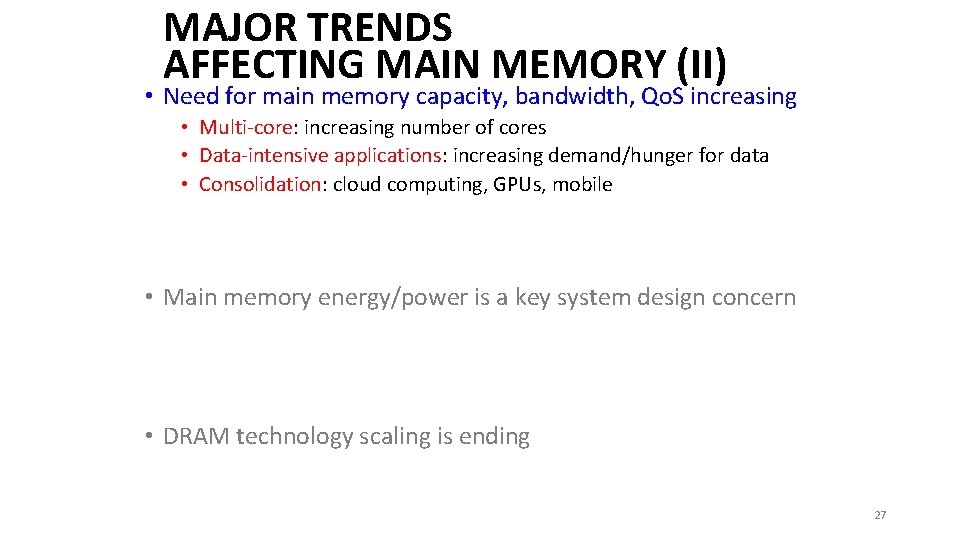

MAJOR TRENDS AFFECTING MAIN MEMORY (II) • Need for main memory capacity, bandwidth, Qo. S increasing • Multi-core: increasing number of cores • Data-intensive applications: increasing demand/hunger for data • Consolidation: cloud computing, GPUs, mobile • Main memory energy/power is a key system design concern • DRAM technology scaling is ending 27

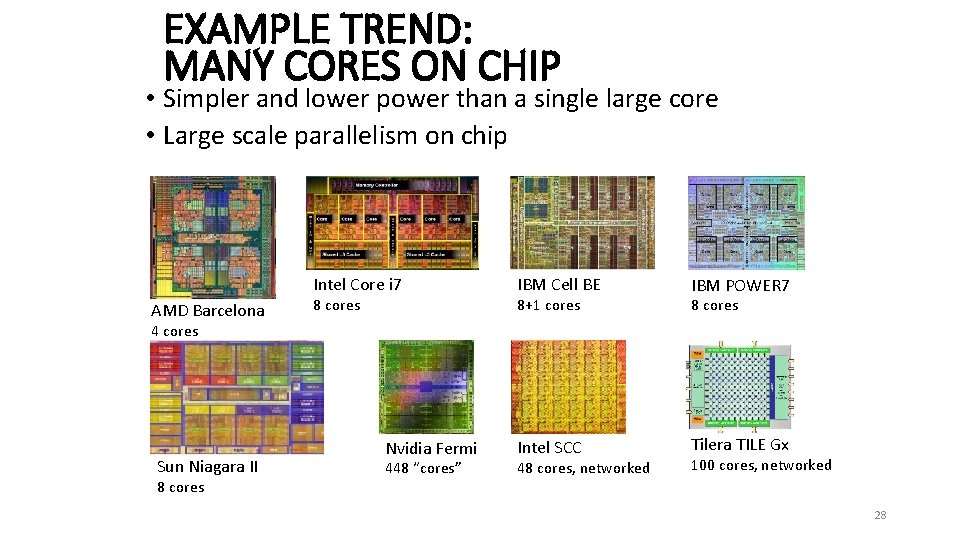

EXAMPLE TREND: MANY CORES ON CHIP • Simpler and lower power than a single large core • Large scale parallelism on chip Intel Core i 7 AMD Barcelona 8 cores IBM Cell BE IBM POWER 7 Intel SCC Tilera TILE Gx 8+1 cores 8 cores 4 cores Sun Niagara II 8 cores Nvidia Fermi 448 “cores” 48 cores, networked 100 cores, networked 28

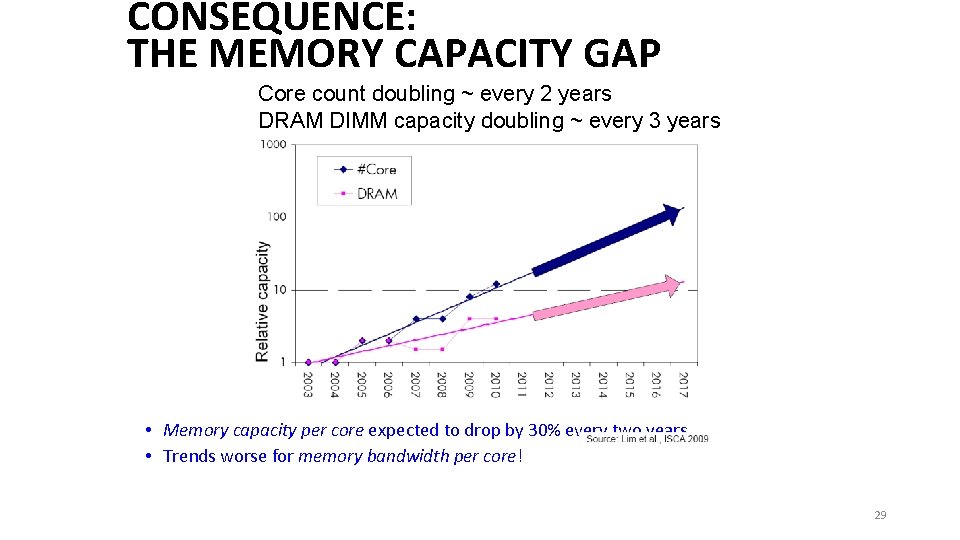

CONSEQUENCE: THE MEMORY CAPACITY GAP Core count doubling ~ every 2 years DRAM DIMM capacity doubling ~ every 3 years • Memory capacity per core expected to drop by 30% every two years • Trends worse for memory bandwidth per core! 29

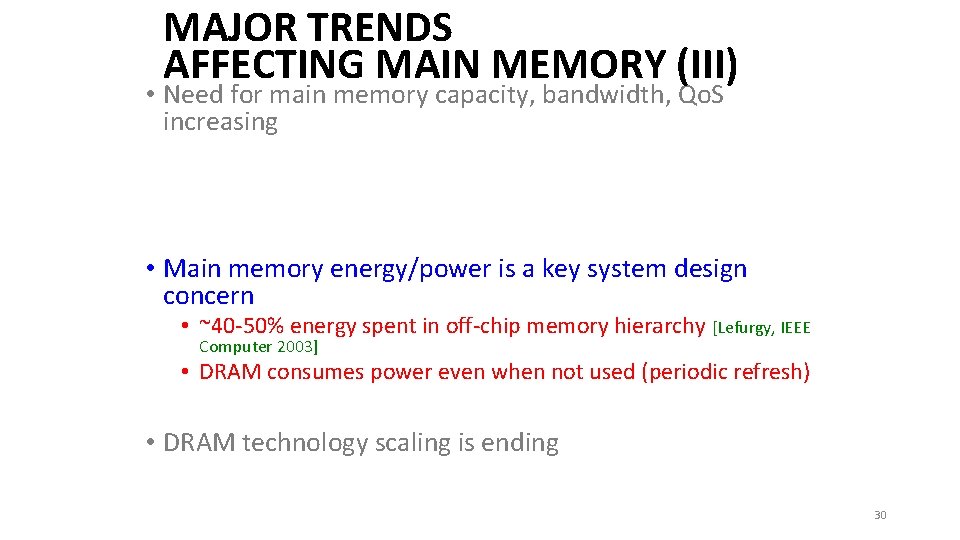

MAJOR TRENDS AFFECTING MAIN MEMORY (III) • Need for main memory capacity, bandwidth, Qo. S increasing • Main memory energy/power is a key system design concern • ~40 -50% energy spent in off-chip memory hierarchy [Lefurgy, IEEE Computer 2003] • DRAM consumes power even when not used (periodic refresh) • DRAM technology scaling is ending 30

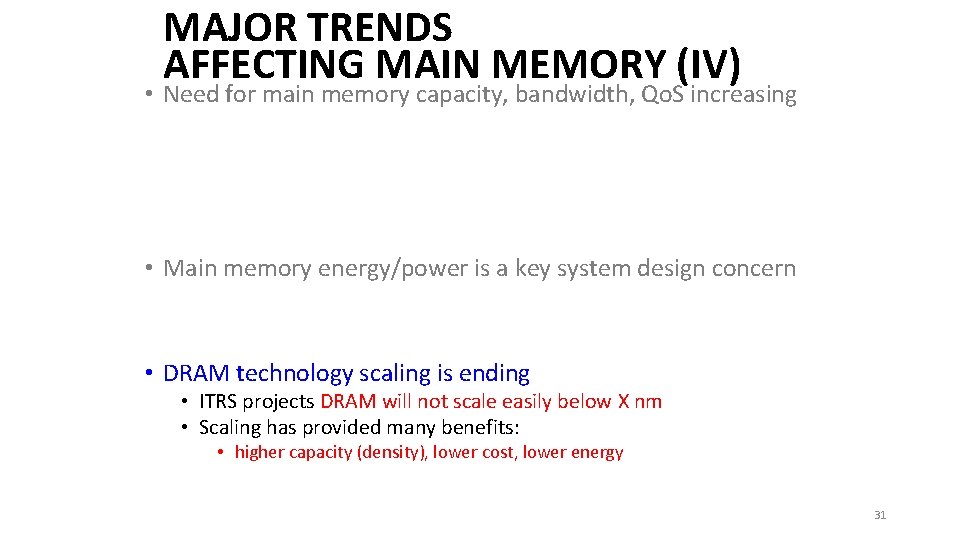

MAJOR TRENDS AFFECTING MAIN MEMORY (IV) • Need for main memory capacity, bandwidth, Qo. S increasing • Main memory energy/power is a key system design concern • DRAM technology scaling is ending • ITRS projects DRAM will not scale easily below X nm • Scaling has provided many benefits: • higher capacity (density), lower cost, lower energy 31

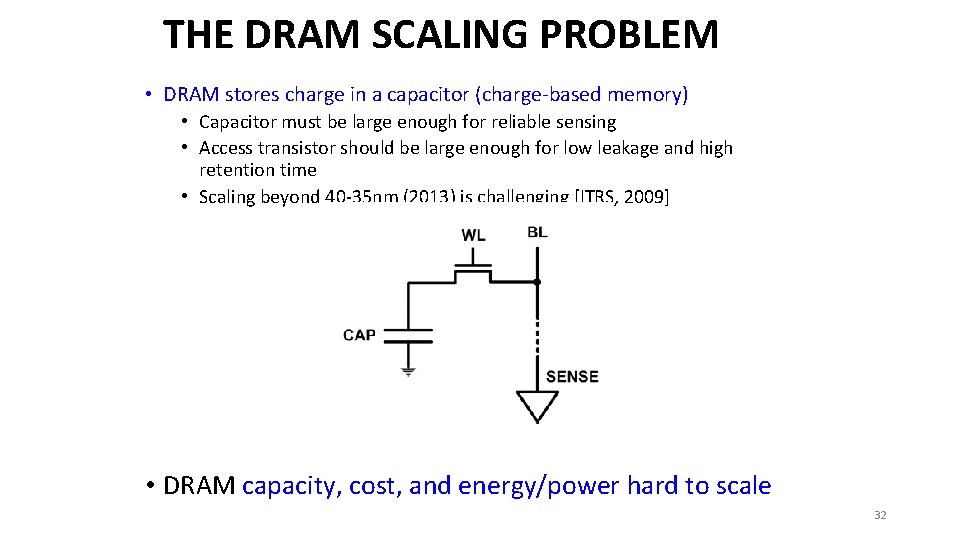

THE DRAM SCALING PROBLEM • DRAM stores charge in a capacitor (charge-based memory) • Capacitor must be large enough for reliable sensing • Access transistor should be large enough for low leakage and high retention time • Scaling beyond 40 -35 nm (2013) is challenging [ITRS, 2009] • DRAM capacity, cost, and energy/power hard to scale 32

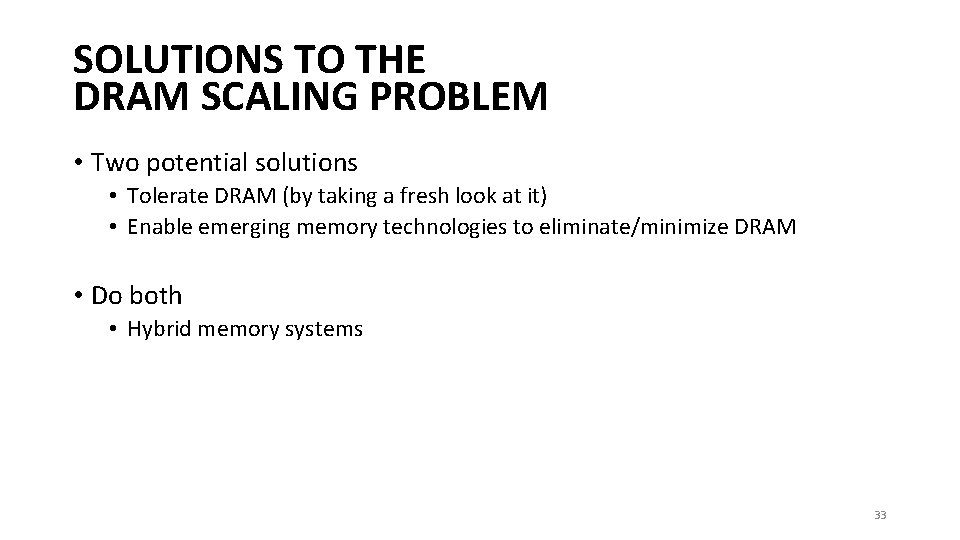

SOLUTIONS TO THE DRAM SCALING PROBLEM • Two potential solutions • Tolerate DRAM (by taking a fresh look at it) • Enable emerging memory technologies to eliminate/minimize DRAM • Do both • Hybrid memory systems 33

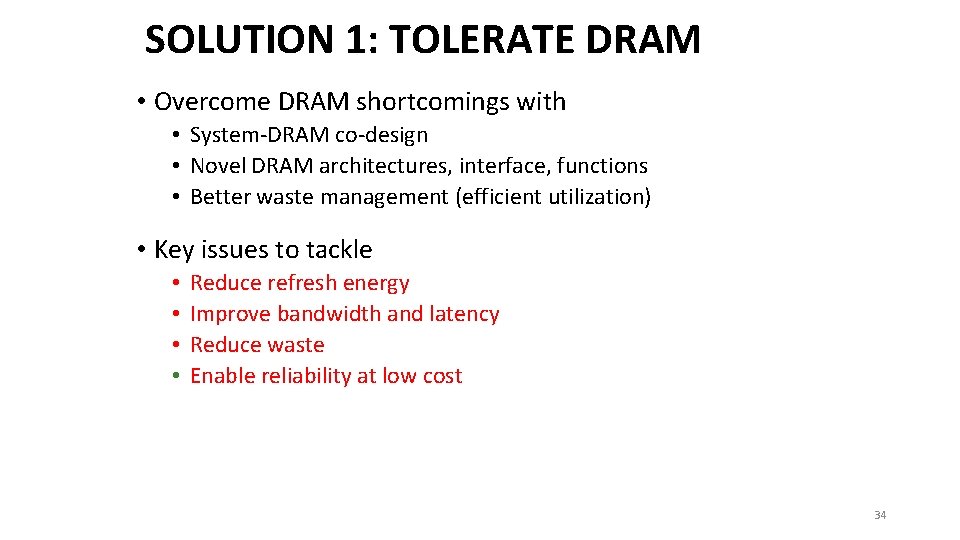

SOLUTION 1: TOLERATE DRAM • Overcome DRAM shortcomings with • System-DRAM co-design • Novel DRAM architectures, interface, functions • Better waste management (efficient utilization) • Key issues to tackle • • Reduce refresh energy Improve bandwidth and latency Reduce waste Enable reliability at low cost 34

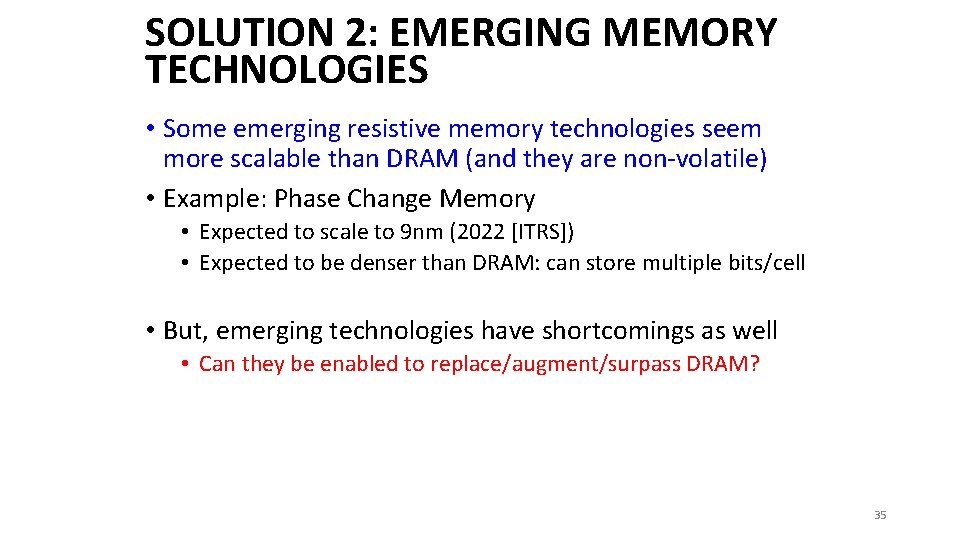

SOLUTION 2: EMERGING MEMORY TECHNOLOGIES • Some emerging resistive memory technologies seem more scalable than DRAM (and they are non-volatile) • Example: Phase Change Memory • Expected to scale to 9 nm (2022 [ITRS]) • Expected to be denser than DRAM: can store multiple bits/cell • But, emerging technologies have shortcomings as well • Can they be enabled to replace/augment/surpass DRAM? 35

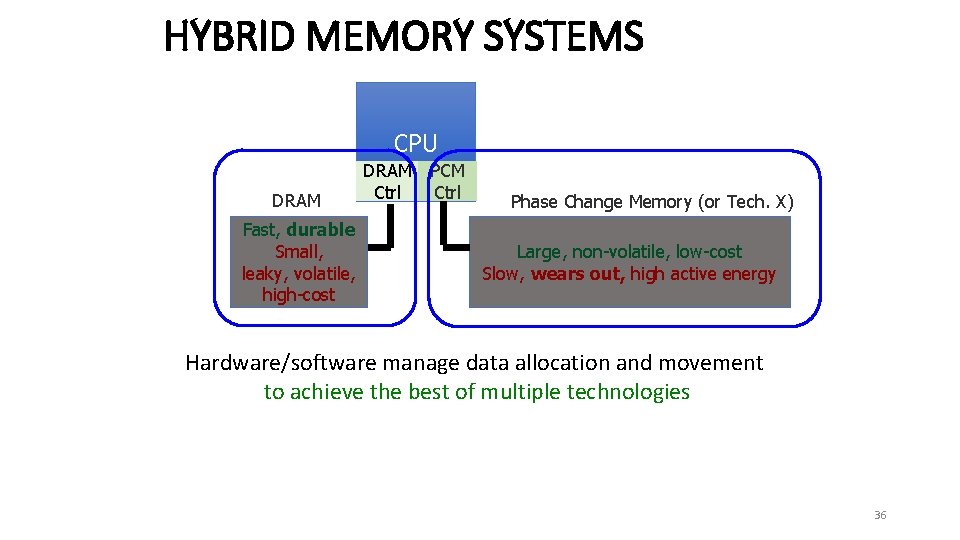

HYBRID MEMORY SYSTEMS CPU DRAM Fast, durable Small, leaky, volatile, high-cost DRAM Ctrl PCM Ctrl Phase Change Memory (or Tech. X) Large, non-volatile, low-cost Slow, wears out, high active energy Hardware/software manage data allocation and movement to achieve the best of multiple technologies 36

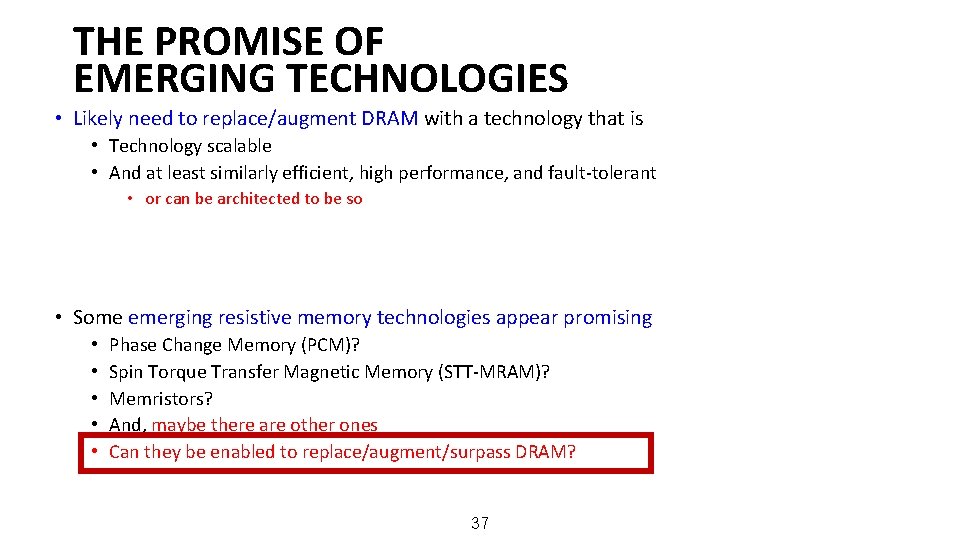

THE PROMISE OF EMERGING TECHNOLOGIES • Likely need to replace/augment DRAM with a technology that is • Technology scalable • And at least similarly efficient, high performance, and fault-tolerant • or can be architected to be so • Some emerging resistive memory technologies appear promising • • • Phase Change Memory (PCM)? Spin Torque Transfer Magnetic Memory (STT-MRAM)? Memristors? And, maybe there are other ones Can they be enabled to replace/augment/surpass DRAM? 37

CHARGE VS. RESISTIVE MEMORIES • Charge Memory (e. g. , DRAM, Flash) • Write data by capturing charge Q • Read data by detecting voltage V • Resistive Memory (e. g. , PCM, STT-MRAM, memristors) • Write data by pulsing current d. Q/dt • Read data by detecting resistance R 38

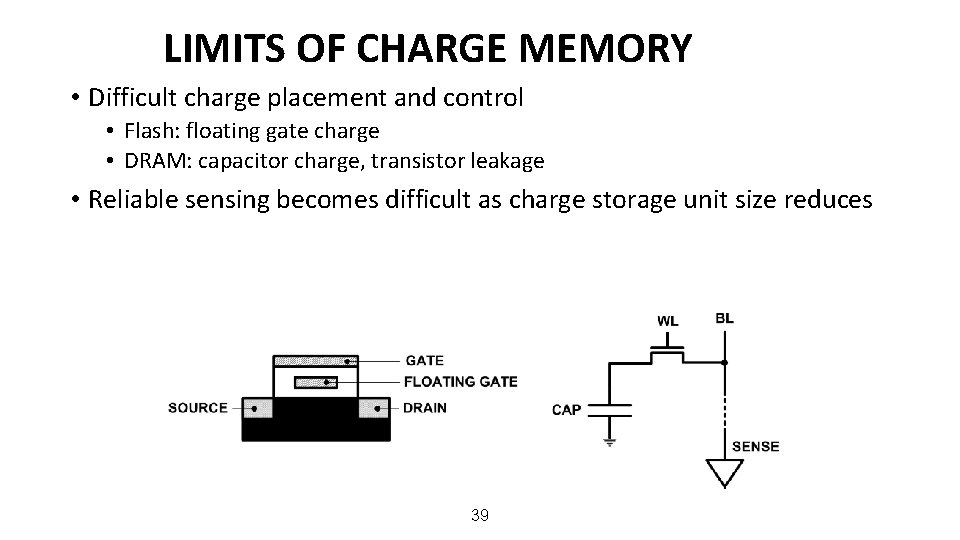

LIMITS OF CHARGE MEMORY • Difficult charge placement and control • Flash: floating gate charge • DRAM: capacitor charge, transistor leakage • Reliable sensing becomes difficult as charge storage unit size reduces 39
