ADC for EMCEndcap Production and test of 250

  • Slides: 19
Download presentation

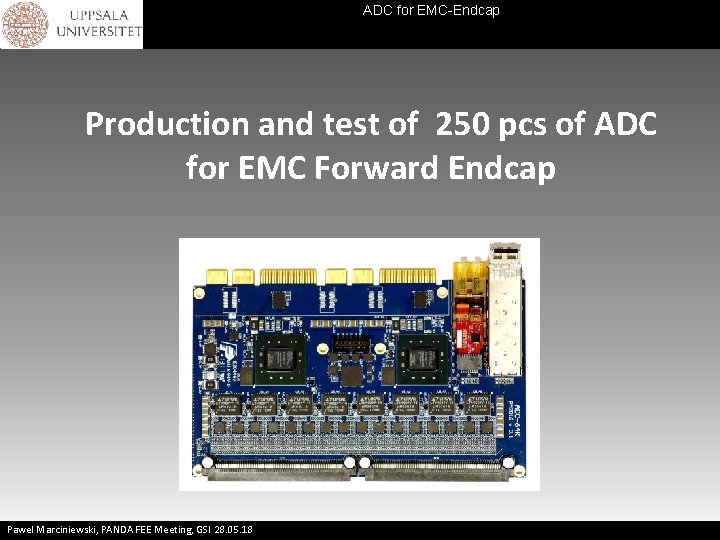

ADC for EMC-Endcap Production and test of 250 pcs of ADC for EMC Forward

ADC for EMC-Endcap Production and test of 250 pcs of ADC for EMC Forward Endcap Pawel Marciniewski, PANDA FEE Meeting, GSI 28. 05. 18

• • Pawel Marciniewski, PANDA FEE Meeting, GSI 28. 05. 18 • 15000

• • Pawel Marciniewski, PANDA FEE Meeting, GSI 28. 05. 18 • 15000 crystals Dual photosensor readout Dual range 14400 225 47808 375 225 125 • High channel density Compute Node 22 Data Concentrator, 16 -ch ADC 64 -ch Basel ADC 128 ch APFEL (GSI) 22 Preamplifier VPTT Photosensor APD 3, 600 11, 952 ADC for EMC - PANDA EMC Readout System

ADC for EMC-Endcap - Production of 250 pcs for EMC Forward Endcap ADC Production

ADC for EMC-Endcap - Production of 250 pcs for EMC Forward Endcap ADC Production Pawel Marciniewski, PANDA FEE Meeting, GSI 28. 05. 18 50 pcs delivered Testing 48 pcs delivered 2 pcs delivered Batches of 50 pieces every 5 weeks Payment for each batch is made after the successful test The money are used for financing components for the next batch

ADC for EMC-Endcap - Post-production functional tests Pawel Marciniewski, PANDA FEE Meeting, GSI 28.

ADC for EMC-Endcap - Post-production functional tests Pawel Marciniewski, PANDA FEE Meeting, GSI 28. 05. 18

ADC for EMC-Endcap - Post-production functional tests XC 7 Z 030, 512 MB DDR

ADC for EMC-Endcap - Post-production functional tests XC 7 Z 030, 512 MB DDR 3, RTC ZYNQ-Board – Data Readout Module - Tested - Running Linux/Peta. Linux - Communicating over Ethernet - 4 x. SFP+ (6. 6 Gb/s) Gb. E, USART, USB, HDMI Prepared for data taking with any data format 4 x. NIM(I/O) Pawel Marciniewski, PANDA FEE Meeting, GSI 28. 05. 18 SDHC

ADC for EMC-Endcap - Post-production functional tests ZYNQ-Board PS Flash ADC 64 K 3

ADC for EMC-Endcap - Post-production functional tests ZYNQ-Board PS Flash ADC 64 K 3 Power regulators SFP ADC Power and monitor FPGAs ADC Pawel Marciniewski, PANDA FEE Meeting, GSI 28. 05. 18 JTAG Pulse generator/ multiplexer Controlled- ramp power supply I 2 C USB Microcontroller ATmega 328 P SFP ADC backplane connector SFP ADC TEST SFP RTC SDHC ARM HDMI USB 4 x KINTEX-7 PLL NIM DDR 3 ETH

ADC for EMC-Endcap - Post-production functional tests Power-up ADC 64 K 3 Power regulators

ADC for EMC-Endcap - Post-production functional tests Power-up ADC 64 K 3 Power regulators SFP ADC Power and monitor FPGAs ADC Pawel Marciniewski, PANDA FEE Meeting, GSI 28. 05. 18 JTAG Pulse generator/ multiplexer Controlled- ramp power supply I 2 C USB Microcontroller ATmega 328 P SFP ADC backplane connector SFP ADC TEST

ADC for EMC-Endcap - Post-production functional tests u. P ATmega 328 P DAC DCDC

ADC for EMC-Endcap - Post-production functional tests u. P ATmega 328 P DAC DCDC Power regularors ADC LTC 2497 DS 4424 +1. 0 V +1. 5 V +2. 5 V +3. 3 V +2. 5 V I 2 C Pawel Marciniewski, PANDA FEE Meeting, GSI 28. 05. 18

ADC for EMC-Endcap - Post-production functional tests Power monitoring Location of 16 -ch, 16

ADC for EMC-Endcap - Post-production functional tests Power monitoring Location of 16 -ch, 16 bit, 7. 5 SPS ADCs Pawel Marciniewski, PANDA FEE Meeting, GSI 28. 05. 18

ADC for EMC-Endcap - Post-production functional tests Power monitoring FPGA Branch 0 +1 VD

ADC for EMC-Endcap - Post-production functional tests Power monitoring FPGA Branch 0 +1 VD +1. 5 VD +2. 5 VD +3. 3 VD +2. 5 VA V V FPGA Branch 1 +1 VD A FPGA internal +1. 0 V +1. 2 V V V GTX A +2. 5 VD V +1. 8 V +2. 5 V/3. 3 V V A A +3. 0 VA V +2. 2 VA A +2. 5 VD +1. 8 V +2. 5 V/3. 3 V A V V A FPGA IO ADC digital VL/SFP Amplifier V +1. 8 VA V V Pawel Marciniewski, PANDA FEE Meeting, GSI 28. 05. 18 +2. 2 VA +1. 8 VA A V V 16 -ch slow ADC Intermediate ADC analog 16 -ch slow ADC

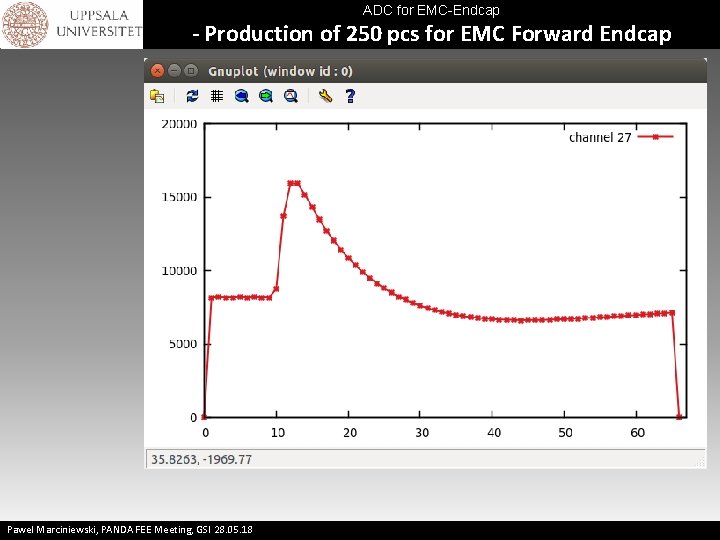

ADC for EMC-Endcap - Production of 250 pcs for EMC Forward Endcap Pawel Marciniewski,

ADC for EMC-Endcap - Production of 250 pcs for EMC Forward Endcap Pawel Marciniewski, PANDA FEE Meeting, GSI 28. 05. 18

ADC for EMC-Endcap - Post-production functional tests JTAG Configuration test PLL startup Optical link

ADC for EMC-Endcap - Post-production functional tests JTAG Configuration test PLL startup Optical link loopback test ADC 64 K 3 Power regulators SFP ADC Power and monitor FPGAs ADC Pawel Marciniewski, PANDA FEE Meeting, GSI 28. 05. 18 JTAG Pulse generator/ multiplexer Controlled- ramp power supply I 2 C USB Microcontroller ATmega 328 P SFP ADC backplane connector SFP ADC TEST

ADC for EMC-Endcap - Post-production functional tests ADC channels test ZYNQ-Board PS Flash ADC

ADC for EMC-Endcap - Post-production functional tests ADC channels test ZYNQ-Board PS Flash ADC 64 K 3 Power regulators SFP ADC Power and monitor FPGAs ADC Pawel Marciniewski, PANDA FEE Meeting, GSI 28. 05. 18 JTAG Pulse generator/ multiplexer Controlled- ramp power supply I 2 C USB Microcontroller ATmega 328 P SFP ADC backplane connector SFP ADC TEST SFP RTC SDHC ARM HDMI USB 4 x KINTEX-7 PLL NIM DDR 3 ETH

ADC for EMC-Endcap u. P DAC Linear Gate Filter Symmetrizer Analog Switch ATmega 328

ADC for EMC-Endcap u. P DAC Linear Gate Filter Symmetrizer Analog Switch ATmega 328 P DAC 7571 ADG 841 LTC 6246 ADA 4940 -2 ADG 725 Pawel Marciniewski, PANDA FEE Meeting, GSI 28. 05. 18 64 diff signals To ADC - Post-production functional tests

ADC for EMC-Endcap - Production of 250 pcs for EMC Forward Endcap Pawel Marciniewski,

ADC for EMC-Endcap - Production of 250 pcs for EMC Forward Endcap Pawel Marciniewski, PANDA FEE Meeting, GSI 28. 05. 18

ADC for EMC-Endcap - Production of 250 pcs for EMC Forward Endcap Current pool

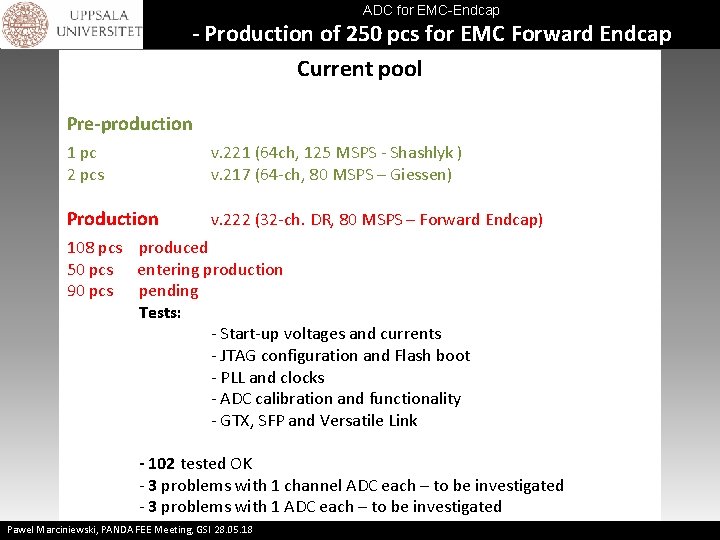

ADC for EMC-Endcap - Production of 250 pcs for EMC Forward Endcap Current pool Pre-production 1 pc 2 pcs v. 221 (64 ch, 125 MSPS - Shashlyk ) v. 217 (64 -ch, 80 MSPS – Giessen) Production v. 222 (32 -ch. DR, 80 MSPS – Forward Endcap) 108 pcs produced 50 pcs entering production 90 pcs pending Tests: - Start-up voltages and currents - JTAG configuration and Flash boot - PLL and clocks - ADC calibration and functionality - GTX, SFP and Versatile Link - 102 tested OK - 3 problems with 1 channel ADC each – to be investigated - 3 problems with 1 ADC each – to be investigated Pawel Marciniewski, PANDA FEE Meeting, GSI 28. 05. 18

ADC for EMC-Endcap - Production of 250 pcs for EMC Forward Endcap Current pool

ADC for EMC-Endcap - Production of 250 pcs for EMC Forward Endcap Current pool 6 pcs Stand-alone power supply (v. 222) 6 pcs Mezzanine power supply (v. 222) 7 pcs Input patch panel u-FL (positive signal polarity) 2 pcs Automatic tester Pawel Marciniewski, PANDA FEE Meeting, GSI 28. 05. 18

ADC for EMC-Endcap Thank You ! Pawel Marciniewski, PANDA FEE Meeting, GSI 28. 05.

ADC for EMC-Endcap Thank You ! Pawel Marciniewski, PANDA FEE Meeting, GSI 28. 05. 18

ADC for EMC-Endcap Thank You ! Special thanks to Filza Saleem Pawel Marciniewski, PANDA

ADC for EMC-Endcap Thank You ! Special thanks to Filza Saleem Pawel Marciniewski, PANDA FEE Meeting, GSI 28. 05. 18
