Windows Kernel Internals Win 32 K sys David
- Slides: 24
Windows Kernel Internals Win 32 K. sys David B. Probert, Ph. D. Windows Kernel Development Microsoft Corporation © Microsoft Corporation
Topics • • • Background Entry Points Architecture GUI Threads Initialization & Shutdown Memory Manager & Win 32 k User Mode callbacks & LPC © Microsoft Corporation
What is win 32 k? • Kernel side of the Windows Sub-System • Graphical User Interface (GUI) infrastructure of the operating system. • Includes kernel side of: – Window Manager (USER) – Graphic Device Interfacce (GDI) – Dx thunks to dxg. sys (Direct. X) © Microsoft Corporation
Win 32 k & the OS CSRSS. EXE Win. Logon. EXE User mode Processes USER 32. DLL Kernel 32. DLL NTDLL. DLL W 32 UMode. lib DLLs USER 32. DLL Win 32 k. sys NT Kernel © Microsoft Corporation

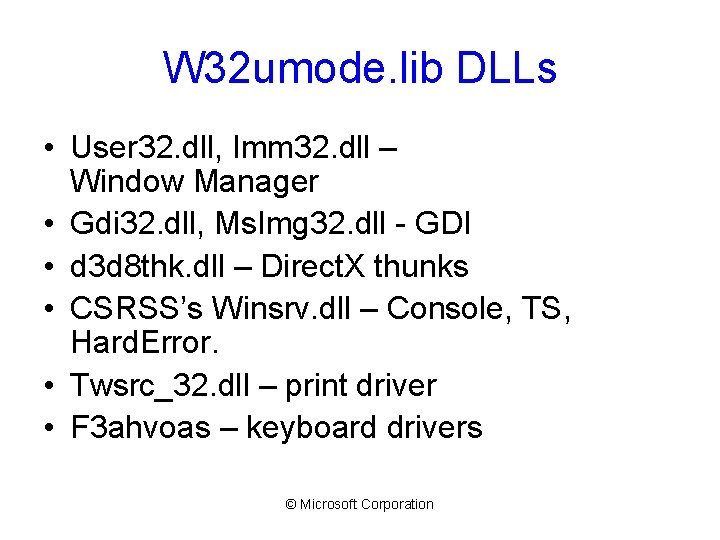

W 32 umode. lib DLLs • User 32. dll, Imm 32. dll – Window Manager • Gdi 32. dll, Ms. Img 32. dll - GDI • d 3 d 8 thk. dll – Direct. X thunks • CSRSS’s Winsrv. dll – Console, TS, Hard. Error. • Twsrc_32. dll – print driver • F 3 ahvoas – keyboard drivers © Microsoft Corporation
Win 32 k Entry Points User Mode Stubs • About 600 entry points. • Ntwindowscorekmodeservices. tab • Gensrv. exe generates usrstubs. c, used to build w 32 umode. lib. • Stubs – Index – Syscall (int 2 e in x 86) – Params in the stack © Microsoft Corporation
Win 32 k Entry Points Kernel Service Table • Gensrv. exe generates Systable. asm • Builds three tables in win 32 k. sys – W 32 p. Service. Table (function & Return value) – W 32 p. Argument – Table. Provided to NT kernel via Ke. Add. System. Service. Table on initialization • ntbasentoskei 386trap. asm © Microsoft Corporation

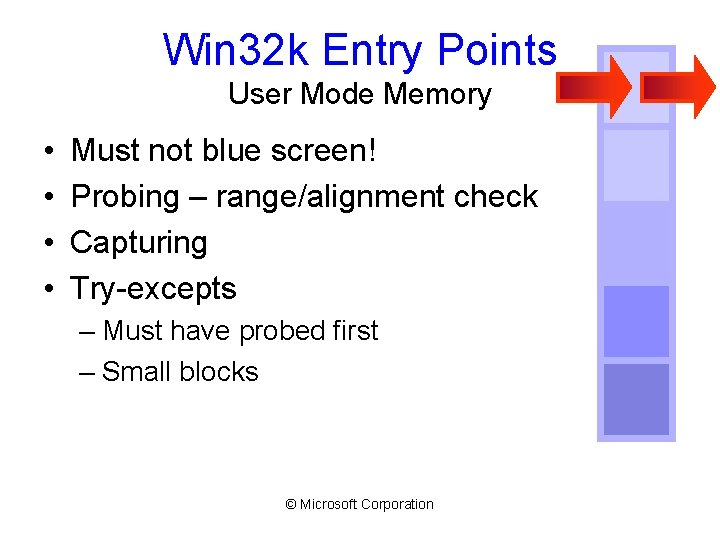

Win 32 k Entry Points User Mode Memory • • Must not blue screen! Probing – range/alignment check Capturing Try-excepts – Must have probed first – Small blocks © Microsoft Corporation

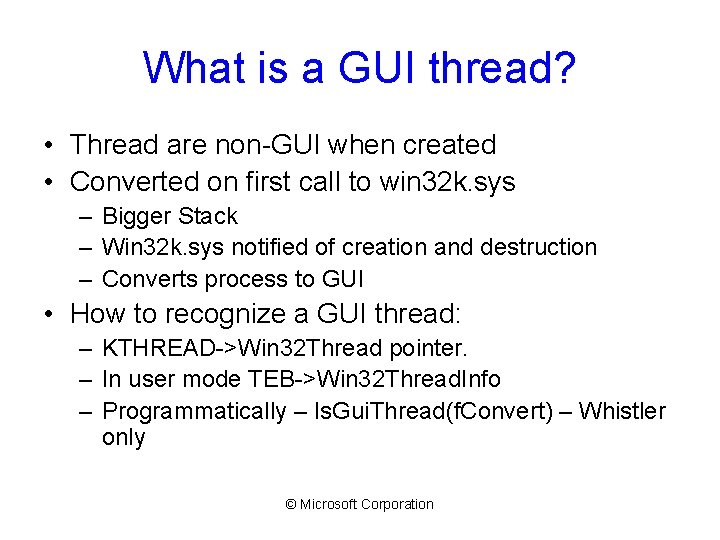

What is a GUI thread? • Thread are non-GUI when created • Converted on first call to win 32 k. sys – Bigger Stack – Win 32 k. sys notified of creation and destruction – Converts process to GUI • How to recognize a GUI thread: – KTHREAD->Win 32 Thread pointer. – In user mode TEB->Win 32 Thread. Info – Programmatically – Is. Gui. Thread(f. Convert) – Whistler only © Microsoft Corporation
Convertion to GUI Thread • ntbasentoskei 386trap. asm • Ps. Convert. To. Gui. Thread – Mm. Create. Kernel. Stack & Ke. Switch. Kernel. Stack – KTHREAD->Service. Table initialized to ntkrnlmp!Ke. Service. Descriptor. Table, replaced with ntkrnlmp!Ke. Service. Descriptor. Table. Shadow – Call Psp. W 32 Process. Callout – Call Psp. W 32 Thread. Callout © Microsoft Corporation
GUI Initialization • SMSS. EXE – Identifies Session components – HKLMSYSTEMCurrent. Control. SetControlSession Managersubsystem – kmode (win 32 k. sys) - Windows (CSRSS. EXE) – “Initial command” (Hardcoded to Winlogon. exe) • Csrss and Winlogon loaded via Rtl. Create. User. Process • Win 32 k loaded via Mm. Load. System. Image (Nt. Set. System. Information) © Microsoft Corporation

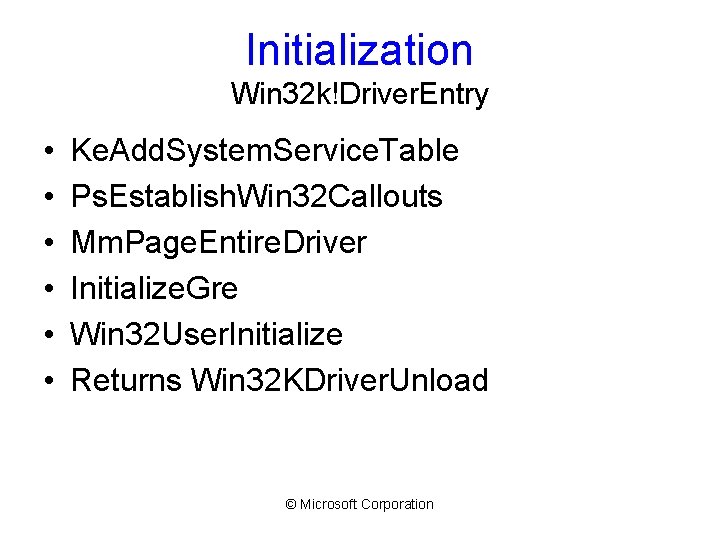

Initialization Win 32 k!Driver. Entry • • • Ke. Add. System. Service. Table Ps. Establish. Win 32 Callouts Mm. Page. Entire. Driver Initialize. Gre Win 32 User. Initialize Returns Win 32 KDriver. Unload © Microsoft Corporation
Intialization Ps. Establish. Win 32 Callouts • • W 32 p. Process. Callout W 32 p. Thread. Callout User. Global. Atom. Table. Callout User. Power. Event. Callout User. Power. State. Callout User. Job. Callout Nt. Gdi. Flush. User. Batch © Microsoft Corporation
Initialization Winsrv!User. Server. Dll. Initialization • CSRSS is expect to create first GUI thread. • Win 32 k!Nt. User. Initialize – Init. Video – Font initialization • Notification thread. – NLS (registry cache), Power, Media (CD), Net changes (TS) • Api. Port thread (LPC) © Microsoft Corporation
Initialization Winlogon • Creates IO Windowstation (Winsta 0) – Desktop thread – Raw Input Thread (RIT). • Register. Logon. Process. • Creates Logon. Desktop, which causes USER to create disconnect desktop. • Creates default desktop. • Launches Services. exe and svchost. exe -- more windowstations. © Microsoft Corporation
Shutdown • Exit. Windows – Win 32 k notifies Winlogon which makes actual Exit. Windows call – Csrss notifies and shuts down processes. • Non TS – Winlogon calls Nt. Shutdown. System • TS needs to unload win 32 k. sys and exit CSRSS and WINLOGON • Initiate. Win 32 k. Cleanup • Terminate. Process CSRSS • Win 32 KDriver. Unload © Microsoft Corporation

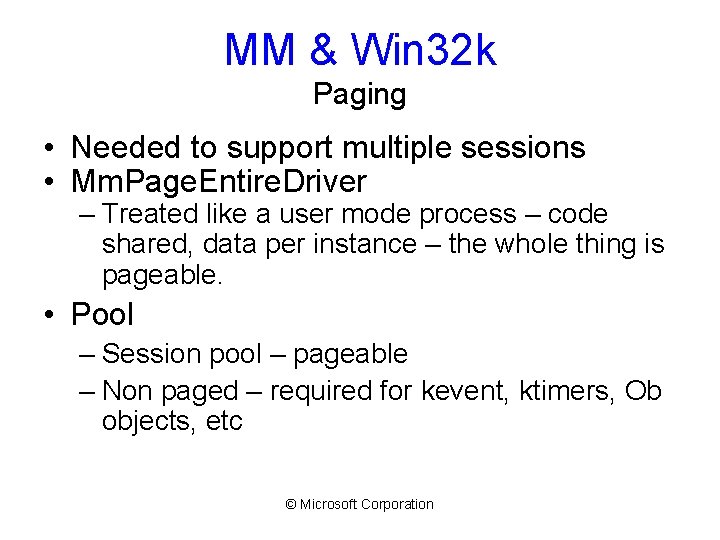

MM & Win 32 k Paging • Needed to support multiple sessions • Mm. Page. Entire. Driver – Treated like a user mode process – code shared, data per instance – the whole thing is pageable. • Pool – Session pool – pageable – Non paged – required for kevent, ktimers, Ob objects, etc © Microsoft Corporation
MM & Win 32 k Address Spaces A 0000 -> A 080. 0000: 8 MB of win 32 k. sys and other images A 080. 0000 -> A 0 c 0. 0000: 4 MB of private Mm per-session data and working set list information A 0 c 0. 0000 -> A 200. 0000: 20 MB of session views for win 32 k desktop heaps and any other mapped files A 200. 0000 -> A 300. 0000: 16 MB of session paged pool to support win 32 k pool allocations A 300. 000 -> A 400. 0000: 16 MB of systemwide-global mapped views © Microsoft Corporation
MM & Win 32 k Configurable Address Spaces • HKLMCurrent. Control. SetControlSession ManagerMemory ManagementSession. View. Size = DWORD n where n is the size of the SESSION view space in MB (default is 20 mb if no key). • HKLMCurrent. Control. SetControlSession ManagerMemory ManagementSession. Pool. Size = DWORD n where n is the size of the SESSION pool space in MB. (default is 16 mb if no key). © Microsoft Corporation

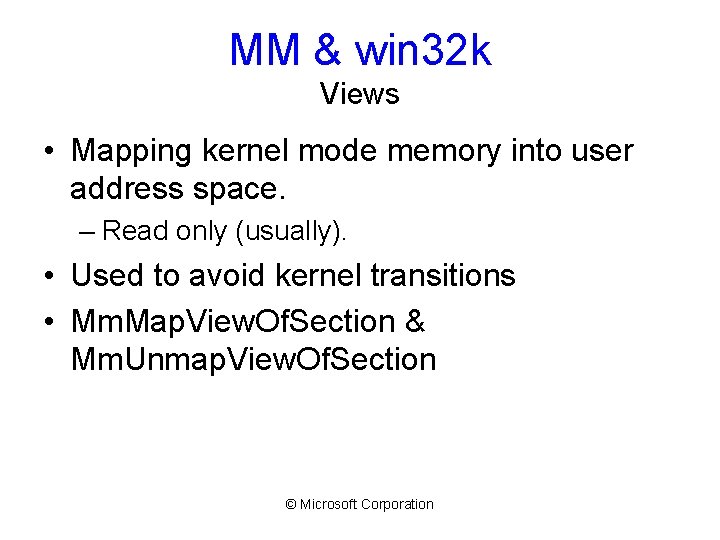

MM & win 32 k Views • Mapping kernel mode memory into user address space. – Read only (usually). • Used to avoid kernel transitions • Mm. Map. View. Of. Section & Mm. Unmap. View. Of. Section © Microsoft Corporation
MM & Win 32 k Stacks • Bigger than regular threads. • Kernel stacks are fixed size – stack fault == blue screen. • Upon entering the kernel (or before calling back to user mode), MM guarantees 12 K of stack are resident. • Can grow up to 64 K (possibly will be changed to 32 K) • In win 64 stack and backstore (for registers). 88 K and 56 K. © Microsoft Corporation
User mode callbacks • Ke. User. Mode. Callback: – api index, – pointer to params & size – pointer to ret data and pointer to size of ret data (user mode memory) • Nt. Current. Peb()->Kernel. Callback. Table loaded at initialization time. © Microsoft Corporation
LPCing • CSRSS Api. Port. • Lpc. Request. Port (CSRSS context) • Lpc. Request. Wait. Reply. Port (Any other context) • Must release critical sections! © Microsoft Corporation
Discussion © Microsoft Corporation
