Snake. Sys

Cham. Sys Snake. Sys • Separate from “Magic. Q” • Snake. Sys products can work with ANY console • www. snakesys. net

Snake. Sys network products enable DMX data, media data and control data to be distributed throughout a lighting rig from control consoles to fixtures.

Snake. Sys philosophy • • Designed and manufactured in UK Complete circuit designs at IC level Locking neutrik connectors Inbuilt UPS (where appropriate)

Snake. Sys philosophy • • 90 V to 240 V AC Power Over Ethernet capability Art. Net I, III and ACN Streaming DMX Firmware upgradeable over network

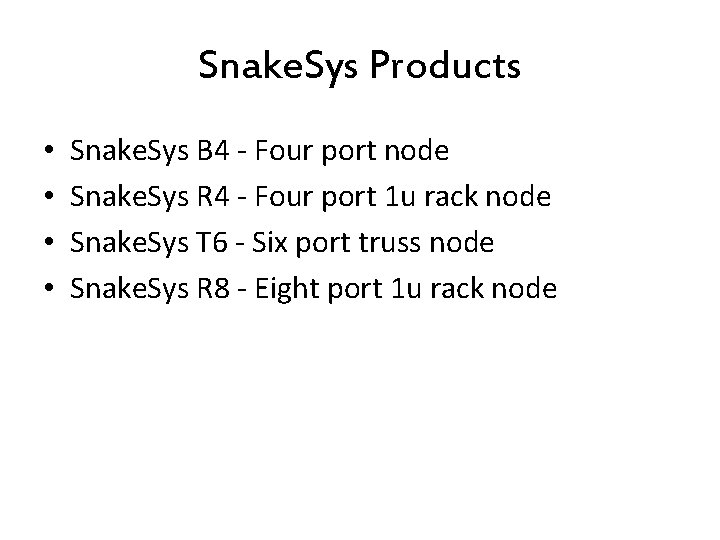

Snake. Sys Products • • Snake. Sys B 4 - Four port node Snake. Sys R 4 - Four port 1 u rack node Snake. Sys T 6 - Six port truss node Snake. Sys R 8 - Eight port 1 u rack node

Snake. Sys B 4 • • Four DMX ports (In/Out) 1 DMX dedicated input port Po. E or powercon input Cham. Net mode for remote configuration

Snake. Sys R 4 The Snake. Sys R 4 is a multi purpose network distribution node comprising DMX output ports, DMX input ports and multiple network ports in a 1 U rack.

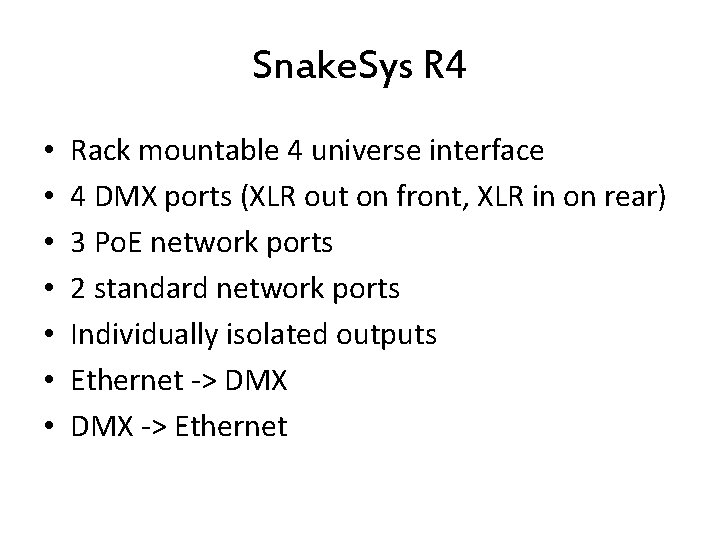

Snake. Sys R 4 • • Rack mountable 4 universe interface 4 DMX ports (XLR out on front, XLR in on rear) 3 Po. E network ports 2 standard network ports Individually isolated outputs Ethernet -> DMX -> Ethernet

Snake. Sys R 4 • • Network ports switchable as a VLAN DMX Bypass facility Cham. Net mode for remote configuration Multiple R 4 redundancy mode

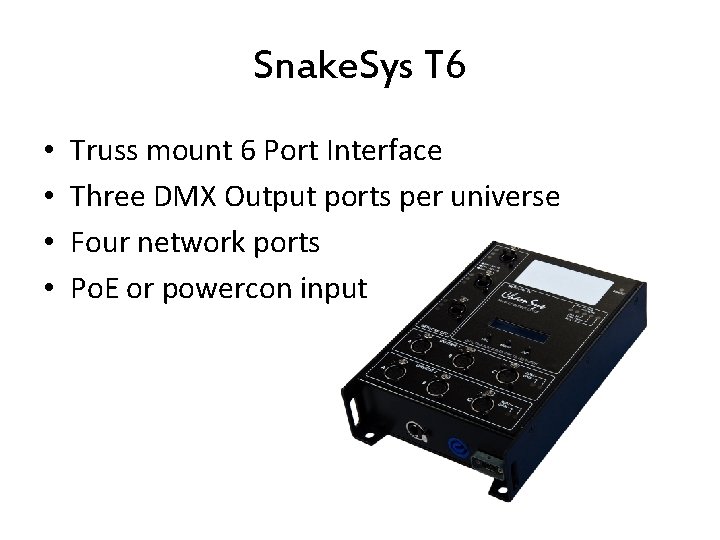

Snake. Sys T 6 • • Truss mount 6 Port Interface Three DMX Output ports per universe Four network ports Po. E or powercon input

Snake. Sys R 8 • • • Rack mount 8 universe interface 8 DMX ports (In / Out) Dual network ports LCD Display with multi-switch selection Cham. Net remote configuration

Sbake. Sys R 8 • • • Ethernet -> DMX -> Ethernet Hardware Merging Stand alone DMX buffer mode User profiles In-built profiles

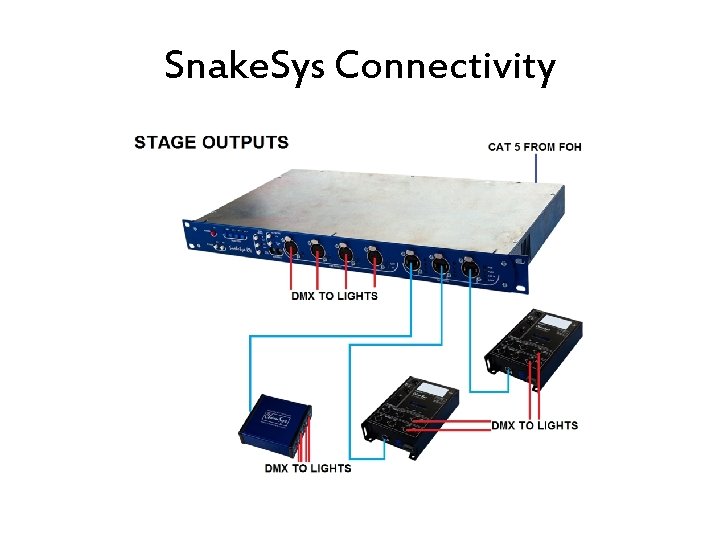

Snake. Sys Connectivity

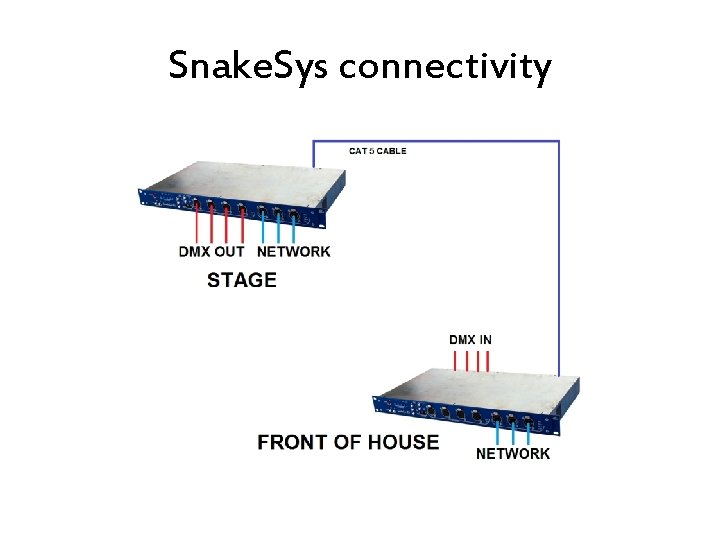

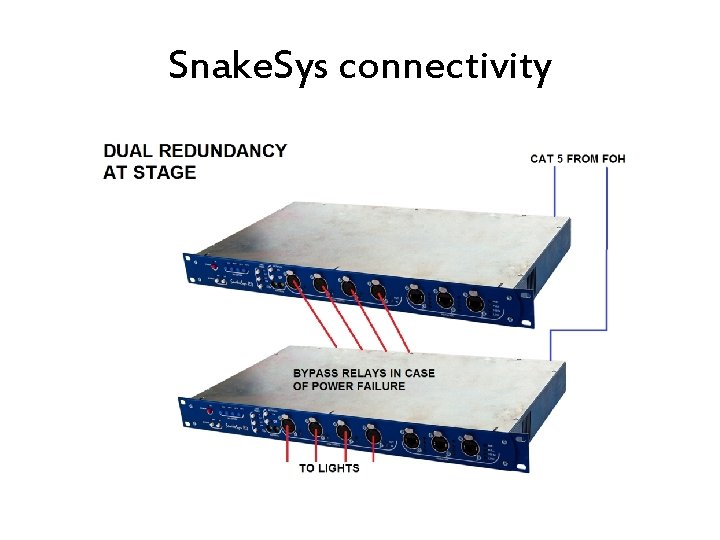

Snake. Sys connectivity

Snake. Sys Questions?
