waterjet propulsion systems 100 SERIES DJ 100 G
- Slides: 22
waterjet propulsion systems
100 SERIES DJ 100 G DJ 110 DJ 105 DJ 130 DJ 120 DJ 170 HP DJ 140 HP SEVEN MODELS – UP TO 900 k. W, VESSELS UP TO 20 m 200 SERIES + 300 SERIES DJ 200 DJ 330 DJ 260 DJ 220 DJ 290 DJ 350 SIX MODELS – UP TO 4000 k. W, VESSELS TO OVER 50 m thirteen waterjet model sizes
100 SERIES 200 SERIES thirteen waterjet model sizes
4000 k. W 100 k. W to suit vessels from 6 m to 50 m
commercial applications
government & military applications
pleasure craft applications
The Company Thrustmaster DOEN waterjets are manufactured in Houston, TX. n Over 40 years experience in the design of commercial waterjet systems. n All product built to meet the exacting standards of marine classification societies. n Product in operation worldwide with a global network of sales and support centers. capability
product features
TRANSOM MOUNTING §Simple & Quick §Integral to hull §Flexibility of waterjet position §Suits all hull materials product features 100 SERIES
MODULAR CONSTRUCTION §Ease of Service §Separate assemblies §No special tools required. product features 100 SERIES
MODULAR CONSTRUCTION INPUT COUPLING IMPELLER CASING BEARING ASSM. STEERING NOZZLE INTAKE BODY REVERSE BUCKET INTAKE GRATE STATOR STEERING BOWL product features 100 SERIES

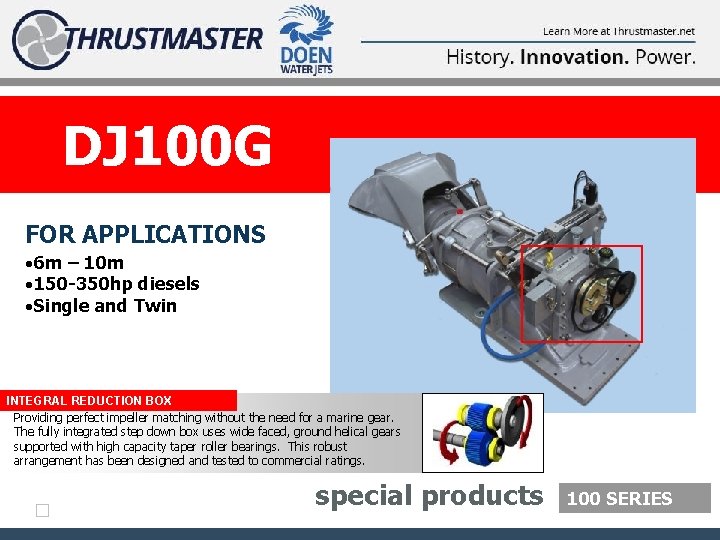

DJ 100 G FOR APPLICATIONS · 6 m – 10 m · 150 -350 hp diesels ·Single and Twin INTEGRAL BOX INTEGRAL REDUCTION BOX Providing perfect impeller matching without the need for a marine gear. The fully integrated step down box uses wide faced, ground helical gears supported with high capacity taper roller bearings. This robust arrangement has been designed and tested to commercial ratings. special products 100 SERIES
PRE-FABRICATED INTAKE COMPLETE SUPPLY • Manufactured in Aluminium or Steel • Weld in installation • Maximum hull integrity • Total material Compatibility • Custom designs • Strong & lightweight READY TO INSTALL product features 200 SERIES
control systems
Rotary Servo Control- RSC The Rotary Servo Control (RSC) hydraulic control system provides simple and exact follow up control of the waterjets reverse buckets FEATURES • 33 C push pull cable operation • Conventional lever operation • Integral pilot check valves – no leak down • Integrated with Jet mounted hydraulics mechanical control systems
ECS 200 - Control For 15 m to 25 m vessels with dual main station and twin engine configuration ECS 200 Control is a microprocessor based system for waterjet reverse and steering control, together with primary engine throttle and marine gear command into the one simple to operate system. ECS electronic control systems

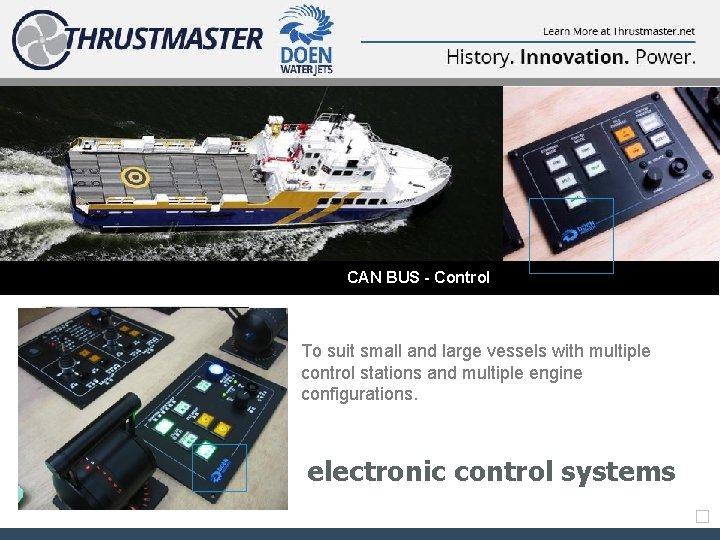

CAN BUS - Control To suit small and large vessels with multiple control stations and multiple engine configurations. electronic control systems
joystick docking feature
DIRECT THRUST WATERJET All Thrustmaster DOEN Pre-Fabricated Intake Waterjets can be supplied in Direct Thrust arrangement. n Standard waterjet thrust bearing arrangement removed. n Conventional Propeller Shaft Seal and coupling fitted. n Waterjet thrusts directly to gearbox, remote or engine mounted gearbox arrangements possible. Ø SIMPLE INSTALLATION Ø REDUCED COST Ø REDUCED MAINTENANCE Ø CLOSER COUPLING DOEN Exclusive Product

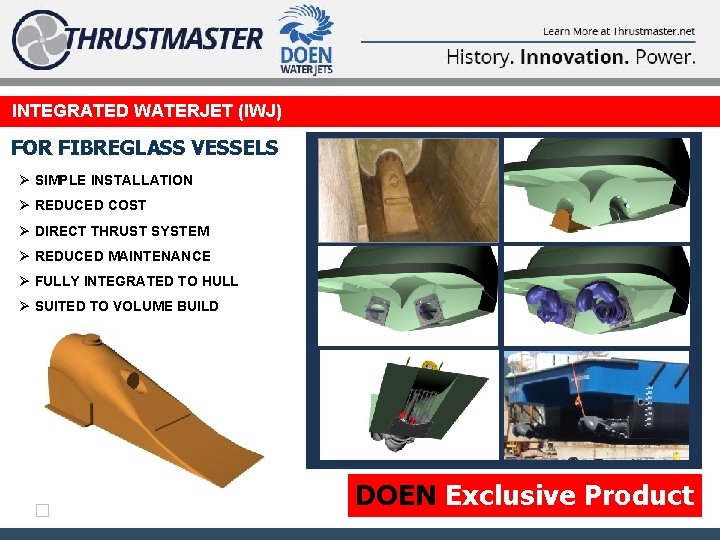

INTEGRATED WATERJET (IWJ) FOR FIBREGLASS VESSELS Ø SIMPLE INSTALLATION Ø REDUCED COST Ø DIRECT THRUST SYSTEM Ø REDUCED MAINTENANCE Ø FULLY INTEGRATED TO HULL Ø SUITED TO VOLUME BUILD DOEN Exclusive Product
