Contents ▐ Thiết kế theo dạng tủ rack tương tự như NEC SV 8300 ▐ Nhiều tính năng mới mẽ ▐ Hỗ trợ cho máy đầu cuối digital DT 400 / DT 800 (IP phone) ▐ Công cụ quản lý mạnh mẽ, dễ sử dụng Page 2 © NEC Nederland B. V. 2015 SV 9300 pre-sales introduction – April 2015

SV 9300: Những điểm đột phá!!! Tí n h nă ▐ New CPU ng l Bộ vi xử lý cực mạnh, tăng thêm bộ nhớ , built-in VRS m ▐ Khung mới, card mới l Dung lượng tương đương SV 8300 • Sử dụng chung hầu hết các phần cứng (harware) với SV 9100 l Phong cách sang trọng đẳng cấp ▐ System software mới hoàn toàn l Kế thừa toàn bộ tính năng của Nec SV 8300 (R 9) l Nhiều tính năng mới mạnh mẽ hơn ( tăng trung kế SIP/H. 323 lên 256 kênhtăng giao tiếp thiết bị đầu cuối) ▐ Hỗ trợ cho dòng điện thoại digital mới NEC DT 400 / DT 800 (điện thoại IP) ▐ Cải thiện thêm nhiều license hữu dụng l Built-In 128 port-capacity + 32 IP-phone user trong hệ thống ▐ Bảng giá mới l Typical configuration is lower in price than SV 8300 Page 3 © NEC Nederland B. V. 2015 SV 9300 pre-sales introduction – April 2015 ới

ĐỊnh vị thị trường ▐ SV 9300 với xung xướng hoàn toàn mới hướng đến khách hàng mới l Khả năng kết nối CCIS-networked với SV 8000 (SV 81/SV 83) ▐ Đảm bảo khả năng nâng cấp cho khách hàng củ: l Nâng cấp được SV 8300 lên SV 9300 l SV 8300 vẫn có thể sử dụng chung card với sv 9300: chassis, blade. . . Page 4 © NEC Nederland B. V. 2015 SV 9300 pre-sales introduction – April 2015

SV 9300 – kế thừa các tính năng của SV 8300 ▐ Hệ thống IP chuẩn, tuy nhiên vẫn kế thừa các chuẩn truyền thống TDM l Đầy đủ các tính năng IP mới nhất, hỗ trợ nhiều 3 rd Sip server l Dung lượng đến 1. 500 ip phone ▐ Độ tin cậy: l Chạy dual Cpu: option ▐ ▐ Cấu trúc liên kết kiểu “remote unit” Tính năng cho bệnh viện Kết nối CCIS-networking Các ứng dụng l l l Pagel 5 SP 350 softphone IP-DECT / Vo. WLAN mobility Business Conne. CT UM 8000 Mobi. Call alarm messaging MA 4000 management © NEC Nederland B. V. 2015 SV 9300 pre-sales introduction – April 2015

SV 9300 – cấu trúc tương tự SV 8300 ▐ ▐ ▐ Units: 1 x CPU + 0 to 3 expansion chassis 6 khe cắm đa năng trên 01 chassis Cấu hình cơ bản nhất : 4 units/ 01 Cpu Remote units: lên đến 46 vị trí Dual CPU / Secondary CPU for failover 1536 stations, max 512 trunks Page 6 © NEC Nederland B. V. 2015 SV 9300 pre-sales introduction – April 2015

SV 9300 – Những part sử dụng chung với SV 8300 ▐ Similar “black” hardware, with new item codes. E. g: item SV 8300 SV 9300 processor SCC-CP 01 MP-EU SCC-CP 10 A MP-EU 64 -port Vo. IP DB PZ-64 IPLC-A GPZ-64 IPLD expansion chassis CHS 2 U-EU CHS 2 UG-EU analogue 8 line base board CD-8 LCA GCD-8 LCF analogue 4 -line daughter board PZ-4 LCA GPZ-4 LCF digital 16 line board CD-16 DLCA GCD-16 DLCA ISDN S 0 base board CD-2 BRIA GCD-2 BRIA ISDN primary rate CD-PRTA GCD-PRTA Page 7 © NEC Nederland B. V. 2015 SV 9300 pre-sales introduction – April 2015

SV 9300 - similar licenses as SV 8300 System Version License System Port Capacity ON/OFF 1 SV 93 SYS VERSION 2 LIC 2048 -128= 1920 SV 93 PORT-1 LIC (per port) Dual CPU ON/OFF SV 93 SYS DUAL CPU OPTION LIC Failover ON/OFF SV 93 SYS FAILOVER OPTION LIC Extension DT 800 / DT 700 / Dterm IP 1 1536 -32= 1504 Standard party SIP 1 1024 SV 93 STD SIP PHONE-1 LIC (per port) SP 350 softphone 1 1536 SV 93 SOFTPHONE-1 LIC (per port) Trunk SIP Trunk Channels 1 512 SV 93 SIP TRUNK CH-1 LIC (per channel) P 2 P CCIS Channels 1 512 SV 93 P 2 P-CCIS TRUNK CH-1 LIC (per channel) Number of Remote Unit 1 46 SV 93 REMOTE UNIT-1 LIC (per site) Mobility Access Licenses 1 1536 Networking Feature SV 93 IP PHONE-1 LIC (per port) SV 93 MOBILITY ACCESS-1 LIC (per terminal) SV 93 SYS CCIS NETWORK OPTION LIC CCIS ON/OFF PMS License ON/OFF SV 93 SYS HOTEL/MOTEL OPTION LIC OAI ON/OFF SV 93 SYS OAI LIC Encryption ON/OFF SV 93 SYS IP ENCRYPTION OPTION LIC Embedded Conference 8 Note: required for CCIS and for QSIG 32 SV 93 CONF PORT-8 LIC SIP trunk feature “LS-FEA-SIP-T-LIC” license đã tích hợp sẳn trong SV 9300 Page 8 © NEC Nederland B. V. 2015 SV 9300 pre-sales introduction – April 2015

Biểu đồ thay đổ license ▐ Built-in 128 ports port capacity license ▐ SIP trunk chỉ cần mua chanel license (không sử dụng sip trunk license nữa) ▐ SV 9300 giá ngang bằng với hệ thống 100– 300 port của SV 8300 ri se P cen i L 00 3 SV 8 0 Page 9 0 93 SV ce en ic 0 L rice P se 128 © NEC Nederland B. V. 2015 500~700 SV 9300 pre-sales introduction – April 2015

Contents ▐ New platform, similar to SV 8300 ▐ New features ▐ Support for DT 400 / DT 800 terminals ▐ Tools Page 10 © NEC Nederland B. V. 2015 SV 9300 pre-sales introduction – April 2015

Expansion of SIP Trunk capability Specification SV 9300 SV 8300 # of SIP Trunks 512 (Any unit, 100/unit *) 96 (Limited to unit 01 *) # of SIP Accounts 64 (8/Unit) 4 # of Profiles 64 32 # of DNS Servers 50 -pair of Primary/Secondary (1 -pair/Unit) 1 -pair of Primary/Secondary (Unit 01 Only) # of FQDN Characters 128 32 # of DID numbers to be notified 4/station 2/station *) max 64 simultaneous “SIP-trunk IP-phone or inter-unit” calls per unit, due to GPZ-128 IPLD capacity • • • Page 11 When using SIP trunk connection, SV 9300 capacity is 2400 BHCA/Unit, 5000 BHCA/system. Call transfer process using REFER Message (RFC 3515) is not available in Unit 02 – 50. FAX transmission in tandem connection between SIP Trunks is not supported. © NEC Nederland B. V. 2015 SV 9300 pre-sales introduction – April 2015

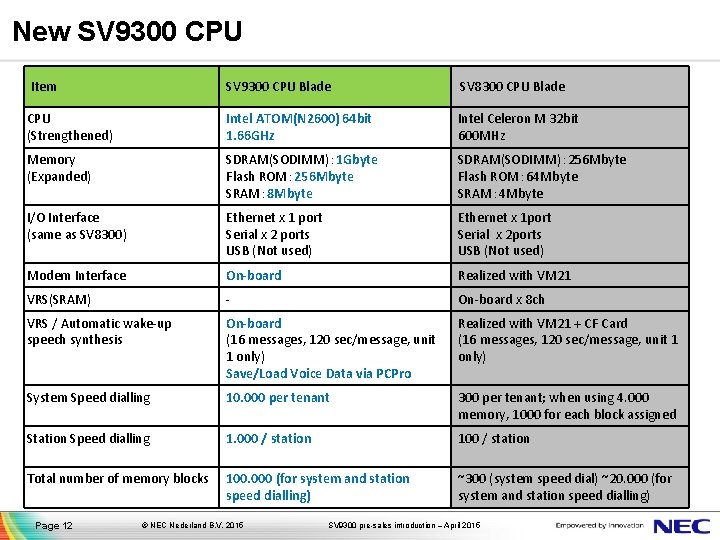

New SV 9300 CPU Item SV 9300 CPU Blade SV 8300 CPU Blade CPU (Strengthened) Intel ATOM(N 2600) 64 bit 1. 66 GHz Intel Celeron M 32 bit 600 MHz Memory (Expanded) SDRAM(SODIMM)： 1 Gbyte Flash ROM： 256 Mbyte SRAM： 8 Mbyte SDRAM(SODIMM)： 256 Mbyte Flash ROM： 64 Mbyte SRAM： 4 Mbyte I/O Interface (same as SV 8300) Ethernet x 1 port Serial x 2 ports USB (Not used) Ethernet x 1 port Serial x 2 ports USB (Not used) Modem Interface On-board Realized with VM 21 VRS(SRAM) - On-board x 8 ch VRS / Automatic wake-up speech synthesis On-board (16 messages, 120 sec/message, unit 1 only) Save/Load Voice Data via PCPro Realized with VM 21 + CF Card (16 messages, 120 sec/message, unit 1 only) System Speed dialling 10. 000 per tenant 300 per tenant; when using 4. 000 memory, 1000 for each block assigned Station Speed dialling 1. 000 / station 100 / station Total number of memory blocks 100. 000 (for system and station speed dialling) ~300 (system speed dial) ~20. 000 (for system and station speed dialling) Page 12 © NEC Nederland B. V. 2015 SV 9300 pre-sales introduction – April 2015

User Interface Enhancements on DT terminals 1. LCD indication – user’s name on idle Jane Doe [2000] 10: 00 AM FRI 1 NOV 2013 MIC DIR HIST. >>>> 2. Soft-Key operation for phonebook (e. g. “SYS” + “STA” “DIR”) 3. Distinctive lamp color per calling number 4. Easier operation to set call forwarding, Do-Not-Disturb and Mobility Access (no need anymore to go off-hook or press ‘speaker’ key) 5. Call history improvement – operation, display and capacity Before [Outgoing Calls] REDIAL[*/#]/SPEED[ ] 01 0123456789 <<<< Redial ↑Prev ↓Next Page 13 © NEC Nederland B. V. 2015 After [Outgoing Calls] 10 -30 10: 07 <<<< 01 ABCDEFGHIJ 0123456789 Redial ↑Prev ↓Next SV 9300 pre-sales introduction – April 2015

User Web Portal is a SV 9300 built-in web server application that allows users to configure their own DT terminal via Web browser. 3 types of users can be defined. Administrator 1) Program Station Speed Dialing 2) Program My Line Number Display setting 3) Program lamp color per call Allowed Supervisor Allowed End User Allowed Program “System Speed Dial database” Allowed for all tenants Allowed for his/her own tenant. Prohibited Program setting on any station Allowed Prohibited Page 14 © NEC Nederland B. V. 2015 SV 9300 pre-sales introduction – April 2015

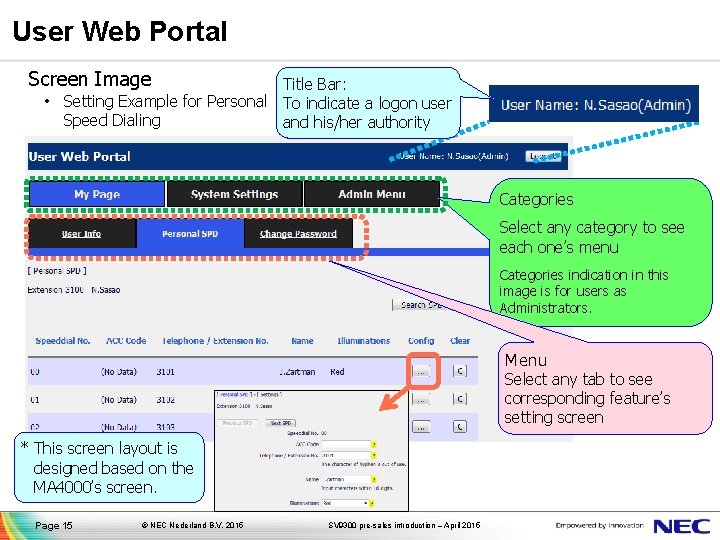

User Web Portal Screen Image Title Bar: • Setting Example for Personal To indicate a logon user Speed Dialing and his/her authority Categories Select any category to see each one’s menu Categories indication in this image is for users as Administrators. Menu Select any tab to see corresponding feature’s setting screen * This screen layout is designed based on the MA 4000’s screen. Page 15 © NEC Nederland B. V. 2015 SV 9300 pre-sales introduction – April 2015

User Web Portal ▐ ▐ Languages: English / Japanese Max 10 simultaneous users No HTTPS support SV 9300 web server runs on unit 1 only l not available while the system is in the failover mode Page 16 © NEC Nederland B. V. 2015 SV 9300 pre-sales introduction – April 2015

Contents ▐ New platform, similar to SV 8300 ▐ New features ▐ Support for DT 400 / DT 800 terminals ▐ Tools Page 17 © NEC Nederland B. V. 2015 SV 9300 pre-sales introduction – April 2015

DT 800 / DT 400: New Cosmetic Design New Design (IP & Digital) Improved MWI Located in the center of LCD, enlarge the shape Improve Line Key visibility Transparent material and light whole surface of line key Red Green Purple Blue Aqua Yellow White Note: Digital is 3 color only Low Profile Design High quality look & feel Piano Black keys Cursor Key Improvement Separate each button of the Cursor key Added new navigation operation No ‘security’ button on DT 830 as on DT 730; security function can be assigned to a line key Page 18 © NEC Nederland B. V. 2015 SV 9300 pre-sales introduction – April 2015

SV 9300 desktop terminal line up IP Terminal Type Digital Terminal Example Type Example DT 750 DT 830 DT 430 -12 D -24 D -12 DG (Gbit) -12 CG (Gbit, colour) -8 LDG (Gbit, DESI-less) -12 D -24 D -8 LD (DESI-less) DT 730, e. g. DT 330, e. g. -12 D +PSTN-adapter DT 710 DT 410 -2 E(no LCD) -6 DE -8 LD DESI-less -2 E (no LCD) -6 DE © NEC Nederland B. V. 2015 SV 9300 pre-sales introduction – April 2015 2000 IPS Dterm Digital and Dterm IP are still compatible with SV 9300 Page 19

DT 430 / DT 830 key expansions ▐ 12 -key kit (expansion 12 24 keys) l Only for DT 830 -12 DG, DT 830 -12 CG l Not for DT 430 -12 D, DT 830 -12 D (different than DT 700) ▐ 8 -key kit – mounted on side l expansion 12/24 20/32 keys ▐ DCZ-60 Console – 60 key “DSS/BLF console” (Direct Station Selection/ Busy Lamp Field) or “Add-on Module” l icw DT 830: connected via IP-phone • port-capacity lic l icw DT 430: separate connection to SV 9300 • DLC port, port-capacity lic Page 20 © NEC Nederland B. V. 2015 SV 9300 pre-sales introduction – April 2015

DT 430 – DT 830 optional modules (1/2) ▐ BCA-Z (Bluetooth Connection Adapter): allows a Smart Device to communicate with the DT 430/DT 830 l User can receive a call to Smart Device via handset on DT Terminal • Incoming call to the Smart Device also rings the DT Terminal • Answer and End the call by Handset or Speaker key on DT terminal. • Volume can be controlled from DT terminal l User can place a call through PBX from a contact list on Smart Device via DT Terminal [future, requires specific app] Bluetooth BCA-Z Smart Device Page 21 © NEC Nederland B. V. 2015 Connect to back of terminal as the Bottom Option SV 9300 pre-sales introduction – April 2015

DT 430 – DT 830 optional modules (2/2) ▐ ADA - Recording adapter l Same adapter as for DT 330/DT 730 ▐ APR - analogue port with ringer l Only for DT 430, not for DT 830 l Same adapter as for DT 330 ▐ BHA - Bluetooth Hub Adapter (connect bluetooth headset to DT-phone) l Only for DT 430, not for DT 830 l Same adapter as for DT 330 ▐ 3 rd party Plantronics adapter - Electronic Hook Switch Note: Bluetooth / Power-fail handset cradle are not available (different than DT 300/DT 700) Page 22 © NEC Nederland B. V. 2015 SV 9300 pre-sales introduction – April 2015

Contents ▐ New platform, similar to SV 8300 ▐ New features ▐ Support for DT 400 / DT 800 terminals ▐ Tools Page 23 © NEC Nederland B. V. 2015 SV 9300 pre-sales introduction – April 2015

Information and documentation ▐ Prophix configuration&pricing tool ▐ SV 9300 microsite l http: //www. necsv 9000. com/emea/ ▐ Dear Associate letter ▐ Businessnet l l Page 24 Brochure Datasheet User manuals System/service manuals © NEC Nederland B. V. 2015 SV 9300 pre-sales introduction – April 2015

Trainings ▐ No additional technical training required for SV 8300 certified engineers to install SV 9300 l CBT training will be updated ▐ No additional sales training required for SV 8300 certified sales person to sell SV 9300. You are ready to sell and install SV 9300 Page 25 © NEC Nederland B. V. 2015 SV 9300 pre-sales introduction – April 2015
