The Thin Lens Equation

The Thin Lens Equation

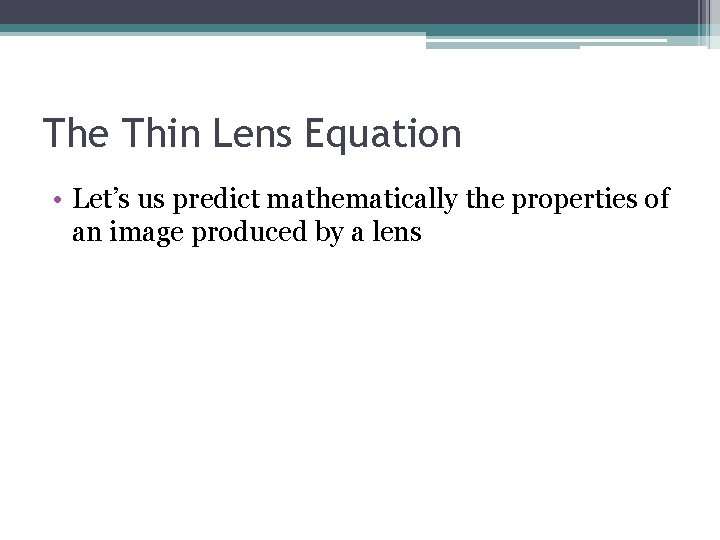

The Thin Lens Equation • Let’s us predict mathematically the properties of an image

The Thin Lens Equation • Let’s us predict mathematically the properties of an image produced by a lens

Defining Variables • f = focal length, distance from the focus to the optical

Defining Variables • f = focal length, distance from the focus to the optical centre (F and F’ are the same distance from O). • do = distance from the object to the optical centre • di = distance from the image to the optical centre • ho = height of the object • hi = height of the image

The Thin Lens Equation

The Thin Lens Equation

Sign Conventions • Object distances (do) are always positive. • Image distances (di) are

Sign Conventions • Object distances (do) are always positive. • Image distances (di) are positive for real images and negative for virtual images. • The focal length (f) is positive for converging lenses and negative for diverging lenses.

To rearrange the equation, you need 3 basic math skills: 1. Cross the line,

To rearrange the equation, you need 3 basic math skills: 1. Cross the line, change the sign. To move a term to the other side of an equal sign; switch the “+” or “ ”. 2. How to cross multiply, if it is on the top; then on the other side it is on the bottom and vice versa. 3. How to inverse an equation; basically you put a one over it as the one becomes the top half of a fraction.

Example 1: A converging lens has a focal length of 25 cm. A light

Example 1: A converging lens has a focal length of 25 cm. A light bulb is 60 cm away from the lens. Where will the image be formed? • Ans: di = +43 cm

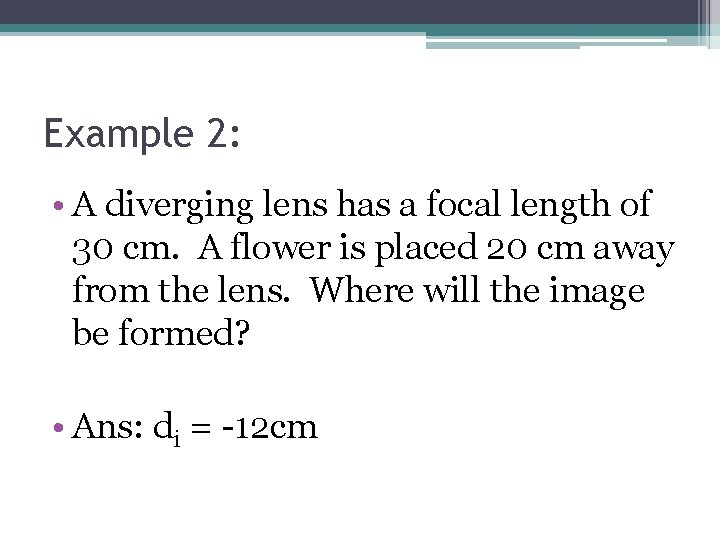

Example 2: • A diverging lens has a focal length of 30 cm. A

Example 2: • A diverging lens has a focal length of 30 cm. A flower is placed 20 cm away from the lens. Where will the image be formed? • Ans: di = 12 cm

Copy Table 1, Pg 566 into your notes

Copy Table 1, Pg 566 into your notes

Homework • Pg 566 # 1 4

Homework • Pg 566 # 1 4

The Magnification Equation

The Magnification Equation

The Magnification Equation Where M = magnification of the image Magnification has no units

The Magnification Equation Where M = magnification of the image Magnification has no units as they will cancel out.

Sign Conventions • Object height (ho) and image height (hi) are positive when measured

Sign Conventions • Object height (ho) and image height (hi) are positive when measured upward from the principal axis (PA) and negative when measured downward. • Magnification (M) is positive for an upright image and negative for an inverted image.

Example 1: An Ipod has a height of 11 cm is balanced in front

Example 1: An Ipod has a height of 11 cm is balanced in front of a converging lens. An upright, virtual image is noticed with a height of 17 cm occurs on the same side. What is the magnification of the lens?

Example 2: • An Ipod has a height of 11 cm is balanced in

Example 2: • An Ipod has a height of 11 cm is balanced in front of a converging lens. An inverted, real image is noticed with a height of 38. 5 cm on the opposite. What is the magnification of the lens?

Example 3: A toy rocket is placed 12 cm away from a diverging lens.

Example 3: A toy rocket is placed 12 cm away from a diverging lens. An upright, virtual image is noticed 9. 0 cm on the same side as the rocket. What is the magnification of the lens?

Homework • Pg 566 # 5 8

Homework • Pg 566 # 5 8
