Software Design Lens Cutting Lens Checking Laser Engraving
- Slides: 19
Software Design 소프트웨어 설계 Lens Cutting 렌즈커팅 Lens Checking 렌즈확인 Laser Engraving 레이저가공
Printing ink-markings 마킹 인쇄 Final Inspection 최종 확인 Ready To ship 출하 대기
Removable ink-markings Minimum frame Requirement 프레임 최소크기 23 mm 10 mm R 13 mm Kodak Unique Progressive Ku◊4 200 13 mm The frame should accommodate a minimum 13 mm fitting height from fitting point + to the bottom of the frame eyewire and 10 mm to the top 프레임(안경테)은 피팅포인트에서 아래로 13미리까지 가능하며 피팅포인트에서 위로 10미리까지 가능합니다. 21 mm Reading area 근용부(독서영역)
Data for a perfect 1. Lens data 렌즈데이타 ; a) material 재료 b) sphere, cyl, axis, add. etc. 구면. 비구면, 난시, 축, 애드값, 등등 2. Frame type 프레임(안경테) ; metal, plastic, grooved, drill mount 금속, 뿔테, 홈이 있거나 뿔이 있는 안경테 등등 1. 3. Frame data 프레임 데이터 ; 4. Frame shape or tracing 안경테 모양
PD* DBL A B ED OCH A = max frame width B = max frame height ED = max frame size DBL = distance between lenses OCH = optical center height distance between pupil and lower eyewire PD = pupils distance * preferably mono PD
Material 1. 5 1. 6 TLX Sph. Range +6. 50 to -9. 00 +8. 00 to -10. 00 +7. 75 to -10. 00 Cyl. Range -4. 00* Add. Range Max diameter Drilling & Grooving *for most sphere powers 1. 00 to 3. 00** 75 mm D=2 G=5 1. 00 to 3. 00** 70 -75 mm 5 **adds 3. 25 and 3. 50 possible depending on Rx 1. 67 1. 00 to 3. 00** 1. 74 coming soon Trivex +4. 75 to -10. 00 -4. 00* 1. 00 to 3. 00** Polyclear +4. 25 to -10. 00 -4. 00* 1. 00 to 3. 00** 70 -75 mm 70 mm 78 mm 5 5
Material Sun. Sensors 1. 56 Insta. Shades 1. 6 Insta. Shades Poly Sph. Range +5. 25 to -10. 00 +6. 25 to -10. 00 +4. 75 to -8. 75 coming soon -4. 00* coming soon 1. 00 to 3. 00** coming soon Cyl. Range Add. Range Max diameter Drilling & Grooving -4. 00* 1. 00 to 3. 00** 74 mm D=2 G=5 -4. 00* 1. 00 to 3. 00** 74 mm 5 Polar. Shades 1. 5 1. 67 78 mm D=2 G=5 coming soon 5
K for Kodak progressive K u S N 3 = 13 mm U for Unique Ku 3 K u ◊4 K u ┴ 5 Ku ∆6 = 1. 5 index & Polar. Shades Ku. P 7 Ku I 8 = Poly & Poly Instashades K u 63 = Instashades 1. 6 Length of corridor 4 = 14 mm 5 = 15 mm etc. Symbol of material = 1. 6 TLX = 1. 67 Kodak Unique Progressive = Trivex addition always on the temple side L KU◊5 200 = Sun. Sensors Material code always on the nasal side In yellow color removable ink-markings
All Rx’s are delivered with: • Packaging box • Cleaning cloth • Certificate of authenticity

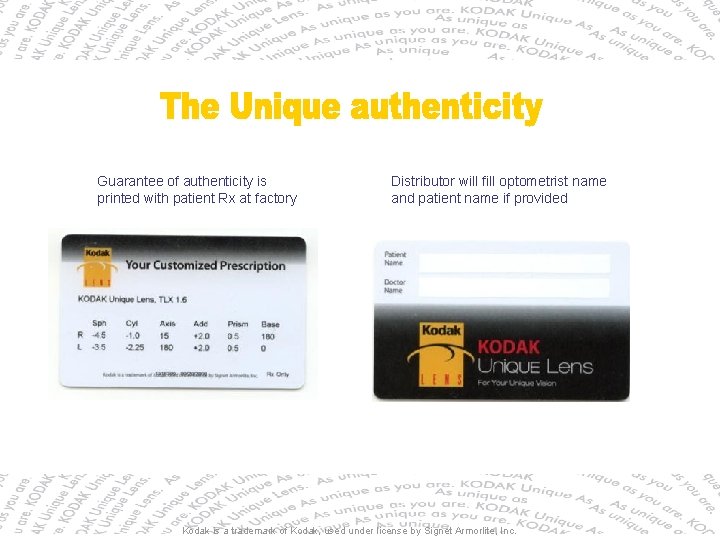

Guarantee of authenticity is printed with patient Rx at factory Distributor will fill optometrist name and patient name if provided Kodak is a trademark of Kodak, used under license by Signet Armorlite, Inc.
