![The Chomsky Hierarchy The Chomsky Hierarchy](https://slidetodoc.com/presentation_image/08c0011f288a435b13084a127a43b5bf/image-1.jpg)
The Chomsky Hierarchy
![Chomsky Hierarchy Type0 grammars unrestricted grammars include all formal grammars In which Chomsky Hierarchy • Type-0 grammars (unrestricted grammars) include all formal grammars. – In which](https://slidetodoc.com/presentation_image/08c0011f288a435b13084a127a43b5bf/image-2.jpg)
Chomsky Hierarchy • Type-0 grammars (unrestricted grammars) include all formal grammars. – In which no restrictions are made on the left and right sides of the grammar's productions • Type-1 grammars (context-sensitive grammars) generate the context-sensitive languages. – in which the left-hand sides and right-hand sides of any production rules may be surrounded by a context of terminal and non terminal symbols 2
![The chomsky hierarchy Type2 grammars contextfree grammars generate the contextfree languages Context The chomsky hierarchy • Type-2 grammars (context-free grammars) generate the context-free languages. • Context](https://slidetodoc.com/presentation_image/08c0011f288a435b13084a127a43b5bf/image-3.jpg)
The chomsky hierarchy • Type-2 grammars (context-free grammars) generate the context-free languages. • Context free languages are theoretical basis for the syntax of most programming languages. • Type-3 grammars (regular grammars) generate the regular languages. • These languages are exactly all languages that can be decided by a finite state automaton. Additionally, this family of formal languages can be obtained by regular expressions. 3
![LinearBounded Automata Same as Turing Machines with one difference the input string tape space Linear-Bounded Automata: Same as Turing Machines with one difference: the input string tape space](https://slidetodoc.com/presentation_image/08c0011f288a435b13084a127a43b5bf/image-4.jpg)
Linear-Bounded Automata: Same as Turing Machines with one difference: the input string tape space is the only tape space allowed to use 4
![Linear Bounded Automaton LBA Input string Leftend marker Working space in tape Rightend marker Linear Bounded Automaton (LBA) Input string Left-end marker Working space in tape Right-end marker](https://slidetodoc.com/presentation_image/08c0011f288a435b13084a127a43b5bf/image-5.jpg)
Linear Bounded Automaton (LBA) Input string Left-end marker Working space in tape Right-end marker All computation is done between end markers 5
![We define LBAs as Non Deterministic Open Problem Non Deterministic LBAs have same power We define LBA’s as Non. Deterministic Open Problem: Non. Deterministic LBA’s have same power](https://slidetodoc.com/presentation_image/08c0011f288a435b13084a127a43b5bf/image-6.jpg)
We define LBA’s as Non. Deterministic Open Problem: Non. Deterministic LBA’s have same power as Deterministic LBA’s ? 6
![Example languages accepted by LBAs LBAs have more power than PDAs pushdown automata LBAs Example languages accepted by LBAs: LBA’s have more power than PDA’s (pushdown automata) LBA’s](https://slidetodoc.com/presentation_image/08c0011f288a435b13084a127a43b5bf/image-7.jpg)
Example languages accepted by LBAs: LBA’s have more power than PDA’s (pushdown automata) LBA’s have less power than Turing Machines 7
![Unrestricted Grammars Productions String of variables and terminals 8 Unrestricted Grammars: Productions String of variables and terminals 8](https://slidetodoc.com/presentation_image/08c0011f288a435b13084a127a43b5bf/image-8.jpg)
Unrestricted Grammars: Productions String of variables and terminals 8
![Type0 grammar Unrestricted Grammar They generate exactly all languages that can be recognized Type-0 grammar (Unrestricted Grammar) • They generate exactly all languages that can be recognized](https://slidetodoc.com/presentation_image/08c0011f288a435b13084a127a43b5bf/image-9.jpg)
Type-0 grammar (Unrestricted Grammar) • They generate exactly all languages that can be recognized by a Turing machine. • These languages are also known as the recursively enumerable languages. • This is different from the recursive languages which can be decided by an always halting Turing machine. 9
![Example unrestricted grammar 10 Example unrestricted grammar: 10](https://slidetodoc.com/presentation_image/08c0011f288a435b13084a127a43b5bf/image-10.jpg)
Example unrestricted grammar: 10
![Theorem A language is TuringAcceptable if and only if is generated by an unrestricted Theorem: A language is Turing-Acceptable if and only if is generated by an unrestricted](https://slidetodoc.com/presentation_image/08c0011f288a435b13084a127a43b5bf/image-11.jpg)
Theorem: A language is Turing-Acceptable if and only if is generated by an unrestricted grammar 11
![ContextSensitive Grammars Productions String of variables and terminals and 12 Context-Sensitive Grammars: Productions String of variables and terminals and: 12](https://slidetodoc.com/presentation_image/08c0011f288a435b13084a127a43b5bf/image-12.jpg)

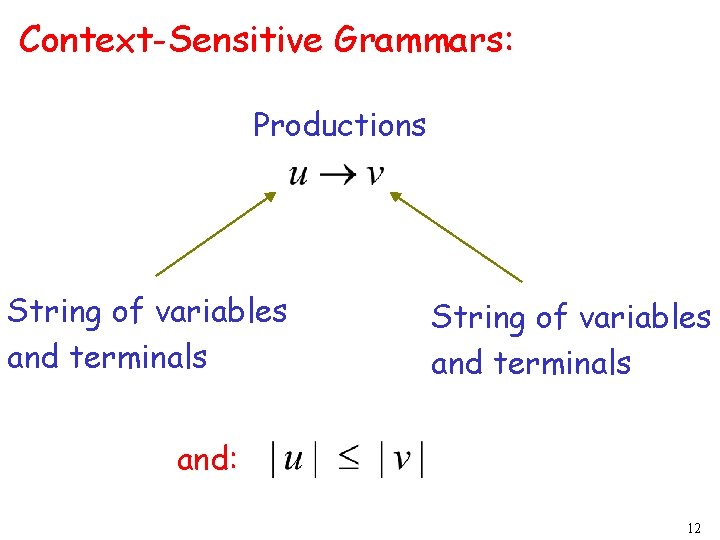

Context-Sensitive Grammars: Productions String of variables and terminals and: 12
![ContextSensitive Grammars Type1 grammar The rule is allowed if S does not appear Context-Sensitive Grammars: Type-1 grammar • The rule is allowed if S does not appear](https://slidetodoc.com/presentation_image/08c0011f288a435b13084a127a43b5bf/image-13.jpg)
Context-Sensitive Grammars: Type-1 grammar • The rule is allowed if S does not appear on the right side of any rule. • The languages described by these grammars are exactly all languages that can be recognized by a non-deterministic Turing machine whose tape is bounded by a constant times the length of the input. 13
![The language is contextsensitive 14 The language is context-sensitive: 14](https://slidetodoc.com/presentation_image/08c0011f288a435b13084a127a43b5bf/image-14.jpg)
The language is context-sensitive: 14
![Theorem A language is context sensistive if and only if it is accepted by Theorem: A language is context sensistive if and only if it is accepted by](https://slidetodoc.com/presentation_image/08c0011f288a435b13084a127a43b5bf/image-15.jpg)
Theorem: A language is context sensistive if and only if it is accepted by a Linear-Bounded automaton Observation: There is a language which is context-sensitive but not decidable 15
![The Chomsky Hierarchy TuringAcceptable decidable Contextsensitive Contextfree Regular 16 The Chomsky Hierarchy Turing-Acceptable decidable Context-sensitive Context-free Regular 16](https://slidetodoc.com/presentation_image/08c0011f288a435b13084a127a43b5bf/image-16.jpg)
The Chomsky Hierarchy Turing-Acceptable decidable Context-sensitive Context-free Regular 16
![Summary 17 Summary 17](https://slidetodoc.com/presentation_image/08c0011f288a435b13084a127a43b5bf/image-17.jpg)
Summary 17
