TENDERS VEHICLE HEAVY EQUIPMENT SAFETY INSPECTION CHECKLIST OF

TENDERS

VEHICLE / HEAVY EQUIPMENT SAFETY INSPECTION CHECKLIST OF 296

ADDITIONAL FORMS TACTICAL WATER TENDERS

MINIMUM STANDARDS TACTICAL WATER TENDERS TYPE 1 2 2000 NONE 1000 1999 PUMP MIN. FLOW (GPM) 250 @ RATED PRESS. (PSI) 150 HOSE REEL ¾” ID HOSE (FEET) 100 SPRAY BAR OR EQUILVANT YES PUMP & ROLL YES FOAM PROPORTIONER SYS. YES DRAFTING CAPABILITIES MAY USE PORTABLE PUMP THAT MEETS MINIMUM STANDARDS YES 2 2 TANK CAPACITY (GAL) MINIMUM MAXIMUM PERSONNEL (MINIMUM)

ADDITIONAL FORMS SUPPORT WATER TENDER

MINIMUM STANDARDS SUPPORT WATER TENDERS TYPE 1 2 3 4000 NONE 2500 3999 1000 2499 PUMP MIN. FLOW (GPM) 300 200 @ RATED PRESS. (PSI) 50 50 50 SPRAY BAR OR EQUIVALENT YES YES MAXIMUM REFILL TIME (MIN) 30 20 15 YES YES 1 1 1 TANK CAPACITY MINIMUM MAXIMUM DRAFTING CAPABILITES MAY USE PORTABLE PUMP THAT MEETS MINIMUM STANDARDS PERSONNEL

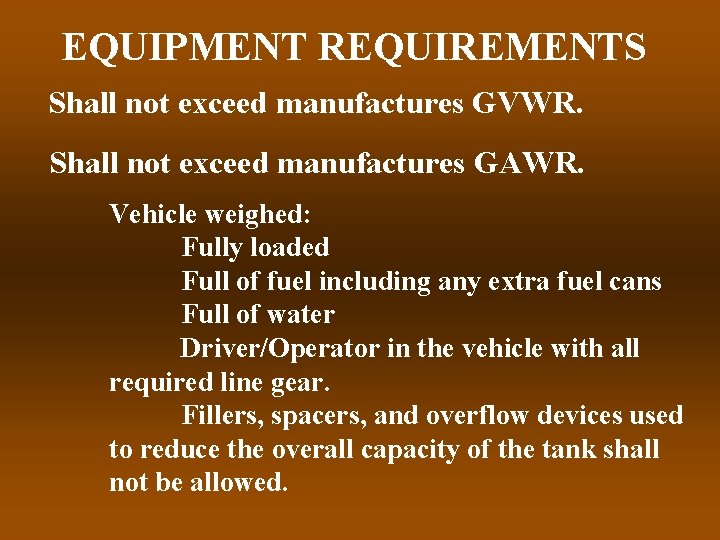

EQUIPMENT REQUIREMENTS Shall not exceed manufactures GVWR. Shall not exceed manufactures GAWR. Vehicle weighed: Fully loaded Full of fuel including any extra fuel cans Full of water Driver/Operator in the vehicle with all required line gear. Fillers, spacers, and overflow devices used to reduce the overall capacity of the tank shall not be allowed.

RADIO’S www. fireradios. net

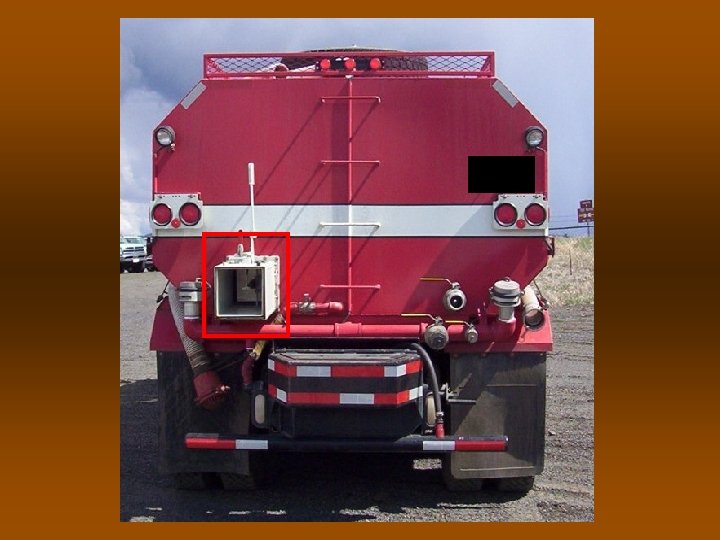

BACKUP ALARM

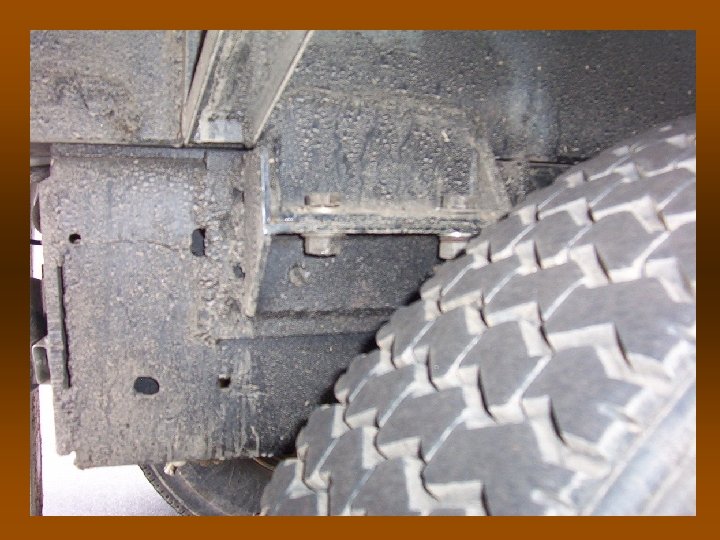

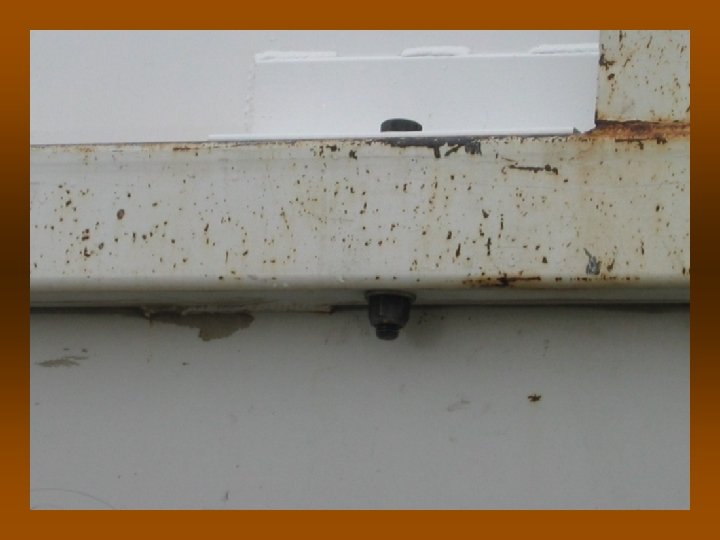

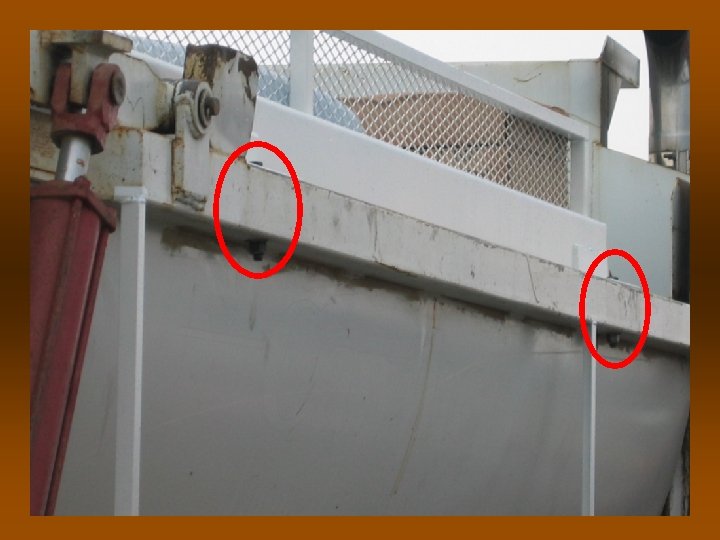

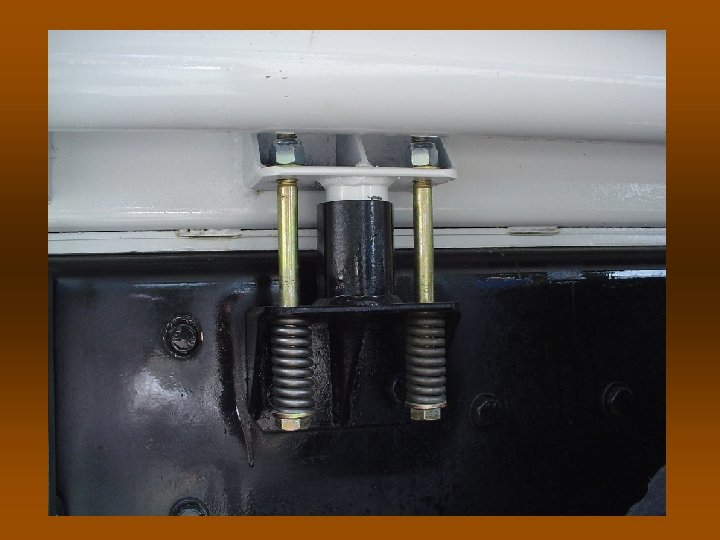

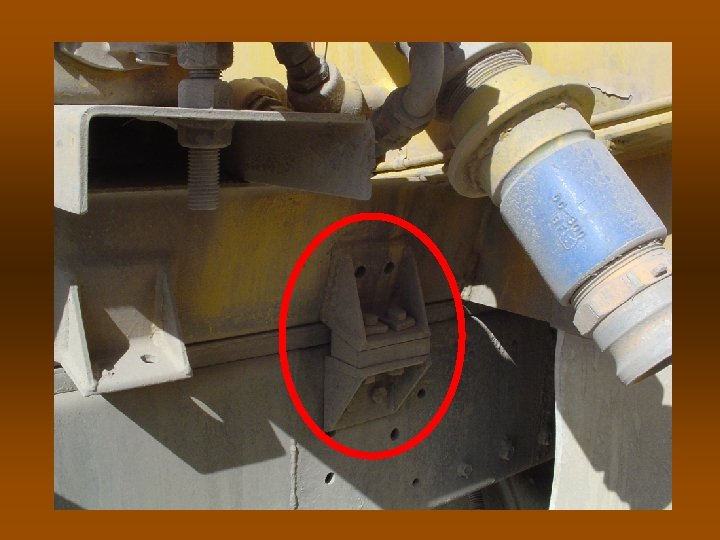

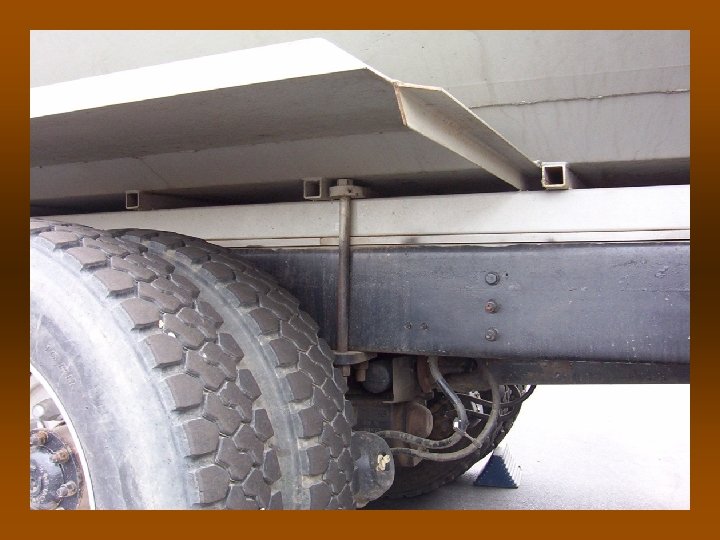

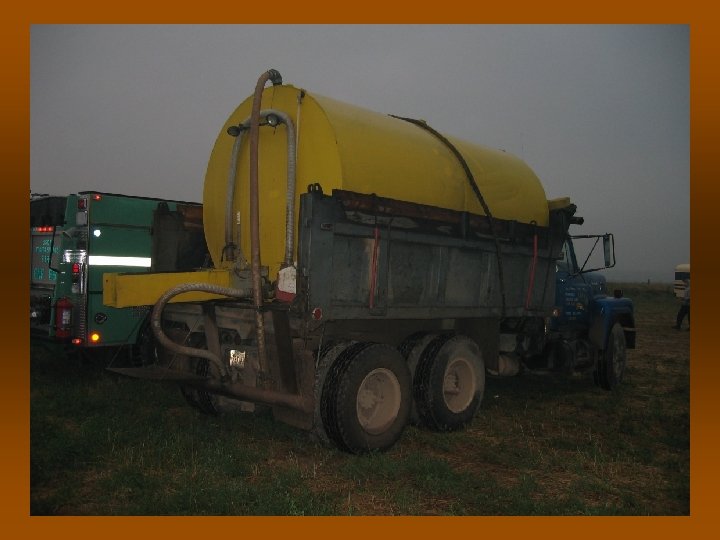

TANKS Tanks must be equipped with partitions that reduce the shifting of the water load. NFPA 1901 STANDARD Tanks shall be attached to chassis frame or to a bed in such a way to withstand pitch, roll and yaw of the load during on and off road operation of the unit.

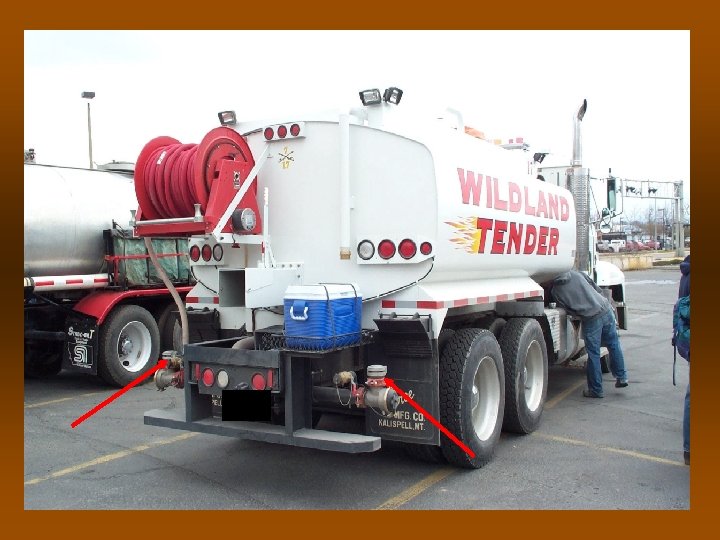

PUMPS

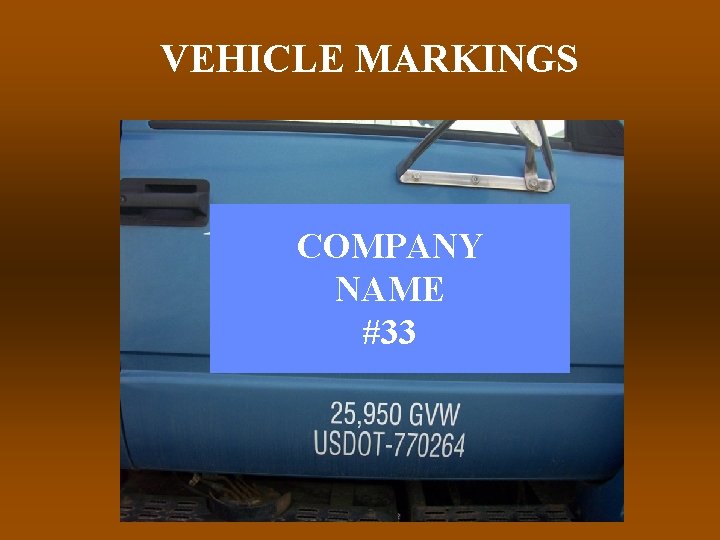

VEHICLE MARKINGS COMPANY NAME #33

PERSONAL PROTECTIVE EQUIPMENT Fire shelters Nomex Shirt & Pants Hardhat Gloves Boots

OTHER PERSONAL EQUIPMENT REQUIRED Eye Protection Hearing Protection Headlamp Line Gear
