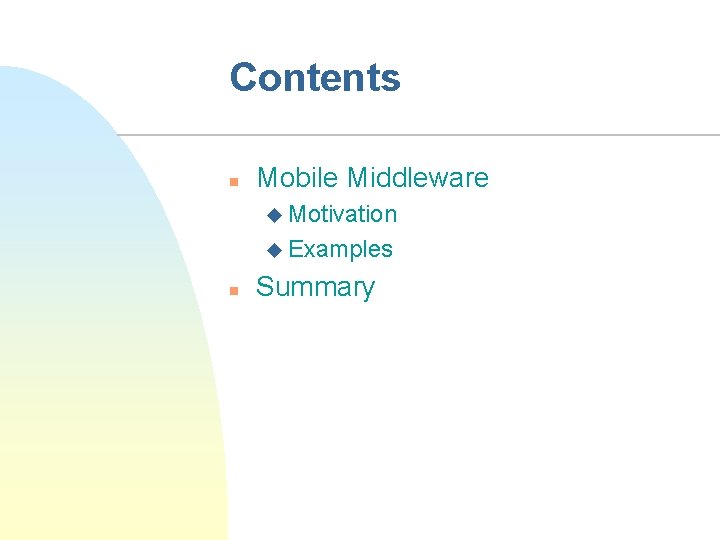

Contents n Mobile Middleware u Motivation u Examples n Summary
![Mobile Middleware I n Middleware is typically designed and implemented for fixed-network hosts u Mobile Middleware I n Middleware is typically designed and implemented for fixed-network hosts u](http://slidetodoc.com/presentation_image/16770addac23667c9ed0a36e7f68c695/image-3.jpg)

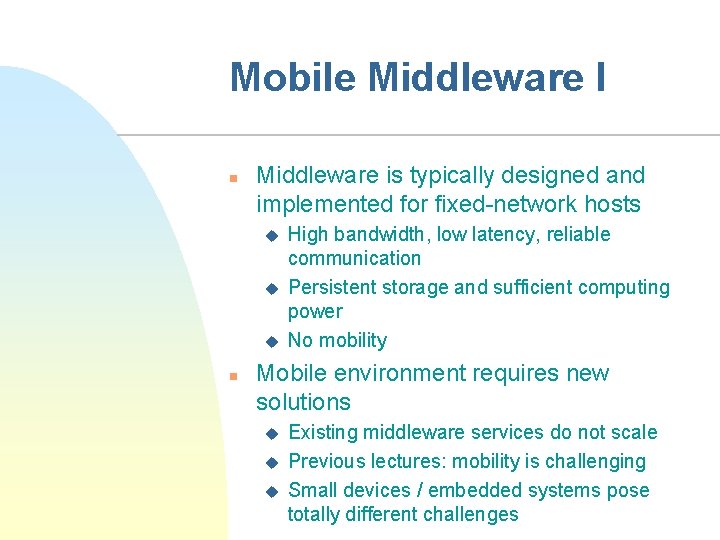

Mobile Middleware I n Middleware is typically designed and implemented for fixed-network hosts u u u n High bandwidth, low latency, reliable communication Persistent storage and sufficient computing power No mobility Mobile environment requires new solutions u u u Existing middleware services do not scale Previous lectures: mobility is challenging Small devices / embedded systems pose totally different challenges
![Mobile Middleware II n Goals for middleware: u n fault-tolerance, adaptability, heterogeneity, scalability, resource Mobile Middleware II n Goals for middleware: u n fault-tolerance, adaptability, heterogeneity, scalability, resource](http://slidetodoc.com/presentation_image/16770addac23667c9ed0a36e7f68c695/image-4.jpg)

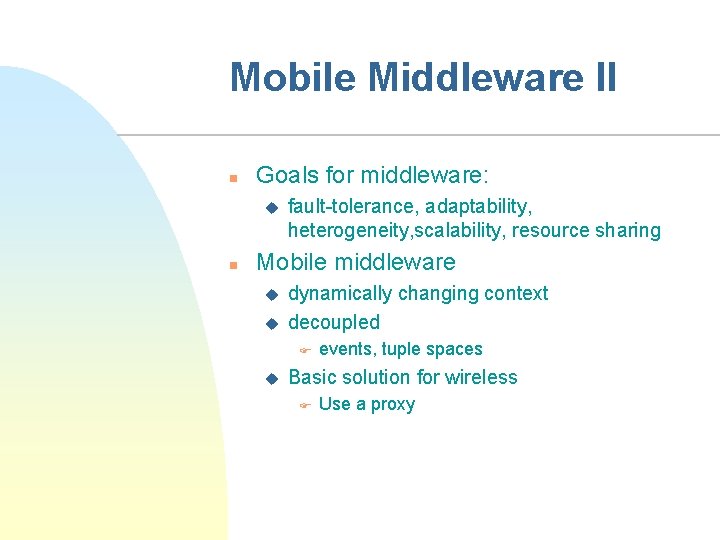

Mobile Middleware II n Goals for middleware: u n fault-tolerance, adaptability, heterogeneity, scalability, resource sharing Mobile middleware u u dynamically changing context decoupled F u events, tuple spaces Basic solution for wireless F Use a proxy
![Reflection n In general, middleware provides transparency to the underlying conditions u n In Reflection n In general, middleware provides transparency to the underlying conditions u n In](http://slidetodoc.com/presentation_image/16770addac23667c9ed0a36e7f68c695/image-5.jpg)

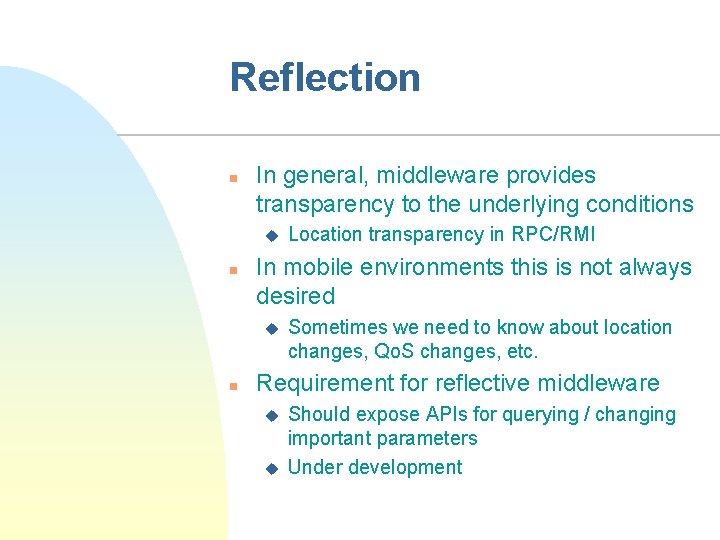

Reflection n In general, middleware provides transparency to the underlying conditions u n In mobile environments this is not always desired u n Location transparency in RPC/RMI Sometimes we need to know about location changes, Qo. S changes, etc. Requirement for reflective middleware u u Should expose APIs for querying / changing important parameters Under development
![WAE Middleware. NET Objects IPv 6 mobility, HIP XML J 2 ME Symbian Wireless WAE Middleware. NET Objects IPv 6 mobility, HIP XML J 2 ME Symbian Wireless](http://slidetodoc.com/presentation_image/16770addac23667c9ed0a36e7f68c695/image-6.jpg)

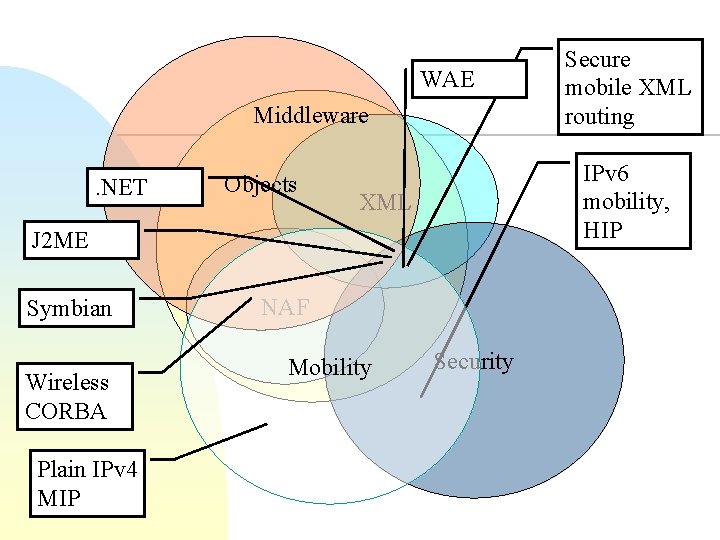

WAE Middleware. NET Objects IPv 6 mobility, HIP XML J 2 ME Symbian Wireless CORBA Plain IPv 4 MIP NAF Mobility Secure mobile XML routing Security
![Examples n n WAE J 2 ME Wireless CORBA Fuego Examples n n WAE J 2 ME Wireless CORBA Fuego](http://slidetodoc.com/presentation_image/16770addac23667c9ed0a36e7f68c695/image-7.jpg)

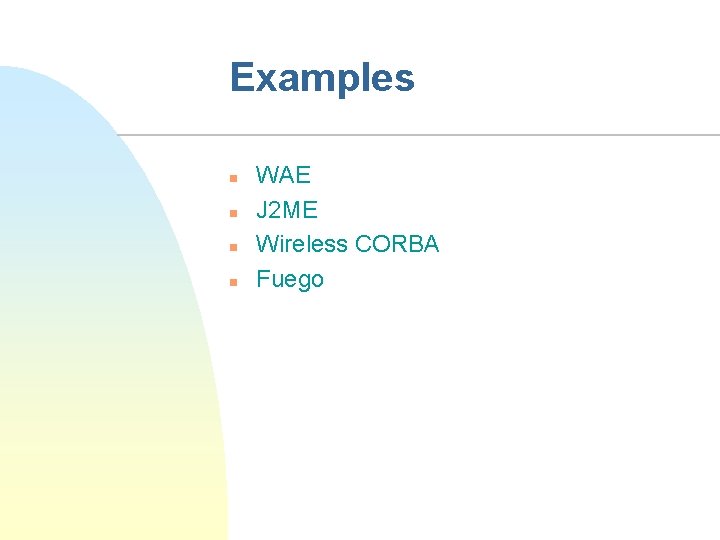

Examples n n WAE J 2 ME Wireless CORBA Fuego
![WAE n Wireless Application Environment (WAE) u n A suite of protocols and specifications WAE n Wireless Application Environment (WAE) u n A suite of protocols and specifications](http://slidetodoc.com/presentation_image/16770addac23667c9ed0a36e7f68c695/image-8.jpg)

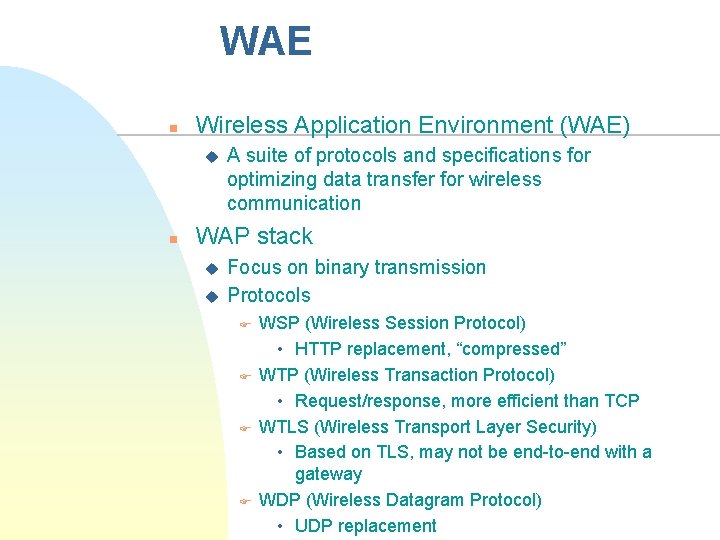

WAE n Wireless Application Environment (WAE) u n A suite of protocols and specifications for optimizing data transfer for wireless communication WAP stack u u Focus on binary transmission Protocols F F WSP (Wireless Session Protocol) • HTTP replacement, “compressed” WTP (Wireless Transaction Protocol) • Request/response, more efficient than TCP WTLS (Wireless Transport Layer Security) • Based on TLS, may not be end-to-end with a gateway WDP (Wireless Datagram Protocol) • UDP replacement
![Comparison HTML/JS WAE Other Session Layer (WSP) HTTP TLS - SSL TCP/IP UDP/IP Transaction Comparison HTML/JS WAE Other Session Layer (WSP) HTTP TLS - SSL TCP/IP UDP/IP Transaction](http://slidetodoc.com/presentation_image/16770addac23667c9ed0a36e7f68c695/image-9.jpg)

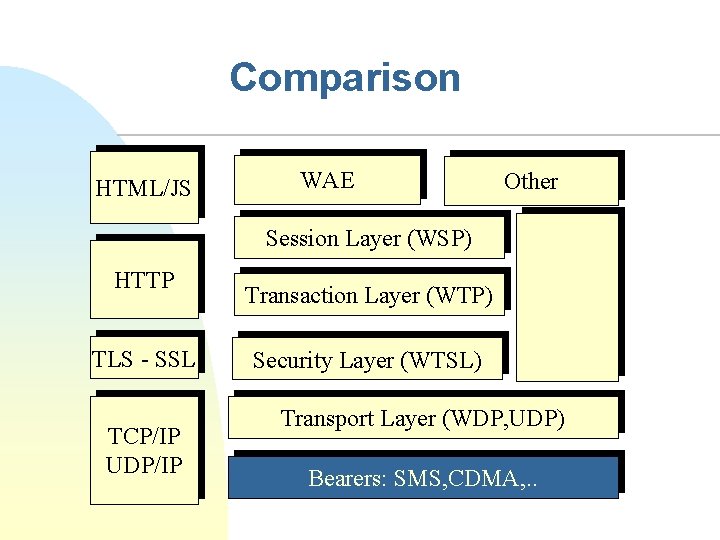

Comparison HTML/JS WAE Other Session Layer (WSP) HTTP TLS - SSL TCP/IP UDP/IP Transaction Layer (WTP) Security Layer (WTSL) Transport Layer (WDP, UDP) Bearers: SMS, CDMA, . .
![WAE: current status n n WAP Forum now in OMA (Open Mobile Alliance) WAP WAE: current status n n WAP Forum now in OMA (Open Mobile Alliance) WAP](http://slidetodoc.com/presentation_image/16770addac23667c9ed0a36e7f68c695/image-10.jpg)

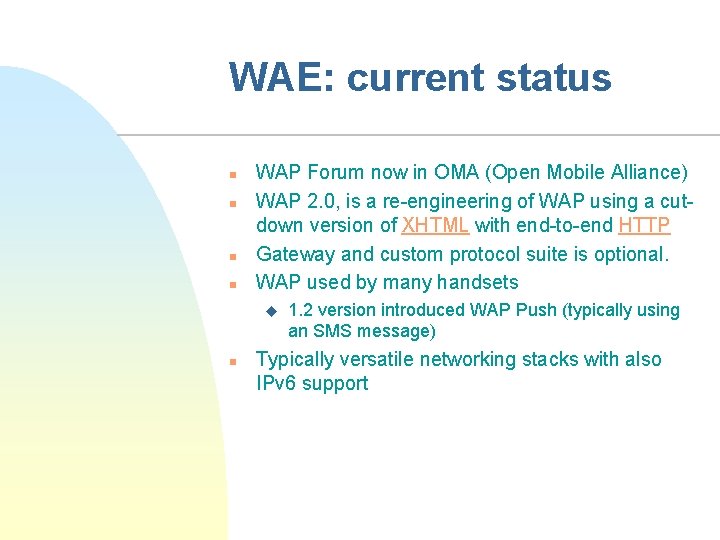

WAE: current status n n WAP Forum now in OMA (Open Mobile Alliance) WAP 2. 0, is a re-engineering of WAP using a cutdown version of XHTML with end-to-end HTTP Gateway and custom protocol suite is optional. WAP used by many handsets u n 1. 2 version introduced WAP Push (typically using an SMS message) Typically versatile networking stacks with also IPv 6 support
![Java 2 Platform Micro Edition (J 2 ME) n n n Java for consumer Java 2 Platform Micro Edition (J 2 ME) n n n Java for consumer](http://slidetodoc.com/presentation_image/16770addac23667c9ed0a36e7f68c695/image-11.jpg)

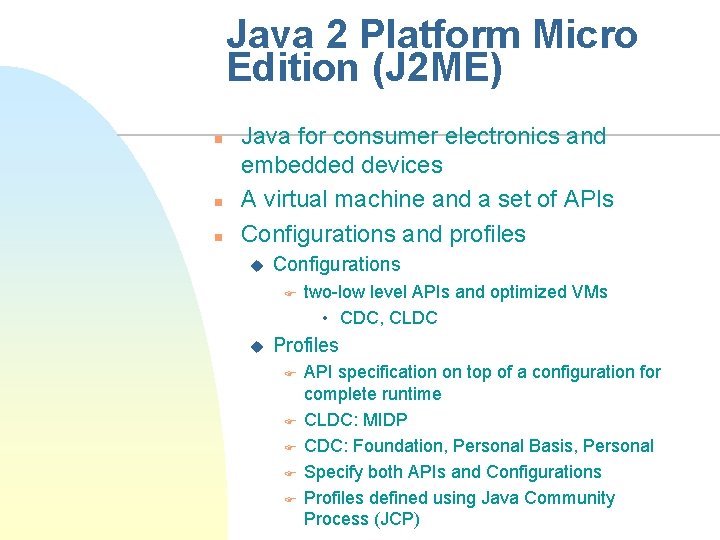

Java 2 Platform Micro Edition (J 2 ME) n n n Java for consumer electronics and embedded devices A virtual machine and a set of APIs Configurations and profiles u Configurations F u two-low level APIs and optimized VMs • CDC, CLDC Profiles F F F API specification on top of a configuration for complete runtime CLDC: MIDP CDC: Foundation, Personal Basis, Personal Specify both APIs and Configurations Profiles defined using Java Community Process (JCP)
![Source: http: //developers. sun. com/techtopics/mobility/getstart/articles/survey/ Source: http: //developers. sun. com/techtopics/mobility/getstart/articles/survey/](http://slidetodoc.com/presentation_image/16770addac23667c9ed0a36e7f68c695/image-12.jpg)

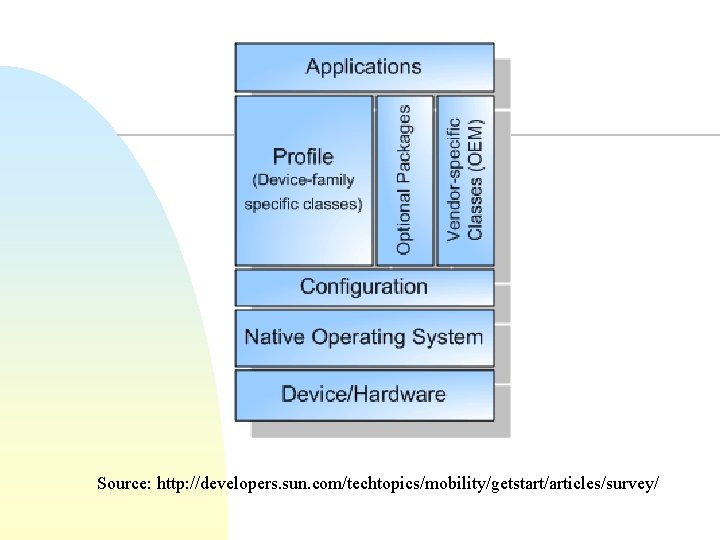

Source: http: //developers. sun. com/techtopics/mobility/getstart/articles/survey/
![J 2 ME optional packages n n JSR 172: J 2 ME Web Services J 2 ME optional packages n n JSR 172: J 2 ME Web Services](http://slidetodoc.com/presentation_image/16770addac23667c9ed0a36e7f68c695/image-13.jpg)

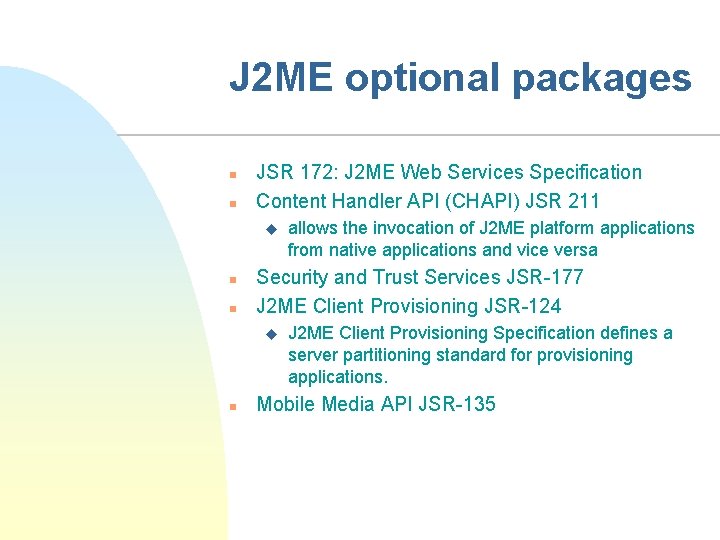

J 2 ME optional packages n n JSR 172: J 2 ME Web Services Specification Content Handler API (CHAPI) JSR 211 u n n Security and Trust Services JSR-177 J 2 ME Client Provisioning JSR-124 u n allows the invocation of J 2 ME platform applications from native applications and vice versa J 2 ME Client Provisioning Specification defines a server partitioning standard for provisioning applications. Mobile Media API JSR-135
![CLDC Technology n n n n Connected Limited Device Configuration (CLDC); JSR 30, JSR CLDC Technology n n n n Connected Limited Device Configuration (CLDC); JSR 30, JSR](http://slidetodoc.com/presentation_image/16770addac23667c9ed0a36e7f68c695/image-14.jpg)

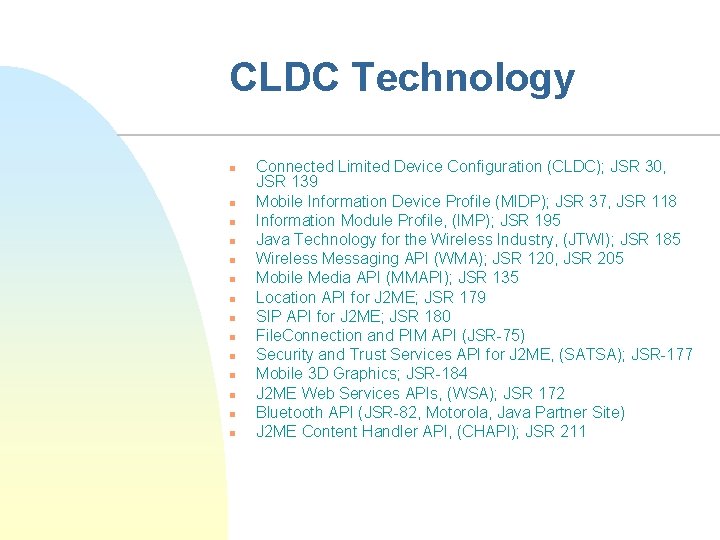

CLDC Technology n n n n Connected Limited Device Configuration (CLDC); JSR 30, JSR 139 Mobile Information Device Profile (MIDP); JSR 37, JSR 118 Information Module Profile, (IMP); JSR 195 Java Technology for the Wireless Industry, (JTWI); JSR 185 Wireless Messaging API (WMA); JSR 120, JSR 205 Mobile Media API (MMAPI); JSR 135 Location API for J 2 ME; JSR 179 SIP API for J 2 ME; JSR 180 File. Connection and PIM API (JSR-75) Security and Trust Services API for J 2 ME, (SATSA); JSR-177 Mobile 3 D Graphics; JSR-184 J 2 ME Web Services APIs, (WSA); JSR 172 Bluetooth API (JSR-82, Motorola, Java Partner Site) J 2 ME Content Handler API, (CHAPI); JSR 211
![CDC Technology n n n n Connected Device Configuration (CDC); JSR 36, JSR 218 CDC Technology n n n n Connected Device Configuration (CDC); JSR 36, JSR 218](http://slidetodoc.com/presentation_image/16770addac23667c9ed0a36e7f68c695/image-15.jpg)

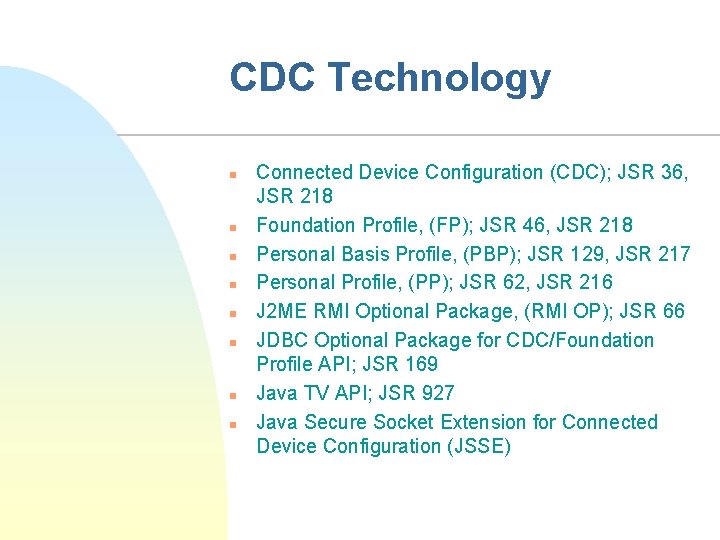

CDC Technology n n n n Connected Device Configuration (CDC); JSR 36, JSR 218 Foundation Profile, (FP); JSR 46, JSR 218 Personal Basis Profile, (PBP); JSR 129, JSR 217 Personal Profile, (PP); JSR 62, JSR 216 J 2 ME RMI Optional Package, (RMI OP); JSR 66 JDBC Optional Package for CDC/Foundation Profile API; JSR 169 Java TV API; JSR 927 Java Secure Socket Extension for Connected Device Configuration (JSSE)
![Wireless CORBA n CORBA does not support accessing mobile objects or wireless communication u Wireless CORBA n CORBA does not support accessing mobile objects or wireless communication u](http://slidetodoc.com/presentation_image/16770addac23667c9ed0a36e7f68c695/image-16.jpg)

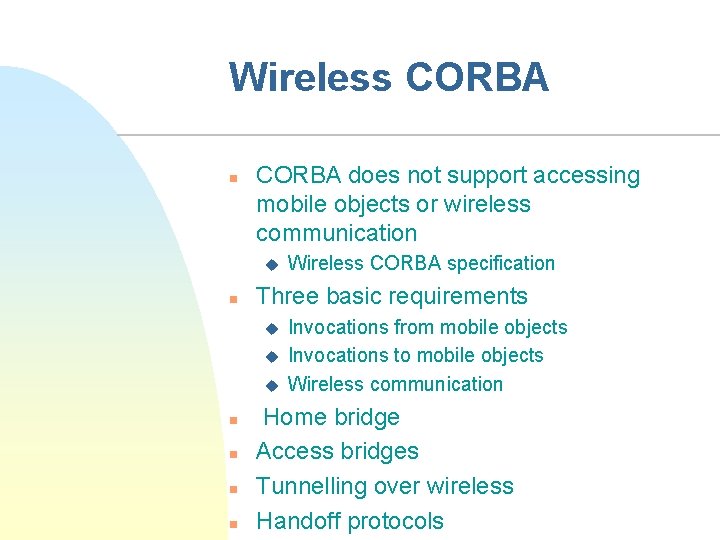

Wireless CORBA n CORBA does not support accessing mobile objects or wireless communication u n Three basic requirements u u u n n Wireless CORBA specification Invocations from mobile objects Invocations to mobile objects Wireless communication Home bridge Access bridges Tunnelling over wireless Handoff protocols
![Mobile IP vs. WCORBA n n n MIP addresses host mobility, not object mobility Mobile IP vs. WCORBA n n n MIP addresses host mobility, not object mobility](http://slidetodoc.com/presentation_image/16770addac23667c9ed0a36e7f68c695/image-17.jpg)

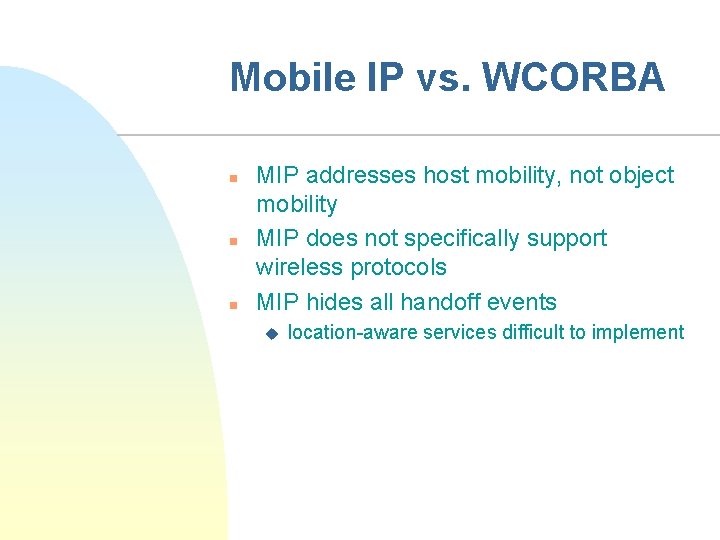

Mobile IP vs. WCORBA n n n MIP addresses host mobility, not object mobility MIP does not specifically support wireless protocols MIP hides all handoff events u location-aware services difficult to implement

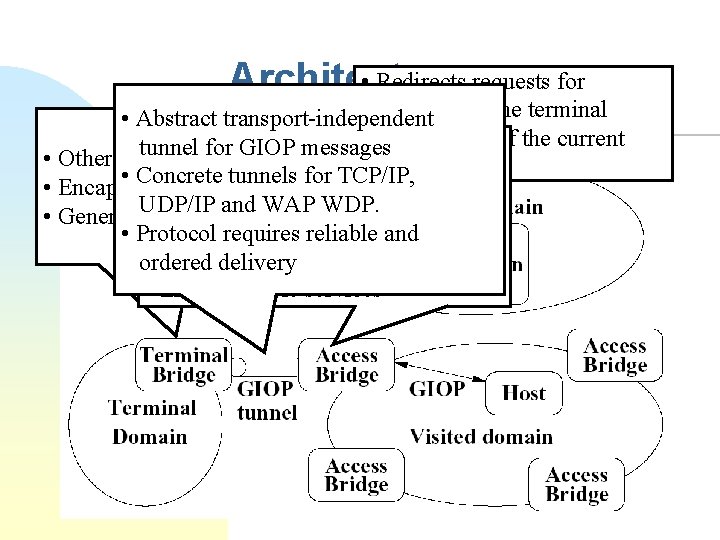

![• Redirects requests for Architecture services on the terminal • Abstract transport-independent • • Redirects requests for Architecture services on the terminal • Abstract transport-independent •](http://slidetodoc.com/presentation_image/16770addac23667c9ed0a36e7f68c695/image-18.jpg)
• Redirects requests for Architecture services on the terminal • Abstract transport-independent • Keeps track of the current • Encapsulates, forwards or ignores tunnel for GIOP messages • Other side end of the Access Bridge access bridge incoming GIOP messages • Concrete tunnels for TCP/IP, • Encapsulate/decapsulates msgs • Decapsulates and. WDP. forwards UDP/IP andevents WAP • Generates mobility messages from reliable the GIOP tunnel • Protocol requires and • Generates mobility events ordered delivery • Lists available services

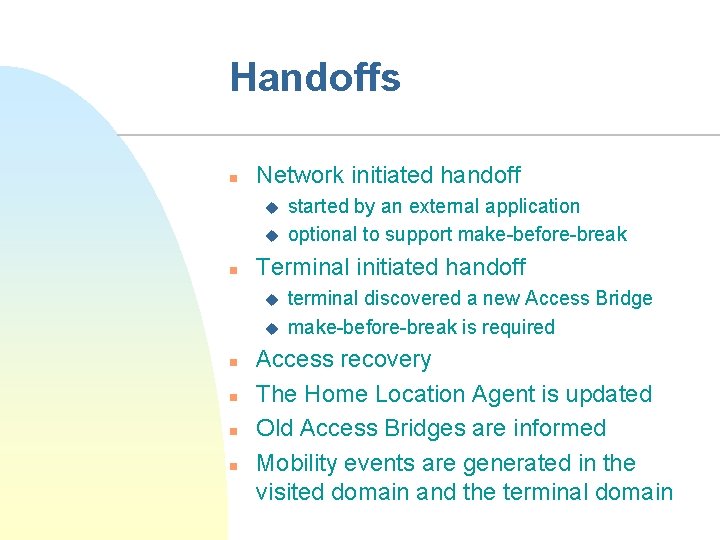

![Handoffs n Network initiated handoff u u n Terminal initiated handoff u u n Handoffs n Network initiated handoff u u n Terminal initiated handoff u u n](http://slidetodoc.com/presentation_image/16770addac23667c9ed0a36e7f68c695/image-19.jpg)
Handoffs n Network initiated handoff u u n Terminal initiated handoff u u n n started by an external application optional to support make-before-break terminal discovered a new Access Bridge make-before-break is required Access recovery The Home Location Agent is updated Old Access Bridges are informed Mobility events are generated in the visited domain and the terminal domain

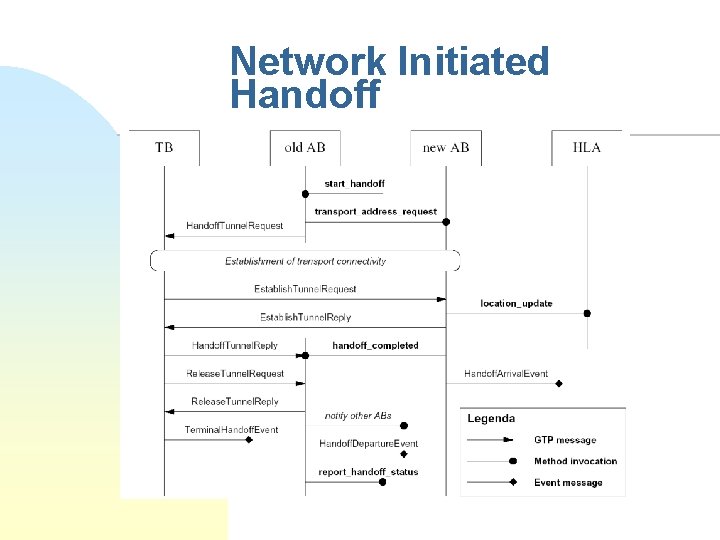

![Network Initiated Handoff Network Initiated Handoff](http://slidetodoc.com/presentation_image/16770addac23667c9ed0a36e7f68c695/image-20.jpg)
Network Initiated Handoff
![Fuego Core (HIIT) n Mobile and wireless environments have different requirements than desktop systems Fuego Core (HIIT) n Mobile and wireless environments have different requirements than desktop systems](http://slidetodoc.com/presentation_image/16770addac23667c9ed0a36e7f68c695/image-21.jpg)

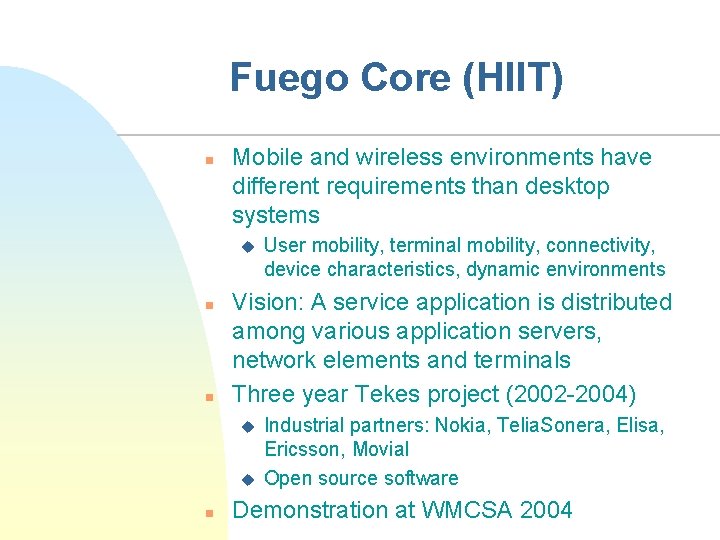

Fuego Core (HIIT) n Mobile and wireless environments have different requirements than desktop systems u n n Vision: A service application is distributed among various application servers, network elements and terminals Three year Tekes project (2002 -2004) u u n User mobility, terminal mobility, connectivity, device characteristics, dynamic environments Industrial partners: Nokia, Telia. Sonera, Elisa, Ericsson, Movial Open source software Demonstration at WMCSA 2004
![Fuego Architecture n The Fuego middleware service set for mobile computing u Data communication Fuego Architecture n The Fuego middleware service set for mobile computing u Data communication](http://slidetodoc.com/presentation_image/16770addac23667c9ed0a36e7f68c695/image-22.jpg)

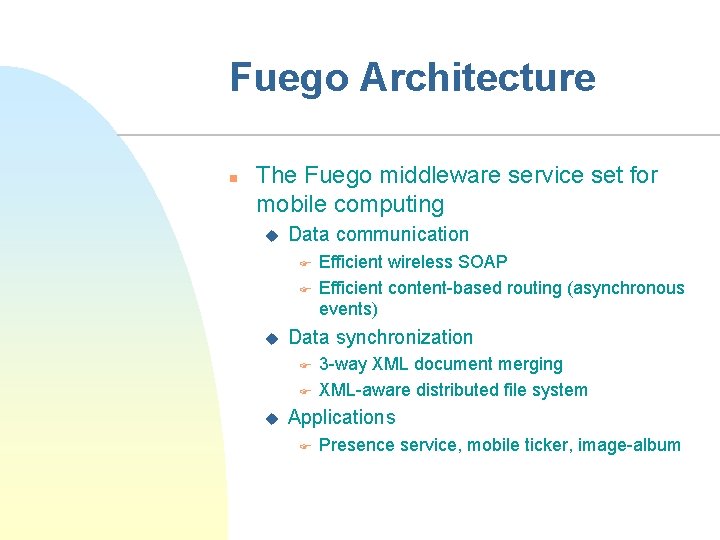

Fuego Architecture n The Fuego middleware service set for mobile computing u Data communication F F u Data synchronization F F u Efficient wireless SOAP Efficient content-based routing (asynchronous events) 3 -way XML document merging XML-aware distributed file system Applications F Presence service, mobile ticker, image-album
![](http://slidetodoc.com/presentation_image/16770addac23667c9ed0a36e7f68c695/image-23.jpg)
![Automatic reconciliation of XML documents Optimized storage of XML Expressive async. communication Ad-hoc file Automatic reconciliation of XML documents Optimized storage of XML Expressive async. communication Ad-hoc file](http://slidetodoc.com/presentation_image/16770addac23667c9ed0a36e7f68c695/image-24.jpg)

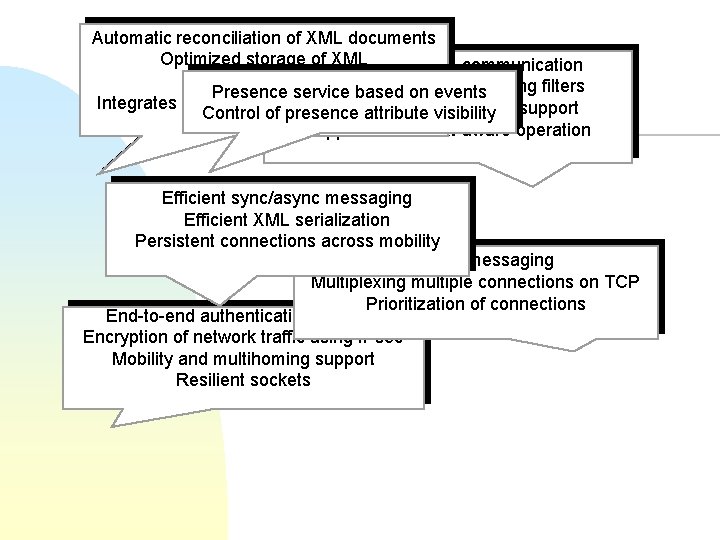

Automatic reconciliation of XML documents Optimized storage of XML Expressive async. communication Ad-hoc file sharing Content-based routing using filters Presence service based on events Integrates with existing file systems (NFS) / mobility support Event attribute buffering Control of presence visibility Support for context-aware operation Efficient sync/async messaging Efficient XML serialization Persistent connections across mobility Reliable messaging Multiplexing multiple connections on TCP Prioritization of connections End-to-end authentication of hosts Encryption of network traffic using IPsec Mobility and multihoming support Resilient sockets
![FUEGO DEMO FUEGO DEMO](http://slidetodoc.com/presentation_image/16770addac23667c9ed0a36e7f68c695/image-25.jpg)

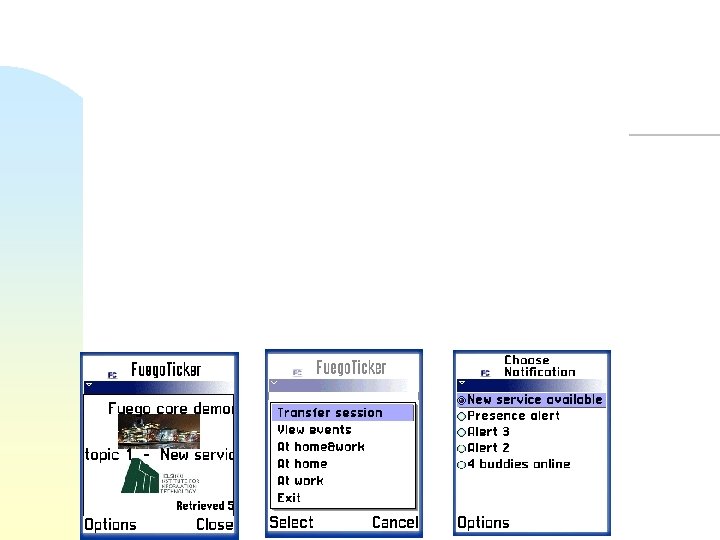

FUEGO DEMO

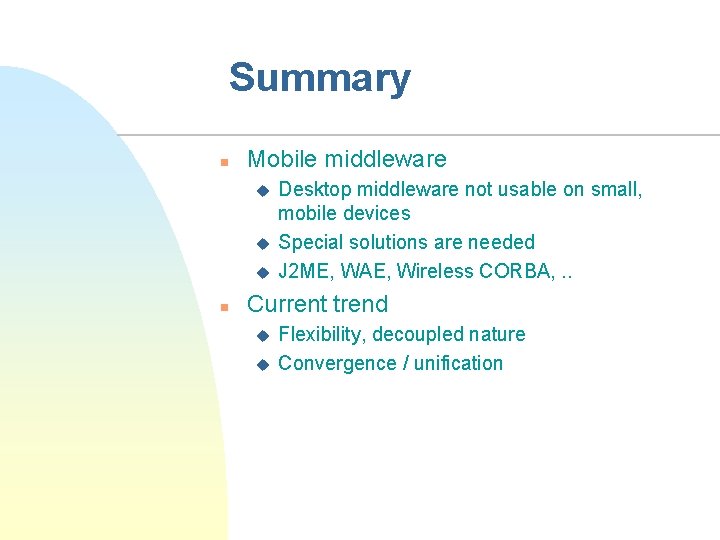

![Summary n Mobile middleware u u u n Desktop middleware not usable on small, Summary n Mobile middleware u u u n Desktop middleware not usable on small,](http://slidetodoc.com/presentation_image/16770addac23667c9ed0a36e7f68c695/image-26.jpg)
Summary n Mobile middleware u u u n Desktop middleware not usable on small, mobile devices Special solutions are needed J 2 ME, WAE, Wireless CORBA, . . Current trend u u Flexibility, decoupled nature Convergence / unification
