程序编码 董渊 ( System Software & Software Engineering) Department of Computer Science & Technology Tsinghua University 2005 ~ 2008 Copyright @ Tsinghua University Page 1
程序设计风格 – 基本原则 Top-down flow • Have the required action follow soon after the decision that generates it Generality is a virtue • Trade-off: generality, performance, understanding Dependence among components must be visible 2005 ~ 2008 Copyright @ Tsinghua University Page 4
benefit = minimum; if (age<75) goto A; benefit = maximum; goto C; if (age<65) goto B; if (age<55) goto C; A: if (age<65) goto B; benefit = benefit * 1. 5 + bonus; goto C; B: if (age<55) goto C; benefit = benefit * 1. 5; C: next statement if (age < 55) benefit = minimum; elseif (age < 65) benefit = munimum + bonus; elseif (age < 75) benefit = munimum * 1. 5 + bonus; else benefit = maximum; 2005 ~ 2008 Copyright @ Tsinghua University Page 5
程序设计风格– 基本原则 Do not sacrifice clarity and correctness for speed • • Cost to write faster code Cost to test more complex code Cost to maintain more complex/less understandable code Let compiler and other tools do it Choose data structure to simplify the program’s calculation 2005 ~ 2008 Copyright @ Tsinghua University Page 6
1. 2. 3. 4. 5. For the first $10, 000 of income, the tax is 10%. For the next $10, 000 of income above $10, 000, the tax is 12%. For the next $10, 000 of income above $20, 000, the tax is 15%. For the next $10, 000 of income above $30, 000, the tax is 18%. For any income above $40, 000, the tax is 20%. Tax Table Bracket Base Percent 0 0 10 10, 000 12 20, 000 2200 15 30, 000 3700 18 40, 000 5500 20 2005 ~ 2008 tax = base[level] + percent[level] * (taxable_income – bracket[level]) Copyright @ Tsinghua University Page 7
程序设计风格– 基本原则 Localizing input and output • • Hardware/software dependence Easy to change Including pseudocode • Adapt design to chosen language Revising and rewriting, not patching • Module decomposition, control structure, data structure, algorithm, etc. 2005 ~ 2008 Copyright @ Tsinghua University Page 8
程序设计风格– 基本原则 Documentation : written description of WHAT the programs do and HOW they do it • Self-Documentation, Source code Internal documentation • External documentation • Header comment block • Program comments • Meaningful variable names and statement labels • Formatting to enhance understanding • Documenting data • Problem, algorithm, data 2005 ~ 2008 Copyright @ Tsinghua University Page 9

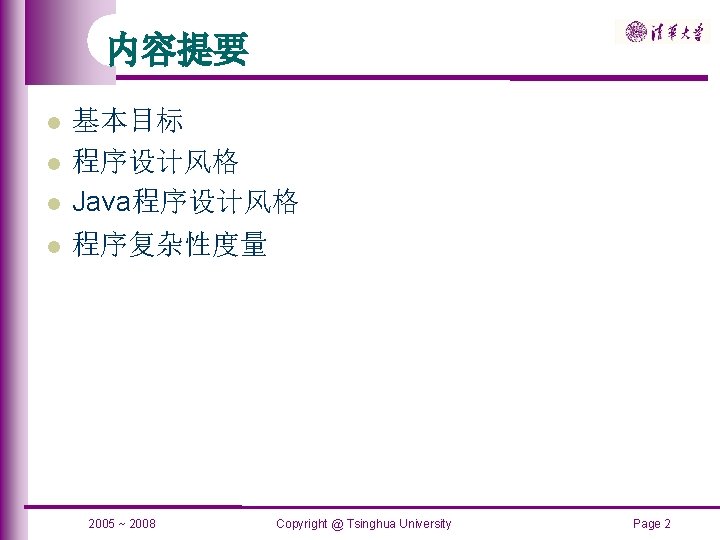

内容提要 基本目标 程序设计风格 Java程序设计风格 程序复杂性度量 2005 ~ 2008 Copyright @ Tsinghua University Page 10

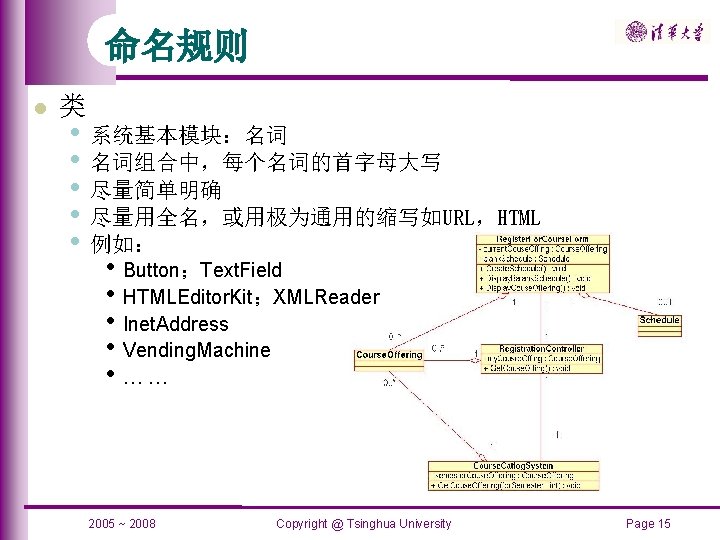

命名规则 包(Packages),体系结构 接口(Interfaces),联系(内外部) 类(Classes),基本模块 方法(Methods),服务,消息 变量(Variables),属性 常量(Constants),属性 2005 ~ 2008 Copyright @ Tsinghua University Page 12
命名规则 包 • 前缀(顶层) • 小写ASCII字母 • ISO 3166(1981)的Internet域名规范: • • 如com, edu, org, net, gov, mil 如cn, tw, hk, jp, uk • 后继可根据项目结构: • 例如: • 所在组织的组织结构 • 或内部命名规范 • com. sun. security; • org. omg. CORBA • edu. tsinghua. course 11. group 4 • java. awt 2005 ~ 2008 Copyright @ Tsinghua University Page 13
命名规则 接口 • 名词或形容词组合中,每个词的首字母大写 • 尽量简单明确 • 尽量用全名,或用极为通用的缩写如URL,HTML • 例如: • Serializable;Adjustable; • Runnable;Cloneable • Action. Listener; • Mouse. Listener • Iterator;Enumeration 2005 ~ 2008 Copyright @ Tsinghua University Page 14
命名规则 常量 • 大写字母 • 单词之间用“_”连接 • 例如: • Color. BLACK,Color. GREEN; • JOption. Pane. ERROR_MESSAGE, JOption. Pane. YES_NO_CANCEL_OPTION; 2005 ~ 2008 Copyright @ Tsinghua University Page 18
/* * 文件名 * * 版本信息 * * ��(开���、修改的�史��) * * Copyright notice */ package homework; import java. util. Vector; import java. awt. *; 2005 ~ 2008 Copyright @ Tsinghua University Page 20
/** * �的主要功能描述 * * @version 版本名称及开��� * @author 作者名 * @modified by: * 更改的�史��,包括作者、�� */ public class Blah extends Some. Class { /* A class implementation comment can go here. */ 2005 ~ 2008 Copyright @ Tsinghua University Page 21
/** class. Var 1 documentation comment */ public static int class. Var 1; /** * class. Var 2 documentation comment that happens to * be more than one line long */ private static Object class. Var 2; /** instance. Var 1 documentation comment */ public Object instance. Var 1; /** instance. Var 2 documentation comment */ protected int instance. Var 2; /** instance. Var 3 documentation comment */ private Object[] instance. Var 3; 2005 ~ 2008 Copyright @ Tsinghua University Page 22
/** *. . . constructor Blah documentation comment. . . */ public Blah() { //. . . implementation goes here. . . } 2005 ~ 2008 Copyright @ Tsinghua University Page 23
/** *. . . method do. Something documentation comment. . . */ public void do. Something() { //. . . implementation goes here. . . } /** *. . . method do. Something. Else documentation comment. . * @param some. Param description */ public void do. Something. Else(Object some. Param) { //. . . implementation goes here. . . } } 2005 ~ 2008 Copyright @ Tsinghua University Page 24
some. Method(long. Expression 1, long. Expression 2, long. Expression 3, long. Expression 4, long. Expression 5); var = some. Method 1(long. Expression 1, some. Method 2(long. Expression 2, long. Expression 3)); long. Nm 1 = long. Nm 2 * (long. Nm 3 + long. Nm 4 - long. Nm 5) + 4 * long. Nm 6; // PREFER long. Nm 1 = long. Nm 2 * (long. Nm 3 + long. Nm 4 - long. Nm 5) + 4 * long. Nm 6; // AVOID 2005 ~ 2008 Copyright @ Tsinghua University Page 26
/* * Here is a block comment. */ if (condition) { /* Handle the condition. */. . . } if (a == 2) { return TRUE; /* special case */ } else { return is. Prime(a); /* works only for odd a */ } 2005 ~ 2008 Copyright @ Tsinghua University Page 28
if (foo > 1) { // Do a double-flip. . } else { return false; // Explain why here. } //if (bar > 1) { // // // Do a triple-flip. //. . . //} //else { // return false; //} 2005 ~ 2008 Copyright @ Tsinghua University Page 29
程序注释 Documentation Comments • • Javadoc /**………*/ @return @param @see @since @link HTML标识 2005 ~ 2008 Copyright @ Tsinghua University Page 30
/** * Returns an Image object that can then be painted on the screen. * The url argument must specify an absolute {@link URL}. * <p> * This method always returns immediately, whether or not the * image exists. When this applet attempts to draw the image on * the screen, the data will be loaded. The graphics primitives * that draw the image will incrementally paint on the screen. * * @param url an absolute URL giving the base location of the image * @param name the location of the image, relative to the URL argument * @return the image at the specified URL * @see Image */ public Image get. Image(URL url, String name) { …… } 2005 ~ 2008 Copyright @ Tsinghua University Page 31
2005 ~ 2008 Copyright @ Tsinghua University Page 32
程序声明 每个声明一行,以便于添加注释 //preferred int level; // indentation level int size; // size of table //avoid int level,size; 类型和标识符间要有空格(或Tab)分隔 int level; // indentation level int size; // size of table Object current. Entry; // currently selected table entry 2005 ~ 2008 Copyright @ Tsinghua University Page 33
程序声明 初始化:尽量在变量声明的同时赋初值 声明的位置:尽量在程序块的开始部分 void my. Method() { int 1 = 0; // beginning of method block if (condition) { int 2 = 0; // beginning of "if" block. . . } } 2005 ~ 2008 Copyright @ Tsinghua University Page 34

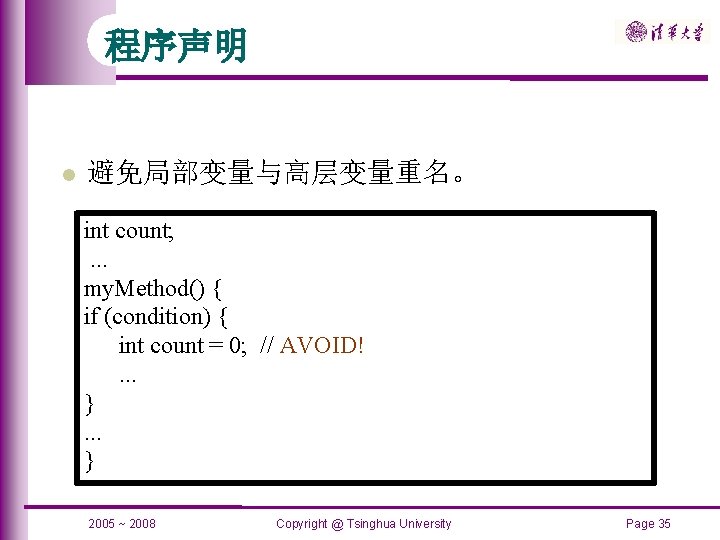

程序声明 避免局部变量与高层变量重名。 int count; . . . my. Method() { if (condition) { int count = 0; // AVOID!. . . } 2005 ~ 2008 Copyright @ Tsinghua University Page 35
class Sample extends Object { int ivar 1; int ivar 2; Sample(int i, int j) { ivar 1 = i; ivar 2 = j; } int empty. Method() {}. . . } 2005 ~ 2008 Copyright @ Tsinghua University Page 37
语句结构 简单语句 • 每一条语句单独一行 复合语句 • • 用缩进明确语句间的层次关系 if-then-else语句 for while do-while switch try-catch 2005 ~ 2008 Copyright @ Tsinghua University Page 38
if (condition) { statements; } else { statements; } if (condition) { statements; } else{ statements; } 2005 ~ 2008 Copyright @ Tsinghua University Page 39
for (initialization; condition; update) { statements; } for (initialization; condition; update); while (condition) { statements; } while (condition); do { statements; } while (condition); 2005 ~ 2008 Copyright @ Tsinghua University Page 40
switch (condition) { case ABC: statements; /* falls through */ case DEF: statements; break; case XYZ: statements; break; default: statements; break; } 2005 ~ 2008 Copyright @ Tsinghua University Page 41
try { statements; } catch (Exception. Class e) { statements; } finally { statements; } 2005 ~ 2008 Copyright @ Tsinghua University Page 42
内容提要 基本目标 程序设计风格 Java程序设计风格 程序复杂性度量 2005 ~ 2008 Copyright @ Tsinghua University Page 45
A开始 A B B C�入 C D K�出 D E L�束 E F J L G G H H�入 程序� 程序流程� 2005 ~ 2008 K Copyright @ Tsinghua University Page 49

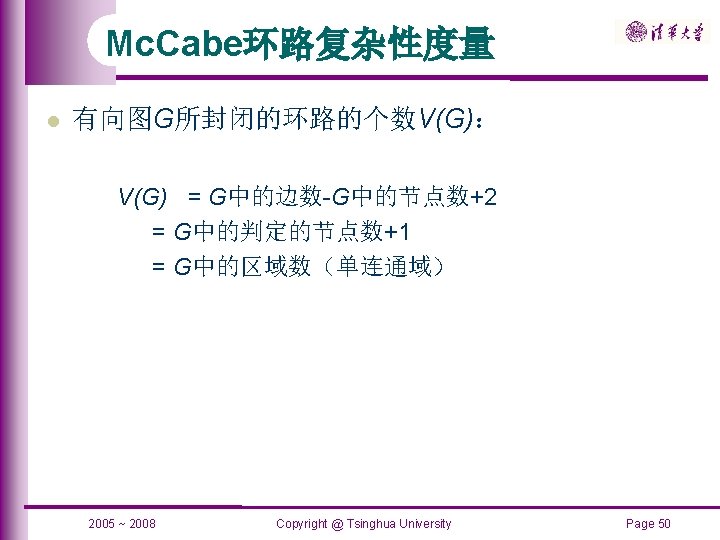

1 2 V=1 -2+2 =0+1 =1 1 2 3 4 顺序型 选择型 1 1 2 3 V=3 -3+2 =1+1 =2 While型循环 2005 ~ 2008 2 3 V=4 -4+2 =1+1 =2 V=3 -3+2 =1+1 =2 Until型循环 Copyright @ Tsinghua University Page 51
1 2 3 4 I 5 II IV 6 7 8 9 V=11 -9+2=3+1=4 2005 ~ 2008 Copyright @ Tsinghua University Page 52
