Stepper Motors § stepper motors are special motors which rotate in discrete steps and used when motion and position have to be precisely controlled. § It rotates by a specific number of degrees in response to an input electrical pulse. Typical step sizes are 20 , 2. 5 0, 5 0 , 7. 5 0 , and 15 0 for each electrical pulse.

Applications: • The stepper motor is used in digital control systems. A train of pulses is made to turn the shaft of the motor by steps. • Neither a position sensor nor a feedback system is normally required for the stepper motors to make the output response follow the input command. • Typical applications of stepper motors requiring incremental motion are printers, tape drives, disk drives, machine tools, process control systems, X—Y plotters, and robotics.

§ Stepper motors have been built to follow signals as rapid as 1200 pulses per second with power ratings up to several horsepower. § Typical resolution of commercially available stepper motors ranges from several steps per revolution to as many as 400 steps per revolution and even higher. Two types of stepper motors are widely used: (1) the variable-reluctance type. (2) the permanent magnet type.

Variable Reluctance Stepper Motor : 1) single-stack type. 2) multiple-stack type. Single-Stack Stepper Motor • The stator phases are excited with dc current in proper sequence. • A reluctance torque is generated because of the tendency of the rotor to align itself along the direction of the resultant flux. • The following figures illustrate operating modes of stepper motor for 450 step.

Basic circuit for a 4 -phase, 2 -pole stepper motor.

When winding A is excited, the rotor aligns with the axis of phase A.

Both windings A and B are excited. The rotor aligns itself with the resultant flux and moves 45 0 in the clockwise direction.

When winding B is excited, the rotor aligns with the axis of phase B. § Note that: the direction of rotation can be reversed by reversing the sequence of switching the windings, that is, A, A + D, D, D + C, etc.

§ A multipole rotor construction is required in order to obtain smaller step sizes. if the windings are excited in the sequence A, A + B, B, B + C, C, the rotor rotates in steps of 150 in the anticlockwise direction. Construction of a 4 -phase, 6 -pole stepper motor

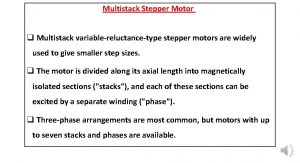

Multistack Stepper Motor : q Multistack variable-reluctance-type stepper motors are widely used to give smaller step sizes. q The motor is divided along its axial length into magnetically isolated sections ("stacks"), and each of these sections can be excited by a separate winding ("phase"). q Three-phase arrangements are most common, but motors with up to seven stacks and phases are available.

Cross section of a three-stack, variable-reluctance stepper motor parallel to the shaft

Example: Teeth position in a 4 -pole, 3. - stack, Variable reluctance stepper motor Phase A excited. Rotor and stator teeth are aligned.

a)The rotor teeth in each stack are aligned. b) The stator teeth have different orientation between stacks. c) when stack A is energized, the rotor and stator teeth in stack A are aligned. Developed diagram for rotor and stator teeth for phase A excitation

Number of steps per revolution : Let “x” be the number of rotor teeth and “N” the number of stacks or phases. Then : Number of steps per revolution is: Typical step sizes for the multistack variable-reluctance stepping motor are in the range 2 to 15 degrees.

PERMANENT MAGNET STEPPER MOTOR: q The permanent magnet stepper motor has a stator construction similar to that of the single-stack variable-reluctance type. q The rotor poles align with two stator teeth (or poles) according to the winding excitation. q The current polarity is important because it decides the direction in which the motor will move.

item Variable Reluctance Stepper motor Permanent magnet Stepper motor Inertia low high acceleration high low maximum step rate 1200 pulses / second 300 pulses / second torque / amp. of stator current low high step size small (2 to 15 º) Large (30 to 90 º)

Hybrid stepper motors: The rotor has an axial permanent magnet at the middle and ferromagnetic teeth at the outer sections. Smaller step sizes can be obtained from these motors, but they are more expensive than the variable-reluctance type stepper motors.

Effect of inertia : In the figure shown, when the switches are closed in the sequence A, B, C the motor rotates ccw in 60 0 steps. The following cases are considered: a) Small load, small damping operation: In moving from pole 1 to pole 2, the rotor oscillates around its 60 0 position before coming to rest. The speed is zero whenever the rotor reaches the limit of its overshoot. Elementary stepper motor

Low inertia load, less friction operation

b) High inertia, less friction operation: § The overshoot will become greater. § The rotor takes longer to settle down.

c) High inertia load, large friction operation The damping can be increased using eddy current brake or viscous damper. The oscillations are damped if the friction increases.

Effect of mechanical loading (low inertia , small damping): q The overshoot becomes smaller. q The oscillations are damped more quickly. q Large settling time.

Graph of current pulses, angular position, and speed during the first four steps

Torque versus current: pull-over torque: The torque that the motor exerts when it moves from one step to another. At rest: A holding current must continue to flow in the last winding that was excited so that the rotor remains locked in place.

Slew speed: q A stepper motor is called to run with the slew speed if it runs at uniform speed without starting and stopping at every step. q When the motor runs with the slew speed, it can carry greater load. Curve 1: start-stop curve with only stepper motor inertia. Curve 2: start-stop curve with additional load inertia. Curve 3: slewing curve.
