- Slides: 10
![Similar Triangles Similar Triangles](https://slidetodoc.com/presentation_image_h2/318986d6a36bbd851c658035a038fe9b/image-1.jpg)
Similar Triangles
![When are triangles considered similar Triangles are similar when their corresponding angles are When are triangles considered similar? � Triangles are similar when: their corresponding angles are](https://slidetodoc.com/presentation_image_h2/318986d6a36bbd851c658035a038fe9b/image-2.jpg)

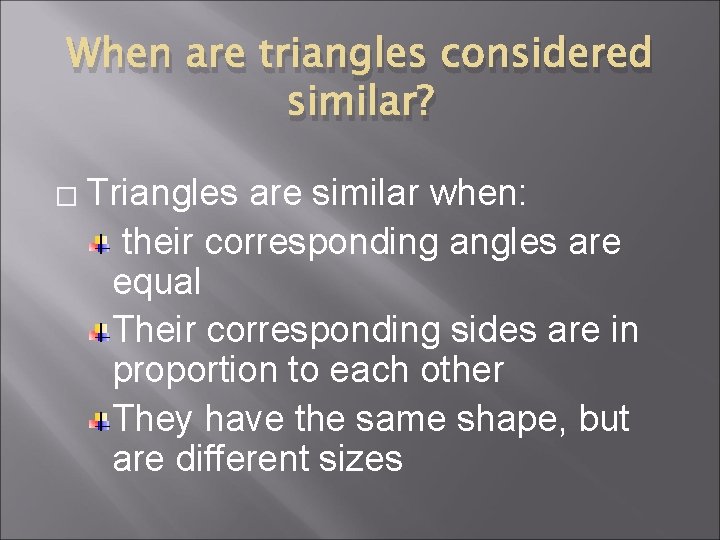

When are triangles considered similar? � Triangles are similar when: their corresponding angles are equal Their corresponding sides are in proportion to each other They have the same shape, but are different sizes
![What are corresponding angles Angles that correspond to each other are in What are corresponding angles? � � Angles that correspond to each other are in](https://slidetodoc.com/presentation_image_h2/318986d6a36bbd851c658035a038fe9b/image-3.jpg)

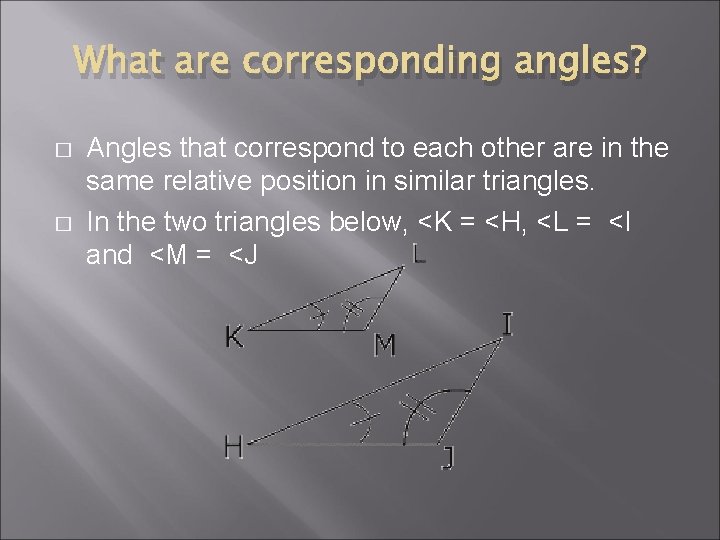

What are corresponding angles? � � Angles that correspond to each other are in the same relative position in similar triangles. In the two triangles below, <K = <H, <L = <I and <M = <J
![Dont be fooled Be careful triangles can be reversed in position look Don’t be fooled! � Be careful: triangles can be reversed in position – look](https://slidetodoc.com/presentation_image_h2/318986d6a36bbd851c658035a038fe9b/image-4.jpg)

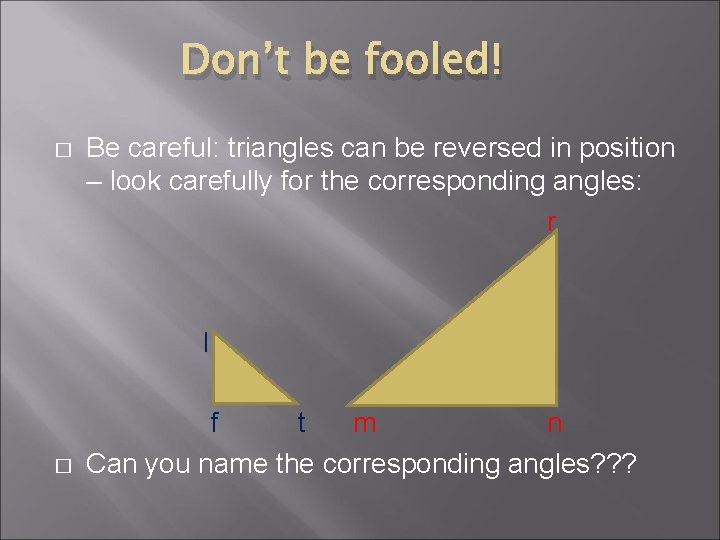

Don’t be fooled! � Be careful: triangles can be reversed in position – look carefully for the corresponding angles: r l � f t m n Can you name the corresponding angles? ? ?
![Dont be fooled Sometimes triangles can be flipped and reversed Can you still Don’t be fooled! � Sometimes, triangles can be flipped and reversed! Can you still](https://slidetodoc.com/presentation_image_h2/318986d6a36bbd851c658035a038fe9b/image-5.jpg)

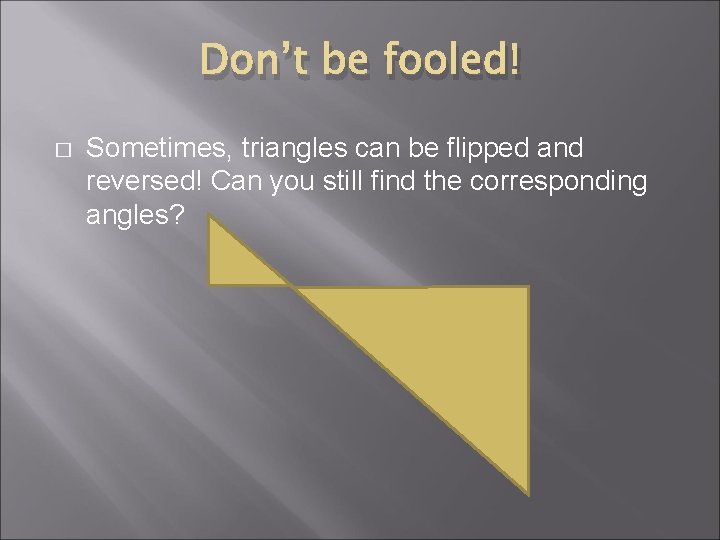

Don’t be fooled! � Sometimes, triangles can be flipped and reversed! Can you still find the corresponding angles?
![Dont be fooled Sometimes similar triangles can be hiding inside of each other Don’t be fooled! � Sometimes, similar triangles can be hiding inside of each other.](https://slidetodoc.com/presentation_image_h2/318986d6a36bbd851c658035a038fe9b/image-6.jpg)

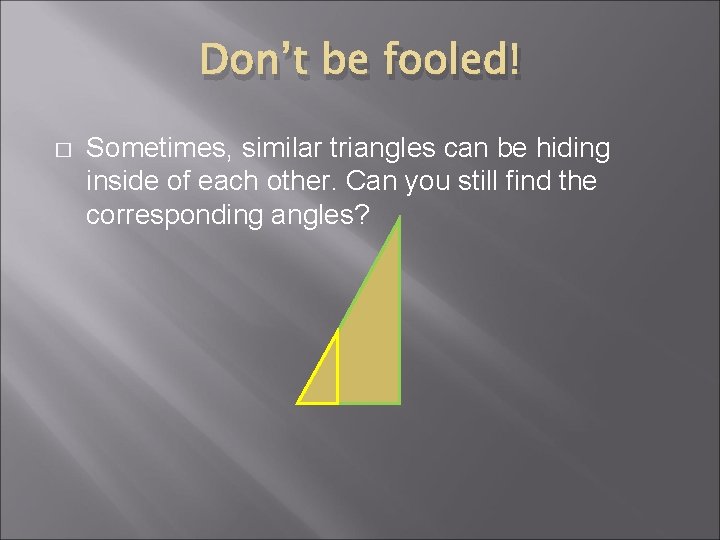

Don’t be fooled! � Sometimes, similar triangles can be hiding inside of each other. Can you still find the corresponding angles?
![What are corresponding sides In the triangles below the corresponding sides are What are corresponding sides? � � In the triangles below, the corresponding sides are](https://slidetodoc.com/presentation_image_h2/318986d6a36bbd851c658035a038fe9b/image-7.jpg)

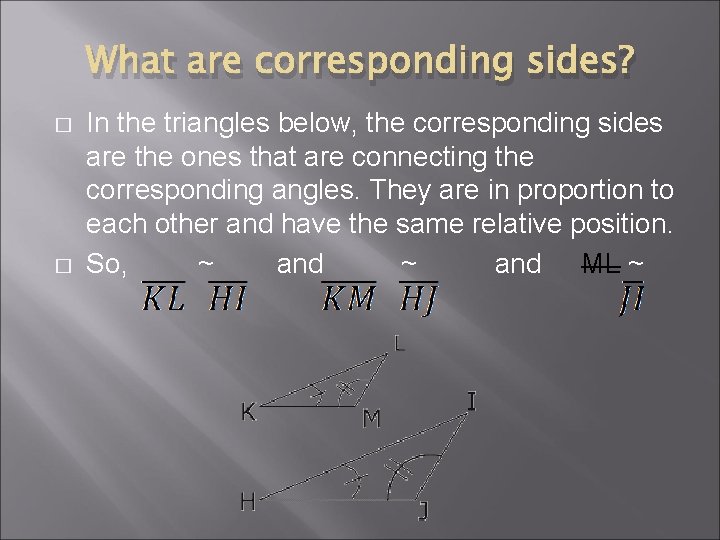

What are corresponding sides? � � In the triangles below, the corresponding sides are the ones that are connecting the corresponding angles. They are in proportion to each other and have the same relative position. So, ~ and ML ~
![Corresponding sides In similar triangles corresponding sides are proportional That means that Corresponding sides � � In similar triangles, corresponding sides are proportional. That means that](https://slidetodoc.com/presentation_image_h2/318986d6a36bbd851c658035a038fe9b/image-8.jpg)

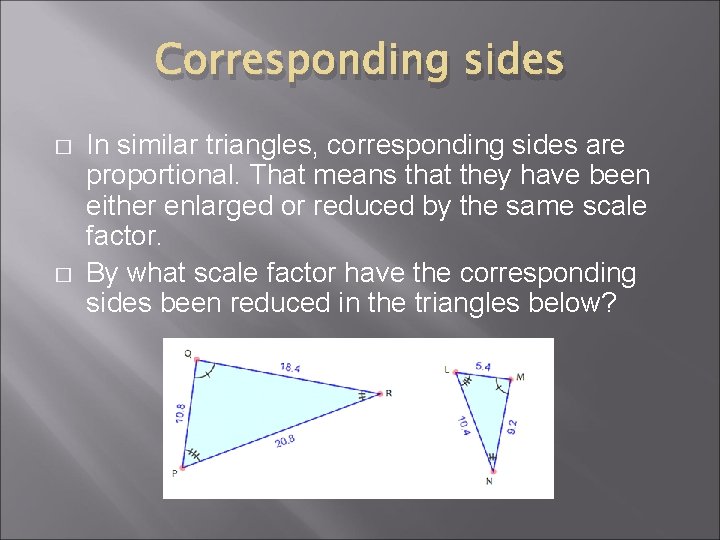

Corresponding sides � � In similar triangles, corresponding sides are proportional. That means that they have been either enlarged or reduced by the same scale factor. By what scale factor have the corresponding sides been reduced in the triangles below?
![Corresponding sides You can find missing side lengths in corresponding sides Corresponding sides � � � You can find missing side lengths in corresponding sides](https://slidetodoc.com/presentation_image_h2/318986d6a36bbd851c658035a038fe9b/image-9.jpg)

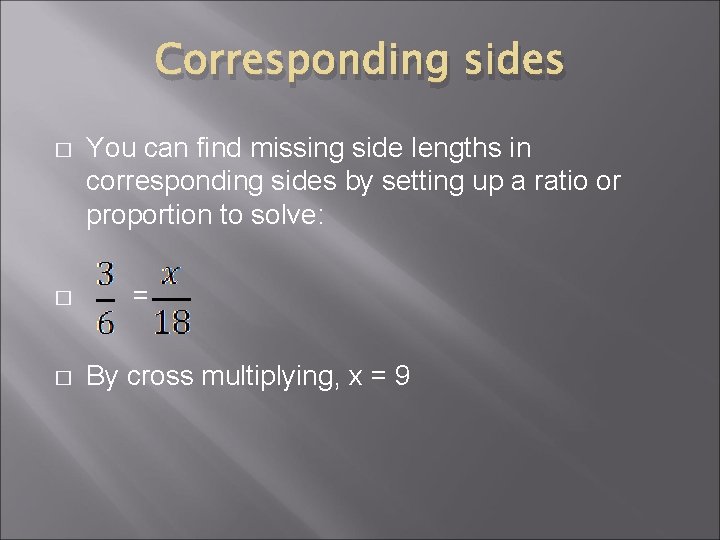

Corresponding sides � � � You can find missing side lengths in corresponding sides by setting up a ratio or proportion to solve: = By cross multiplying, x = 9
![Homework Page 150 151 1 2 4 5 6 7 9 Homework: � Page 150 - 151 � #1, 2, 4, 5, 6, 7, 9,](https://slidetodoc.com/presentation_image_h2/318986d6a36bbd851c658035a038fe9b/image-10.jpg)

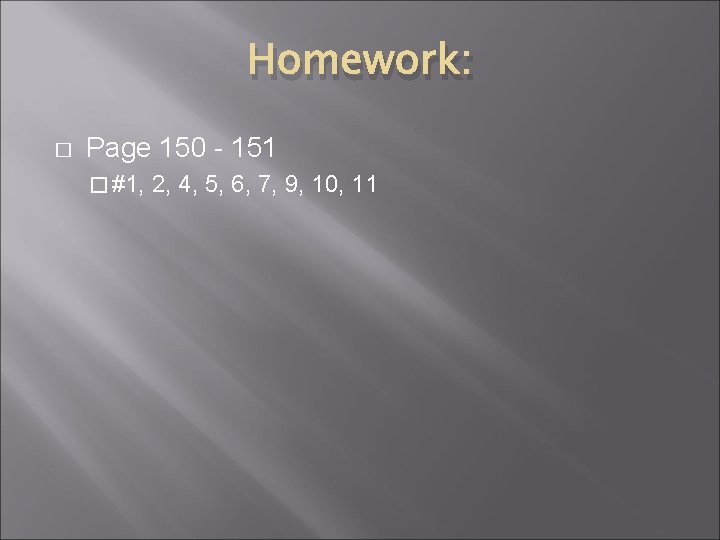

Homework: � Page 150 - 151 � #1, 2, 4, 5, 6, 7, 9, 10, 11
