Recognizing and Tracking Human Action Josephine Sullivan and

Recognizing and Tracking Human Action Josephine Sullivan and Stefan Carlsson

Define Tracking

Traditional tracking • • • Kalman Filters Condensation HMM Matching articulated 3 d models Similarities? Problems?

New approach • What is the difference between tracking and recognition? • Assume Pose recognition and activity recognition are equivalent. • Now track activity by repeating recognition of key frames

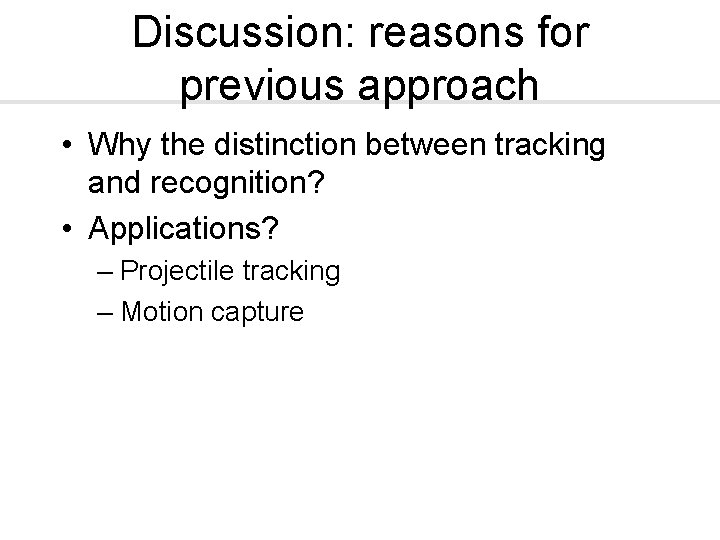

Discussion: reasons for previous approach • Why the distinction between tracking and recognition? • Applications? – Projectile tracking – Motion capture

Object descriptors • Embedding global data in local descriptors • Order Structure • Shape context

Order Structure • Problem: find correspondence between deformed shapes • Solution – Sample points on contour – Describe shape using order structure • Order of points and intersections of tangent lines

Order Structure • Many transformations preserve order structure – Superset of Affine and Projective transformations – Encodes perceptual similarity • Encodes properties of point sets, lines, and combinations of points and lines. • Descriptor for Point sets - orientation • Set {a, b, c} has + orientation if traversing them in order means anti-clockwise rotation

Order Structure • Descriptor for Sets of lines – Uses: points and lines are projectively dual – p - homogeneous coord’s for a point – q - oriented homogeneous line coord’s for line thru p, then: q. Tp = 0 – q = (a, 1, b) where ax+y+b = 0. – Order type for a set of 3 lines is then

Order Structure • Descriptor for combinations of points and lines – Oriented coordinates => every line has a direction • Assign a left-right position for every point w. r. t every line qi = line pj = point • Unique order structure for arbitrary set of points • Order structure for a set characterized by an index

Order Structure • Algorithm • Voting matrix

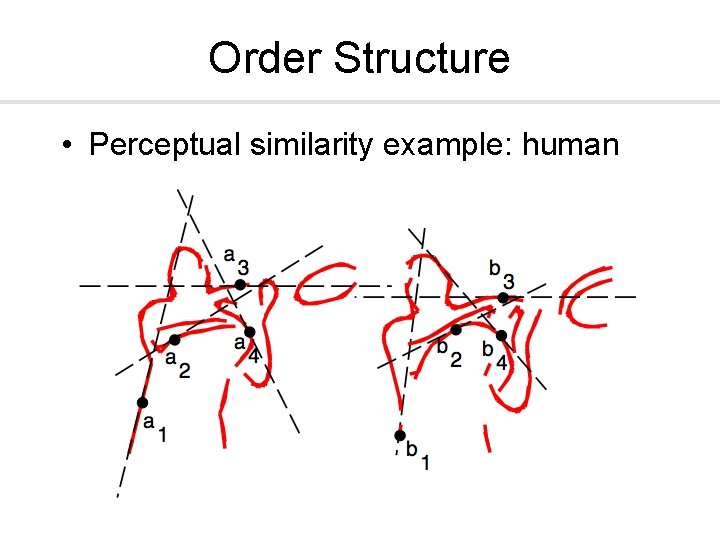

Order Structure • Perceptual similarity example: human pose

Shape Context descriptor • Sample points from edges in image • Each point’s descriptor is a histogram of the relative coordinates of all other points.

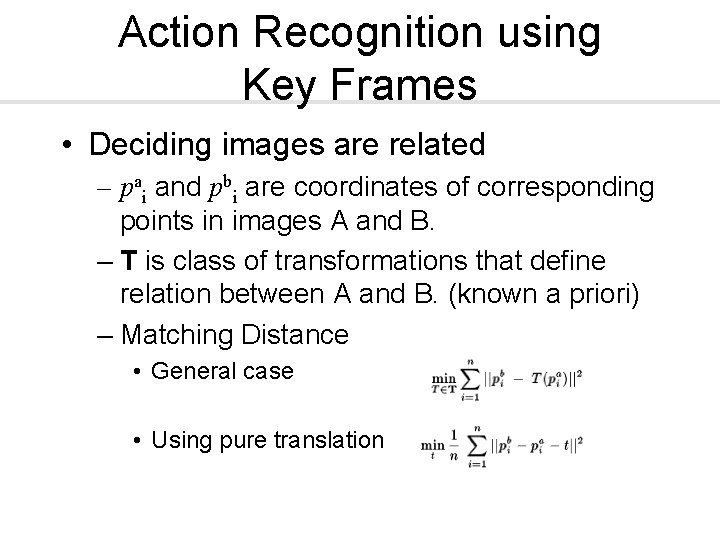

Action Recognition using Key Frames • Deciding images are related – pai and pbi are coordinates of corresponding points in images A and B. – T is class of transformations that define relation between A and B. (known a priori) – Matching Distance • General case • Using pure translation

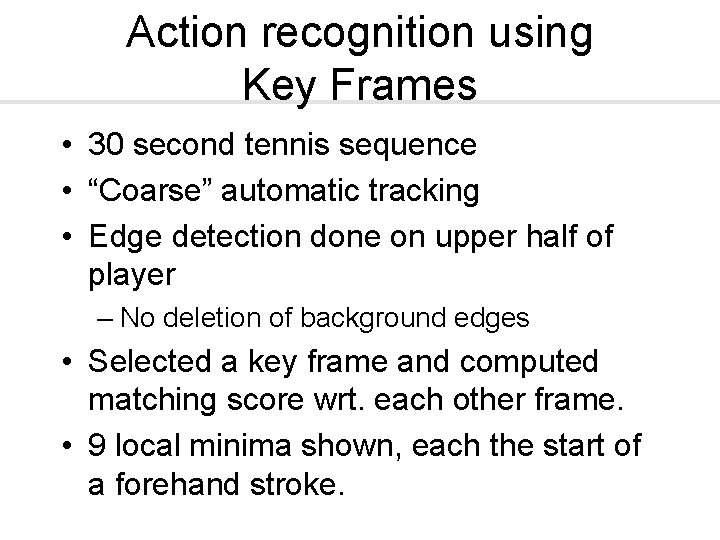

Action recognition using Key Frames • 30 second tennis sequence • “Coarse” automatic tracking • Edge detection done on upper half of player – No deletion of background edges • Selected a key frame and computed matching score wrt. each other frame. • 9 local minima shown, each the start of a forehand stroke.

Action recognition using Key Frames

Tracking • Point transferral – Each key frame is marked manually – For each point in key frame, a subset of points in the image are chosen, and a translation is estimated. Point corresponding to Pk. R in image It Simple local translation Point in keyframe R

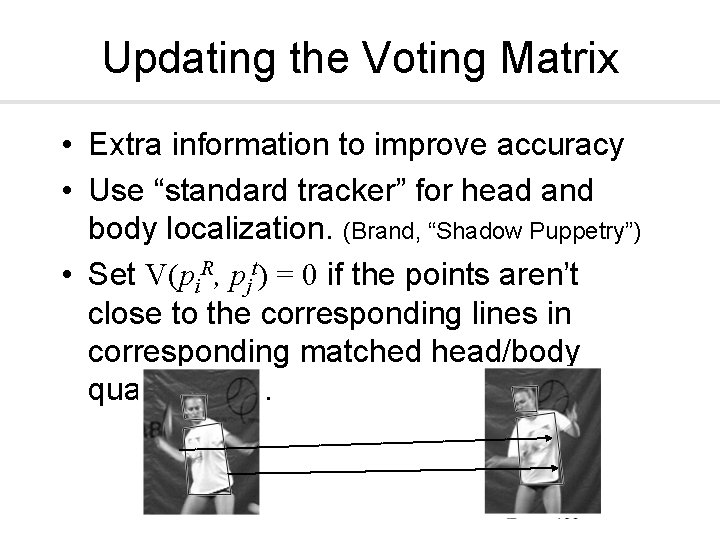

Updating the Voting Matrix • Extra information to improve accuracy • Use “standard tracker” for head and body localization. (Brand, “Shadow Puppetry”) • Set V(pi. R, pjt) = 0 if the points aren’t close to the corresponding lines in corresponding matched head/body quadrangles.

Further constraints • Want to enforce similar arrangement of interior points in images that are matched to key frames • Also incorporate intensity around points • Monte-Carlo smoothing is used to correct outlying points

Tracking using Shape Context • Mori & Malik • Very similar technique, using shape context descriptor • Very clear that frames are processed independently • Tested on standard data

Tracking w/Shape Context Movie

Discussion & Questions • • Results - how effective? Effect of rate of motion? Efficiency of “closed loop system”? No need for background subtraction? Flexibility to multiple actions? Do they give a specific order to key frames? Is the coarse tracking too simple? What about poses facing away from camera?
