Paul LarsenSteve Principal Program Manager Microsoft Integration MVP

Paul Larsen/Steve Principal Program Manager, Microsoft / Integration MVP Melan Connecting enterprise applications to IBM mainframe systems

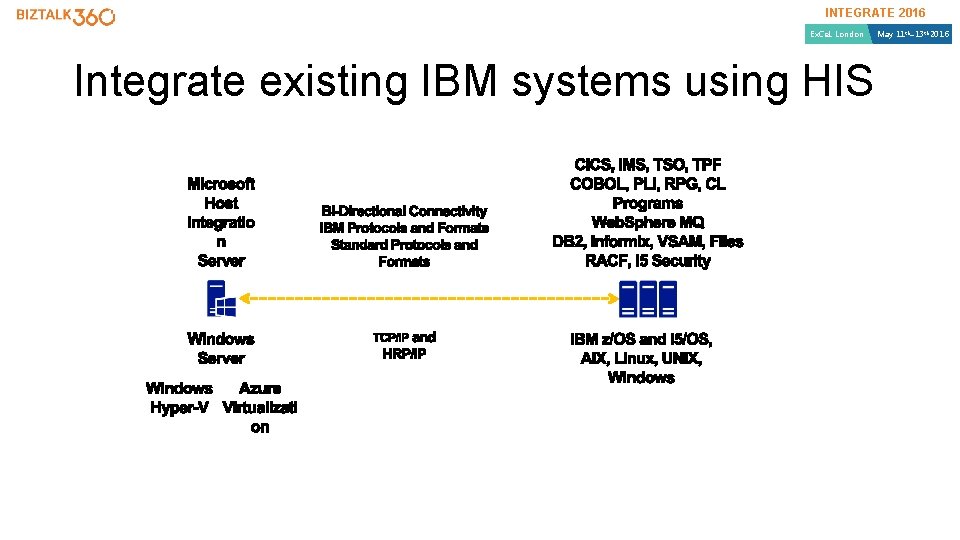

INTEGRATE 2016 Ex. Ce. L London Integrate existing IBM systems using HIS May 11 th– 13 th 2016

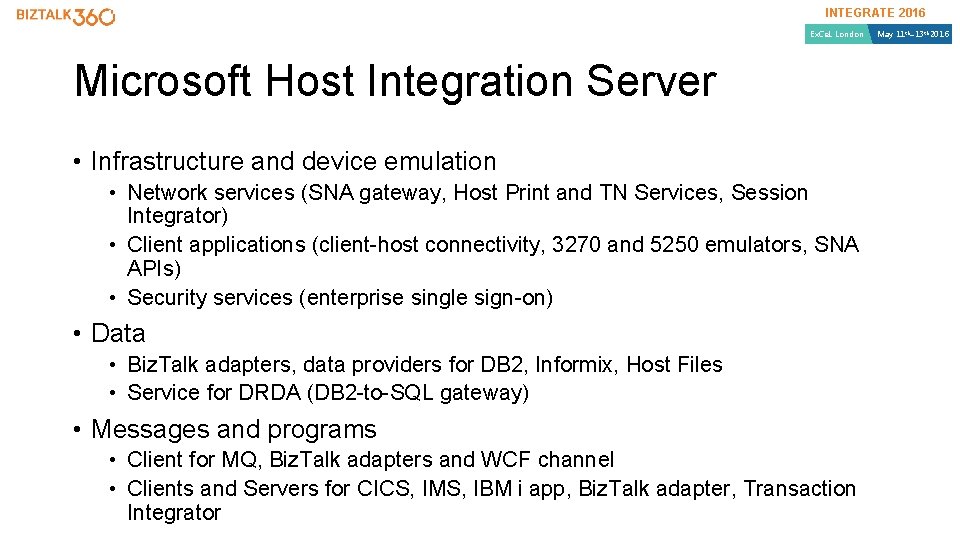

INTEGRATE 2016 Ex. Ce. L London Microsoft Host Integration Server • Infrastructure and device emulation • Network services (SNA gateway, Host Print and TN Services, Session Integrator) • Client applications (client-host connectivity, 3270 and 5250 emulators, SNA APIs) • Security services (enterprise single sign-on) • Data • Biz. Talk adapters, data providers for DB 2, Informix, Host Files • Service for DRDA (DB 2 -to-SQL gateway) • Messages and programs • Client for MQ, Biz. Talk adapters and WCF channel • Clients and Servers for CICS, IMS, IBM i app, Biz. Talk adapter, Transaction Integrator May 11 th– 13 th 2016

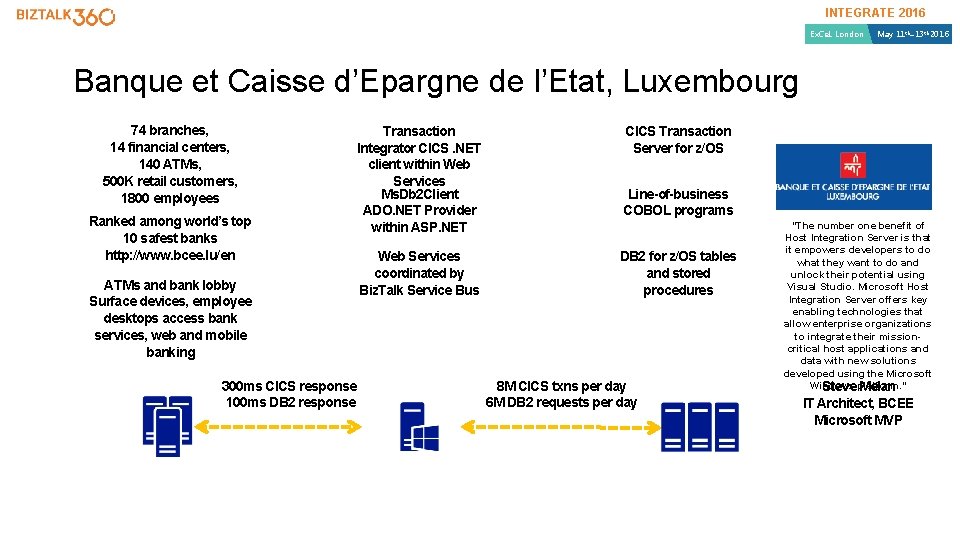

INTEGRATE 2016 Ex. Ce. L London May 11 th– 13 th 2016 Banque et Caisse d’Epargne de l’Etat, Luxembourg 74 branches, 14 financial centers, 140 ATMs, 500 K retail customers, 1800 employees Ranked among world’s top 10 safest banks http: //www. bcee. lu/en ATMs and bank lobby Surface devices, employee desktops access bank services, web and mobile banking 300 ms CICS response 100 ms DB 2 response Transaction Integrator CICS. NET client within Web Services Ms. Db 2 Client ADO. NET Provider within ASP. NET Web Services coordinated by Biz. Talk Service Bus CICS Transaction Server for z/OS Line-of-business COBOL programs DB 2 for z/OS tables and stored procedures 8 M CICS txns per day 6 M DB 2 requests per day "The number one benefit of Host Integration Server is that it empowers developers to do what they want to do and unlock their potential using Visual Studio. Microsoft Host Integration Server offers key enabling technologies that allow enterprise organizations to integrate their missioncritical host applications and data with new solutions developed using the Microsoft Windows Steve platform. " Melan IT Architect, BCEE Microsoft MVP

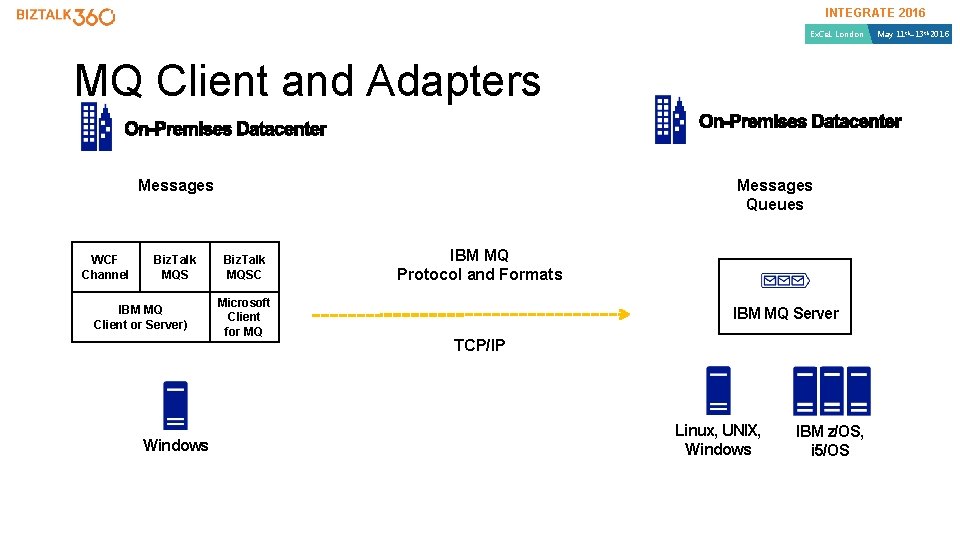

INTEGRATE 2016 Ex. Ce. L London MQ Client and Adapters Messages WCF Channel Biz. Talk MQS IBM MQ Client or Server) Windows Messages Queues Biz. Talk MQSC Microsoft Client for MQ IBM MQ Protocol and Formats IBM MQ Server TCP/IP Linux, UNIX, Windows IBM z/OS, i 5/OS May 11 th– 13 th 2016

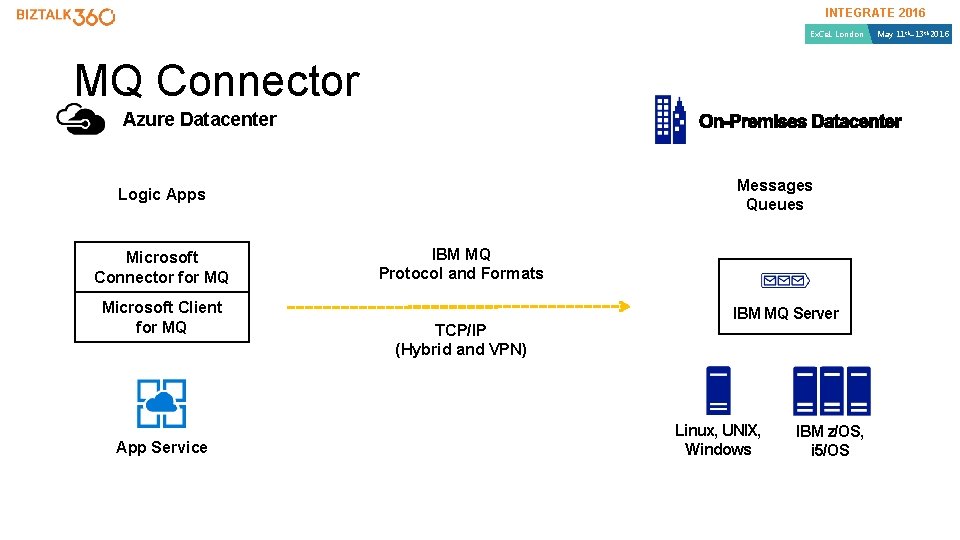

INTEGRATE 2016 Ex. Ce. L London MQ Connector Azure Datacenter Messages Queues Logic Apps Microsoft Connector for MQ Microsoft Client for MQ App Service IBM MQ Protocol and Formats TCP/IP (Hybrid and VPN) IBM MQ Server Linux, UNIX, Windows IBM z/OS, i 5/OS May 11 th– 13 th 2016

INTEGRATE 2016 Ex. Ce. L London May 11 th– 13 th 2016 DB 2 Client and Connectors Biz. Talk Adapter Power BI Connector SQL Server ADO. NET Provider OLE DB Provider DRDA Client (. NET) Windows Catalog, Schema, Tables, Views, Stored Procedures (native) Standard DRDA Protocol and Formats TCP/IP IBM DB 2 Server Linux, UNIX, IBM z/OS, Windows i 5/OS

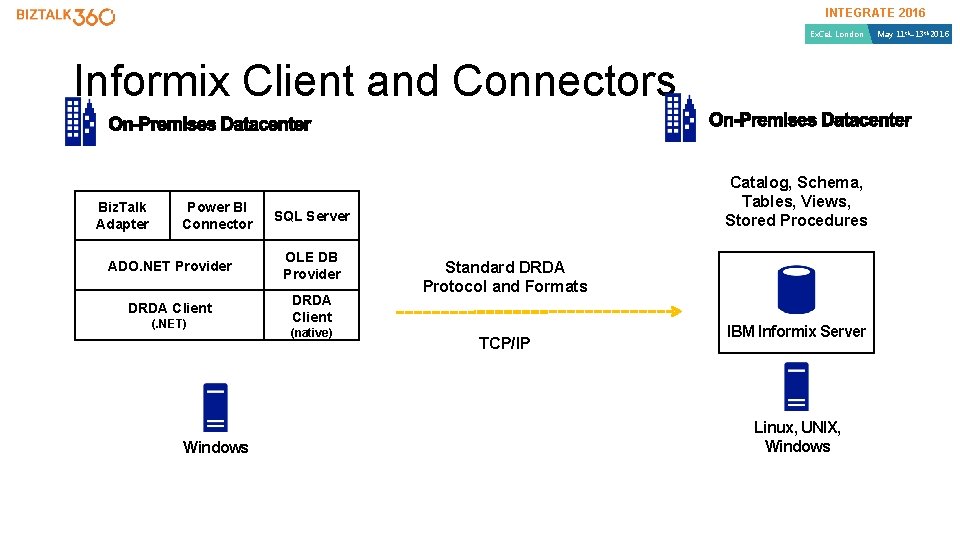

INTEGRATE 2016 Ex. Ce. L London Informix Client and Connectors Biz. Talk Adapter Power BI Connector SQL Server ADO. NET Provider OLE DB Provider DRDA Client (. NET) Windows Catalog, Schema, Tables, Views, Stored Procedures (native) Standard DRDA Protocol and Formats TCP/IP IBM Informix Server Linux, UNIX, Windows May 11 th– 13 th 2016

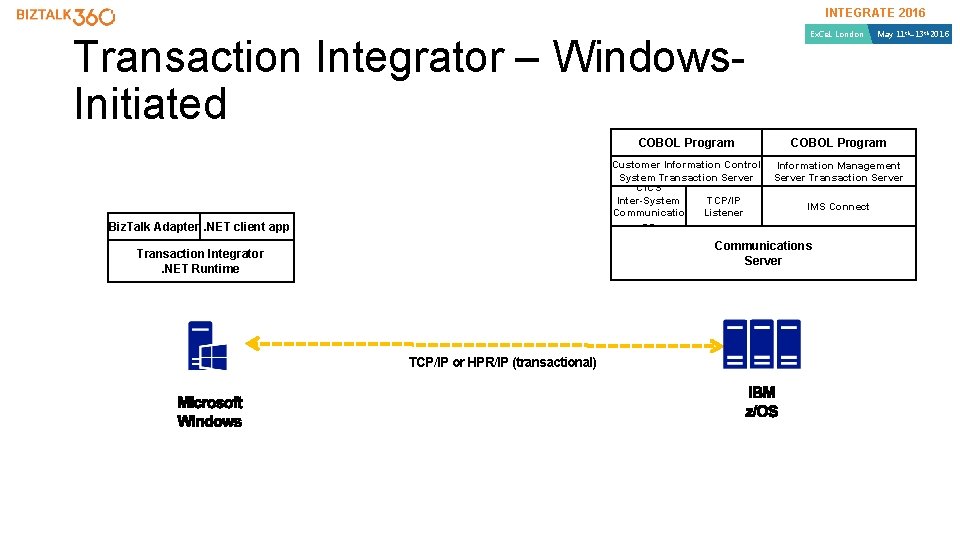

INTEGRATE 2016 Transaction Integrator – Windows. Initiated Biz. Talk Adapter. NET client app Ex. Ce. L London COBOL Program Customer Information Control System Transaction Server CICS TCP/IP Inter-System Listener Communicatio ns Information Management Server Transaction Server IMS Connect Communications Server Transaction Integrator. NET Runtime TCP/IP or HPR/IP (transactional) May 11 th– 13 th 2016

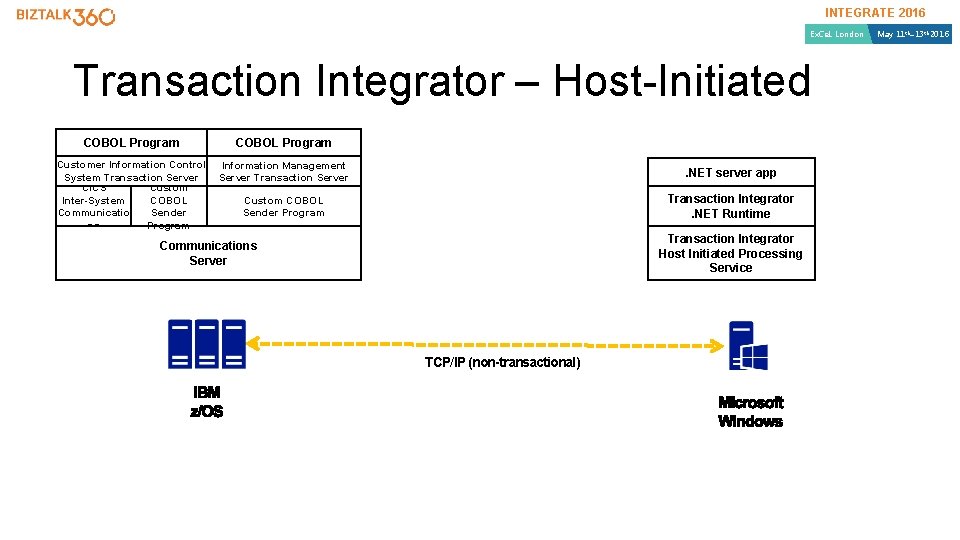

INTEGRATE 2016 Ex. Ce. L London Transaction Integrator – Host-Initiated COBOL Program Customer Information Control System Transaction Server Custom CICS COBOL Inter-System Sender Communicatio Program ns Information Management Server Transaction Server . NET server app Custom COBOL Sender Program Transaction Integrator. NET Runtime Transaction Integrator Host Initiated Processing Service Communications Server TCP/IP (non-transactional) May 11 th– 13 th 2016

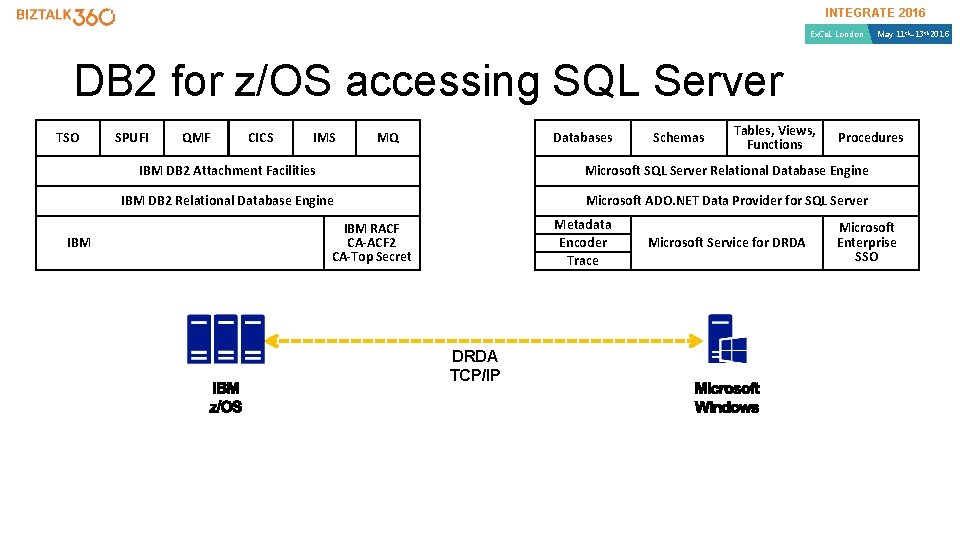

INTEGRATE 2016 Ex. Ce. L London May 11 th– 13 th 2016 DB 2 for z/OS accessing SQL Server TSO SPUFI QMF CICS IMS Databases MQ Schemas Tables, Views, Functions Procedures IBM DB 2 Attachment Facilities Microsoft SQL Server Relational Database Engine IBM DB 2 Relational Database Engine Microsoft ADO. NET Data Provider for SQL Server IBM Distributed Data Facility for DRDA Metadata Encoder Trace IBM RACF CA-ACF 2 CA-Top Secret DRDA TCP/IP Microsoft Service for DRDA Microsoft Enterprise SSO

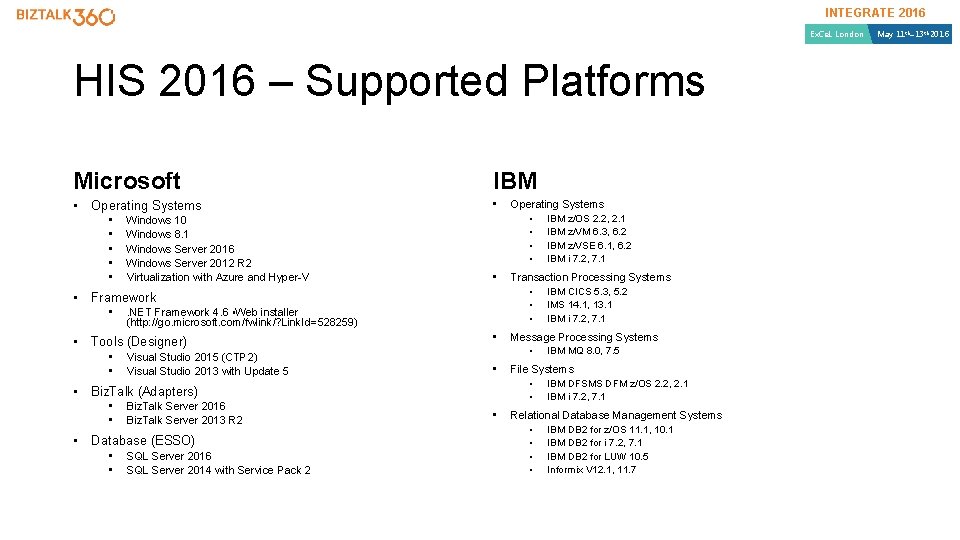

INTEGRATE 2016 Ex. Ce. L London HIS 2016 – Supported Platforms Microsoft IBM • Operating Systems • Operating Systems • IBM z/OS 2. 2, 2. 1 • IBM z/VM 6. 3, 6. 2 • IBM z/VSE 6. 1, 6. 2 • IBM i 7. 2, 7. 1 • Transaction Processing Systems • IBM CICS 5. 3, 5. 2 • IMS 14. 1, 13. 1 • IBM i 7. 2, 7. 1 • Message Processing Systems • IBM MQ 8. 0, 7. 5 • File Systems • IBM DFSMS DFM z/OS 2. 2, 2. 1 • IBM i 7. 2, 7. 1 • Relational Database Management Systems • IBM DB 2 for z/OS 11. 1, 10. 1 • IBM DB 2 for i 7. 2, 7. 1 • IBM DB 2 for LUW 10. 5 • Informix V 12. 1, 11. 7 • • • Windows 10 Windows 8. 1 Windows Server 2016 Windows Server 2012 R 2 Virtualization with Azure and Hyper-V • Framework • . NET Framework 4. 6 ◦Web installer (http: //go. microsoft. com/fwlink/? Link. Id=528259) • Tools (Designer) • • Visual Studio 2015 (CTP 2) Visual Studio 2013 with Update 5 • Biz. Talk (Adapters) • • Biz. Talk Server 2016 Biz. Talk Server 2013 R 2 • Database (ESSO) • • SQL Server 2016 SQL Server 2014 with Service Pack 2 May 11 th– 13 th 2016

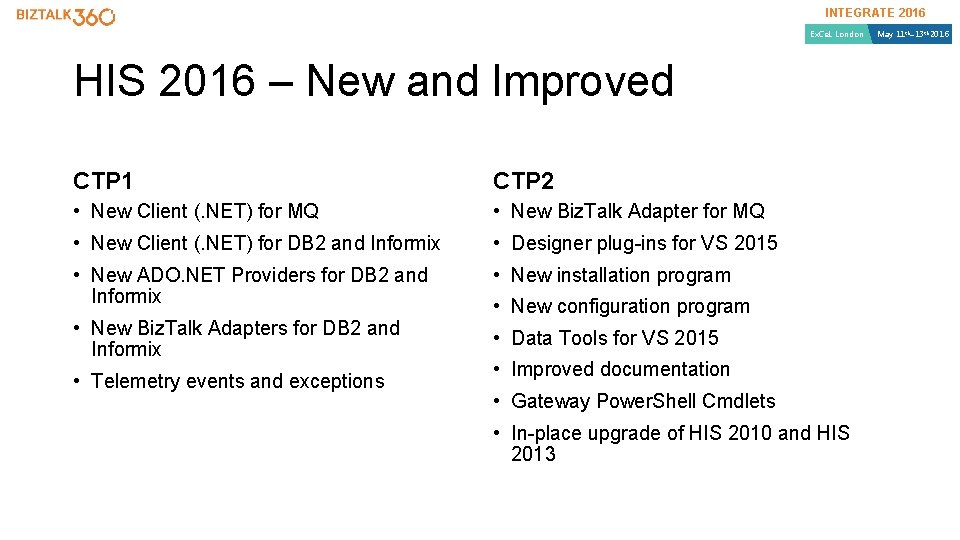

INTEGRATE 2016 Ex. Ce. L London HIS 2016 – New and Improved CTP 1 CTP 2 • New Client (. NET) for MQ • New Biz. Talk Adapter for MQ • New Client (. NET) for DB 2 and Informix • Designer plug-ins for VS 2015 • New ADO. NET Providers for DB 2 and Informix • New installation program • New Biz. Talk Adapters for DB 2 and Informix • Data Tools for VS 2015 • Telemetry events and exceptions • New configuration program • Improved documentation • Gateway Power. Shell Cmdlets • In-place upgrade of HIS 2010 and HIS 2013 May 11 th– 13 th 2016

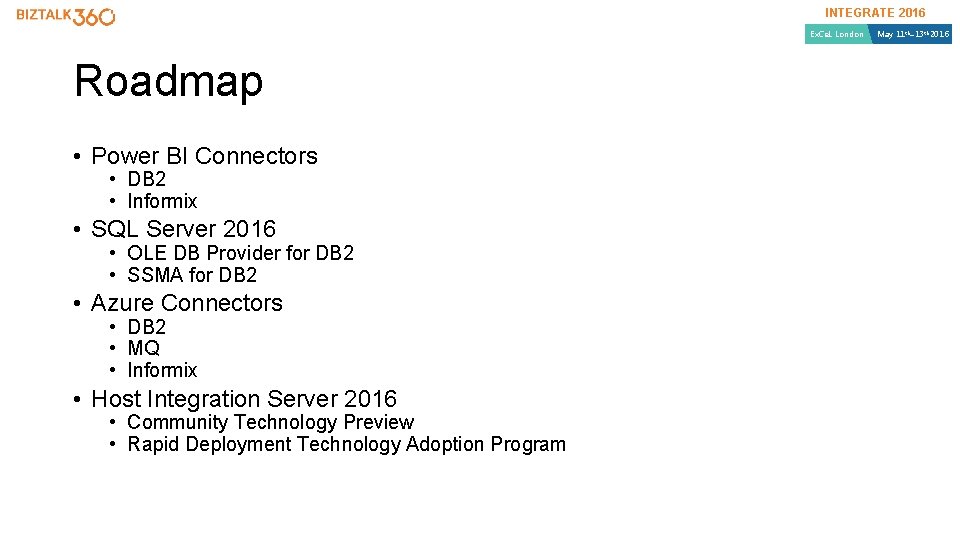

INTEGRATE 2016 Ex. Ce. L London Roadmap • Power BI Connectors • DB 2 • Informix • SQL Server 2016 • OLE DB Provider for DB 2 • SSMA for DB 2 • Azure Connectors • DB 2 • MQ • Informix • Host Integration Server 2016 • Community Technology Preview • Rapid Deployment Technology Adoption Program May 11 th– 13 th 2016

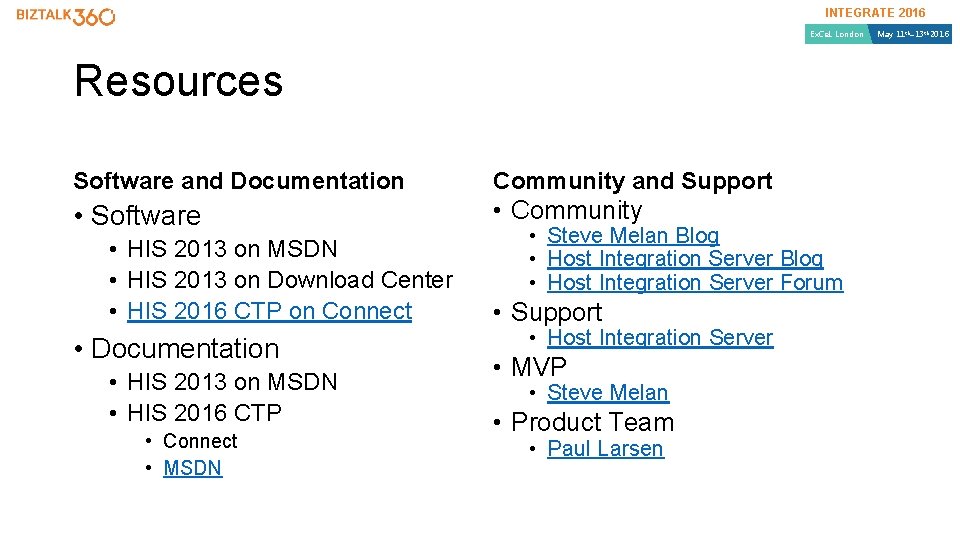

INTEGRATE 2016 Ex. Ce. L London Resources Software and Documentation Community and Support • Software • Community • HIS 2013 on MSDN • HIS 2013 on Download Center • HIS 2016 CTP on Connect • Documentation • HIS 2013 on MSDN • HIS 2016 CTP • Connect • MSDN • Steve Melan Blog • Host Integration Server Forum • Support • Host Integration Server • MVP • Steve Melan • Product Team • Paul Larsen May 11 th– 13 th 2016
