Introducing the LIGHTNING MVP n One Instrument n
- Slides: 27
Introducing the LIGHTNING MVP n One Instrument n Multiple Tests n One Report 1
Why multiple parameters? n Monitoring both sanitation and HACCP n n n Accuracy of results n n n Consistency of data and test methods Data centralized allowing analysis and trending of multiple parameters for expanded insight into processes All data automatically logged Single-step upload to PC Cost savings n n Single instrument purchase One unit to maintain and handle 2

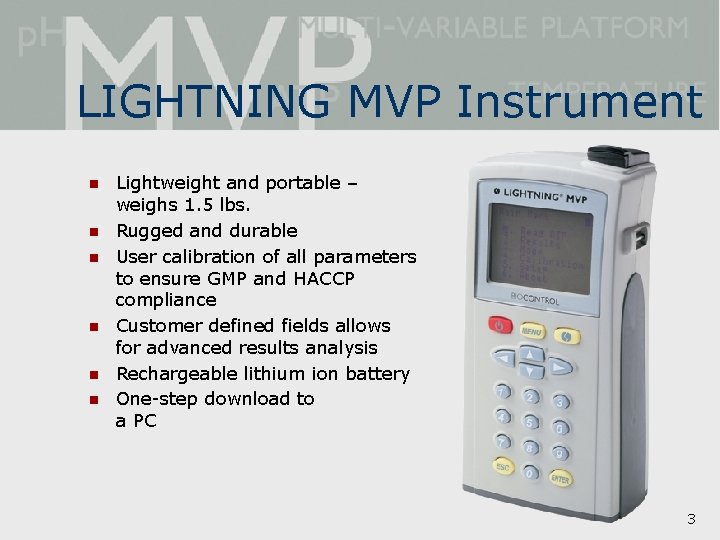

LIGHTNING MVP Instrument n n n Lightweight and portable – weighs 1. 5 lbs. Rugged and durable User calibration of all parameters to ensure GMP and HACCP compliance Customer defined fields allows for advanced results analysis Rechargeable lithium ion battery One-step download to a PC 3
Multiple Tests n Surface hygiene and water quality with ATP Bioluminescence Sampling Devices n Conductivity and Concentration/ppm with MVP Conductivity Probe n p. H with non-glass MVP p. H/Temperature Probe n Temperature with MVP Temperature Probe 4

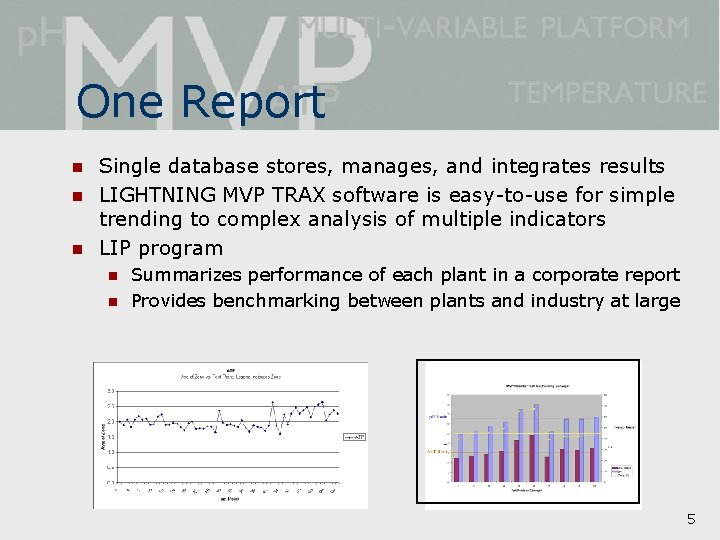

One Report n n n Single database stores, manages, and integrates results LIGHTNING MVP TRAX software is easy-to-use for simple trending to complex analysis of multiple indicators LIP program n n Summarizes performance of each plant in a corporate report Provides benchmarking between plants and industry at large 5
Technology n n n Advanced Microprocessor Photomultiplier Tube (PMT) light sensing device PMT, the most sensitive part of the instrument, protected by dark chamber Secure sampling device insertion mechanism Sealed casing to protect from liquids and plant hazards Instrument sealed Light stabilized dark chamber sampling device insertion mechanism Battery housing 6

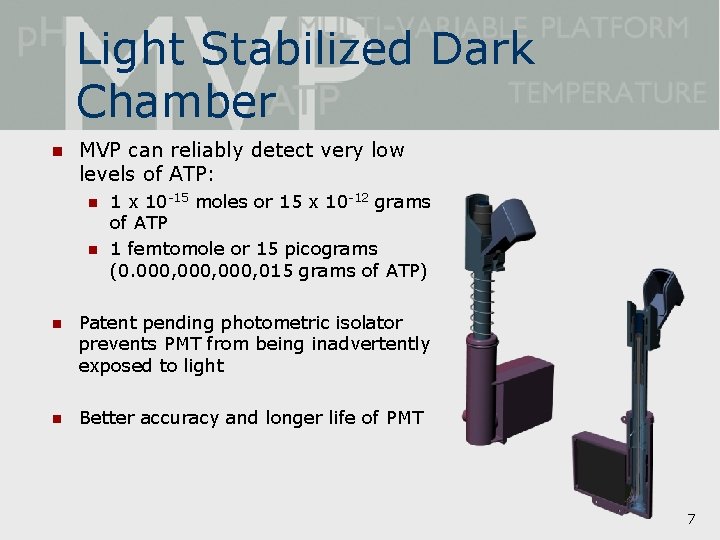

Light Stabilized Dark Chamber n MVP can reliably detect very low levels of ATP: n n 1 x 10 -15 moles or 15 x 10 -12 grams of ATP 1 femtomole or 15 picograms (0. 000, 015 grams of ATP) n Patent pending photometric isolator prevents PMT from being inadvertently exposed to light n Better accuracy and longer life of PMT 7

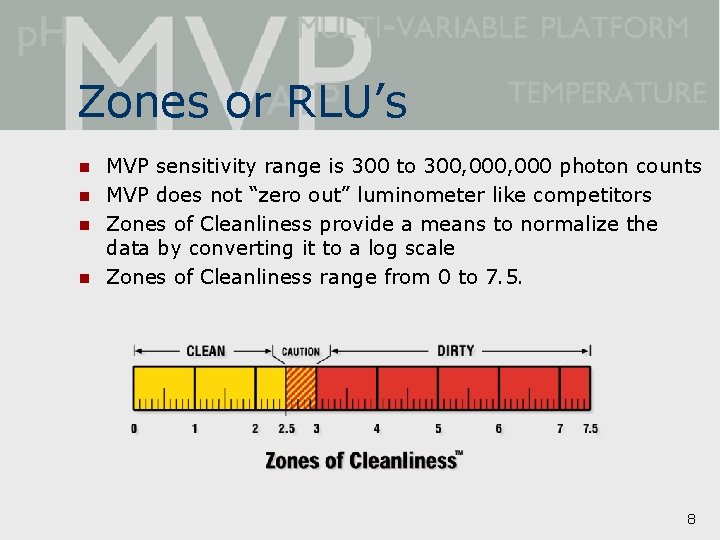

Zones or RLU’s n n MVP sensitivity range is 300 to 300, 000 photon counts MVP does not “zero out” luminometer like competitors Zones of Cleanliness provide a means to normalize the data by converting it to a log scale Zones of Cleanliness range from 0 to 7. 5. 8
Zones vs RLU’s 1000000 10000 1000 Zone RLU 100 10 1 9
MVP ATP Sampling Device Base chamber Plunger Swab tip and Test Tube 10

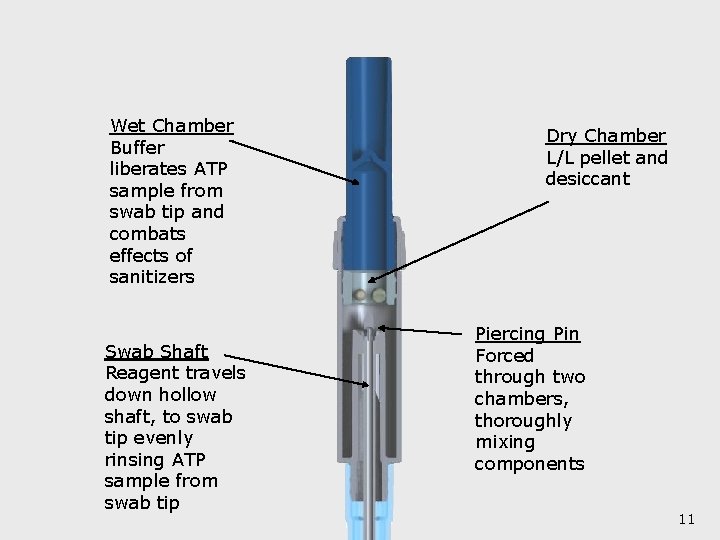

Wet Chamber Buffer liberates ATP sample from swab tip and combats effects of sanitizers Swab Shaft Reagent travels down hollow shaft, to swab tip evenly rinsing ATP sample from swab tip Dry Chamber L/L pellet and desiccant Piercing Pin Forced through two chambers, thoroughly mixing components 11
MVP ATP Sampling Device n n n Swab is positioned above the light path read by the MVP Only reagent mixture read, not the swab tip Regardless of how you turn the swab, the reading will always be the same! Reagent is forced through swab tip from inside out and evenly washes ATP off swab into aqueous solution Read Chamber in light path of MVP 12

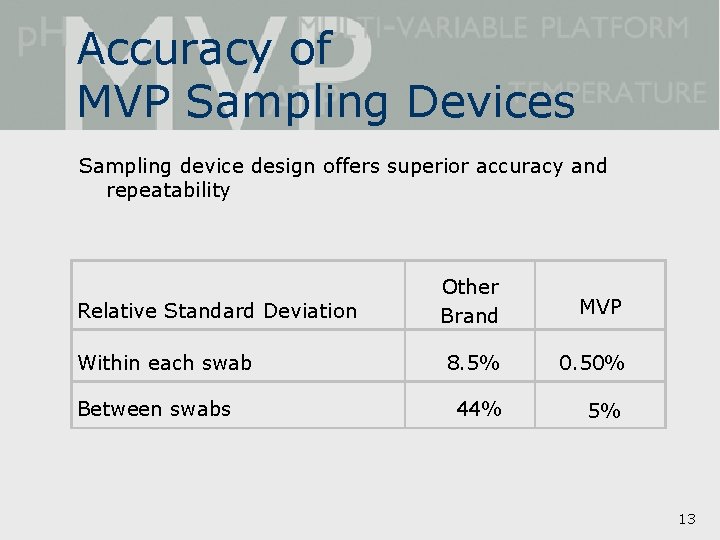

Accuracy of MVP Sampling Devices Sampling device design offers superior accuracy and repeatability Relative Standard Deviation Within each swab Between swabs Other Brand MVP 8. 5% 0. 50% 44% 5% 13

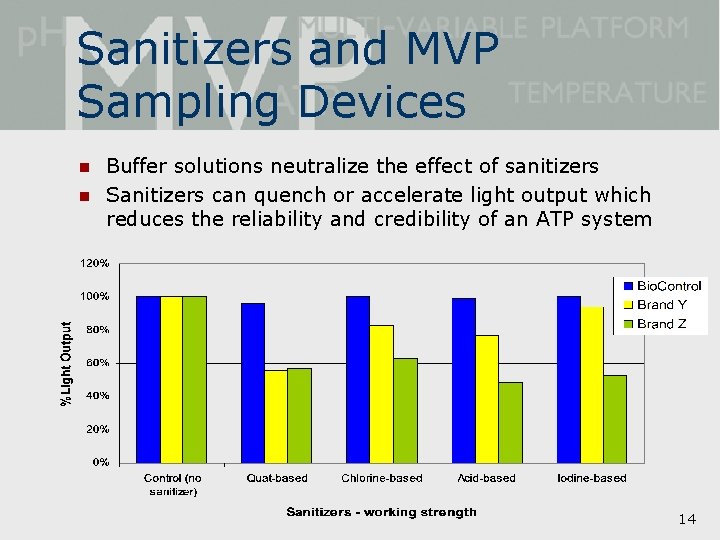

Sanitizers and MVP Sampling Devices n n Buffer solutions neutralize the effect of sanitizers Sanitizers can quench or accelerate light output which reduces the reliability and credibility of an ATP system 14

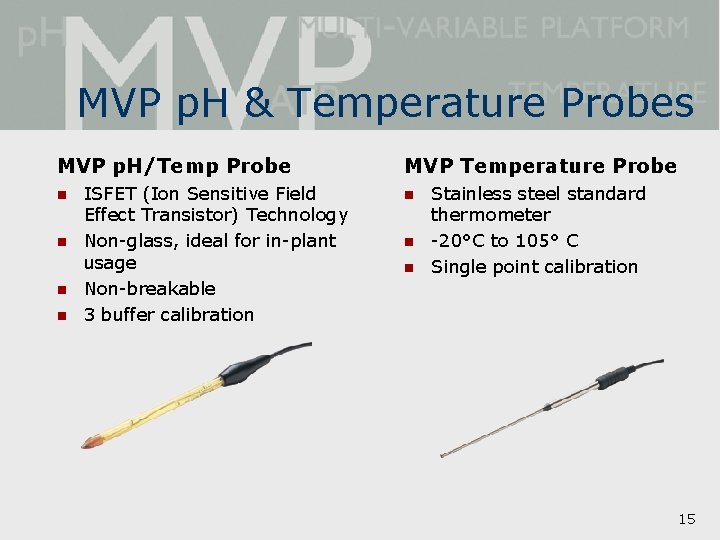

MVP p. H & Temperature Probes MVP p. H/Temp Probe n n ISFET (Ion Sensitive Field Effect Transistor) Technology Non-glass, ideal for in-plant usage Non-breakable 3 buffer calibration MVP Temperature Probe n n n Stainless steel standard thermometer -20°C to 105° C Single point calibration 15

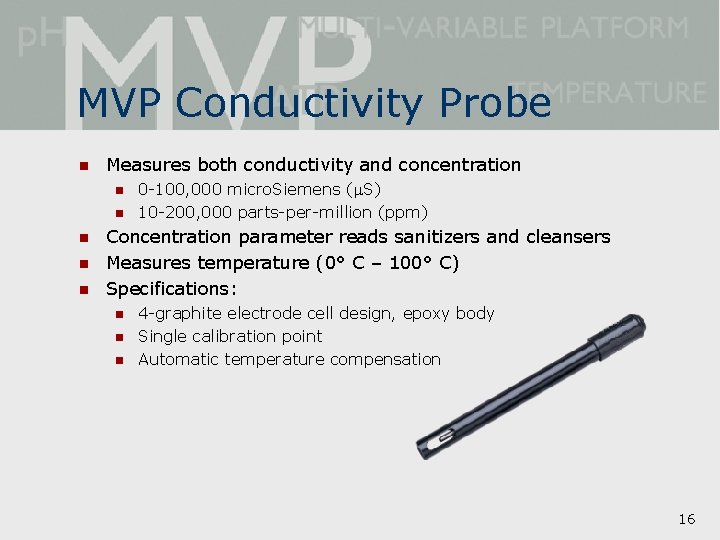

MVP Conductivity Probe n Measures both conductivity and concentration n n 0 -100, 000 micro. Siemens ( S) 10 -200, 000 parts-per-million (ppm) Concentration parameter reads sanitizers and cleansers Measures temperature (0° C – 100° C) Specifications: n n n 4 -graphite electrode cell design, epoxy body Single calibration point Automatic temperature compensation 16

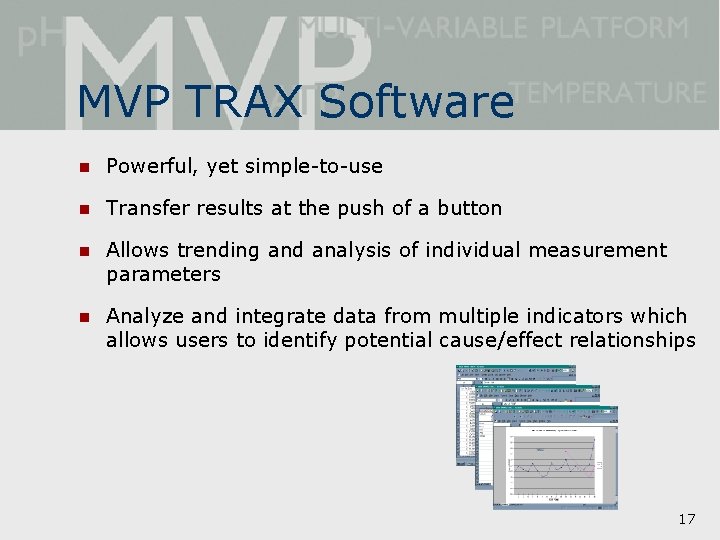

MVP TRAX Software n Powerful, yet simple-to-use n Transfer results at the push of a button n Allows trending and analysis of individual measurement parameters n Analyze and integrate data from multiple indicators which allows users to identify potential cause/effect relationships 17
TRAX Single Variable Trend 18
TRAX Multi Variable Trend 100 13. 0 90 12. 0 11. 0 80 10. 0 70 9. 0 60 8. 0 7. 0 50 Temp Zone/p. H 14. 0 Zone p. H Temp 6. 0 40 5. 0 4. 0 30 3. 0 20 2. 0 10 1. 0 0 1 2 3 4 5 6 Test Points 7 8 9 10 11 19

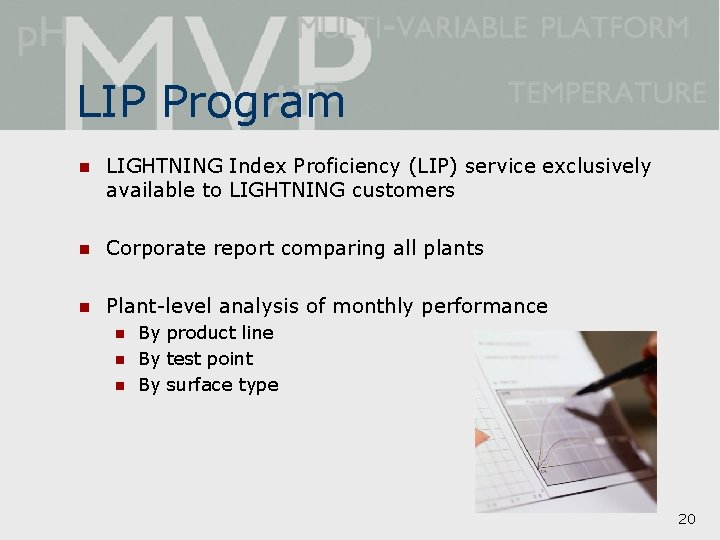

LIP Program n LIGHTNING Index Proficiency (LIP) service exclusively available to LIGHTNING customers n Corporate report comparing all plants n Plant-level analysis of monthly performance n n n By product line By test point By surface type 20

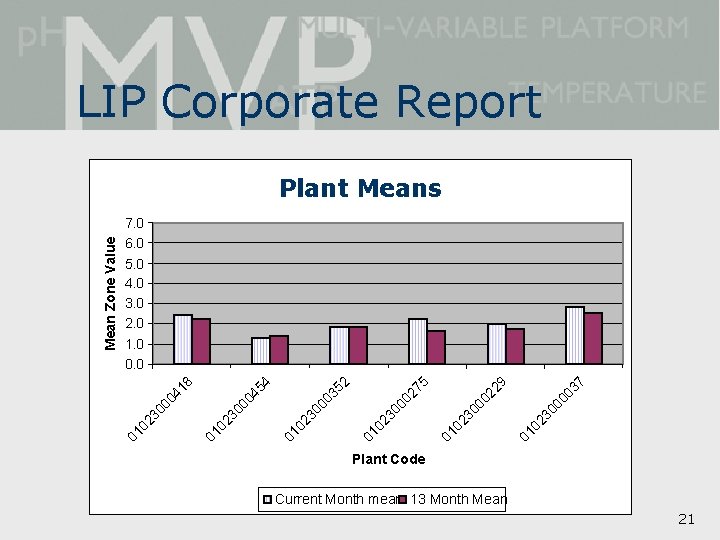

LIP Corporate Report Current Month vs 13 Month Mean 37 23 0 01 0 00 2 23 0 01 0 00 0 29 75 01 0 23 0 00 2 52 00 3 23 0 01 0 00 4 23 0 01 0 23 0 00 4 54 18 7. 0 6. 0 5. 0 4. 0 3. 0 2. 0 1. 0 01 0 Mean Zone Value Plant Means Plant Code Current Month mean 13 Month Mean 21

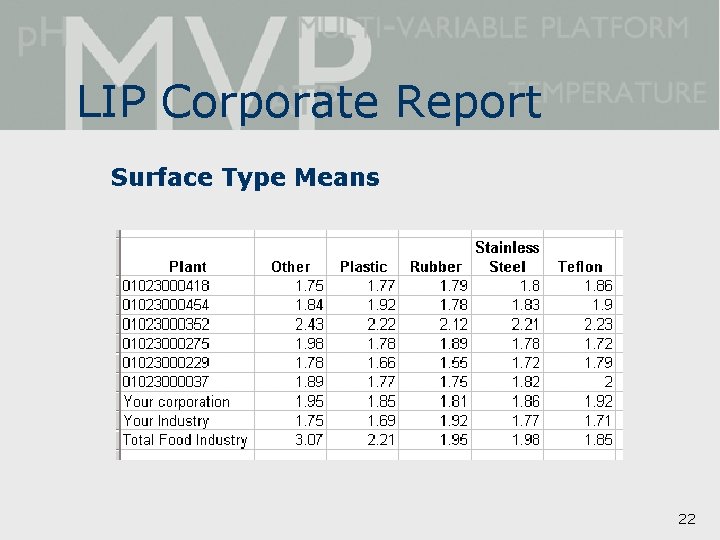

LIP Corporate Report Surface Type Means 22

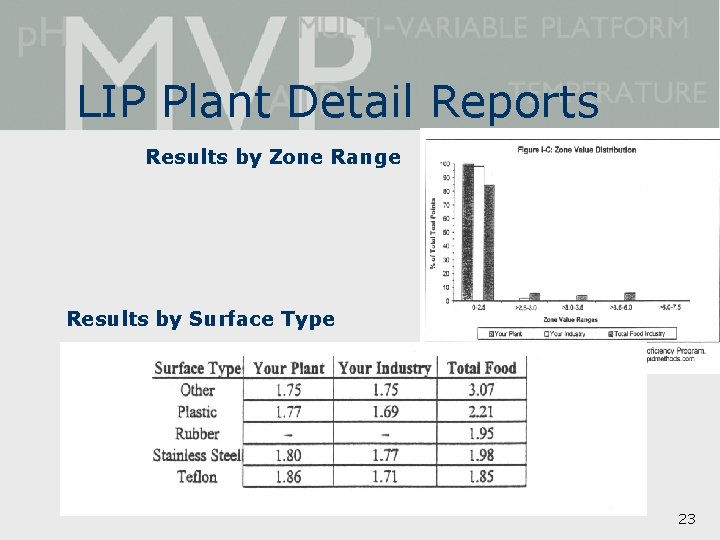

LIP Plant Detail Reports Results by Zone Range Results by Surface Type 23
MVP System Components n MVP Instrument n MVP System Guide n MVP Accessories n n n batter charger (international plugs) MVP serial cable MVP Y adaptor Carrying strap MVP Software CD n n TRAX software Configuration software 24
MVP System Services and Support n 12 Month Service Warranty n n Installation and training at every plant n n n Training and re-certification at every plant LIP program enrollment n n n Instrument operation Swab technique Sampling plan Software installation and training Annual Certification n n Replace units at no charge within warranty period Custom analysis of each plant Corporate report Technical Support 25
MVP System Accessories Sampling Devices n MVP ATP Surface Sampling Device n MVP Liquid Sampling Device n MVP p. H/Temperature Probe n MVP Temperature Probe Other n MVP Protective Case n MVP ATP Calibration set n MVP Positive Controls 26
LIGHTNING MVP System n The LIGHTNING MVP is not just another ATP system n It is a multi-parametric instrument that will become a key tool to for your HACCP and SSOP verification procedures 27
