Usable Authentication Research with the MVP Framework Robert Biddle Carleton University, Ottawa http: //hotsoft. carleton. ca Sonia Chiasson, Chris Deschamps, Elizabeth Stobert, Max Hlywa, Nick Wright, Bruna Machado Freitas, Alain Forget, Andrew Patrick Biddle: MVP 1

Agenda • • • Usable Security and Authentication MVP Framework MVP Authentication Schemes MVP Management MVP Recent Research Results Dalhousie Action Items • References: – Graphical Passwords: Learning from first 12 years – The MVP Framework Web-Based Framework – http: //hotsoft. carleton. ca/~sonia/wordpress/publications/ Biddle: MVP 2

Usable Security • Saltzer and Schroeder, 1975: “It is essential that the human interface be designed for ease of use, so that users routinely and automatically apply the protection mechanisms correctly. Also, to the extent that the user’s mental image of his protection goals matches the mechanisms he must use, mistakes will be minimized. If he must translate his image of his protection needs into a radically different specification language, he will make errors. ” • Cranor and Garfinkel, 2005: “secure systems that people can use. ” Biddle 3

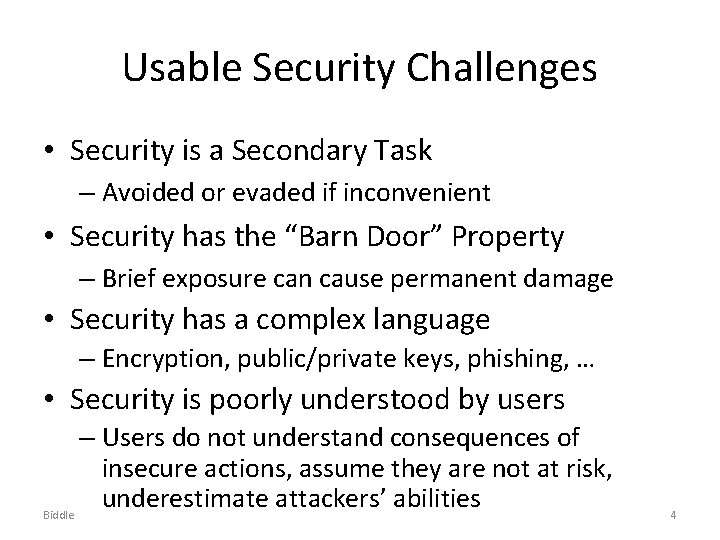

Usable Security Challenges • Security is a Secondary Task – Avoided or evaded if inconvenient • Security has the “Barn Door” Property – Brief exposure can cause permanent damage • Security has a complex language – Encryption, public/private keys, phishing, … • Security is poorly understood by users – Users do not understand consequences of insecure actions, assume they are not at risk, underestimate attackers’ abilities Biddle 4

Research Methods Human Factors Principles Usability Evaluation Methods Experiment and Field Study Design Ethical Procedures for Human Participants • Quantitative Analysis and Statistical Inference • Qualitative Study and Data Analysis • Reporting Results, Graphical Data Presentation • • Biddle 5

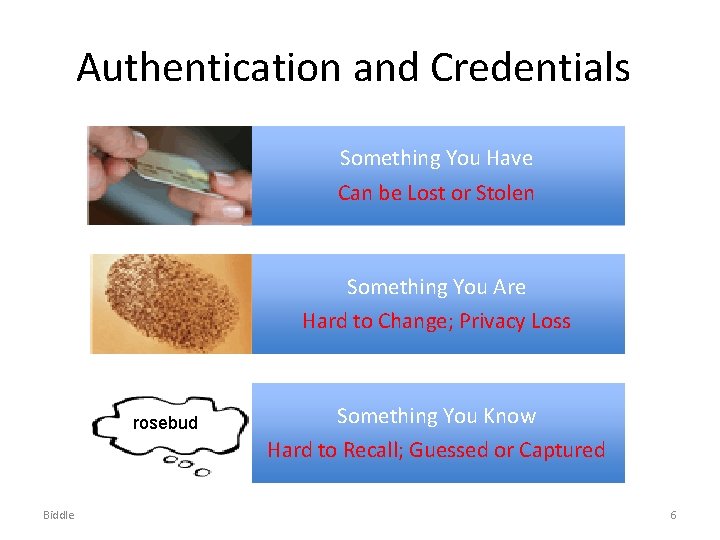

Authentication and Credentials Something You Have Can be Lost or Stolen Something You Are Hard to Change; Privacy Loss rosebud Something You Know Hard to Recall; Guessed or Captured Biddle 6

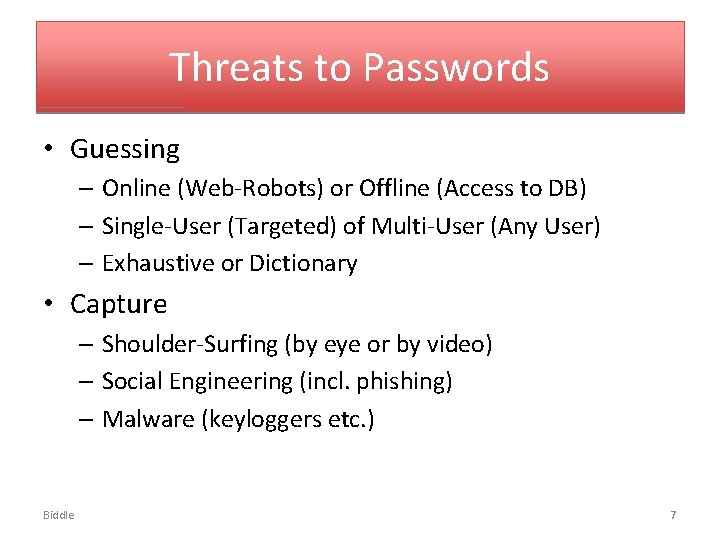

Threats to Passwords • Guessing – Online (Web-Robots) or Offline (Access to DB) – Single-User (Targeted) of Multi-User (Any User) – Exhaustive or Dictionary • Capture – Shoulder-Surfing (by eye or by video) – Social Engineering (incl. phishing) – Malware (keyloggers etc. ) Biddle 7

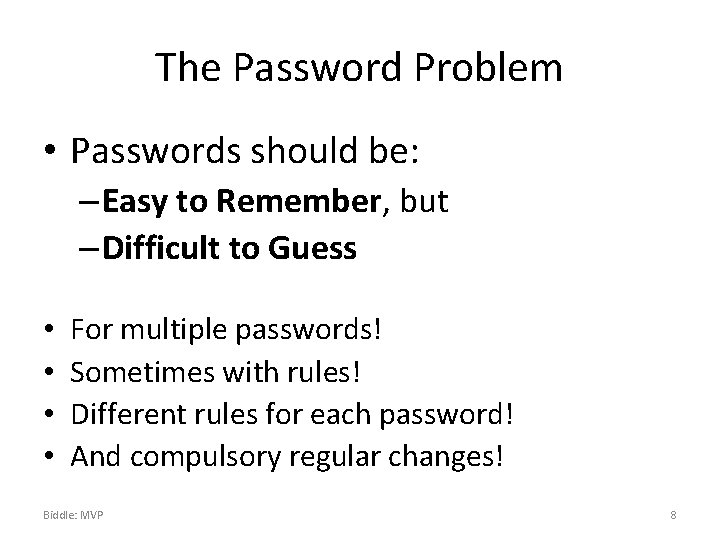

The Password Problem • Passwords should be: – Easy to Remember, but – Difficult to Guess • • For multiple passwords! Sometimes with rules! Different rules for each password! And compulsory regular changes! Biddle: MVP 8

Theoretical Password Space • The number of possible passwords that a scheme allows. • Therefore, the number of passwords an attacker must guess to ensure success. • Therefore, an expected value function for each attacker guess. • IF all passwords are equally likely. Biddle: MVP 9

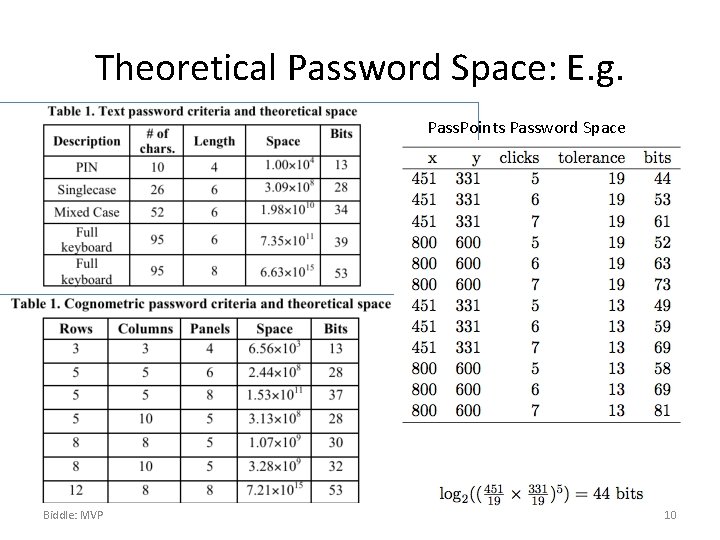

Theoretical Password Space: E. g. Pass. Points Password Space Biddle: MVP 10

Effective Password Space • The number of passwords people are likely to actually choose. • But it’s not one space: it’s a curve. So… Biddle: MVP Matt Weir: reusablesec. blogspot. com 11

MVP: Multiple Versatile Passwords • Framework for Empirical Research on Usable Knowledge-Based Authentication • Basic idea: allow new kinds of password schemes within an ecologically valid setting • Real sites, real usage • Passwords used in context, secondary task Biddle: MVP 12

• • Site password input redirects to MVP selects scheme based on userid Scheme runs, logging all events Result is rendered as text password to site Biddle: MVP 13

MVP in Use • Button instead of “Enter Password” field • Pop-up Window with selected Scheme Biddle: MVP 14

MVP Schemes: Text • Pure user-chosen text • User-chosen text with rules – Length, required chars, denied chars, etc. • Assigned random text – Length, alphabet • Multiple word text – Number of words, chosen or assigned, lists Biddle: MVP 15

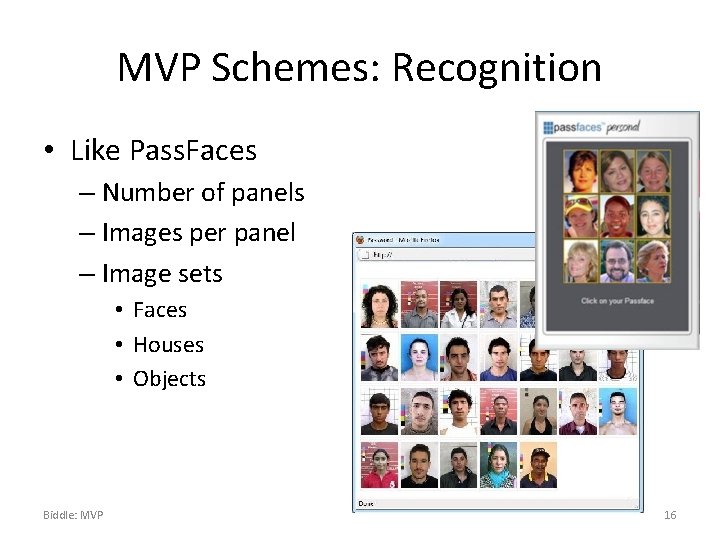

MVP Schemes: Recognition • Like Pass. Faces – Number of panels – Images per panel – Image sets • Faces • Houses • Objects Biddle: MVP 16

MVP Schemes: Graphical Recall • Like Draw-a-Secret – Grid size Biddle: MVP 17

MVP Schemes: Click-Based • Passpoints – 5 Points on Image – Tolerance areas – Can vary: • Number of Clicks • Image Sets Biddle: MVP 18

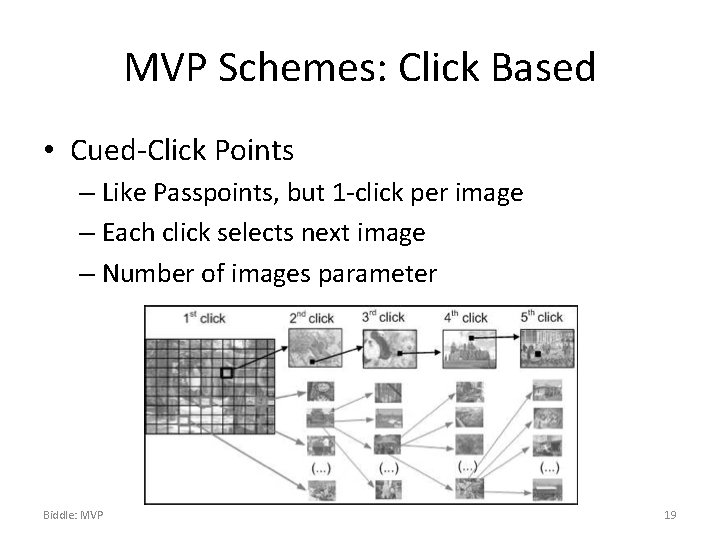

MVP Schemes: Click Based • Cued-Click Points – Like Passpoints, but 1 -click per image – Each click selects next image – Number of images parameter Biddle: MVP 19

MVP Schemes: Click Based • Persuasive Cued Click Points – Like CCP, but with random viewport Biddle: MVP 20

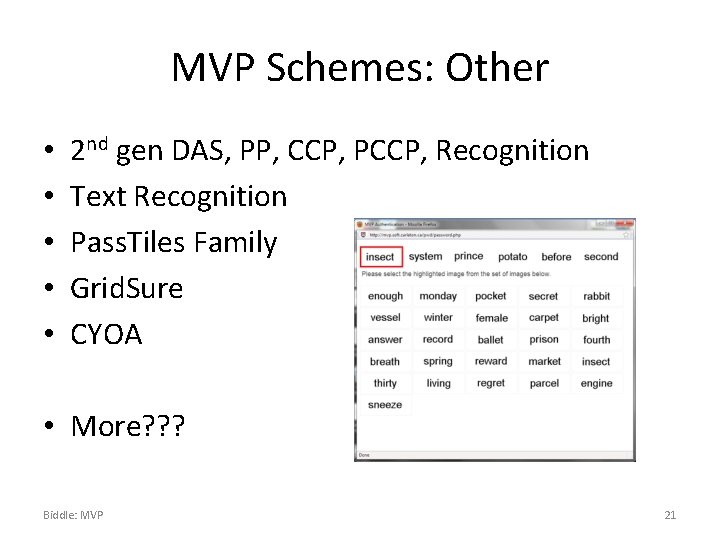

MVP Schemes: Other • • • 2 nd gen DAS, PP, CCP, PCCP, Recognition Text Recognition Pass. Tiles Family Grid. Sure CYOA • More? ? ? Biddle: MVP 21

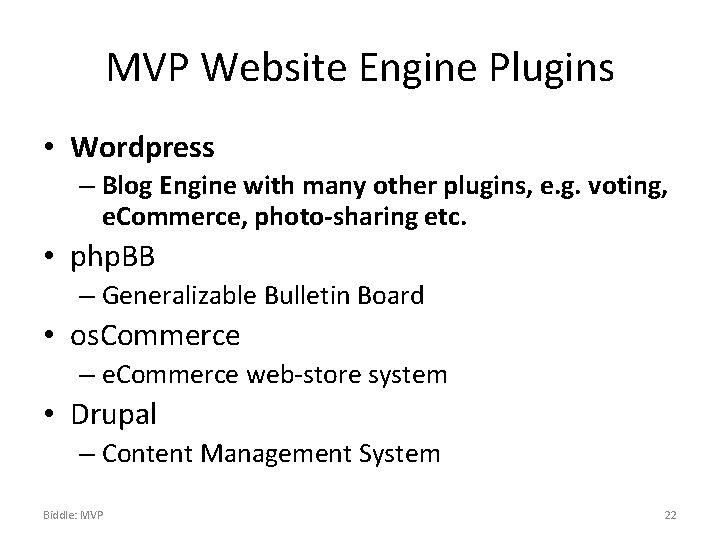

MVP Website Engine Plugins • Wordpress – Blog Engine with many other plugins, e. g. voting, e. Commerce, photo-sharing etc. • php. BB – Generalizable Bulletin Board • os. Commerce – e. Commerce web-store system • Drupal – Content Management System Biddle: MVP 22

MVP Wordpress Admin • MVP Plugin, Registration Plugin, Timeout Biddle: MVP 23

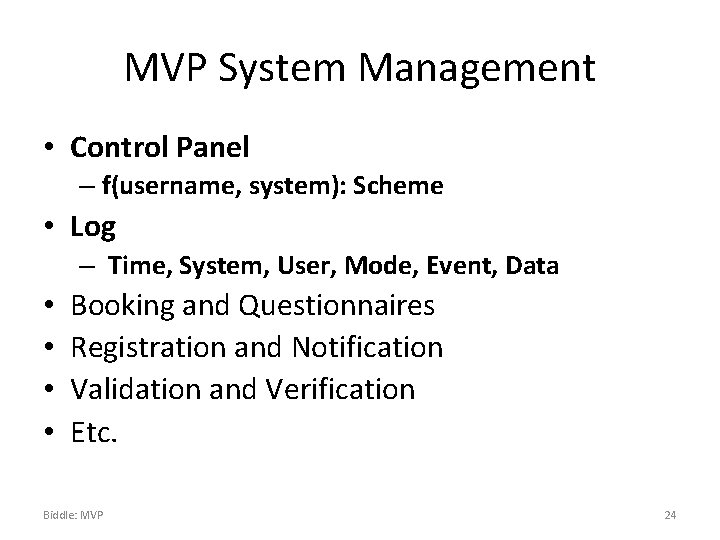

MVP System Management • Control Panel – f(username, system): Scheme • Log – Time, System, User, Mode, Event, Data • • Booking and Questionnaires Registration and Notification Validation and Verification Etc. Biddle: MVP 24

MVP Username Management • By name pattern – E. g. dal 101 -120 (Between Subjects Group 1) • Campusblog: scheme=textrules, cond=alphaonly • Photos: scheme=textrules, cond=alphaonly • Daily. News: scheme=textrules, cond=alphaonly – E. g. dal 121 -140 (Between Subjects Group 2) • Campusblog: scheme=recognition, cond=faces • Photos: scheme=recognition, cond=faces • Daily. News: scheme=recognition, cond=faces – E. g. dal 201 -220 (Within Subjects) • • Campusblog: scheme=recognition, cond=faces Photos: scheme=textrules, cond=alphaonly Daily. News: scheme=textassigned, cond=az 09 -6 Cornerstore: scheme=textrules, cond=alphaonly • By name assignment Biddle: MVP 25

MVP Log • • Time: Timestamp to 1 second System: Name of website User: Username Scheme: Scheme Condition: subscheme Mode: create, enter, login Event: specific to mode Data: specific to event Biddle: MVP 26

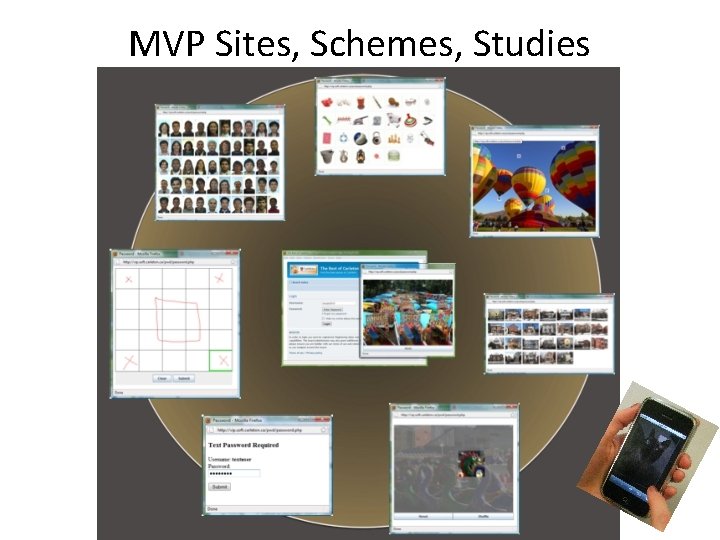

MVP Sites, Schemes, Studies

Comparing Password Schemes • Criteria: – Memorability – Entry Time – Learnability – Perception of Value – Affective Appeal • Measurements: – How to measure each? – How to compare each? Biddle: MVP 28

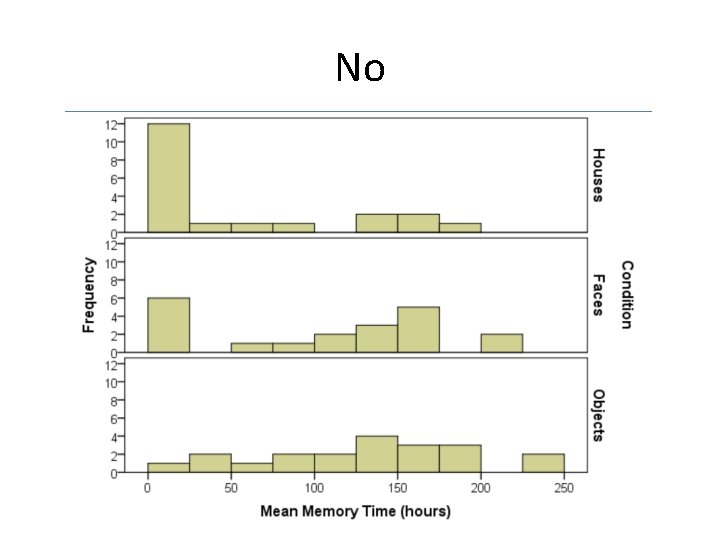

Max Hlywa: In Recognition-Based GPs, are Faces the most Memorable Images? Hylwa co-supervised by Andrew Patrick.

No

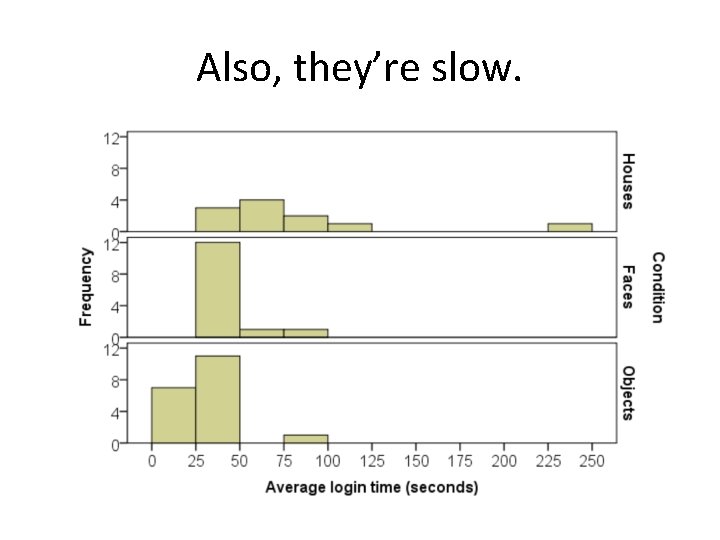

Also, they’re slow.

Bruna Machado Freitas: How do people really use Draw-A-Secret?

Not well. Favour Similar Squares Favour Simple Shapes Favour Password Reuse Misunderstand Encoding 1 unique password 61% 2 unique passwords 18% 3 unique passwords 21%

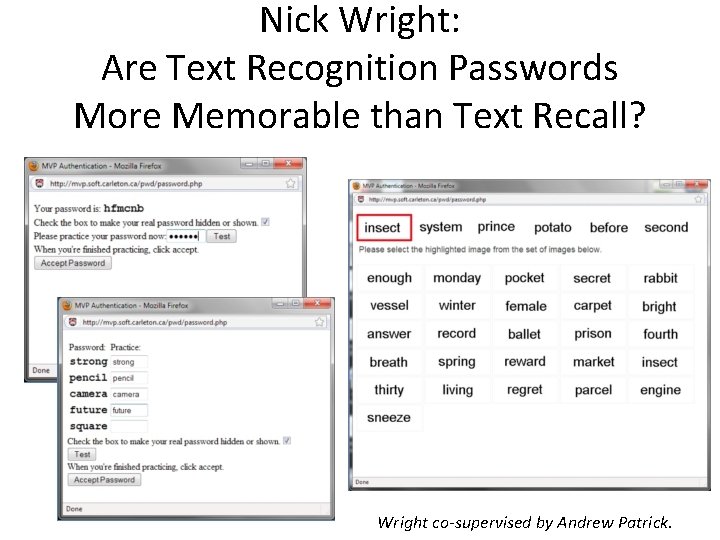

Nick Wright: Are Text Recognition Passwords More Memorable than Text Recall? Wright co-supervised by Andrew Patrick.

Elizabeth Stobert: Are assigned graphical passwords memorable?

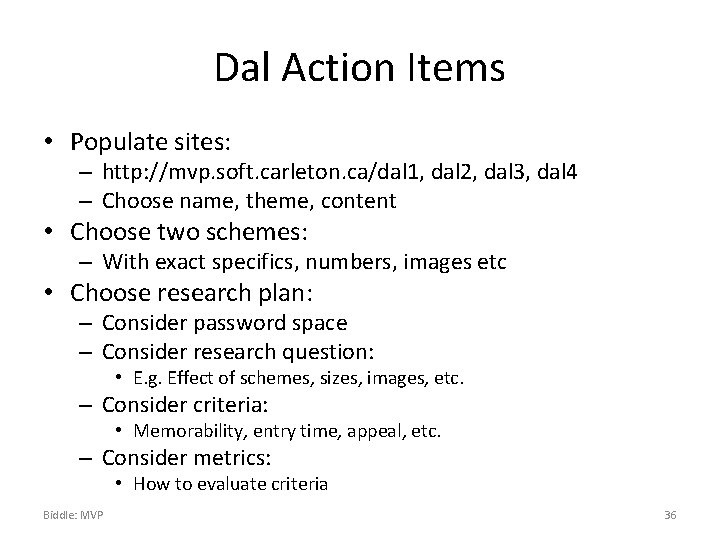

Dal Action Items • Populate sites: – http: //mvp. soft. carleton. ca/dal 1, dal 2, dal 3, dal 4 – Choose name, theme, content • Choose two schemes: – With exact specifics, numbers, images etc • Choose research plan: – Consider password space – Consider research question: • E. g. Effect of schemes, sizes, images, etc. – Consider criteria: • Memorability, entry time, appeal, etc. – Consider metrics: • How to evaluate criteria Biddle: MVP 36
