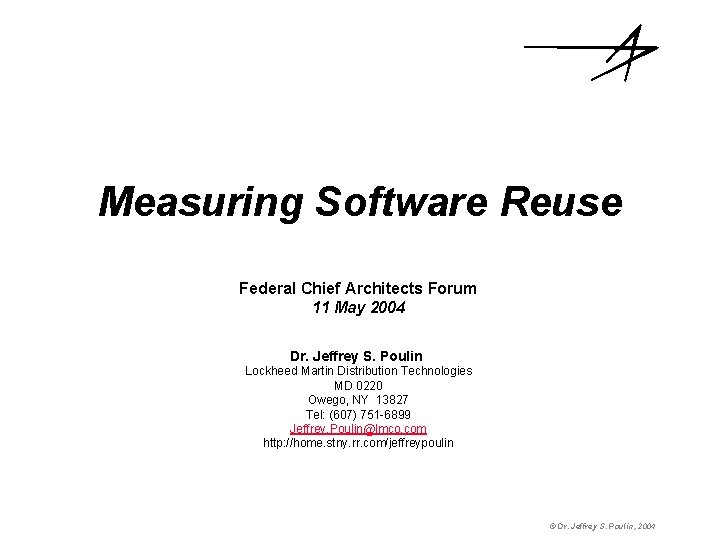

Measuring Software Reuse Federal Chief Architects Forum 11 May 2004 Dr. Jeffrey S. Poulin Lockheed Martin Distribution Technologies MD 0220 Owego, NY 13827 Tel: (607) 751 -6899 Jeffrey. Poulin@lmco. com http: //home. stny. rr. com/jeffreypoulin © Dr. Jeffrey S. Poulin, 2004

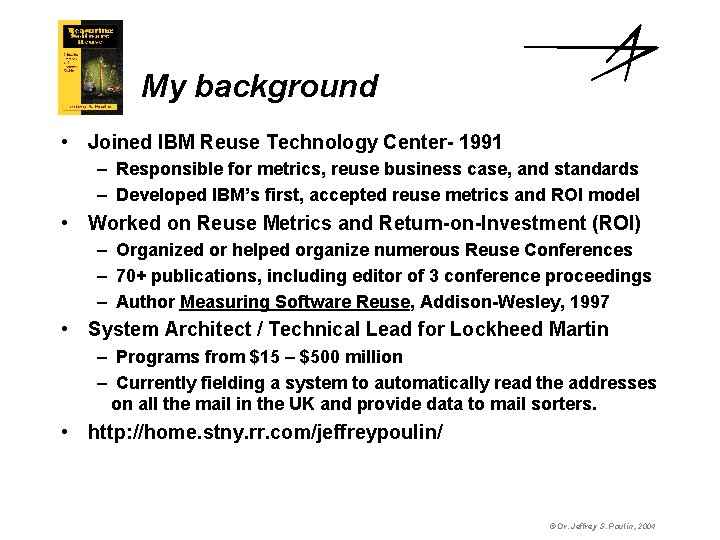

My background • Joined IBM Reuse Technology Center- 1991 – Responsible for metrics, reuse business case, and standards – Developed IBM’s first, accepted reuse metrics and ROI model • Worked on Reuse Metrics and Return-on-Investment (ROI) – Organized or helped organize numerous Reuse Conferences – 70+ publications, including editor of 3 conference proceedings – Author Measuring Software Reuse, Addison-Wesley, 1997 • System Architect / Technical Lead for Lockheed Martin – Programs from $15 – $500 million – Currently fielding a system to automatically read the addresses on all the mail in the UK and provide data to mail sorters. • http: //home. stny. rr. com/jeffreypoulin/ © Dr. Jeffrey S. Poulin, 2004
How do you start a Reuse Metric Program? • What are your goals? • What data do you have readily available? • Are the metrics you are considering simple and understandable? • Do your developers understand what future applications should “look like”? • Do your developers understand what components are available, how to find them, and how to use them? • How will you drive technical, organizational, and cultural change? © Dr. Jeffrey S. Poulin, 2004
Today’s Objectives 1. Convince you of the value of reuse! 2. Convince you it can be done. • Metrics and Motivators (“Governance”) • Payback- ROI (“RCR, ” “RCWR”, “Cultural Motivators”) • Barriers/Challenges • Organizing for Reuse • Case Studies / Questions © Dr. Jeffrey S. Poulin, 2004
Estimating the Value of Reuse © Dr. Jeffrey S. Poulin, 2004
Cost-Benefit Analysis C-B analysis requires assigning values to all known costs and benefits, including intangible items (e. g. , quality), summing the values, and applying a discount factor depending on the time period of the analysis. * * Poulin, Jeffrey S. , Debera Hancock and Joseph M. Caruso, “The Business Case for Software Reuse, ” IBM Systems Journal, Vol. 32, No. 4, 1993, pp. 567 -594. © Dr. Jeffrey S. Poulin, 2004
Cost-Benefit Analysis of Reusing Software Table: Benefits of Reusing Software © Dr. Jeffrey S. Poulin, 2004
Cost-Benefit Analysis of Reusing Software (cont. ) Table: Costs of Reusing Software © Dr. Jeffrey S. Poulin, 2004
Cost-Benefit Analysis of Reusing Software (cont. ) Table: Benefits of Producing Reusable Software © Dr. Jeffrey S. Poulin, 2004
Cost-Benefit Analysis of Reusing Software (cont. ) Table: Costs of Producing Reusable Software © Dr. Jeffrey S. Poulin, 2004
The Relative Cost of Reusing Software (RCR) Reuse does not come for free. The reuser must: 1. 2. 3. 4. 5. Locate Understand Integrate System test etc. with the reused component. However, reuse typically only takes about 20% of the effort of writing the same component from scratch. In this case, the relative cost to reuse the component equals 0. 2, and we have saved 80% of the development effort. Definition: Assume the cost to develop a new component equals one unit of effort. We call the portion of this effort that it takes to reuse a similar component without modification (black-box reuse) the Relative Cost of Reuse (RCR). © Dr. Jeffrey S. Poulin, 2004
The Range of Values for RCR Table: Summary of Relative Cost of Reuse (RCR) Values Recommended Default Value for RCR=. 2 © Dr. Jeffrey S. Poulin, 2004
The Relative Cost of Writing Reusable Software (RCWR) Writing reusable components requires additional effort beyond simply writing a component for one-time use. The reuse producer must: 1. 2. 3. 4. 5. Generalize for additional requirements Add more detailed documentation Test to increase trust Test for additional potential uses Prepare the component for distribution It typically takes about 50% more effort to write a component for reuse than to write the same component for one-time use. In this case, the relative cost to write for reuse equals 1. 5. Definition: Assume the cost to develop a new component for one-time use equals one unit of effort. We call the portion of this effort that it takes to write a similar “reusable” component the Relative Cost of Writing for Reuse (RCWR). © Dr. Jeffrey S. Poulin, 2004
The Range of Values for RCWR Table: Summary of Relative Cost of Writing for Reuse (RCWR) Values Recommended Default Value for RCWR= 1. 5 © Dr. Jeffrey S. Poulin, 2004
Reuse Metrics that You can Use © Dr. Jeffrey S. Poulin, 2004
Recommended Reuse Metrics 1. Reuse% © 2. Reuse Cost Avoidance (RCA) 3. Organizational ROI (ROIorg) © Dr. Jeffrey S. Poulin, 2004
1. Reuse% © Example: Your programming team developed and maintains 100 k LOC, and also uses 20 k LOC from an external source. Your team’s Reuse% equals: © Dr. Jeffrey S. Poulin, 2004
2. Reuse Cost Avoidance (RCA) Purpose: A Cost Avoidance metric used to show the financial benefit of reusing software to the individual project or team. RCA represents money you didn’t have to spend. We recognize cost avoidance: 1. 2. During development During service (i. e. , maintenance) © Dr. Jeffrey S. Poulin, 2004
2. Reuse Cost Avoidance (RCA) Reuse Cost Avoidance = Development Cost Avoidance + Service Cost Avoidance • Development: The benefits of reuse depend on the Relative Cost of Reuse (RCR). With an RCR=0. 2, reuse costs about 20% of the cost of new development. Therefore Development Cost Avoidance (DCA): DCA = RSI x (1 - RCR) x (New Code Cost) DCA = RSI x. 8 x (New Code Cost) • Service: Not having to fix errors results in a Service Cost Avoidance (SCA): SCA = RSI x (Your Error Rate) x (Your Error Cost) © Dr. Jeffrey S. Poulin, 2004
2. RCA Example • Development: If your development cost for new code equals $100 per line and your RCR = 0. 2, then your DCA for 20 k LOC RSI equals: Development Cost Avoidance = 20 k LOC x. 8 x $100 per line = $1. 6 million • Service: If your error rate for new code equals 1. 5 errors per k. LOC and if your cost to fix an error equals $10 k, then your SCA for 20 k LOC RSI equals: Service Cost Avoidance = 20 k LOC x 1. 5 errors per k. LOC x $10 k per error = $0. 3 million • Total Reuse Cost Avoidance: Reuse Cost Avoidance = DCA + SCA = $1. 6 million + $0. 3 million = $1. 9 million © Dr. Jeffrey S. Poulin, 2004
3. Organizational ROI Purpose: To show the total financial benefit to an organization from: 1. 2. Reusing software Building software to reuse • ROIorg = RCA - Additional Development Costs • Additional Development Costs (ADC) equals (the amount of source instructions you write for reuse by others) * (Relative Cost of Writing for Reuse - 1) * New Code Cost © Dr. Jeffrey S. Poulin, 2004
3. Organizational ROI Example • You have calculated your Reuse Cost Avoidance (RCA) (the net benefit of reuse) to equal $1. 9 million. However, you also invested extra effort in 16, 000 LOC Source Instructions Written for Reuse by Others (WRO). With an RCWR = 1. 5, your Additional Development Cost (ADC) equals: ADC = WRO x (RCWR - 1) x New Code Cost ADC = 16 k LOC x (1. 5 - 1) x $100 per line = $. 8 million • Organizational ROIorg = RCA - ADC = $1. 9 million - $0. 8 million = $1. 1 million © Dr. Jeffrey S. Poulin, 2004

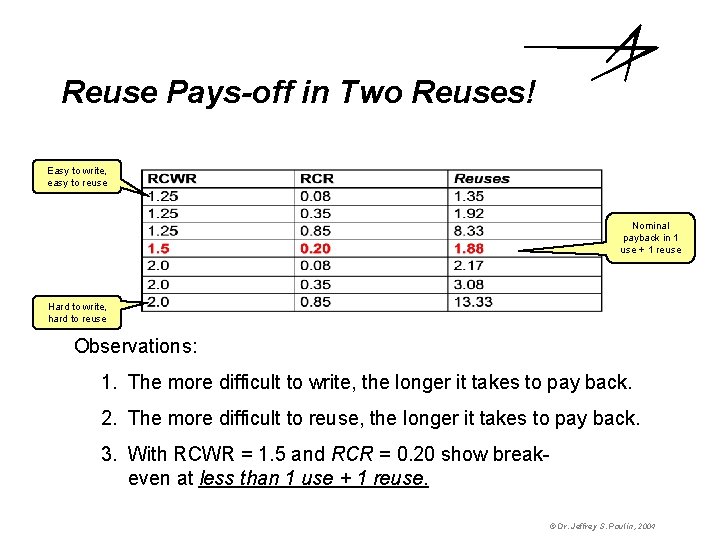

Reuse Pays-off in Two Reuses! Easy to write, easy to reuse Nominal payback in 1 use + 1 reuse Hard to write, hard to reuse Observations: 1. The more difficult to write, the longer it takes to pay back. 2. The more difficult to reuse, the longer it takes to pay back. 3. With RCWR = 1. 5 and RCR = 0. 20 show breakeven at less than 1 use + 1 reuse. © Dr. Jeffrey S. Poulin, 2004
Defining Reuse with Metrics © Dr. Jeffrey S. Poulin, 2004

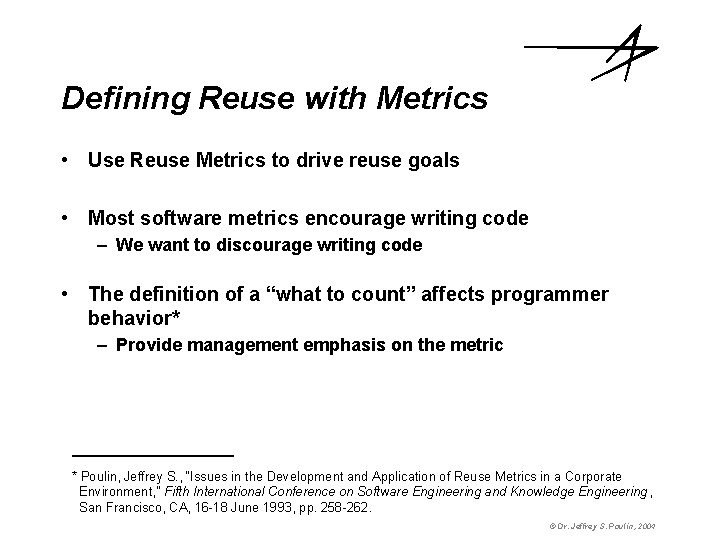

Defining Reuse with Metrics • Use Reuse Metrics to drive reuse goals • Most software metrics encourage writing code – We want to discourage writing code • The definition of a “what to count” affects programmer behavior* – Provide management emphasis on the metric * Poulin, Jeffrey S. , “Issues in the Development and Application of Reuse Metrics in a Corporate Environment, ” Fifth International Conference on Software Engineering and Knowledge Engineering , San Francisco, CA, 16 -18 June 1993, pp. 258 -262. © Dr. Jeffrey S. Poulin, 2004
Major Reuse Level Metric Models • Almost everyone reports “Percent Reuse: ” Reused Software Percent Reuse = Total Software – Easy to understand – Easy to calculate – De facto standard to communicate the level of reuse activity • No one defines what to count! © Dr. Jeffrey S. Poulin, 2004
The Boundary Problem © Dr. Jeffrey S. Poulin, 2004
Goal and Assumptions Goal: To promote formal reuse across organizations, not just to reward “good programming practice. ” Assumptions: 1. Informal reuse (software sharing) commonly happens within organizations 2. Sharing software between organizations happens less often 1, 2 1 Bollinger, T. B. , and Pfleeger, S. L. , “Economics of Reuse: Issues and Alternatives, ” Inf. Software Technology, Vol. 32, No. 10, December 1990, pp. 643 -52. 2 Kraut, Robert E. and Lynn A. Streeter, “Coordination in Software Development, ” Communications of the ACM, Vol. 38, No. 3, 1995, pp. 69 -81. © Dr. Jeffrey S. Poulin, 2004
Boundary example: Small Project Figure: Internal and External Reuse on a Small Project © Dr. Jeffrey S. Poulin, 2004
Boundary example: Large Project Figure: Internal and External Reuse on a Large Project © Dr. Jeffrey S. Poulin, 2004
Example Organization for Reuse Project Manager . . . Reuse Development Manager Development Manager Reuse Team REUORG. pre Figure: Organizing a Large Software Development Project for Reuse © Dr. Jeffrey S. Poulin, 2004
Program A • A planned suite of 80+ applications in seven domains, primarily in: 1. Resource Management, which contains 10 applications, 2. Logistics, which contains 13 applications. 3. Personnel, which contains 18 applications, and 4. Information Management, which contains 16 applications. • The Reuse Development Team created 30 domain-specific components to provide services to all (or most) applications. – Services included: Scheduling, Progress Status, Electronic Signature, Help, Business Graphics, Data Validation, Access Control, Mail Interface, File Transfer, Audit Trail, Print, etc. – These comprise almost 20% of the software in the first release – Reuse Cost Avoidance of approximately $7 million. © Dr. Jeffrey S. Poulin, 2004
Program A • In addition, the program obtained and used (without modification) components from Customer-supplied sources. • Resulted in Reuse Cost Avoidance (RCA) of > $1. 9 million. * * Army Reuse Center (ARC), "Reuse Benefits Continue to Add Up, " The Army Reuse Center News, Vol. 3, No. 3, October 1994, p. 3. © Dr. Jeffrey S. Poulin, 2004
“What do we Count? ” © Dr. Jeffrey S. Poulin, 2004
Example: Measuring “uses” vs “reuses” • A project reported 11 k LOC of reuse • 5120 lines came from one 10 -line reusable macro in the same module • The original code: 1 Do i : = 1 to 512 MACRO ( i ); 2 “Unrolled” to yield: MACRO ( 1 ); MACRO ( 2 ); MACRO ( 3 ); MACRO ( 4 ); MACRO ( 5 ); MACRO ( 6 ); . . . MACRO ( 509 ); MACRO ( 510 ); MACRO ( 511 ); MACRO ( 512 ); 1 Should be counted as 2 source instructions and 10 reused instructions. 2 Was reported as 512 source instructions and 5120 reused instructions. © Dr. Jeffrey S. Poulin, 2004
Example: Measuring Generated Code • Situation: – – – • A development team used a “WYSIWYG” tool to lay out a large number of window-based forms that input and extract data from a Human Resources database. The tool generated 97, 000 lines of “C” and “Java” to implement the X-window interface and database interactions. The team added 6, 000 lines of “C” to implement the company’s unique business logic. The team reported: – – Producing 103, 000 lines of code A reuse level of “ 94%” 1 Should be counted as 97, 000 lines of generated plus 6, 000 lines of new source instructions. 2 No reuse; reuse would be based on the 6, 000 lines of new development. © Dr. Jeffrey S. Poulin, 2004
Example: Measuring “white-box” vs “black-box reuse” “White-box” reuse saves a little effort here. . . Development Maintenance “Black-box” reuse saves a lot of effort here. . . plus here Figure: The benefits of reusing without modification dwarf those obtainable by modifying the software. © Dr. Jeffrey S. Poulin, 2004
Why you should discourage “white-box” reuse - How do we measure the extent of the modification? Did the programmer modify 1% or 99% of the component? - What benefits did we receive? Modifying can cost more than writing the new code!* Cost Relative to Totally New Code 2. 0 ase t. C rs Wo 1. 5 Breakeven 1. 0 t es B 0. 5 se Ca Reuse Saves Money 0. 0 0. 5 Fraction of Code Modified 1. 0 Example: Reusing Software is Not Always Cost-Effective. Figure: The Relative Costs of White-box Reuse * Stutzke, Richard D. , “Software Estimating Technology: A Survey, ” Crosstalk: The Journal of Defense Software Engineering, Vol. 9, No. 5, May 1996, pp. 17 -22. © Dr. Jeffrey S. Poulin, 2004
Conclusion: Being clear about “what to count” is essential! • Define what you want to happen • Measure the benefits of what happens • Provide an equitable basis for incentives © Dr. Jeffrey S. Poulin, 2004
A Reuse Strategy for Large Organizations © Dr. Jeffrey S. Poulin, 2004
The Three Classes of Software Application “Application. Specific” Layer Intel App#1 Intel App#2 Components Citicorp App#1 Citicorp App#2 Components Allstate App#1 Allstate App#2 100% Components up to 85% “Domain. Dependent” Layer “Domain. Independent” Layer Microprocessor Business Components Financial Business Components Insurance Business Components 15 -20% General-purpose utilities, APIs, Abstract Data Types, System Service Components 0% © Dr. Jeffrey S. Poulin, 2004
An Reuse Strategy for Large Organizations • Phase I: Pilot Domain-Independent Reuse – – Provide low-level, commonly “re-used” assets Make the assets widely available Establish procedures to manage, control, encourage their use Set a goal of 15 -20% reuse based on these assets • Phase II: Expand into Domain-Dependent Reuse – Incrementally identify and create assets that are core to your business – Focus on components needed by at least two projects – Build on the procedures established in Phase I – Set higher (but realistic goals) © Dr. Jeffrey S. Poulin, 2004
Multi-tiered Web Architecture (J 2 EE) App#1 App#2 I. T. Business Components App#1 App#2 Financial Business Components App#1 App#2 Insurance Business Components General-purpose utilities, APIs, Abstract Data Types, System Service Components © Dr. Jeffrey S. Poulin, 2004
Multi-tiered Web Architecture (. NET) App#1 App#2 I. T. Business Components App#1 App#2 Financial Business Components App#1 App#2 Insurance Business Components General-purpose utilities, APIs, Abstract Data Types, System Service Components © Dr. Jeffrey S. Poulin, 2004
Project R • “I've read your material and used your metrics calculations in presenting the case for a companysponsored and sanctioned software reuse mandate…” • “I've been spearheading the effort to gain widespread acceptance…” • “When it comes to "making the numbers", they don't want to drink the Kool-Aid. ” • “I'm trying to fortify the justification for creating a team of engineers to manage, maintain, harvest, acquire, and develop software components that can be used across the [xxx] brand…[using] the ROI for a single common component. ” © Dr. Jeffrey S. Poulin, 2004
Conclusion 1. Reuse is undeniably valuable to your organization! • The ROI is ~80% on whatever you reuse (code, patterns, documents) 2. Reuse can be done! • Metrics help provide incentive • Organizational boundaries inhibit reuse • A common architecture provides the framework • Organize, plan, and provide tools that reduce the boundaries! • Start with low-level components – then Grow components that are important to your business! © Dr. Jeffrey S. Poulin, 2004
