Maine Marine Composites LLC Advanced Engineering Analysis 2
- Slides: 28
Maine Marine Composites LLC: Advanced Engineering Analysis 2 Portland Fish Pier, Suite 211 Portland, ME 04101 -4699 Voice: 207. 774. 9616 Fax: 207. 221. 1416 Email: info@mainemarinecomposites. com
Who We Are… MMC was founded in 2006 Four employees, two+ associates MMC Specializes in: Engineering analyses of barges, boats, ships Design, stability, performance, seakeeping Engineering analyses of offshore energy systems Hydrokinetic energy systems (waves, tidal – moving water) Platforms for offshore wind systems Support vessels for offshore wind systems
What We Do: Marine Seakeeping Analyses: Analyze barge motion for lashing design Find accelerations, check strength of cargo restraints
What We Do: Performance Analysis for High Speed Boats Develop/Market POWERSEA Time-Domain Simulator Performance, stability, shock/vibration

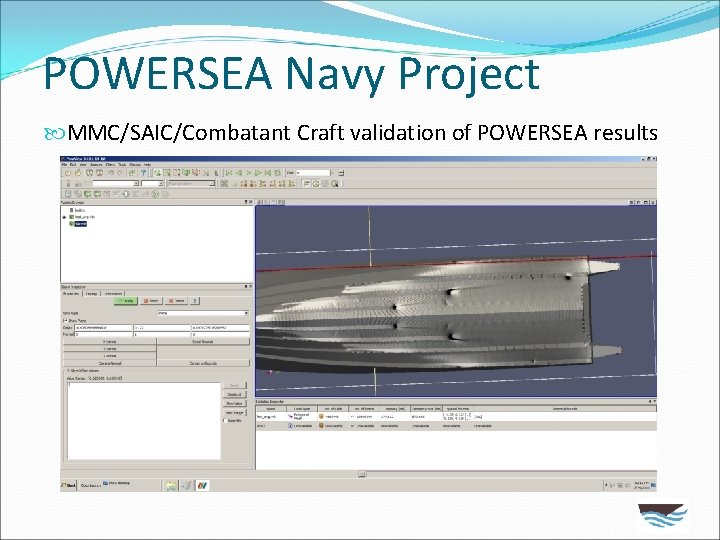

POWERSEA Navy Project MMC/SAIC/Combatant Craft validation of POWERSEA results
What We Do: Instrumentation for Marine Environment Measure hydrodynamic loads on moored and fixed structures Measure shock and vibration on high speed craft Collect oceanographic data for offshore energy site evaluation Figure Tekscan A 201 Standard Flexi. Force® Sensors
Demonstration Project: Single-Point Wave Energy Converter Buoy moves vertically (heave motion) Air is compressed in center pipe Drives turbine to create electricity Efficiency depends on relative heave motion of WEC If WEC moves up when water goes down, get maximum compression Design Issues John Brooke, Vice-President, Engineering Committee on Oceanic Resources, Wave Energy Conversion, 2003. Mooring system Sea State Response (RAO)
“Typical” Wave Energy Converter (Oscillating Water Column) University of Wisconsin Madison Nicole Johnson & Eric Olson. CEE 514: Final Project http: //owcwaveenergy. weebly. com/

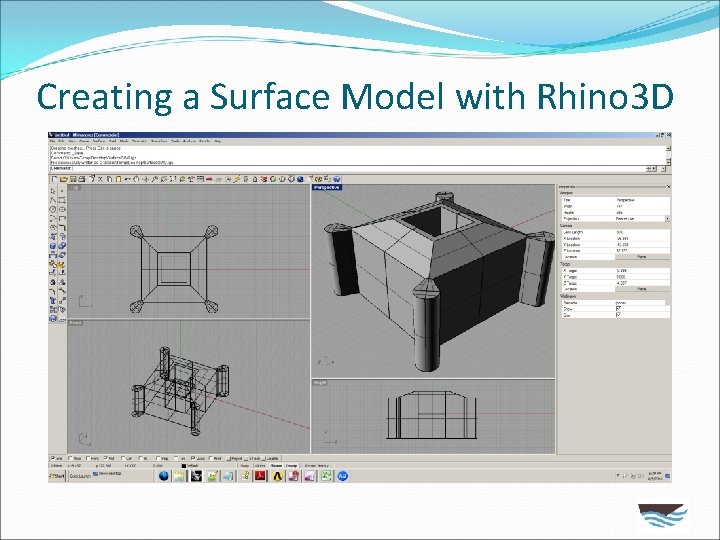

Creating a Surface Model with Rhino 3 D
Building AQWA Model Import Rhino 3 D model (IGES) into ANSYS Design Modeler Create surfaces, waterline cutplane Calculate hydrodynamic diffraction using AQWA (potential flow theory)
“Meshing” for AQWA Analysis

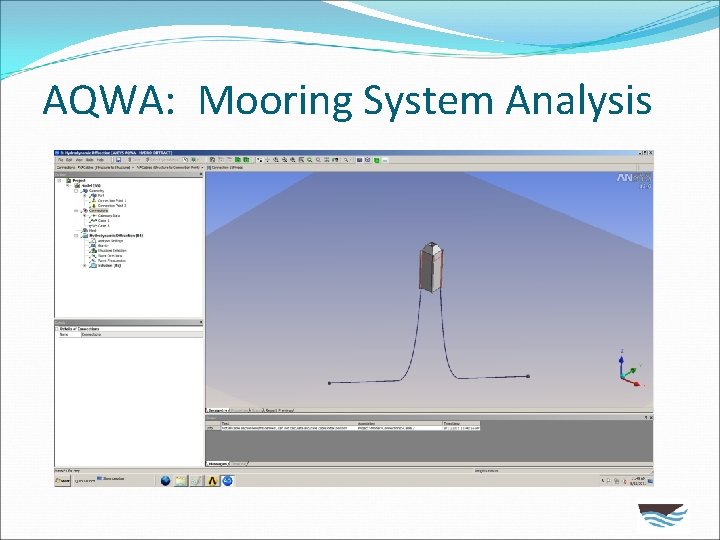

AQWA: Mooring System Analysis

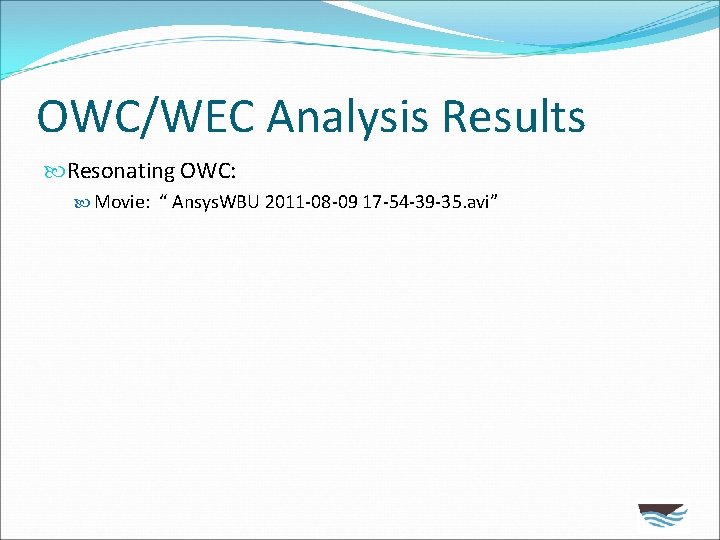

OWC/WEC Analysis Results Resonating OWC: Movie: “ Ansys. WBU 2011 -08 -09 17 -54 -39 -35. avi”

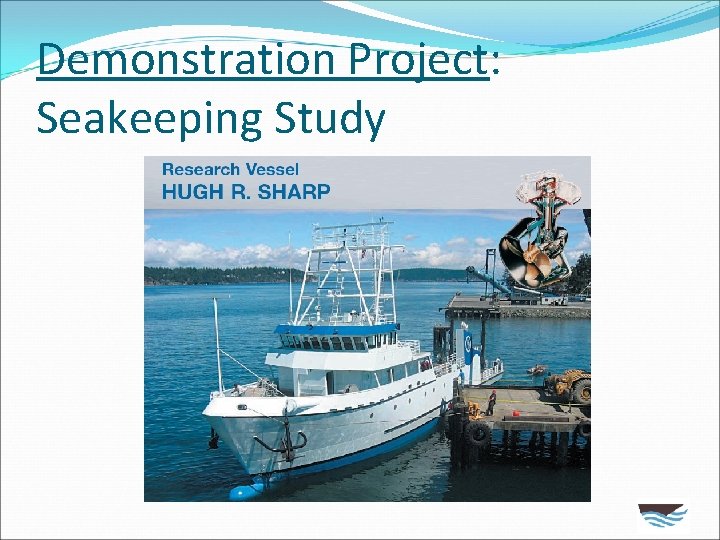

Demonstration Project: Seakeeping Study

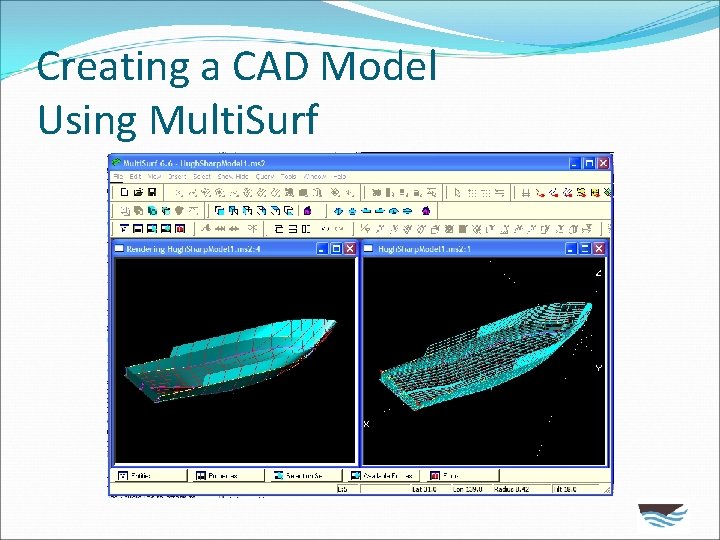

Creating a CAD Model Using Multi. Surf

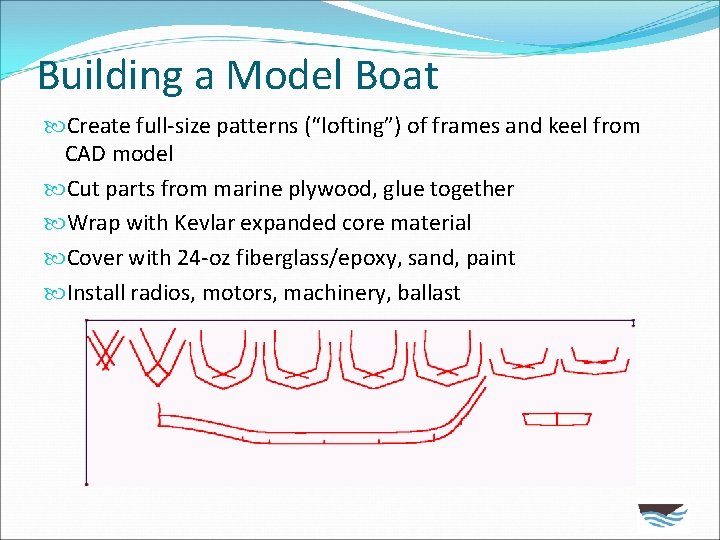

Building a Model Boat Create full-size patterns (“lofting”) of frames and keel from CAD model Cut parts from marine plywood, glue together Wrap with Kevlar expanded core material Cover with 24 -oz fiberglass/epoxy, sand, paint Install radios, motors, machinery, ballast
Free-Running Radio-Controlled Model • R/C Model of R/V Hugh R. Sharp, Univ. of Delaware • Twin Schottel Rudderpropulsors • Forced roll mechanism to test seakeeping • Inertial Measurement Unit (IMU) to capture motion

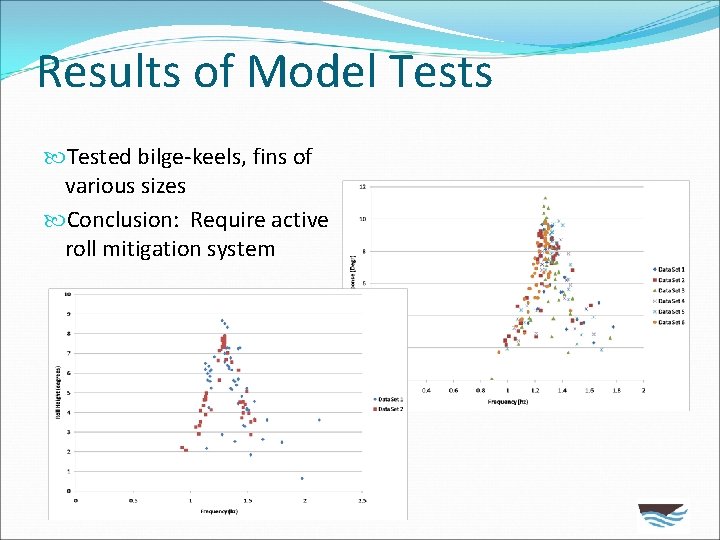

Results of Model Tests Tested bilge-keels, fins of various sizes Conclusion: Require active roll mitigation system

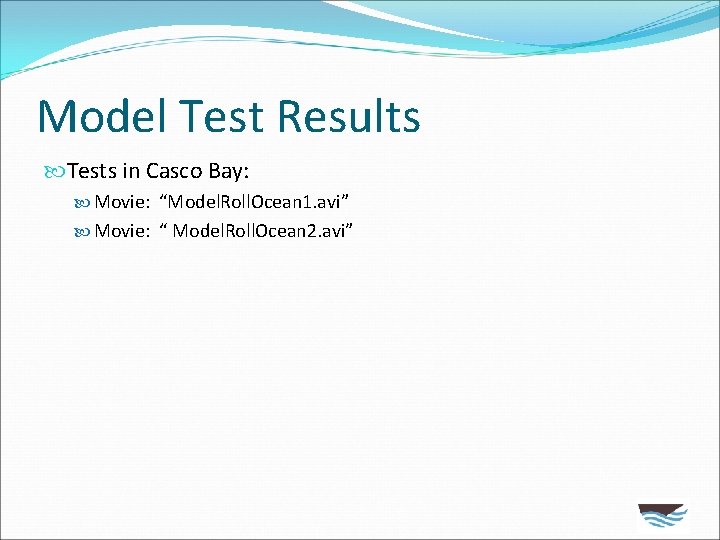

Model Test Results Tests in Casco Bay: Movie: “Model. Roll. Ocean 1. avi” Movie: “ Model. Roll. Ocean 2. avi”
Using ANSYS AQWA for Seakeeping Create Multi. Surf/Rhino 3 D model of R/V Hugh R. Sharp
AQWA: Analysis of Research Vessel

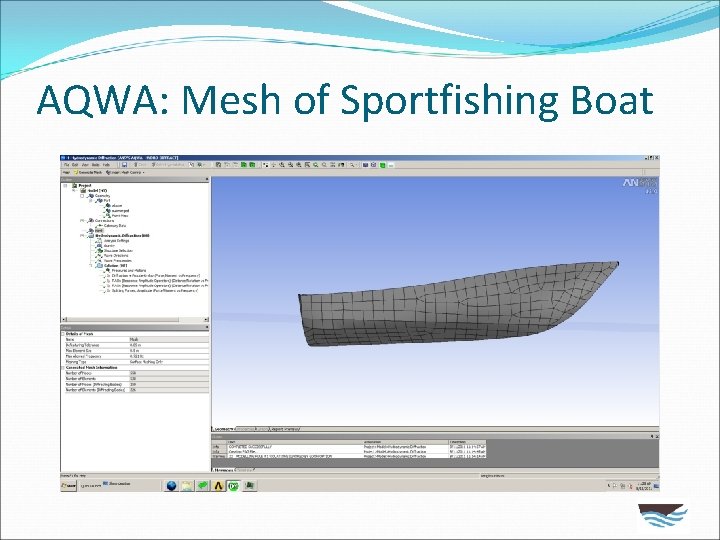

AQWA: Mesh of Sportfishing Boat

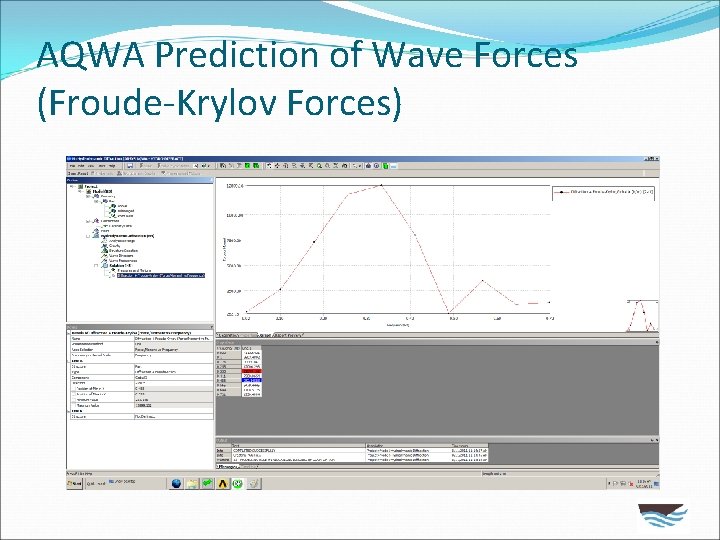

AQWA Prediction of Wave Forces (Froude-Krylov Forces)
AQWA: Roll Rotation vs. Heading and Wave Frequency
AQWA: Wave Field Oblique Sea, Non-Linear Waves

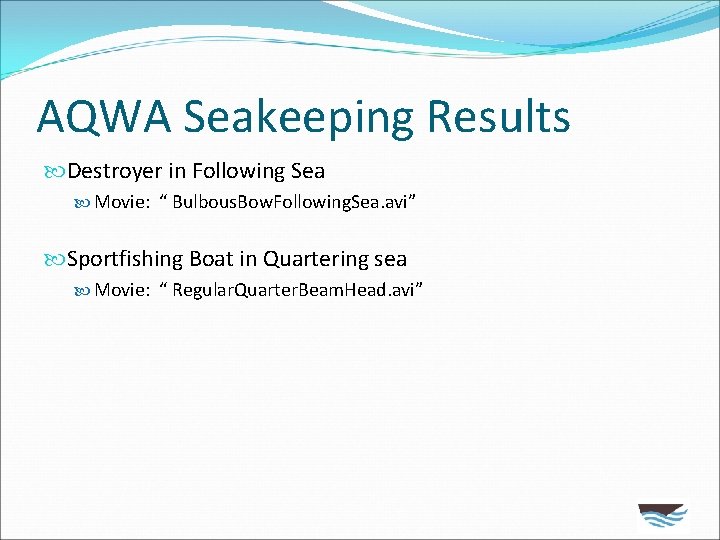

AQWA Seakeeping Results Destroyer in Following Sea Movie: “ Bulbous. Bow. Following. Sea. avi” Sportfishing Boat in Quartering sea Movie: “ Regular. Quarter. Beam. Head. avi”
Conclusions ANSYS software tools can be used to solve real-world problems in the marine industry MMC offers advanced design and analysis services Experienced with sophisticated analysis tools Expertise in hydrodynamics, marine design and analysis
Thanks for Listening… Any Questions?
