Long CTO Case Treated with Gaia Wire Showa
- Slides: 26
Long CTO Case Treated with Gaia Wire Showa University Fujigaoka Hospital Kohei Wakabayashi
Kohei Wakabayashi, MD, Ph. D I/we have no real or apparent conflicts of interest to report.
Gaia Wire specification/structure/performance Total Length 1900 mm Slip Coating Length 400 mm Coil Length 150 mm 0. 014 inch First: 0. 010 inch Second: 0. 011 inch Two types of wire Gaia First Diameter : 0. 010 - 0. 014” Tip load : 1. 5 gf Gaia Second Diameter : 0. 011 - 0. 014” Tip load : 3. 5 gf PTFE
Gaia Wire specification/structure/performance 4 straight tapered Gaia First 15 mm 30 mm Gaia Second 6 mm 30 mm
61 yrs, Male # Congestive Heart Failure # Stroke # Dyslipidemia # Chronic obstructive pulmonary disease (former smoker 20 x 30 yrs) The patient had dyspnea on effort from Sep, 2012. He was admitted because of stroke 6 th, Oct. He also had congestive heart failure.

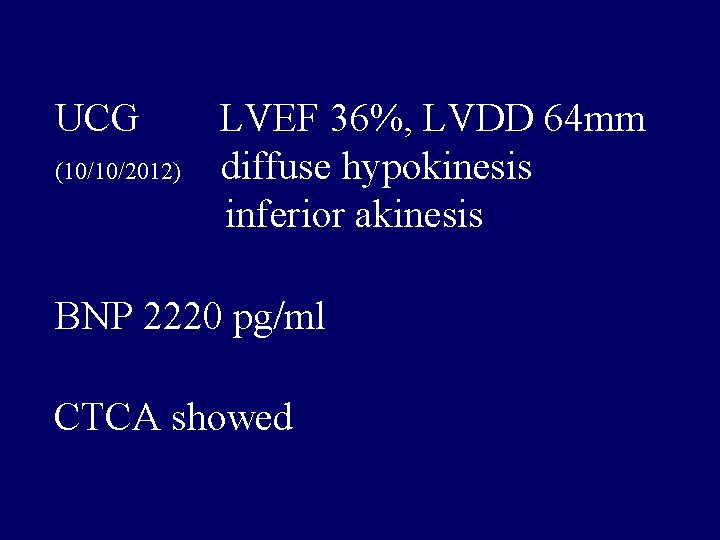

UCG (10/10/2012) LVEF 36%, LVDD 64 mm diffuse hypokinesis inferior akinesis BNP 2220 pg/ml CTCA showed
RCA #2 long CTO LAD #6 90% LCX #13 90%
PCI for long CTO CABG
XT-R Gaia-First Gaia-Second with Corsair

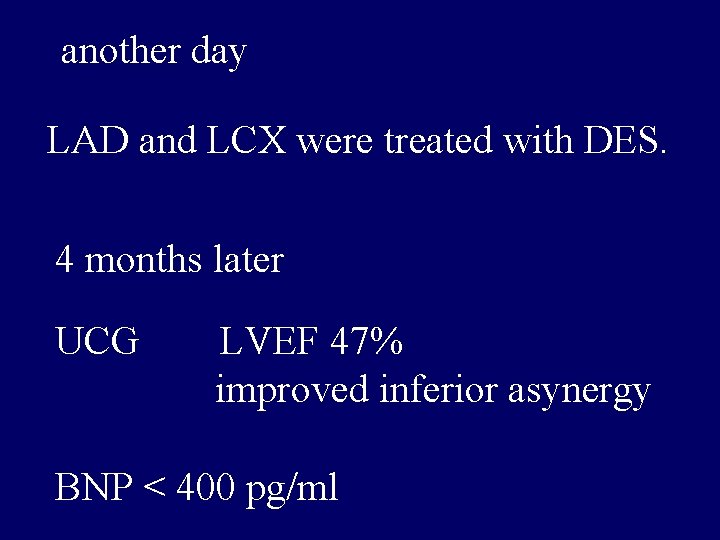

another day LAD and LCX were treated with DES. 4 months later UCG LVEF 47% improved inferior asynergy BNP < 400 pg/ml
Conventional CTO wires Soft wire : to find micro channel and cross Hard wire : to cross calcified lesion When the lesion was not straight, it was difficult to change the direction.
Confianza Straight ○ Curved or winding X

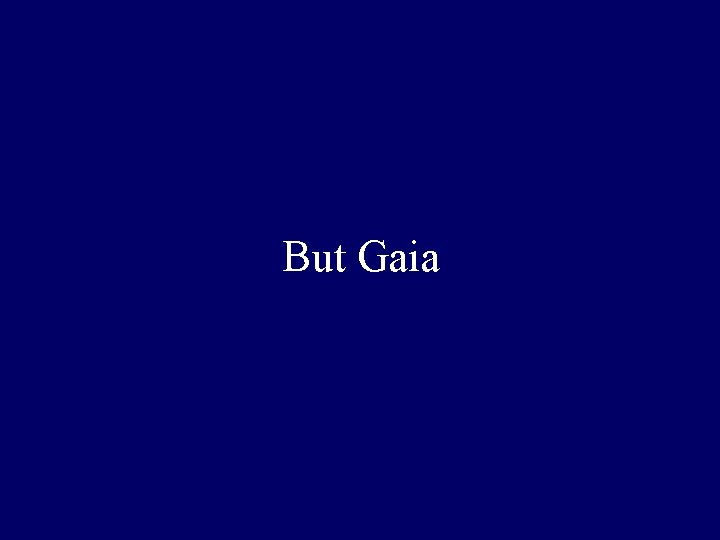

But Gaia
Torque force GW Test Method
Initial torque response / 180° GW R=3 mm CCW

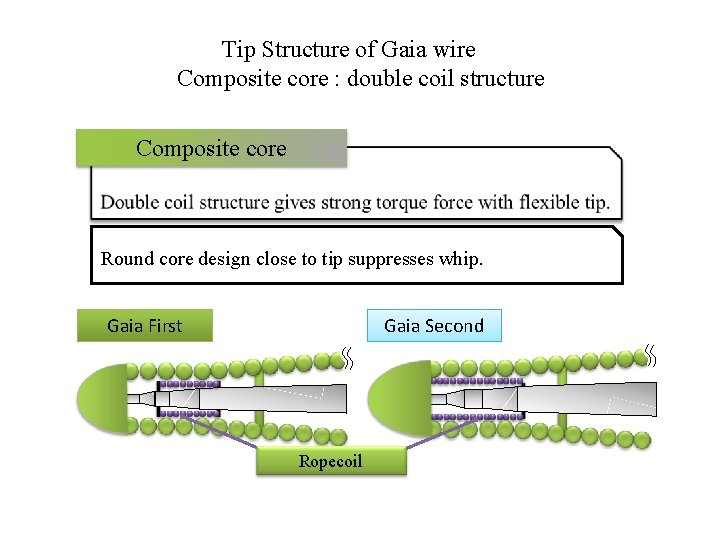

Tip Structure of Gaia wire Composite core : double coil structure Composite core Round core design close to tip suppresses whip. Gaia First Gaia Second Ropecoil
Micro cone-tip Gaia micro-cone tip To keep flexibility of tip and penetration force 0. 010” / 0. 011” Gaia micro-cone tip Conventional wire tip
Rotation correct route Rotation Different technique to cross CTO lesion Easy to change the direction and cross
Conclusion Gaia, new generation wire, may revolute CTO treatment.
